Fish Passage Site 20703787

Coordinates (dec. deg.): 57.83256°, -152.63115°
Legal Description: S027S021W14
Region: Southwest
Road Name: Anton Larson Bay Road

Datum: NAD83
Quad Name / ITM: Kodiak D-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Jul 23, 2018

Survey UPDATE-KOD35

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Comments: Site information and photos submitted by Will Frost ADF&G Habitat Biologist. Juvenile Coho salmon trapped upstream of culvert. Creek has been nominated to the AWC.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 4
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

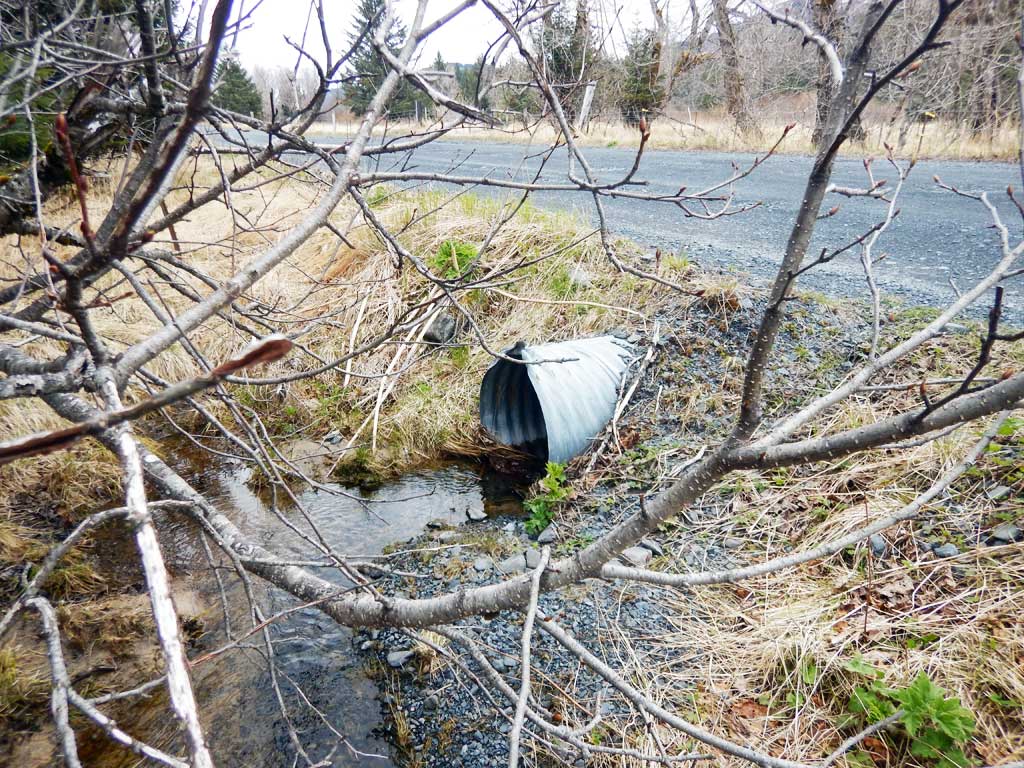

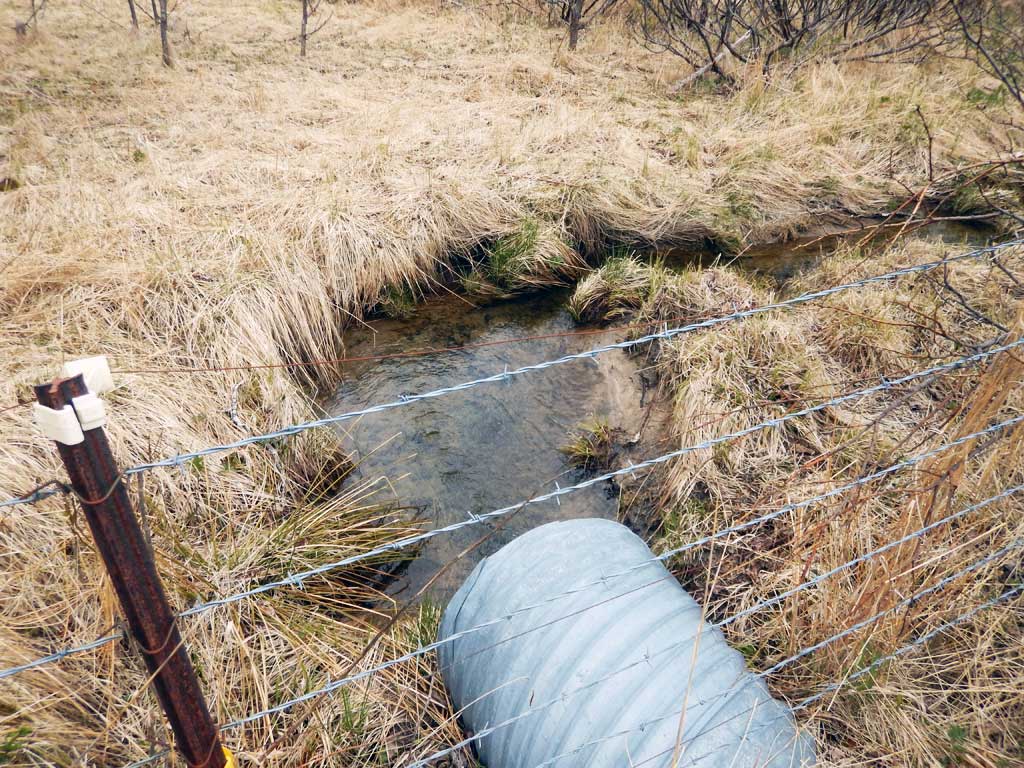

Comments: Culvert diameter estimated to be about 2 feet. Cuvlert length estimated using aerial imagery to be about 35 ft.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A)

Fish Observations

Species: juvenile coho salmon Life History: Anadromous
Total Fish Observed: 5 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Upstream Minnow Trap (5)
