Fish Passage Site 20703778

Coordinates (dec. deg.): 57.71741°, -152.56542°
Legal Description: S028S020W29
Region: Southwest

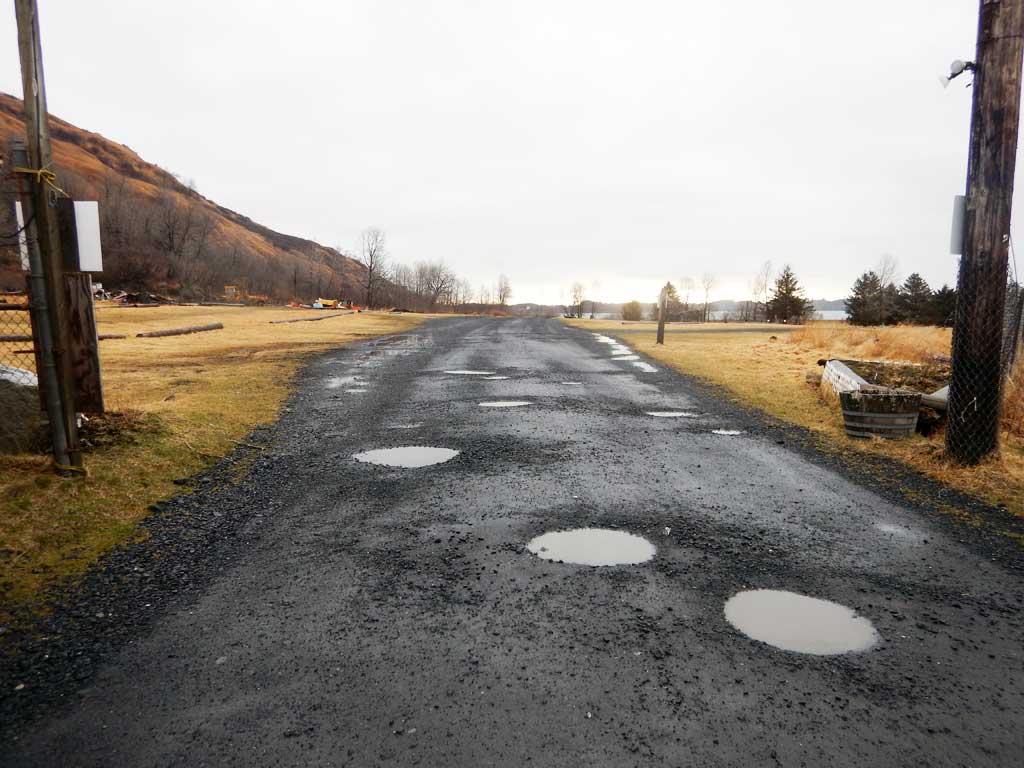

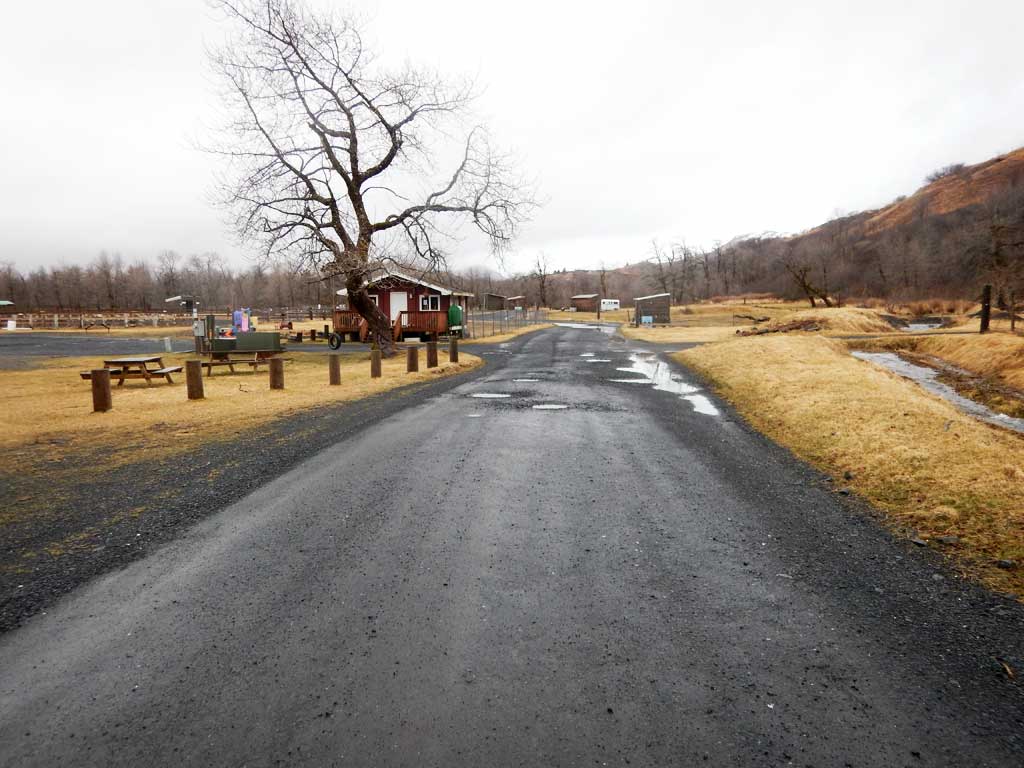

Road Name: Kodiak Fairgrounds

Datum: NAD83
Quad Name / ITM: Kodiak C-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Apr 12, 2018

Survey UPDATE-KOD34

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:

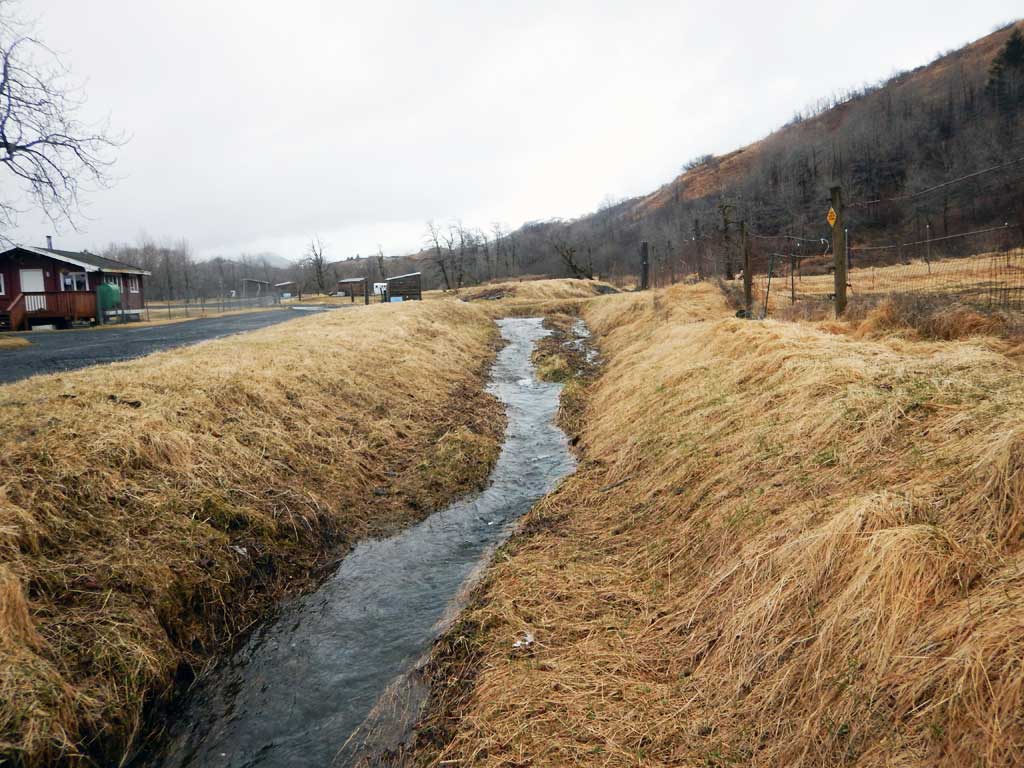

Comments: Site and photos submitted by Will Frost, Habitat Biologist, ADFG. Stream is cataloged downstream, but highway culvert is likely a fish passage barrier.

Culvert Measurements

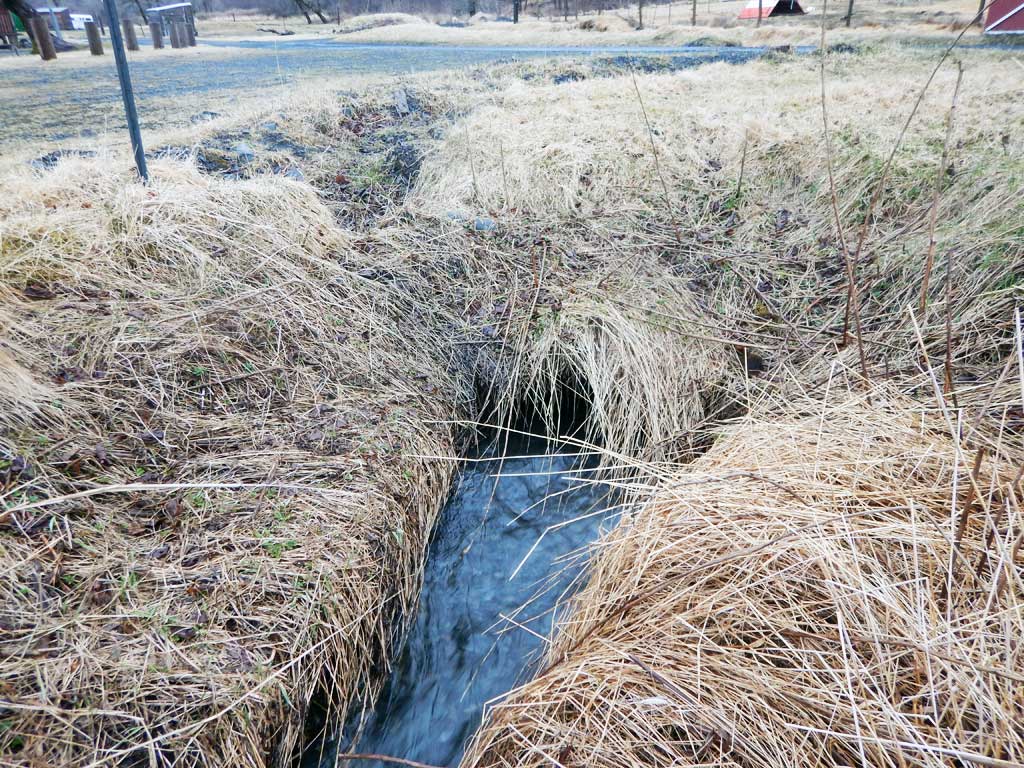

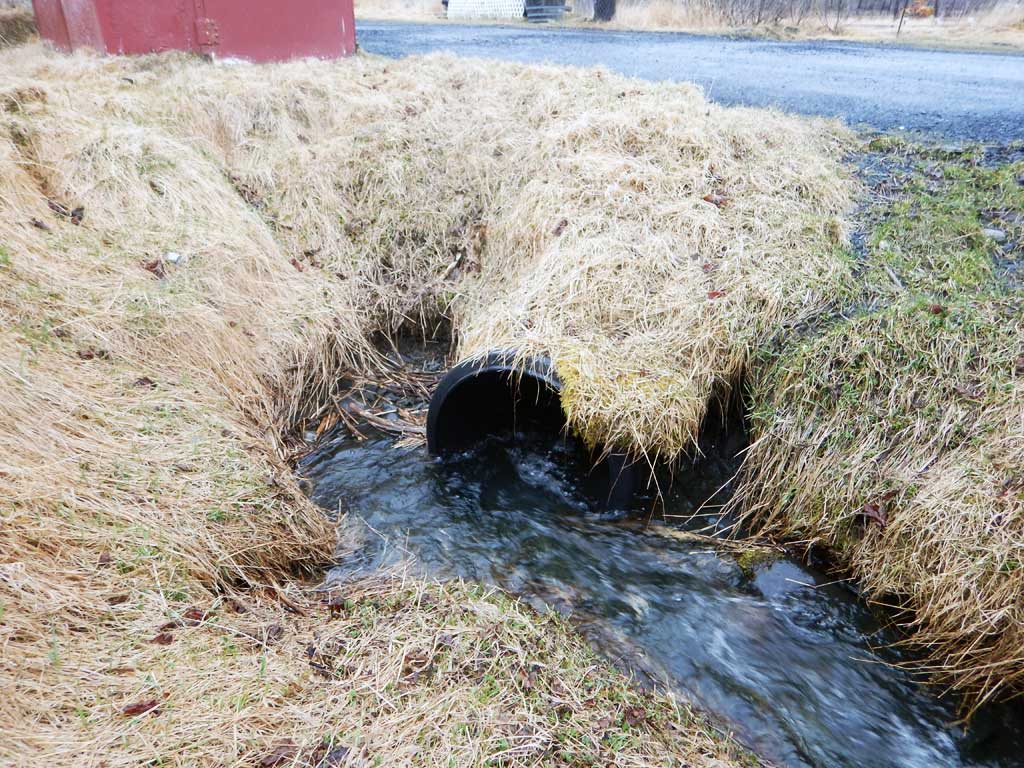

ID: 1 Structure Type: Circular pipe (Corrugated plastic) Fish Passage Rating: Black

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 4
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Cuvlert diameter estimated to be 2.5 ft.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
