Fish Passage Site 20703717

Coordinates (dec. deg.): 57.63417°, -152.52898°
Legal Description: S029S020W29
Region: Southwest

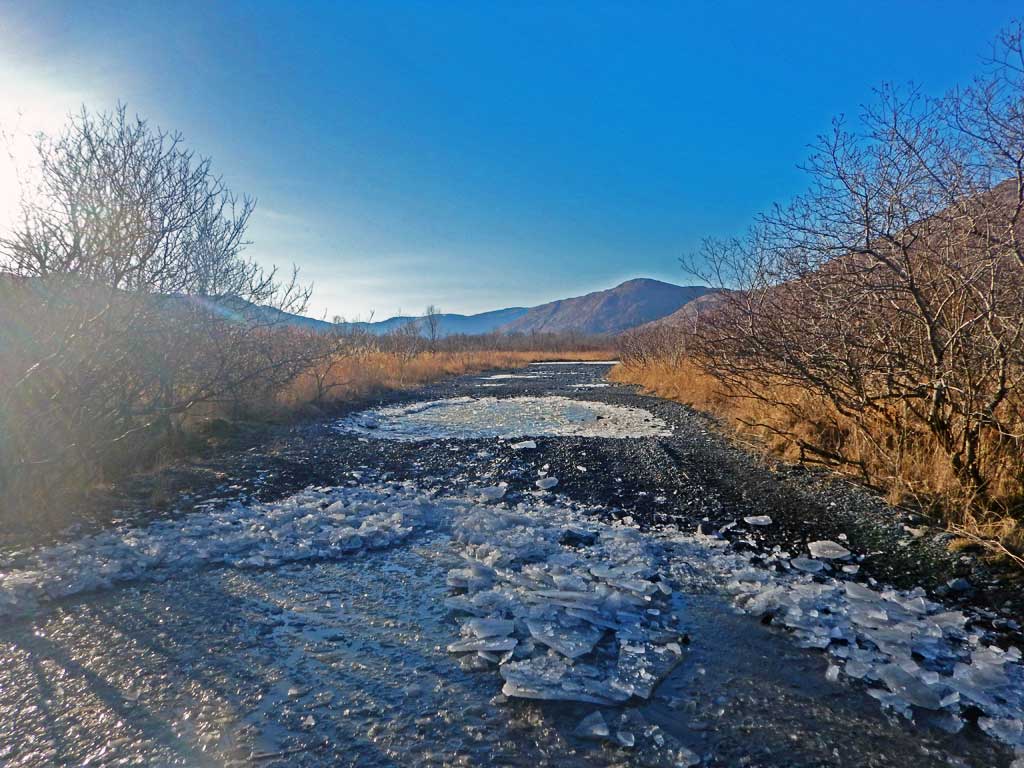

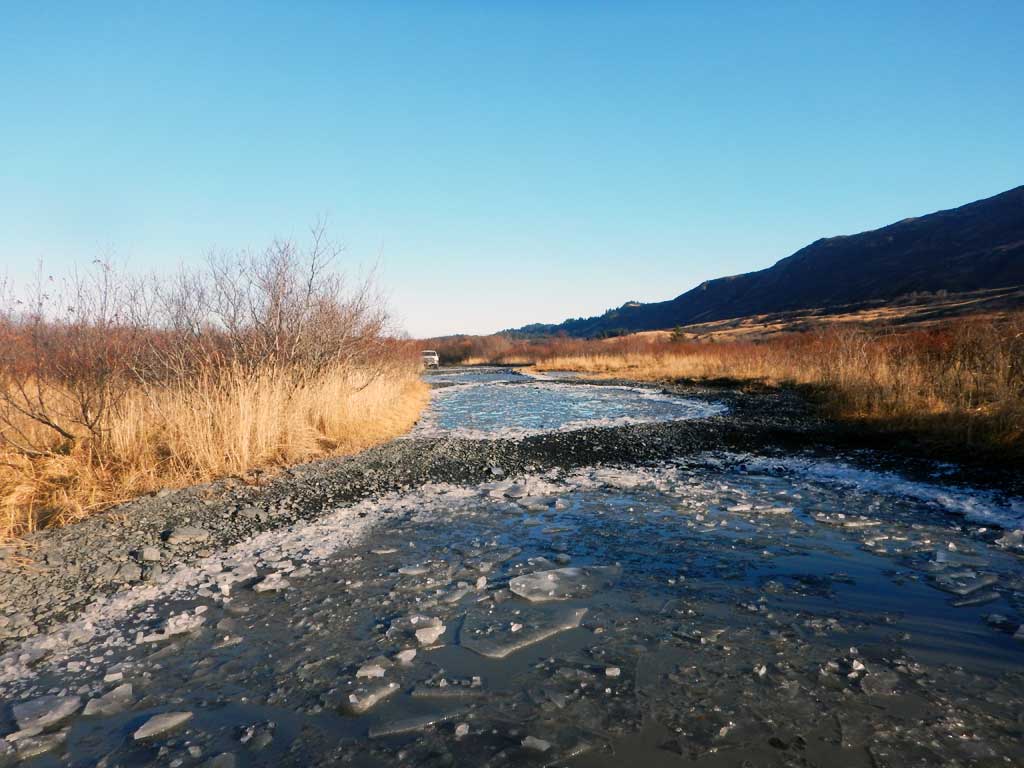

Road Name: Saltry Cove Road

Datum: NAD83
Quad Name / ITM: Kodiak C-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Nov 08, 2017

Survey UPDATE-KOD30

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: Maybe

Step Pools: No
Construction Year:


Comments: Site submitted by ADFG HB Will Frost. Water surface looks flat through culvert and upstream and downstream away from culvert. Culvert is undersized for creek, but it does not look like it is creating a barrier. Juvenile Coho observed and trapped upstream.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):

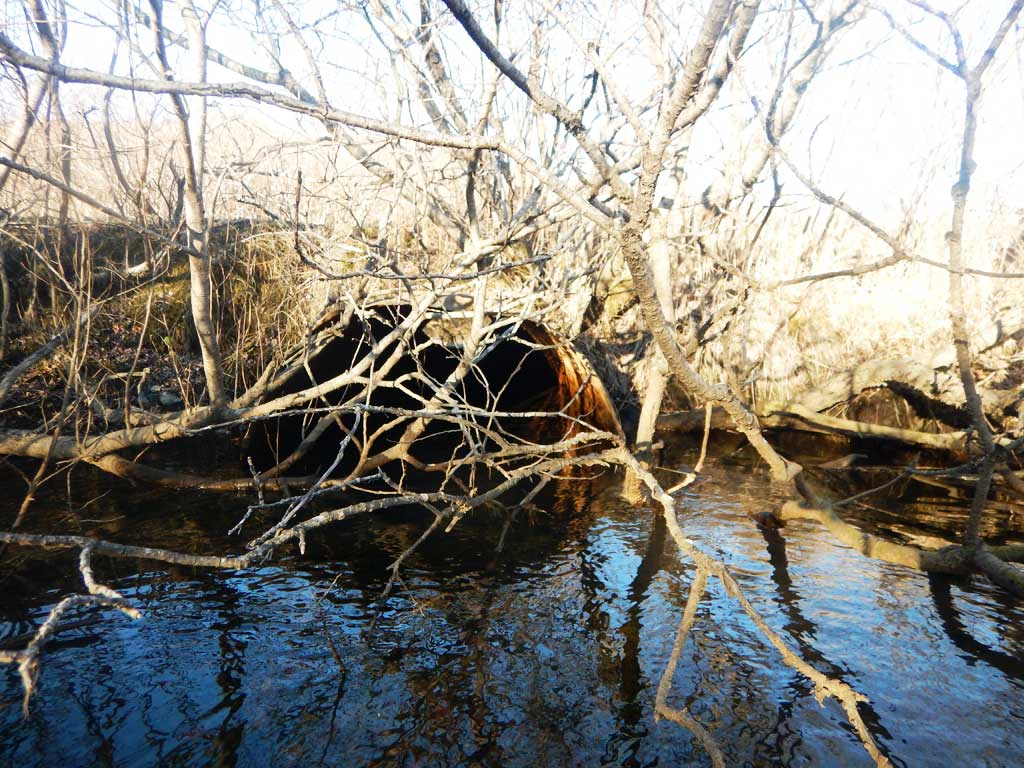

Inlet Type: Projecting

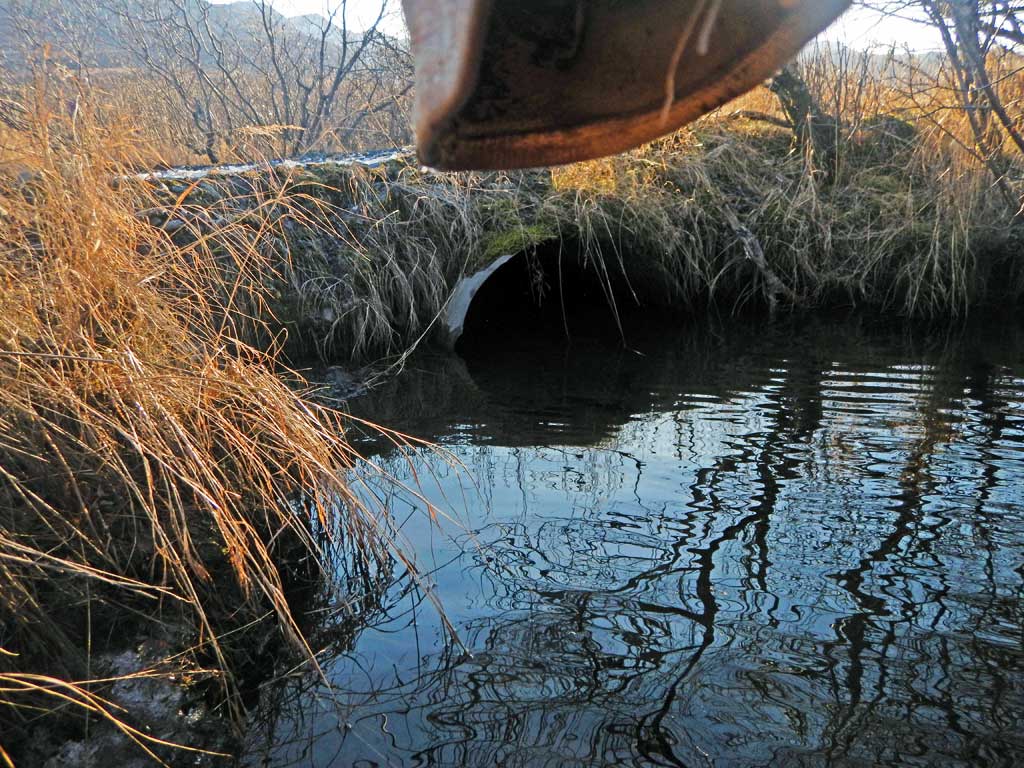

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: Maybe
Baffles Present: No
Embedded?: Unknown
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

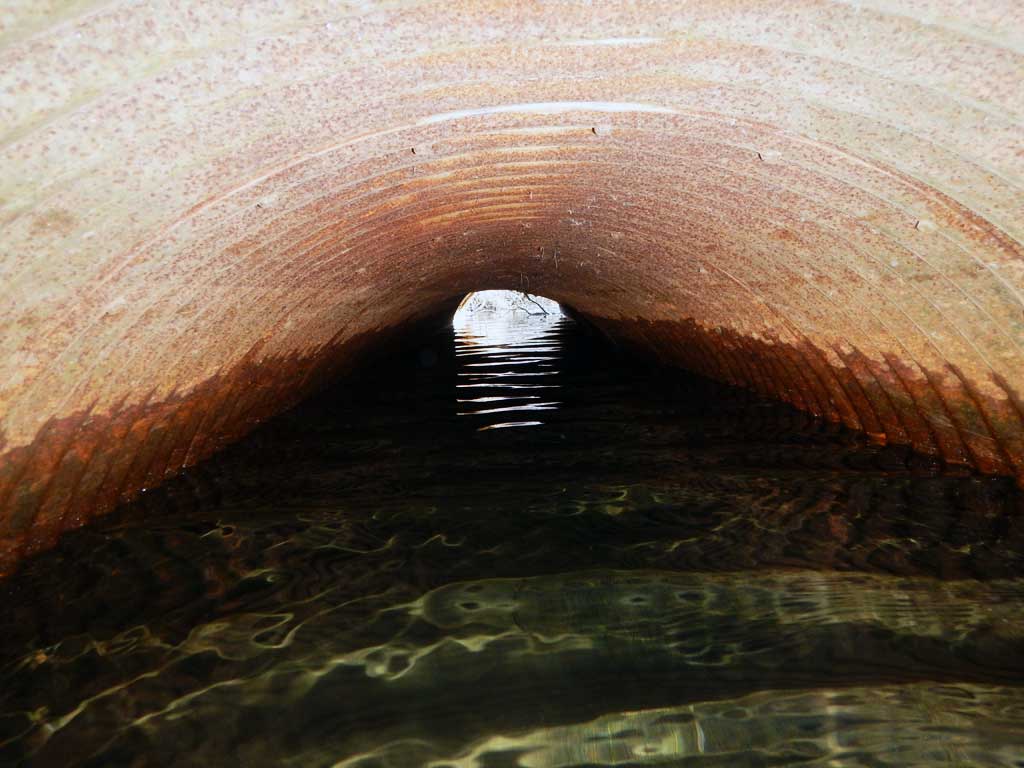

Comments: Culvert length estimated using aerial imagery to be about 30 ft. Culvert diameter estimated to be about 4 ft.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

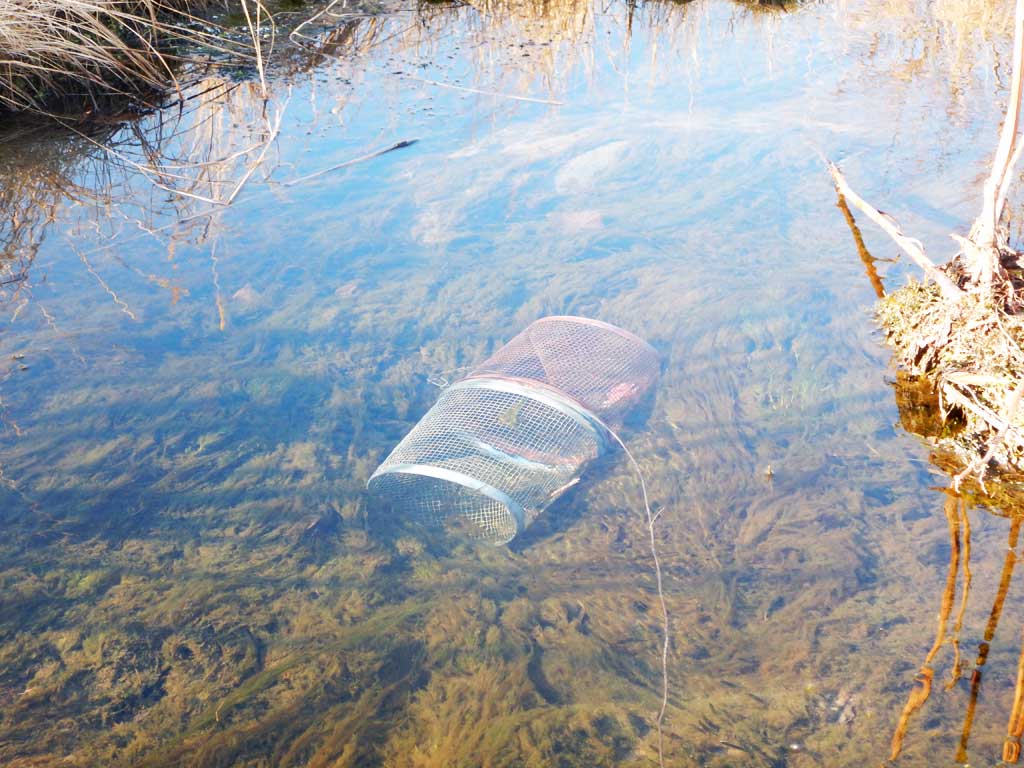

Gear Type: Minnow Trap (A)

Fish Observations

Species: juvenile coho salmon Life History: Anadromous
Total Fish Observed: 2 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Upstream Minnow Trap (2)
