Fish Passage Site 20703706

Coordinates (dec. deg.): 57.80540°, -152.42680°
Legal Description: S027S019W30
Region: Southwest
Road Name: Monashka Bay Road

Datum: NAD83
Quad Name / ITM: Kodiak D-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Oct 10, 2016

Survey UPDATE-KOD20

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

Comments: Site submitted by ADFG HB Will Frost. Anadromous Dolly Varden (15) observed spawning below culvert. Gradient barrier about 25 meters upstream from culvert inlet.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?:
Outfall Height:

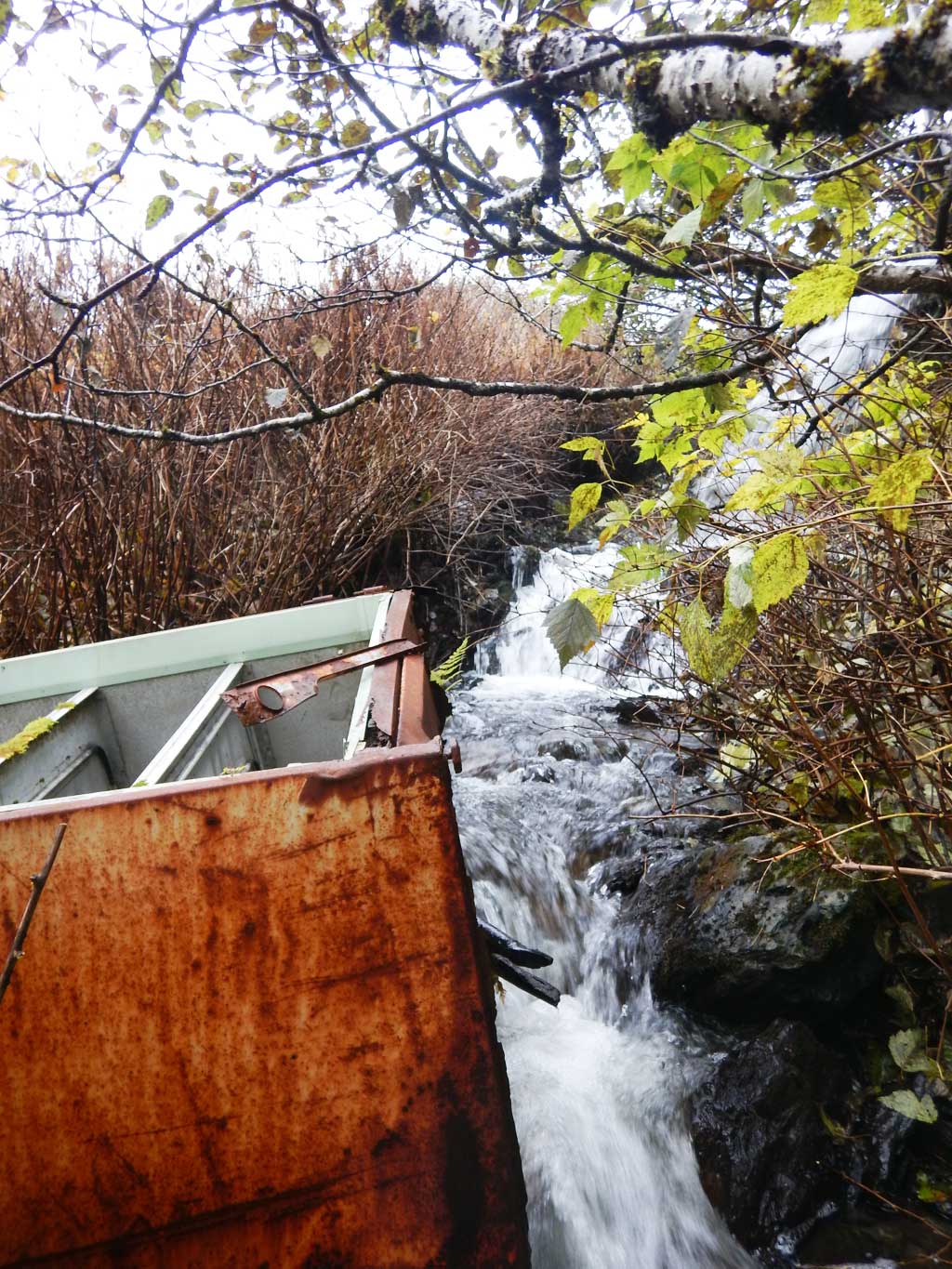

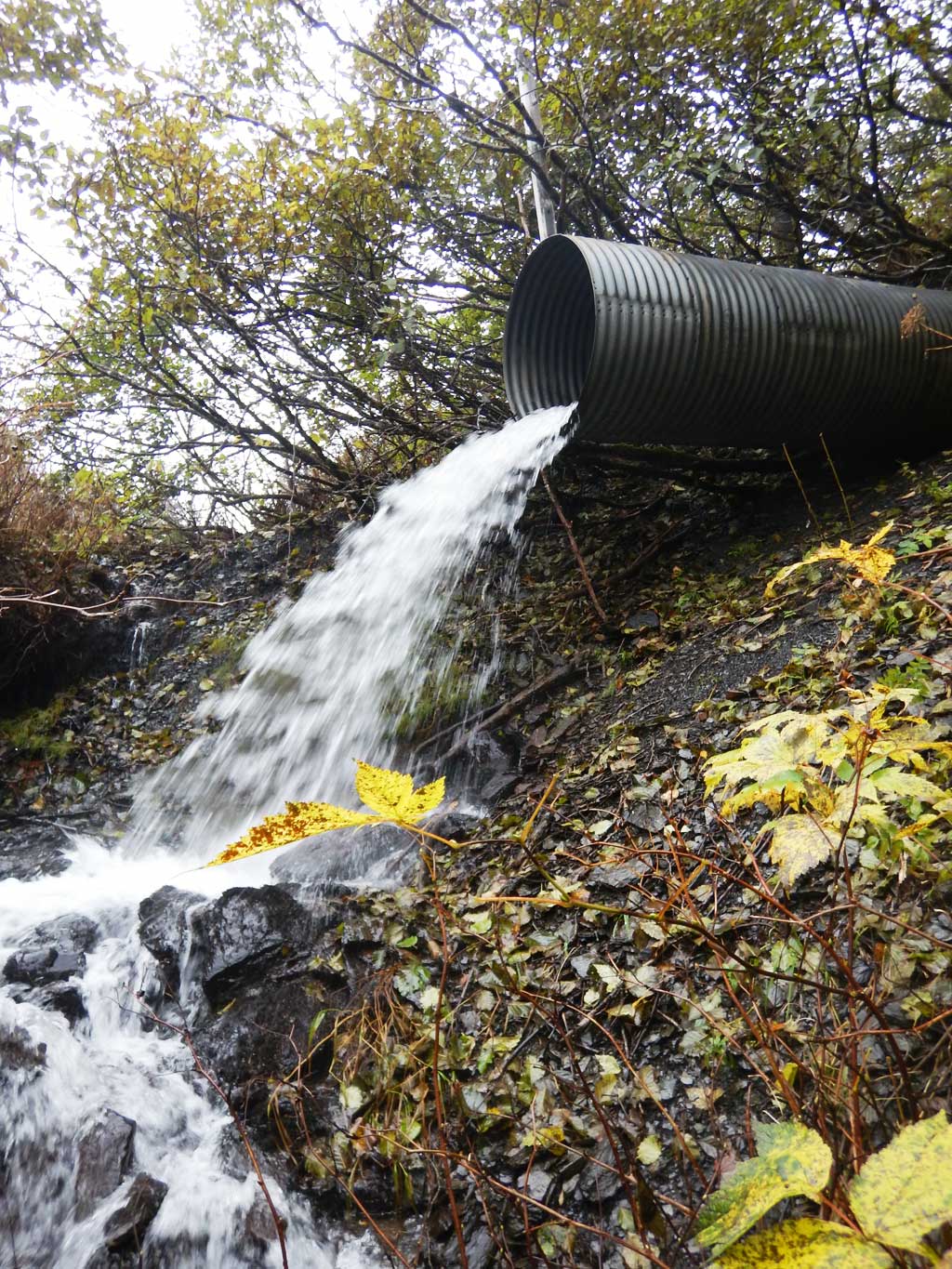

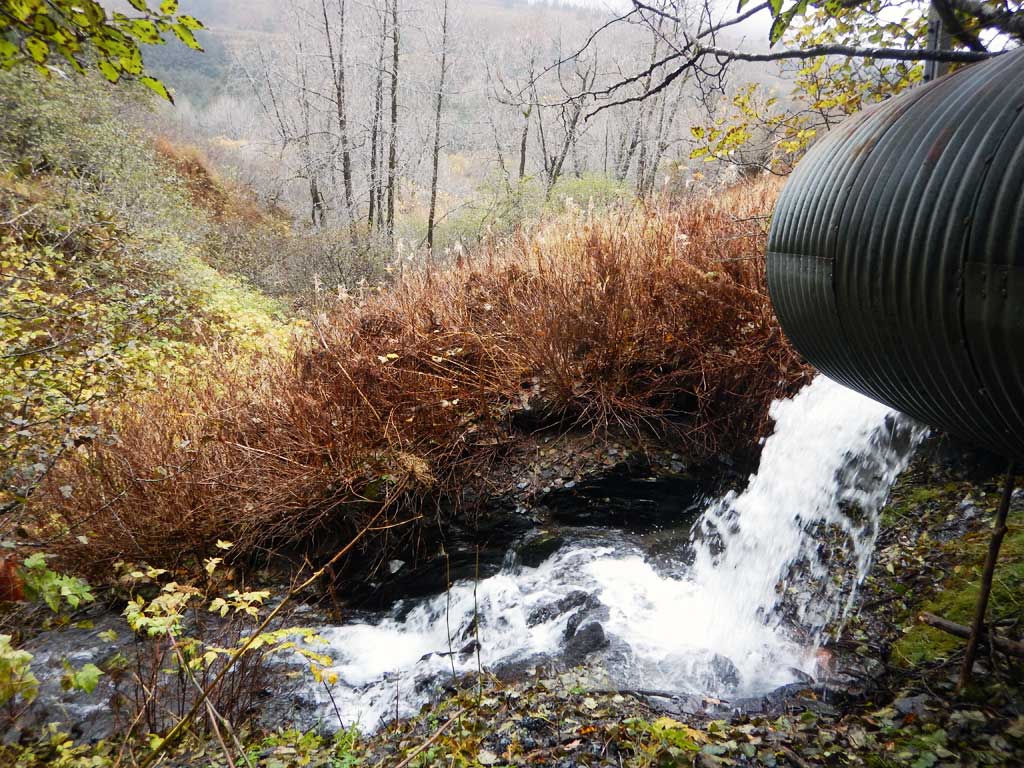

Outfall Type: Free Fall on To Rip Rap
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert diameter estimated at 2.66 ft. Outfall over 4 inches.
  Culvert Observations:
  1. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)
Comments: Andaromous adult Dolly Varden observed spawning below culvert.

Fish Observations

Species: adult spawning Dolly Varden Life History: Anadromous
Total Fish Observed: 15 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Visual Observation, Ground (15)

Photos
