Fish Passage Site 20703703

Coordinates (dec. deg.): 57.76390°, -152.48850°
Legal Description: S028S020W11
Region: Southwest
Road Name: Rezanof Drive

Datum: NAD83
Quad Name / ITM: Kodiak D-2
AWC Stream #:
Stream Name: Unnamed Tributary to Genivieve Creek

Elevation:

Site Comments: None

Survey Date: Sep 20, 2016

Survey UPDATE-KOD17

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year:


Comments: Site submitted by HB Will Frost. Juvenile Coho observed at outlet, unidentified salmonids observed at inlet.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

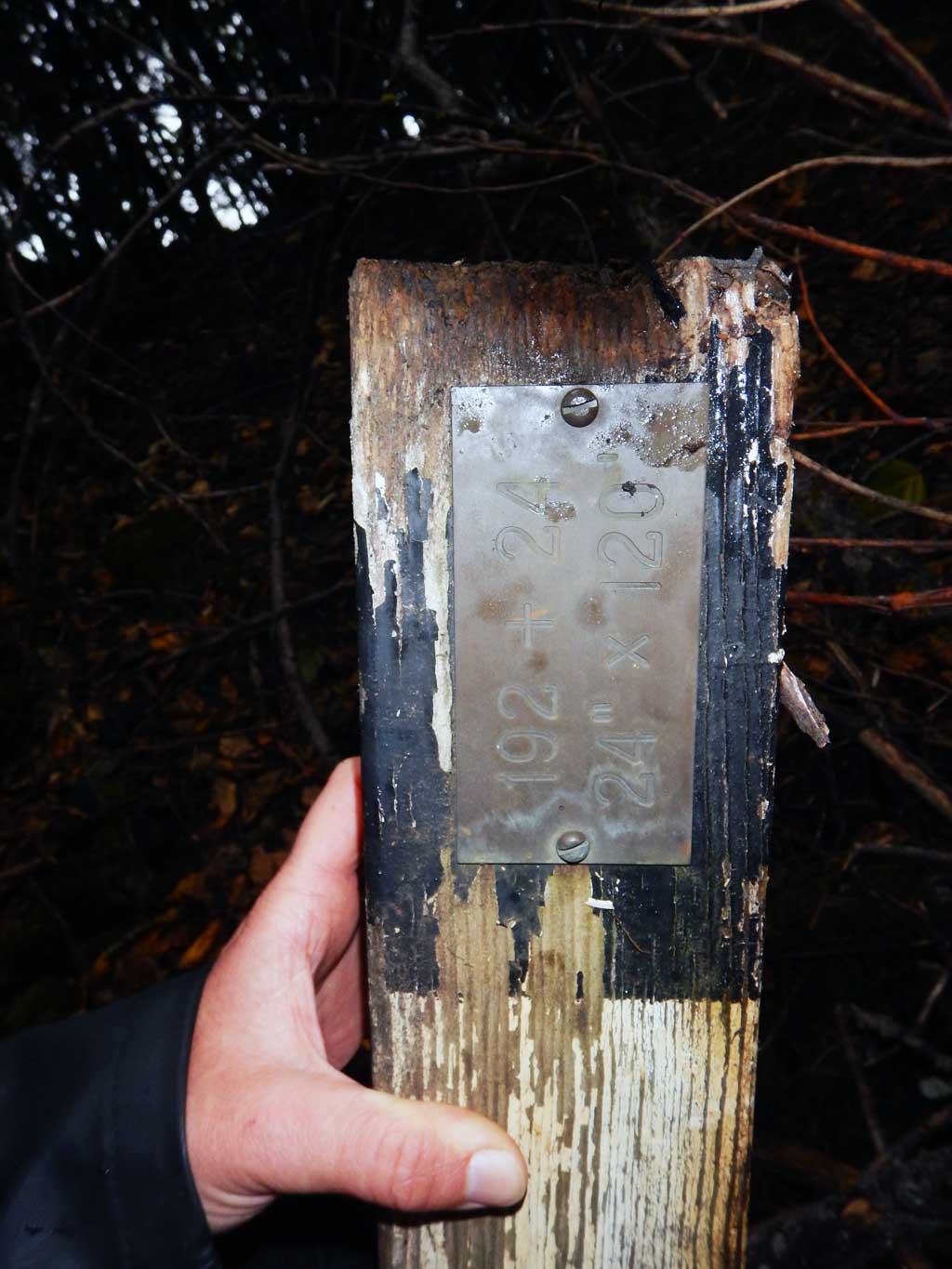

Comments: Culvert diameter estimated to be about 2 feet. Culvert length estimate to be about 120 feet.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Low

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

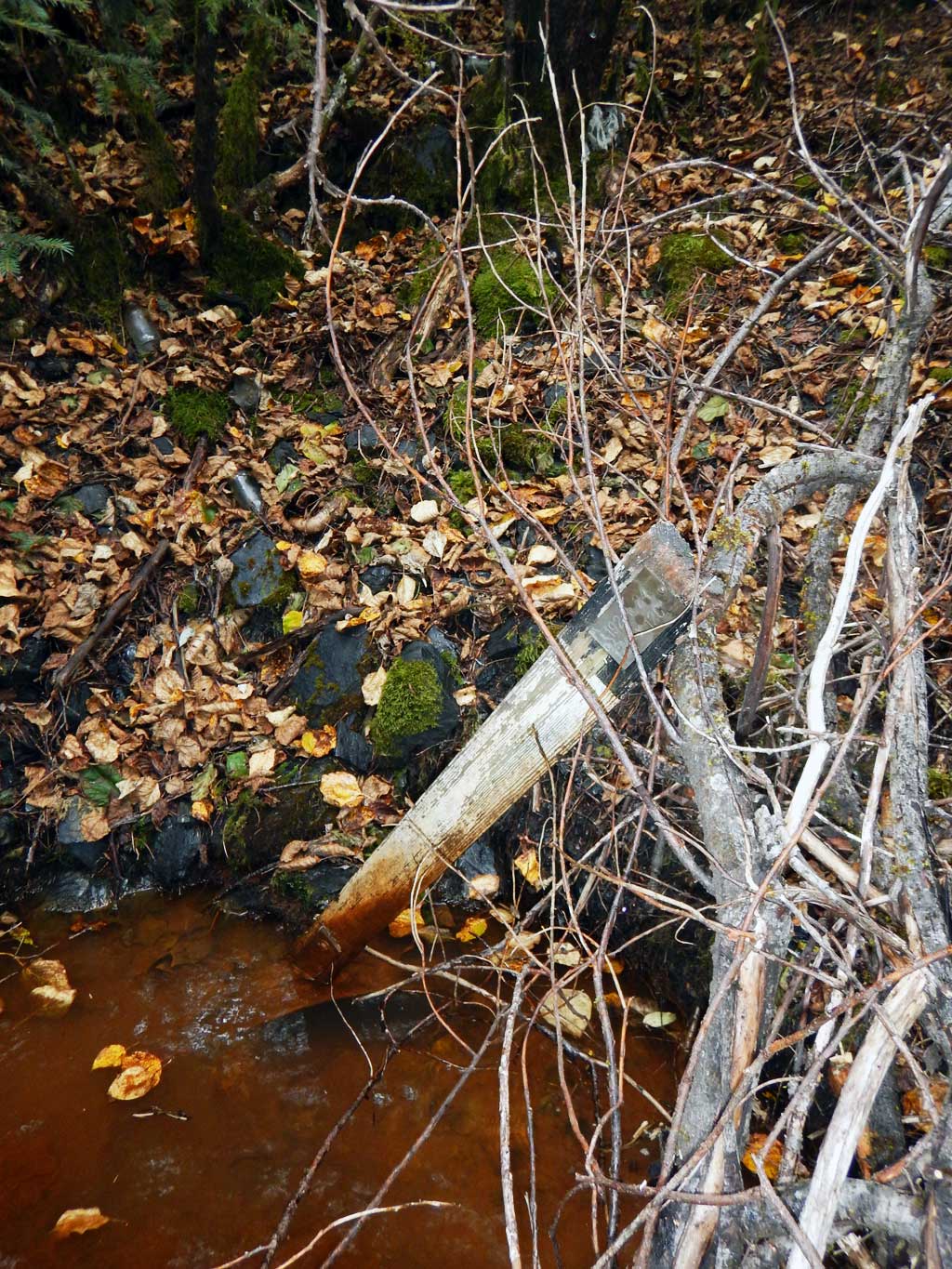

Comments: Juvenile coho observed at outlet.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
