Fish Passage Site 20703489

Coordinates (dec. deg.): 57.71480°, -152.56230°
Legal Description: S028S020W29
Region: Southwest

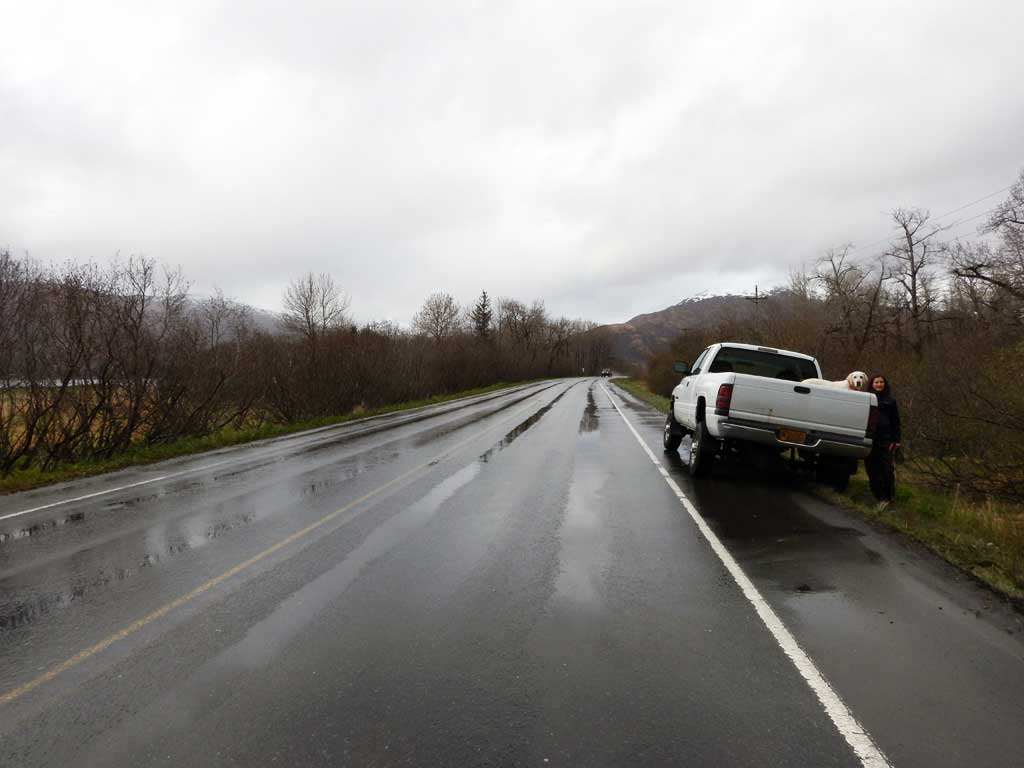

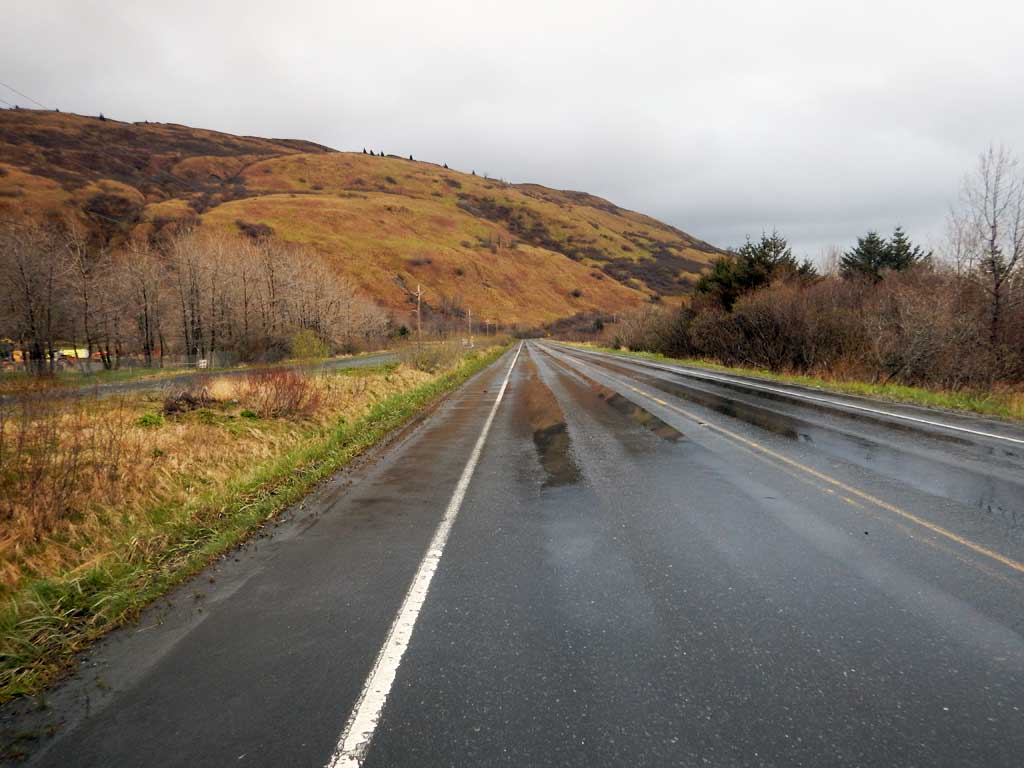

Road Name: Rezanof Drive

Datum: NAD83
Quad Name / ITM: Kodiak C-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-KOD15

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year:

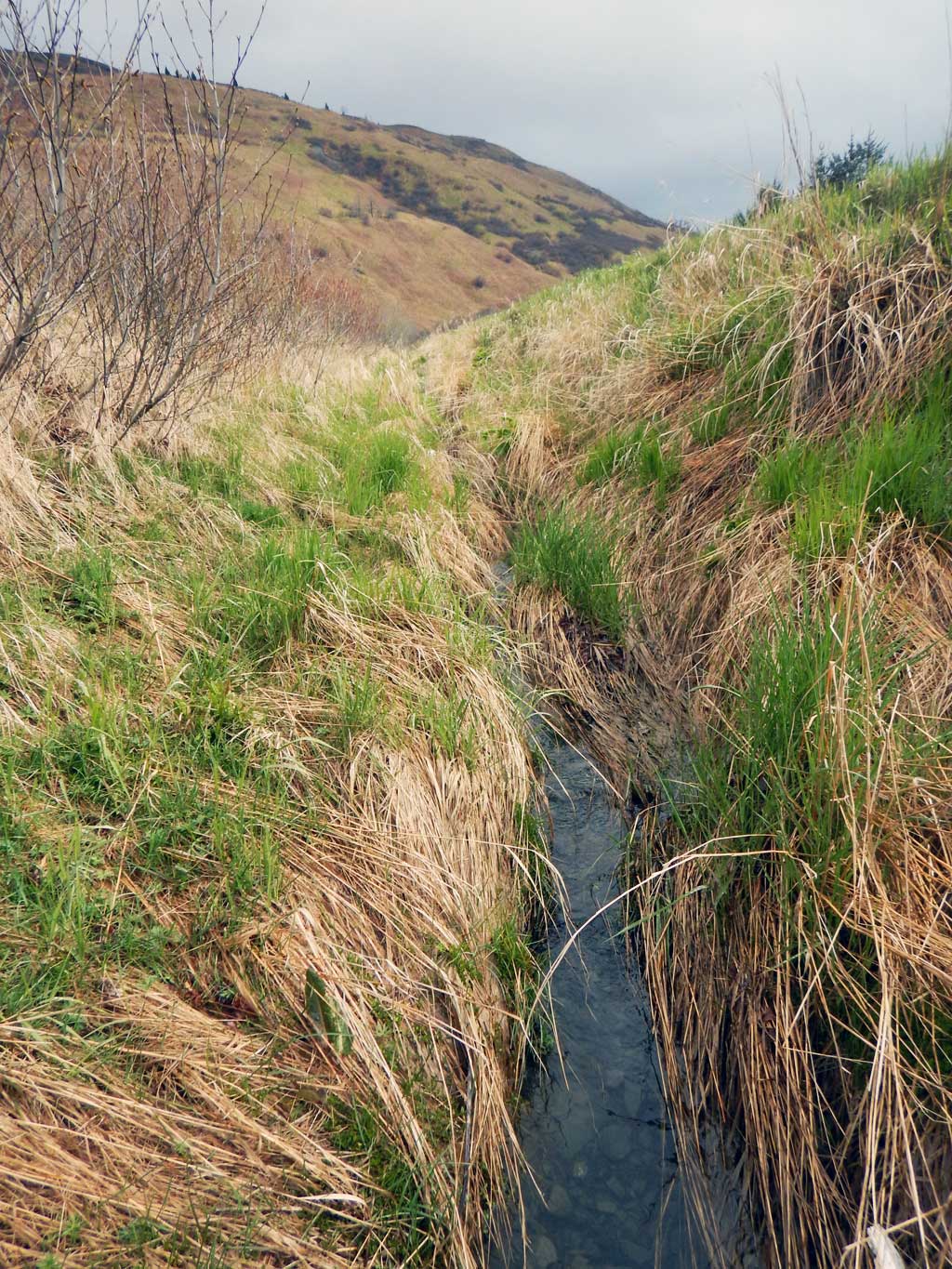

Comments: Juvenile chum located below outlet. Creek is ditched along Rezanof Drive for about 600 feet and then turns 90 degrees northwest and is ditched for another .2 miles running under Fairground assess roads. Creek takes flow from two creeks flowing off of Old Woman's Mountain.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

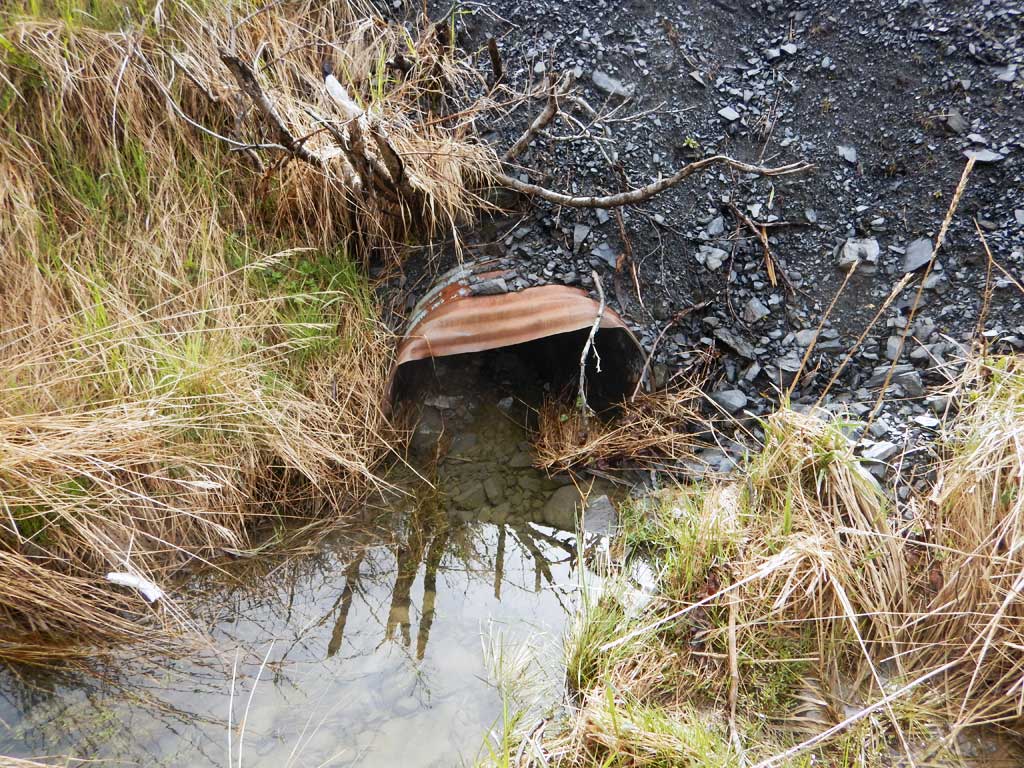

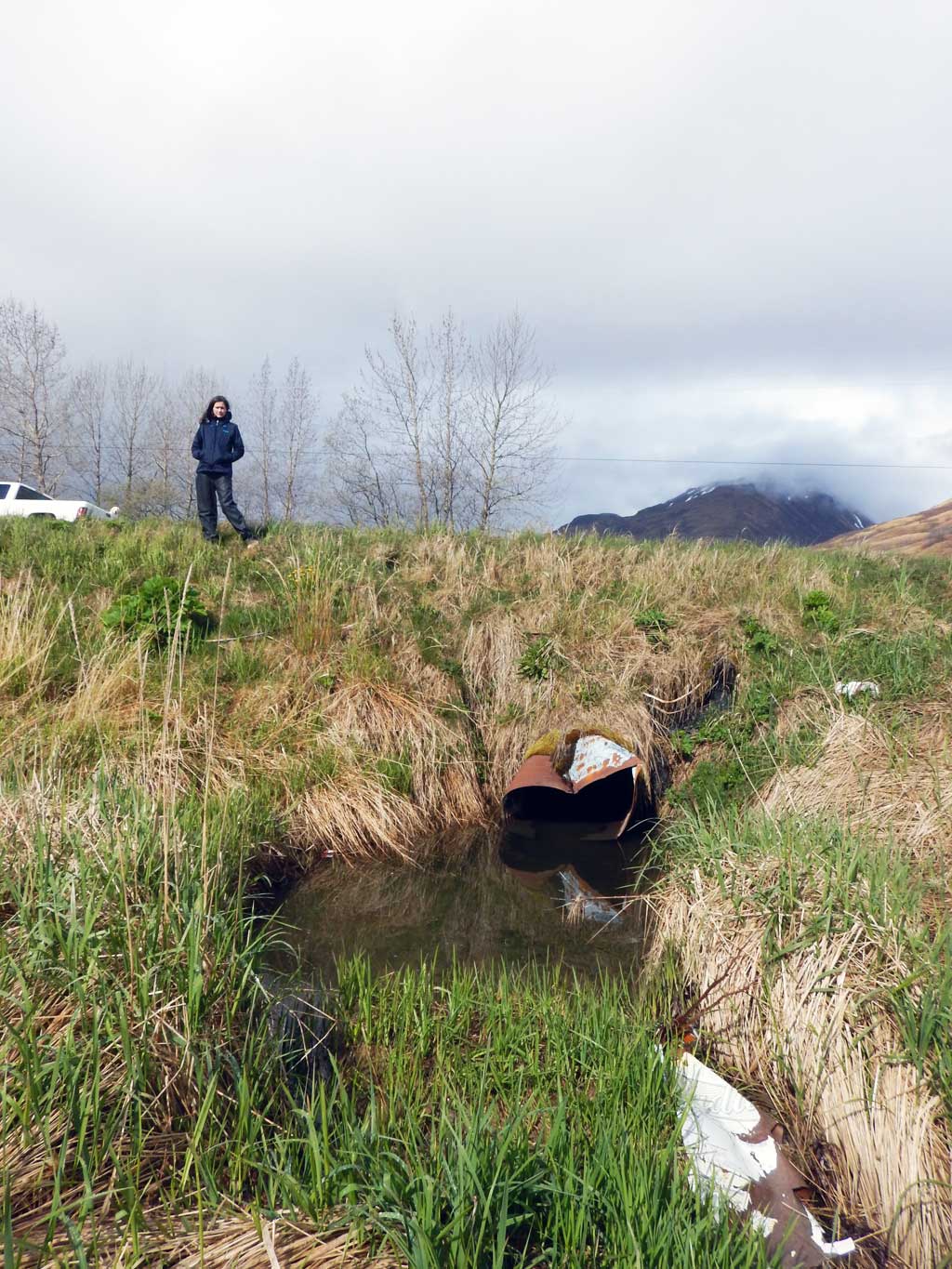

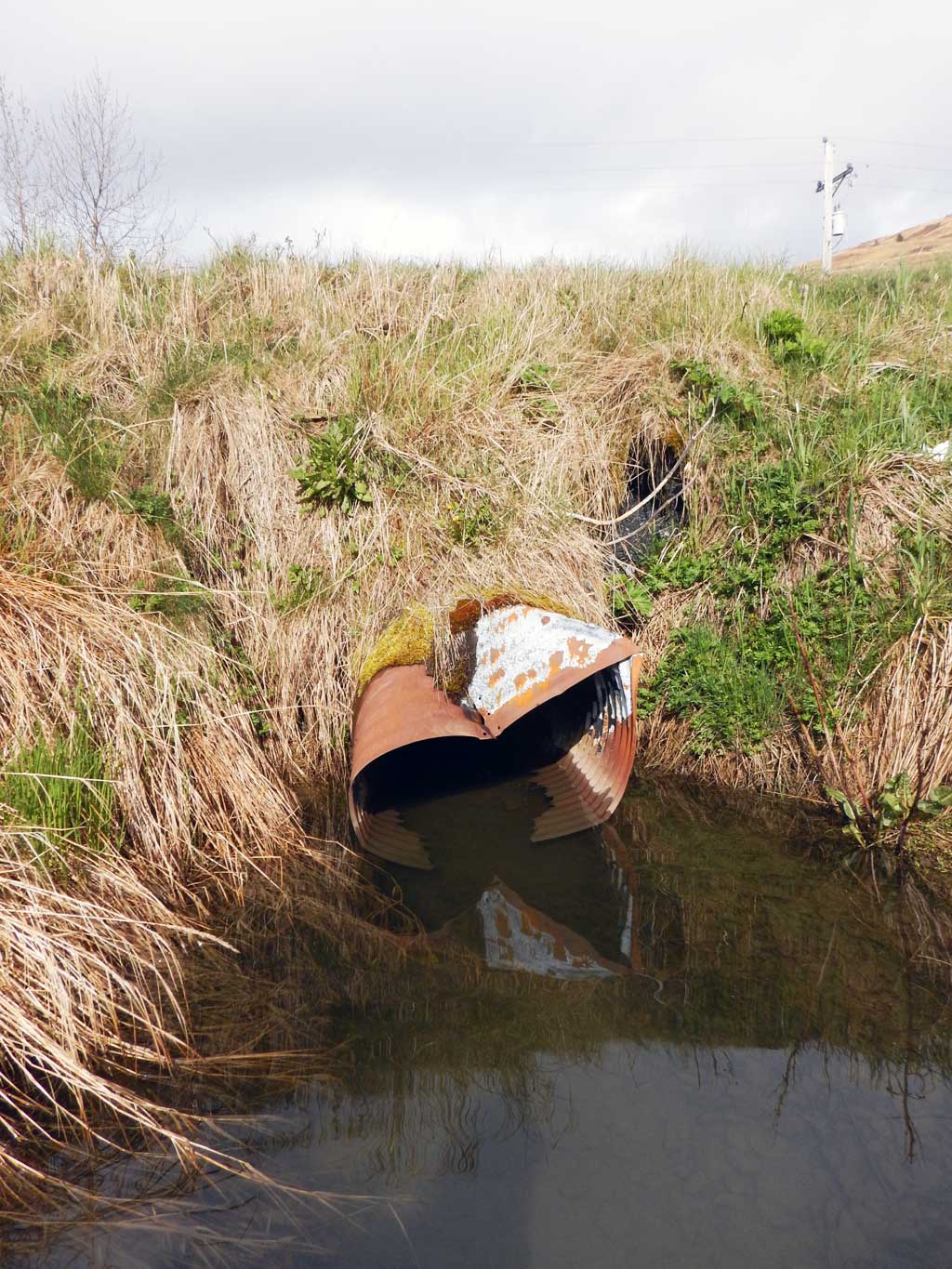

Comments: Inlet and outlet crushed. Culvert length is estimated using satillite imagery to about about 53 feet. Culvert estimated to be about 3016 ft.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Other (A)
Comments: Small aquarium dip net was used to capture about 20 fish

Gear Type: Visual Observation, Ground (B)

Fish Observations

Species: juvenile chum salmon Life History: Anadromous
Total Fish Observed: 1020 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Visual Observation, Ground (1000)  Downstream Other (20)
