Fish Passage Site 20703436

Coordinates (dec. deg.): 57.78183°, -152.54454°
Legal Description: S028S020W05
Region: Southwest
Road Name: Old Military Road

Datum: WGS84
Quad Name / ITM: Kodiak D-2
AWC Stream #: 259-21-10120-2015
Stream Name: Unnamed Tributary to Buskin Lake

Elevation:

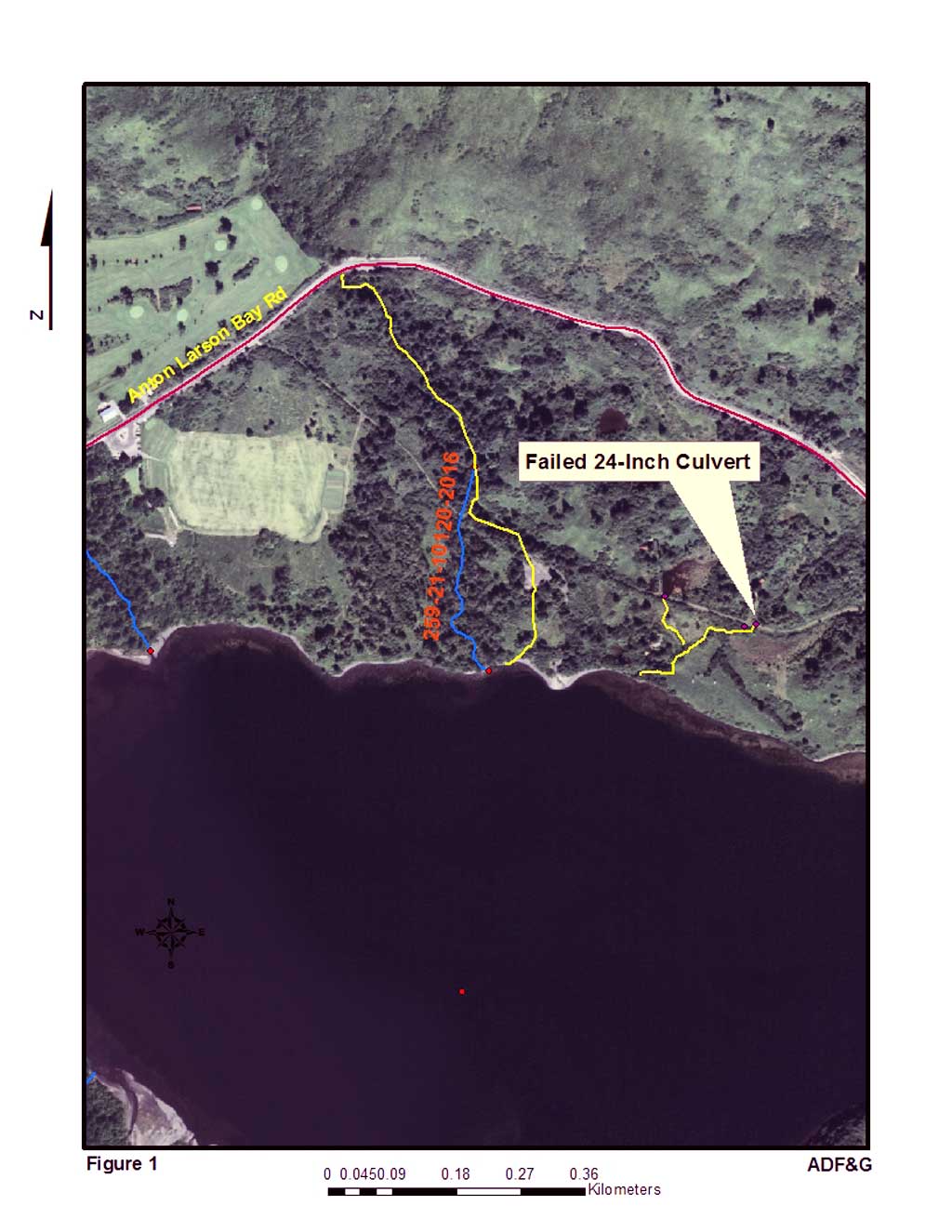

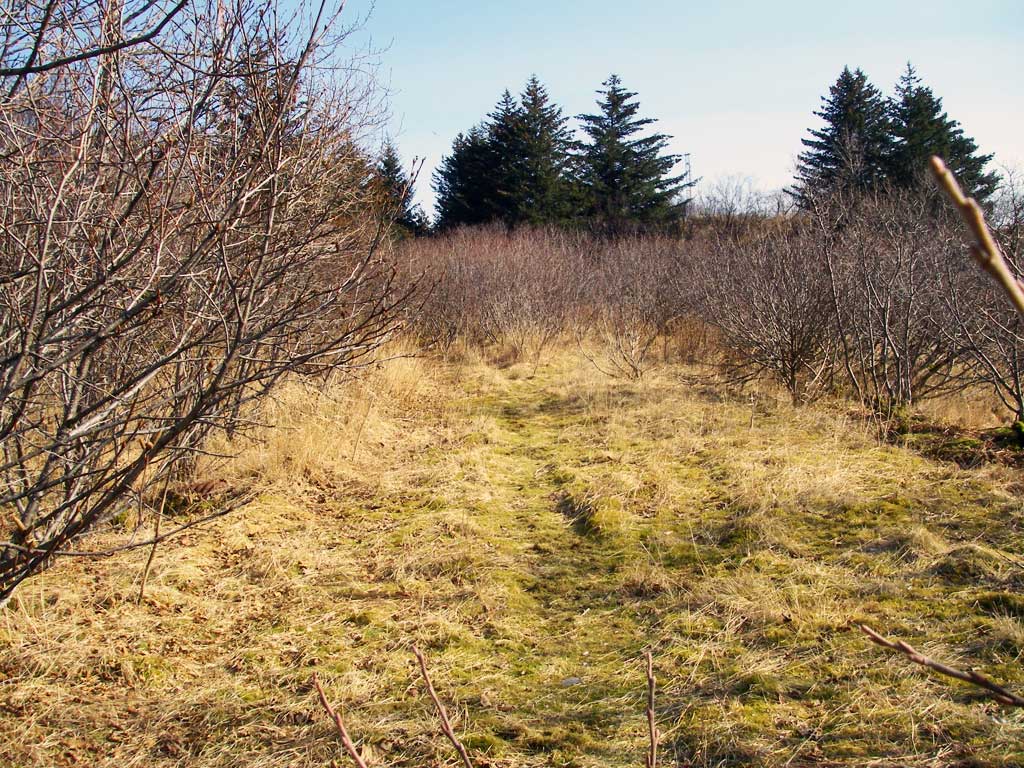

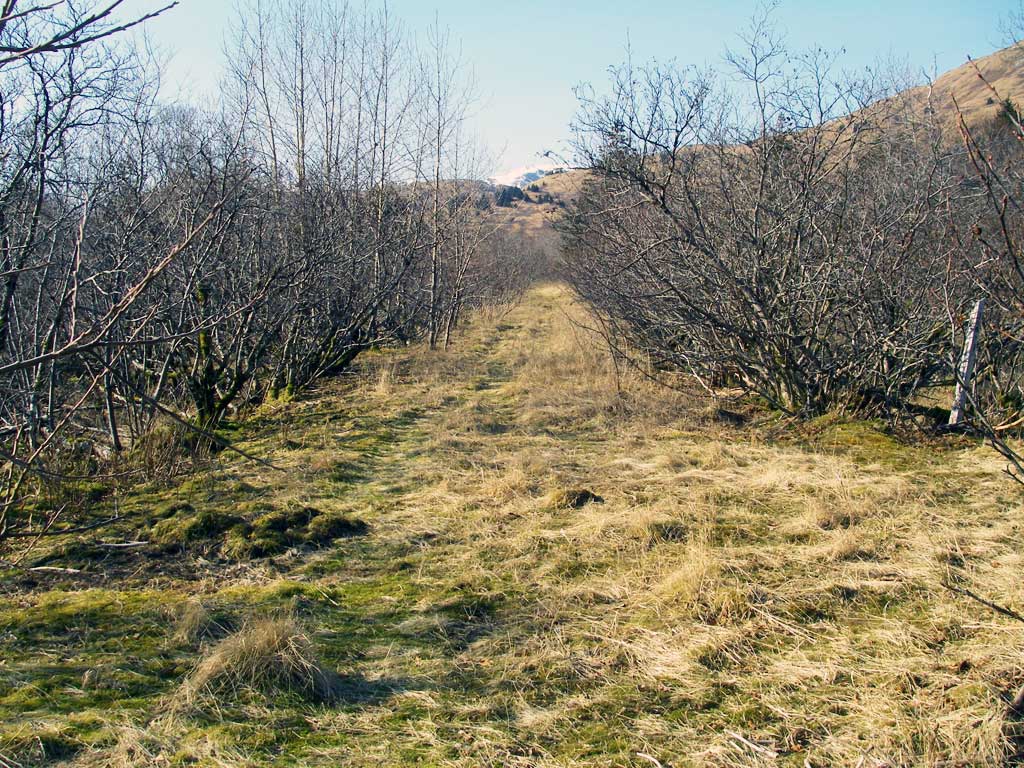

Site Comments: Need military permission to access. From Anton Larsen Bay Road either park at the gate and walk down the relict road as can be seen in the aerial imagery, or park due NE from the site on Anton Larsen Bay Road and navigate to site.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-bsl01

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year:

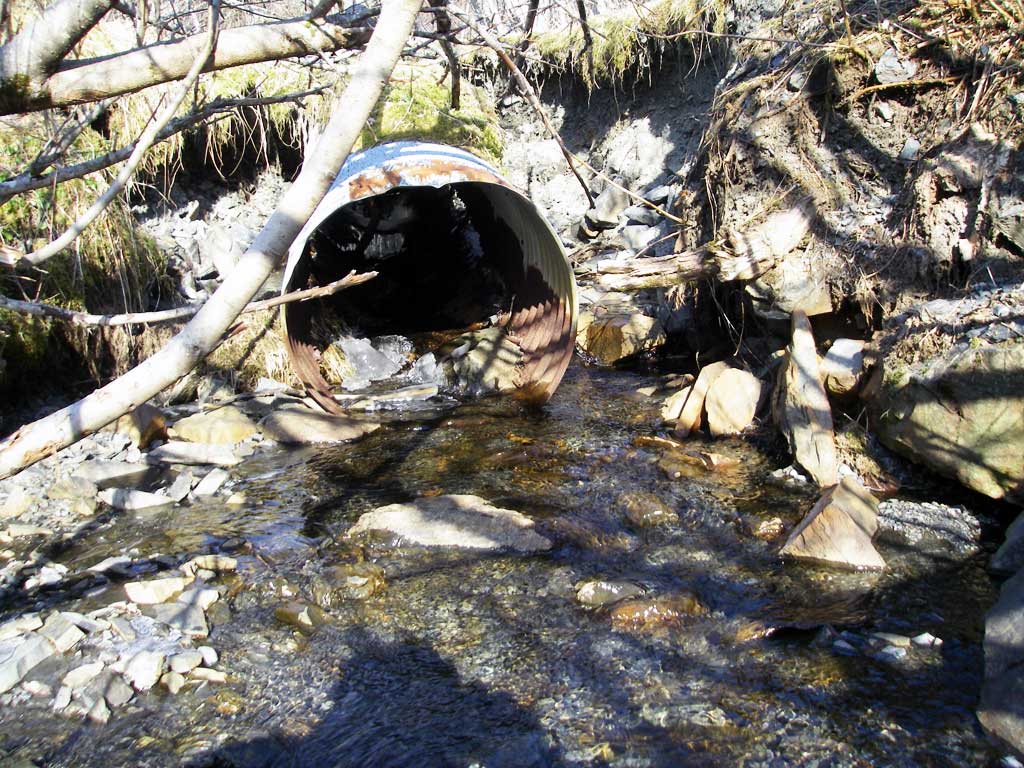

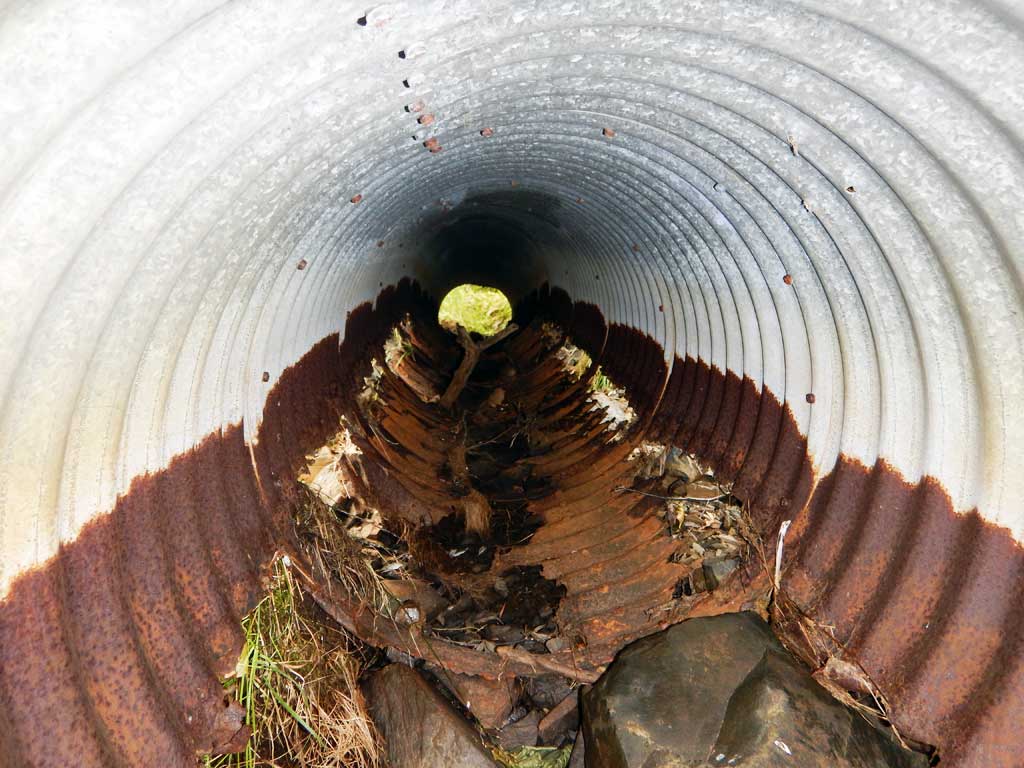

Comments: Failing 2 foot culvert on an inactive old military road. 50 adult salmon carcasses, likely Coho, observed along streambank below road.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):

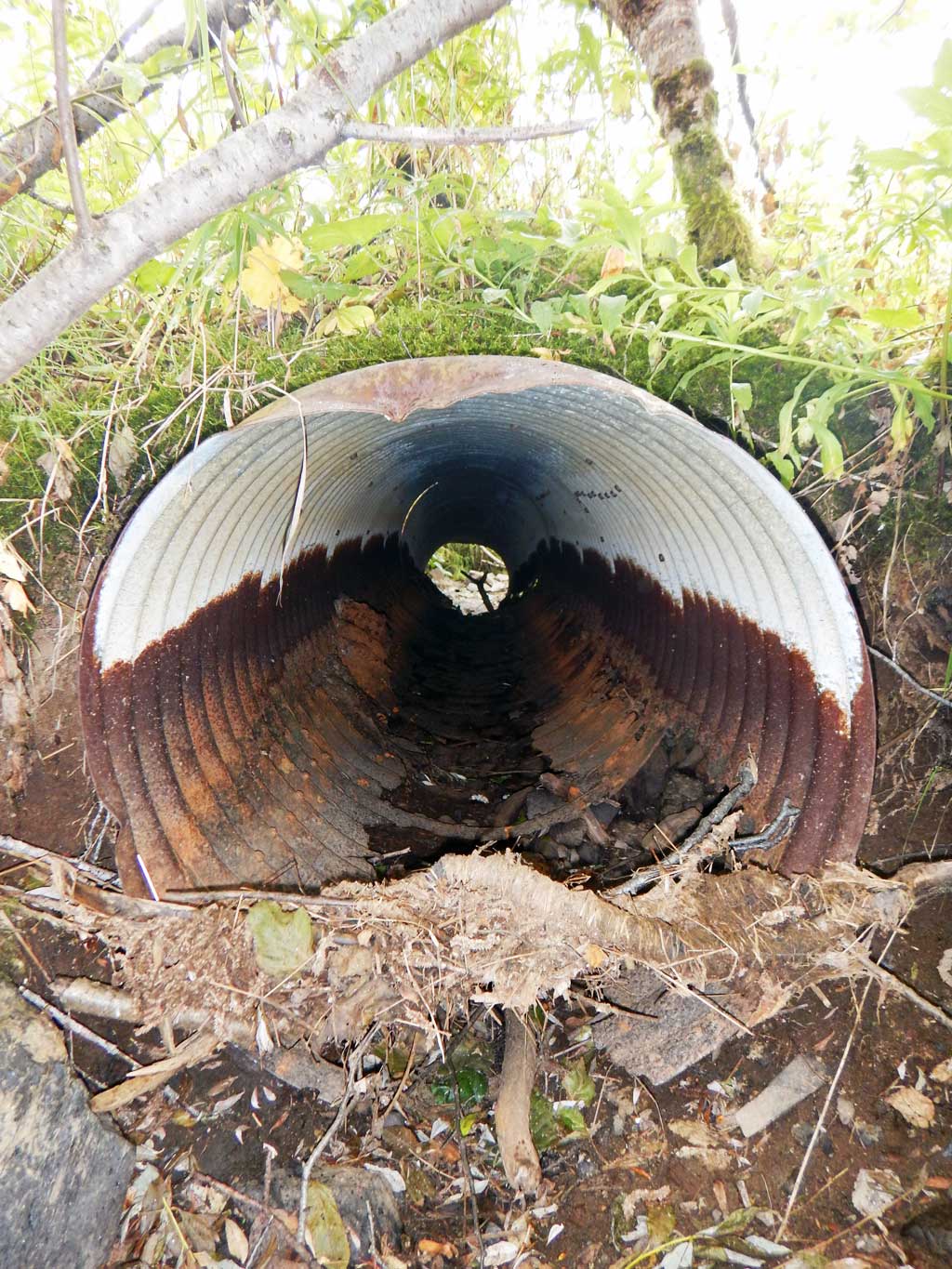

Inlet Type: Projecting

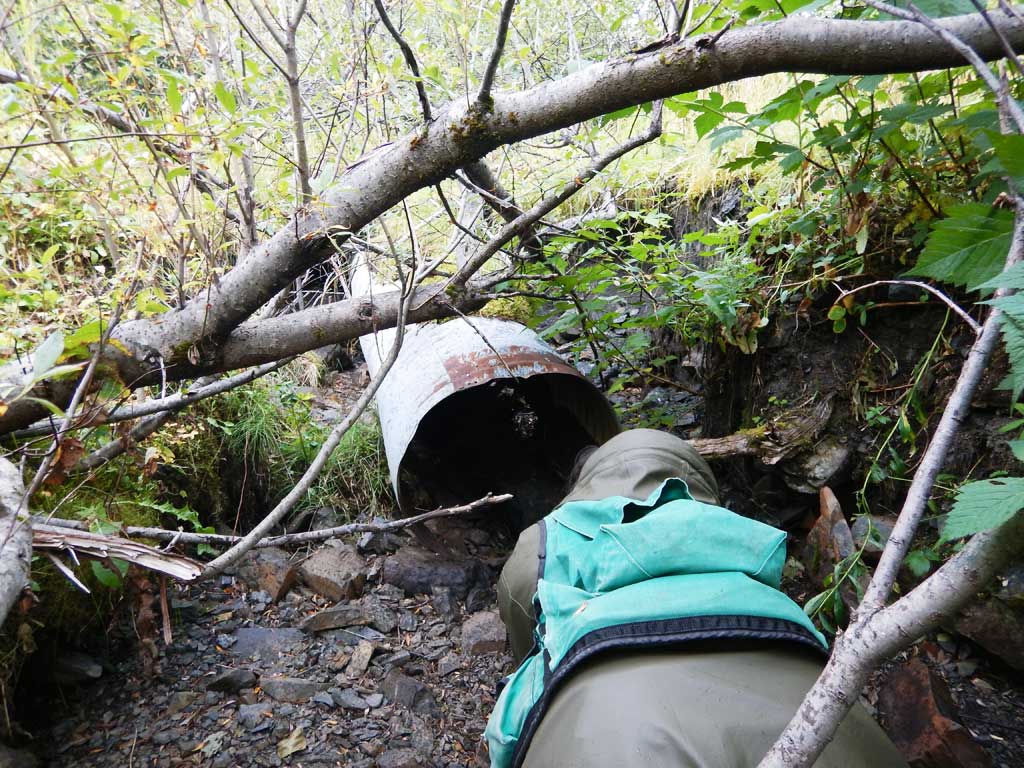

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 1
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert width 2 feet, culvert height 2 ft.

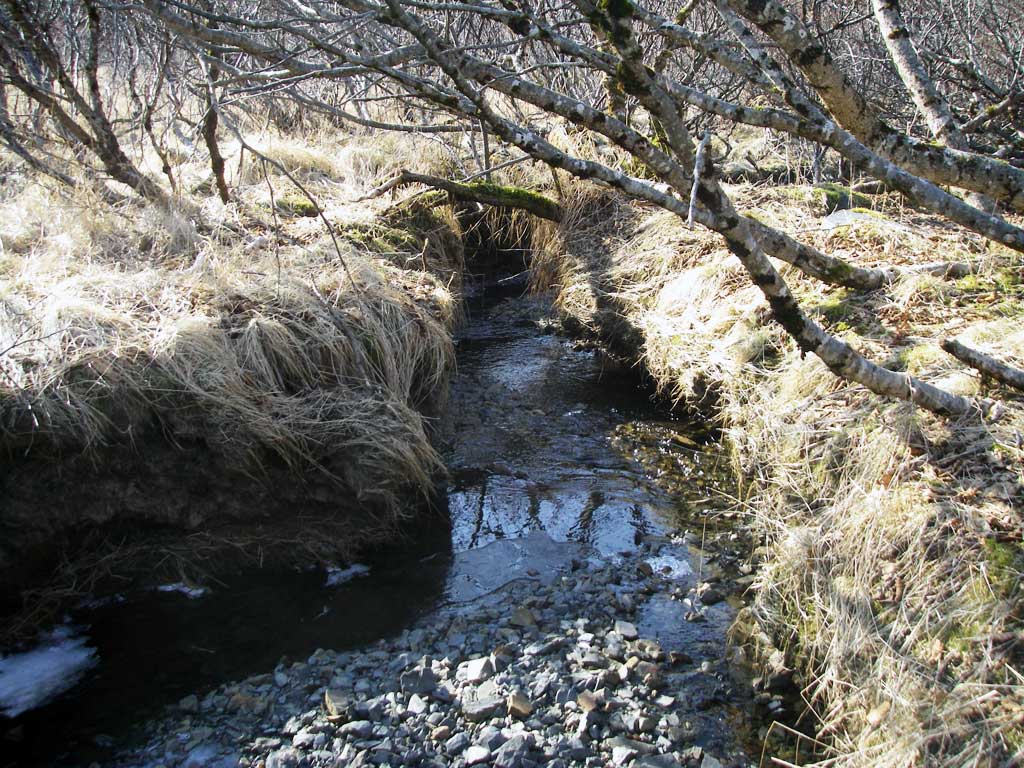

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
