Fish Passage Site 20700871

Coordinates (dec. deg.): 57.56432°, -152.46613°
Legal Description: S030S020W22
Region: Southwest
Road Name: Pasagshak Road

Datum: WGS84
Quad Name / ITM: Kodiak C-2
AWC Stream #: U
Stream Name:

Elevation:

Site Comments: **REPLACED in 2005, current information out of date**. Located at MP 1.2

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-6

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Gillian O'Doherty

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year:


Comments: **REPLACED- not resurveyed**

Culvert Measurements

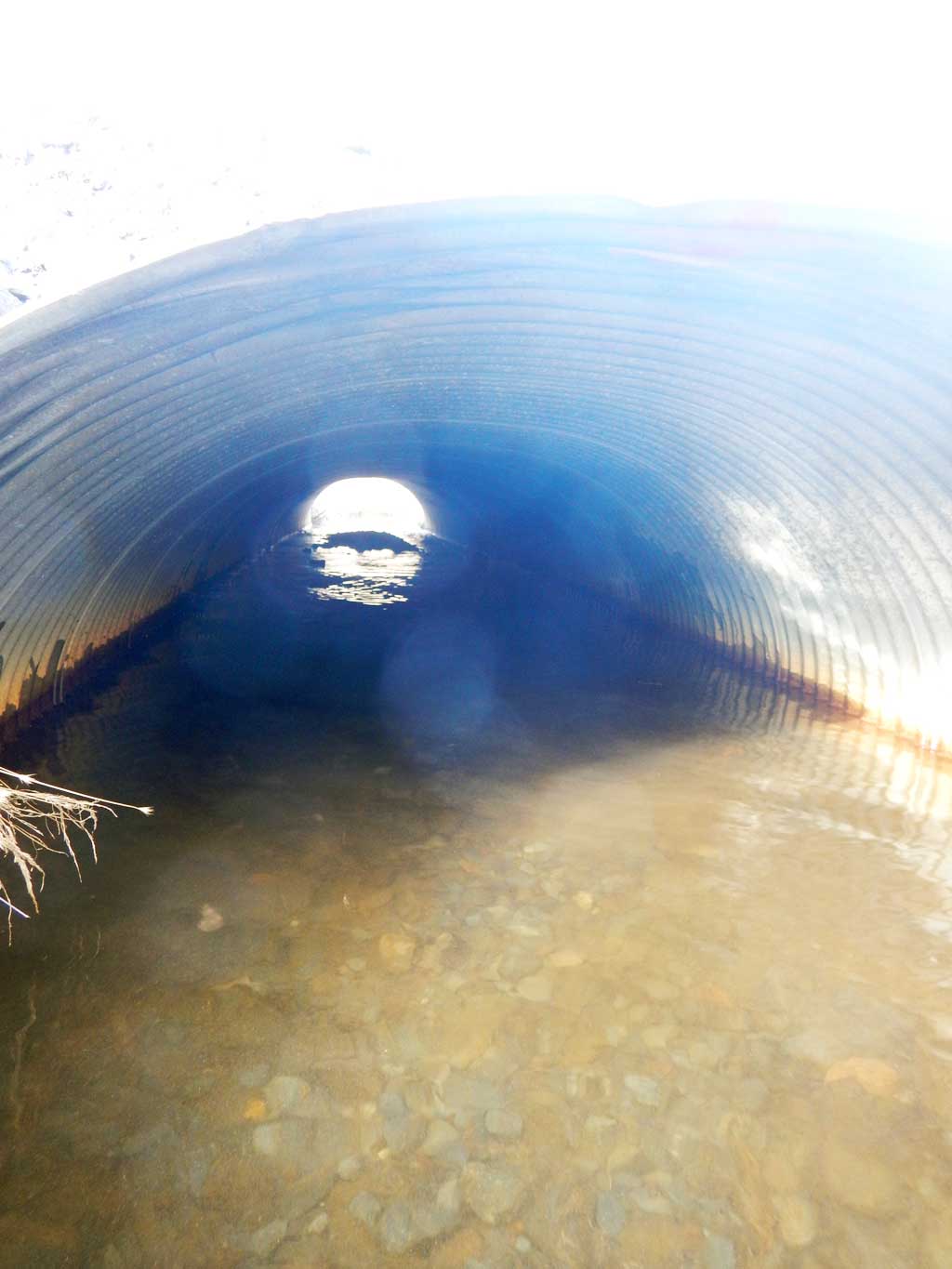

ID: 1 Structure Type: Pipe-arch (Corrugated steel) Fish Passage Rating: Black

Length(ft):

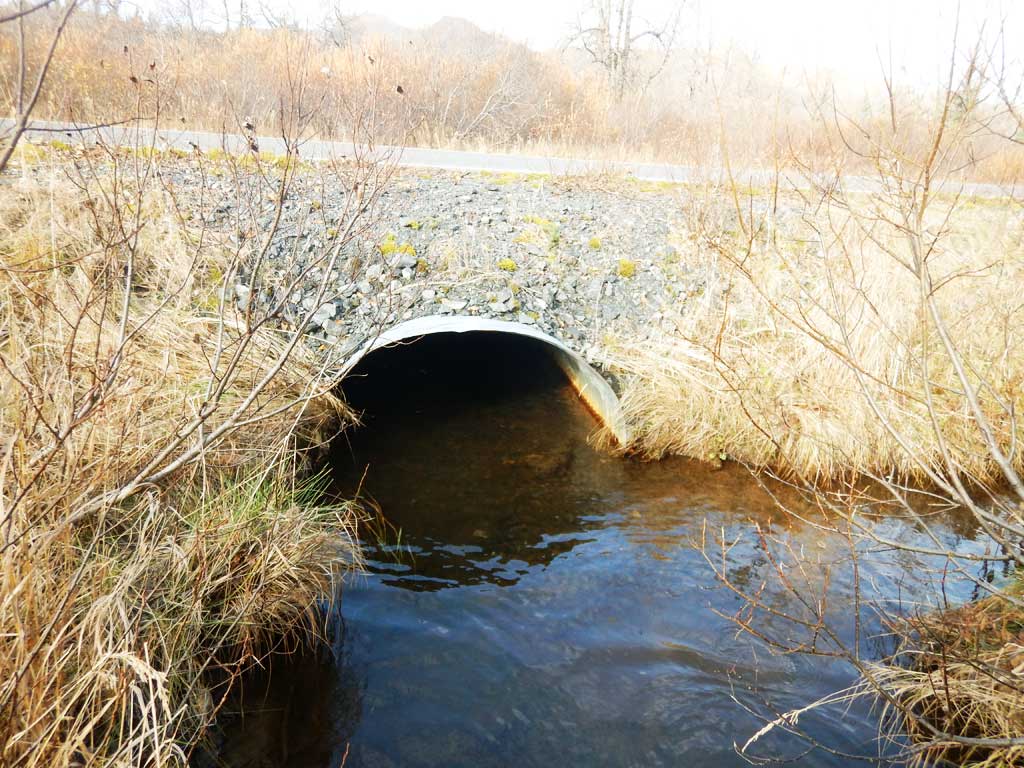

Inlet Type: Projecting

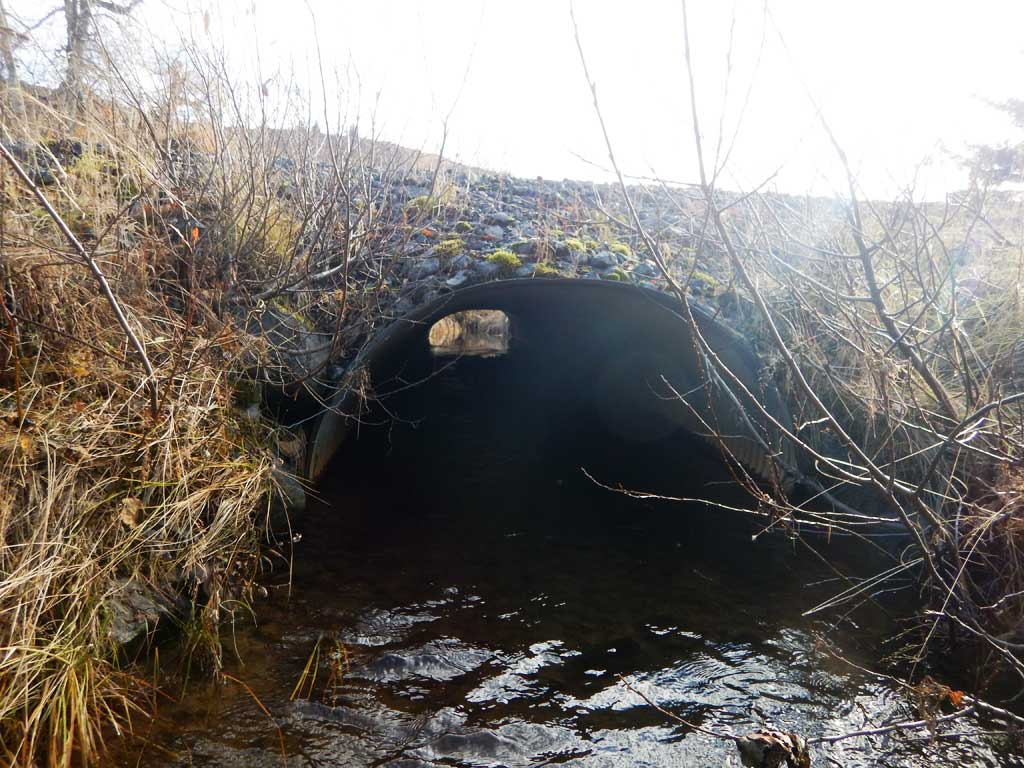

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 4
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?: Yes
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert measurements taken from habitat permit and have not been verified. Cuvlert width 4.8 ft. Culvert Height 2.5 ft. Substate depth 1 ft. Culvert length 40 ft. Culvert gradient 0%.

Stream Measurements

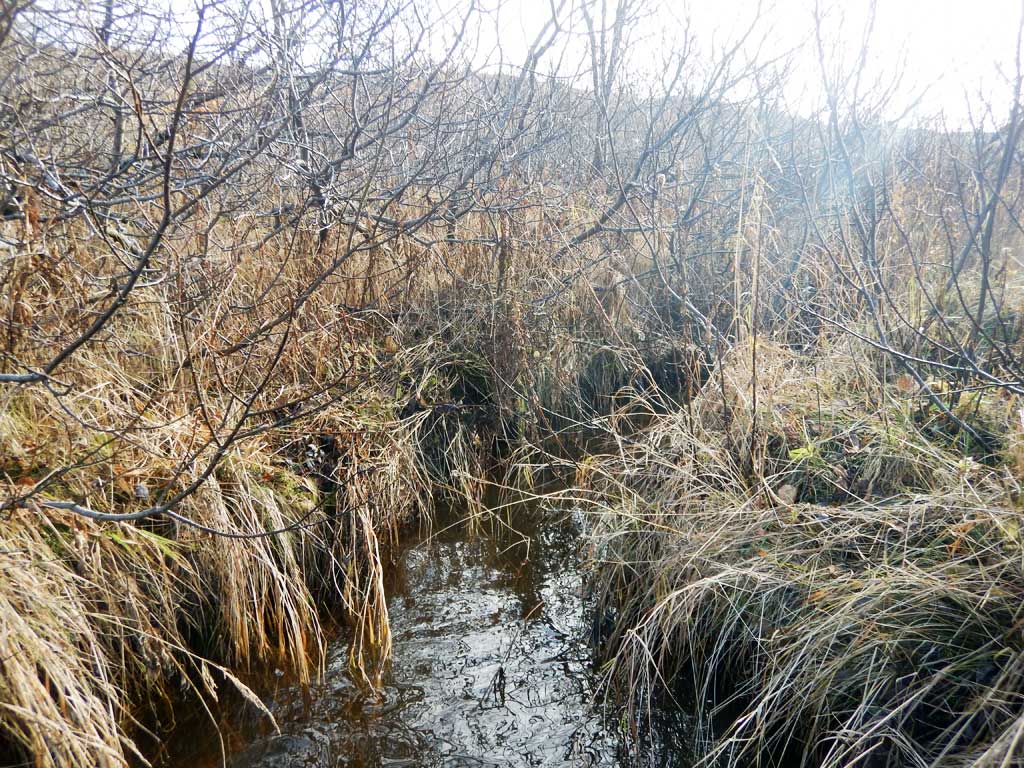

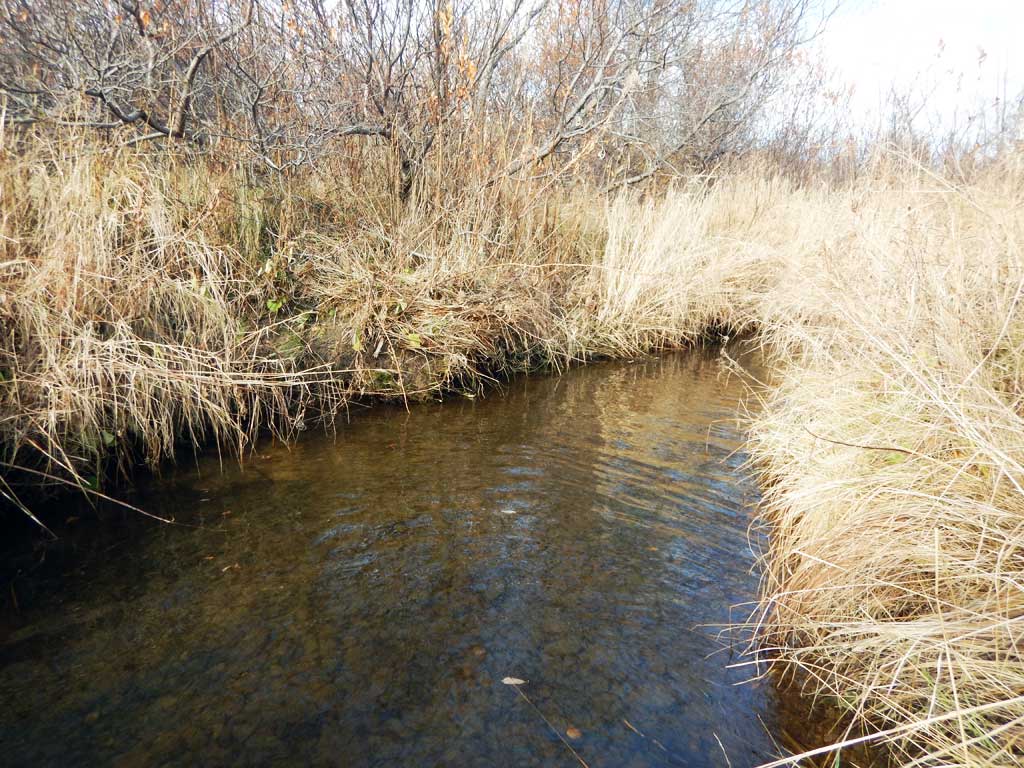

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
