Fish Passage Site 20700862

Coordinates (dec. deg.): 57.50289°, -152.45197°
Legal Description: S031S020W11
Region: Southwest
Road Name: Pasagshak Road

Datum: WGS84
Quad Name / ITM: Kodiak C-2
AWC Stream #: Y
Stream Name: Unnamed

Elevation:

Site Comments: **REPLACED since last survey** Located at MP 5.6

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-13

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Gillian O'Doherty

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: **REPLACED- not resurveyed** New photos added submitted by will Frost. Needs resurvey/ monitoring.

Culvert Measurements

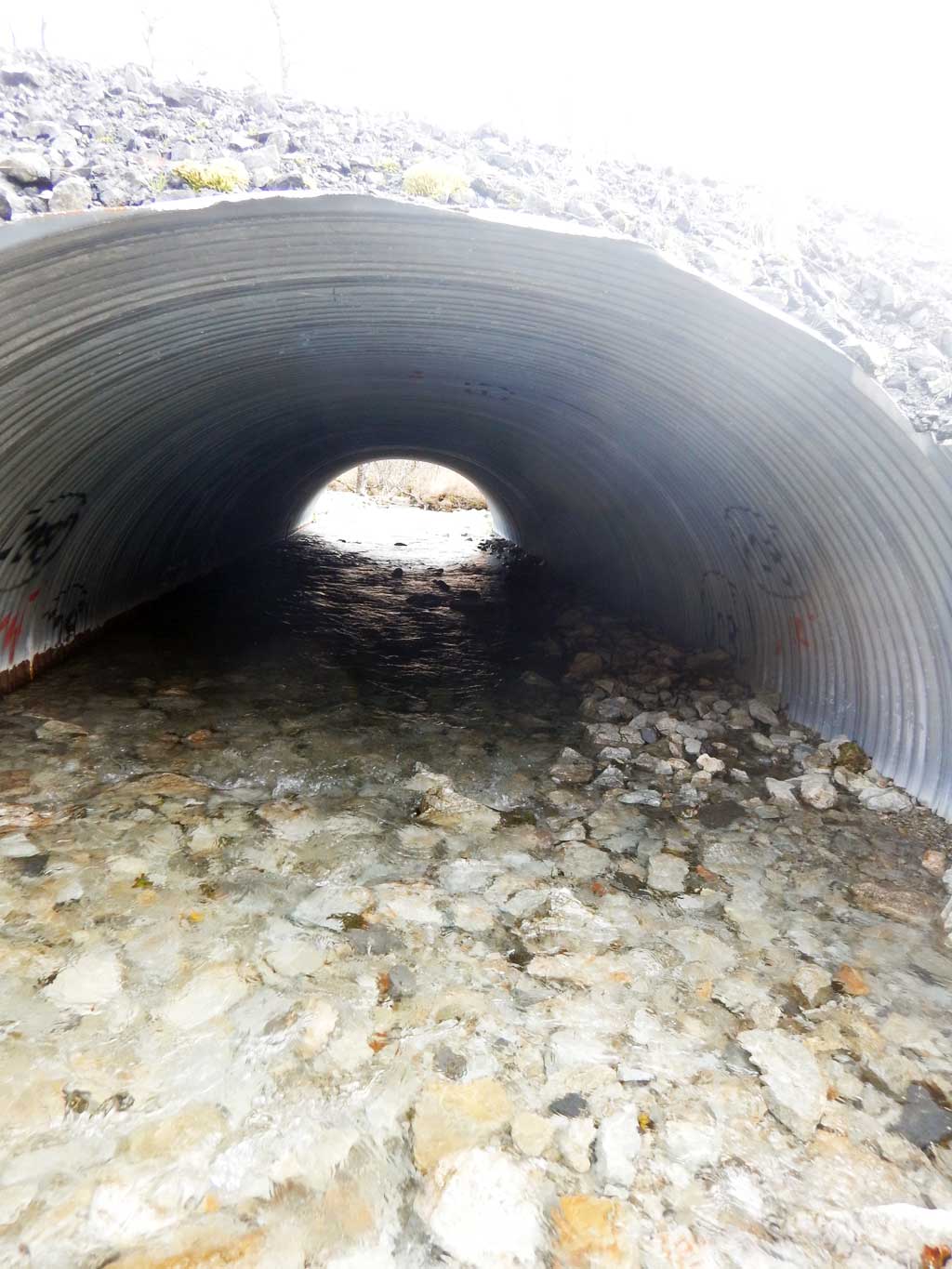

ID: 1 Structure Type: Pipe-arch (Corrugated steel) Fish Passage Rating: Green

Length(ft):

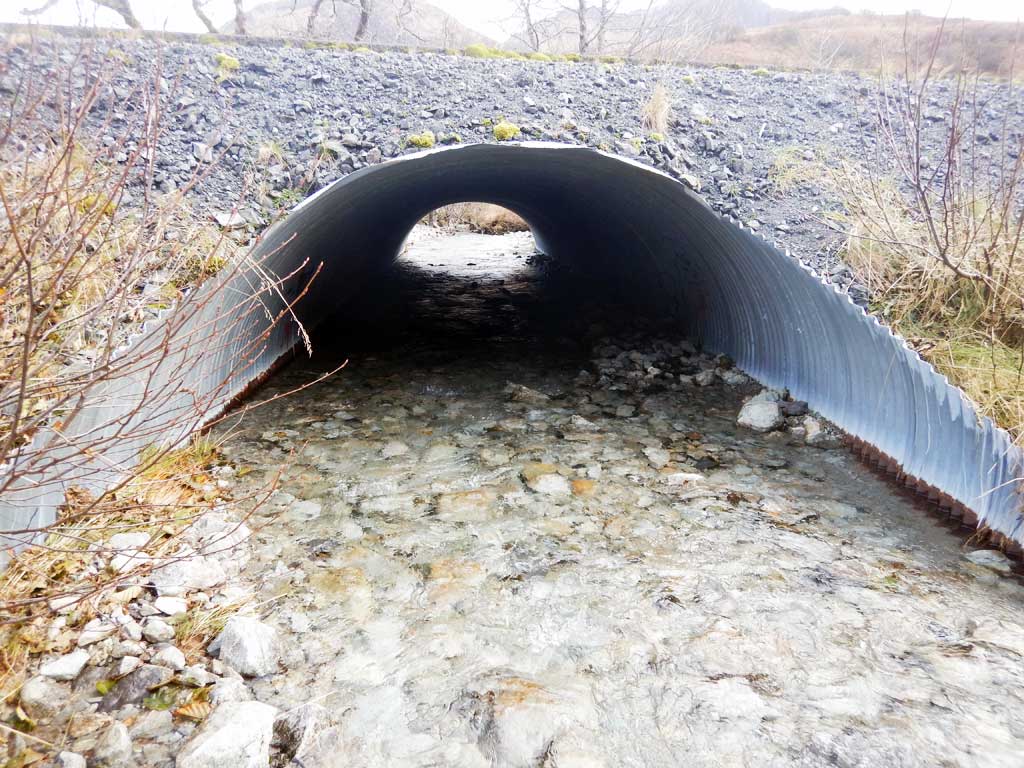

Inlet Type: Projecting

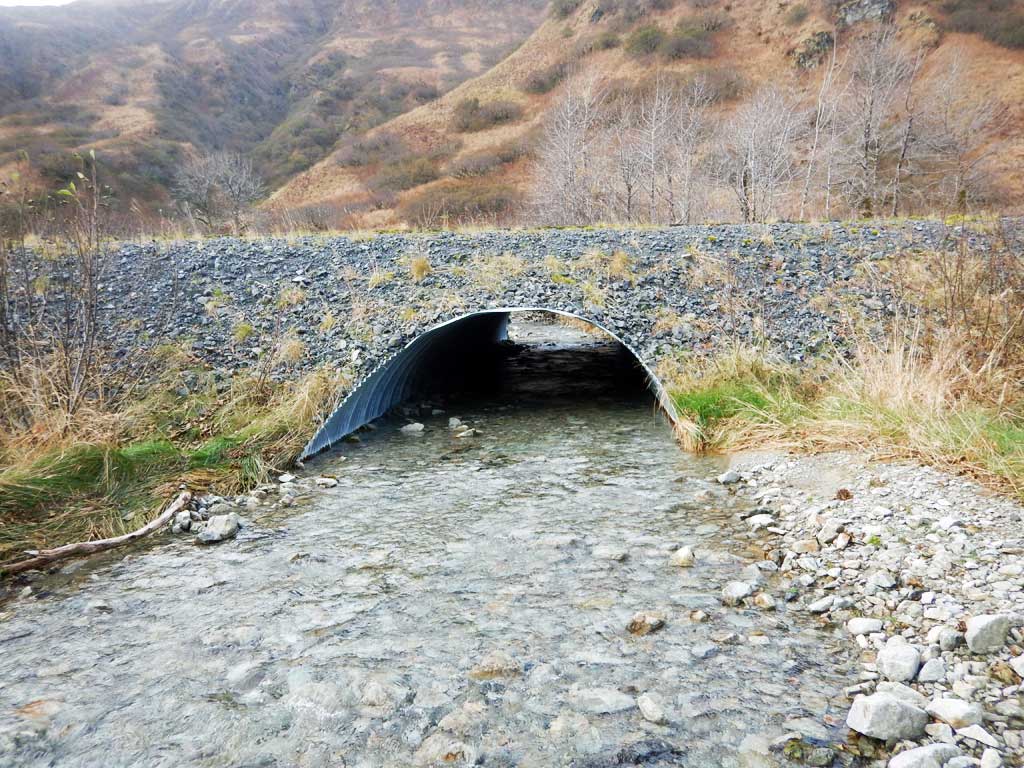

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 4
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present:
Embedded?: Yes
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert measurements taken from habitat permit and have not been verified. Culvert width 10.6ft. Cuvlert height 5.5 ft to top of substrate, substrate depth 1.4 ft. Culvert length 55 ft. Culvert slope 2.3%

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
