Fish Passage Improvement site 20700848

Fish Passage Site 20700848

Coordinates (dec. deg.): 57.80543°, -152.41088°
Legal Description: S027S019W30
Region: Southwest
Road Name: Monashka Bay Road

Datum: WGS84
Quad Name / ITM: Kodiak D-2
AWC Stream #:
Stream Name:

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-MB05

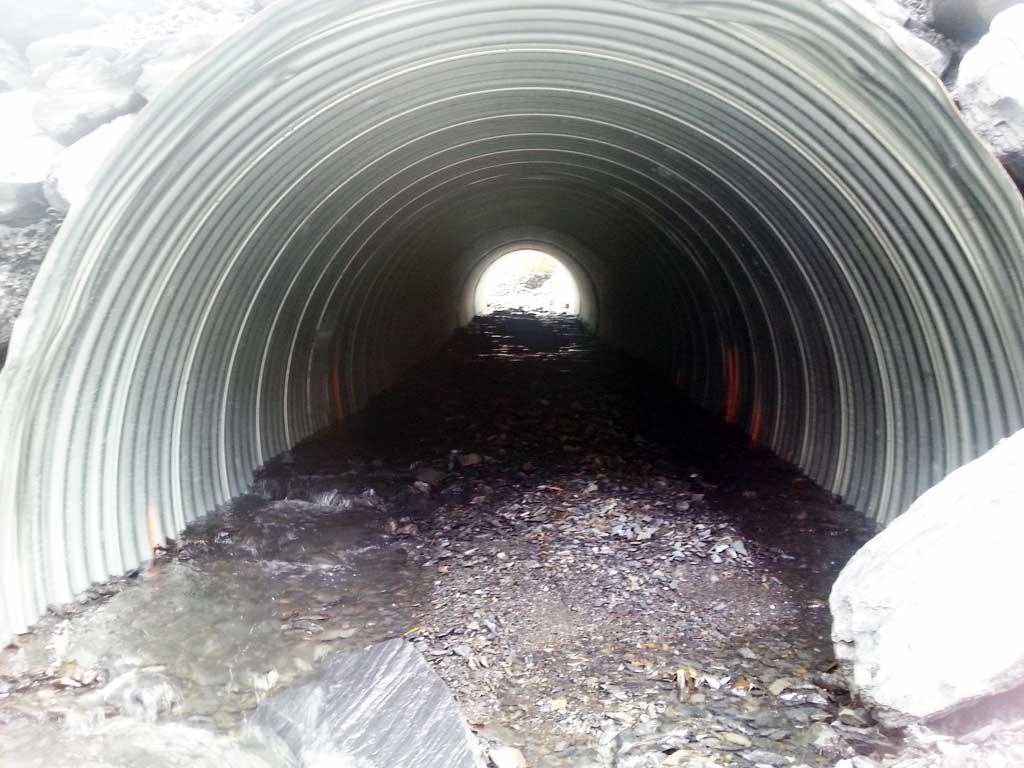

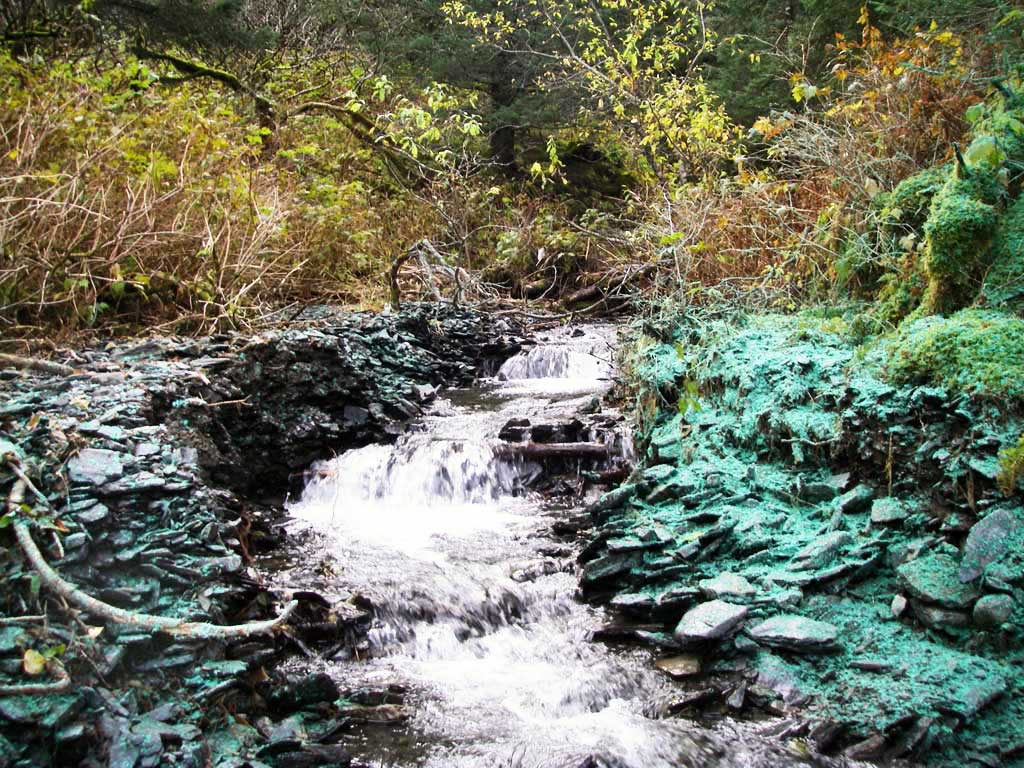

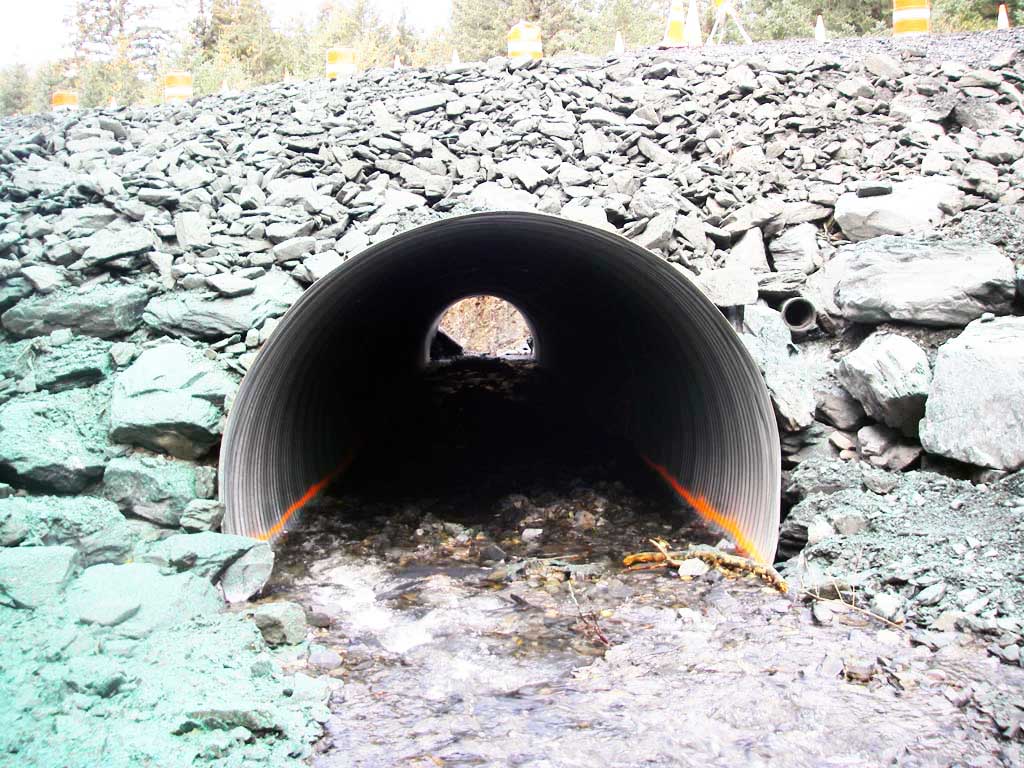

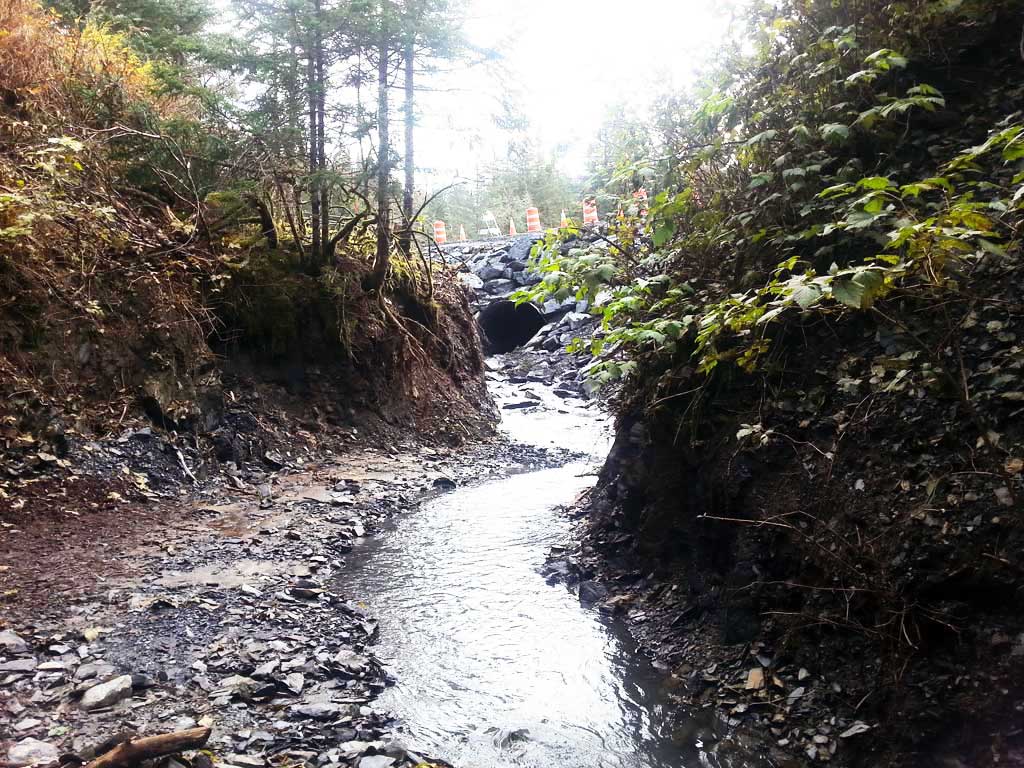

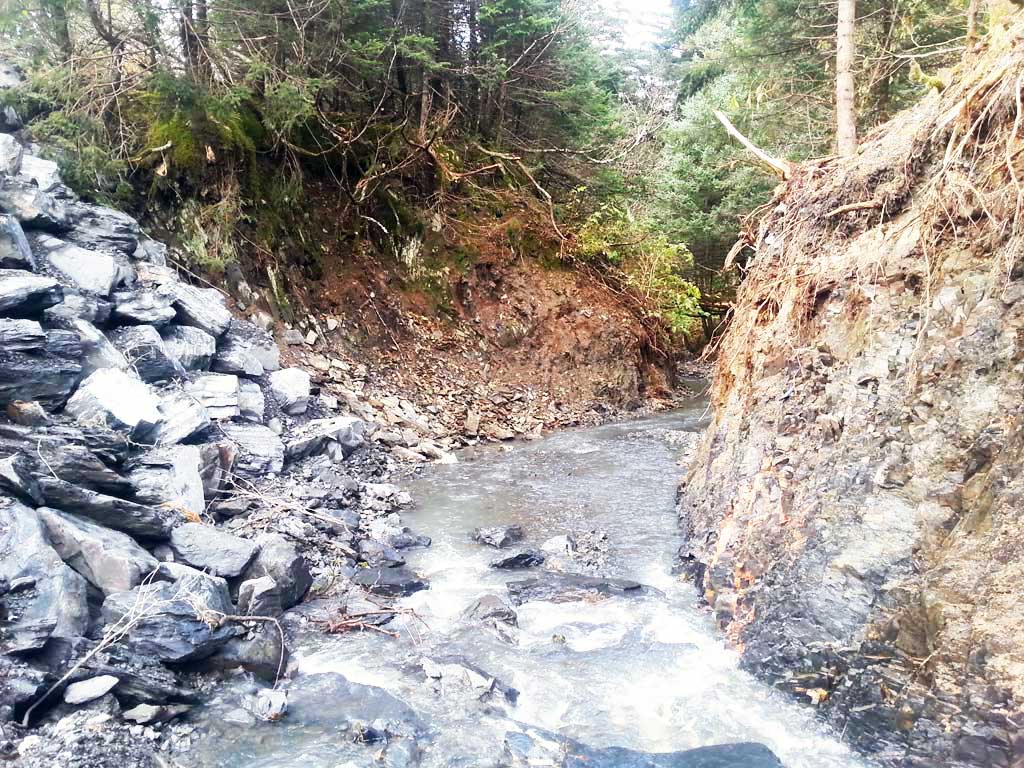

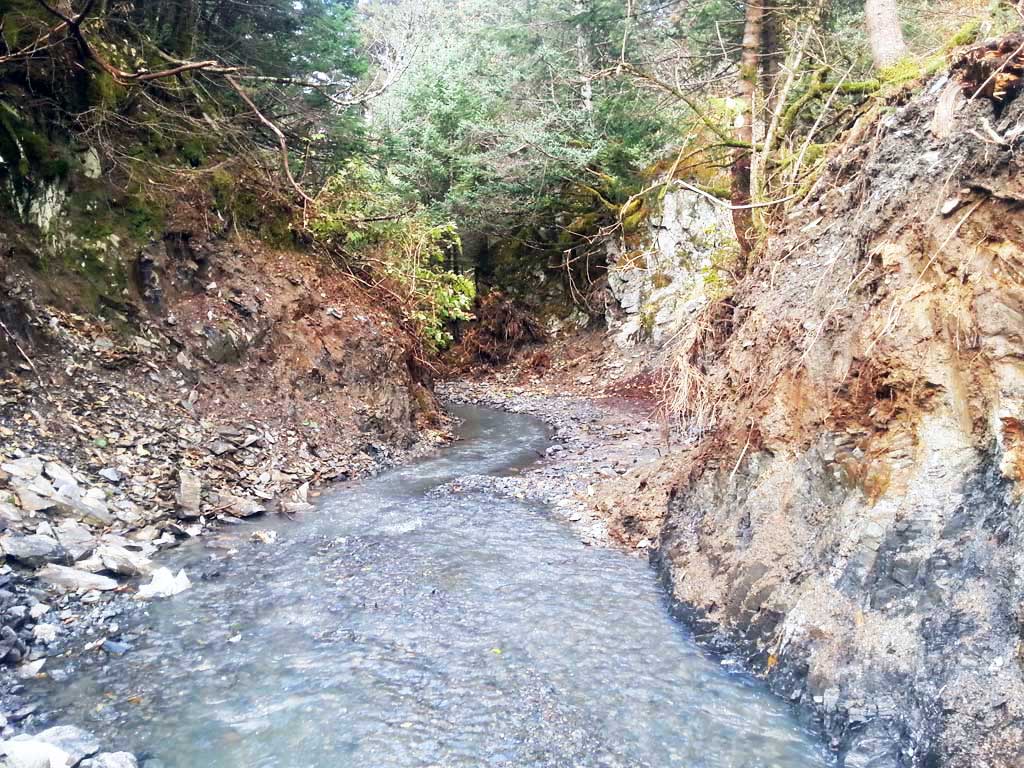

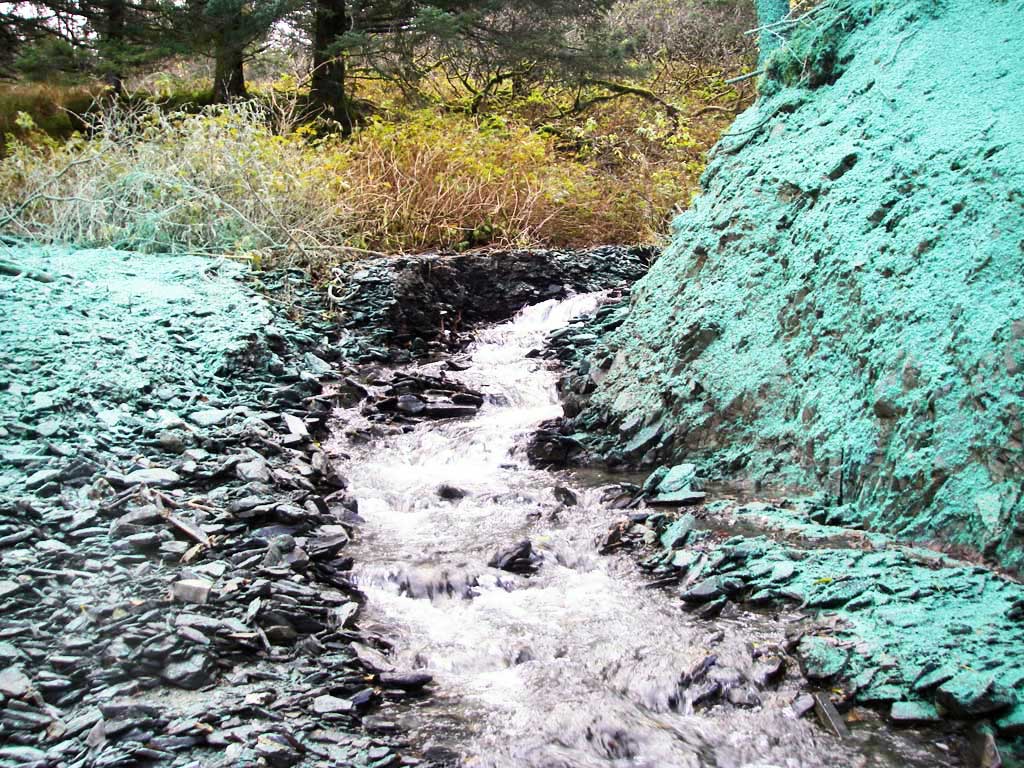

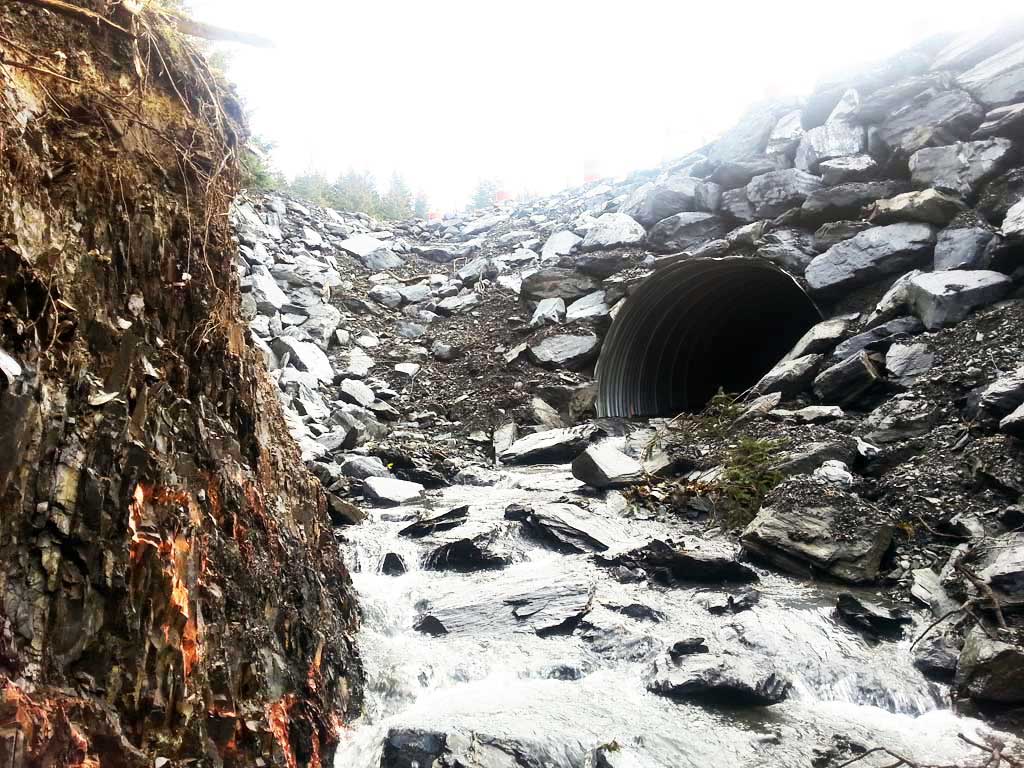

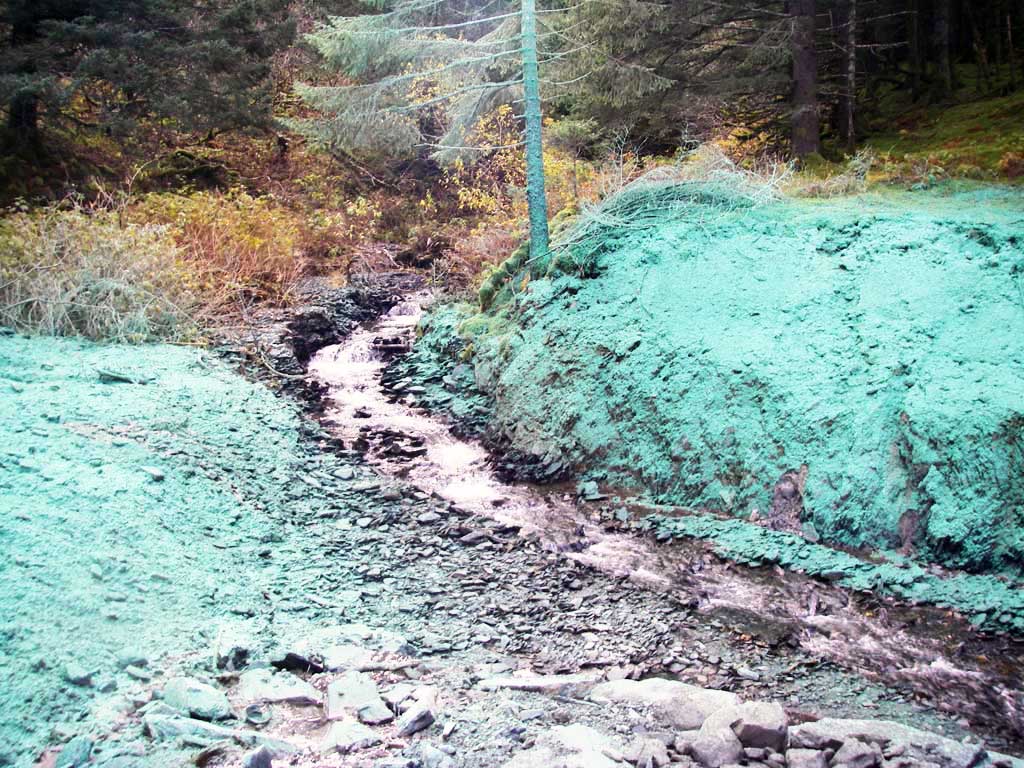

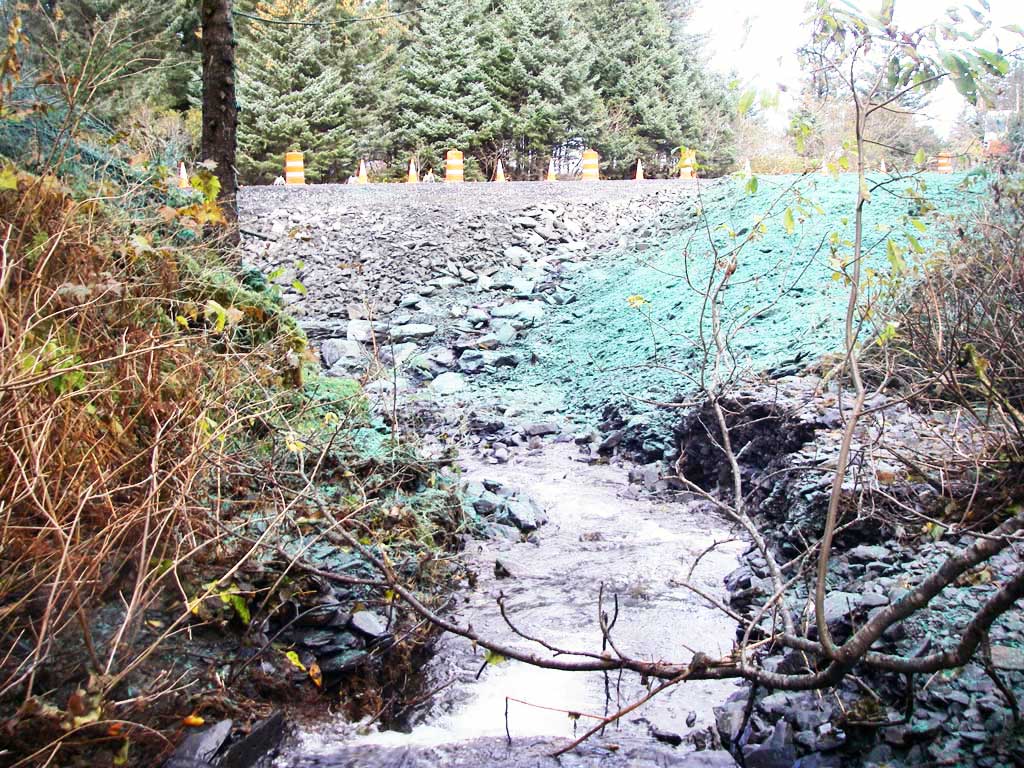

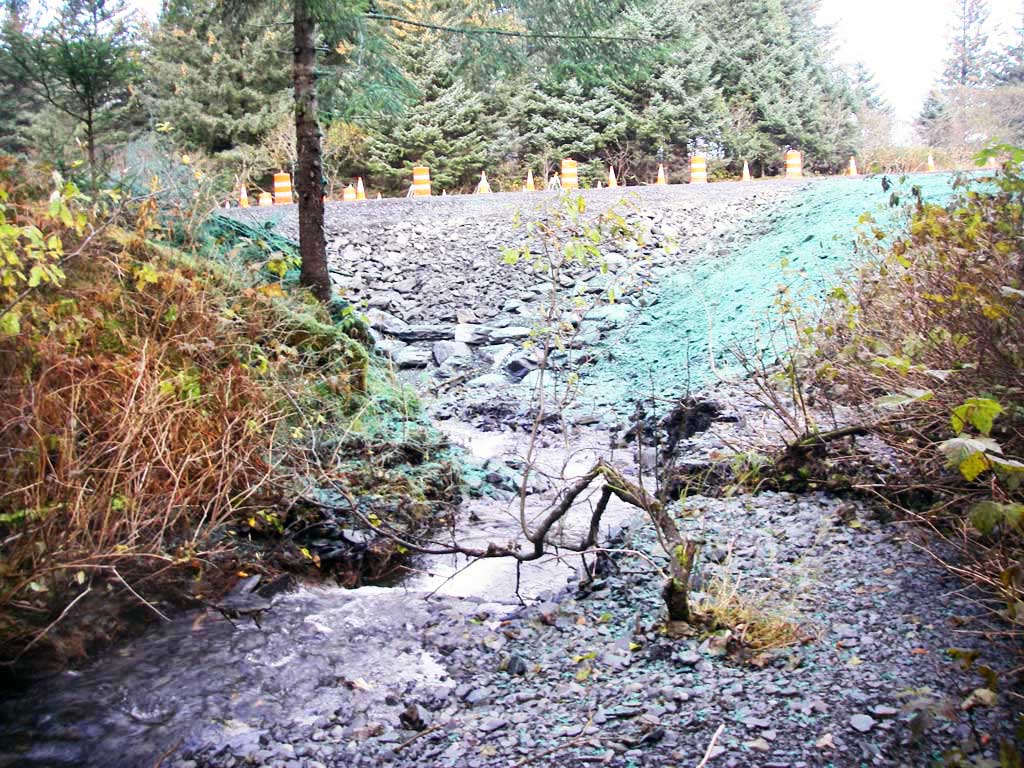

site photos

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year: 2014

Comments: Site submitted by ADFG HB Will Frost. Site was replaced on or about October 8, 2014.

Culvert Measurements

ID: 1

Structure Type:N/A

Fish Passage Rating: Green

Length(ft):

Inlet Type: Projecting

Outlet Type: Projecting

Corrugation Depth(in.):

Corrugation Width(in.):

Condition Rating(1-5): 5

Approach Angle:

Sedimentation At Inlet:

Inlet Substrate:

Outlet Substrate:

	Inlet	Outlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):

Backwatered?: No

Baffles Present: Yes

Embedded?: Yes

Outfall Height:

Outfall Type: At Stream Grade

Constriction Ratio:

Culvert Gradient:

Max Slope:

Max Slope Length:

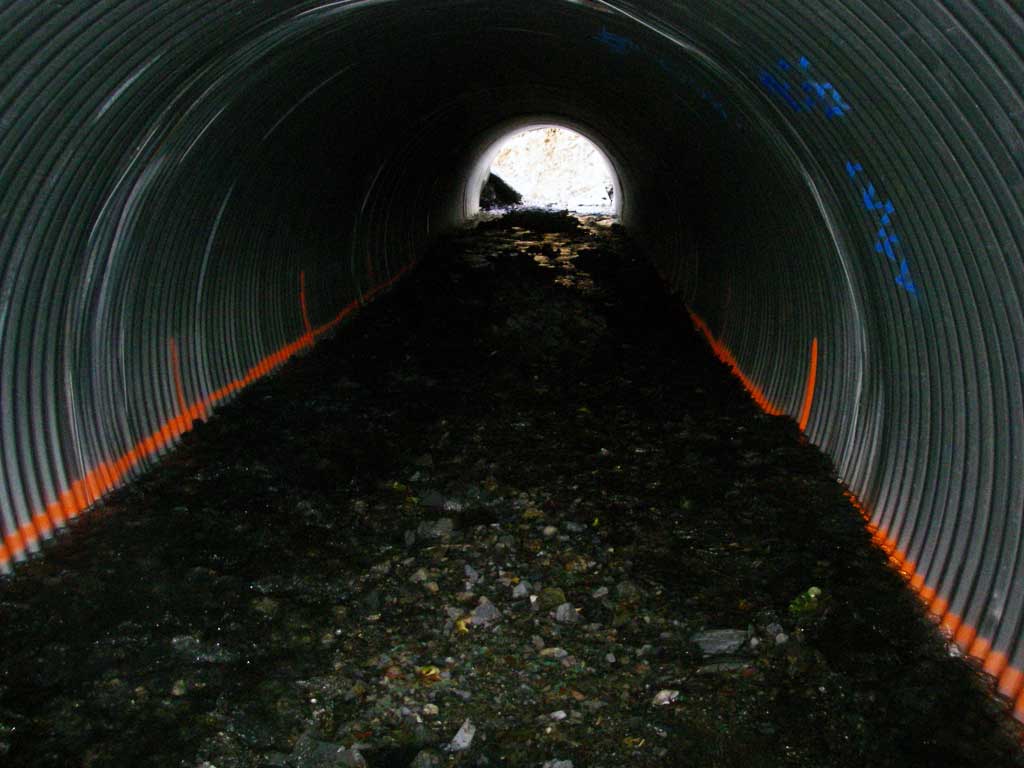

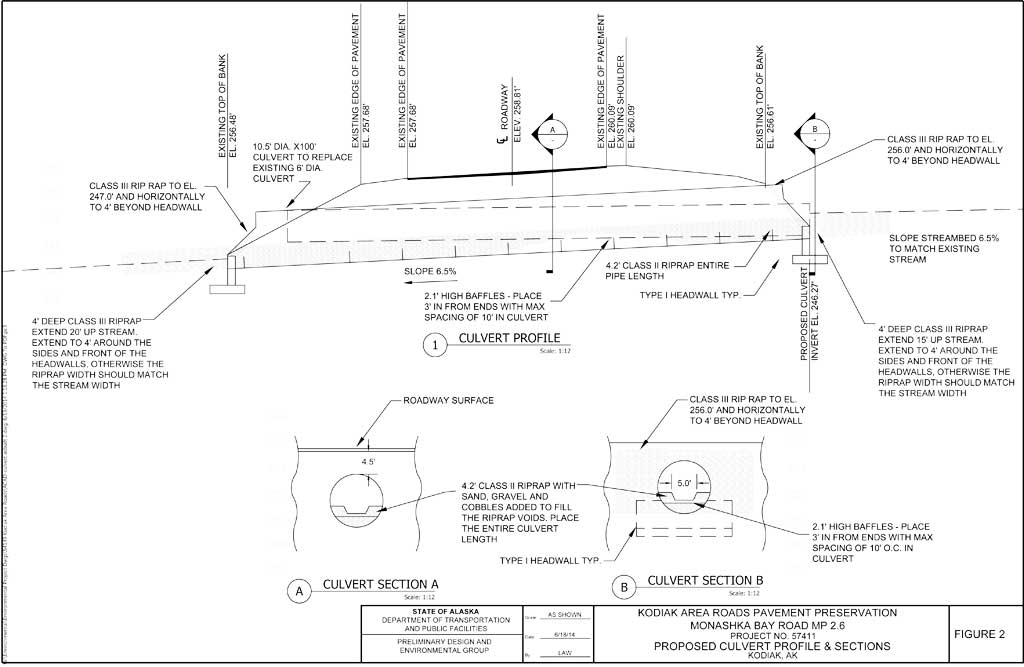

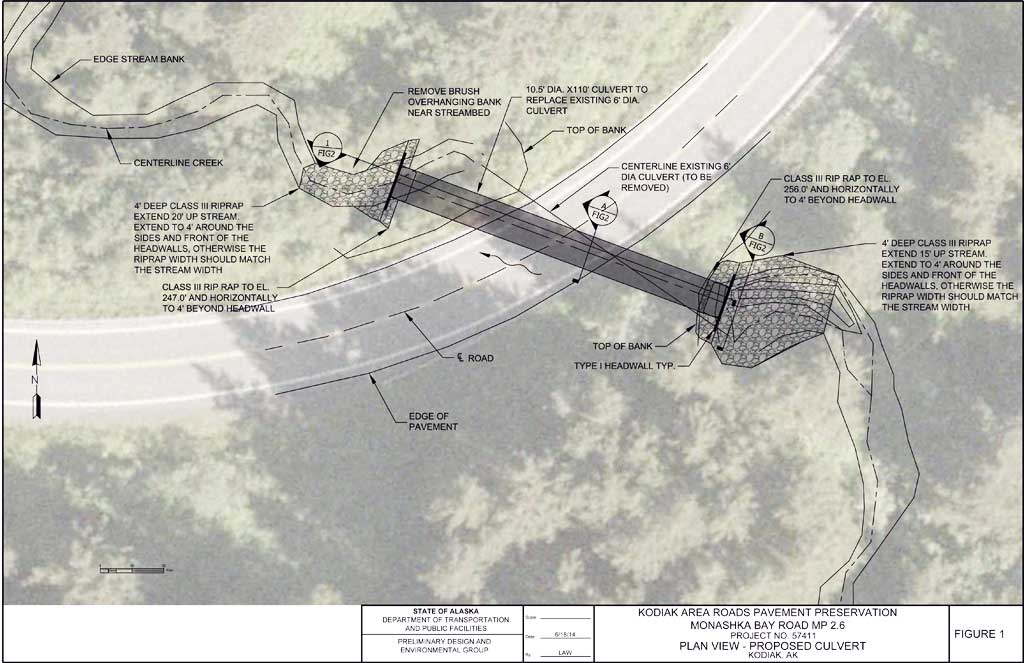

Comments: Culvert measurements are estimated and based on plans for the culvert replacement. Plans called for baffles inside the culvert to hold bedding material and not for fish passage. Culvert width 10,5 ft. Culvert height 6.3 ft. Substrate depth 4.2 ft. Culvert length 100 ft.
