Fish Passage Site 20700824

Coordinates (dec. deg.): 57.63972°, -152.50161°
Legal Description: S029S020W28
Region: Southwest
Road Name: Chiniak Highway

Datum: WGS84
Quad Name / ITM: Kodiak C-2
AWC Stream #:
Stream Name:

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-CR22

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year: 2013


Site Observations:

  1. Outfall height red

Comments: Replacement culverts were not designed for fish passage due to limited upstream fish habitat. Culverts were replaced July 2013 and need to be resurveyed. Culvert still rated red due to rip rap outfall.

Culvert Measurements

ID: 1 Structure Type: Pipe-arch (Structural aluminum plate) Fish Passage Rating: Red

Length(ft):
Inlet Type: Mitered
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall on To Rip Rap
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert dimensions taken from site plans and have not been verified. Culvert width 7 ft. Culvert height 5 ft. Culvert length 60 ft.
  Culvert Observations:
  1. Outfall height red
ID: 2 Structure Type: Pipe-arch (Structural aluminum plate) Fish Passage Rating: Red

Length(ft): 60.0
Inlet Type: Mitered
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall on To Rip Rap
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert dimensions taken from site plans and have not been verified. Culvert width 7 feet, culvert hieght 5 feet.
  Culvert Observations:
  1. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

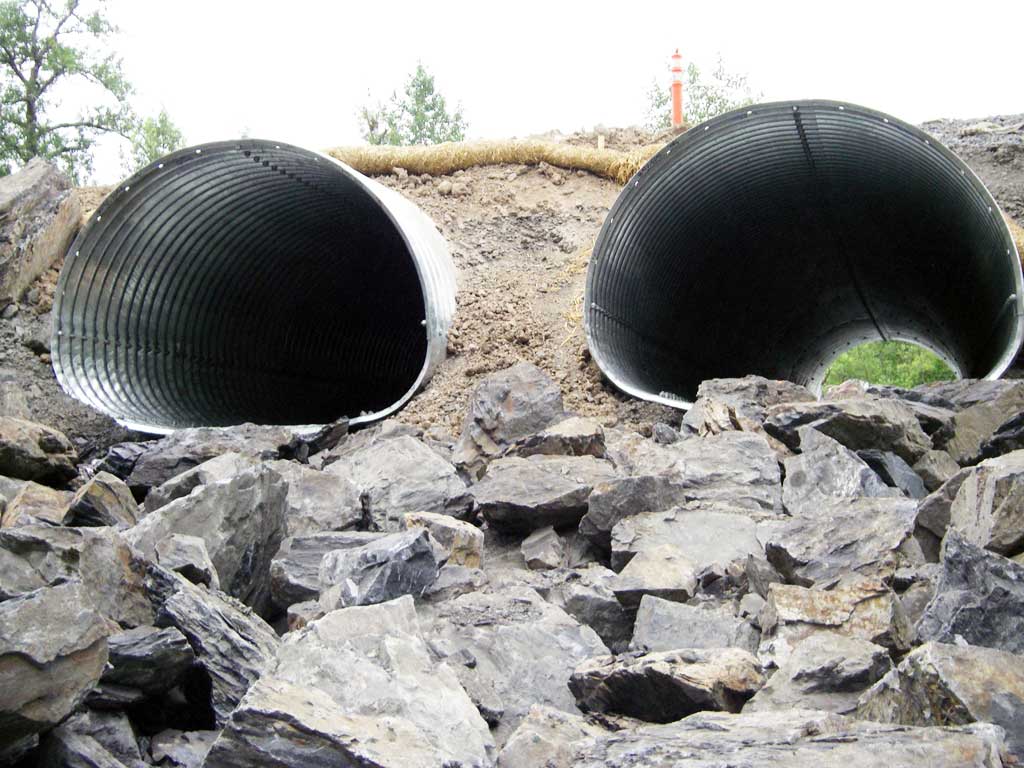

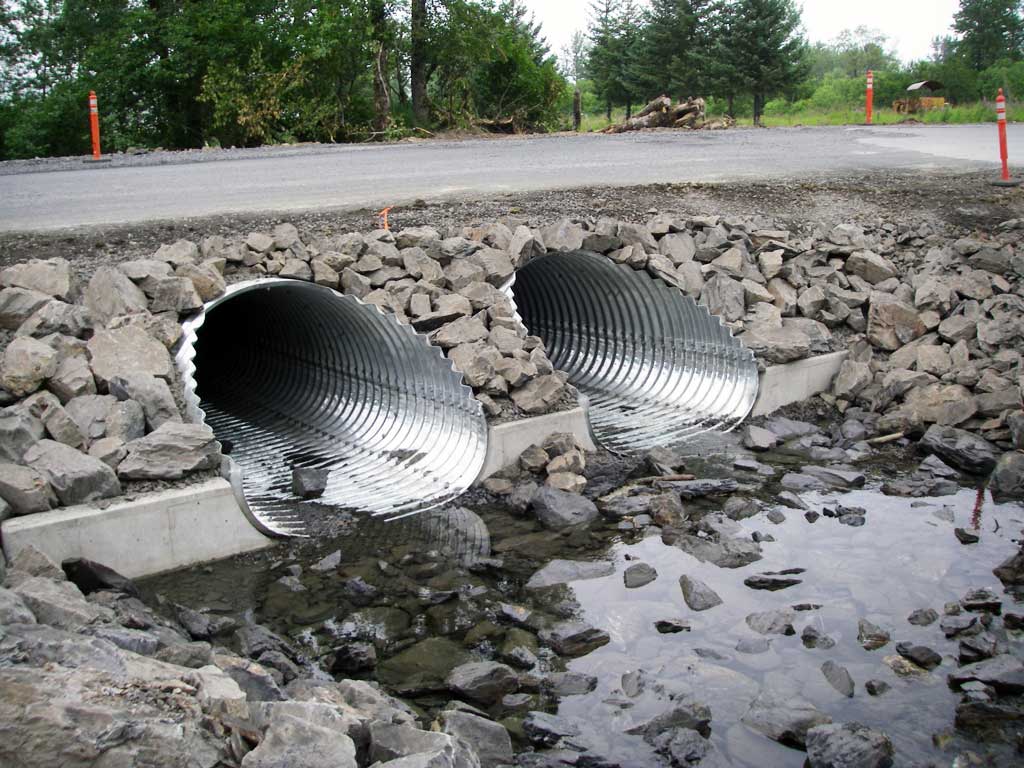

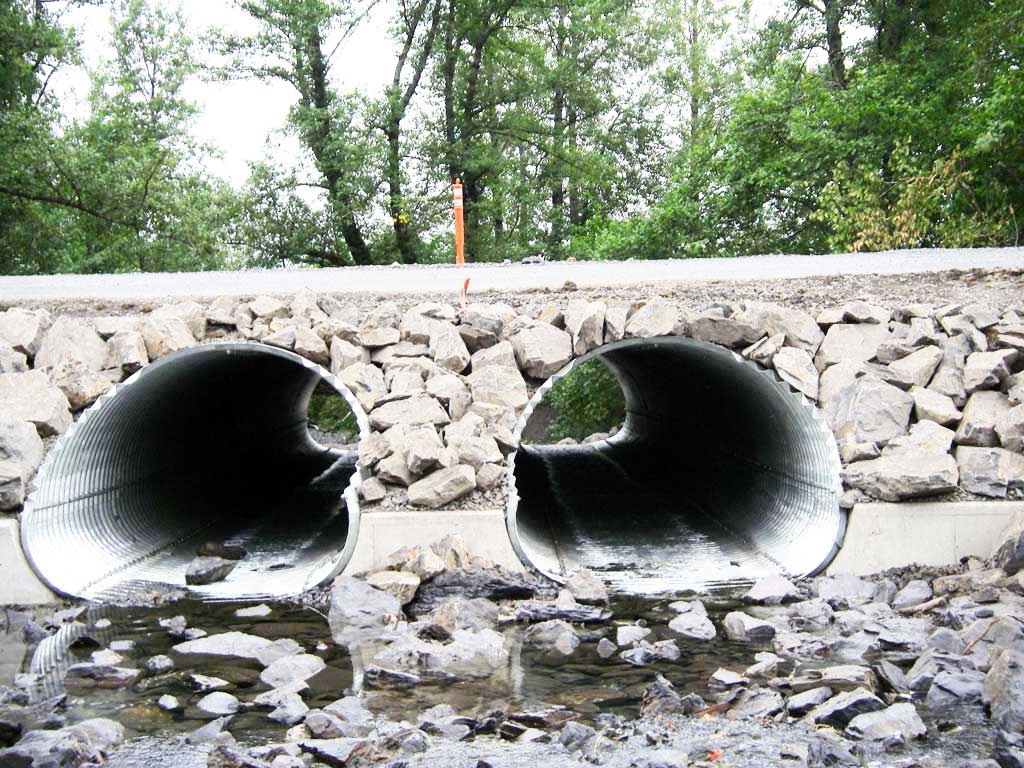

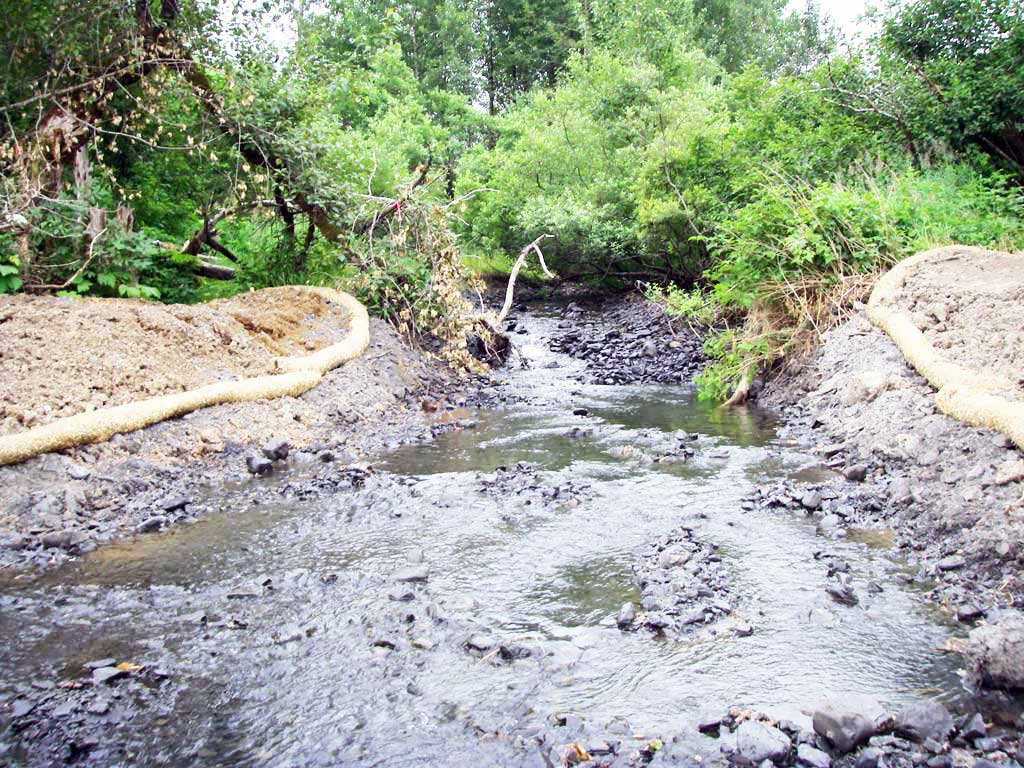

Photos
