Fish Passage Site 20700788

Coordinates (dec. deg.): 57.78385°, -152.58460°
Legal Description: S028S020W06
Region: Southwest
Road Name: Anton Larsen Bay Road

Datum: WGS84
Quad Name / ITM: Kodiak D-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-0788

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year: 2010


Comments: Culvert has been replaced and needs to be resurveyed. Photos courtesy of Will Frost.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):

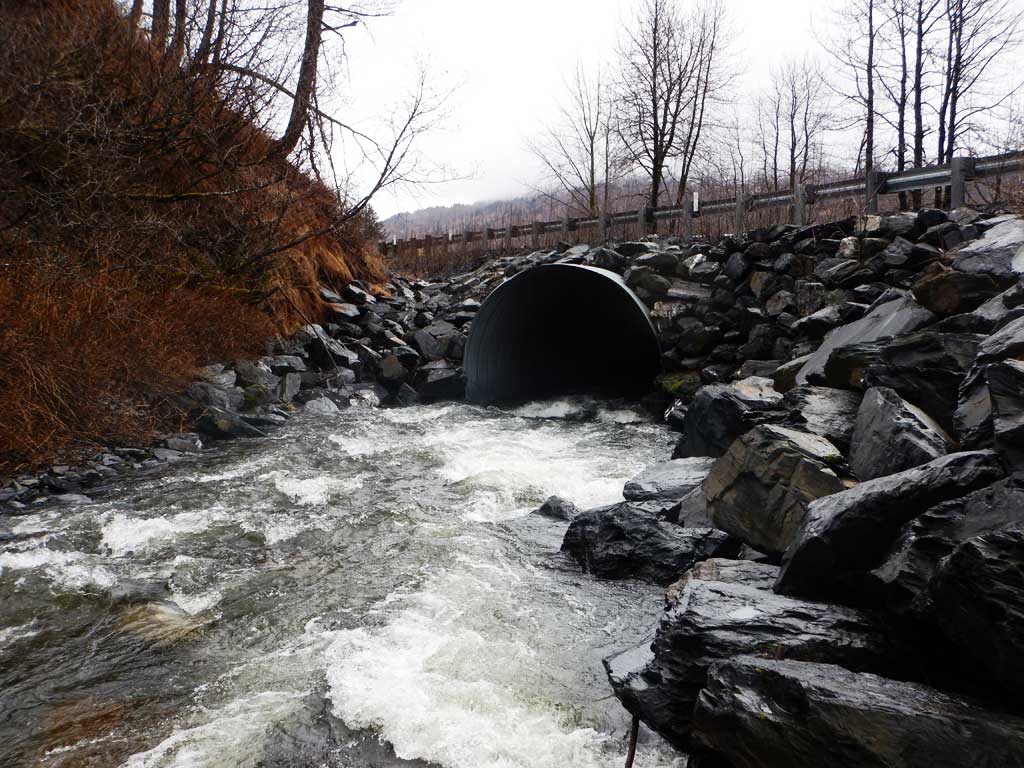

Inlet Type: Projecting

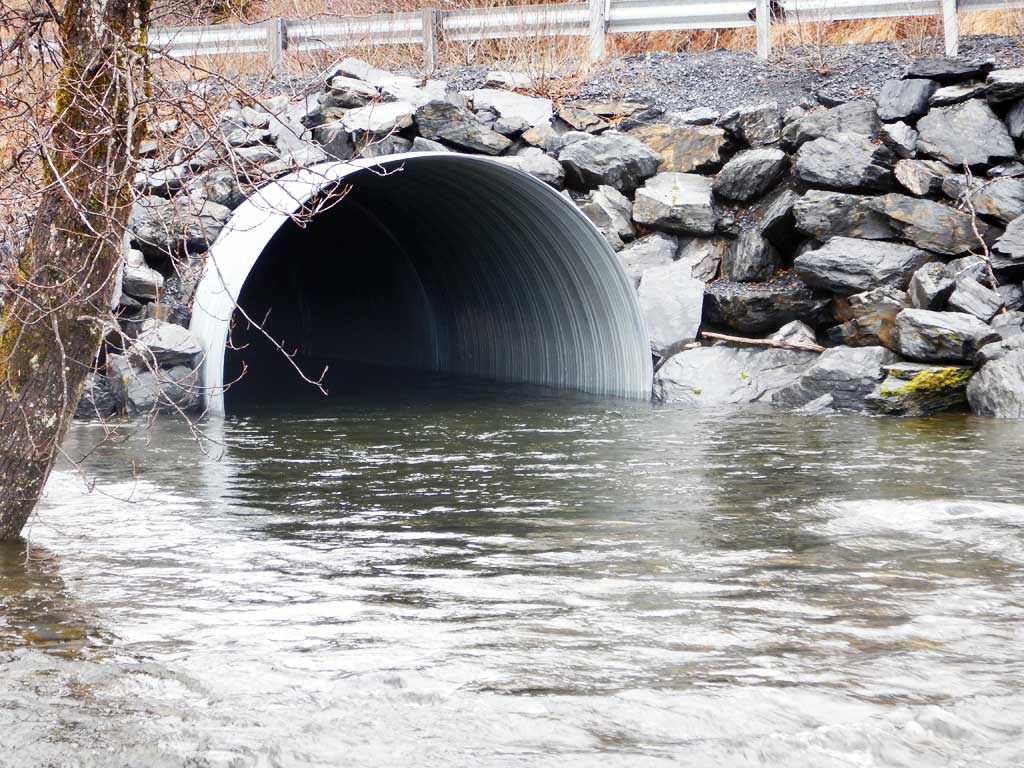

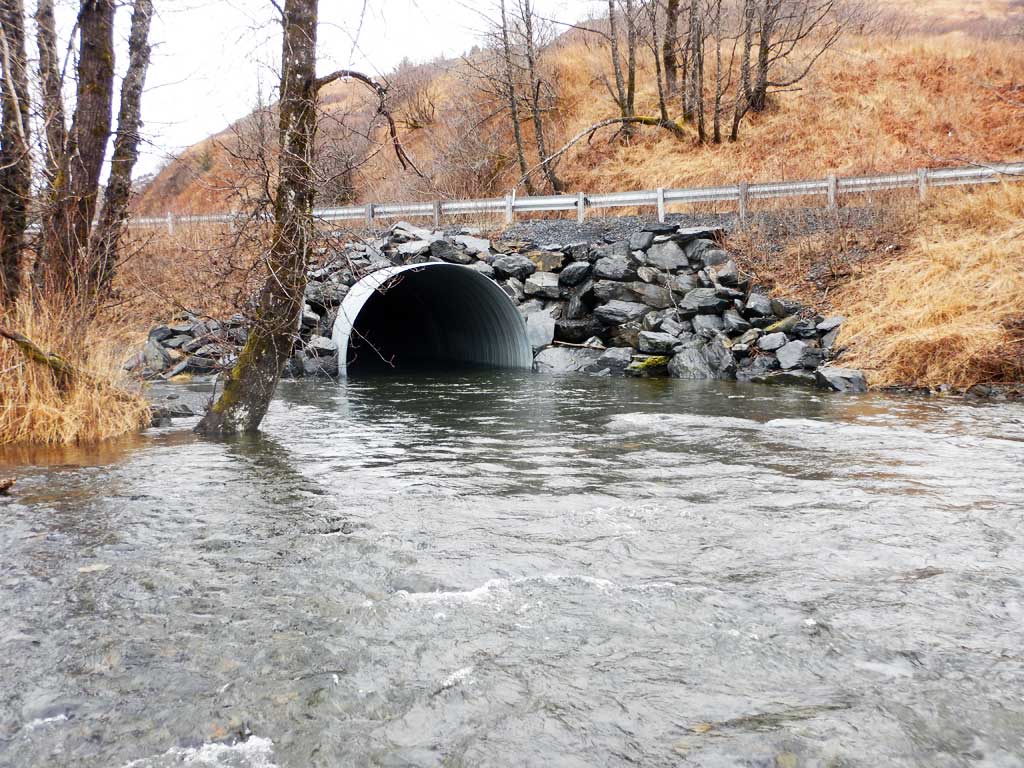

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 4
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present: Yes
Embedded?: Maybe
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Plans called for this culvert to have 1.5 foot high baffles installed every 10 feet inside the culvert and to have 3 feet of substrate throughout the barrel. All culvert measurements taken from site plans and have not been verified. Culvert width 13 ft, culvert height 10 ft to top of substrate, substrate depth 3 feet.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
