Fish Passage Improvement site 20700786

Fish Passage Site 20700786

Coordinates (dec. deg.): 57.77063°, -152.52573°
Legal Description: S028S020W09
Region: Southwest
Road Name: Magazine Access Road

Datum: WGS84
Quad Name / ITM: Kodiak D-2
AWC Stream #: 259-21-10120-2011
Stream Name: Battery Creek Tributary

Elevation:

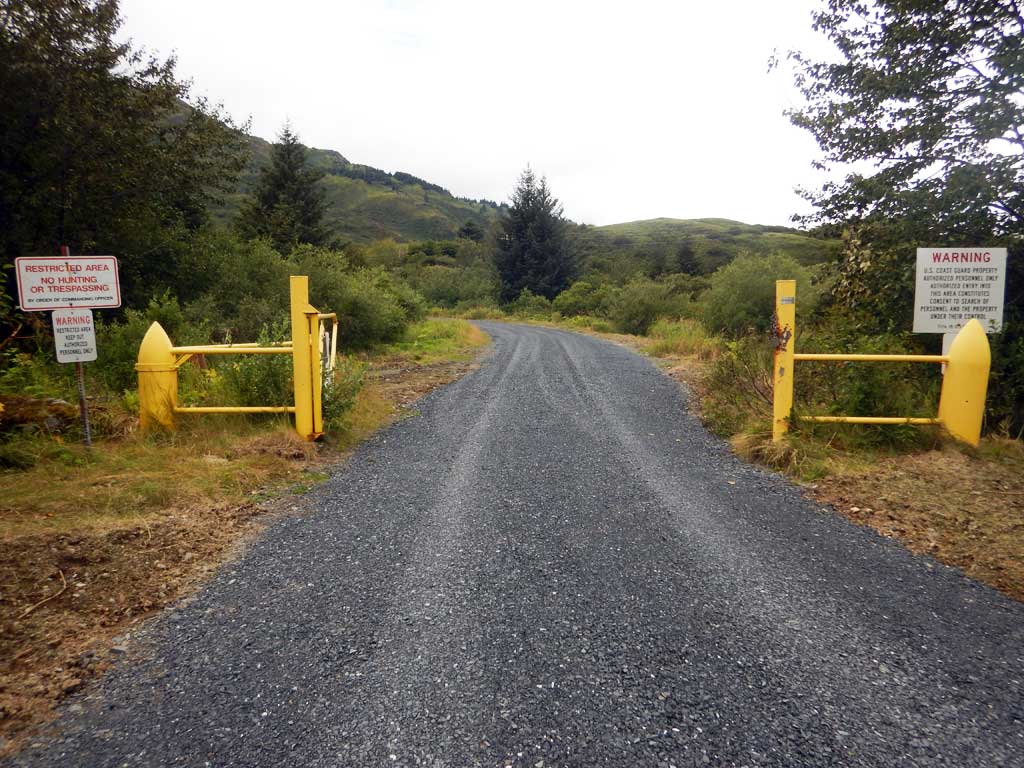

Site Comments: Site is just outside the Coast Guard gate.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-0786

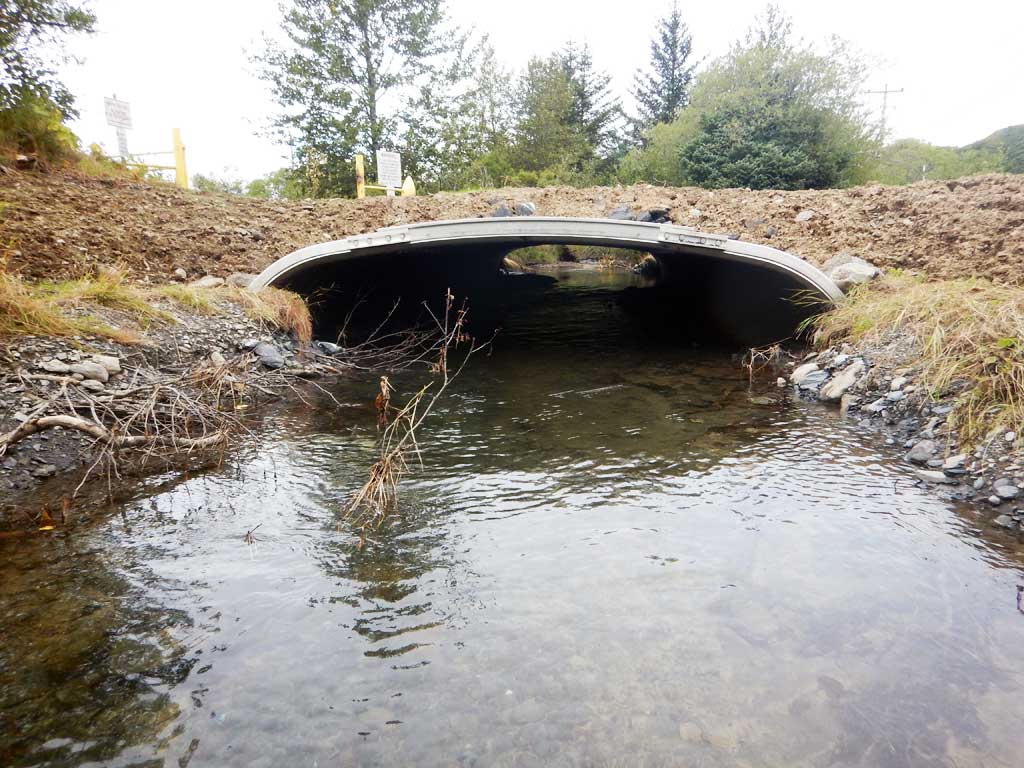

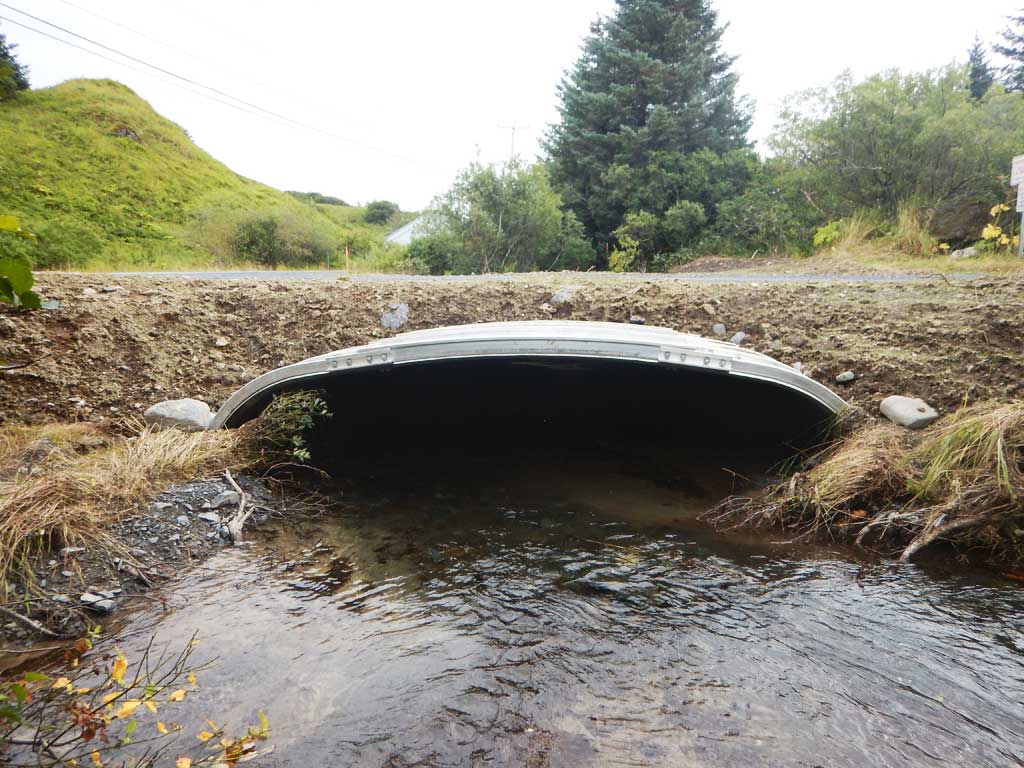

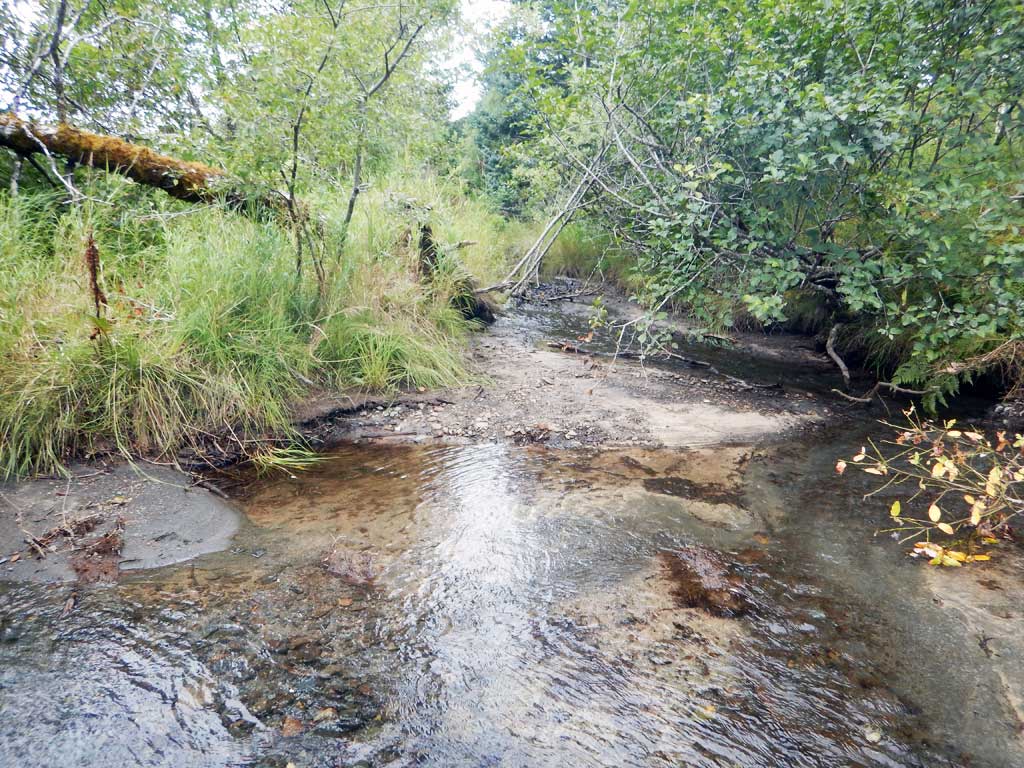

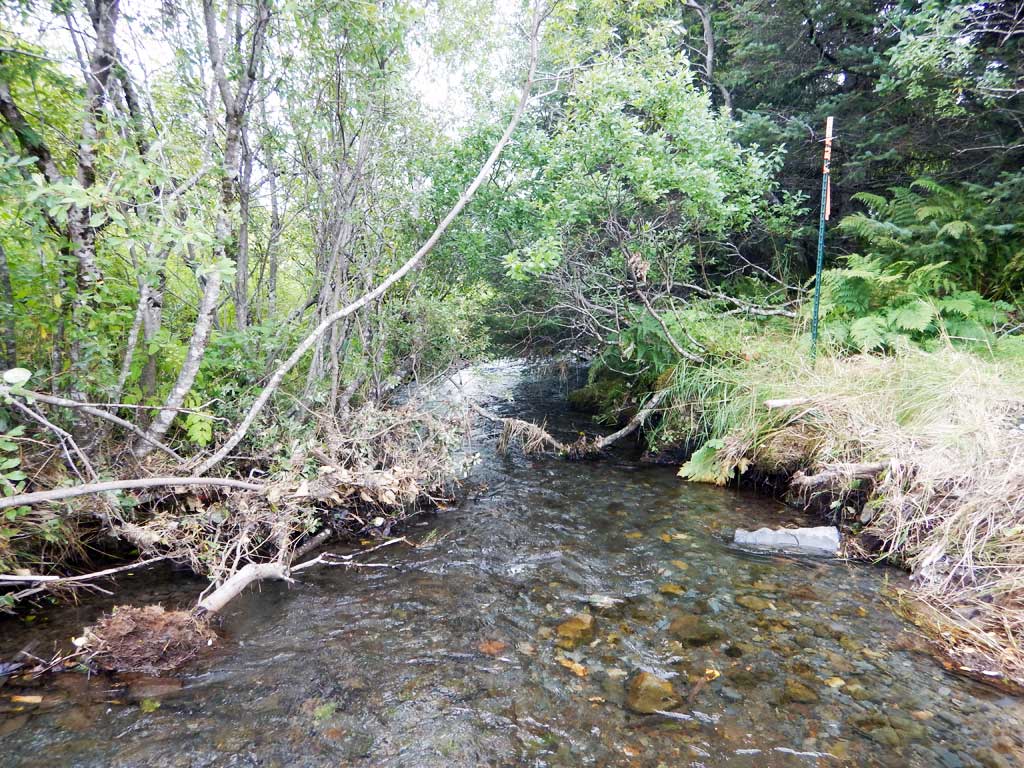

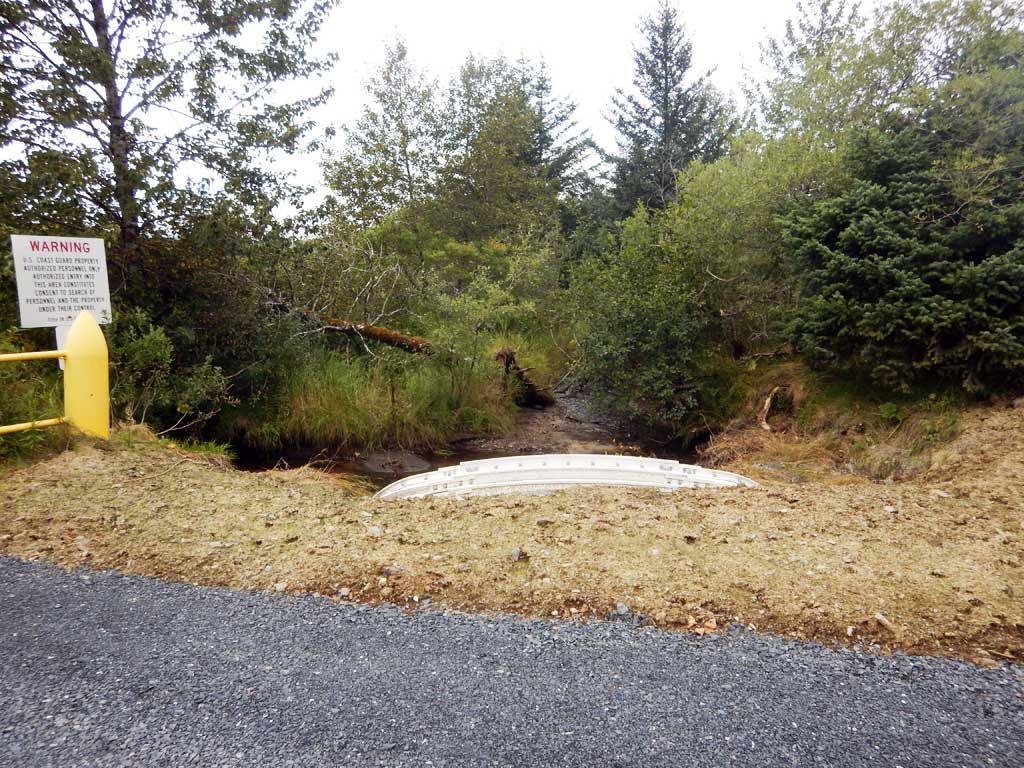

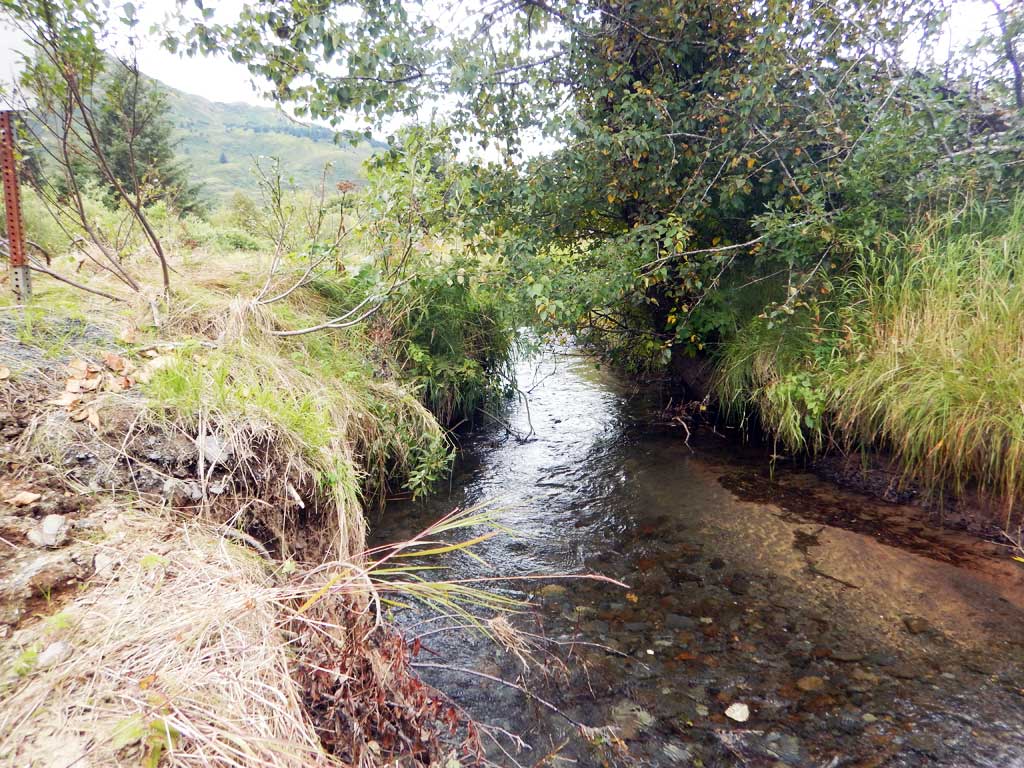

site photos

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools: No
Construction Year: 2018

Comments: Site information and photos submitted by Will Frost, ADFG, Habitat Biologist.

Culvert Measurements

ID: 1

Structure Type: Box culvert (Structural aluminum plate)

Fish Passage Rating: Green

Length(ft):

Inlet Type: Projecting

Outlet Type: Projecting

Corrugation Depth(in.): 2.5

Corrugation Width(in.): 9.0

Condition Rating(1-5): 5

Approach Angle:

Sedimentation At Inlet:

Inlet Substrate:

Outlet Substrate:

	Inlet	Outlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):

Backwatered?: No

Baffles Present: No

Embedded?: Yes

Embedded Depth(ft): 2.0

Outfall Height: 0.0

Outfall Type: At Stream Grade

Constriction Ratio:

Culvert Gradient:

Max Slope:

Max Slope Length:

Comments: Culvert measurments taken from design plans and have not been verified by project staff. Culvert width 15.25 ft. Culvert height 4.5 feet. Culvert length 49.5 ft. Culvert Gradient 0.6%.
