Fish Passage Site 20603716

Coordinates (dec. deg.): 61.06489°, -151.14643°
Legal Description: S011N011W12
Region: South Central
Road Name: Cemetery Road

Datum: NAD83
Quad Name / ITM: Tyonek A-4
AWC Stream #:
Stream Name: Unnamed Tributary to Indian Creek

Elevation:

Site Comments: Located on road to cemetary.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-TYK13

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Comments: None

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):

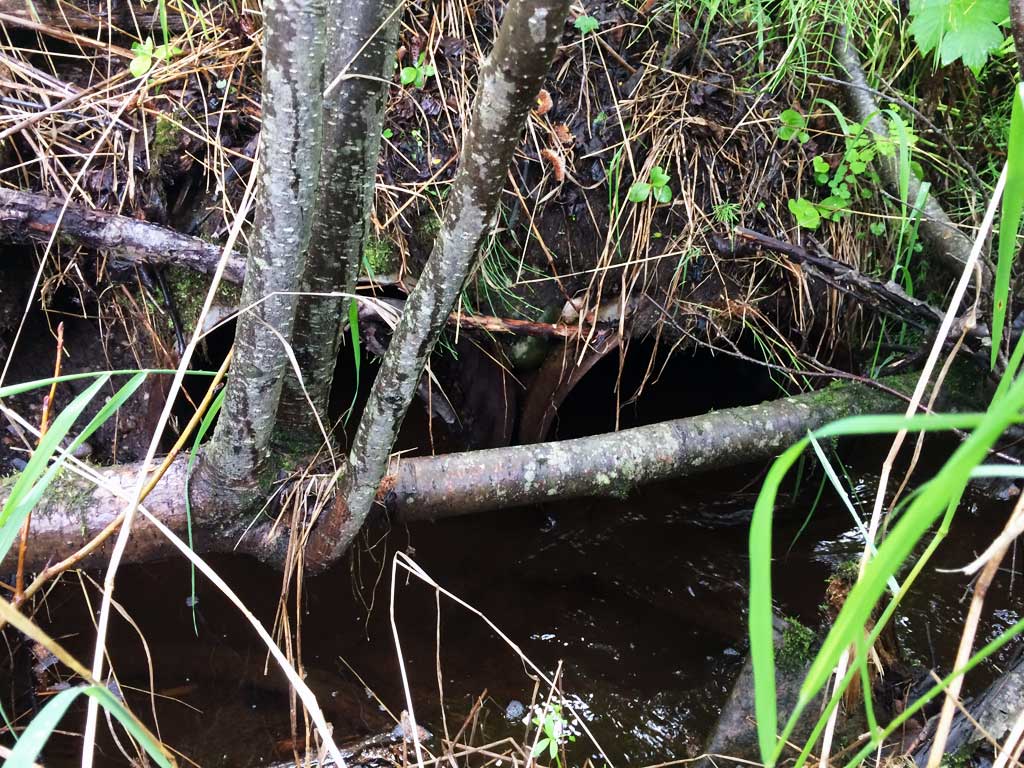

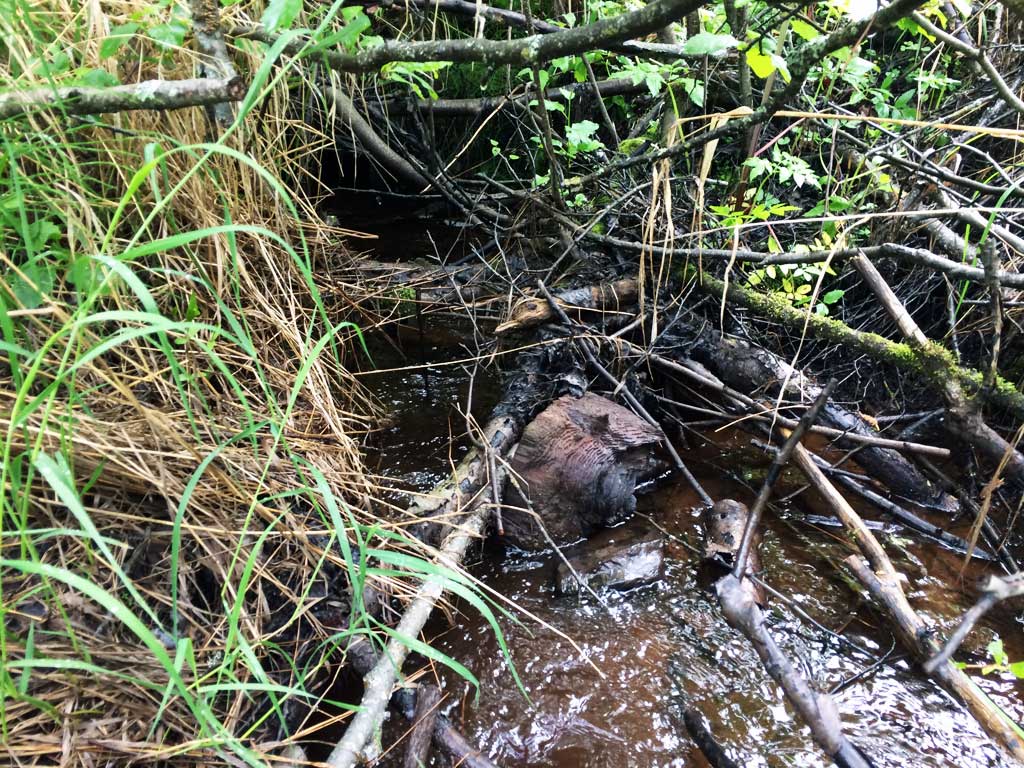

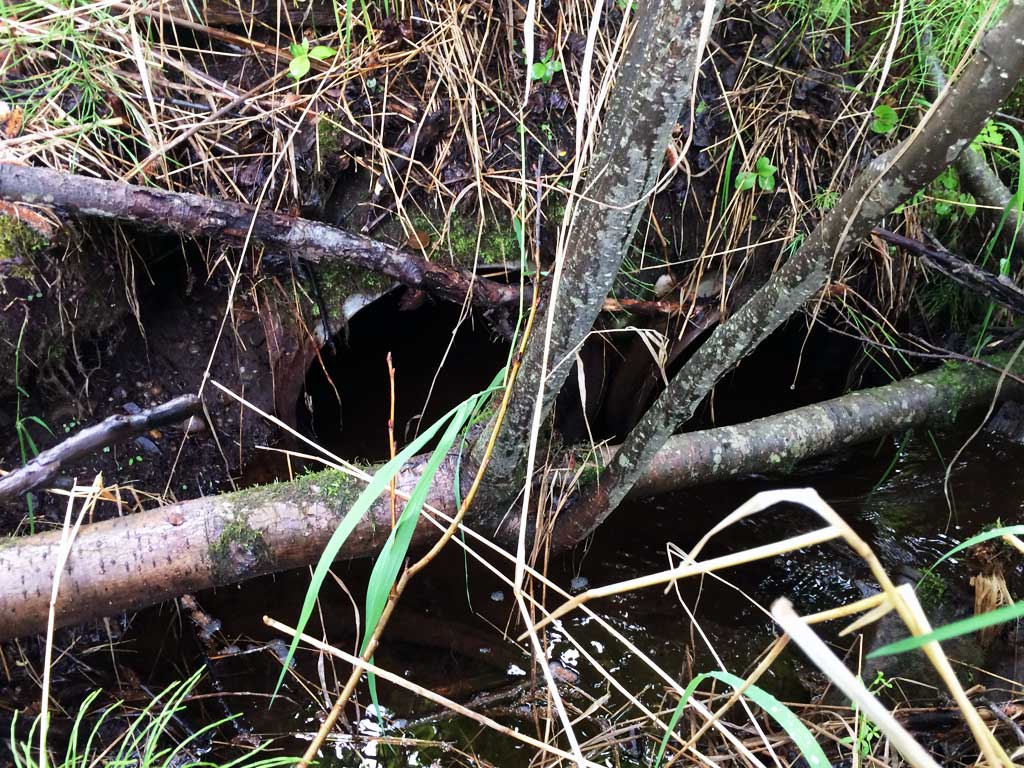

Inlet Type: Projecting

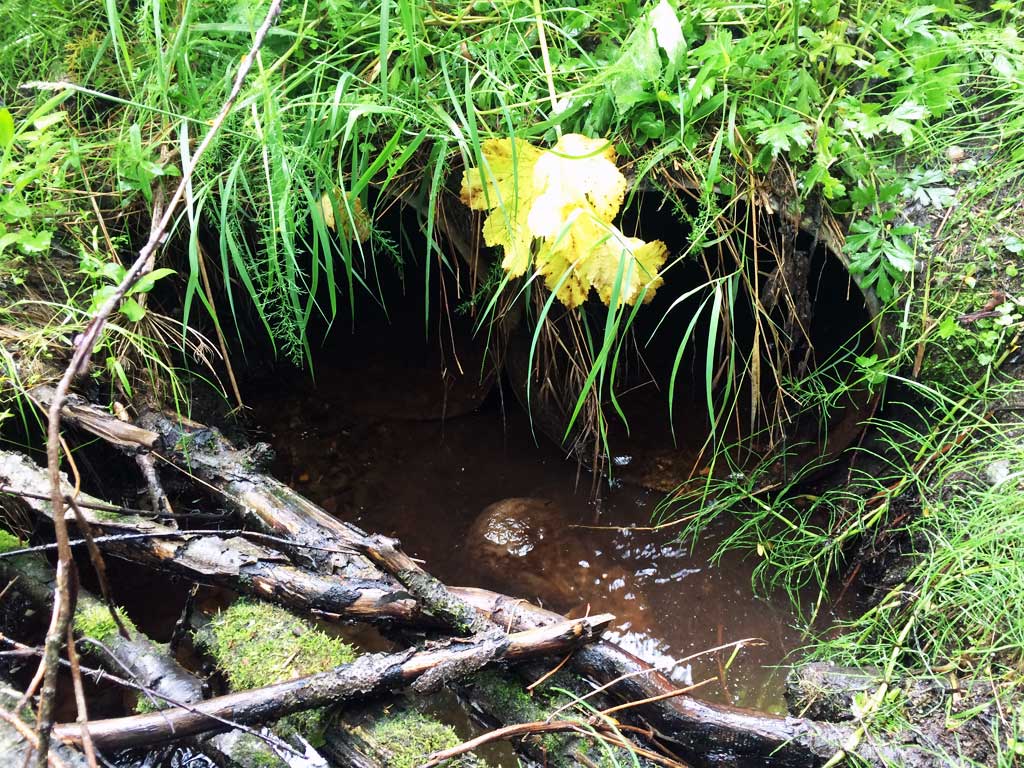

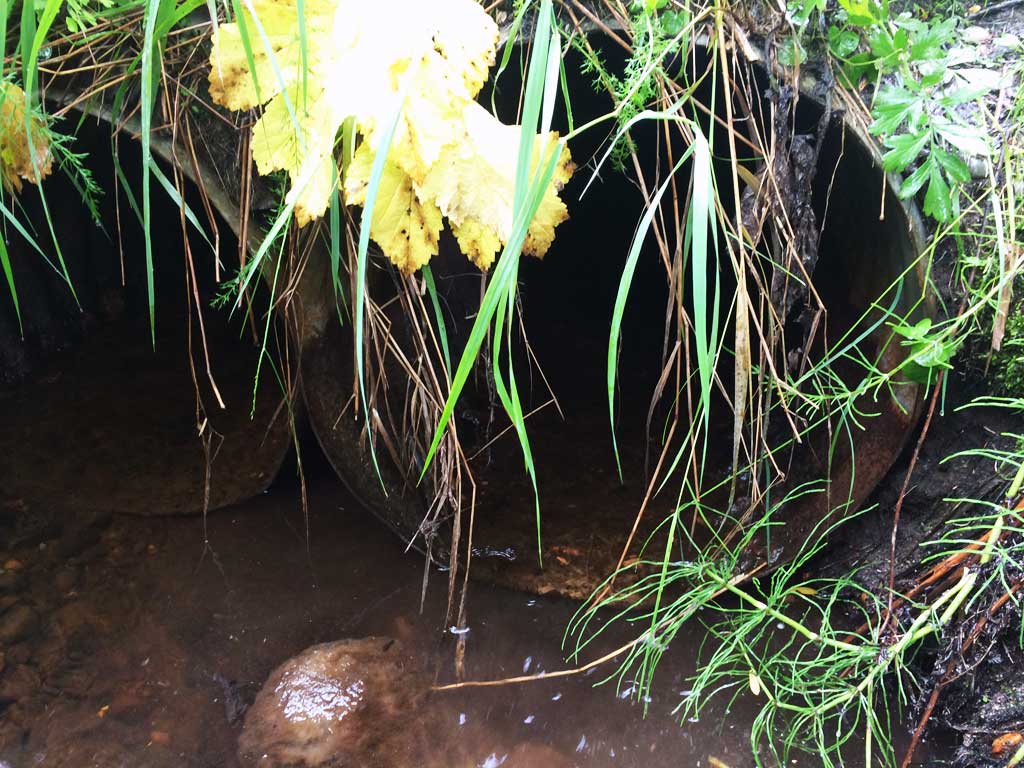

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):1.5 1.5
Height(ft):1.5 1.5
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

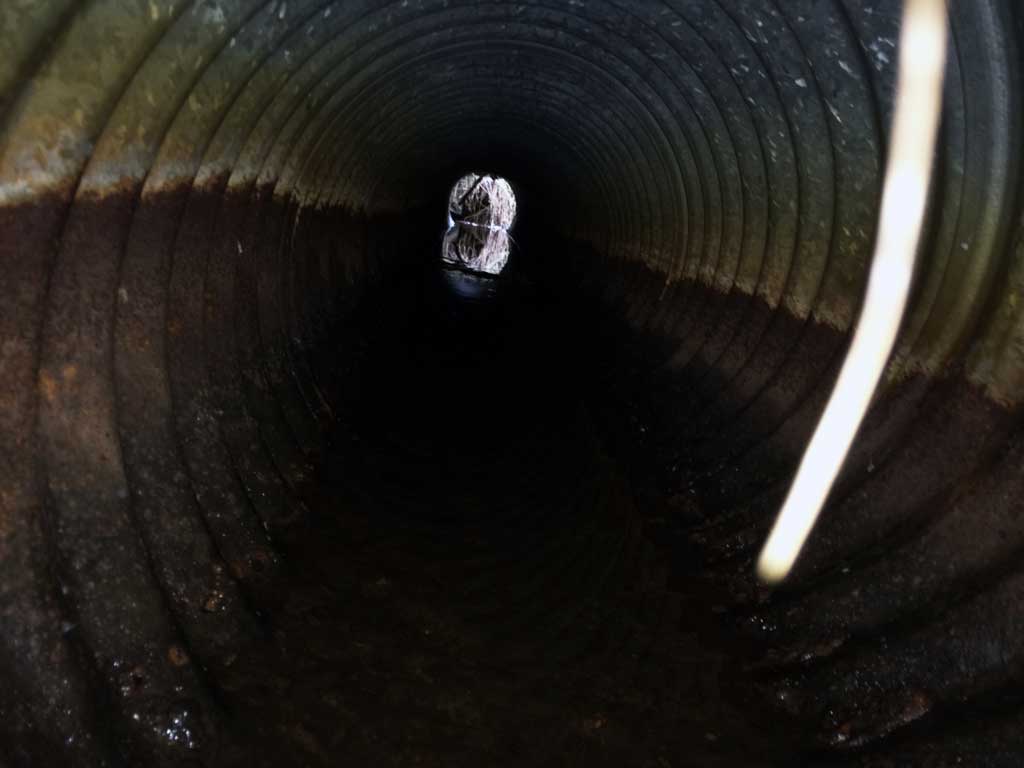

ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):
Inlet Type: Projecting

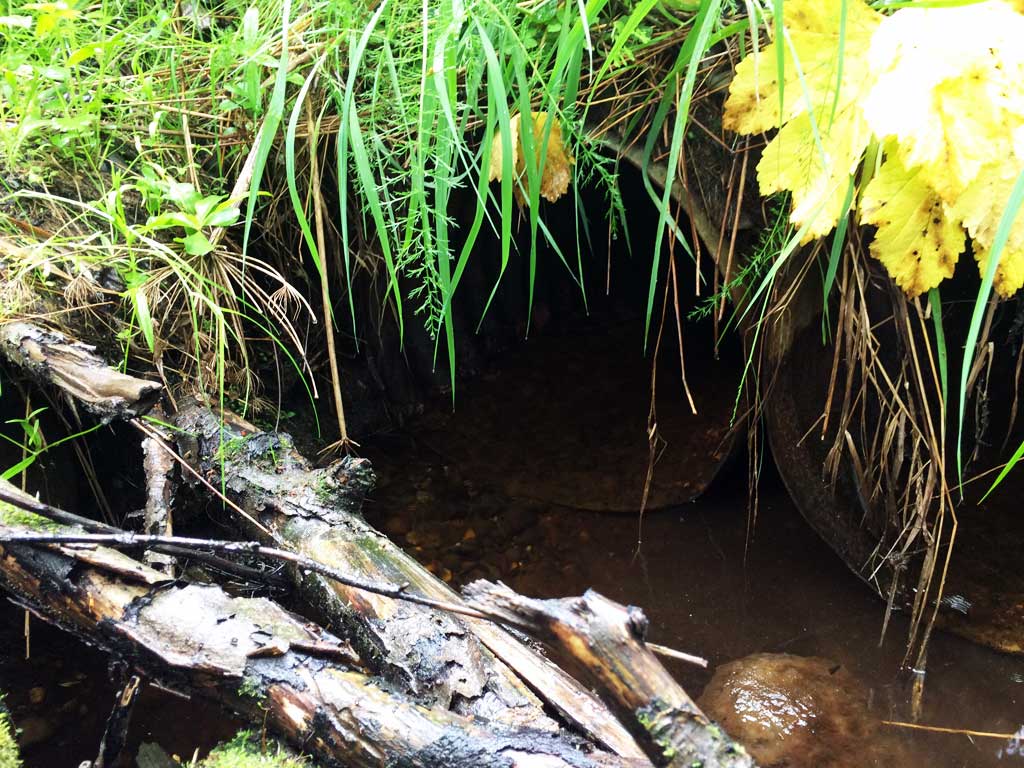

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):1.5 1.5
Height(ft):1.5 1.5
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert measurements are approximate.

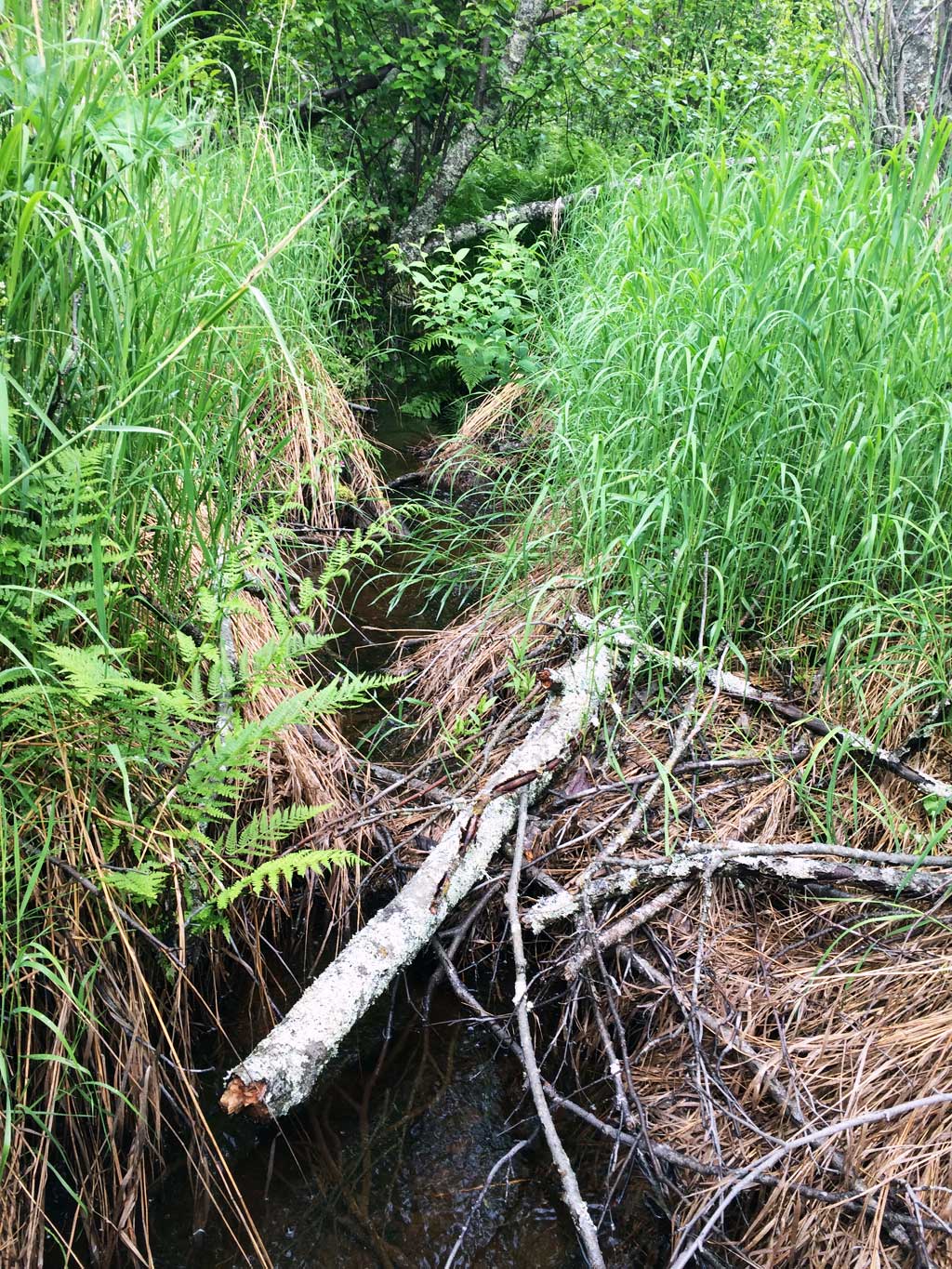

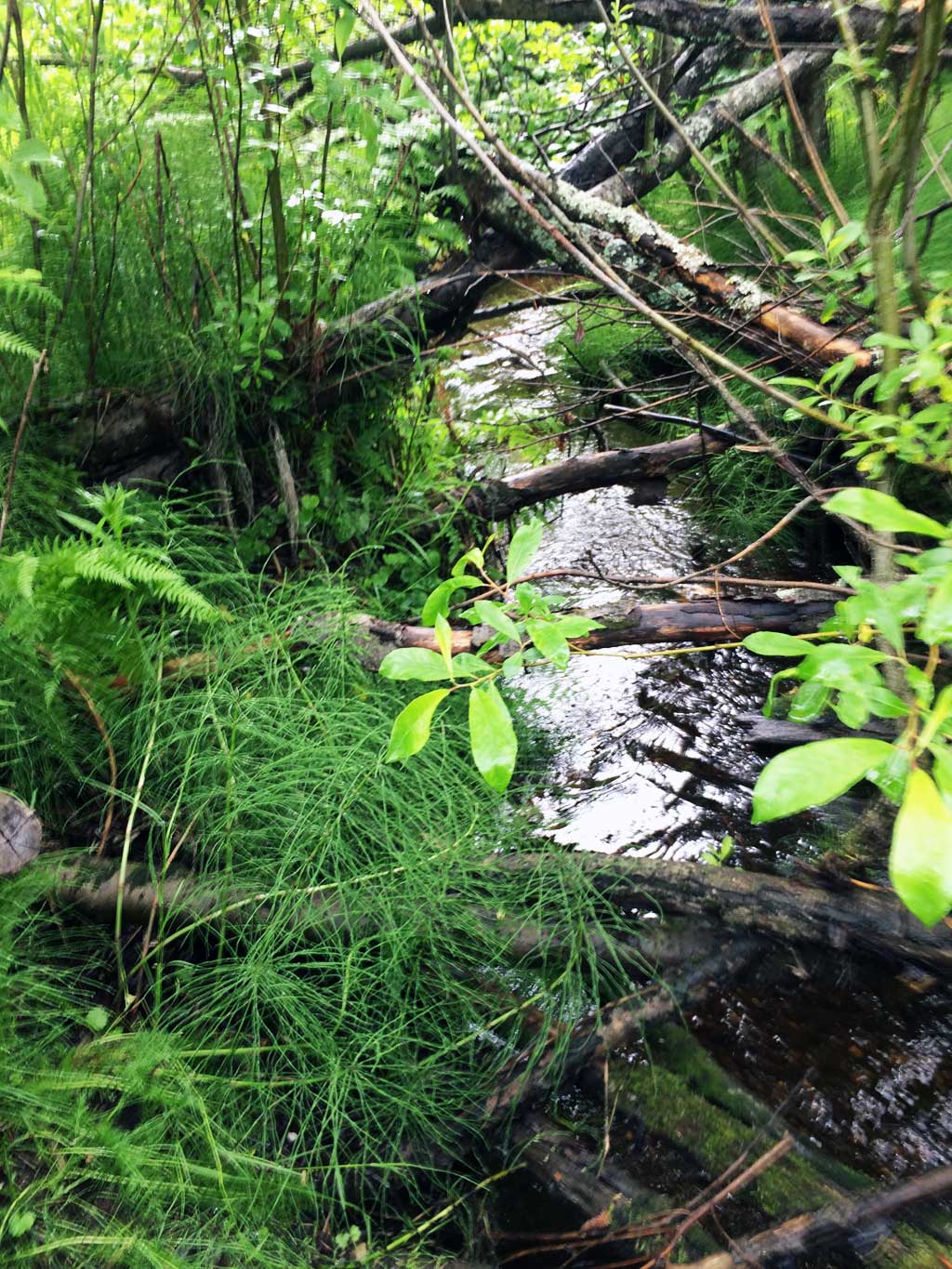

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
