Fish Passage Site 20603485

Coordinates (dec. deg.): 61.32467°, -151.00385°
Legal Description: S014N010W12
Region: South Central

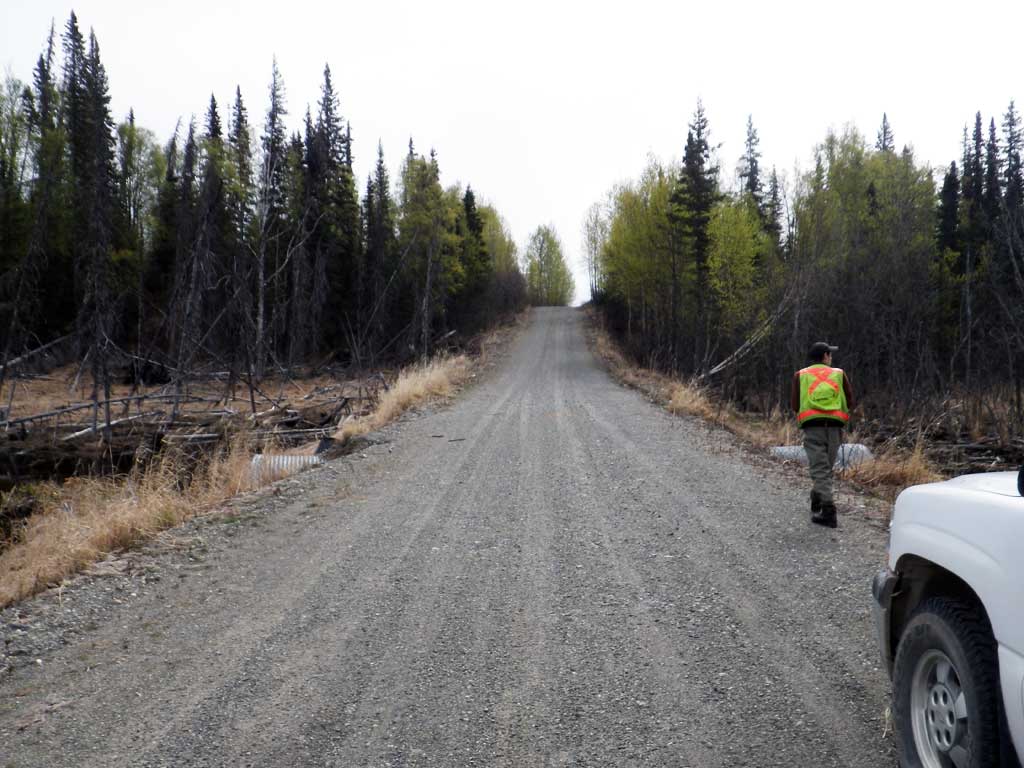

Road Name: Pretty Creek Road

Datum: NAD83
Quad Name / ITM: Tyonek B-3
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: Unnamed Tributary to Pretty Creek

Survey Date: Apr 28, 2015

Survey UPDATE-BEL15

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman, Robert Pype

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Debris Flow

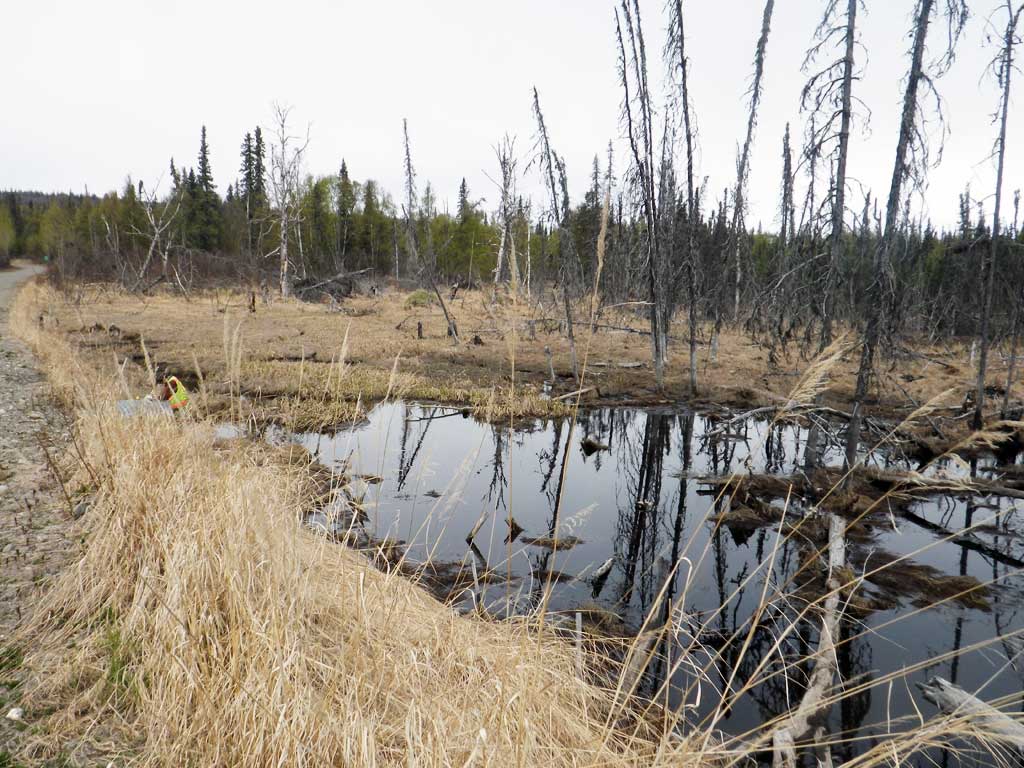

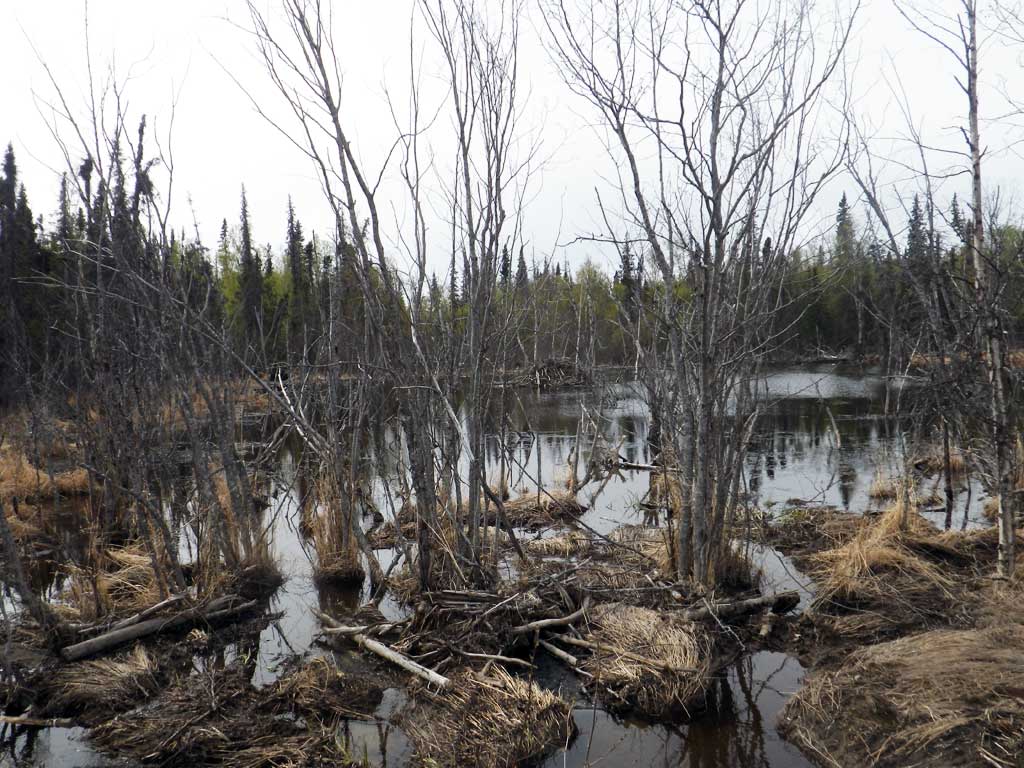

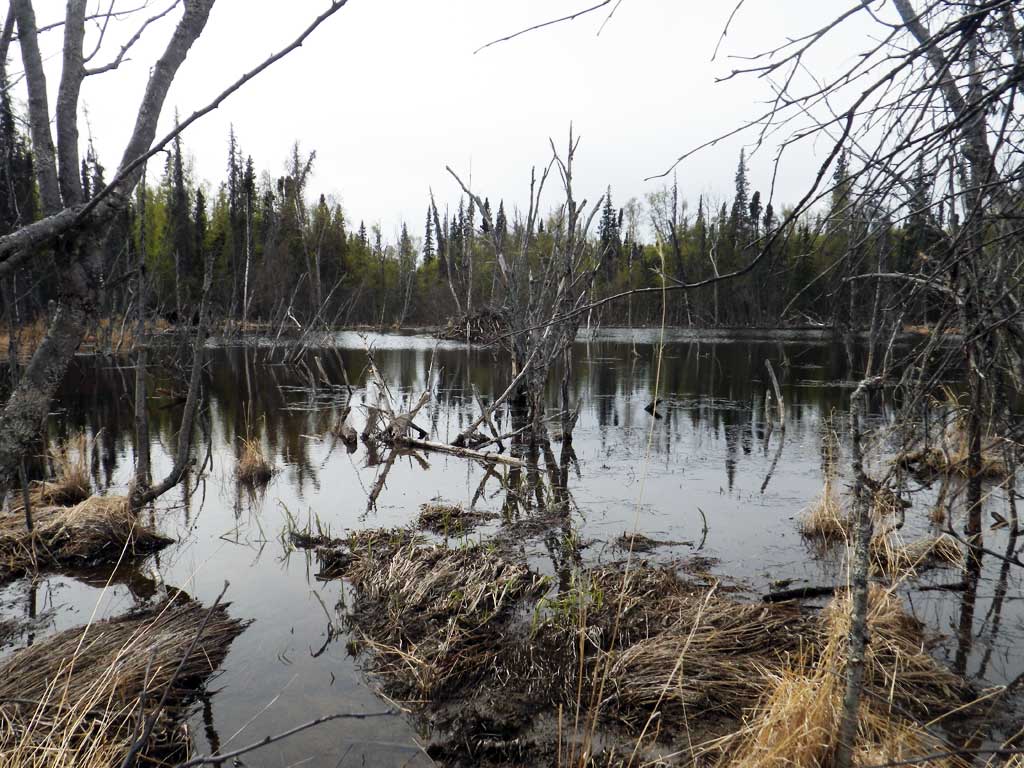

  2. Beaver Activity

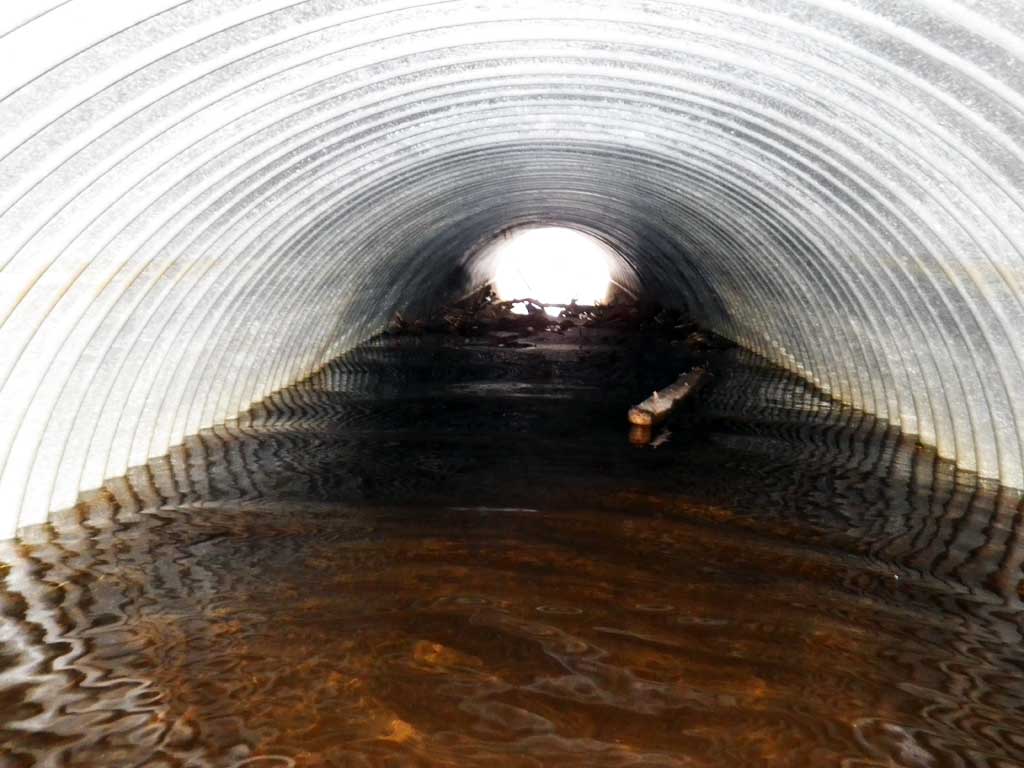

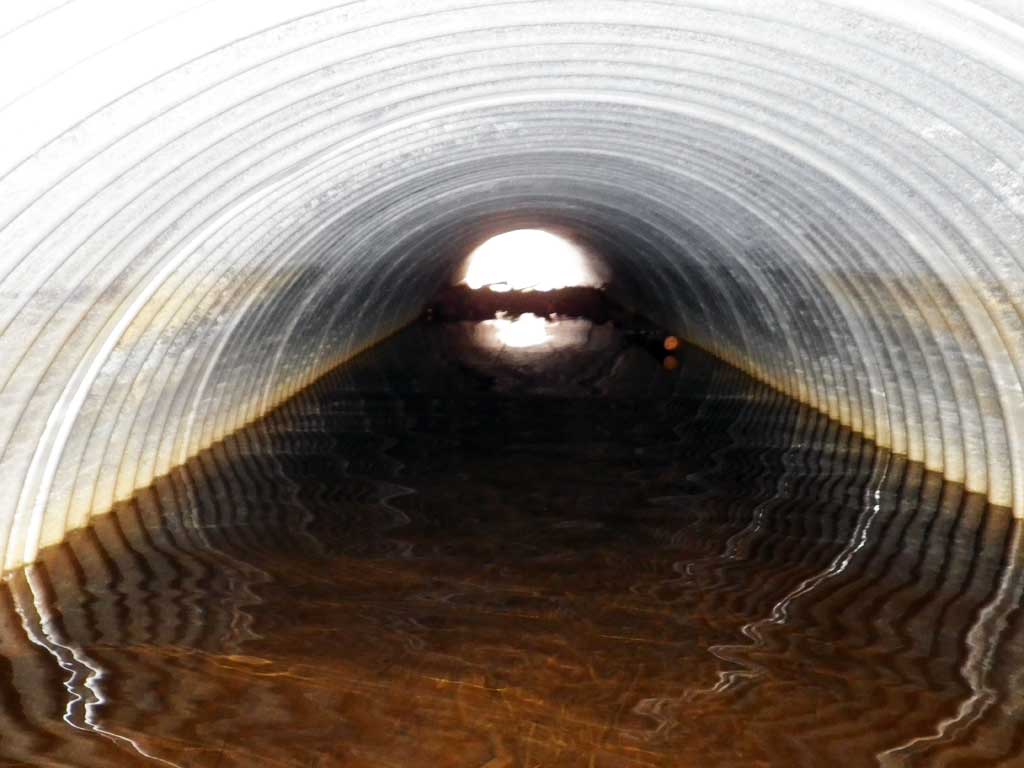

Comments: Debris in culvert.

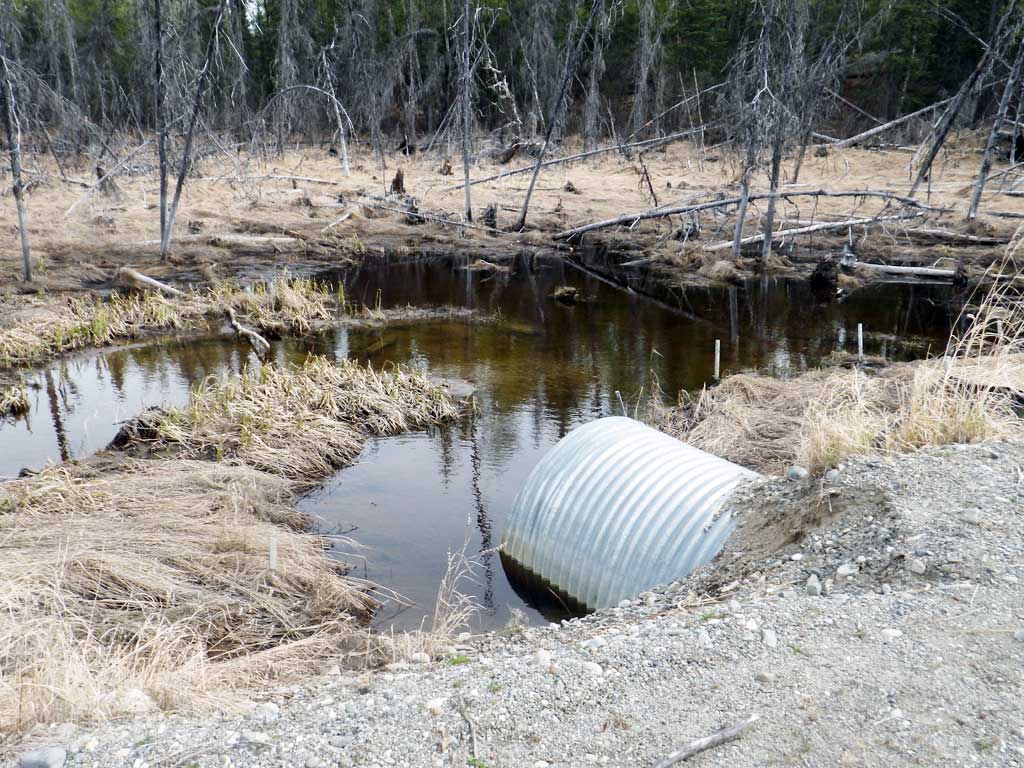

Culvert Measurements

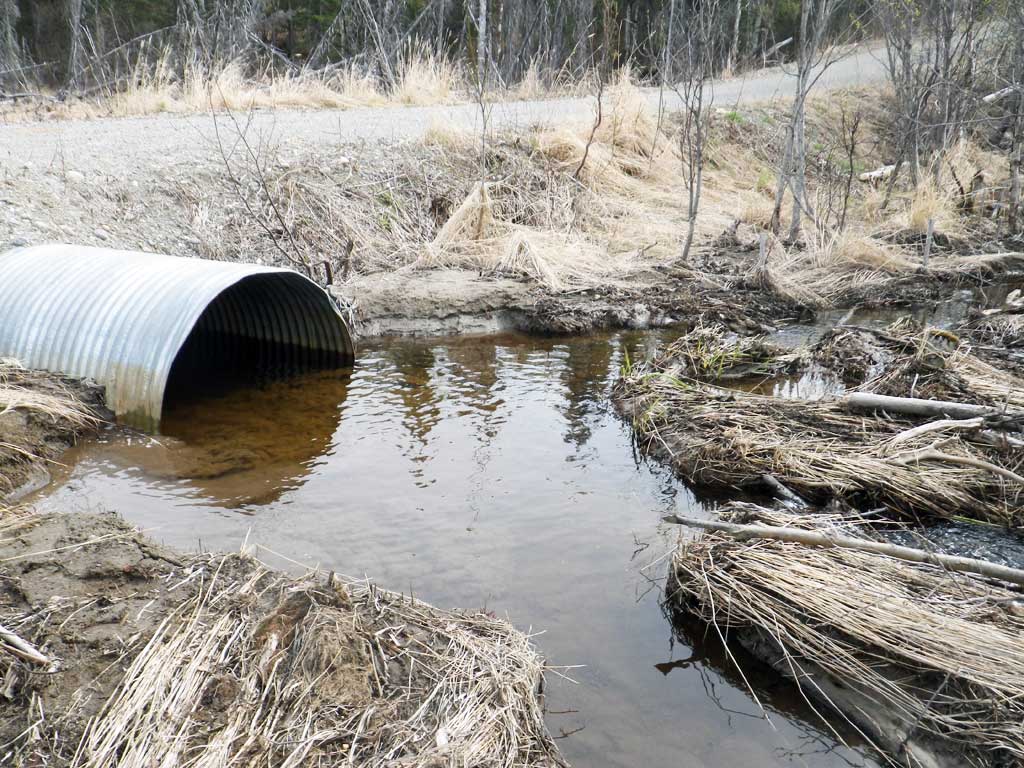

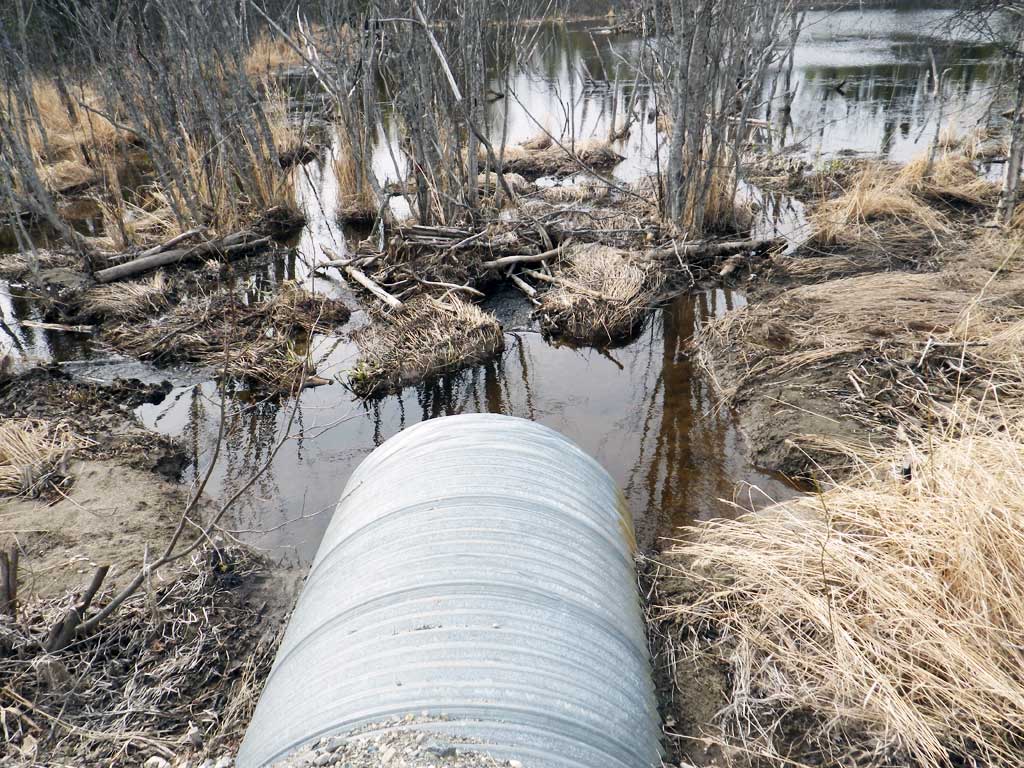

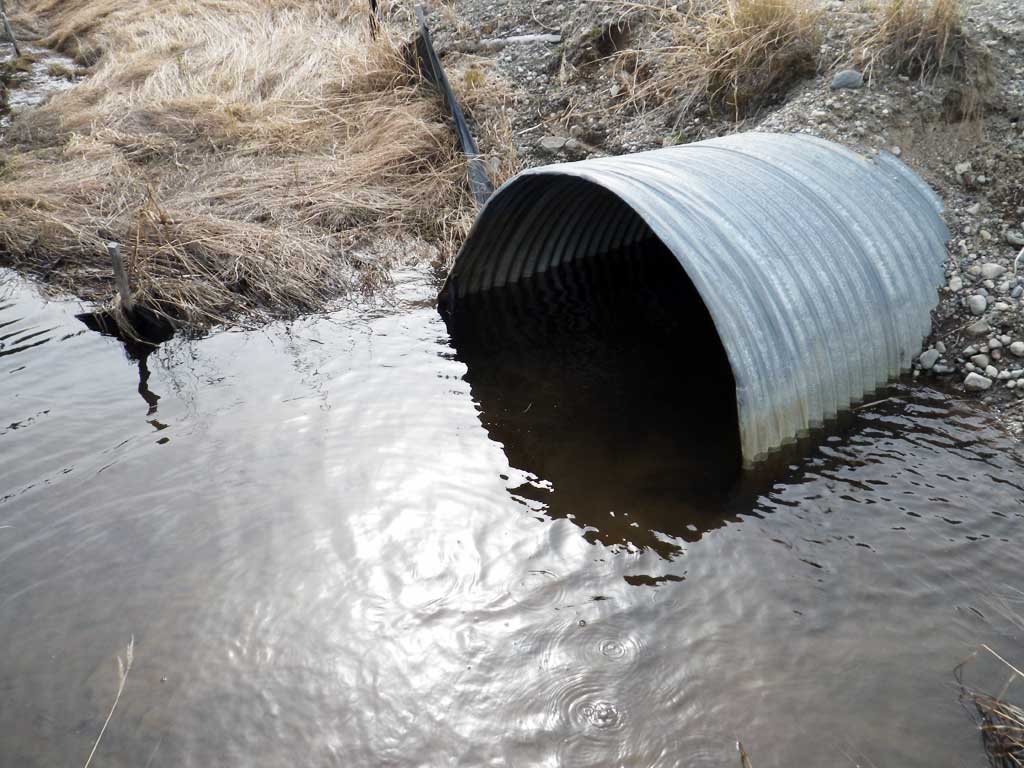

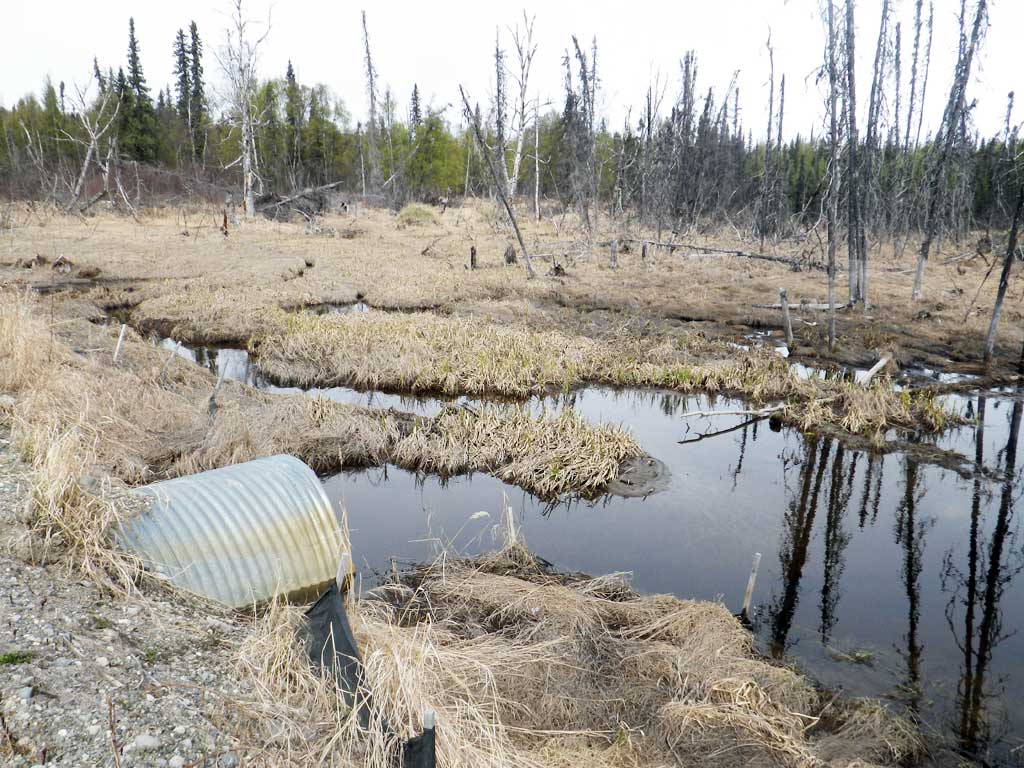

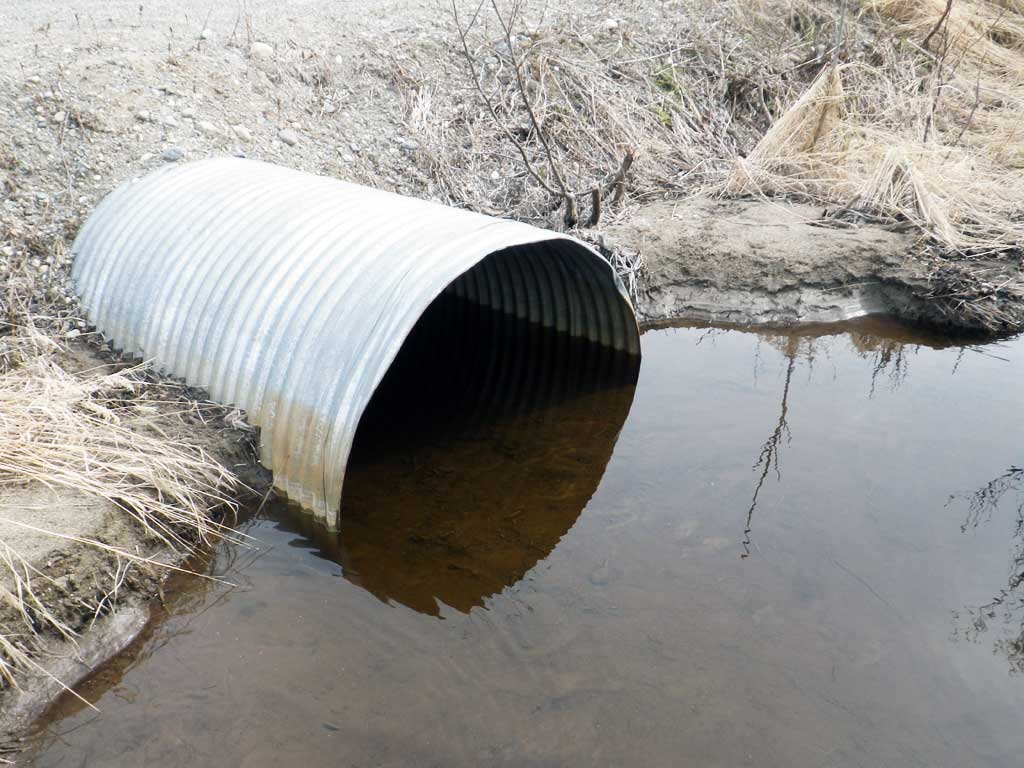

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 39.8
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.5
Condition Rating(1-5): 4
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: Silt/Clay
Outlet Substrate: Silt/Clay
InletOutlet
Width(ft):5.0 5.0
Height(ft):4.4 3.3
Apron Length(ft):
Water Depth(ft): 1.1
Rustline Height(ft):
Substrate Depth(ft):1.0 1.7
Backwatered?: No
Baffles Present: No
Embedded?: Maybe
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Debris in culvert.
  Culvert Observations:
  1. Debris Flow
  2. Beaver Activity

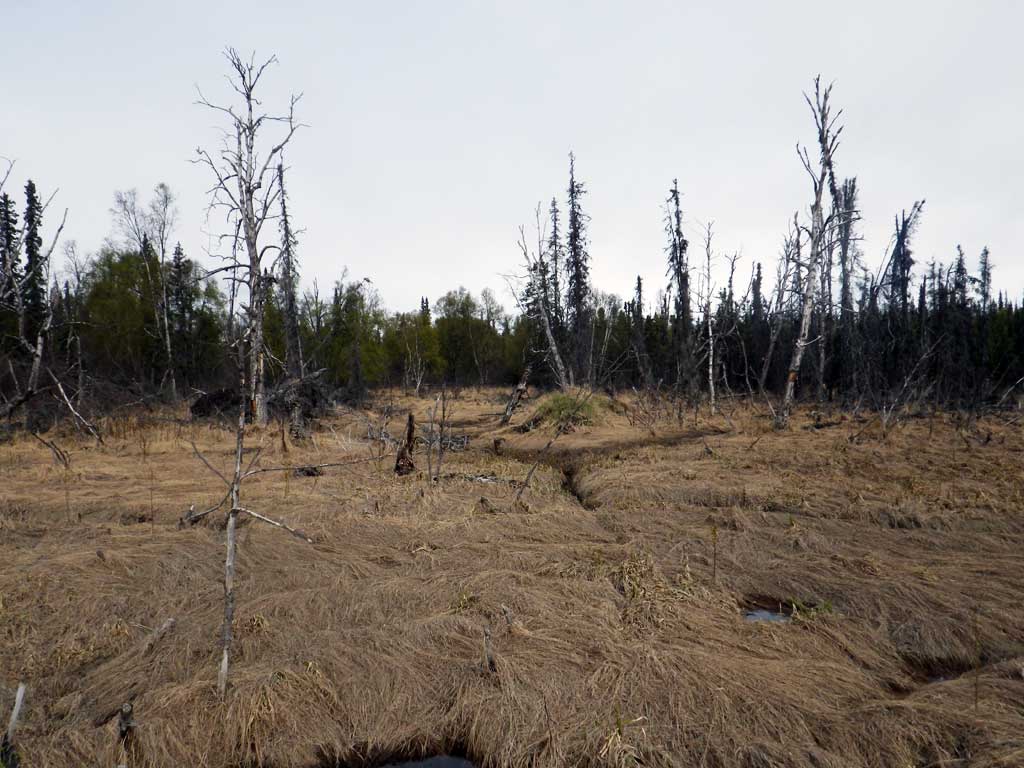

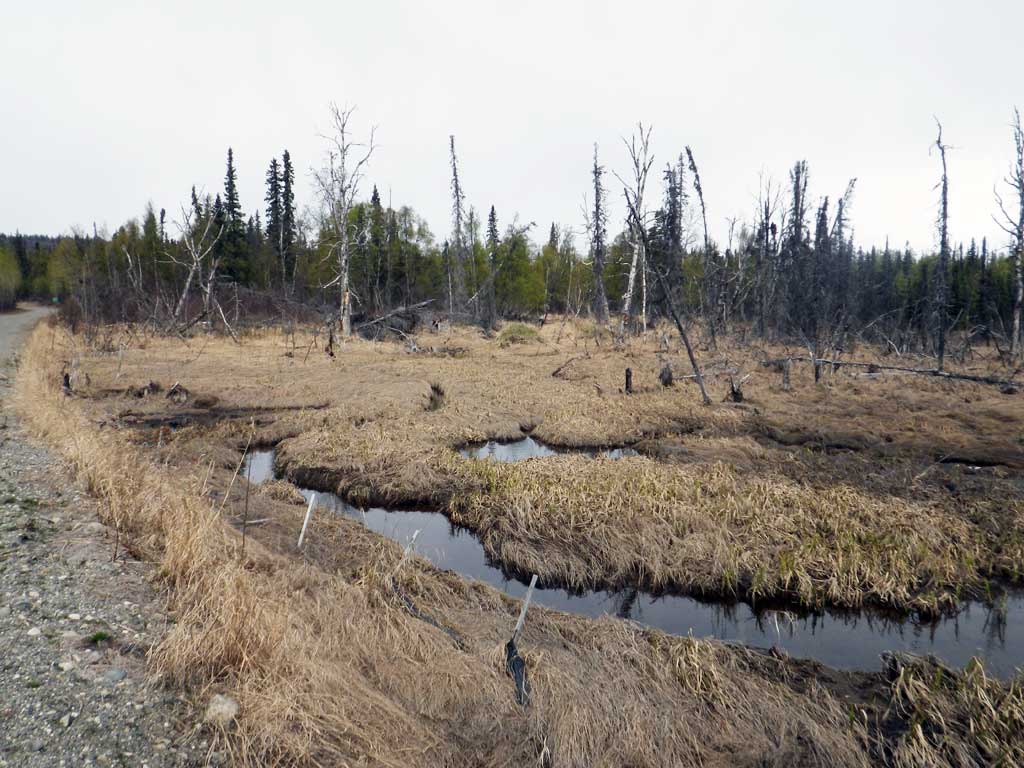

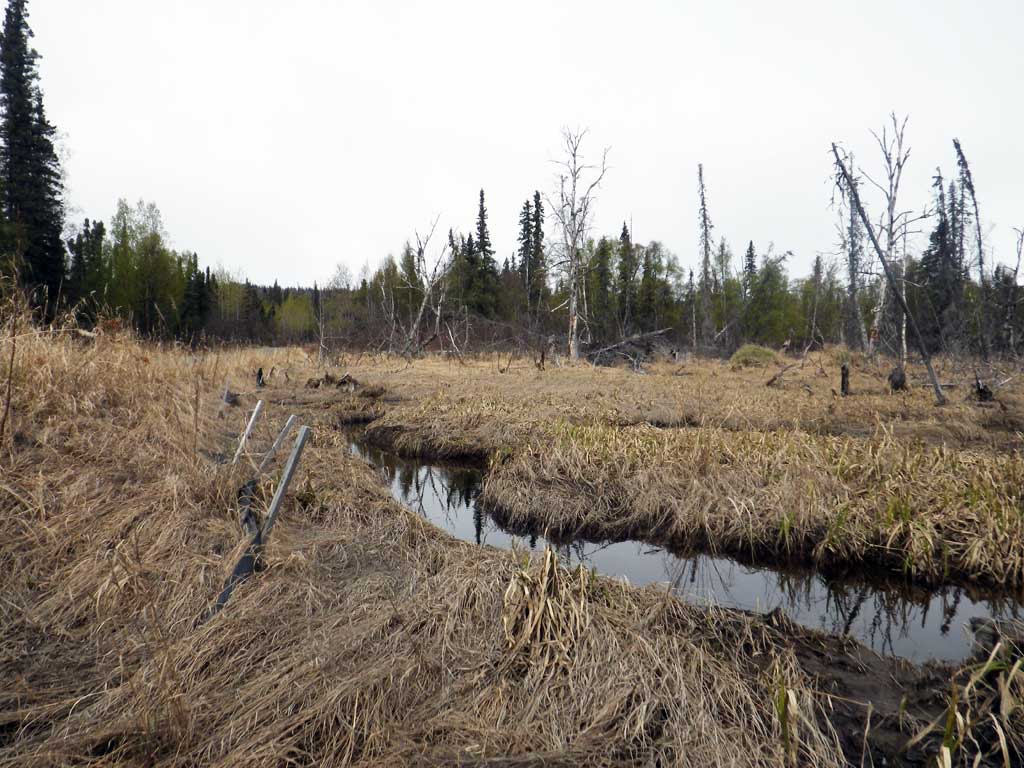

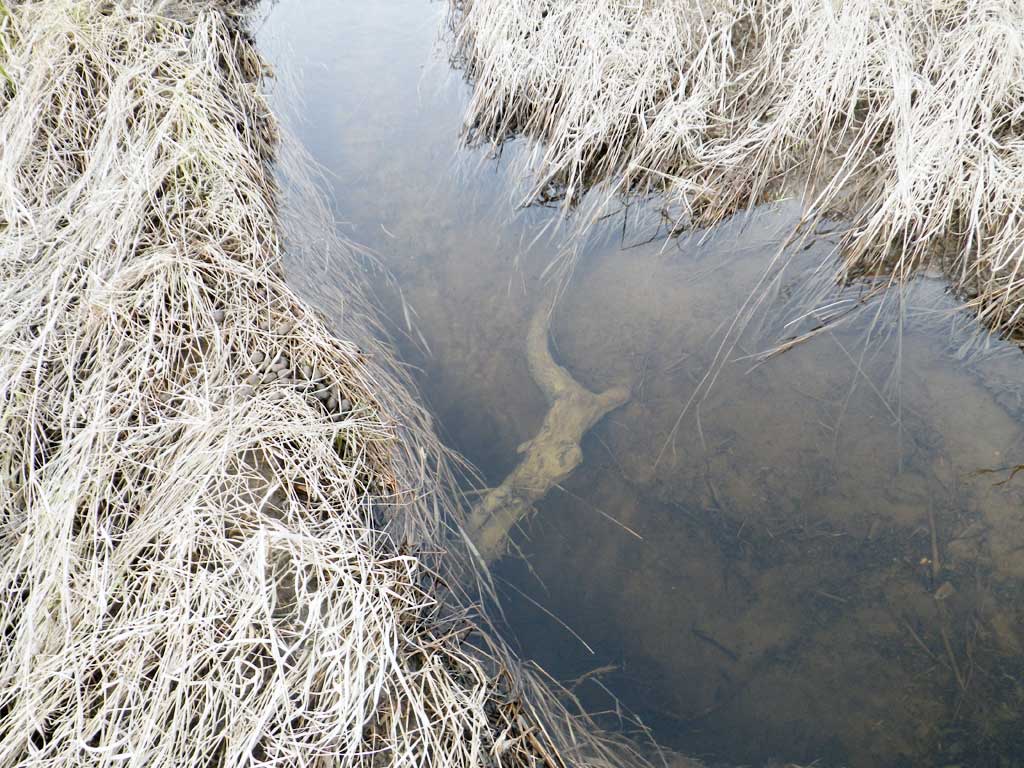

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClaySilt/Clay
Subdominant:OrganicOrganic
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
