Fish Passage Site 20603479

Coordinates (dec. deg.): 61.27386°, -150.91206°
Legal Description: S014N009W28
Region: South Central

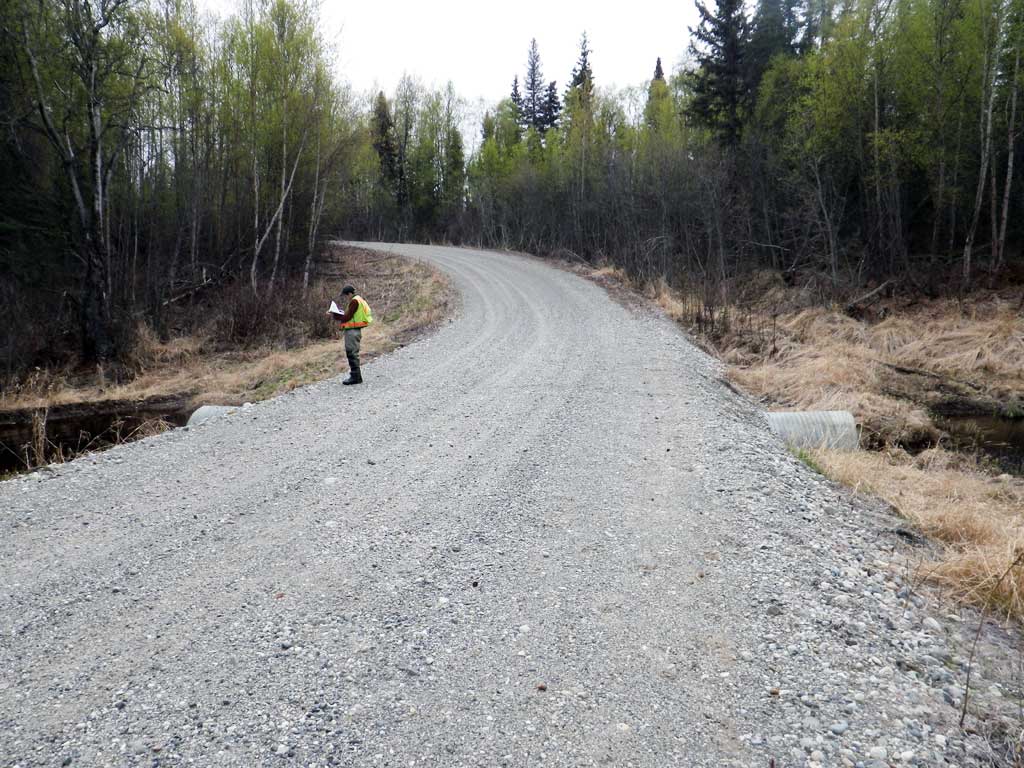

Road Name: Pretty Creek Road

Datum: NAD83
Quad Name / ITM: Tyonek B-3
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Apr 28, 2016

Survey UPDATE-BEL05

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman, Robert Pype

Overall Fish Passage Rating: Green

Tidal:
Backwatered:

Step Pools:
Construction Year:


Site Observations:

  1. Beaver Activity

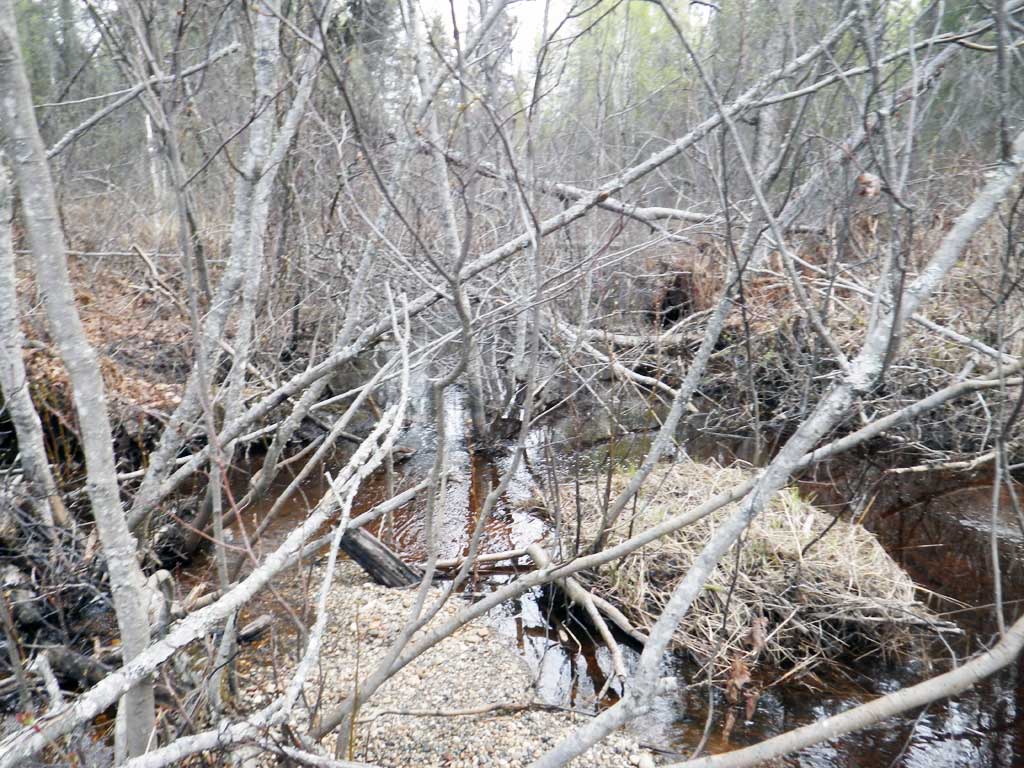

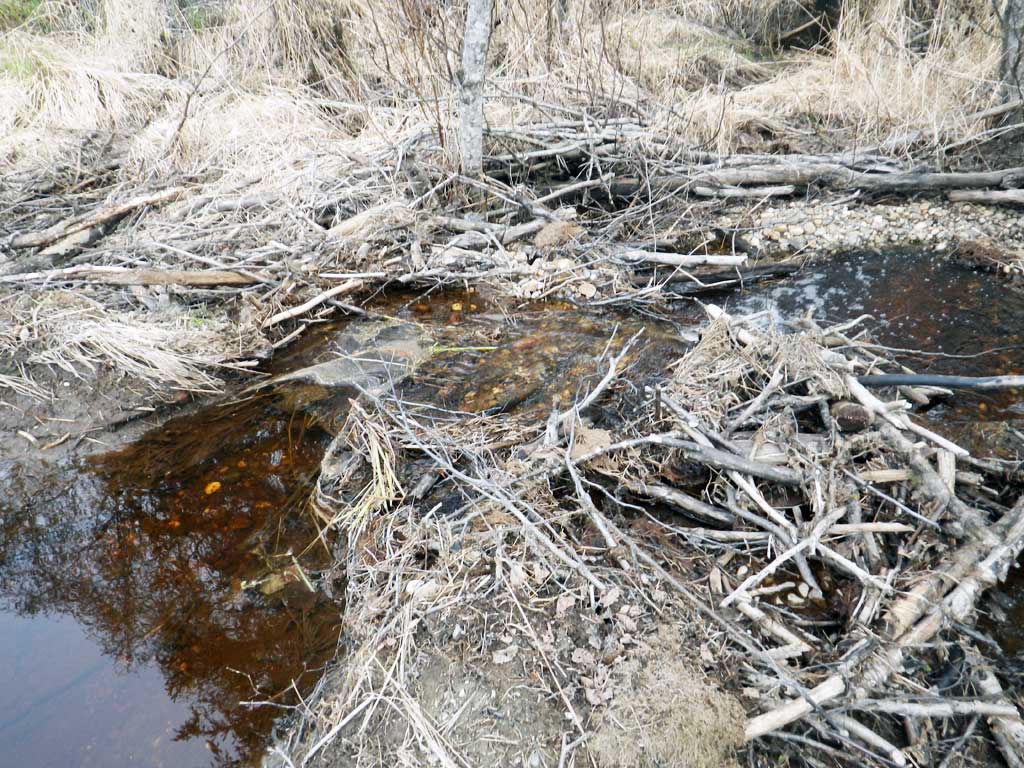

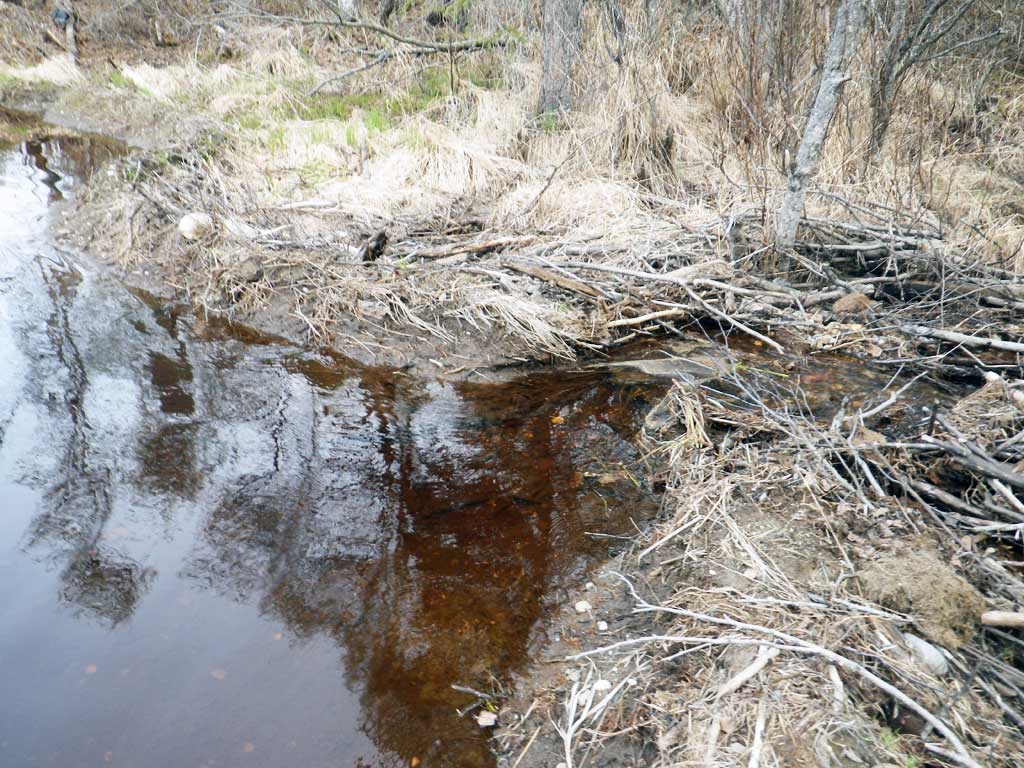

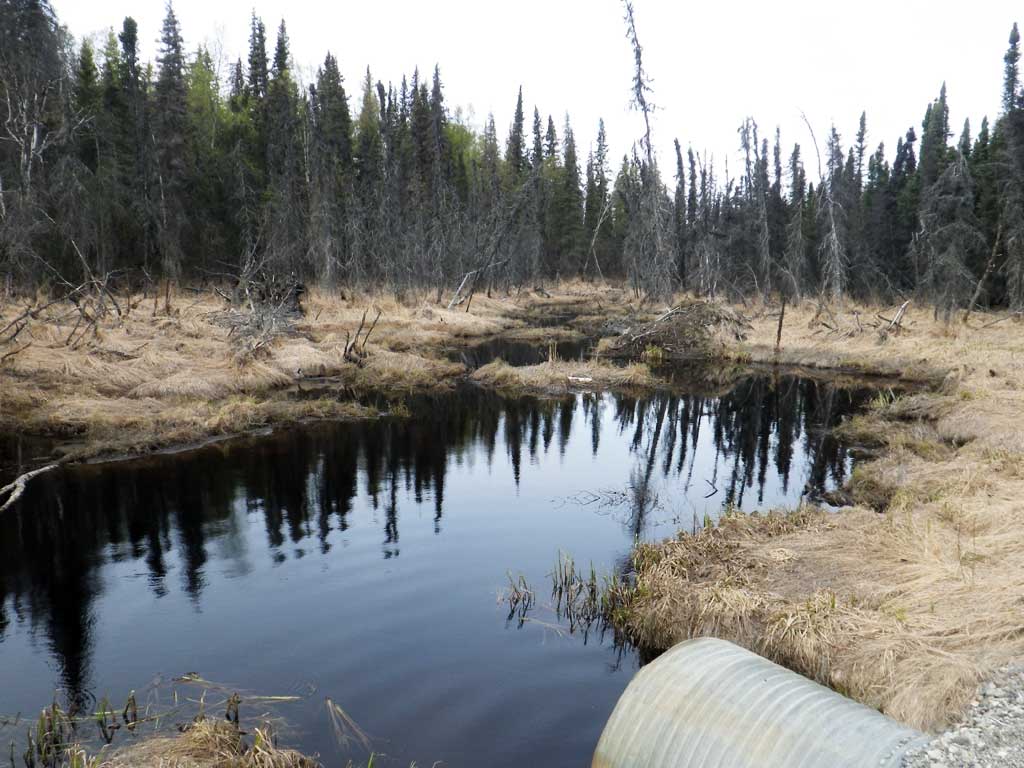

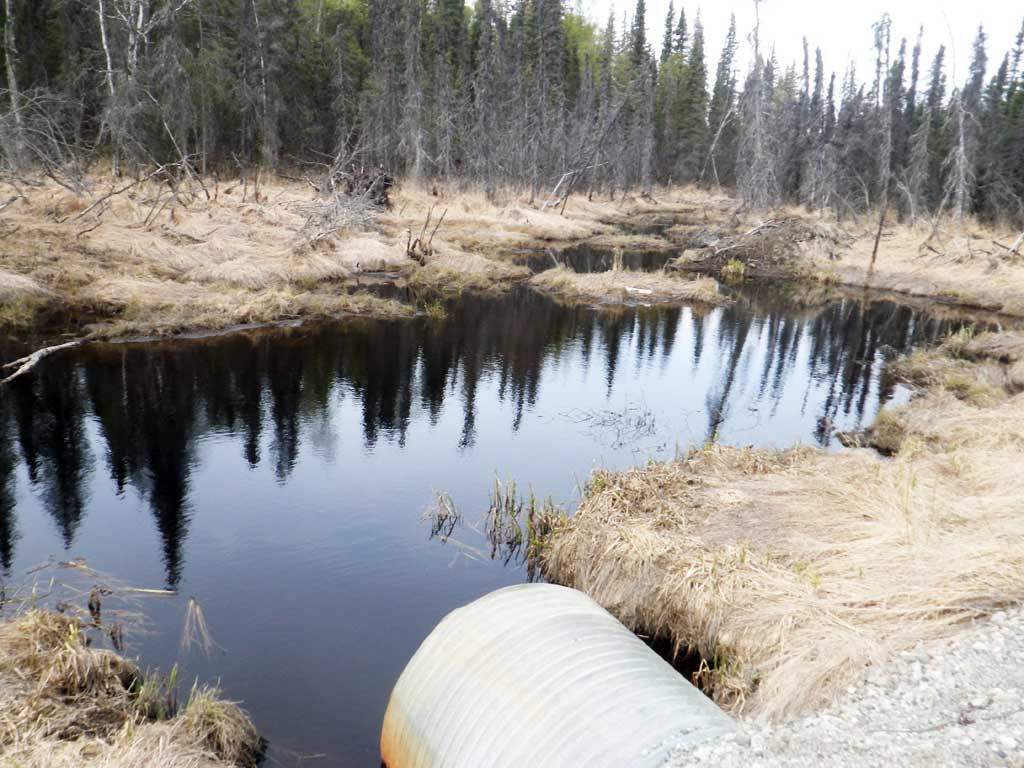

Comments: Site is currently backwatered by a beaver dam downstream. Dam looks to be fairly new and site conditions could change quickly.

Culvert Measurements

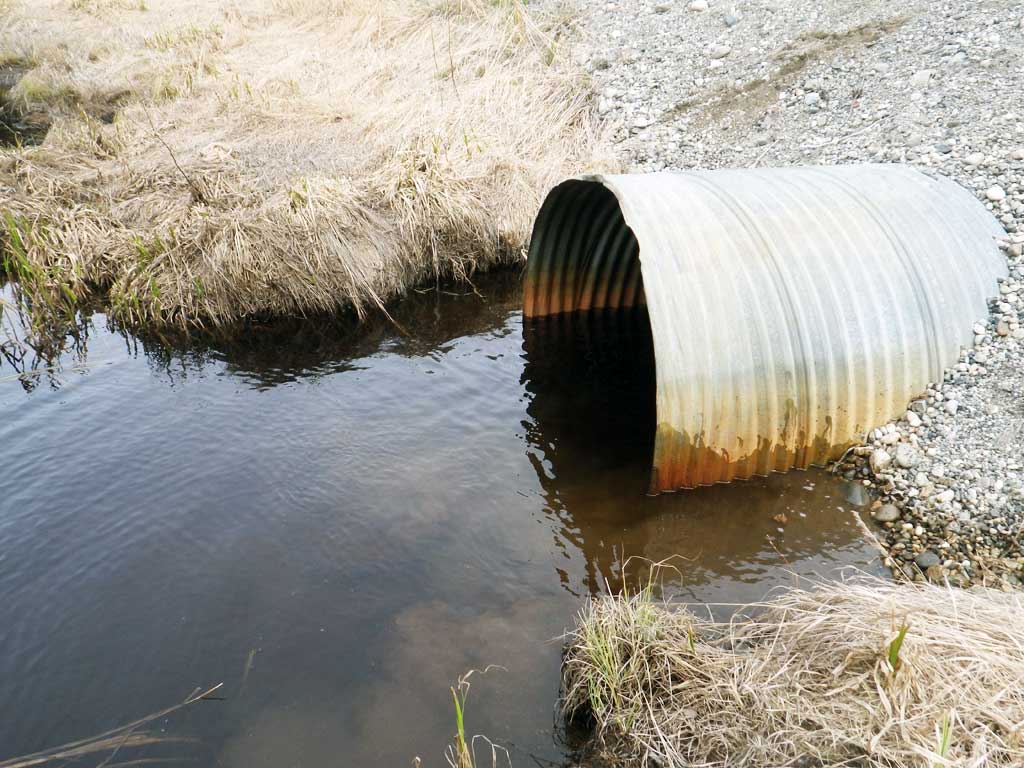

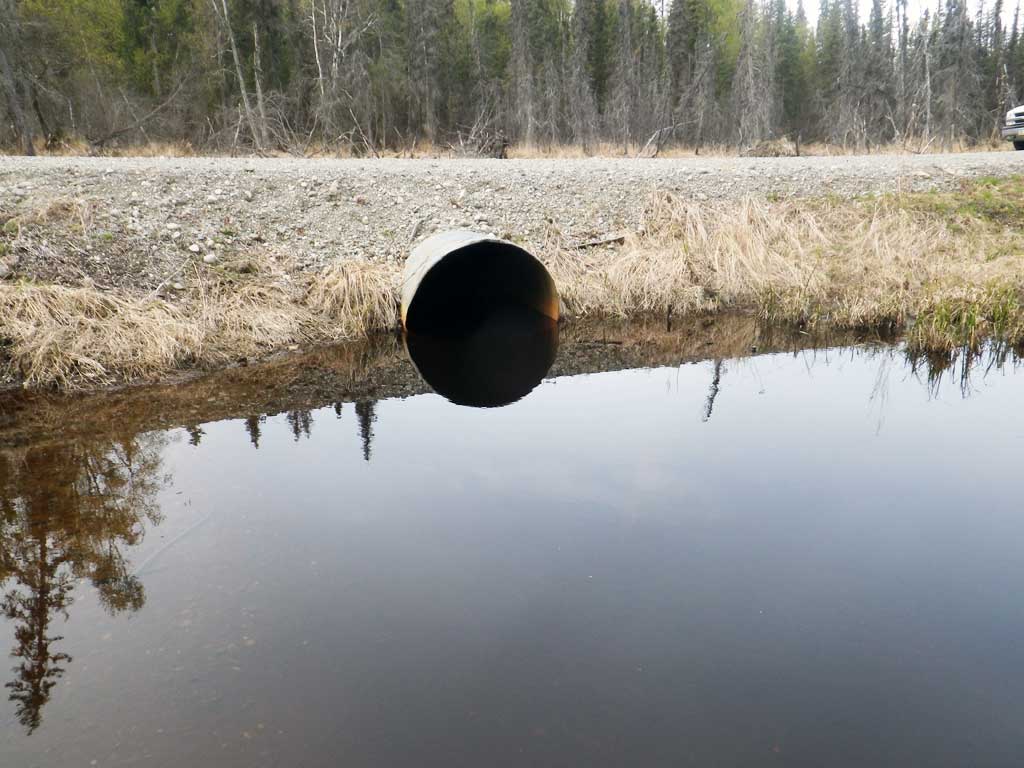

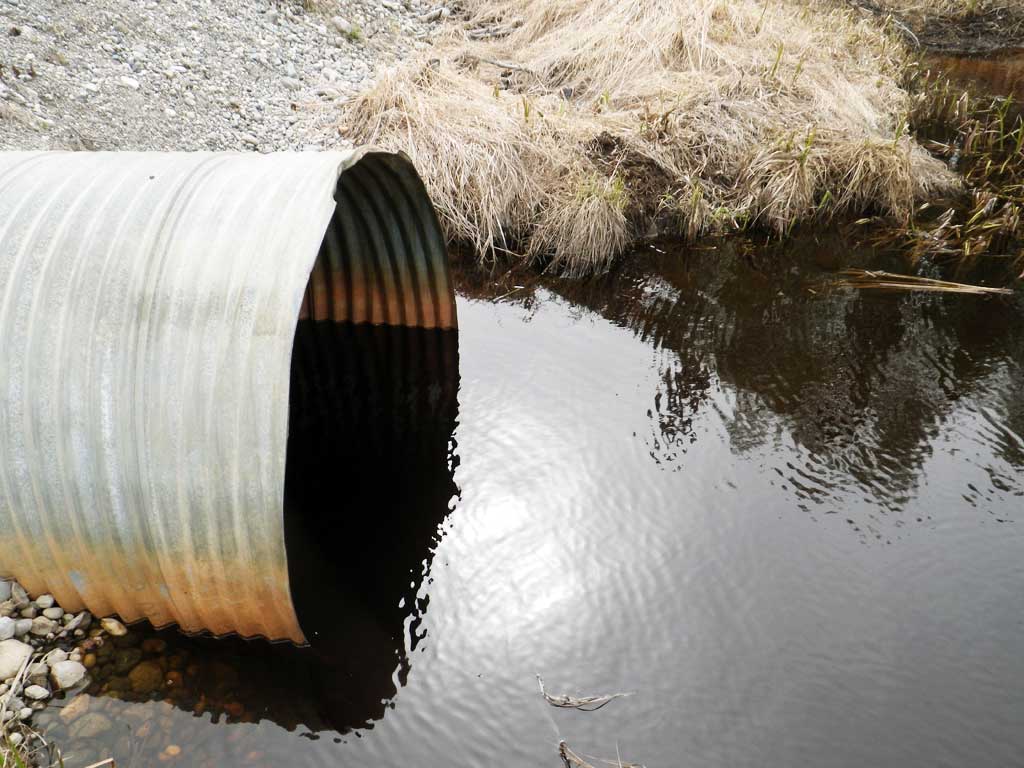

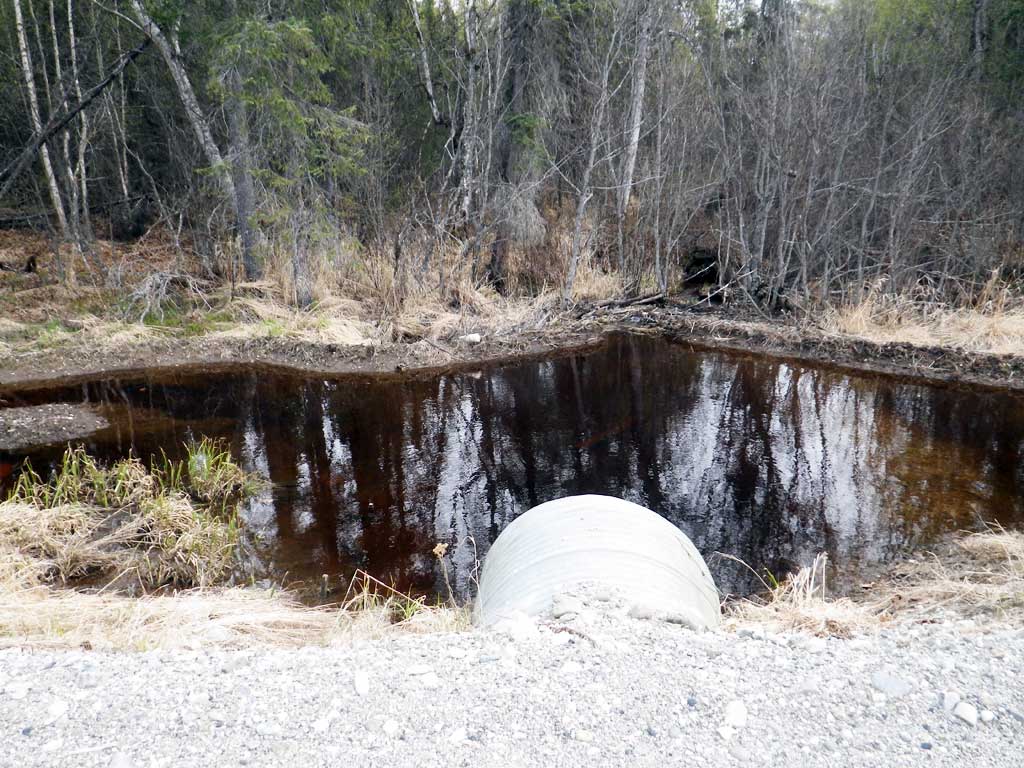

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 39.8
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 4
Approach Angle: 0.0
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):5.2 5.2
Height(ft):5.0 5.0
Apron Length(ft):
Water Depth(ft): 2.0
Rustline Height(ft):2.2
Substrate Depth(ft):0.0 0.0
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

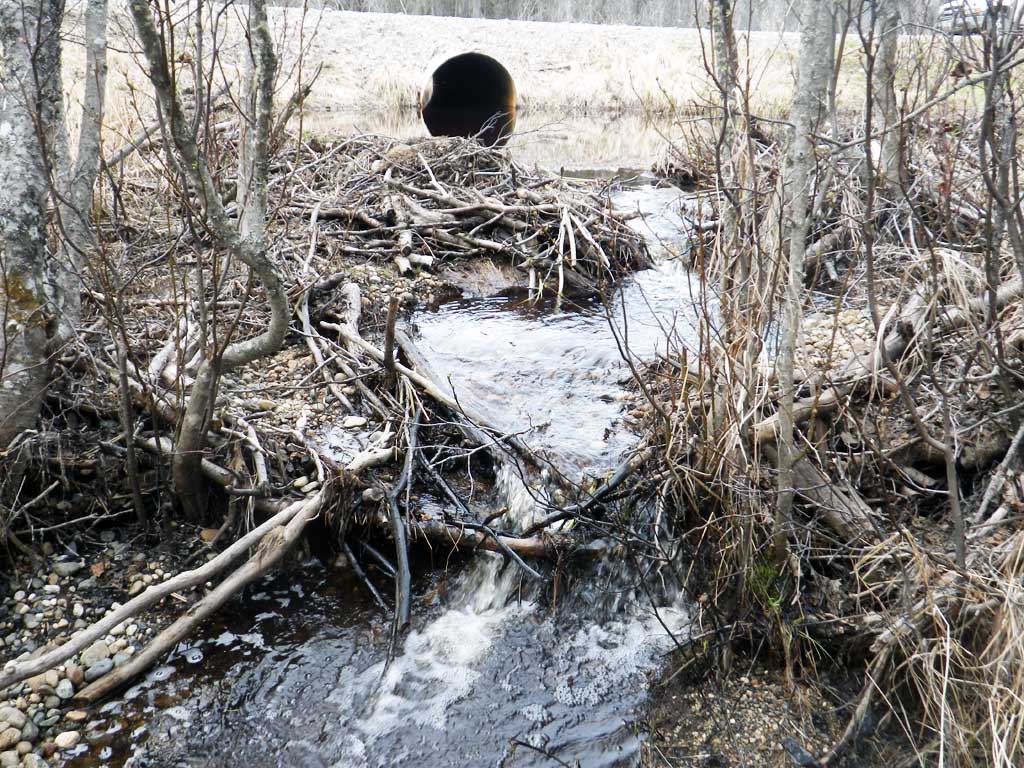

Comments: Downstream beaver dam currently backwatering culvert.
  Culvert Observations:
  1. Beaver Activity

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClaySilt/Clay
Subdominant:OrganicGravel
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
