Fish Passage Site 20601539

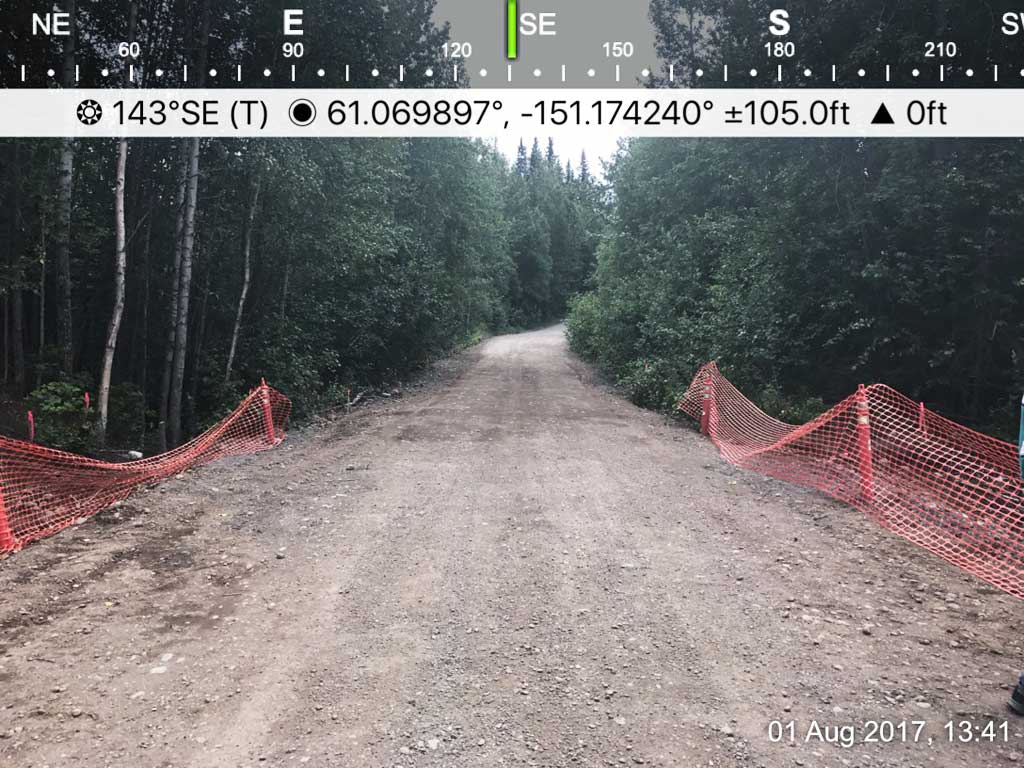

Coordinates (dec. deg.): 61.06987°, -151.17418°
Legal Description: S011N011W02
Region: South Central

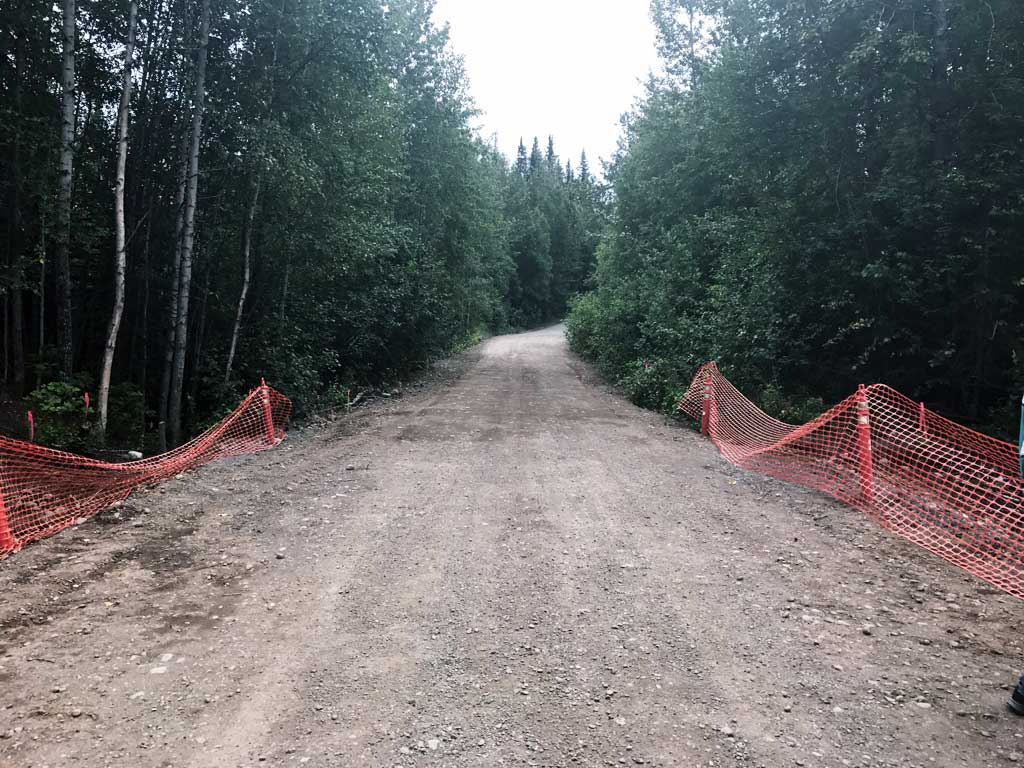

Road Name: Tyonek Timber Road
Datum: NAD83
Quad Name / ITM: Tyonek A-4
AWC Stream #: 247-20-10030-2001
Stream Name: Bunka Lake outlet
Elevation:
Site Comments: None
arrow to the right of the survey date below to choose a different report for this site.
Survey UPDATE-01539
Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman
Overall Fish Passage Rating:
Tidal: No
Backwatered: No
Step Pools: No
Construction Year: 2017
Comments: Site was replaced July 2017. All culvert and site measurements were taken from the site plans and have not been verified and should only be used for reference.

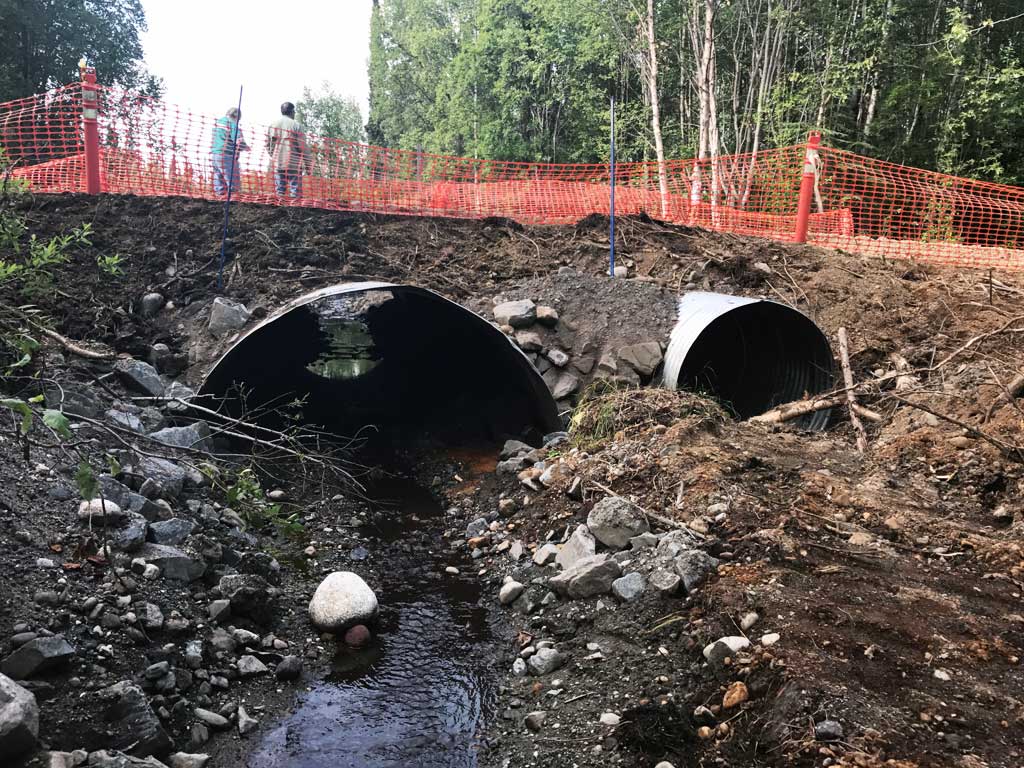

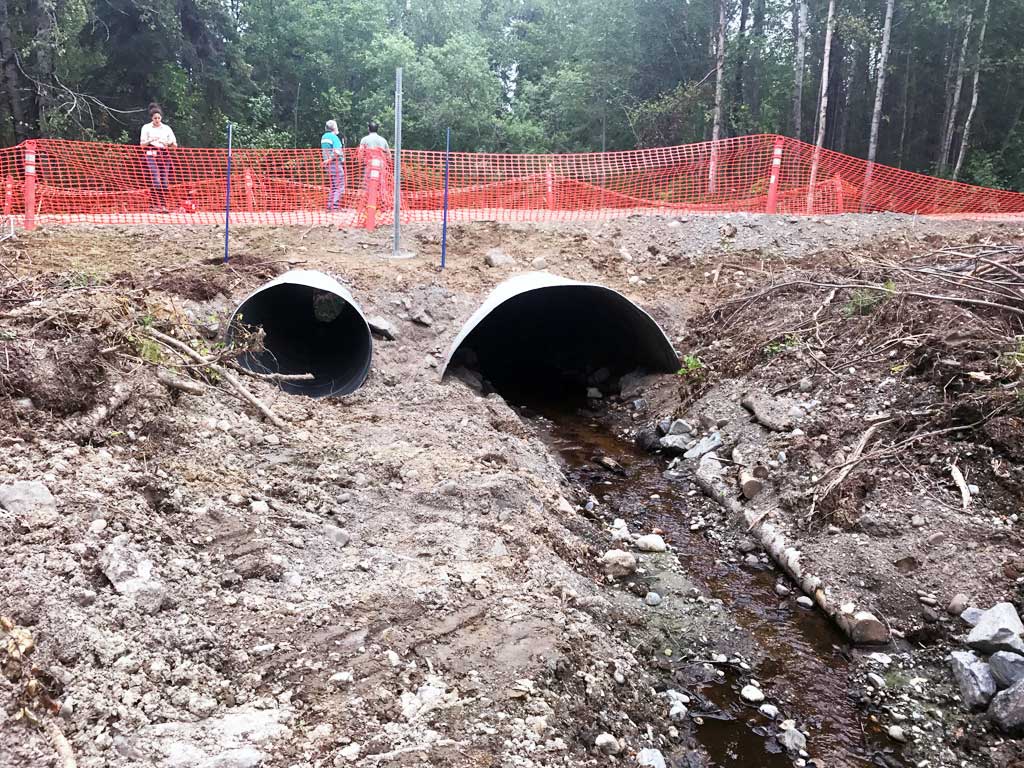

Culvert Measurements

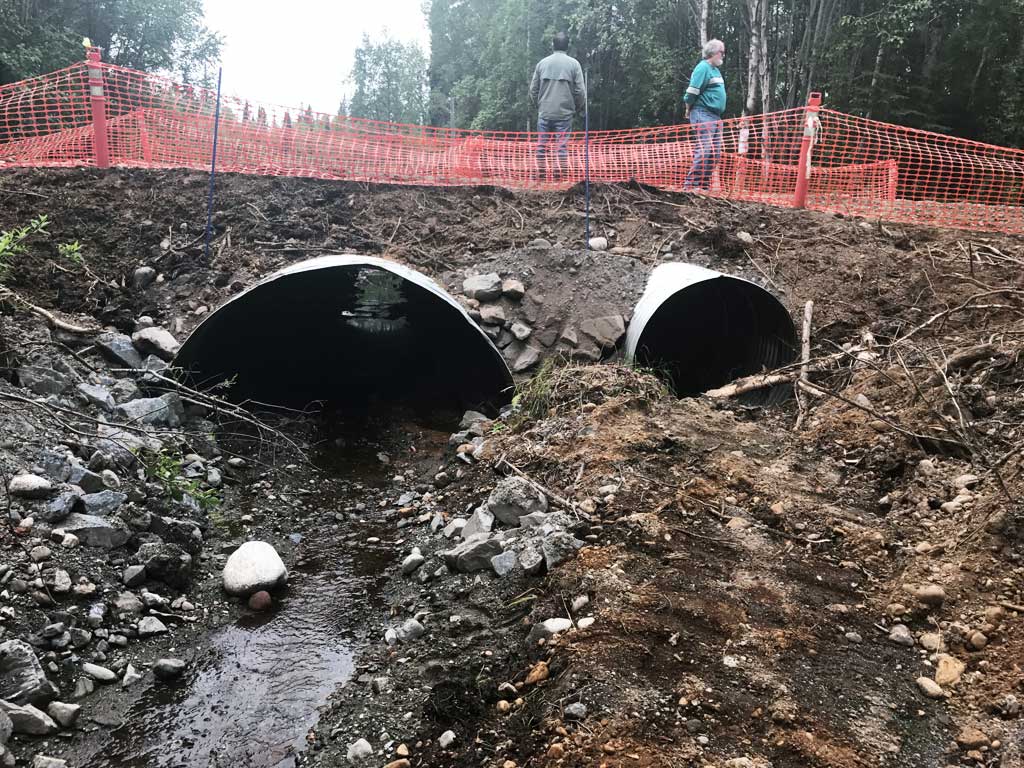

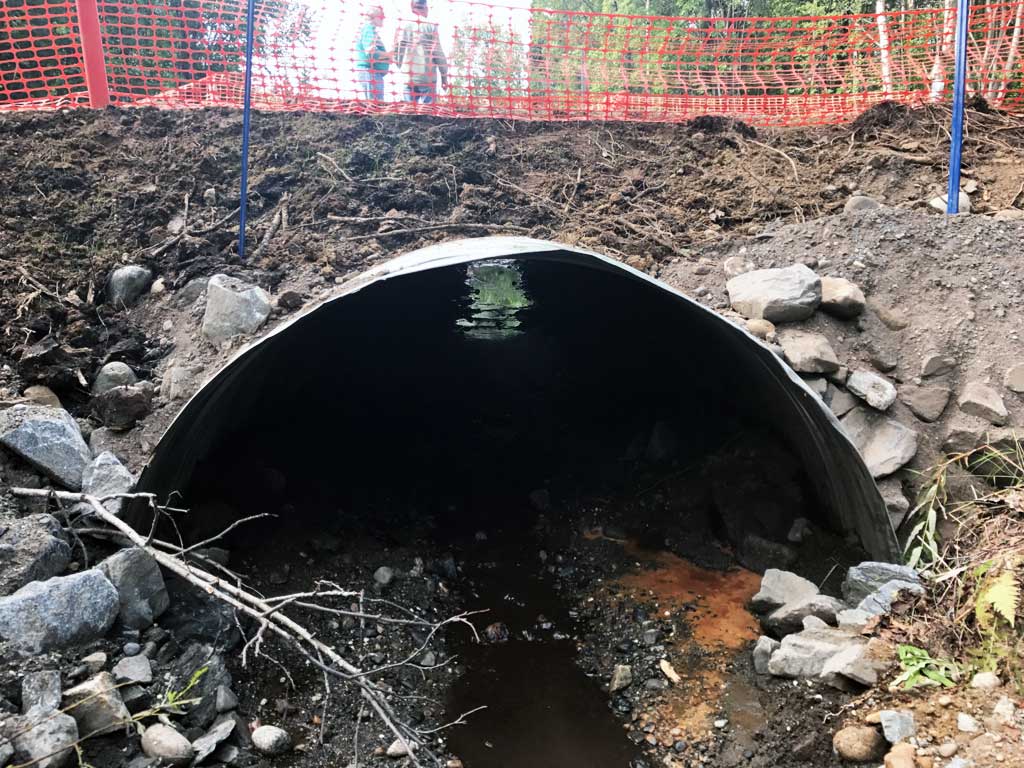

ID: 1 | Structure Type: Circular pipe (Corrugated steel) | Fish Passage Rating: | |||||||||||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||||||||||

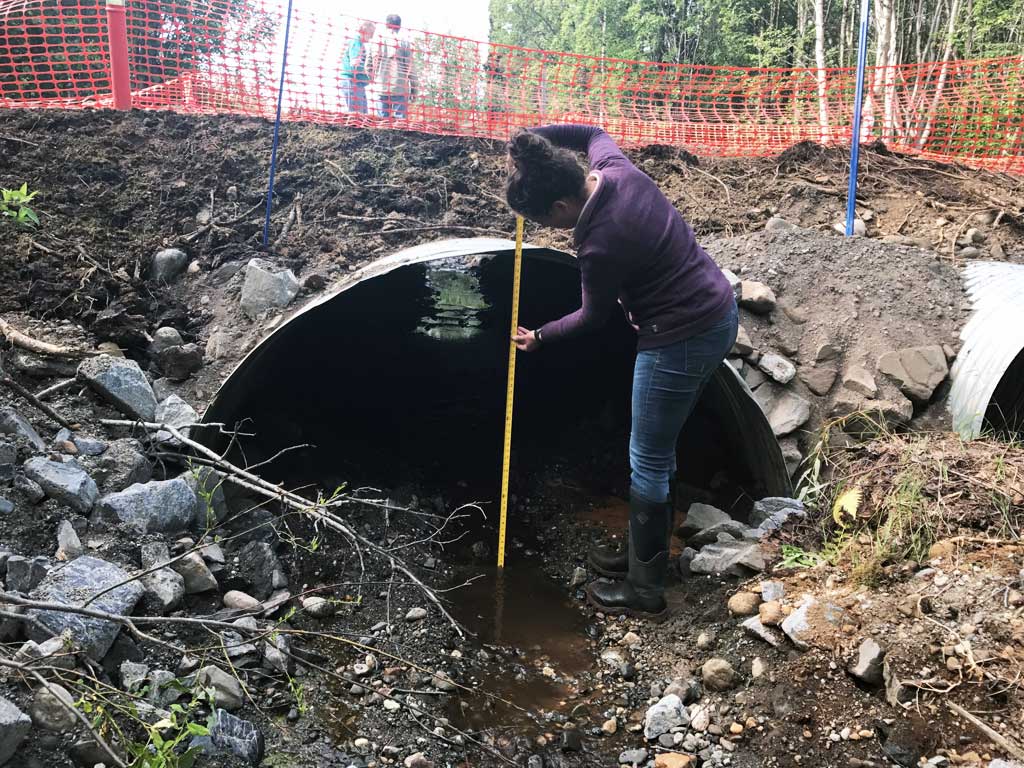

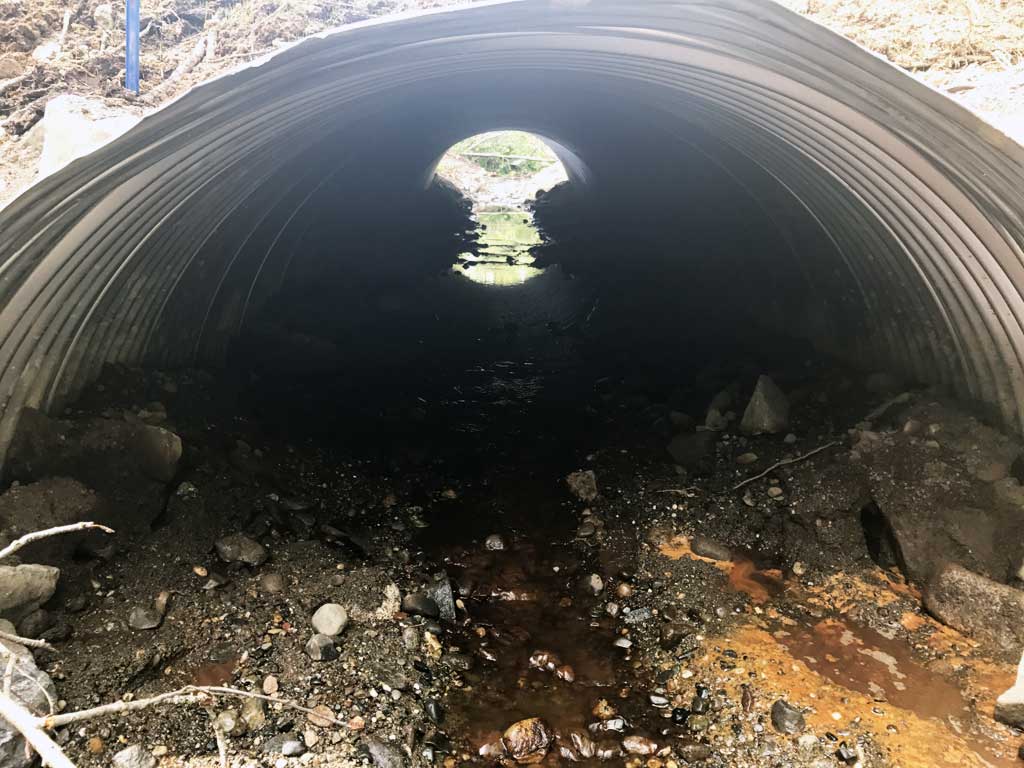

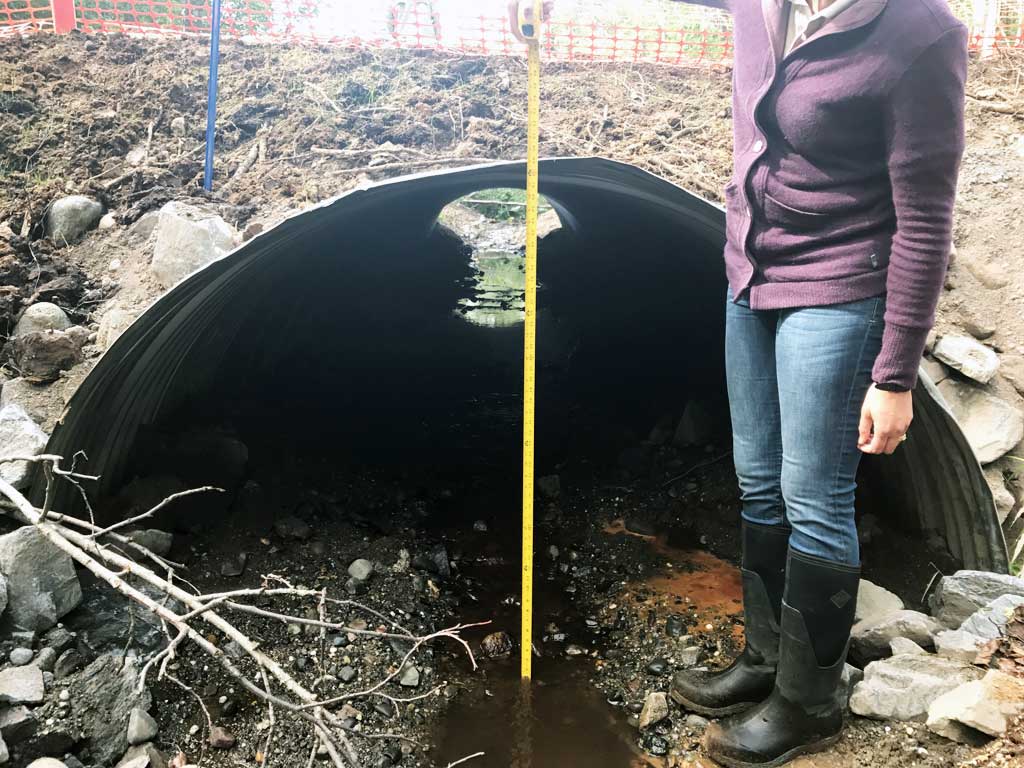

Comments: All culvert measurements taken from site plans have not been verified. Culvert width 8 ft. Culvert height 4 ft to top of substrate, substrate depth 4 ft. Culvert length 41.75 ft |

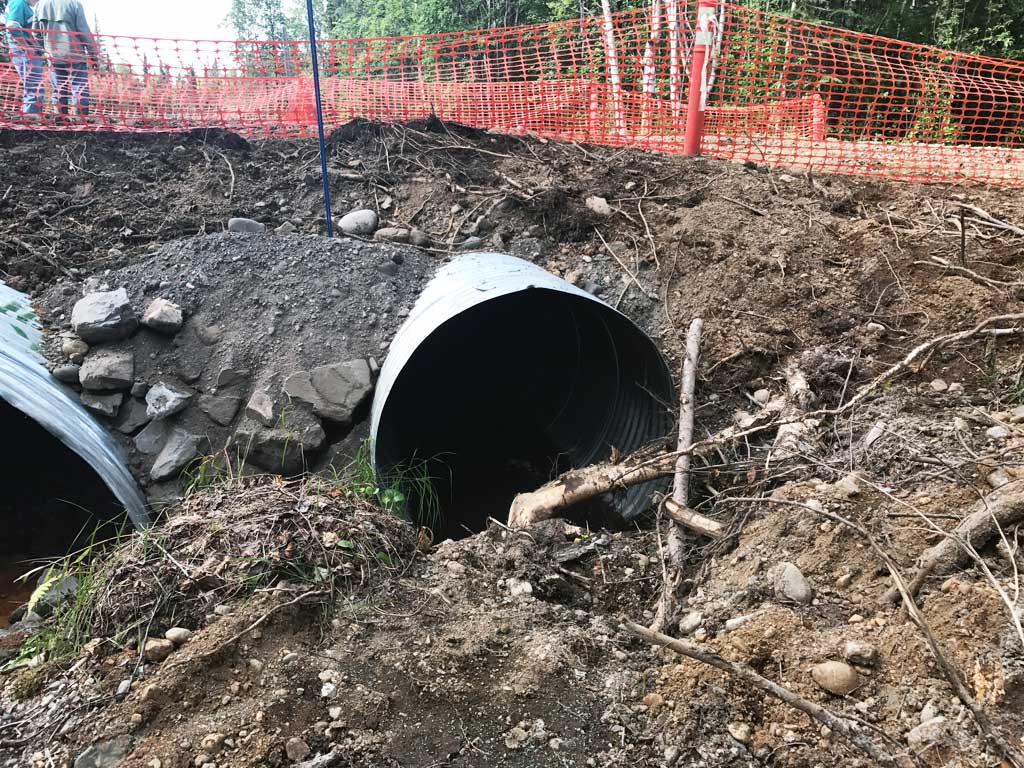

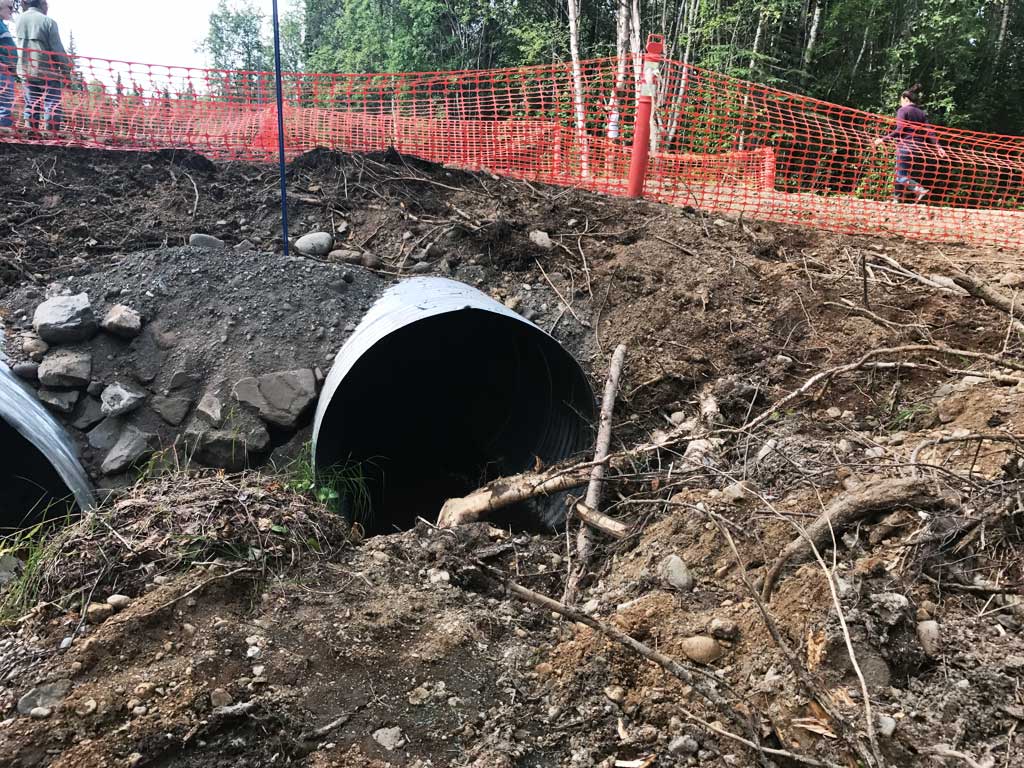

ID: 2 | Structure Type: Circular pipe (Corrugated steel) | Fish Passage Rating: | |||||||||||||||||||||||||||||||||||||||||
|
|
|
Stream Measurements
|
|
No stream width data available.
Elevations
No elevation data available.
Fish Sampling Efforts
No fish sampling occurred during this survey.
Fish Observations
No fish observations occurred during this survey.
Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
