Fish Passage Site 20601532

Coordinates (dec. deg.): 61.11343°, -151.14975°
Legal Description: S012N011W24
Region: South Central

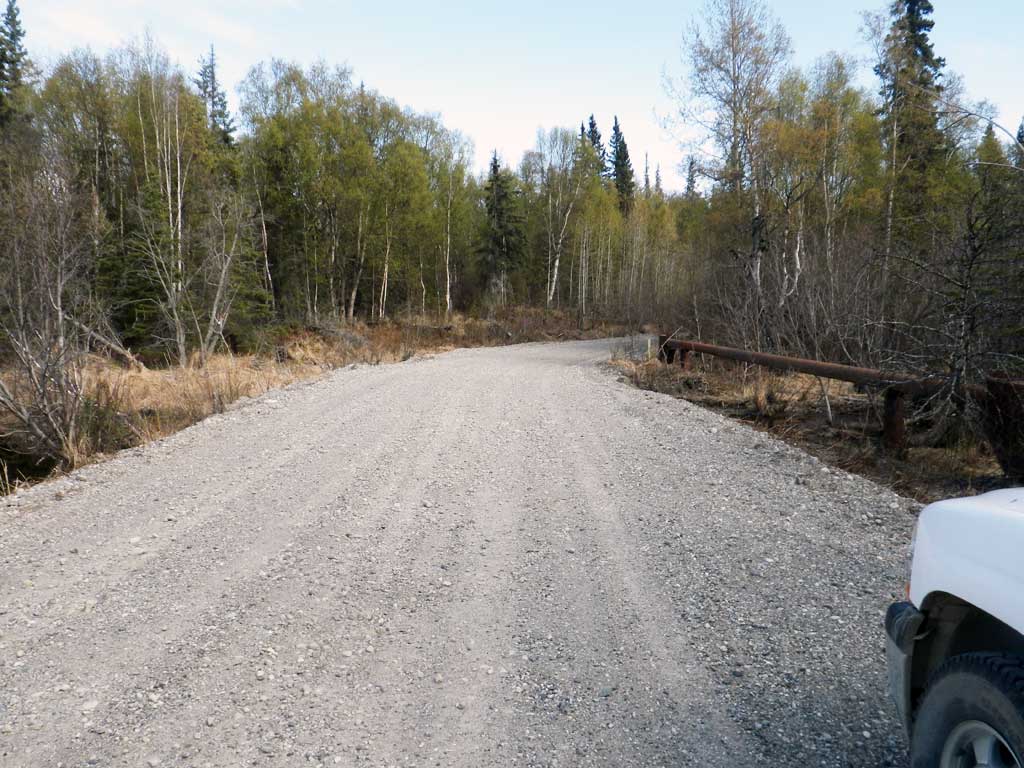

Road Name: Logging Road

Datum: NAD83
Quad Name / ITM: Tyonek A-4
AWC Stream #:
Stream Name: Chuitbuna Lake outlet

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-1532

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman, Robert Pype

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Site Observations:

  1. Culvert gradient red

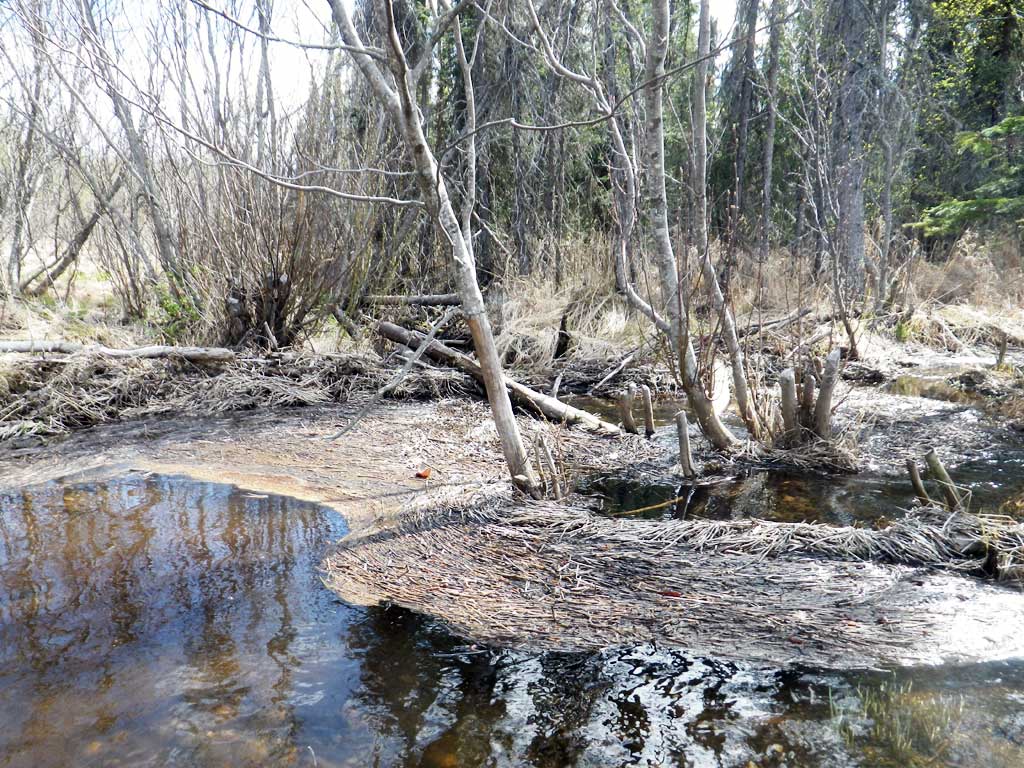

  2. Beaver Activity

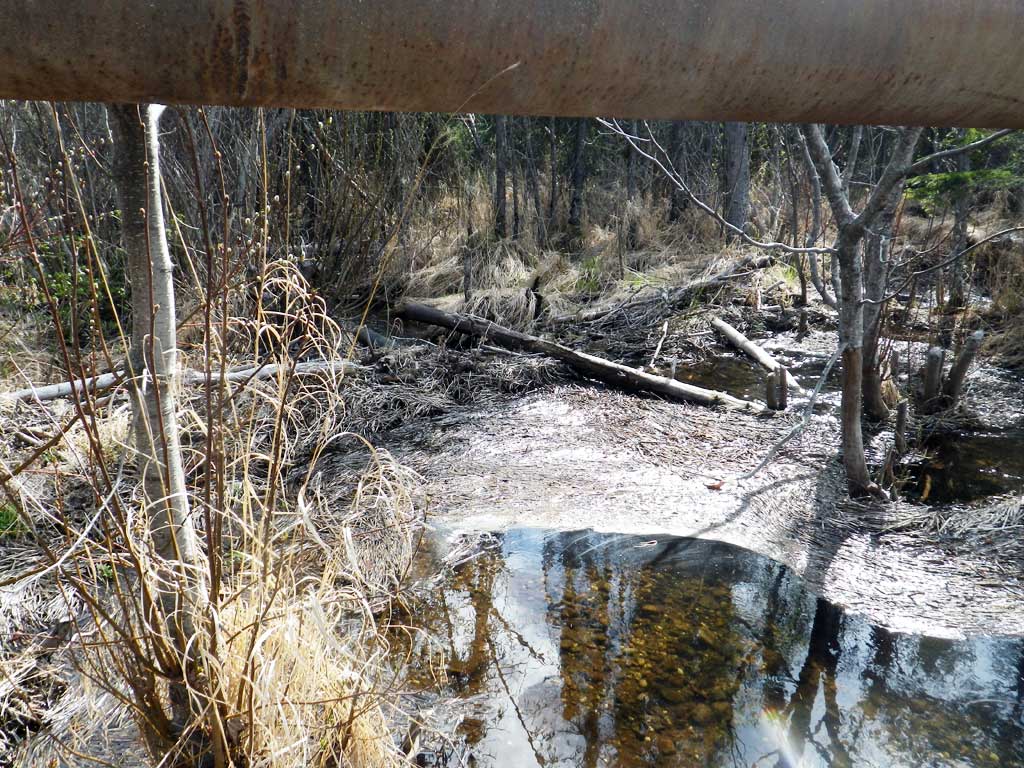

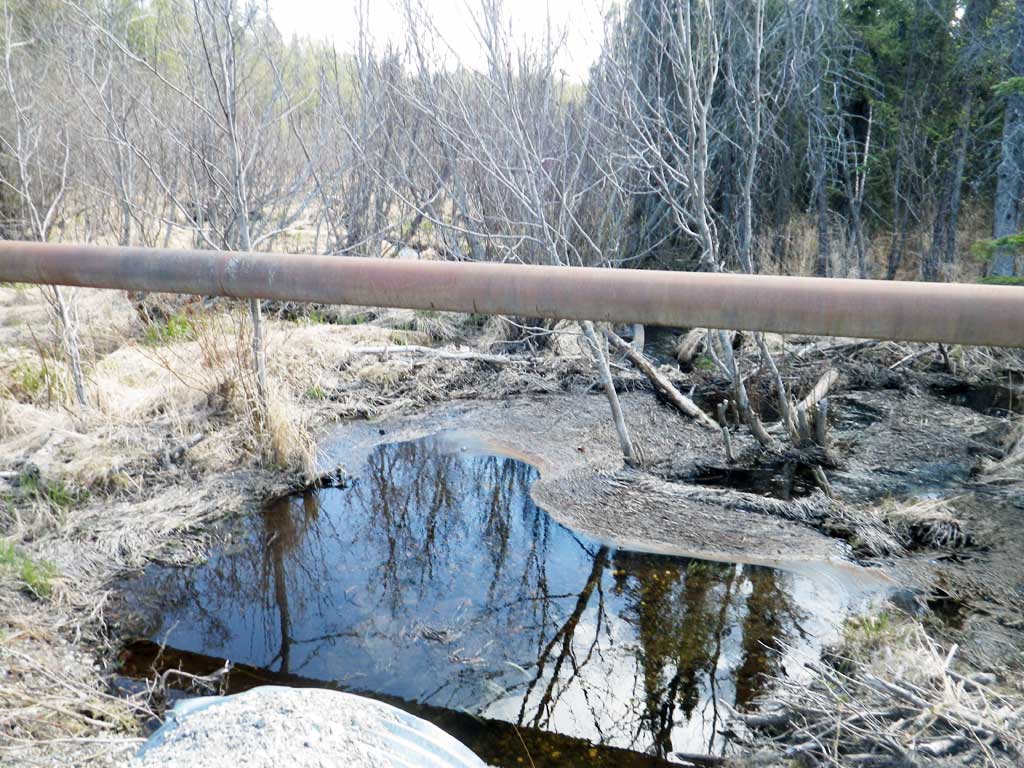

Comments: Cataloged anadromy currently ends at crossing. Site is currently backwatered by a beaver dam downstream and is most likely not a barrier at current flows. Culvert has been replaced since 2002 survey.

Culvert Measurements

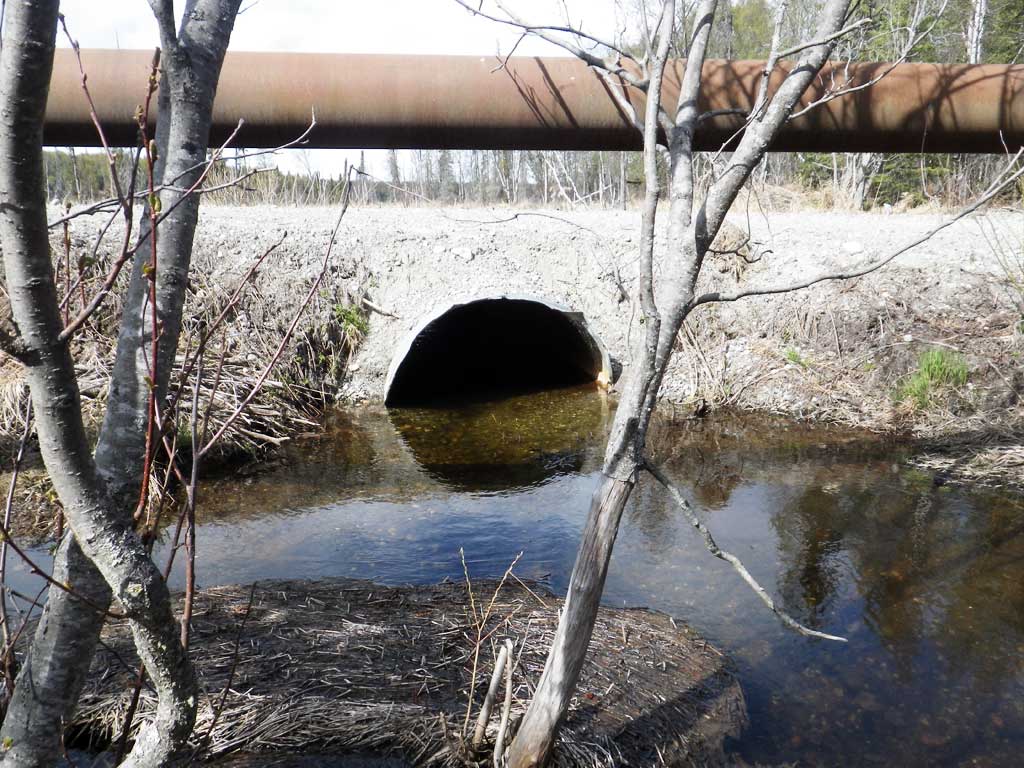

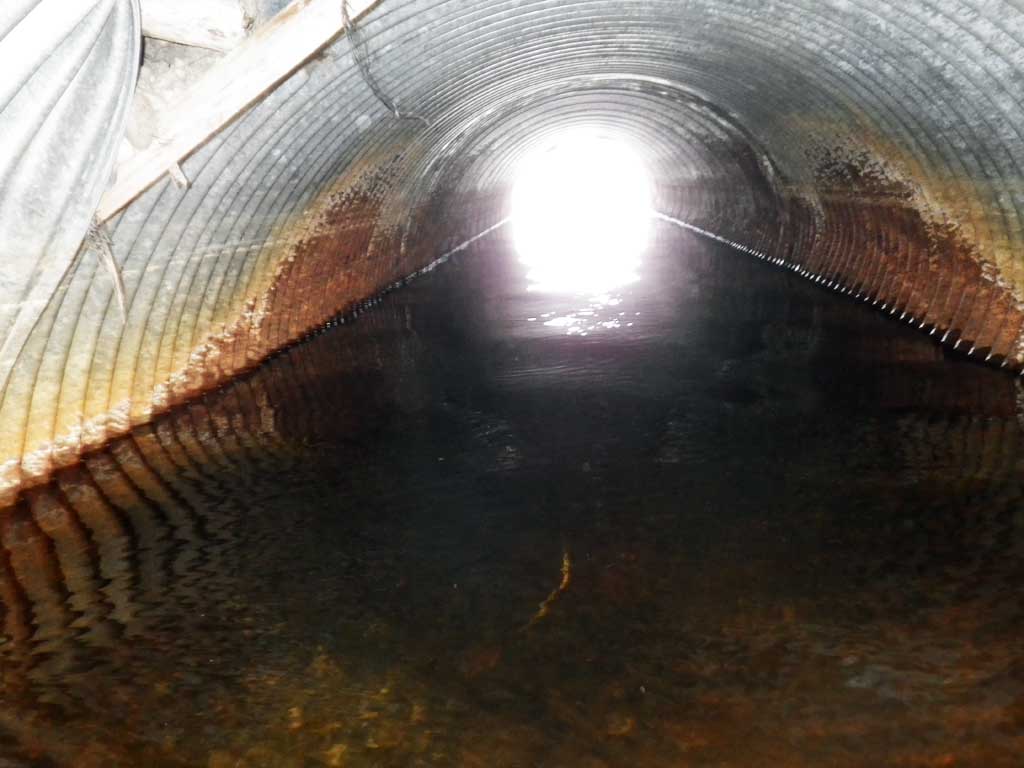

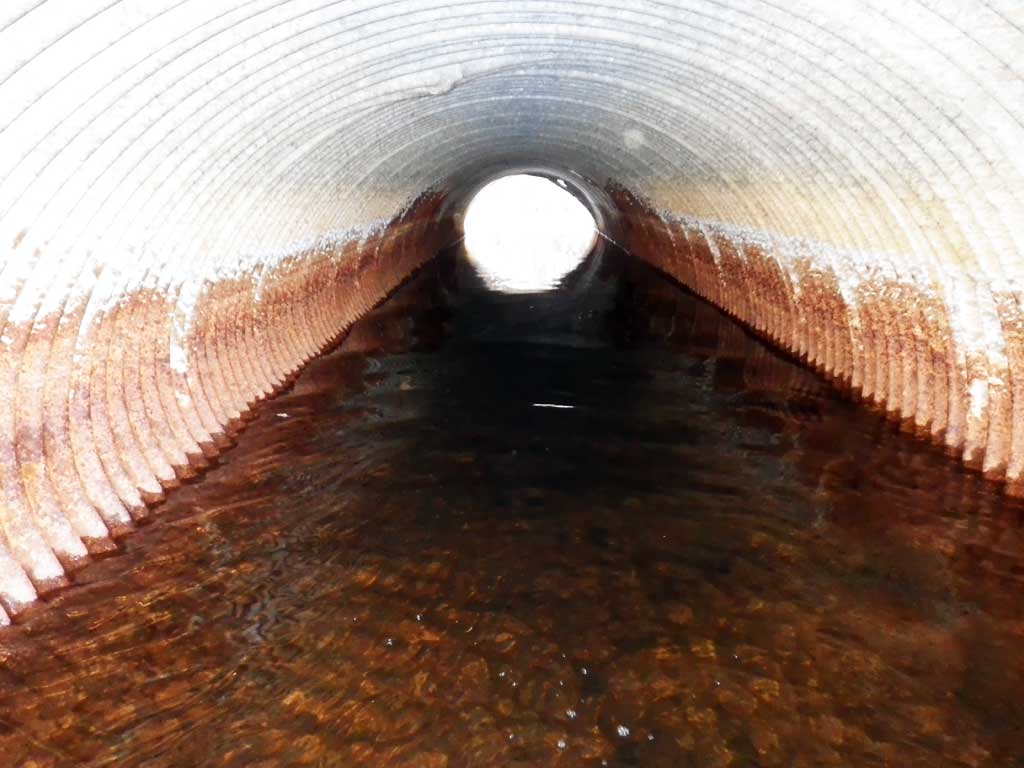

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 37.8

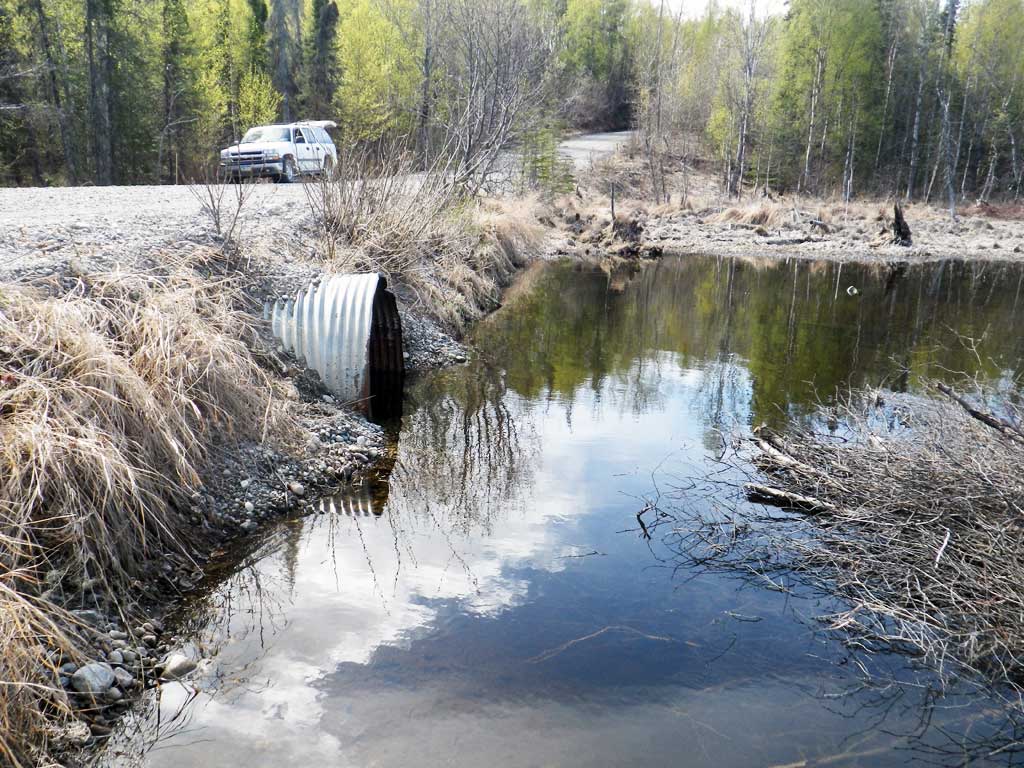

Inlet Type: Projecting

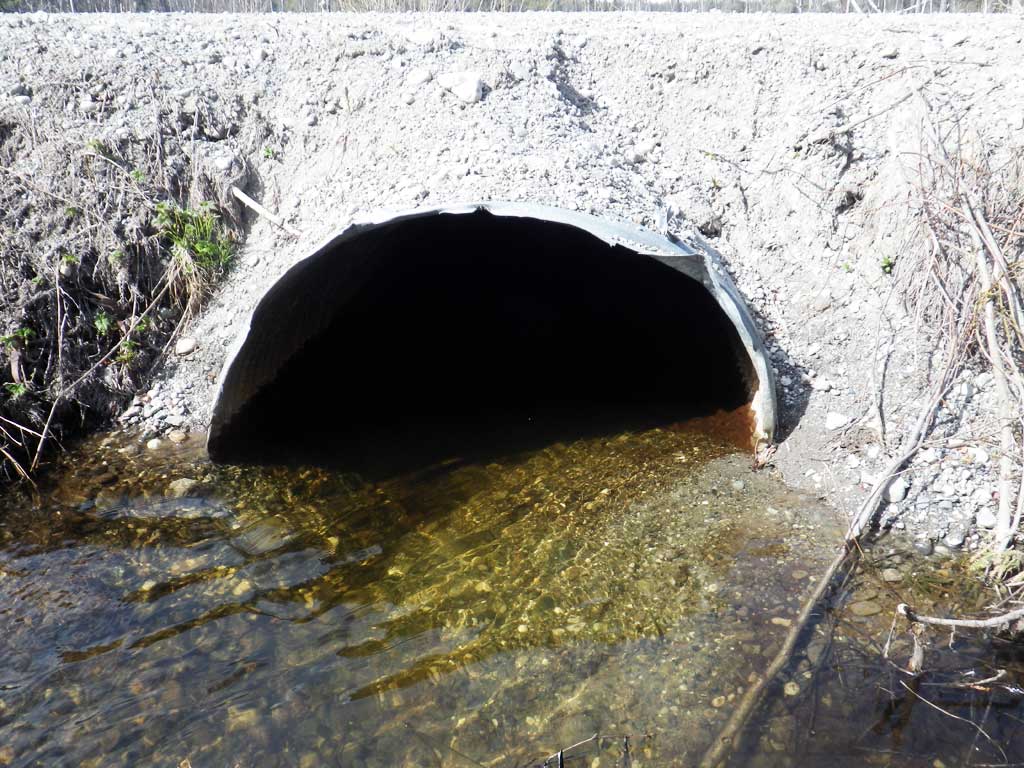

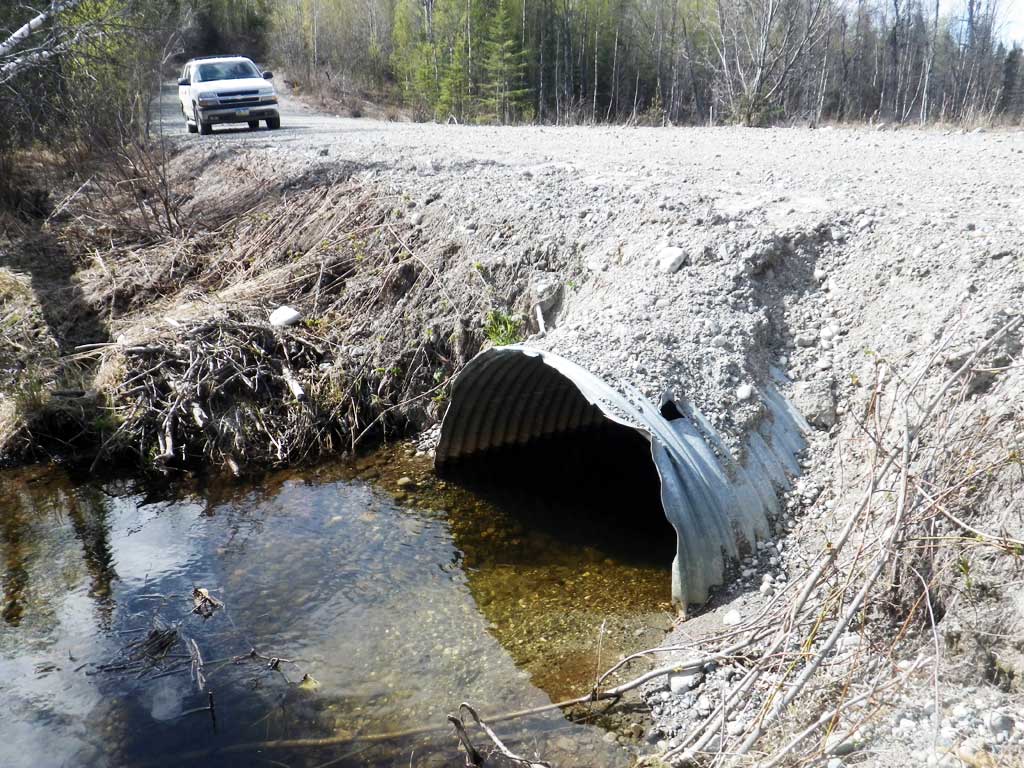

Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 2.5
Condition Rating(1-5): 3
Approach Angle: 0.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: Gravel
InletOutlet
Width(ft):5.4 5.2
Height(ft):4.6 4.0
Apron Length(ft):
Water Depth(ft): 1.76
Rustline Height(ft):3.7
Substrate Depth(ft):0.0 1.2
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.95
Culvert Gradient: 1.90%
Max Slope:
Max Slope Length:


Comments: Fish observed downstream from culvert
  Culvert Observations:
  1. Culvert gradient red
  2. Beaver Activity

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClaySilt/Clay
Subdominant:OrganicOrganic
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water 50.0 4.70
Downstream ordinary high water 100.0 6.40
Downstream ordinary high water 150.0 6.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 101.74
D/S Thalweg 0.00 95.04
D/S Water Surface Elev 0.00 96.01
D/S Water Surface Elev 42.00 96.49
D/S Thalweg (Below beaver dam) 42.00 95.80

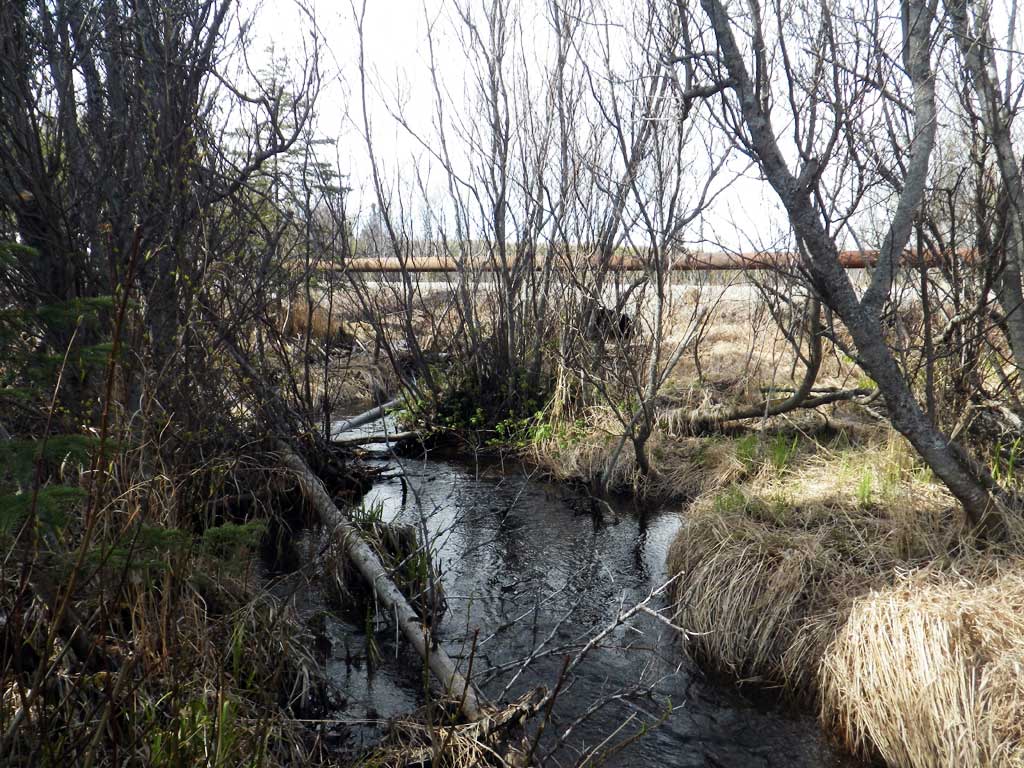

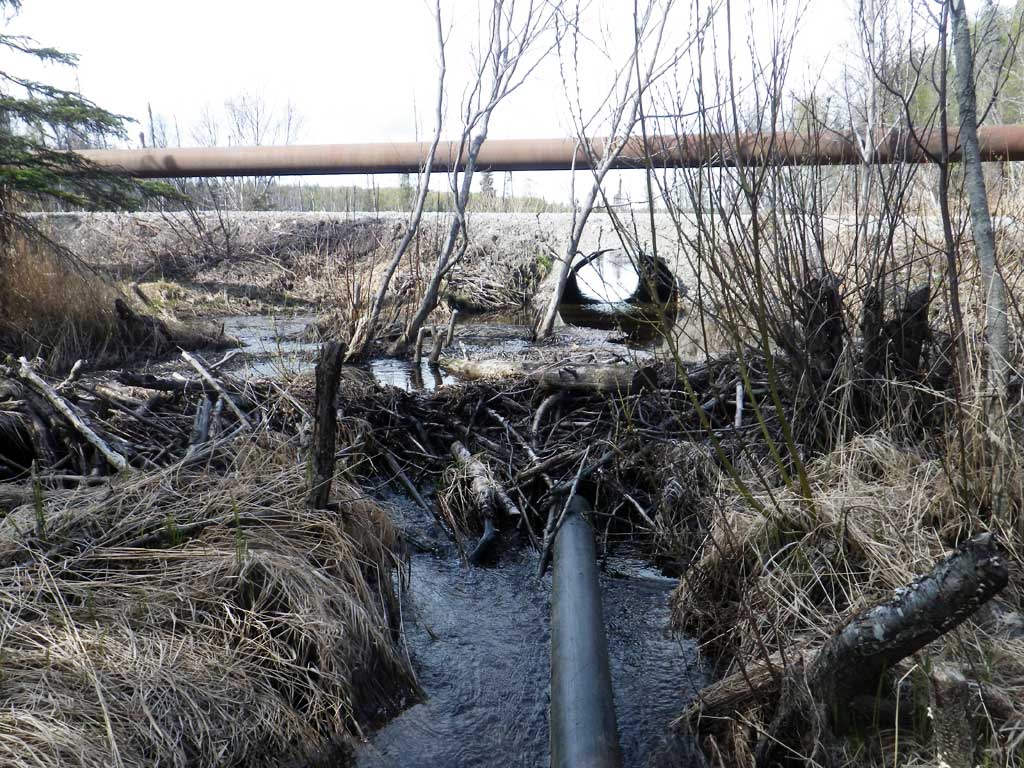

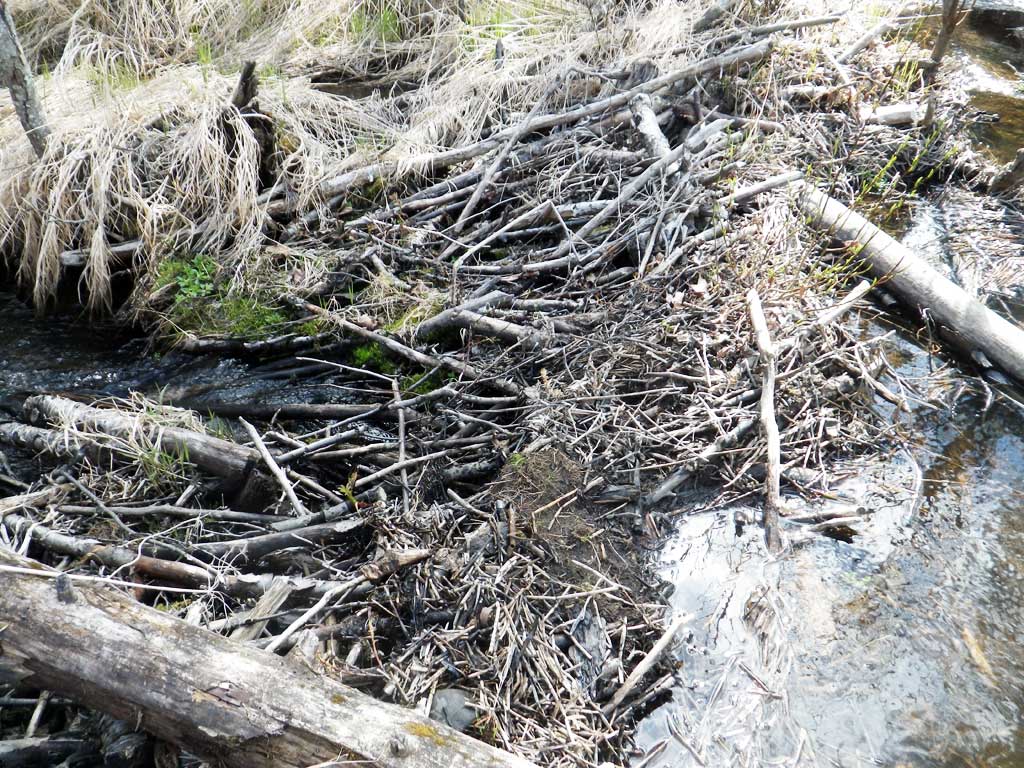

D/S Thalweg (Top of Beaver dam) 47.00 97.23
Max Pool Depth 66.00 95.98
Outlet Pool Water Elev 66.00 97.53
Outlet Culvert Top 70.00 99.98
Outlet Invert (On substrate) 70.00 95.76
D/S Water Surface Elev 70.00 97.52

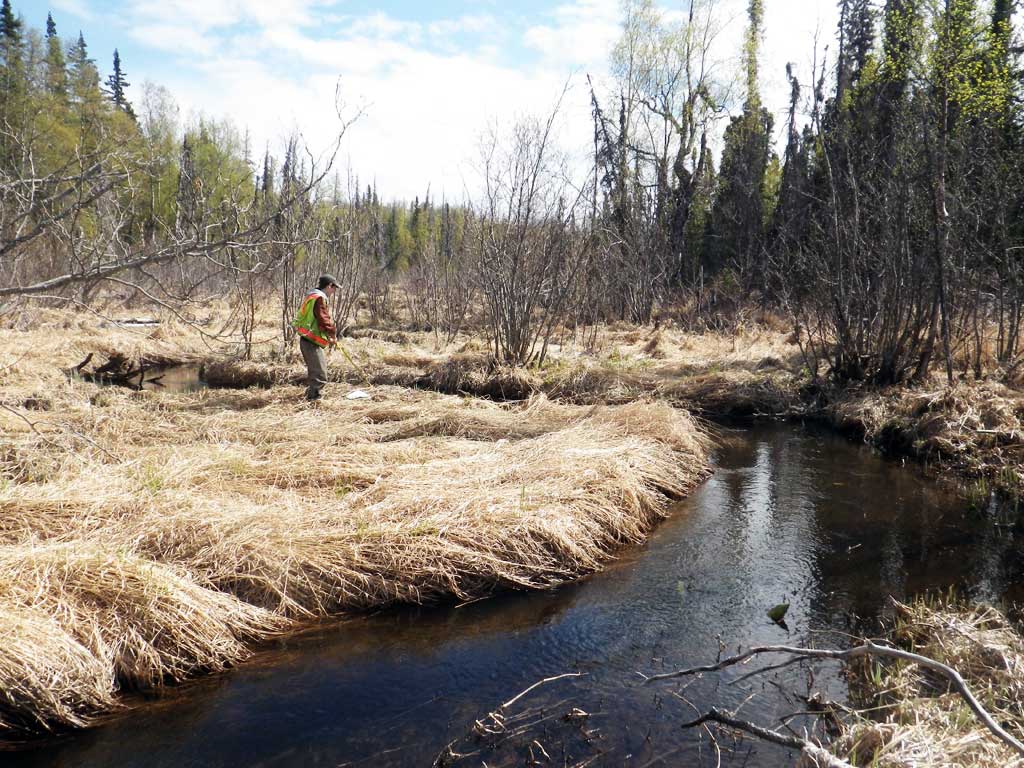

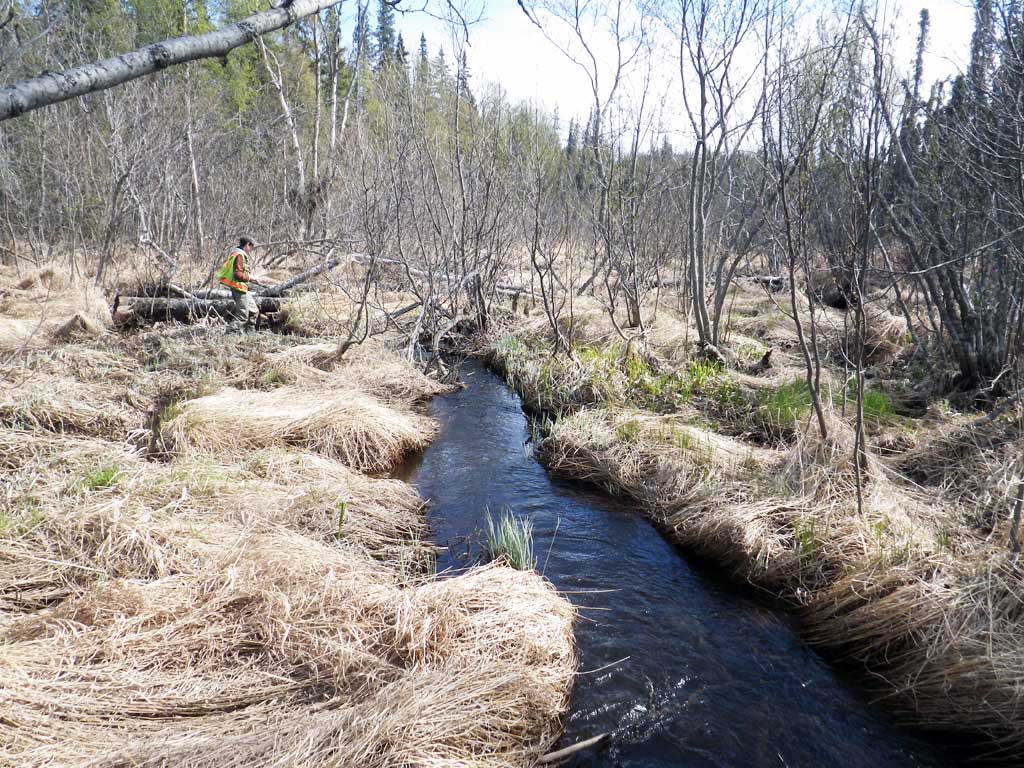

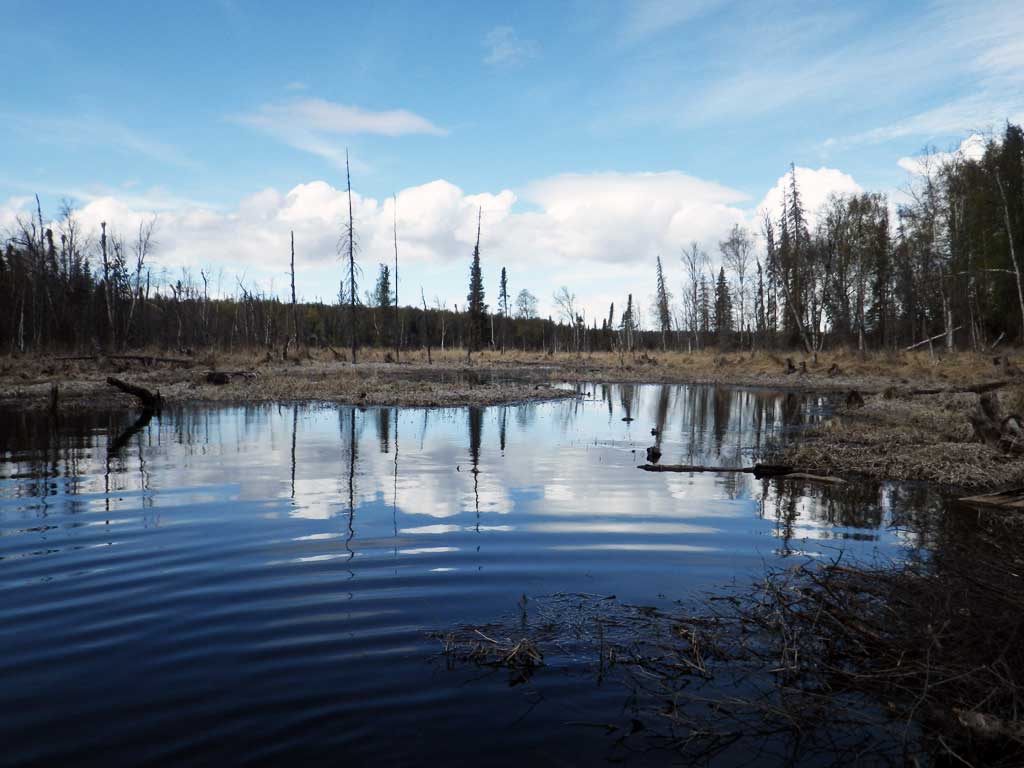

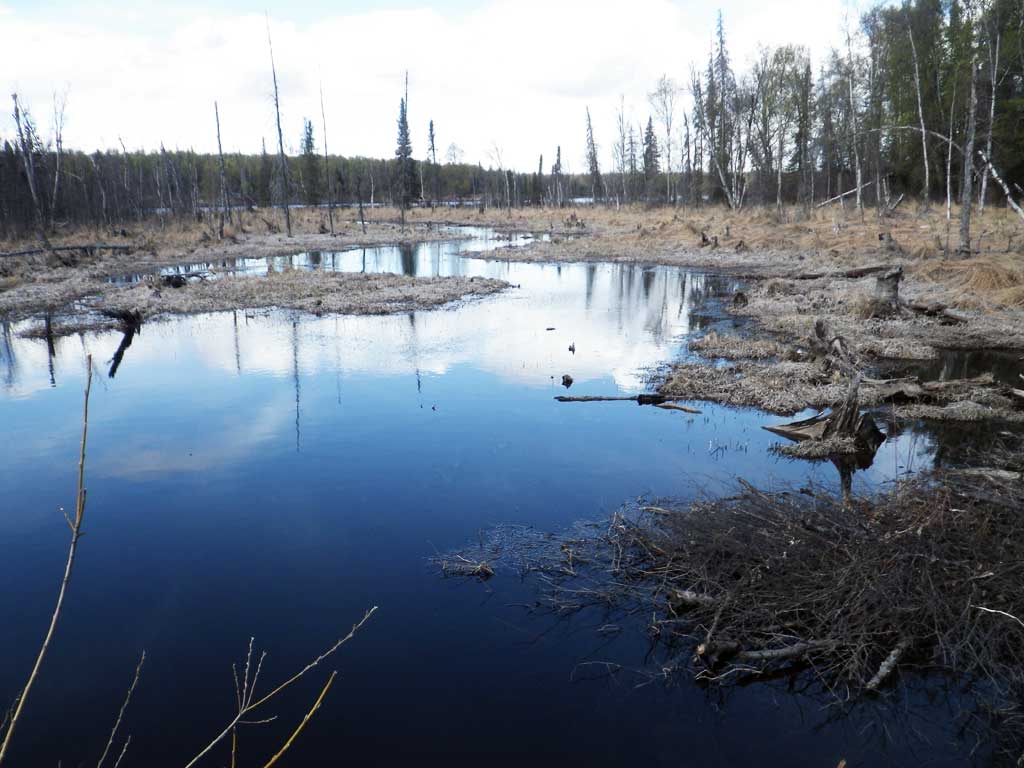

Inlet Culvert Invert (On pipe, 1st resting, pond upstream) 107.80 96.16
Inlet Culvert Top 107.80 100.70
U/S Water Surface Elev 107.80 97.55

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 12.0

Fish Observations

Species: adult threespine stickleback Life History: Unknown
Total Fish Observed: 4 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (4)
