Fish Passage Site 20503917

Coordinates (dec. deg.): 63.00596°, -149.60086°
Legal Description: F022S011W14
Region: South Central

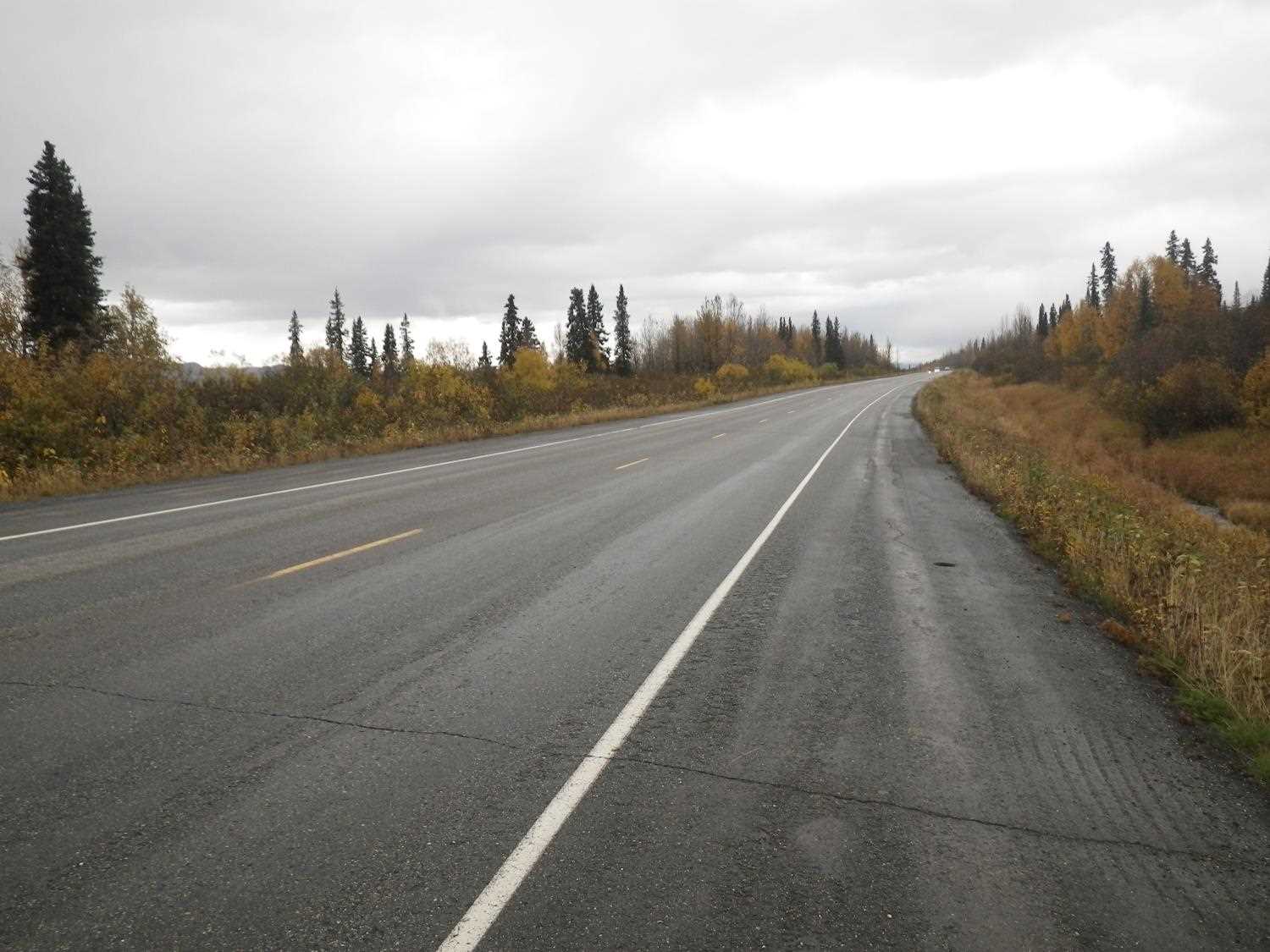

Road Name: Parks Highway

Datum: NAD83
Quad Name / ITM: Healy A-6
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: Site near MP173.4.

Survey Date: Sep 21, 2016

Survey UPDATE-PRK03

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

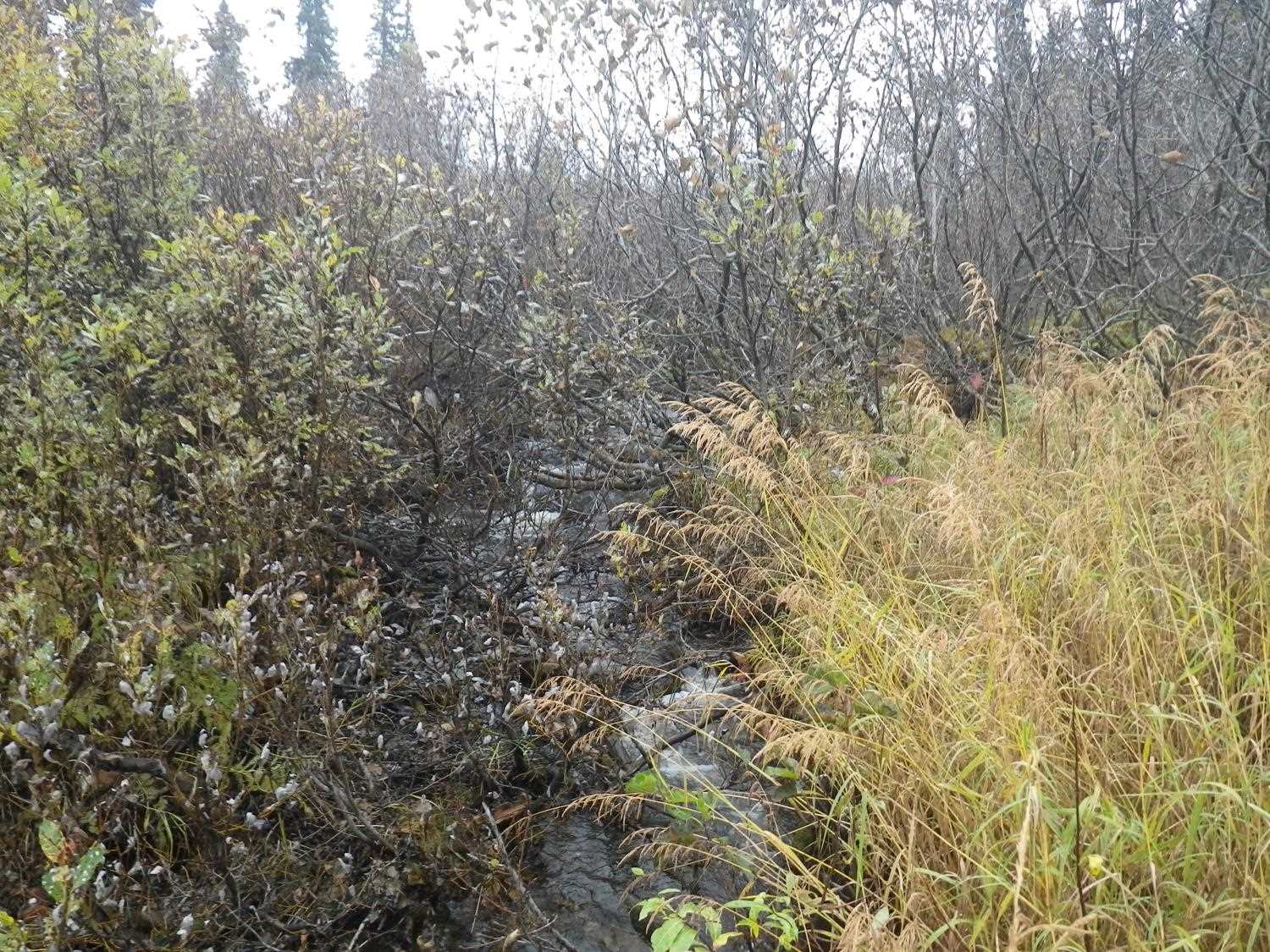

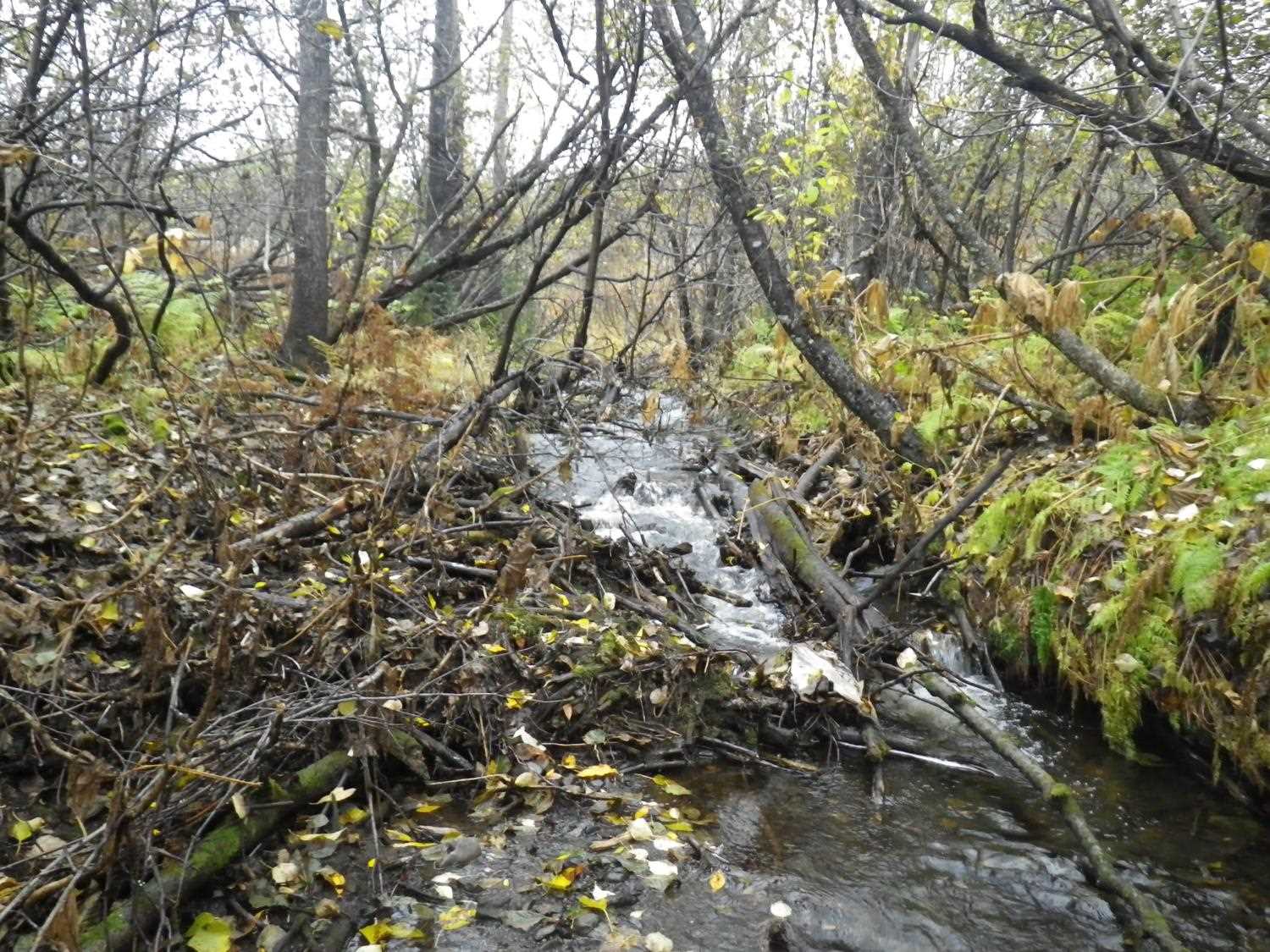

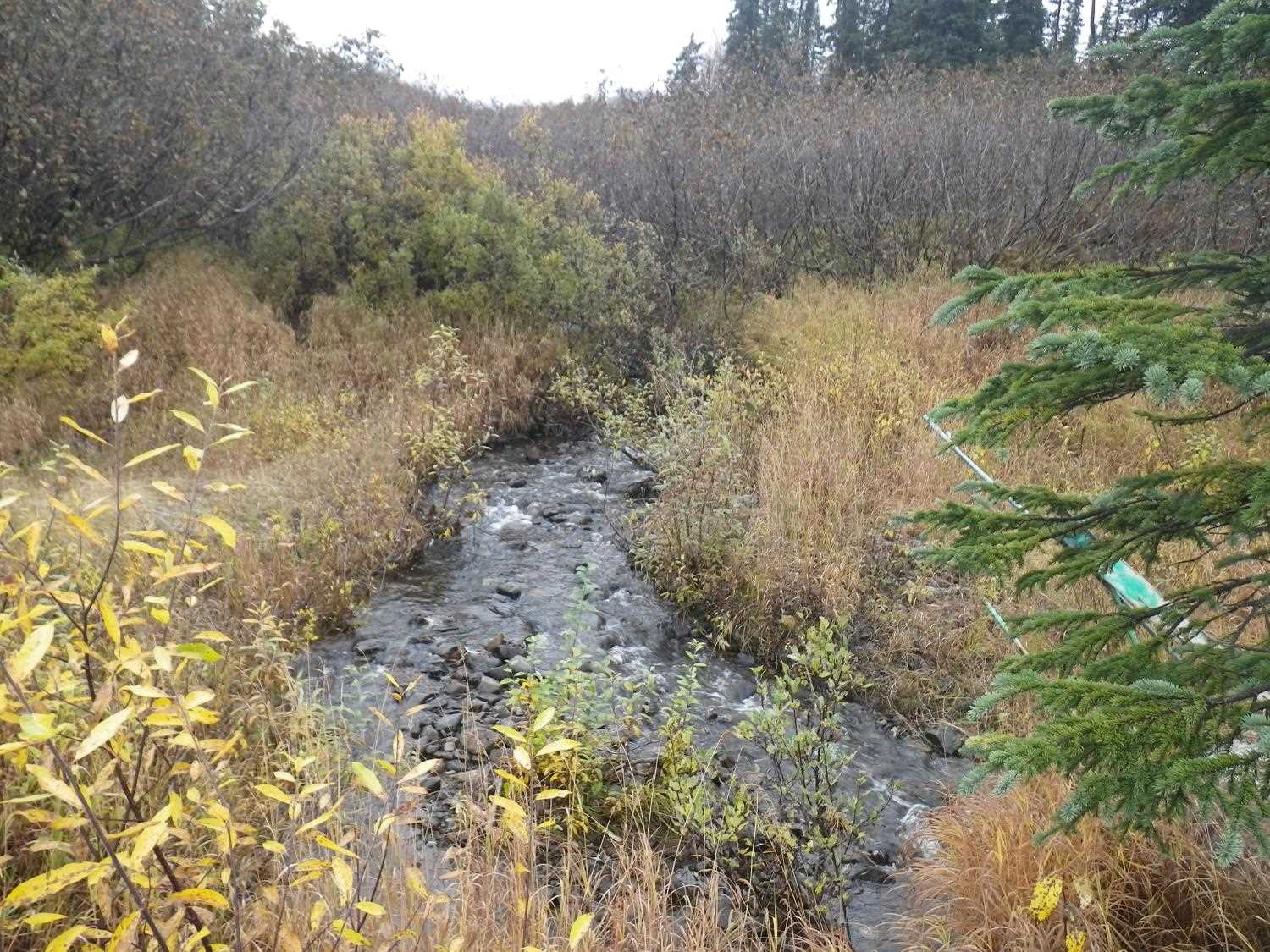

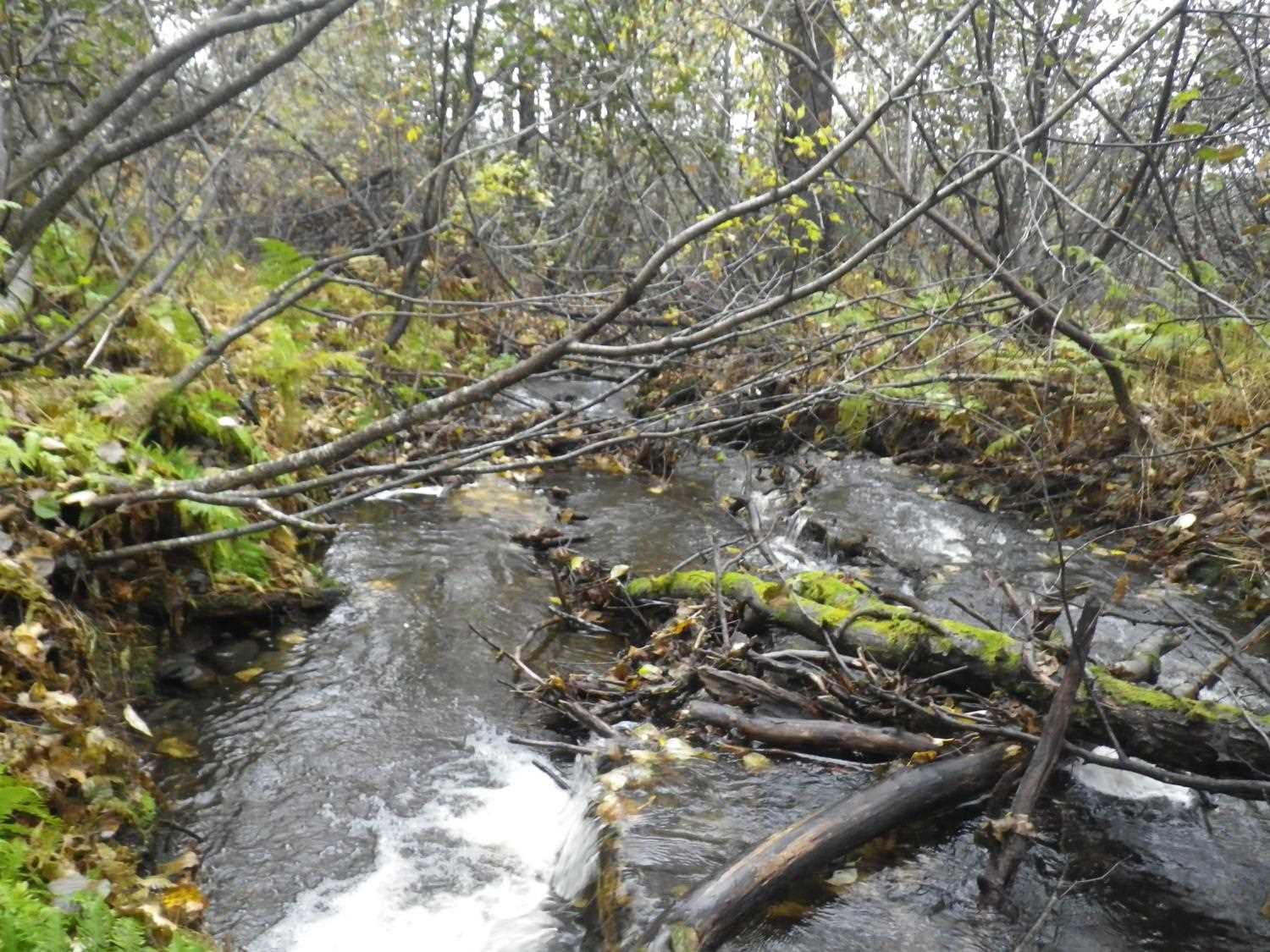

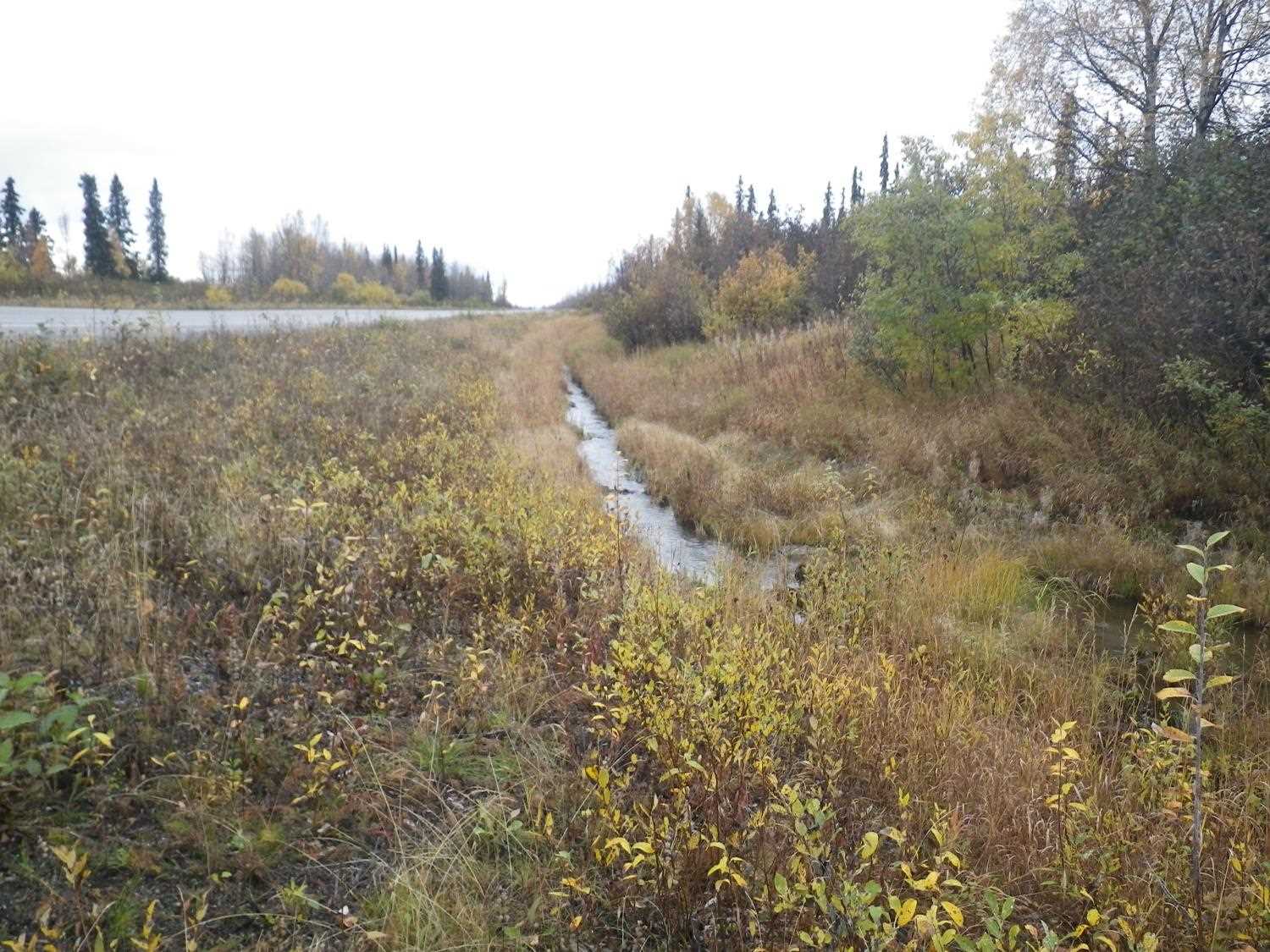

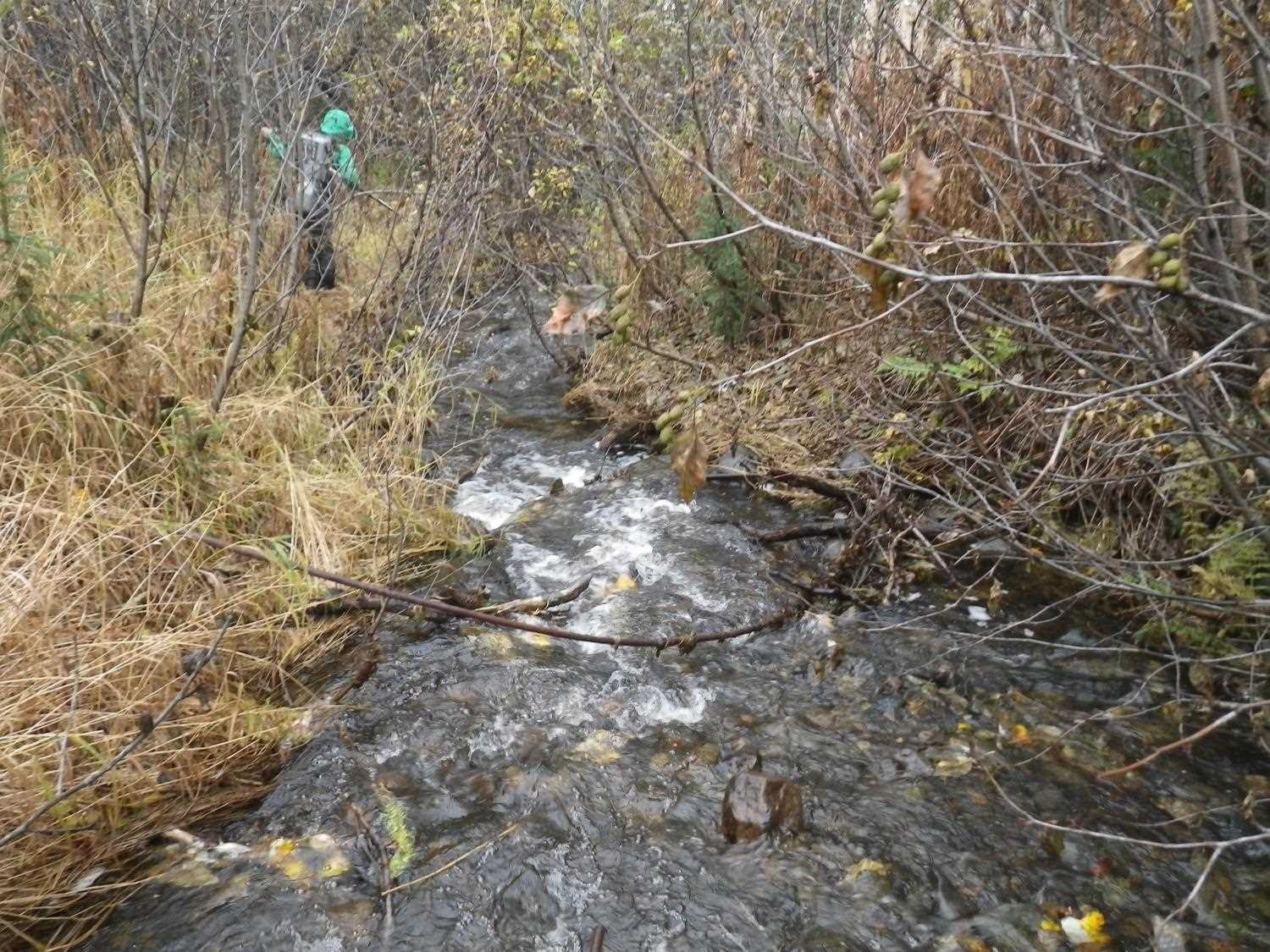

Comments: Site sampled at the request of ADF&G Habitat. Site was sampled as part of the 2016 Sampling Unmapped Streams in the MSB. Culvert has an outfall over 1 foot, and is rated RED. No fish encountered during site visit. Site maybe replace with highway upgrade. Nice upstream and downstream habitat, water was high during sampling event.

Culvert Measurements

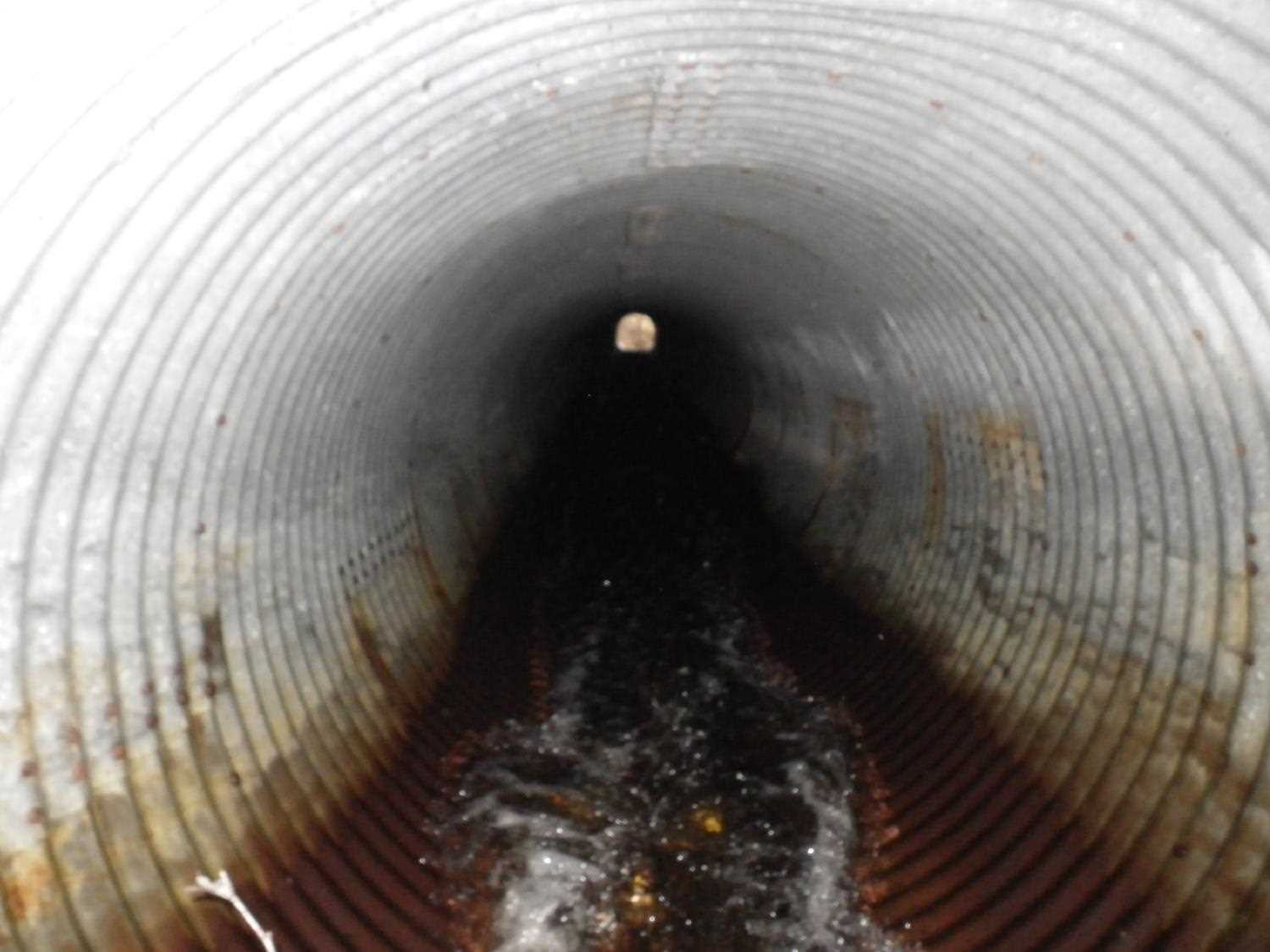

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):1.0 1.9
Height(ft):1.6 2.0
Apron Length(ft):
Water Depth(ft):0.0 0.4
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0

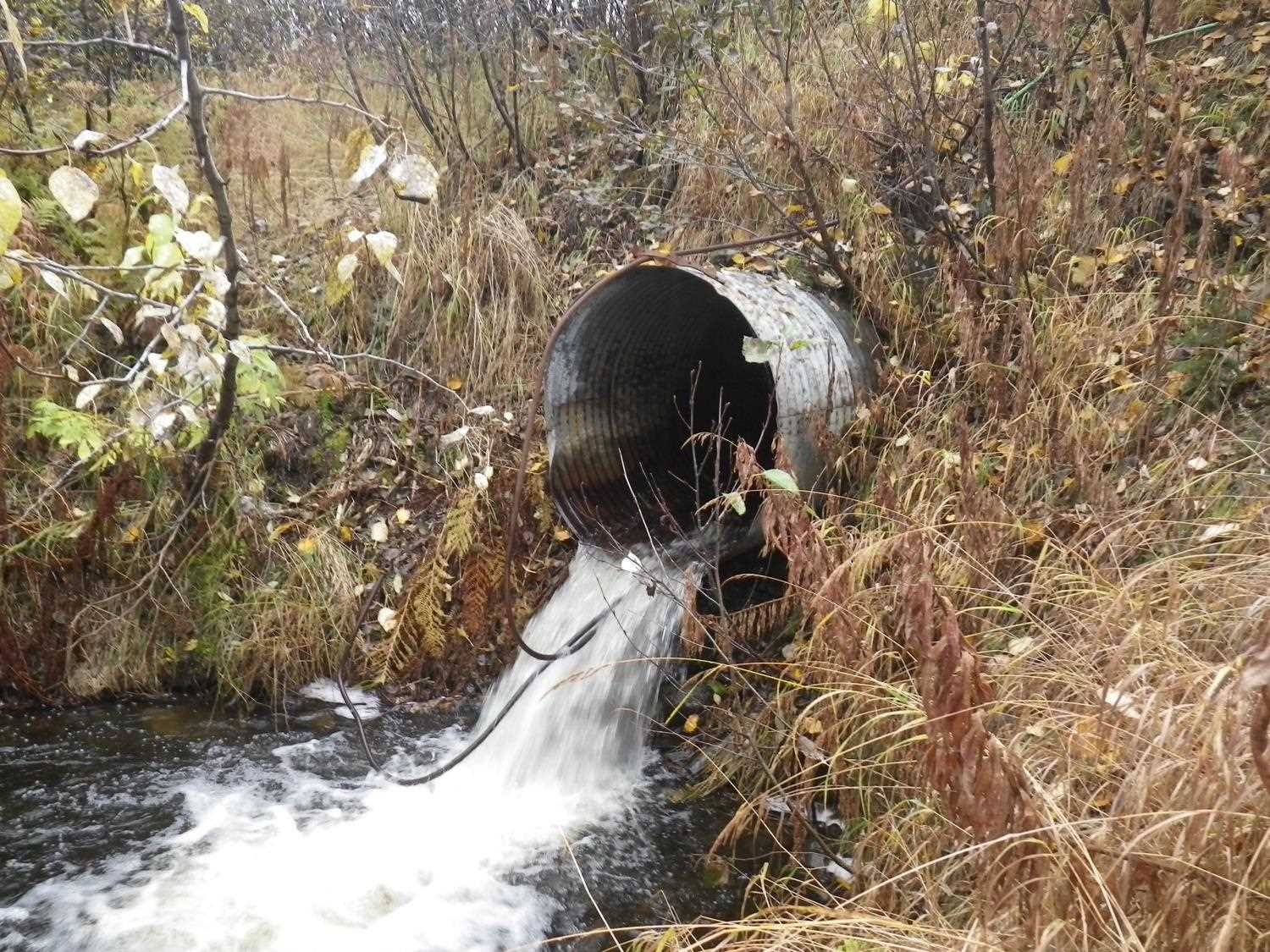

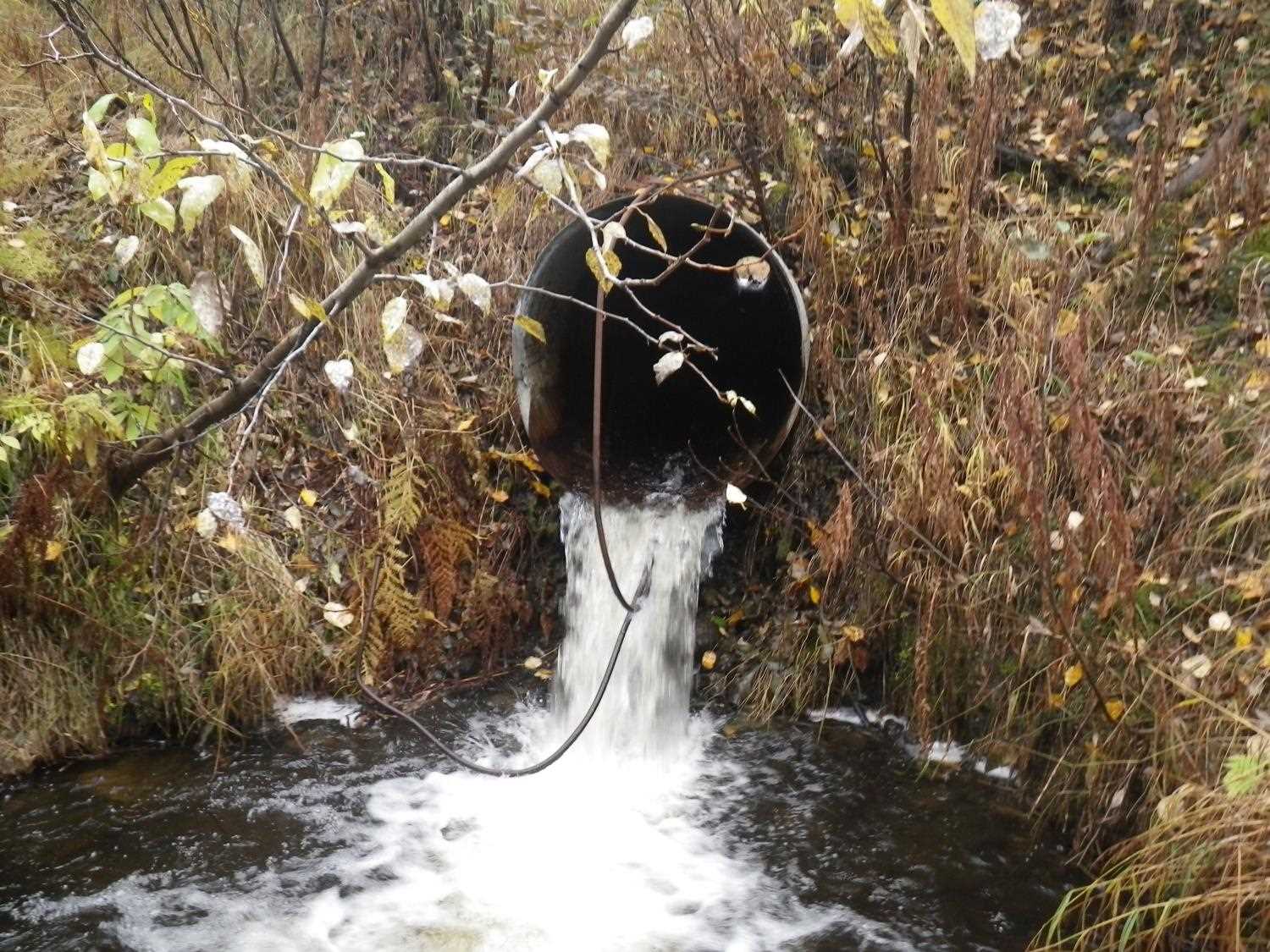

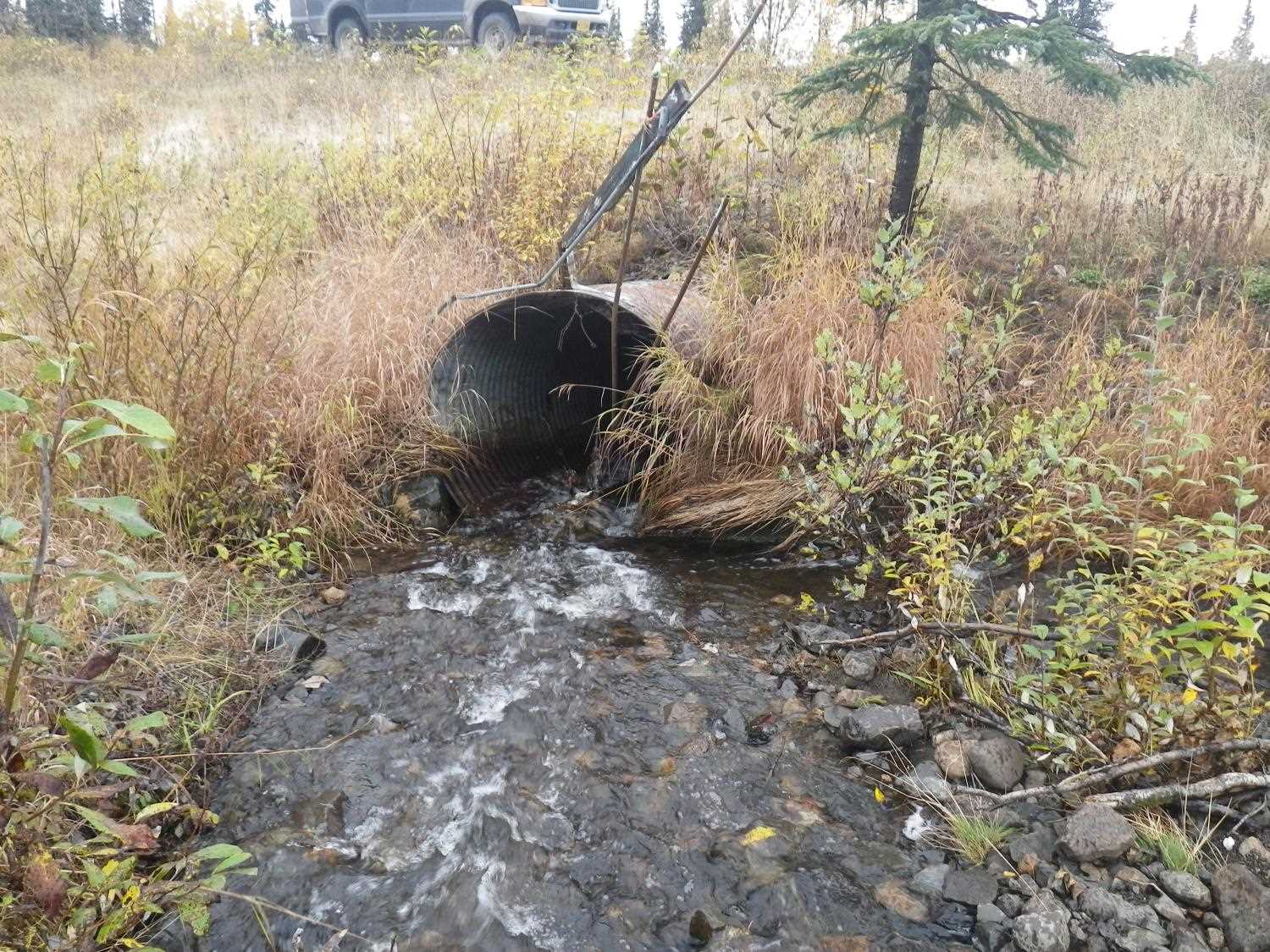

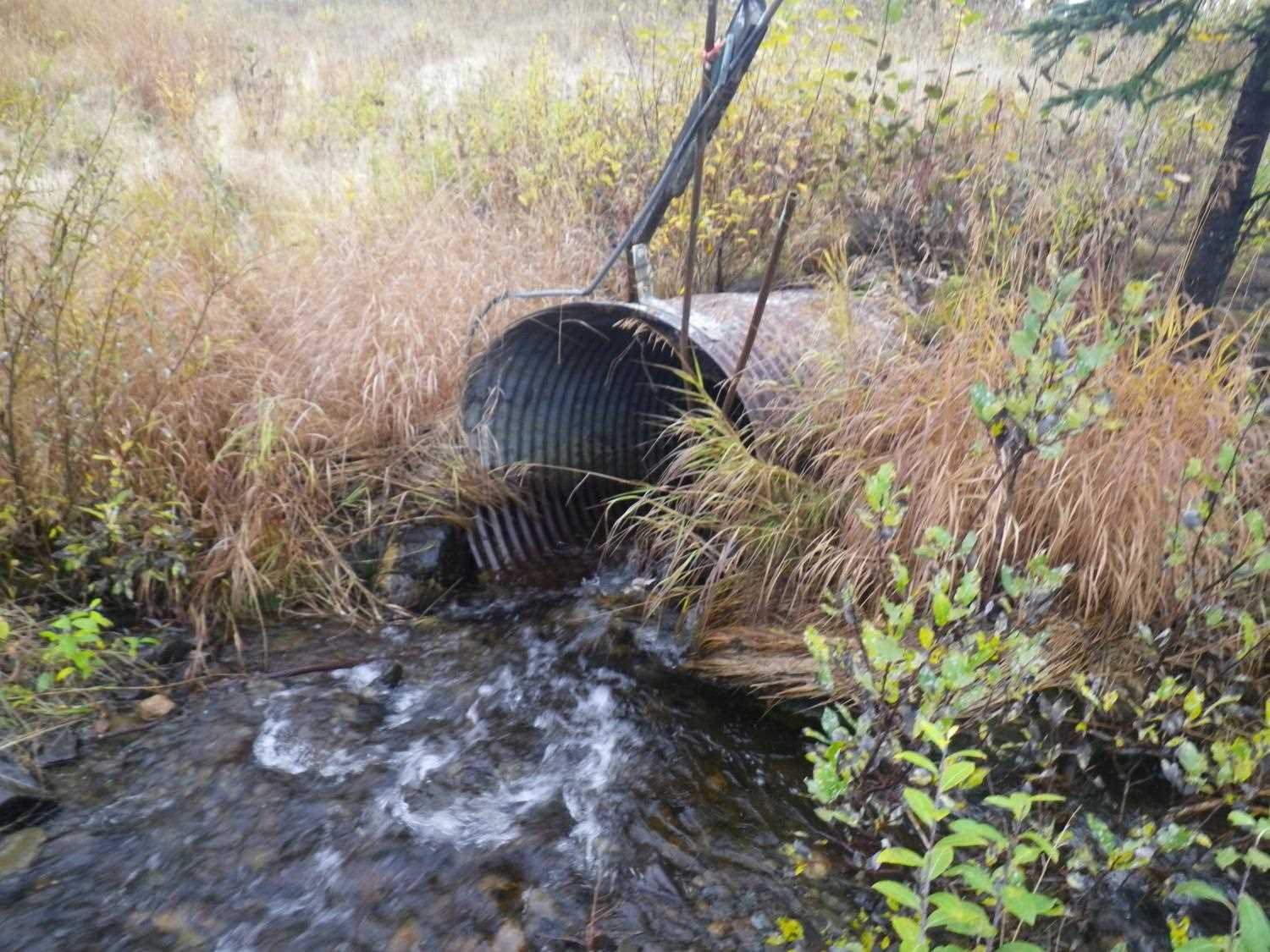

Outfall Height: 0.3
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Smith-Root LR-24 (A)
Comments: Site sampled 9/21/16. No fish encountered. Upper extent of sampling (63.00597, -149.60056)

Gear Type: Smith-Root LR-24 (B)
Comments: Site sampled 9/21/16. No fish encountered. Lower extent of sampling (63.00604, -149.60208)

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
