Fish Passage Site 20503803

Coordinates (dec. deg.): 61.75990°, -150.06624°
Legal Description: S019N004W06
Region: South Central
Road Name: Lucky Shot Trail

Datum: NAD83
Quad Name / ITM: Tyonek D-1
AWC Stream #:
Stream Name: Willow Lake Outlet

Elevation:

Site Comments: None

Survey Date: Sep 25, 2018

Survey UPDATE-LST01

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman, Shane Hetzog

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Comments: Basic site information, photos, fish trapping and basic culvert measurements collect. Site still needs full fish passage assessment.

Culvert Measurements

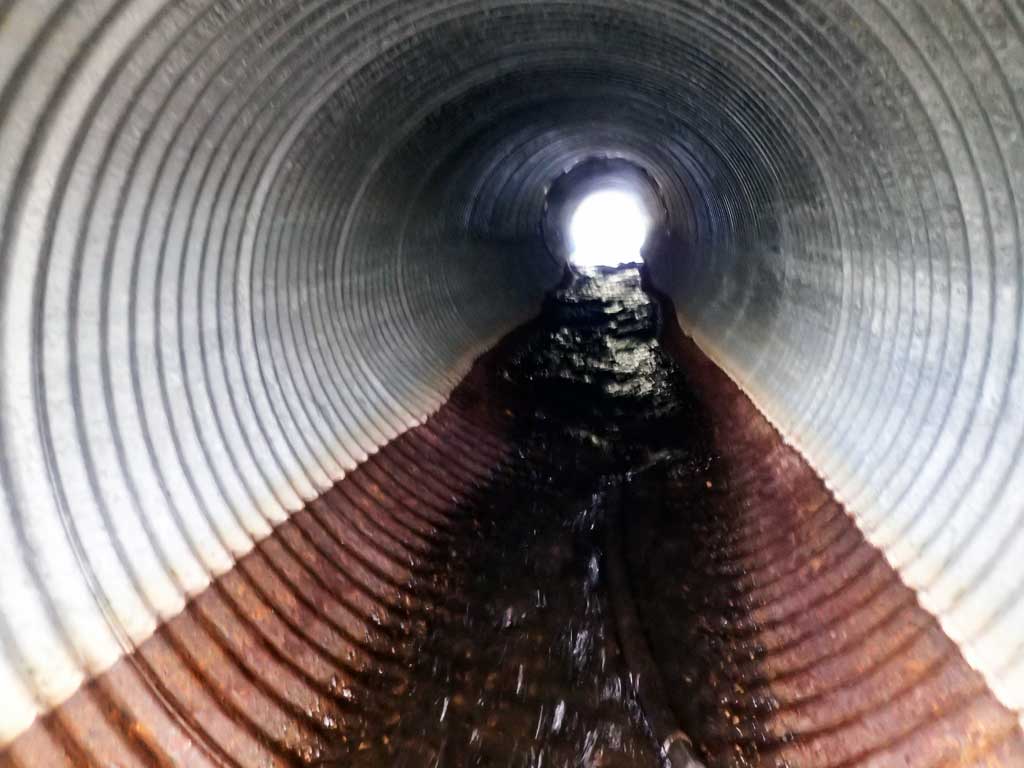

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):
Inlet Type: Flared Inlet

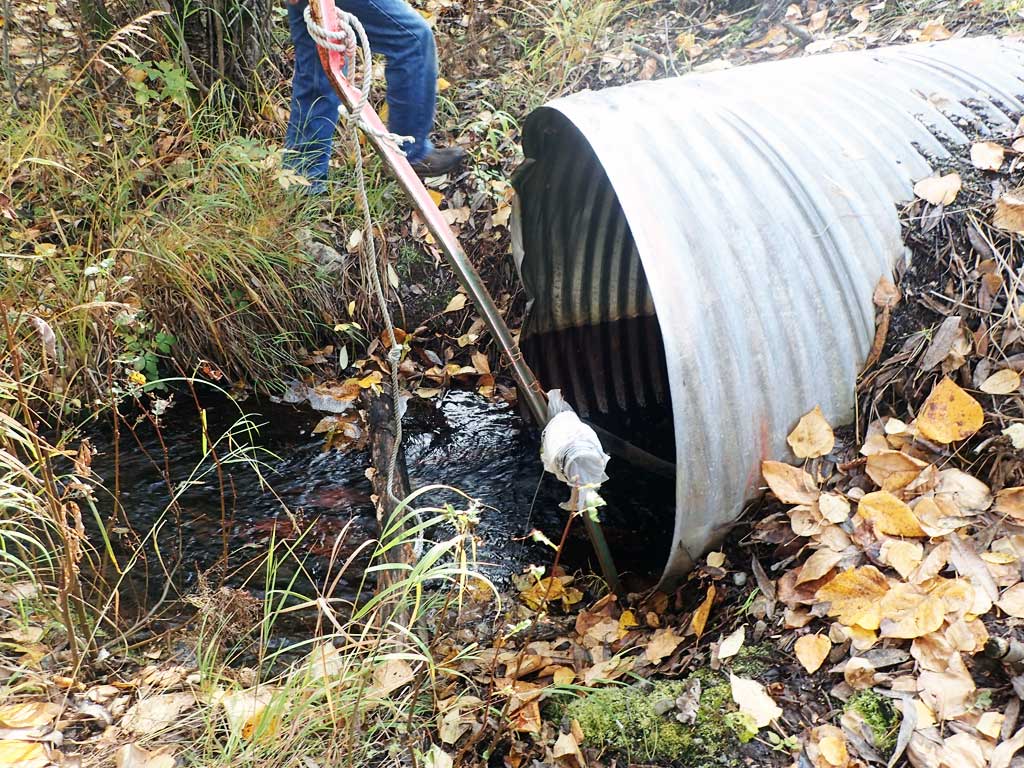

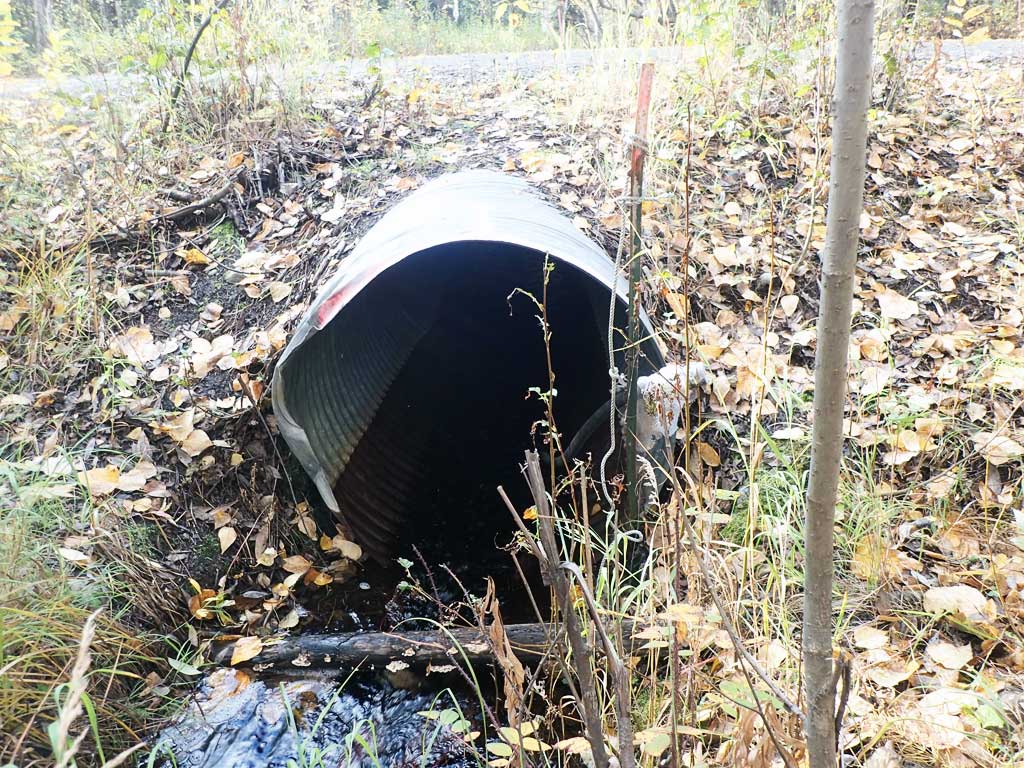

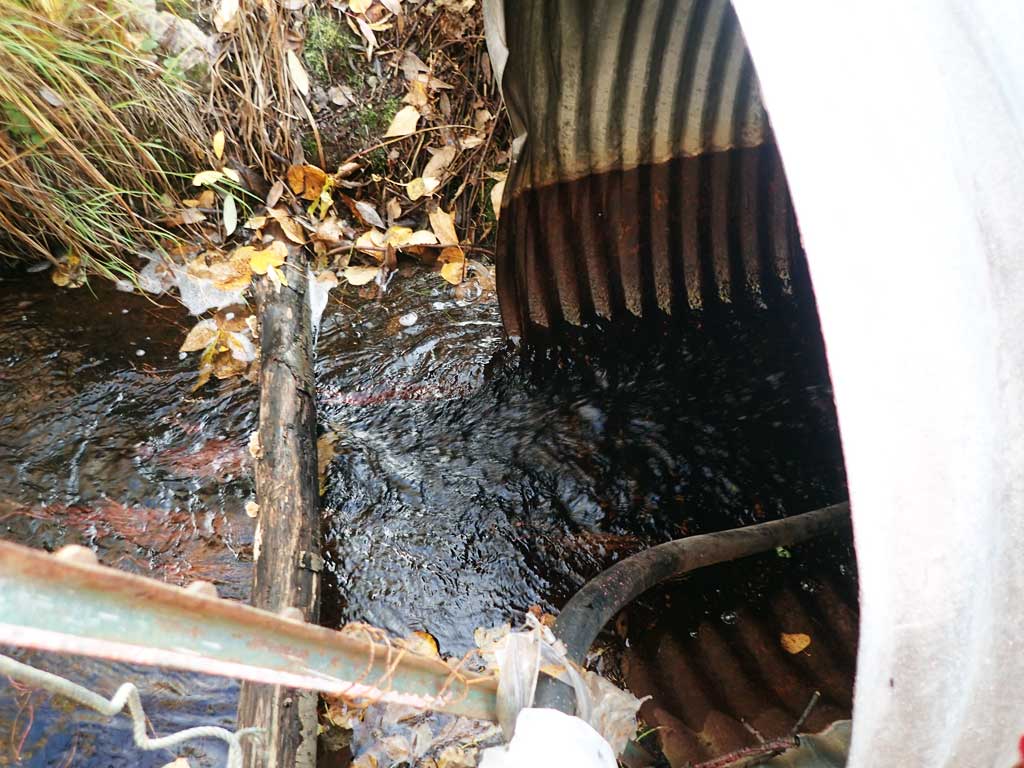

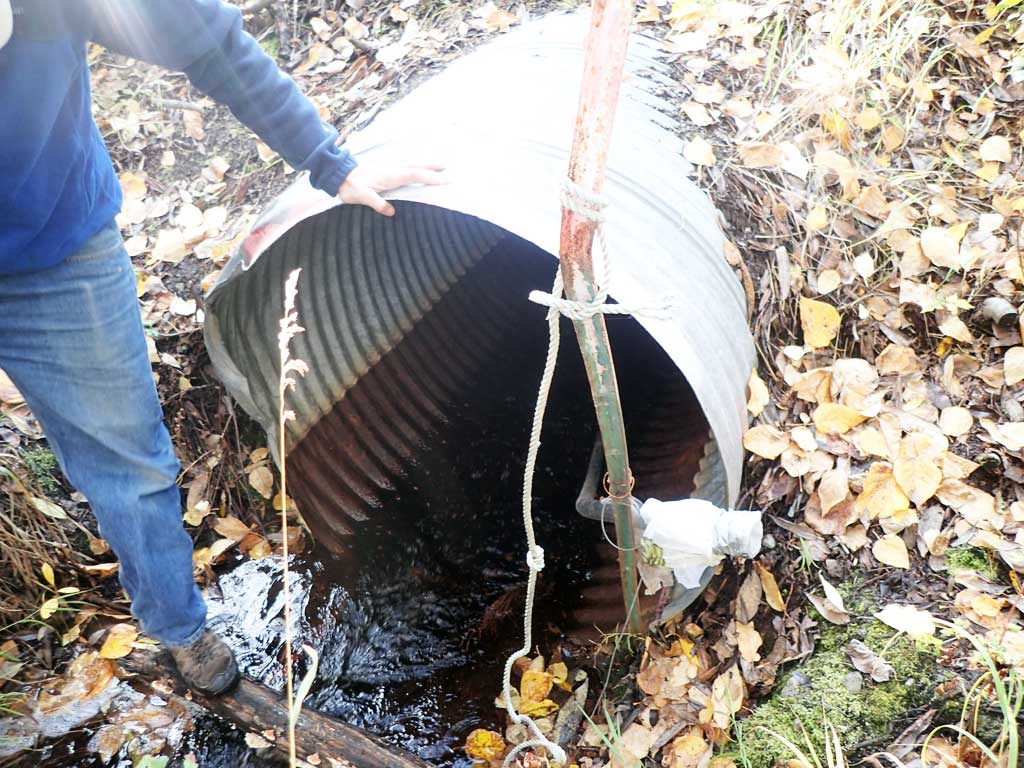

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):4.0 4.0
Height(ft):4.0 4.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present:
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

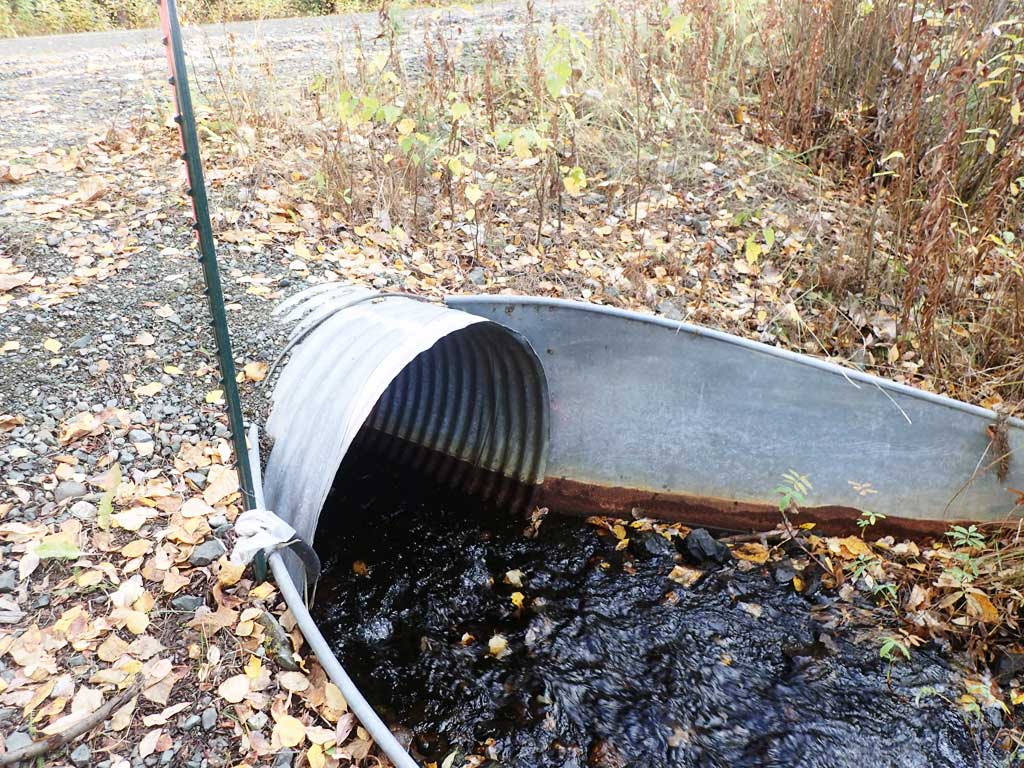

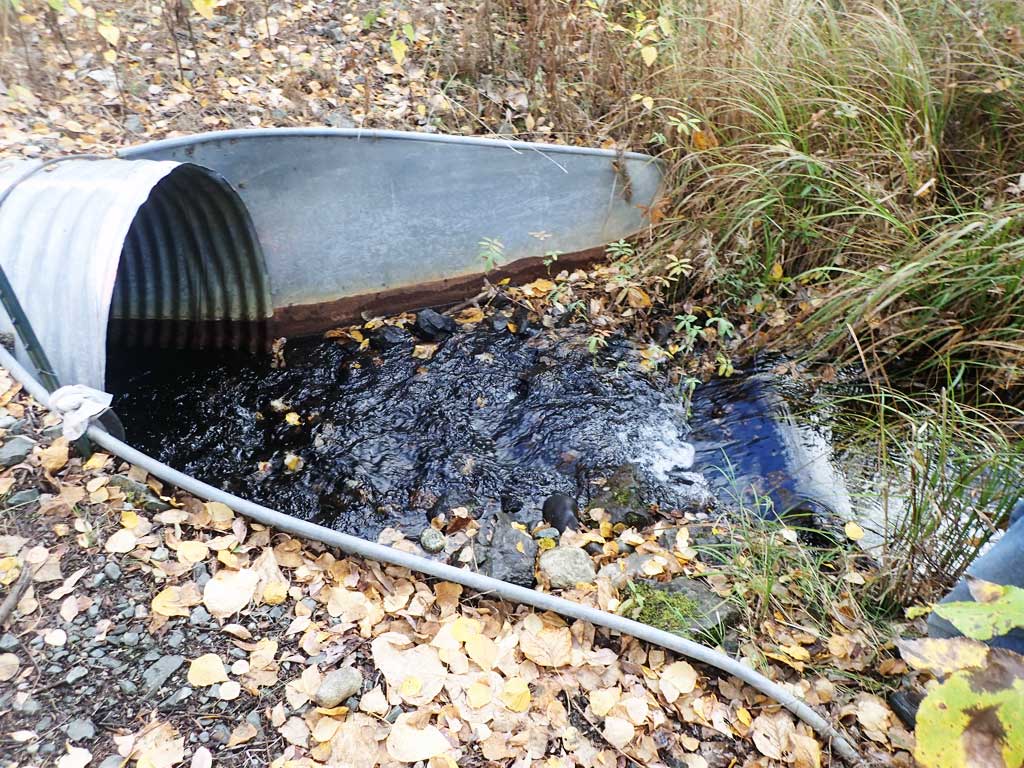

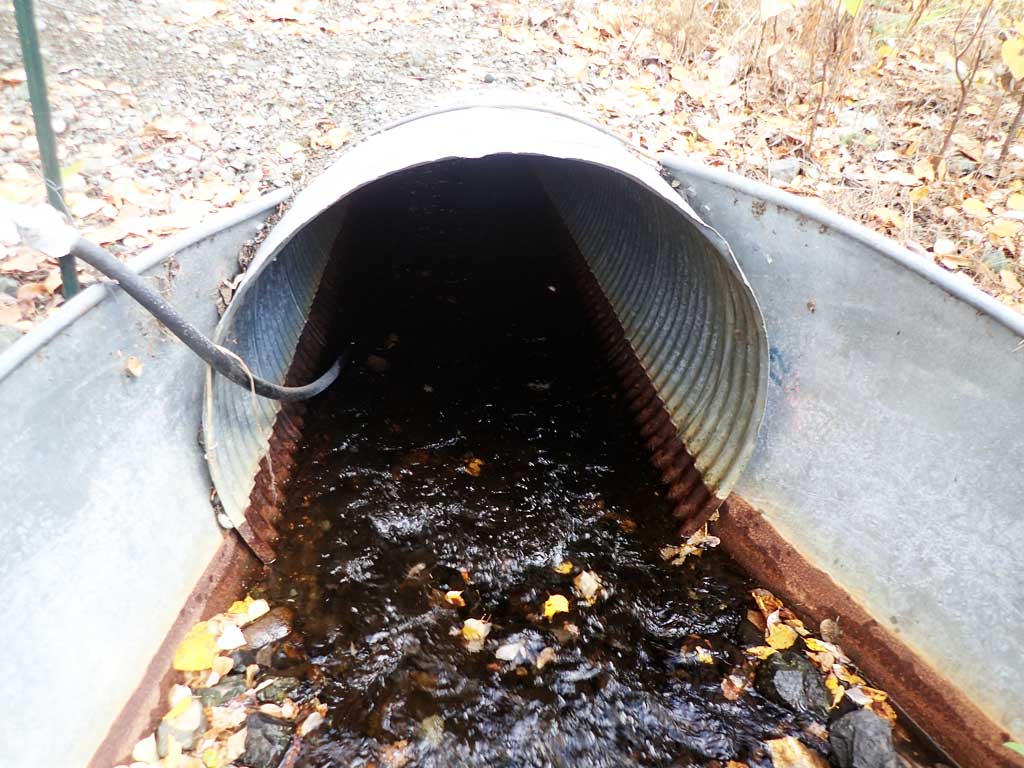

Comments: The end of the inlet flare has bent up creating a potential low water barrier. Cuvlert measured.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 6.16

Gear Type: Minnow Trap (B) Trap Duration(h): 6.16

Fish Observations

Species: juvenile coho salmon Life History: Unknown
Total Fish Observed: 1 Fish Measured: 1 Fork Lengths (mm) Min: 105 Max: 105 Mean: 105
Collected/Observed by Gear Type: Upstream Minnow Trap (1)

Species: threespine stickleback Life History: Resident
Total Fish Observed: 5 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (5)

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
