Fish Passage Site 20502147

Coordinates (dec. deg.): 62.56889°, -150.23121°
Legal Description: S029N005W28
Region: South Central
Road Name: Parks Highway

Datum: NAD83
Quad Name / ITM: Talkeetna C-1
AWC Stream #:
Stream Name: Chulitna River tributary

Elevation:

Site Comments: Site is at approx. MP 133.1.

Survey Date: Oct 25, 2011

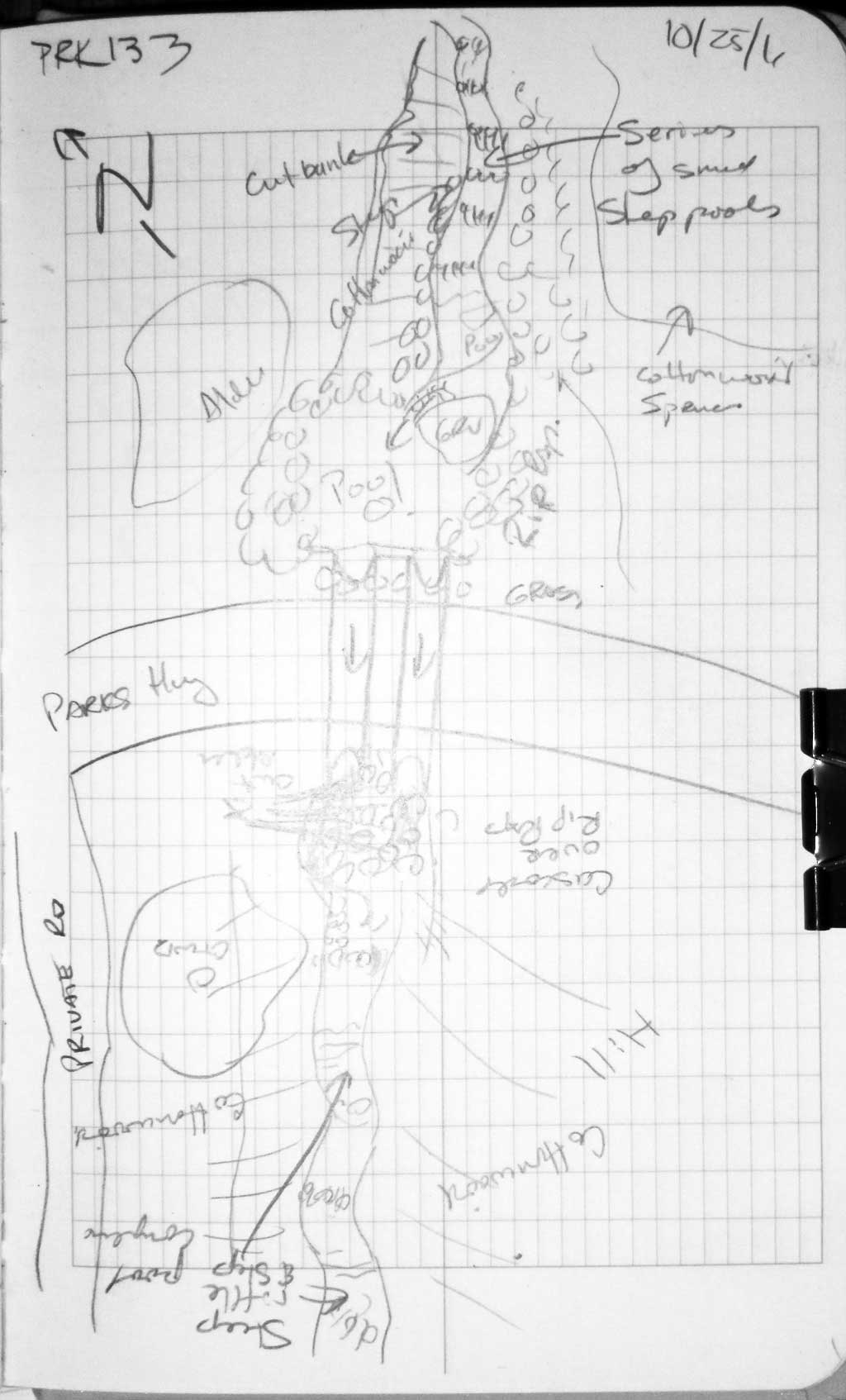

Survey MSB11-PRK133

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: Mark Eisenman, Gillian O'Doherty

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Culvert gradient red
  2. Outfall height red

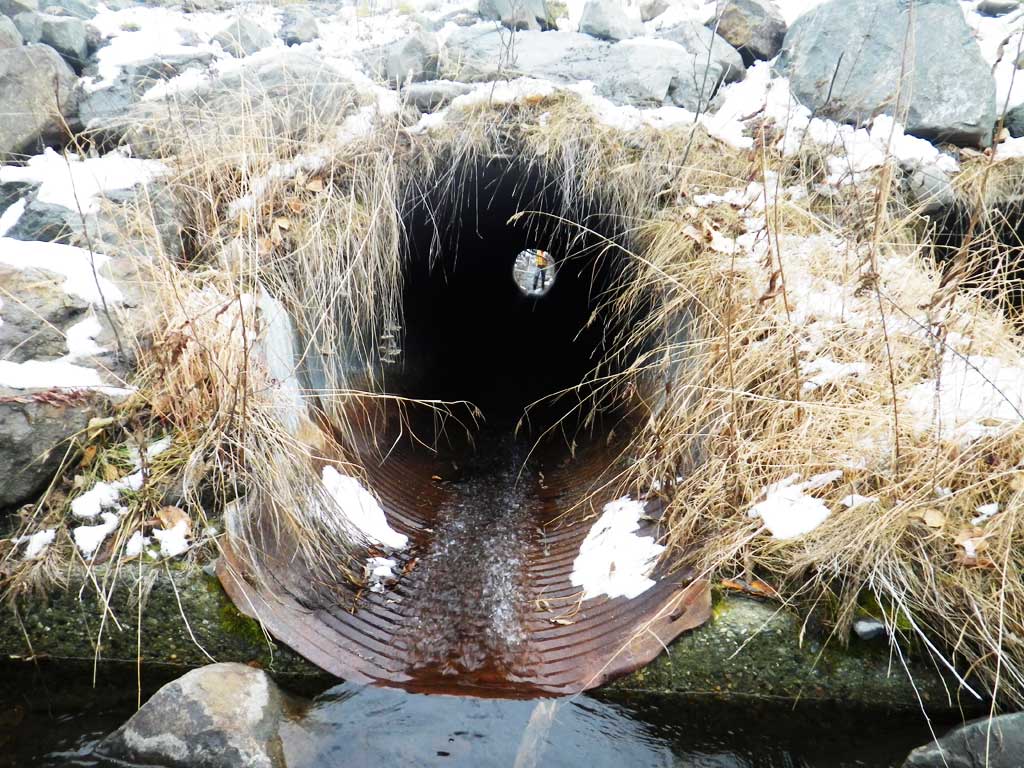

  3. Inlet perch

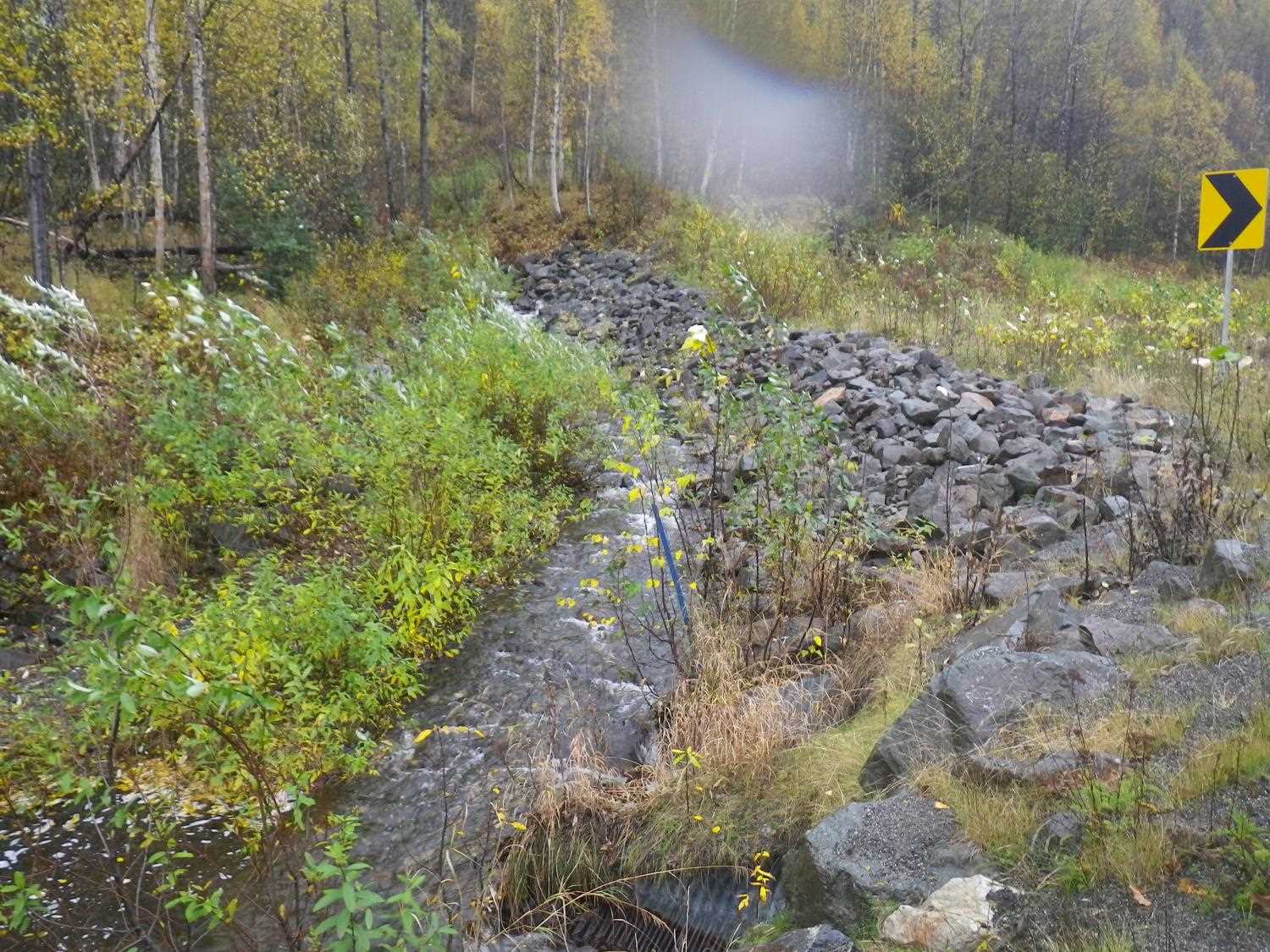

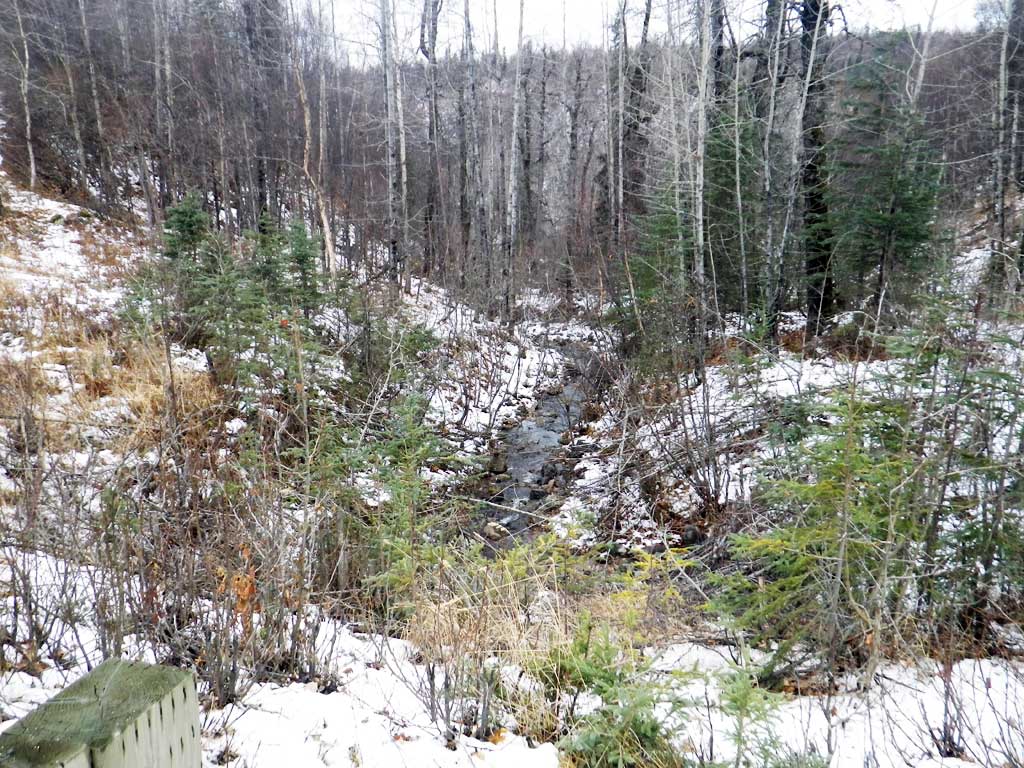

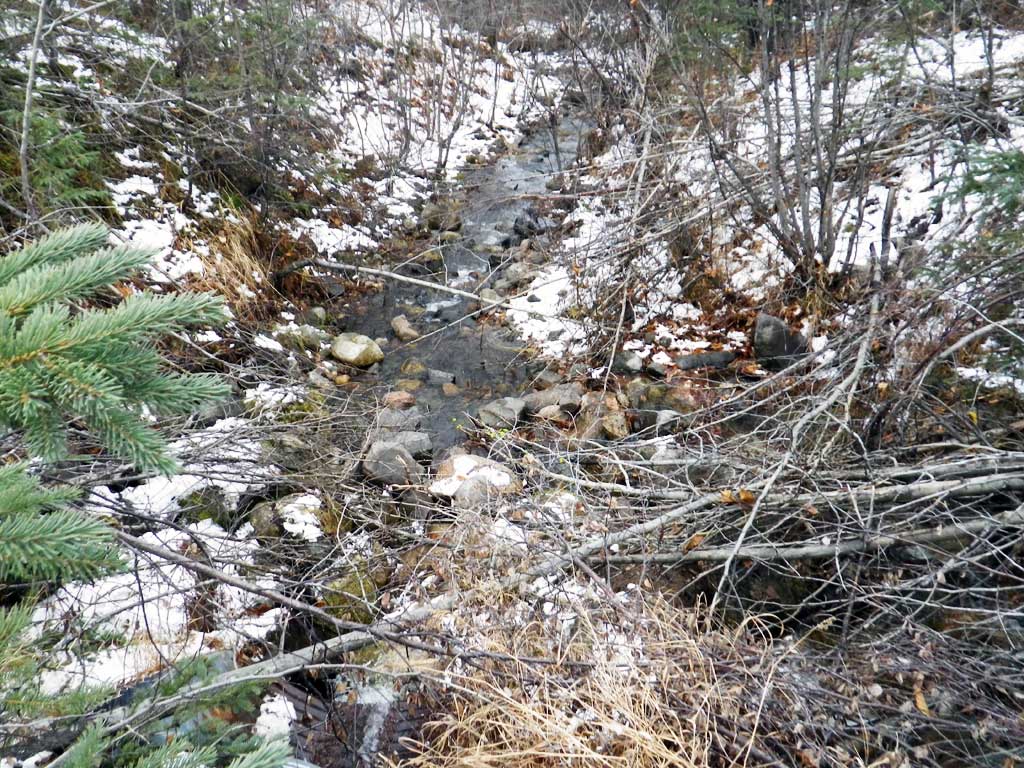

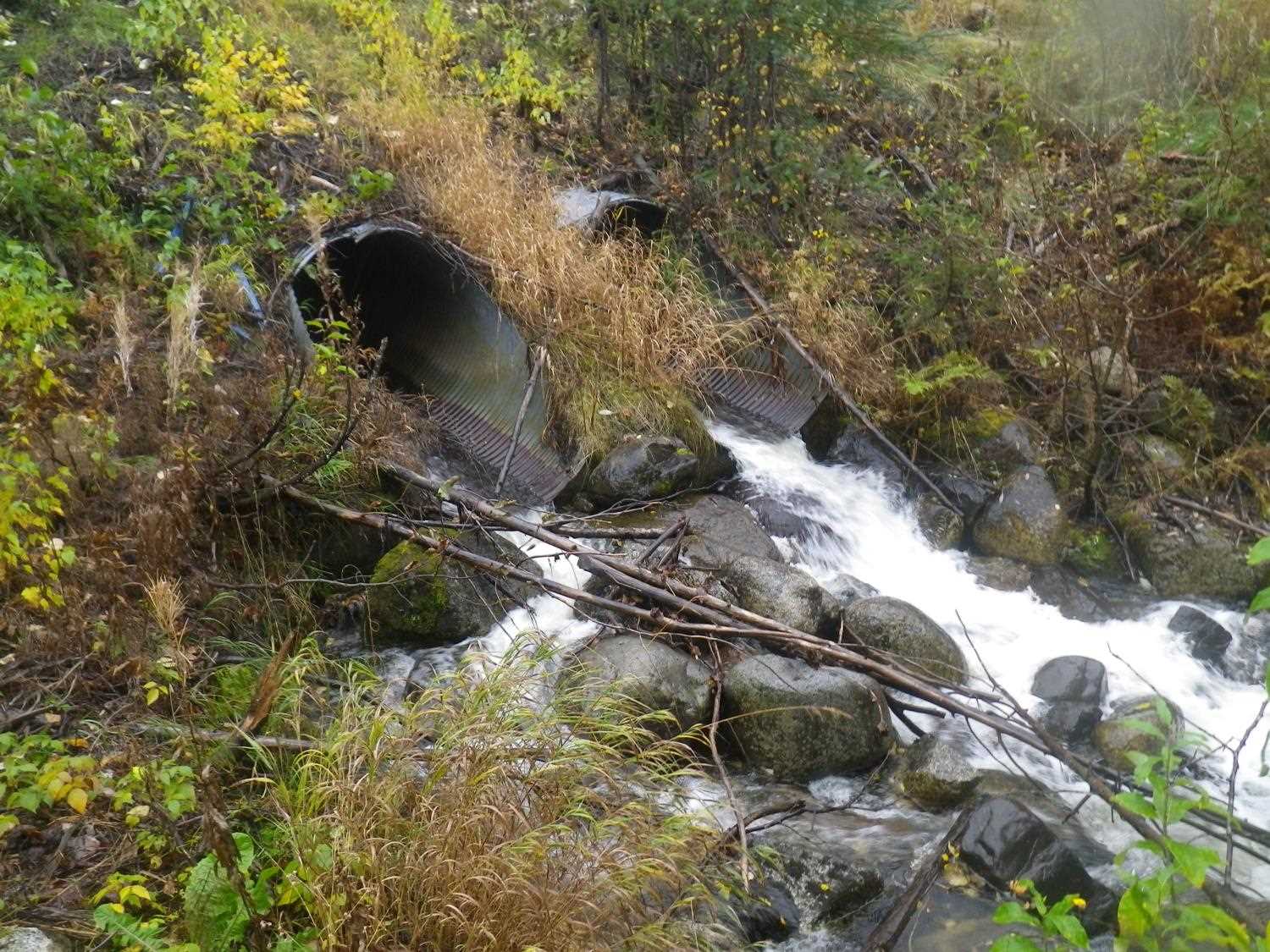

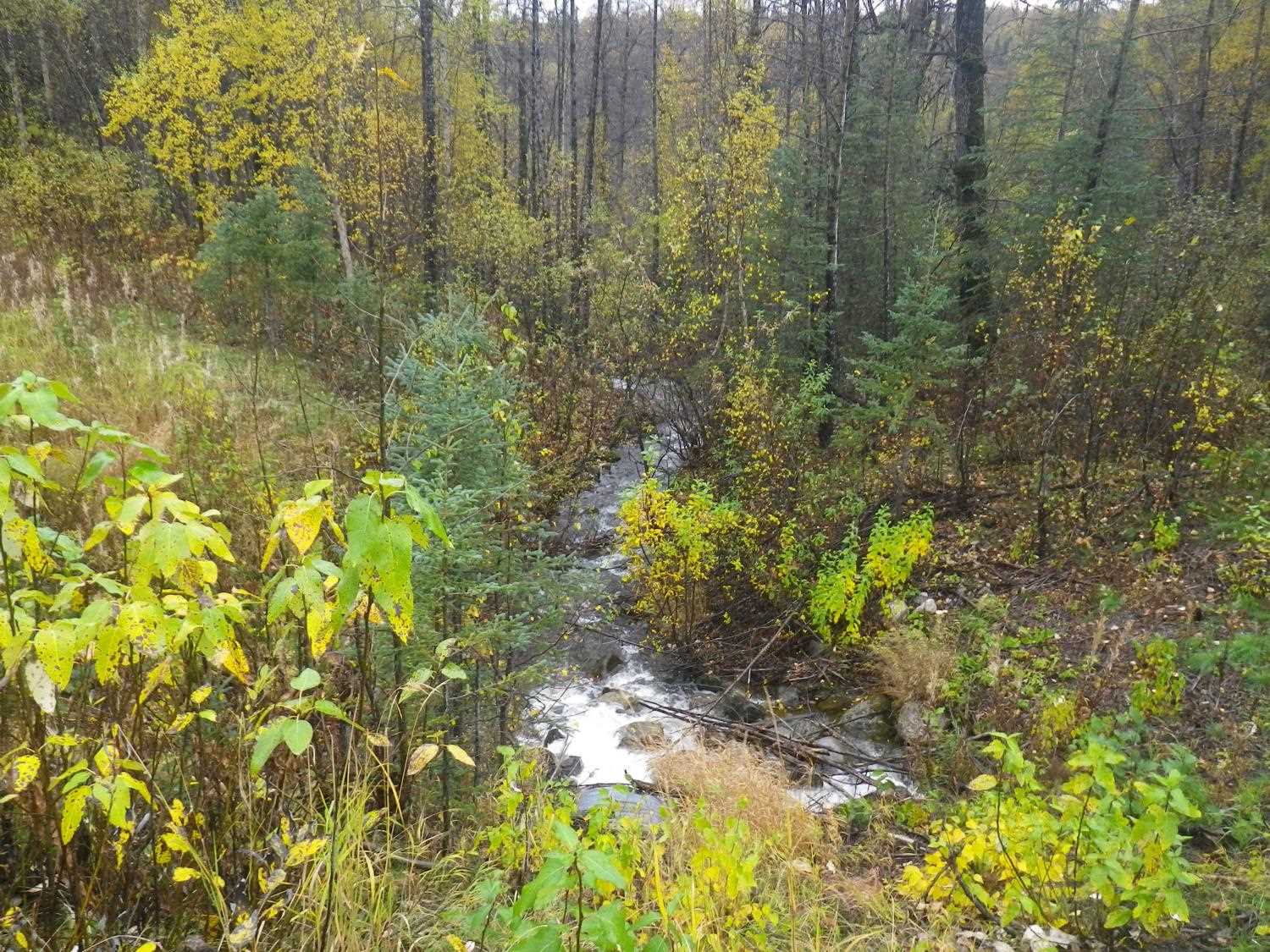

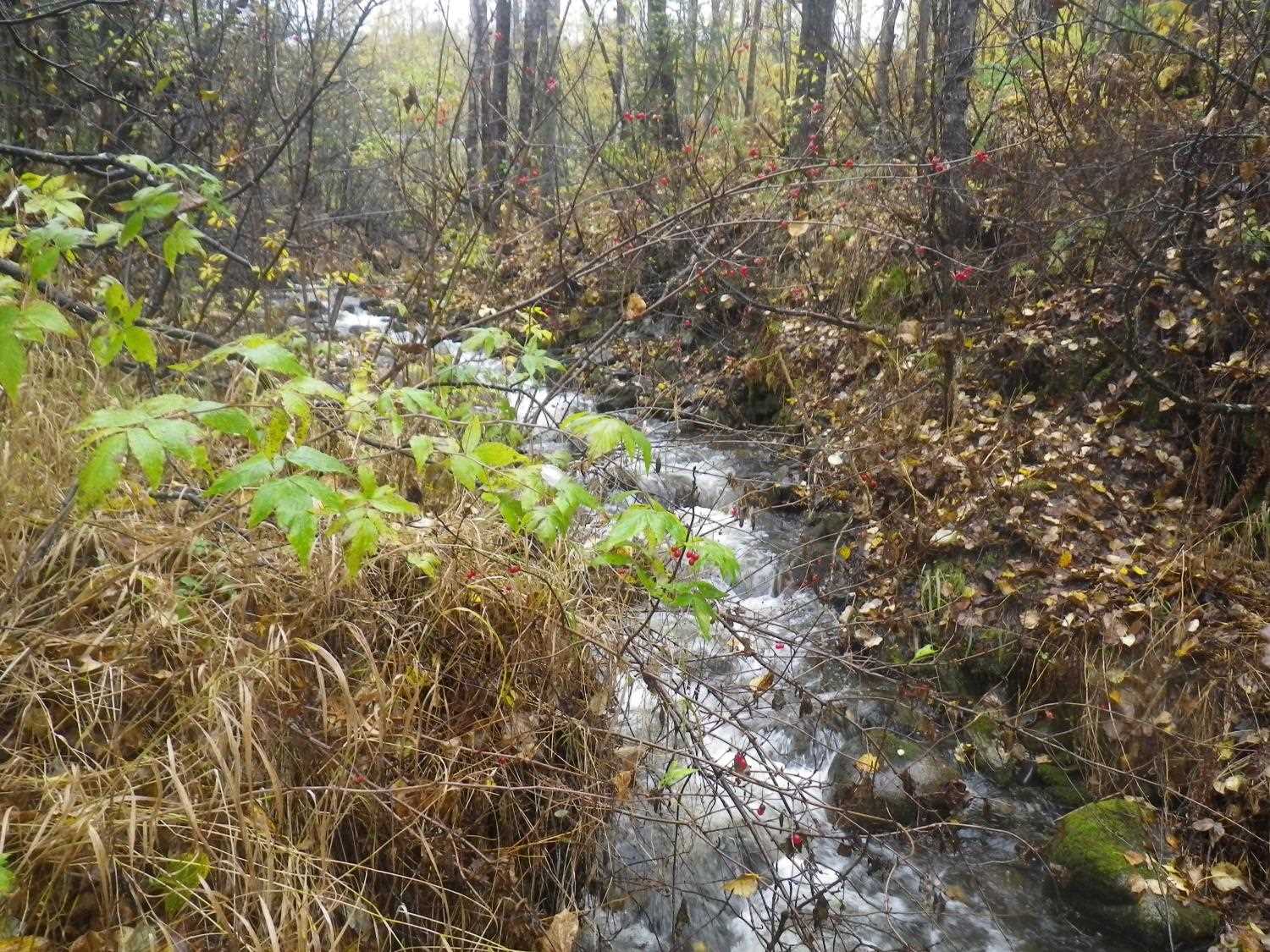

Comments: **Updated site photos added from 9/22/16 site visit from 2016 Sampling Unmapped Streams in the MSB project.Fish sampling information is in AFFI.** Creek is steep both upstream and downstream from crossing. Marginal habitat upstream. No long profile done. Outfall heights are greater than 3 feet. Pipe gradients around 10% using range finder.

Culvert Measurements

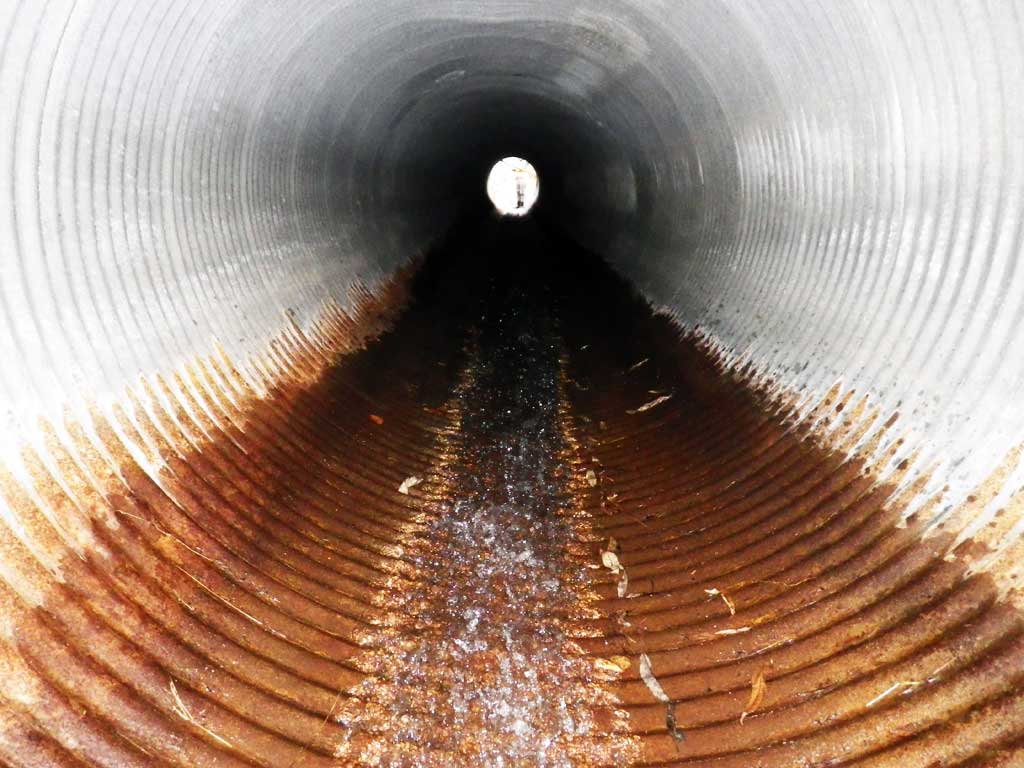

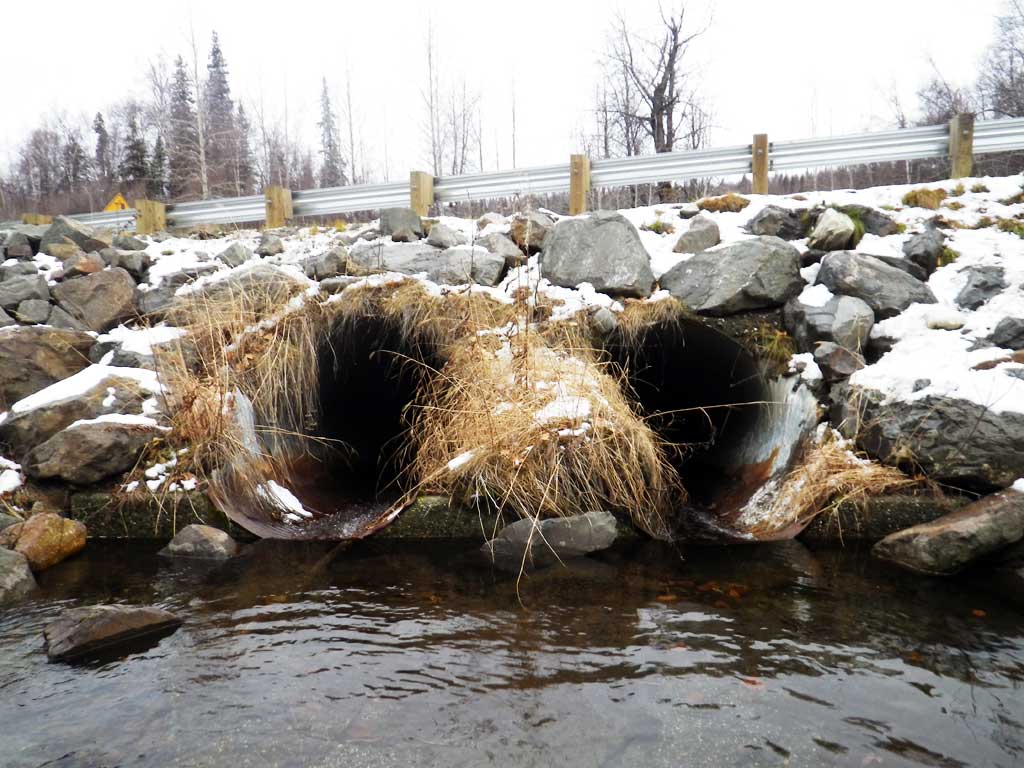

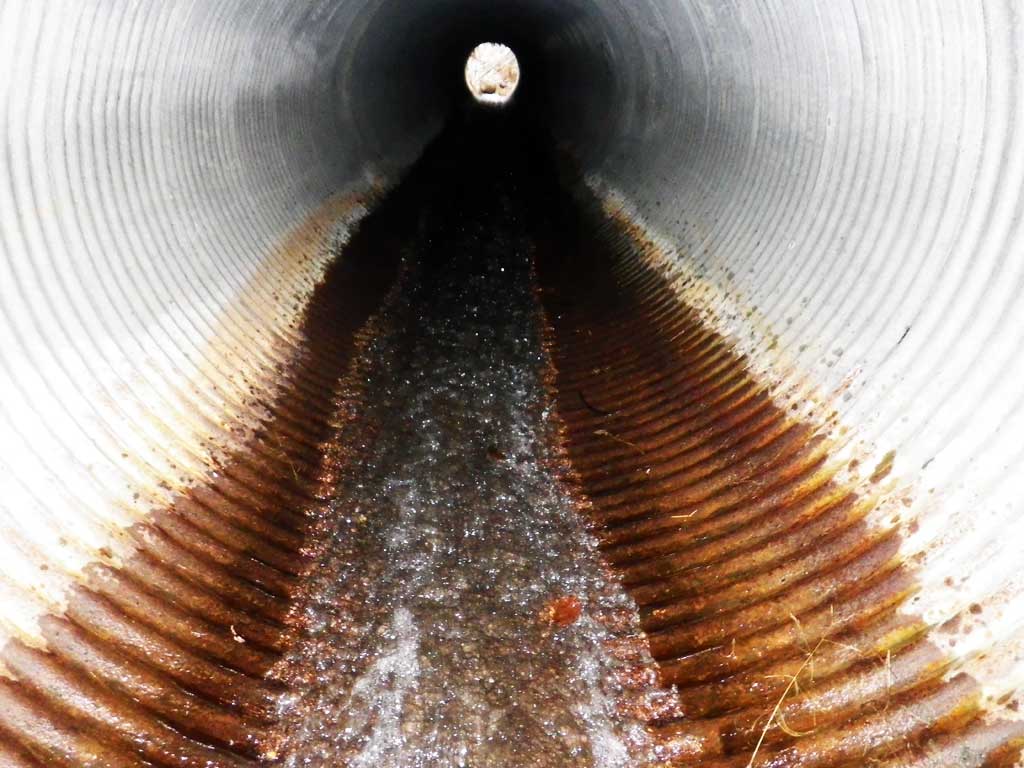

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 96.8

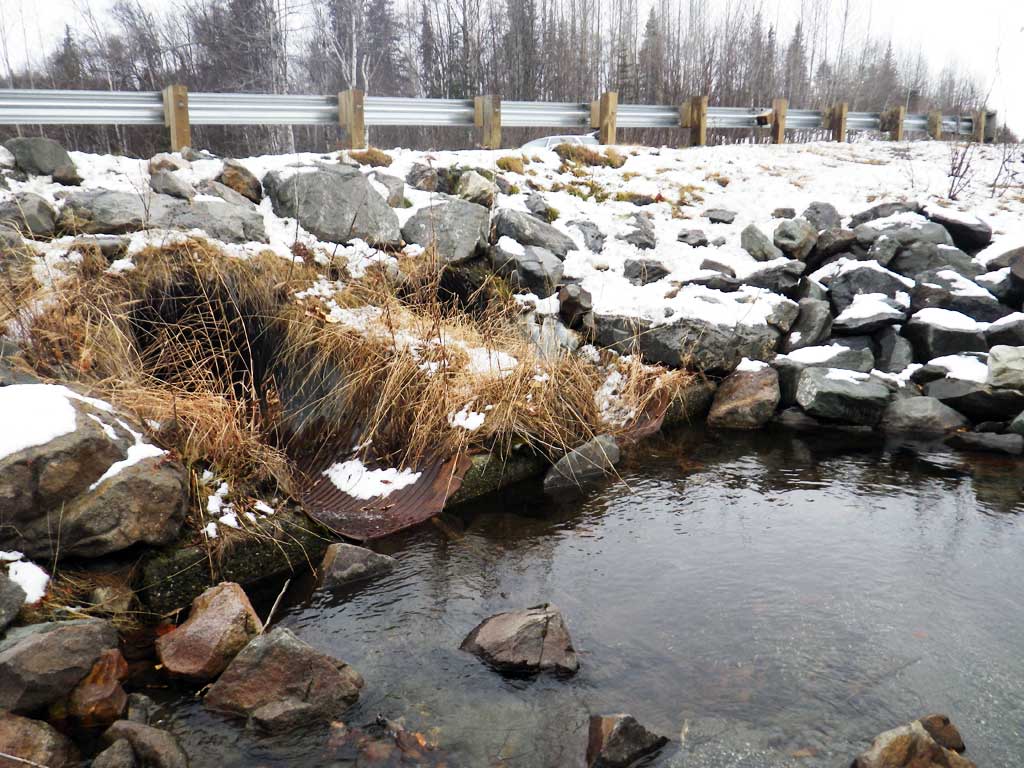

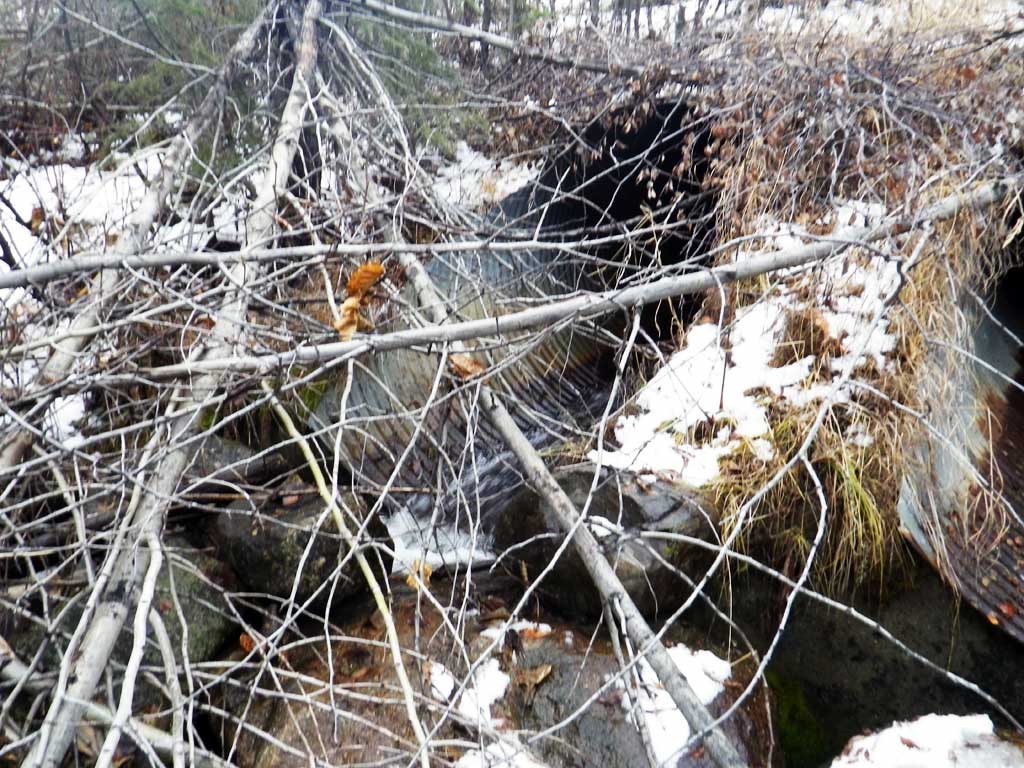

Inlet Type: Mitered

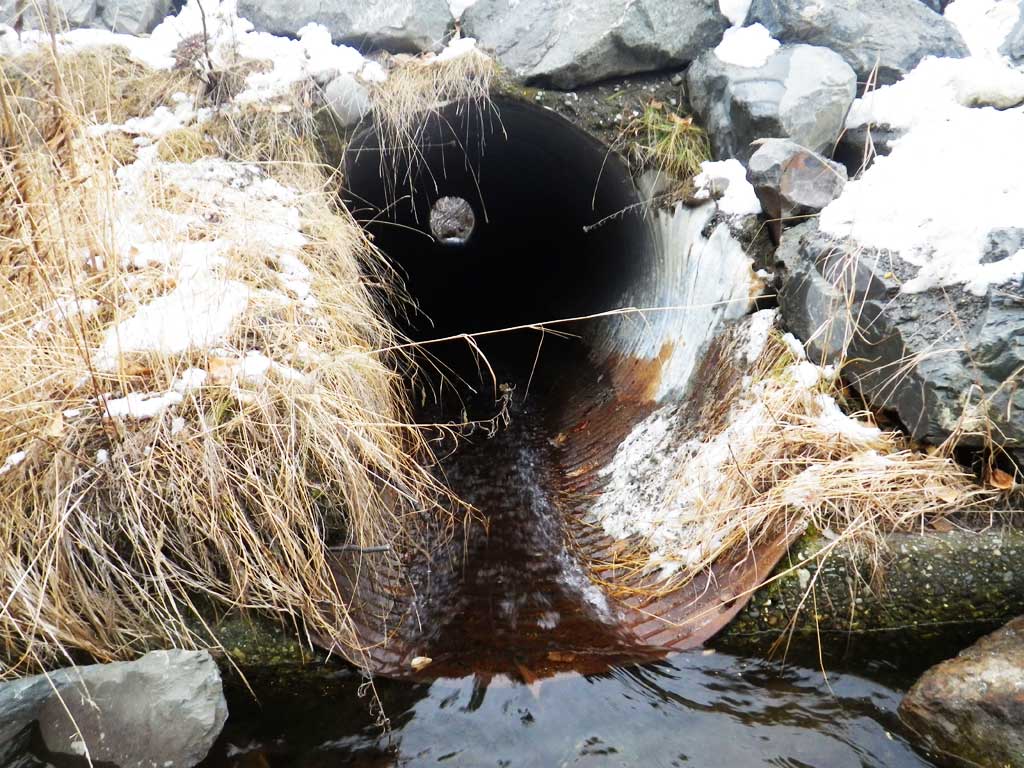

Outlet Type: Mitered
Corrugation Depth(in.): 0.25
Corrugation Width(in.): 2.25
Condition Rating(1-5): 3
Approach Angle: 32.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):5.0 5.0
Height(ft):5.0 5.0
Apron Length(ft):
Water Depth(ft): 0.1
Rustline Height(ft):1.2
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:

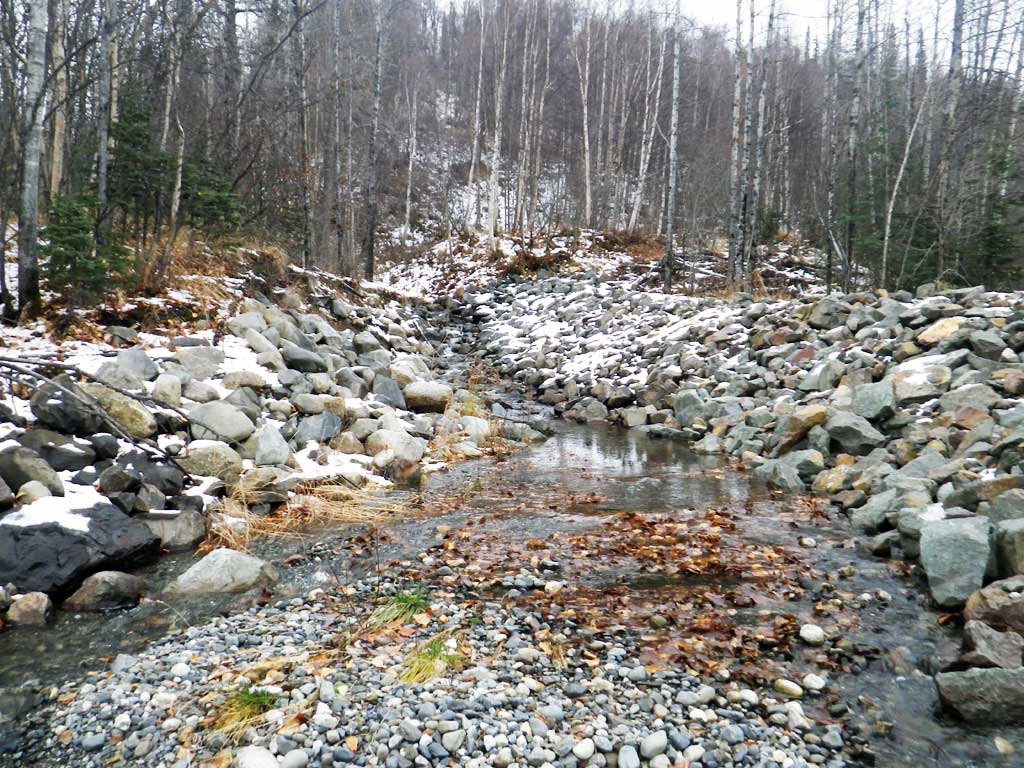

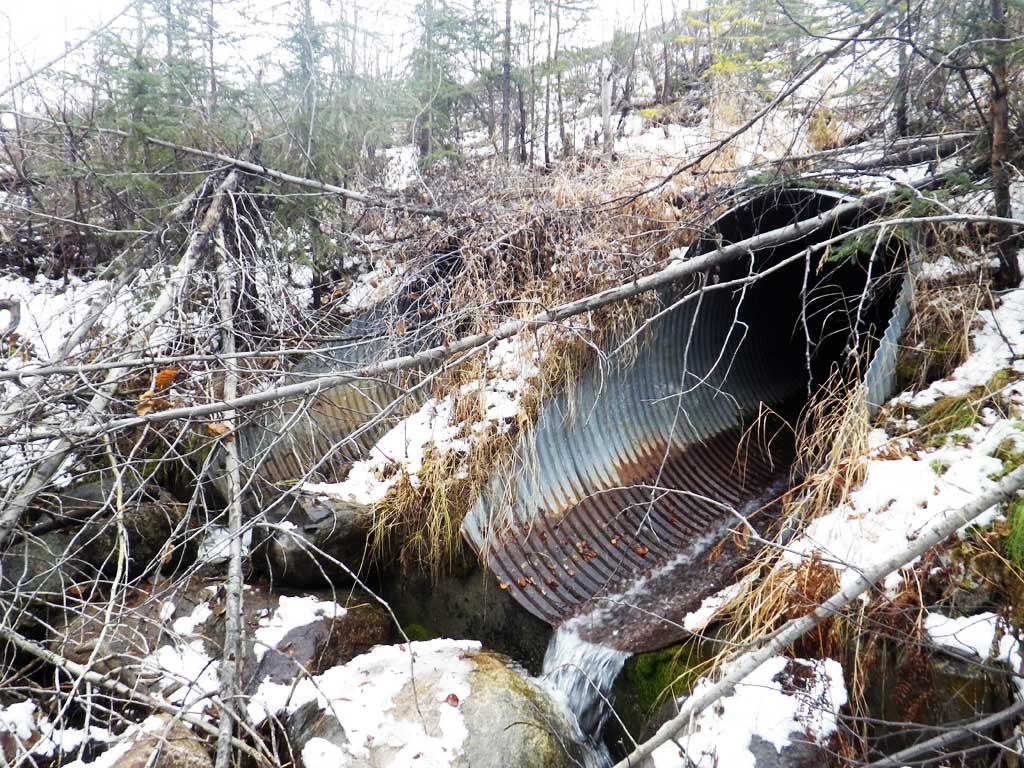

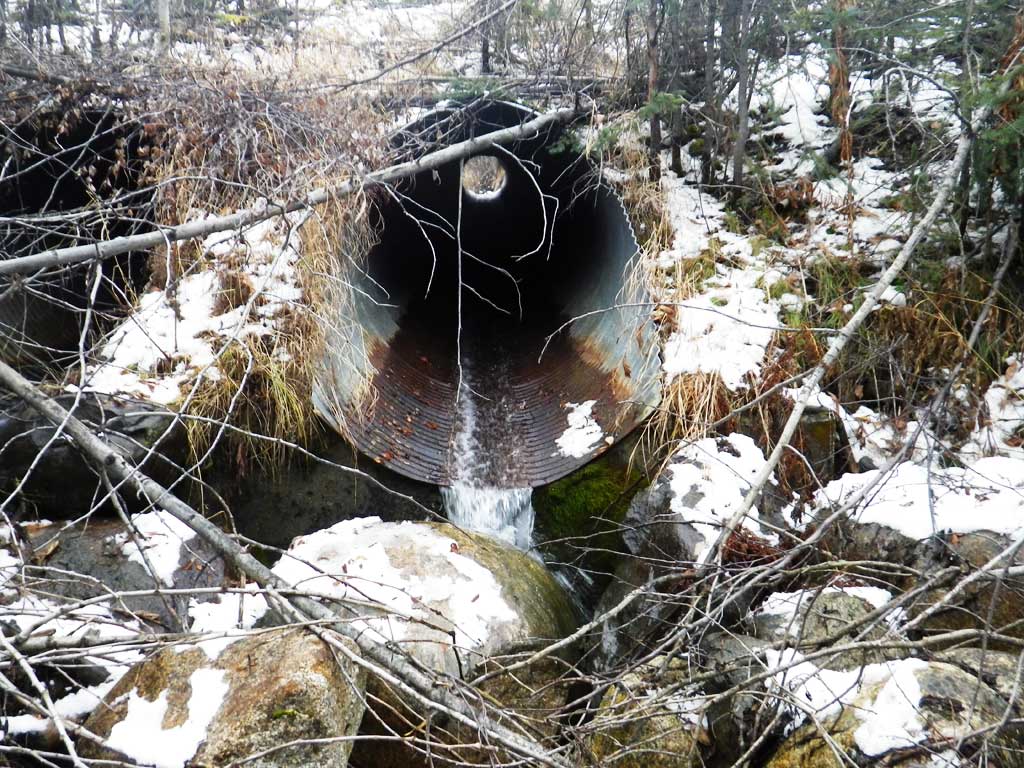

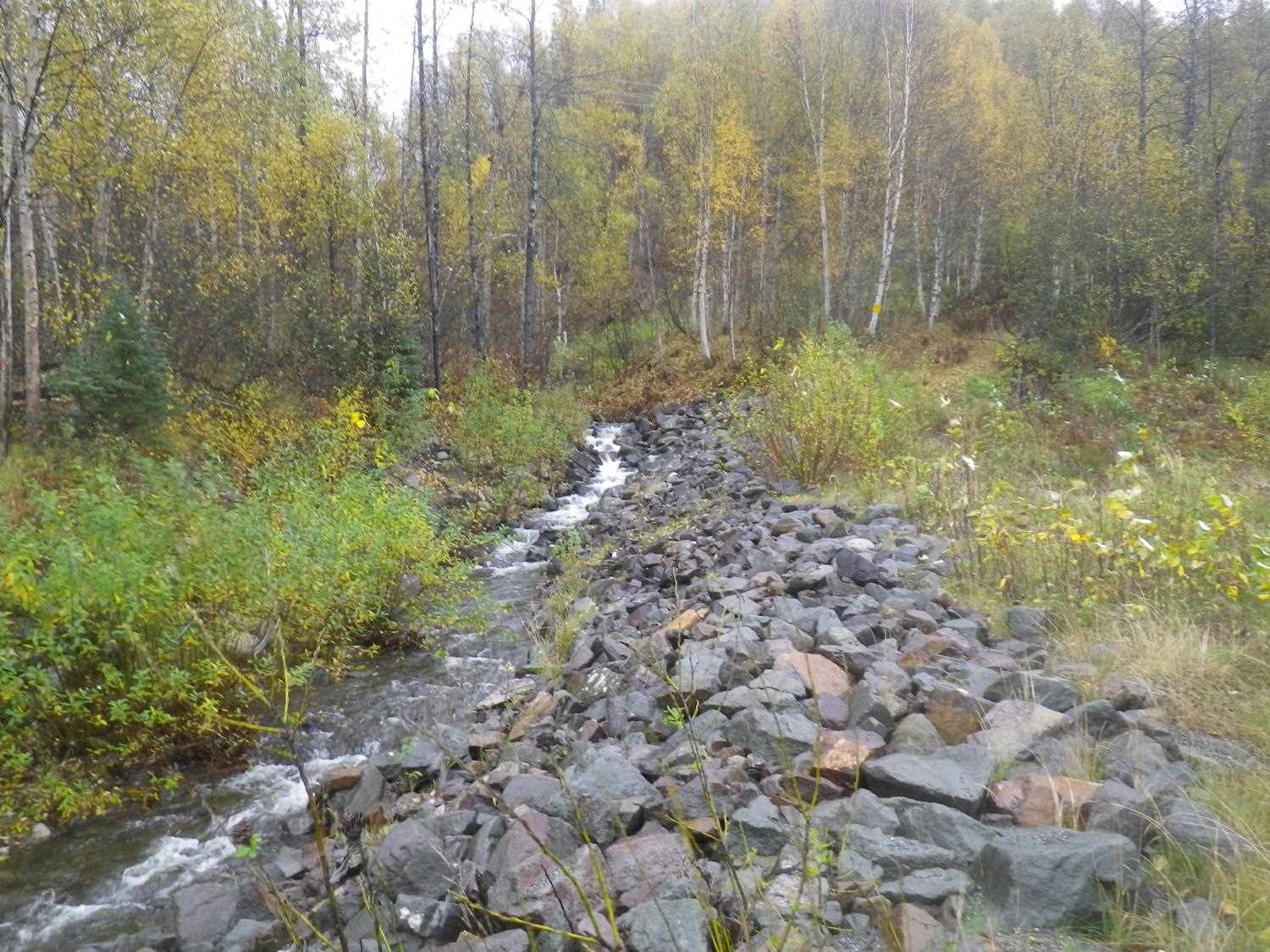

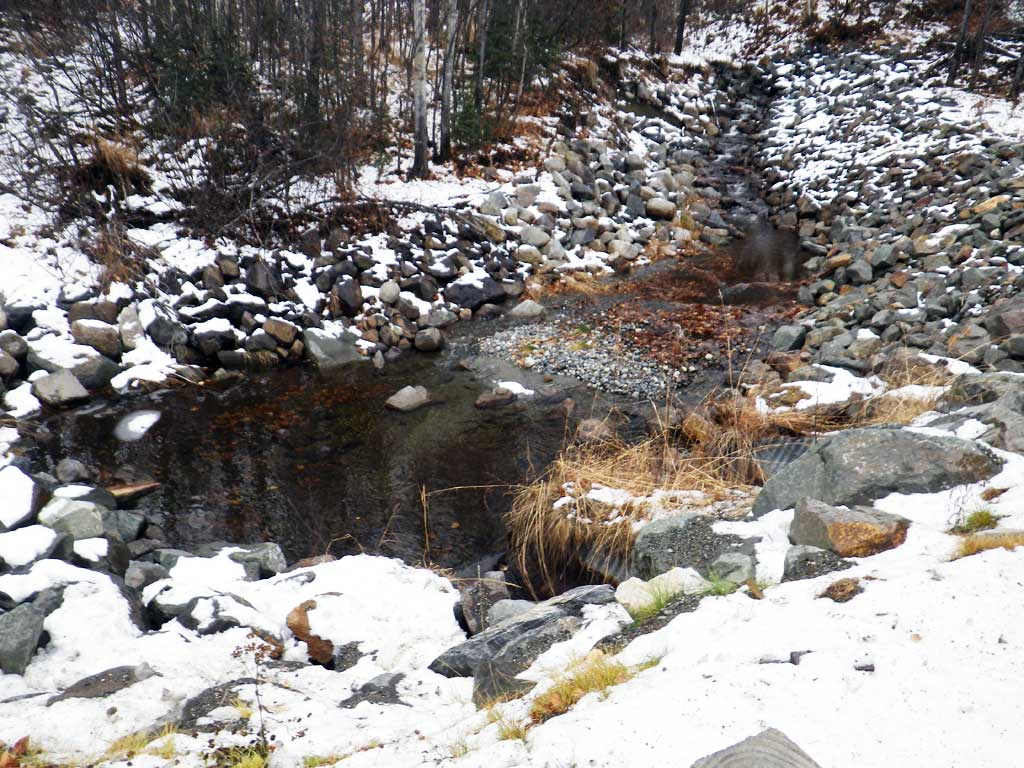

Outfall Type: Cascade Over Rip-Rap
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red
  2. Outfall height red
  3. Inlet perch
ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 96.8
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 0.25
Corrugation Width(in.): 2.25
Condition Rating(1-5): 3
Approach Angle: 32.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):5.0 5.0
Height(ft):5.0 5.0
Apron Length(ft):
Water Depth(ft): 0.1
Rustline Height(ft):1.0
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Cascade Over Rip-Rap
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Outfall measured to be greater than 3 feet and gradiant is over 10%. Water depth at outlet estimated.
  Culvert Observations:
  1. Culvert gradient red
  2. Outfall height red
  3. Inlet perch

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleBoulder
Subdominant:BoulderCobble
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Smith-Root LR-24 (A)

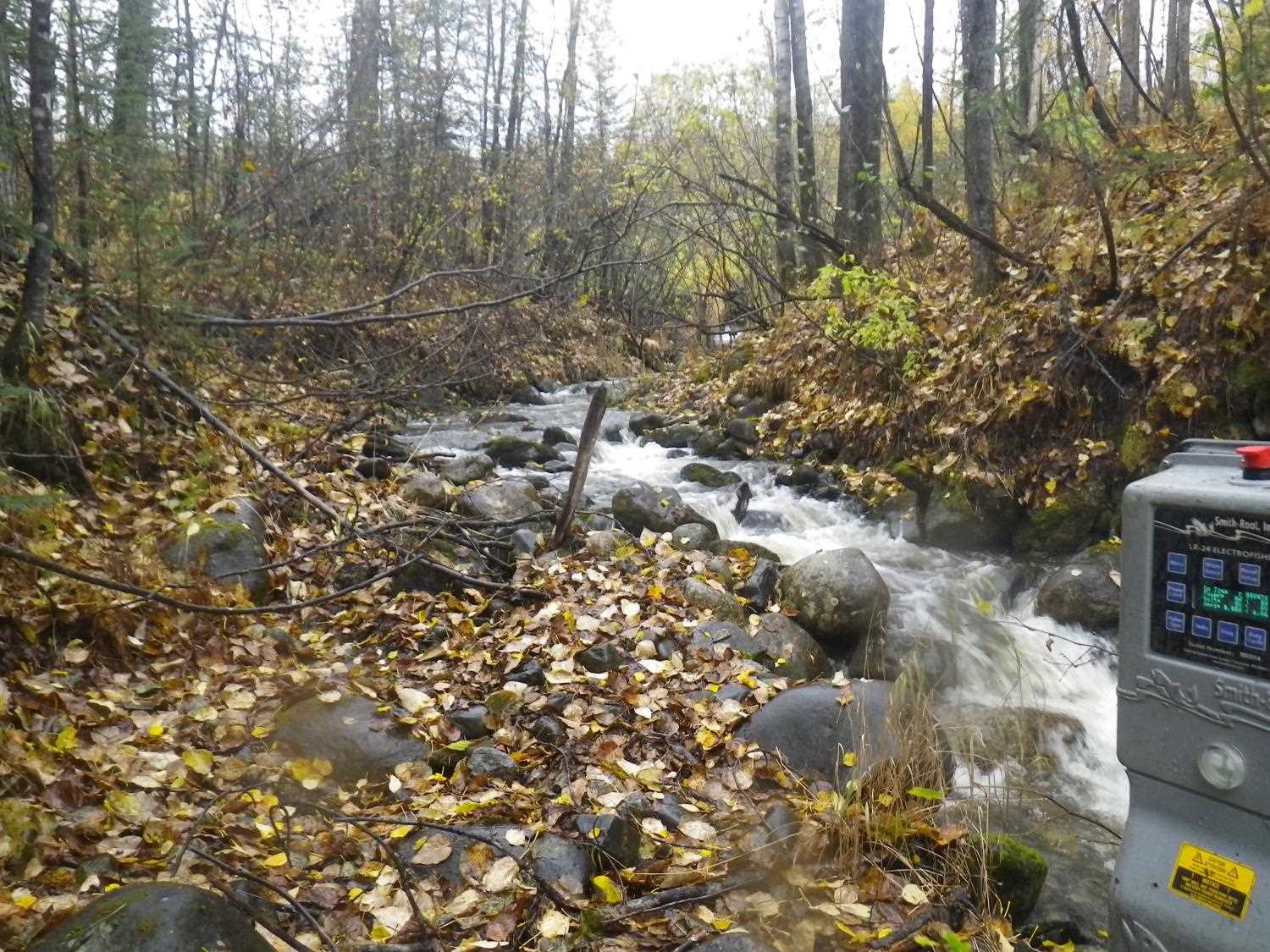

Comments: Stream sampled 9/22/16 - from about 300 feet downstream to culvert outlet

Fish Observations

Species: juvenile/adult Dolly Varden Life History: Unknown
Total Fish Observed: 1 Fish Measured: 1 Fork Lengths (mm) Min: 134 Max: 134 Mean: 134
Collected/Observed by Gear Type: Downstream Smith-Root LR-24 (1)
