Fish Passage Site 20502142

Coordinates (dec. deg.): 62.49593°, -150.09659°
Legal Description: S028N004W19
Region: South Central
Road Name: Alaska Railroad

Datum: NAD83
Quad Name / ITM: Talkeetna B-1
AWC Stream #:

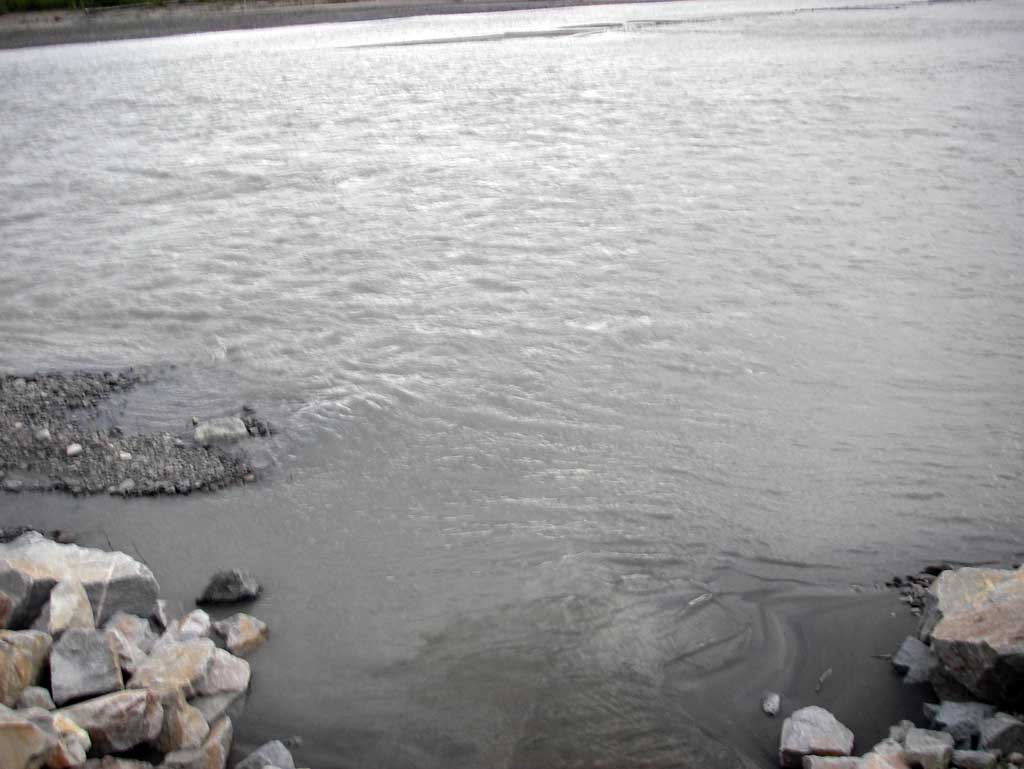

Stream Name: Susitna River tributary

Elevation:

Site Comments: None

Survey Date: Jun 23, 2011

Survey MSB11-PSARR39

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:

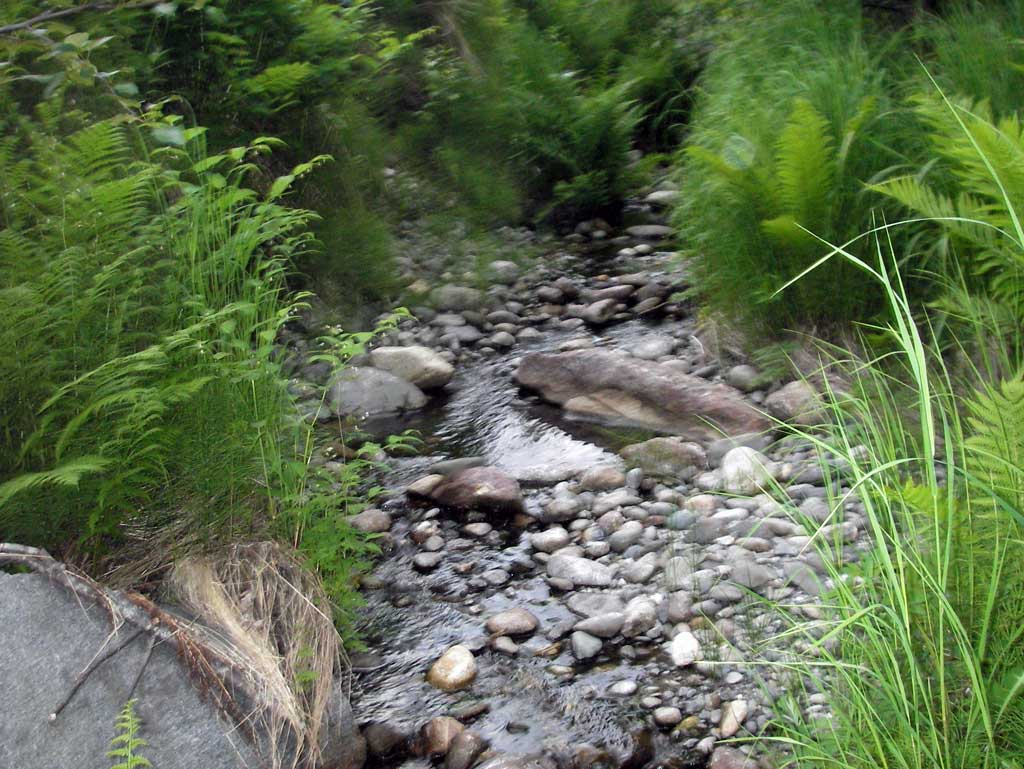

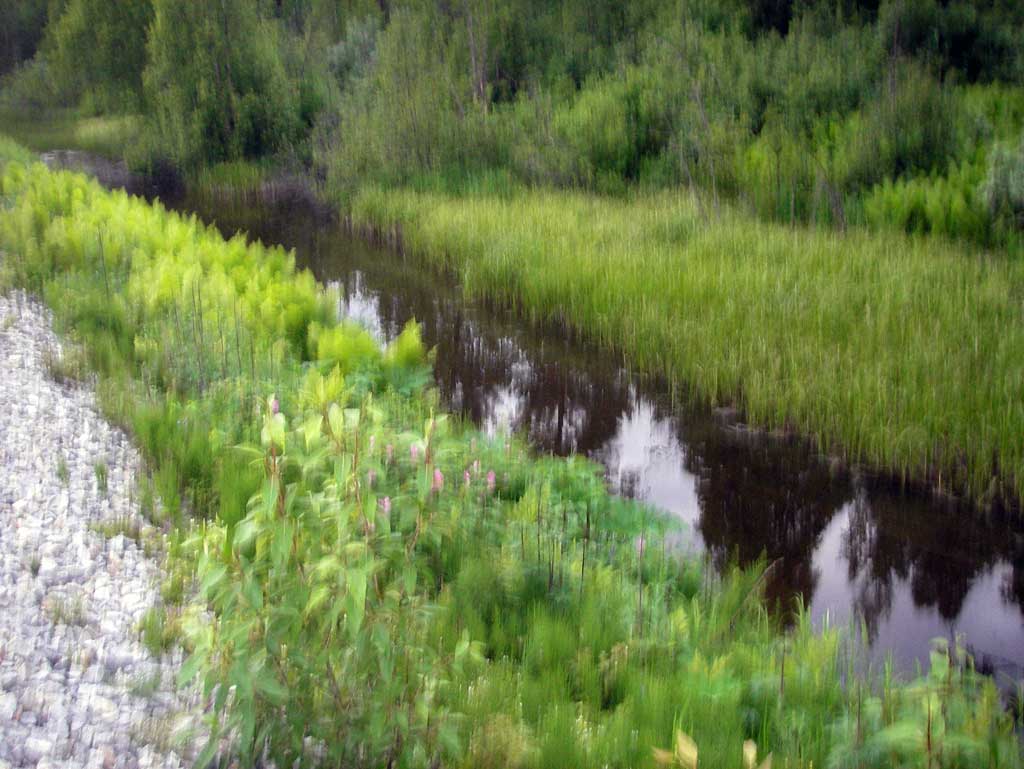

Comments: The channel is a small tributary draining a small wetlands area near the railroad tracks with approximately 100' of a gravel channel between the wetland and the inlet. Wetland had a water depth of about 1.5'.

Culvert Measurements

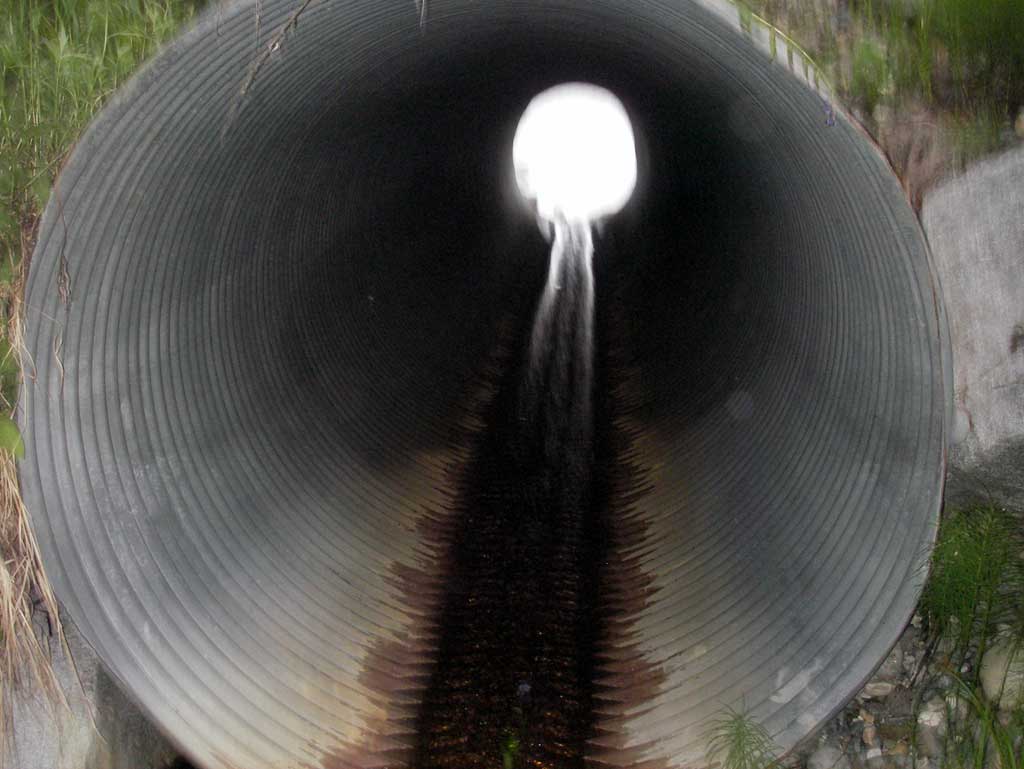

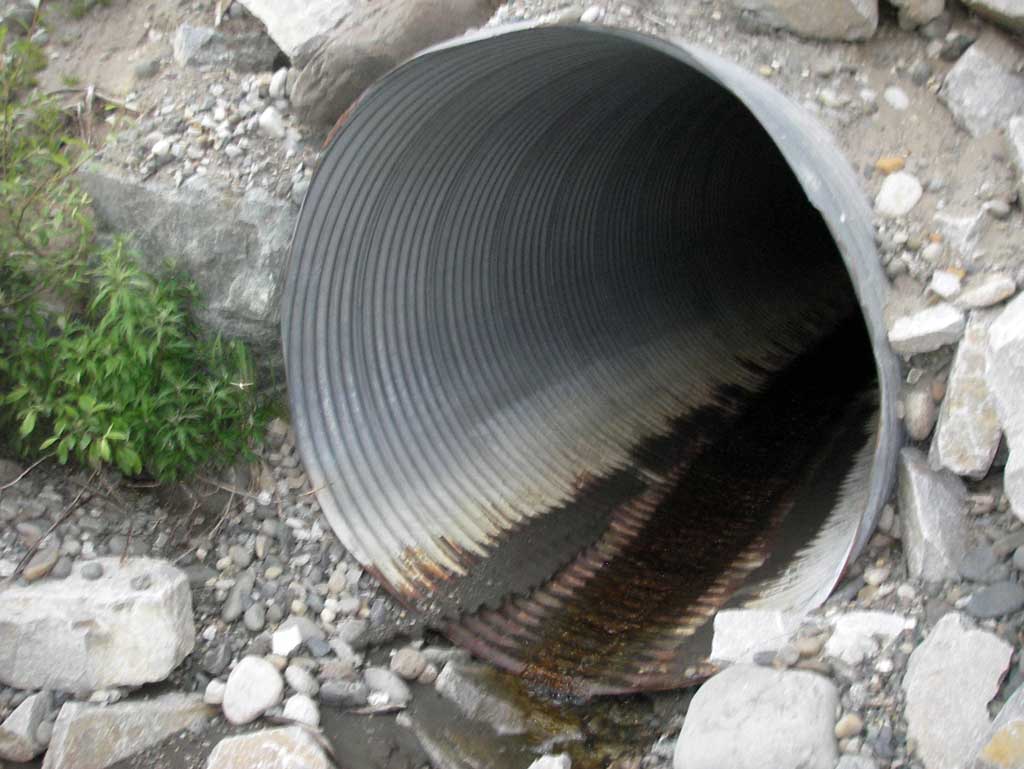

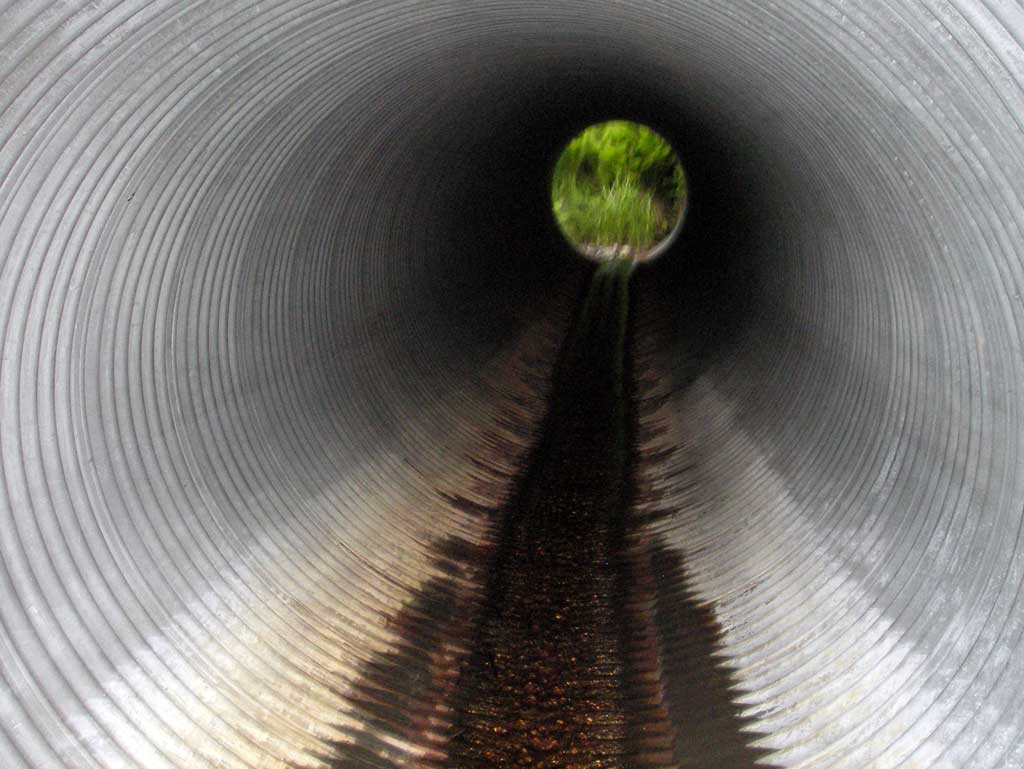

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft): 50.0

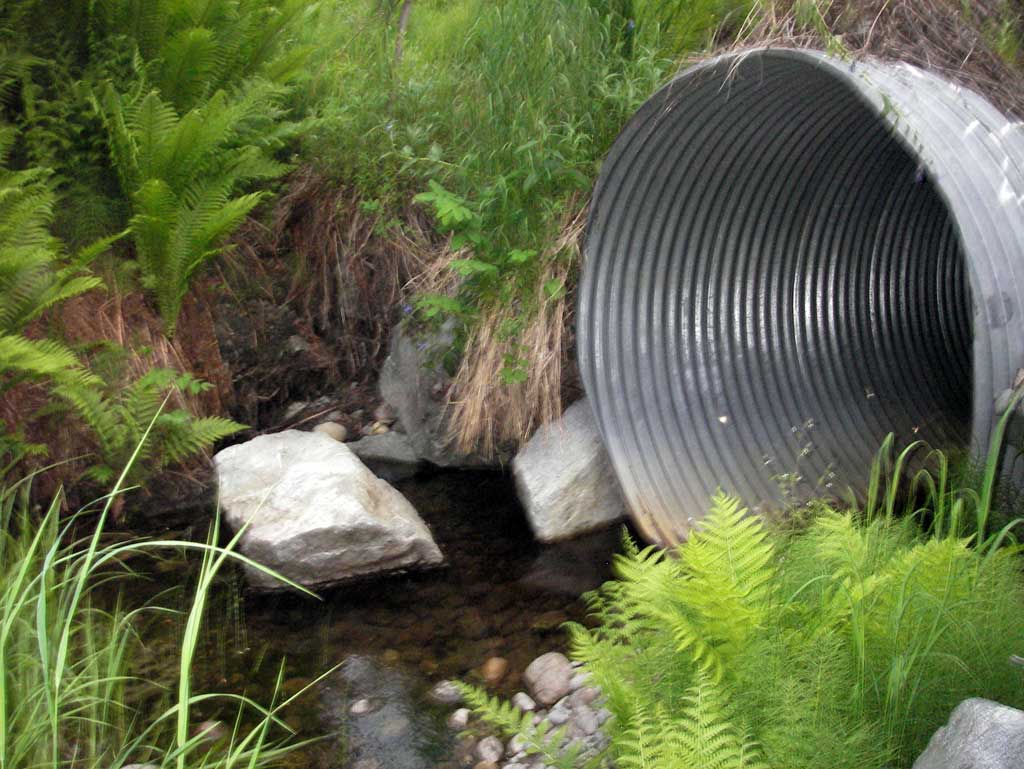

Inlet Type: Projecting

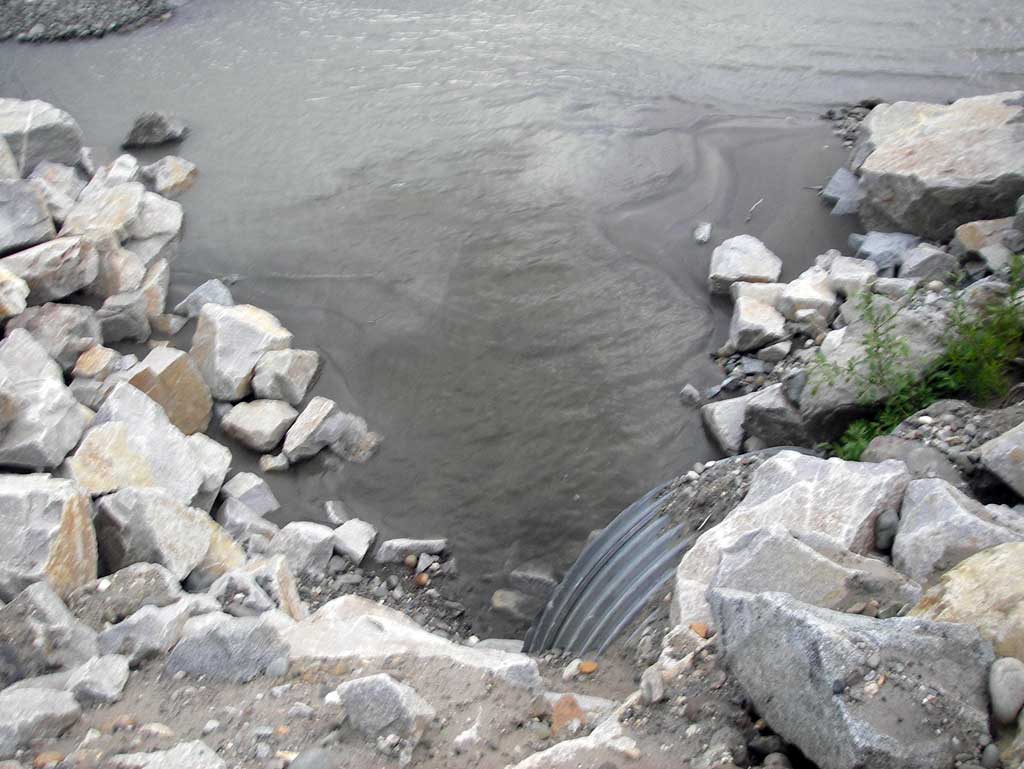

Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):5.0 5.0
Height(ft):5.0 5.0
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.3
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: All dimensions were visually estimated not measured.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Low

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
