Fish Passage Site 20502130

Coordinates (dec. deg.): 61.69884°, -149.99754°
Legal Description: S019N004W33
Region: South Central
Road Name: Alaska Railroad

Datum: NAD83
Quad Name / ITM: Anchorage C-8
AWC Stream #:
Stream Name: Unnamed

Elevation:

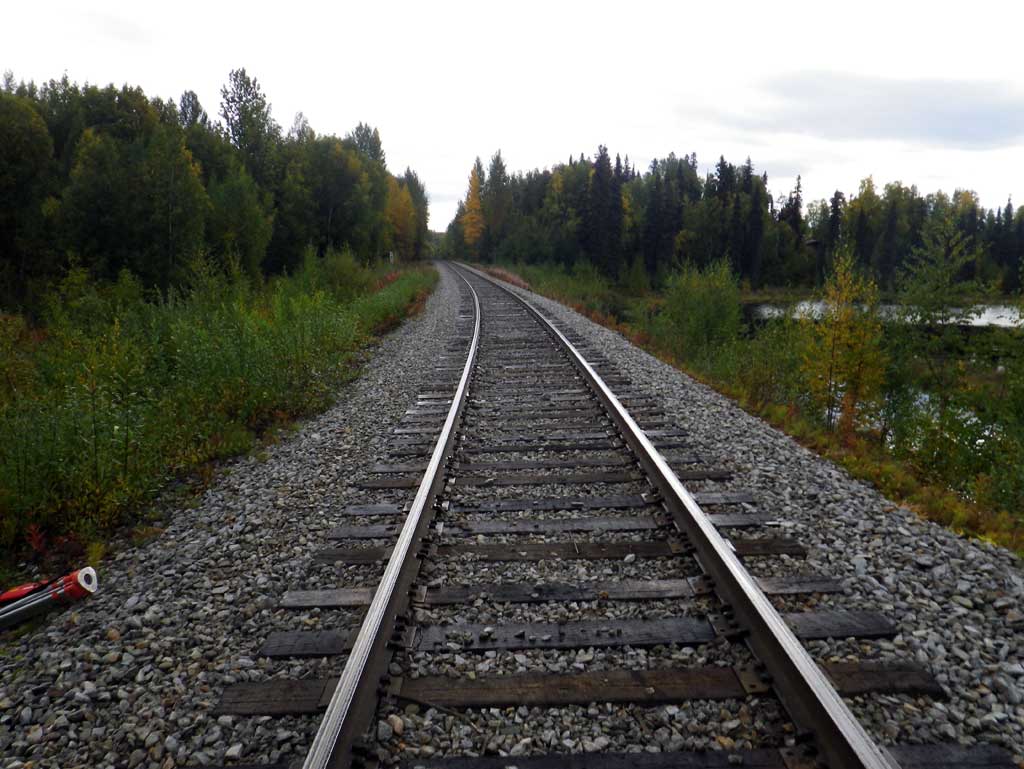

Site Comments: Alaska RR at MP 182.08

Survey Date: Sep 12, 2011

Survey MSB11-AKR02

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: Abraham Gioffre, Jim Latham

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Site Observations:

  1. Hydraulic flows exceeded capacity
  2. Mechanical damage or joints parting
  3. Structural Problem
  4. Beaver Activity

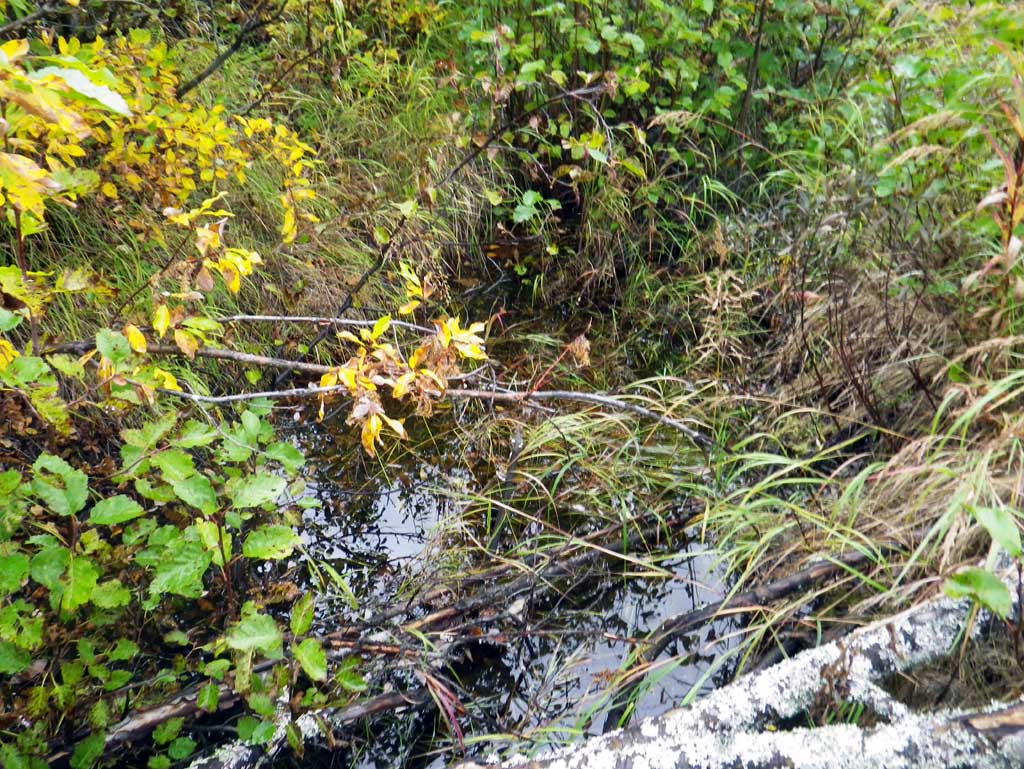

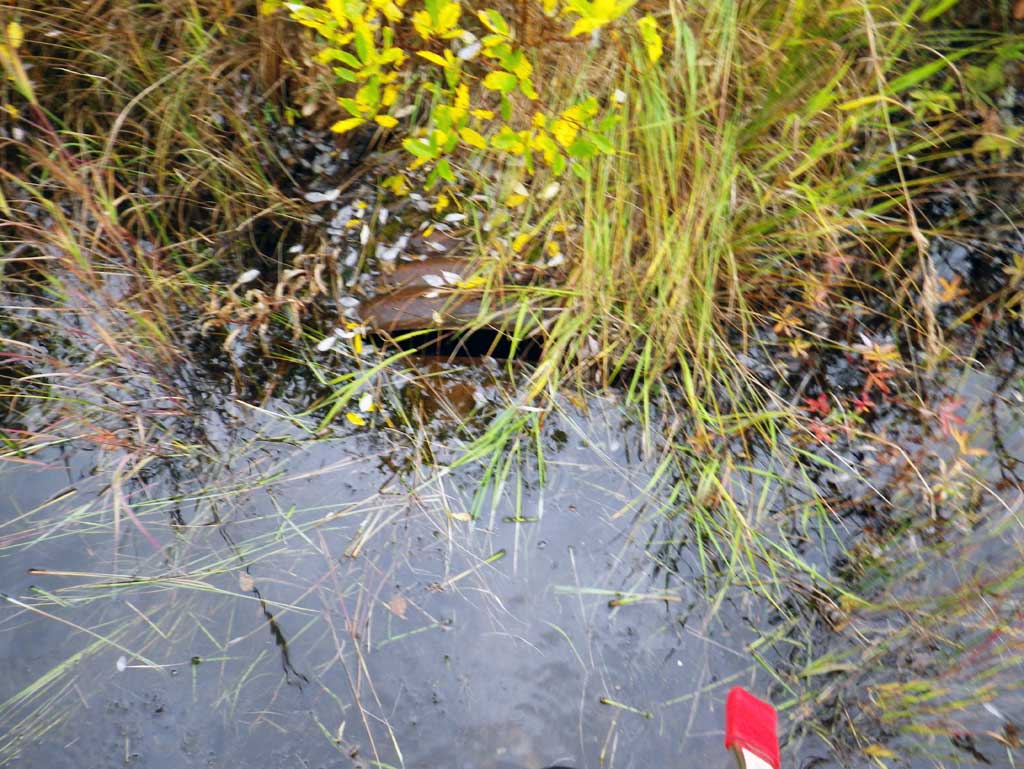

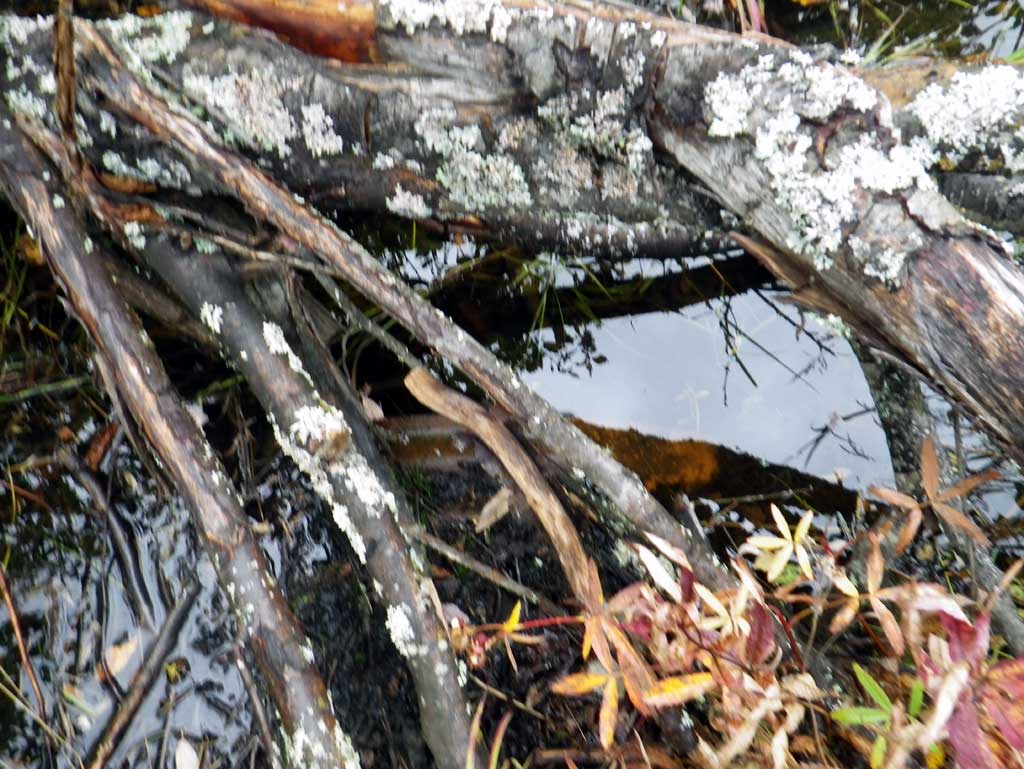

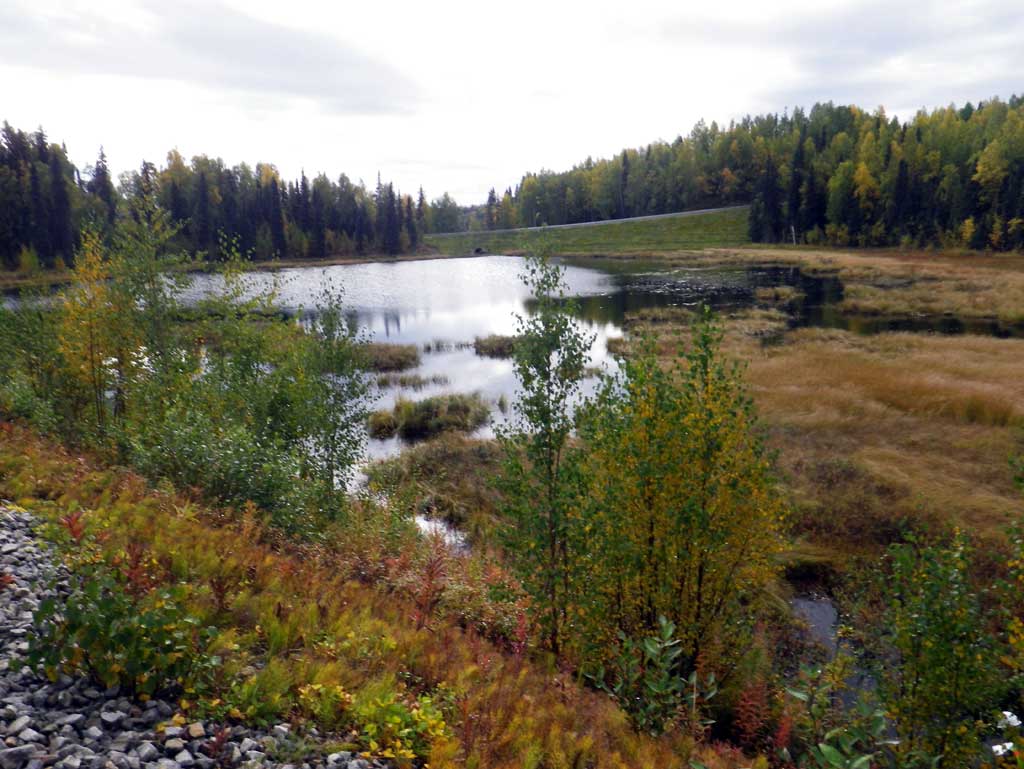

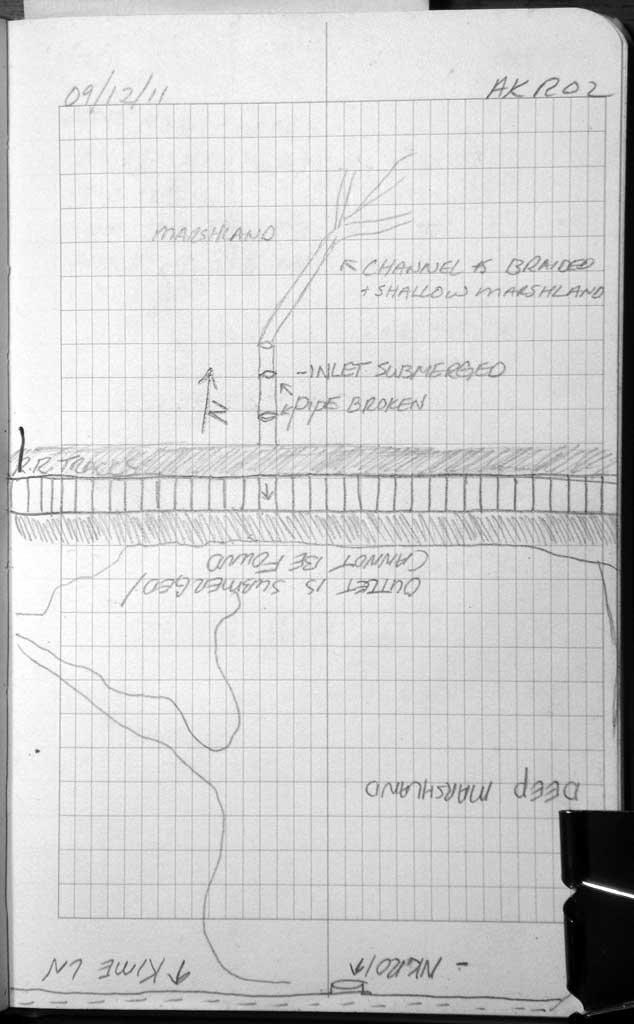

Comments: New site on the railroad which appeared to be a broken culvert although it connects two pond areas and is a submerged pipe. Upstream side only the top of pipe is visible and downstream we could not find the submerged outlet.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.75
Condition Rating(1-5): 1
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):0.0 0.0
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: Yes
Baffles Present: No
Embedded?:
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Could not measure inlets and outlets due to the pipe being submerged.
  Culvert Observations:
  1. Hydraulic flows exceeded capacity
  2. Mechanical damage or joints parting
  3. Structural Problem
  4. Beaver Activity

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClayOrganic
Subdominant:OrganicSilt/Clay
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
