Fish Passage Site 20502128

Coordinates (dec. deg.): 62.61812°, -149.99623°
Legal Description: S029N004W10
Region: South Central
Road Name: Alaska Railroad

Datum: NAD83
Quad Name / ITM: Talkeetna Mts C-6
AWC Stream #:
Stream Name: Susitna River tributary

Elevation:

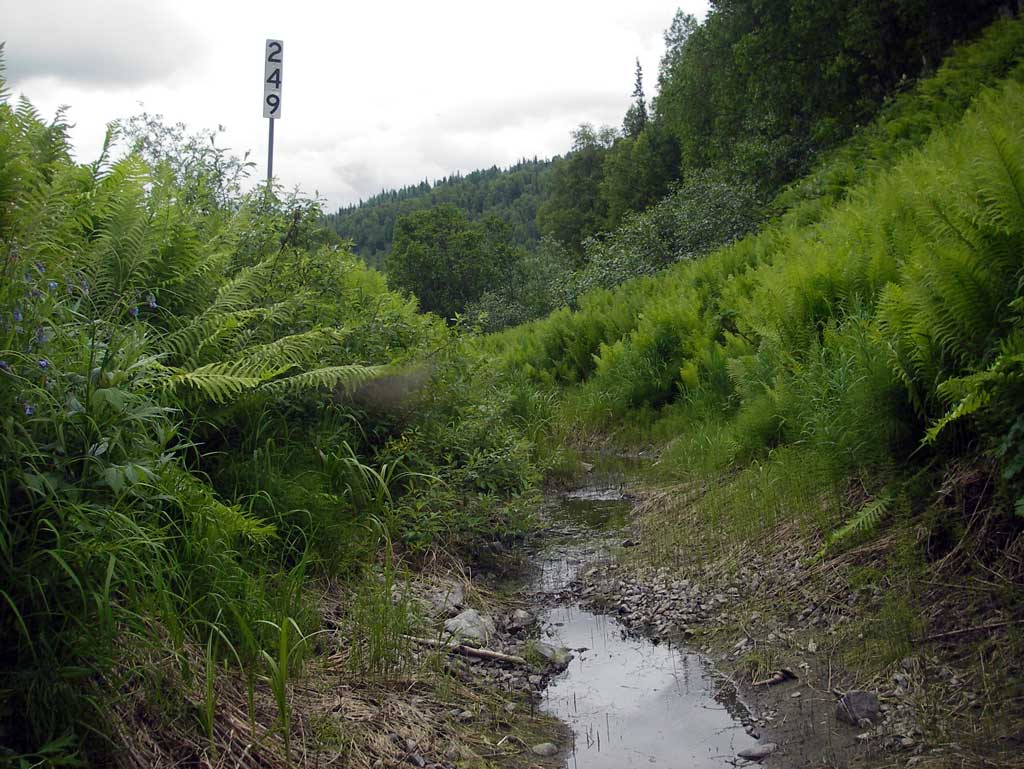

Site Comments: RR at MP 249

Survey Date: Jun 20, 2011

Survey MSB11-PSARR28

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Woody Debris
  2. Inlet perch

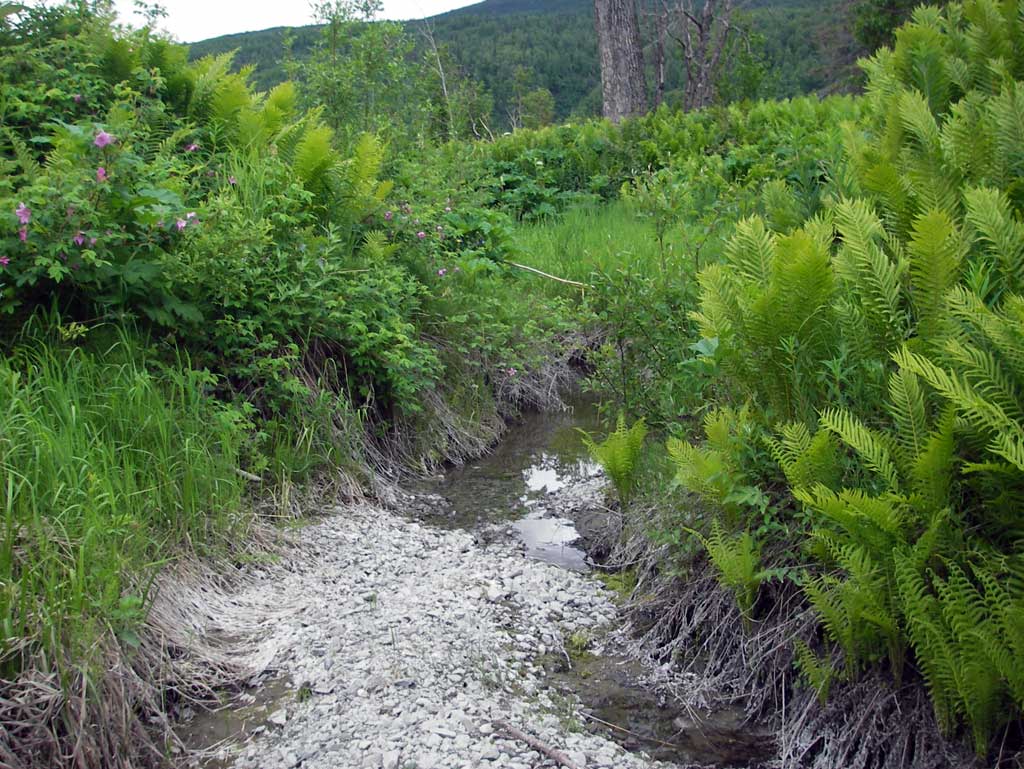

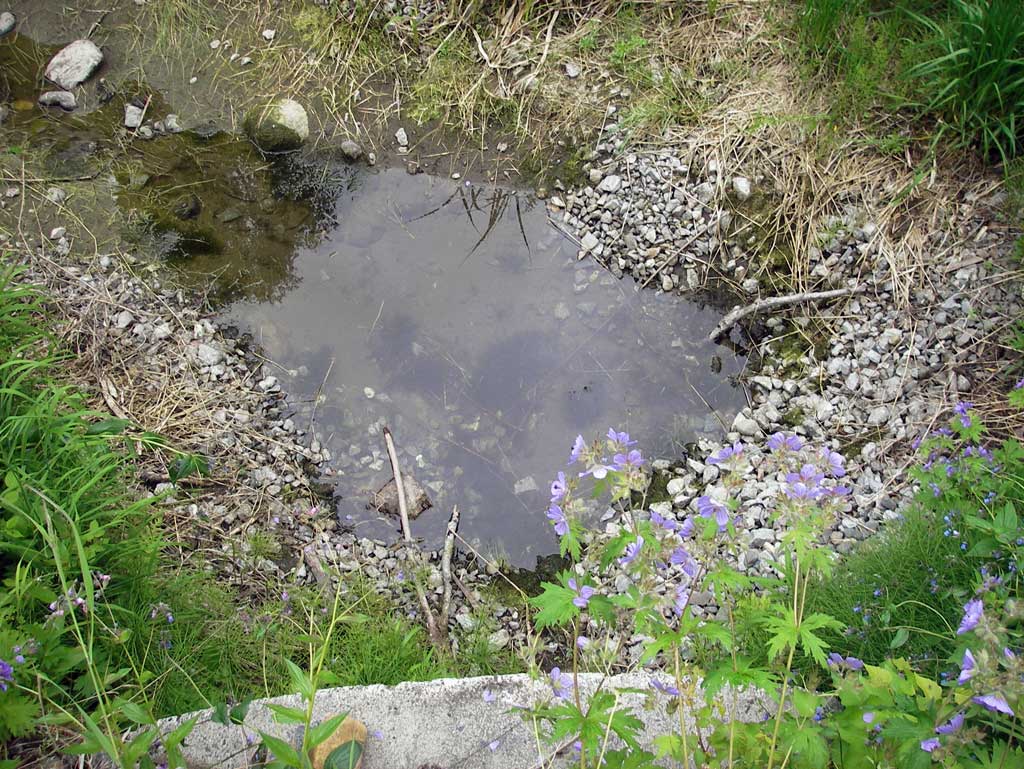

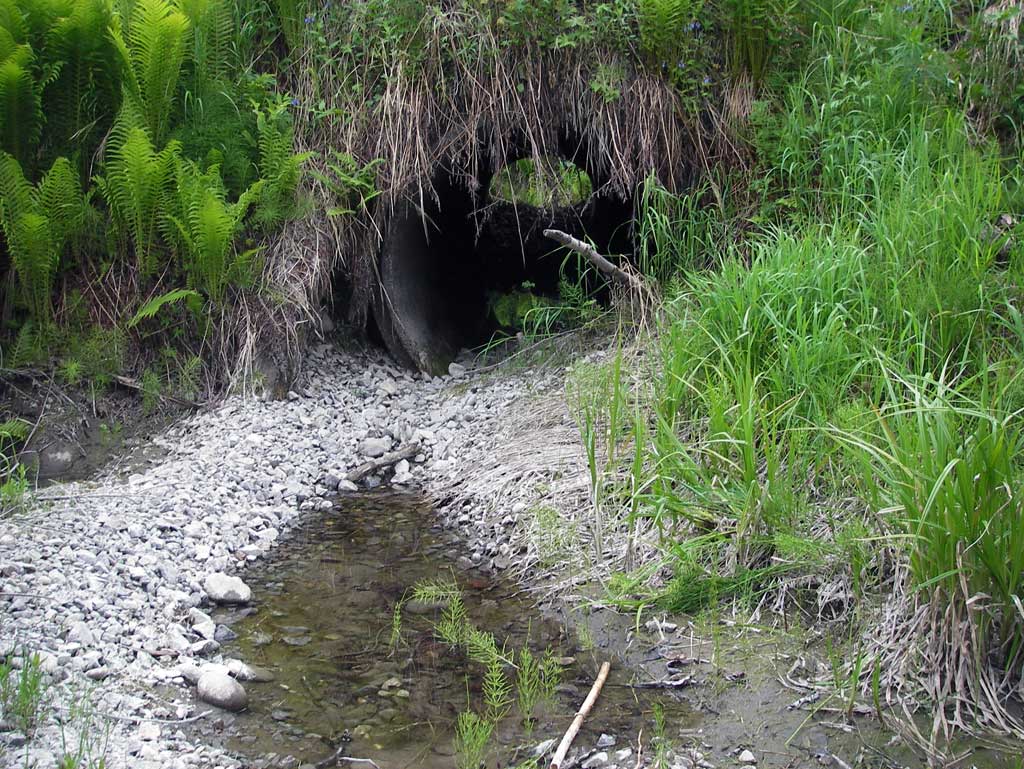

Comments: At the time of the survey the channel was dry and was not connected to any water network. The culvert was dry and the inlet contained a large woody beaver dam. Approximately 10' dwst was one single isolated pool which did have some landlocked fry. The dry gravel channel was a direct trib to the Susitna River with the confluence about 200' dwst of the culvert. Culvert was a new site found so no FID# was assigned.

Culvert Measurements

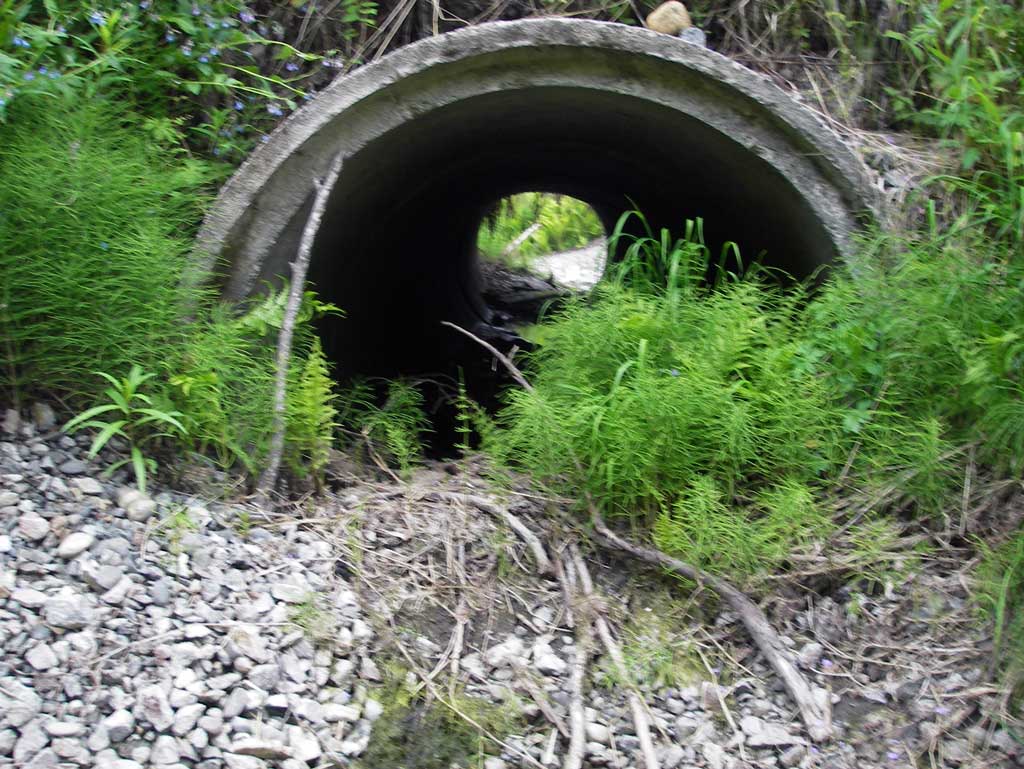

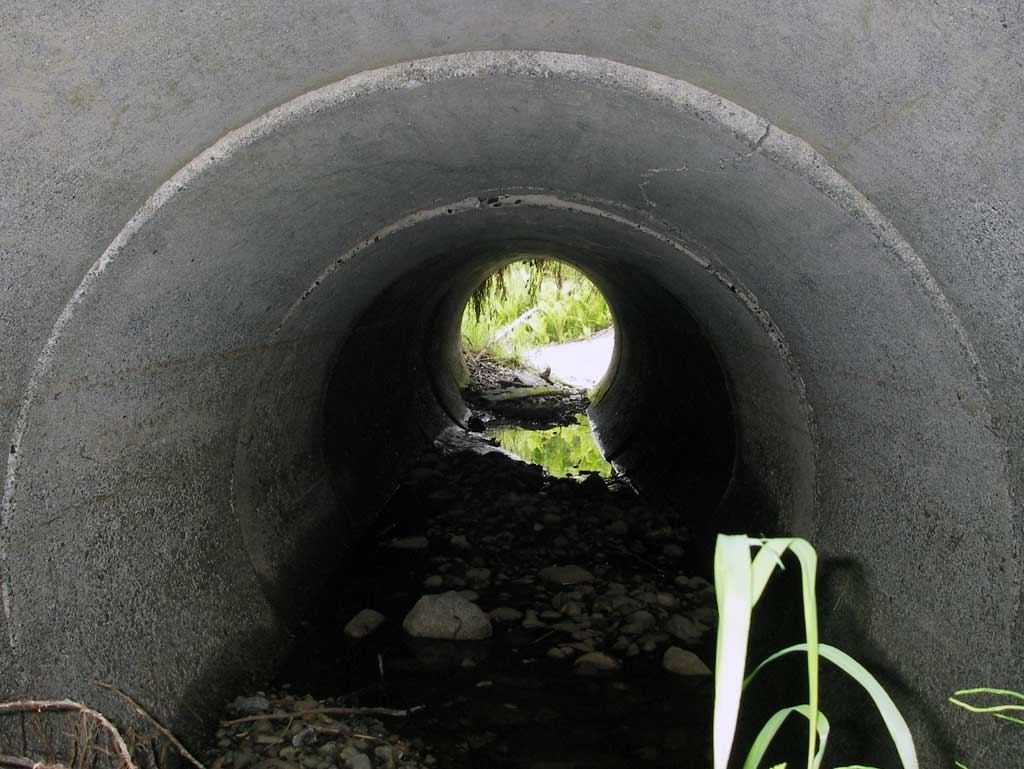

ID: 1 Structure Type: Circular pipe (Reinforced concrete) Fish Passage Rating: Black

Length(ft): 50.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: Organic
Outlet Substrate: Gravel
InletOutlet
Width(ft):3.0 3.0
Height(ft):3.0 3.0
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.0
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Dry. All dimensions were visually estimated not measured.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicGravel
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):
Stream Flow Stage:Dry

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
