Fish Passage Site 20502118

Coordinates (dec. deg.): 62.71832°, -149.77803°
Legal Description: S030N003W02
Region: South Central
Road Name: Alaska Railroad

Datum: NAD83
Quad Name / ITM: Talkeetna Mts C-6
AWC Stream #:
Stream Name: Susitna River tributary

Elevation:

Site Comments: RR at MP 259.4

Survey Date: Jun 21, 2011

Survey MSB11-PSARR31

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

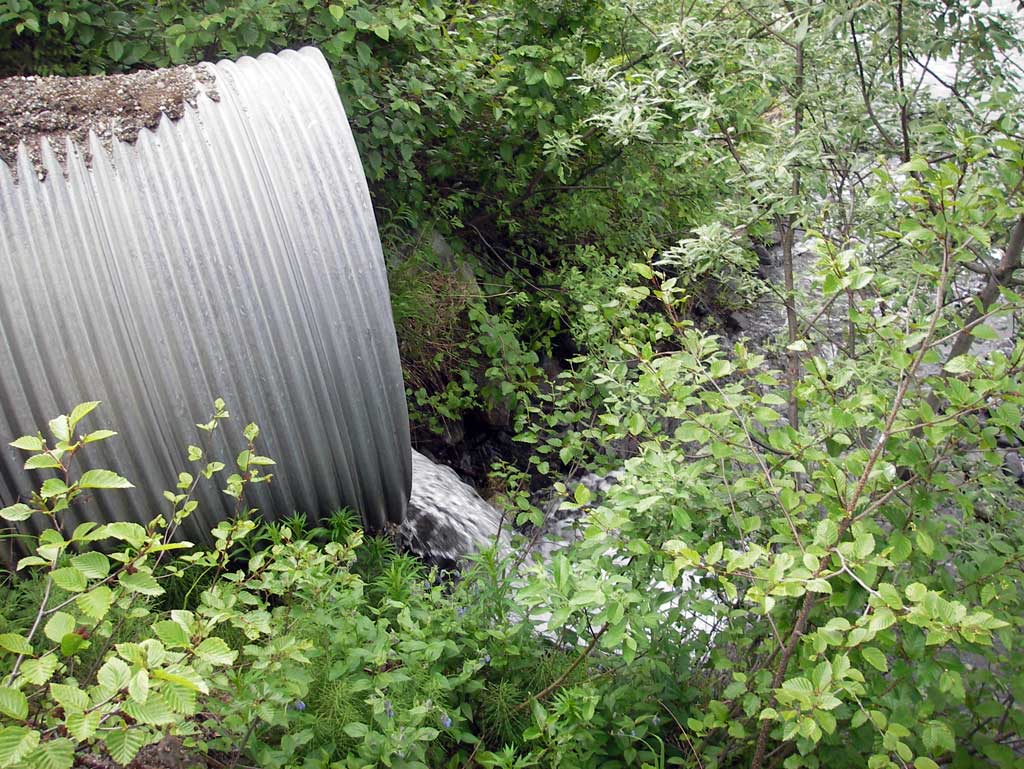

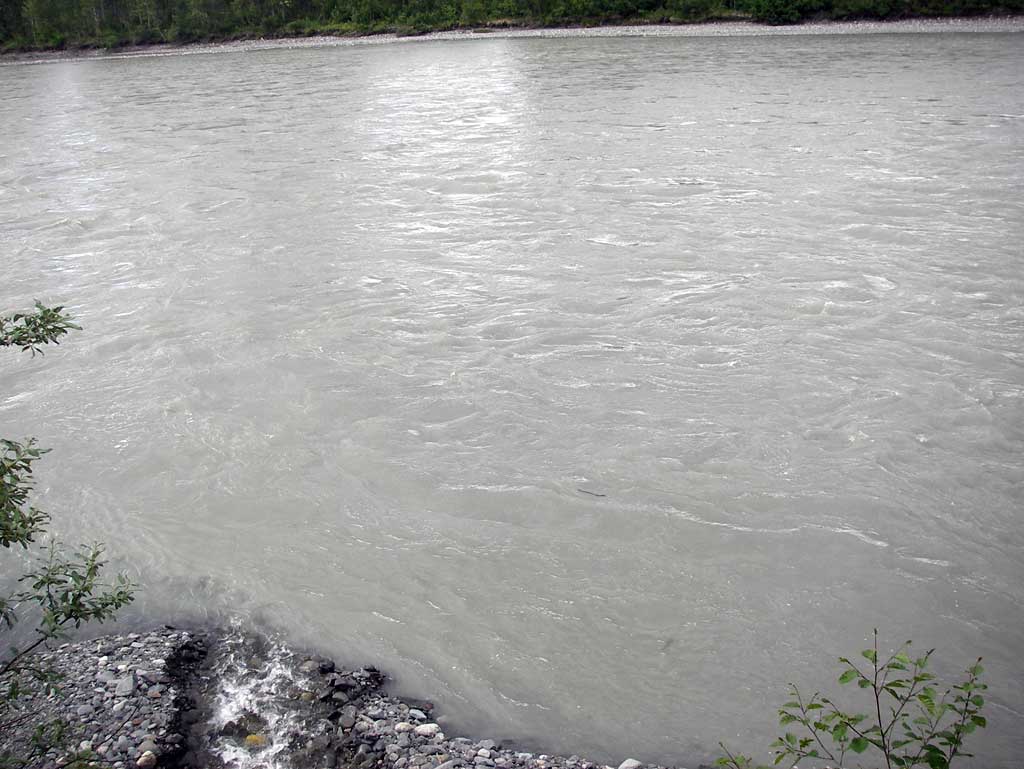

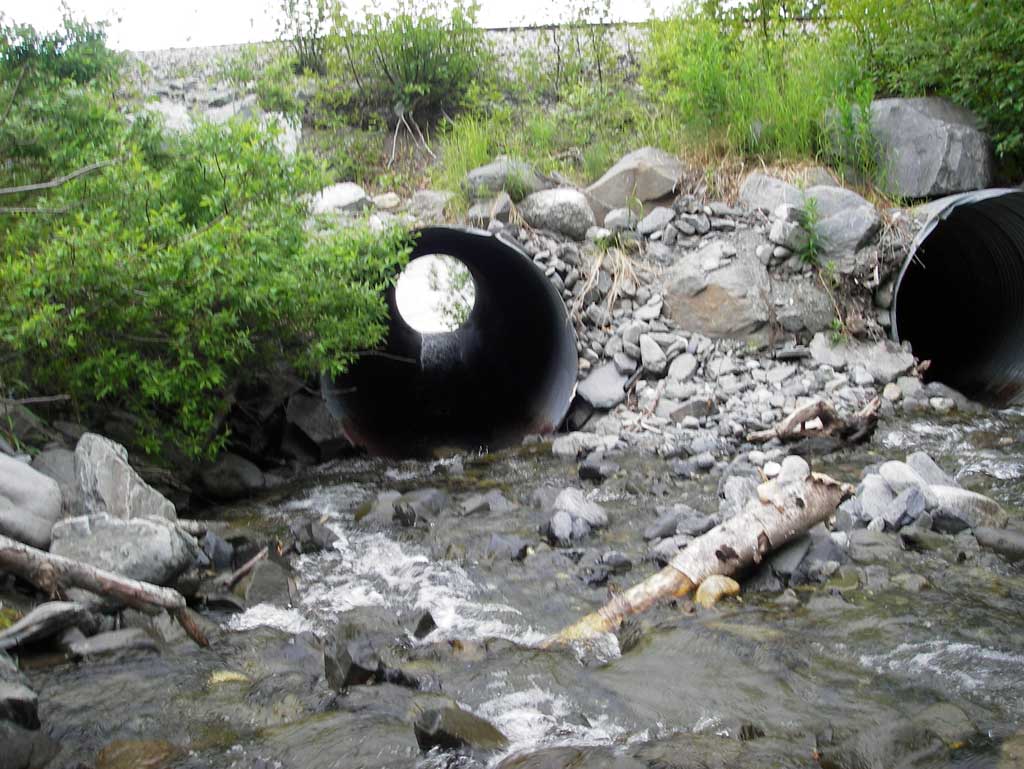

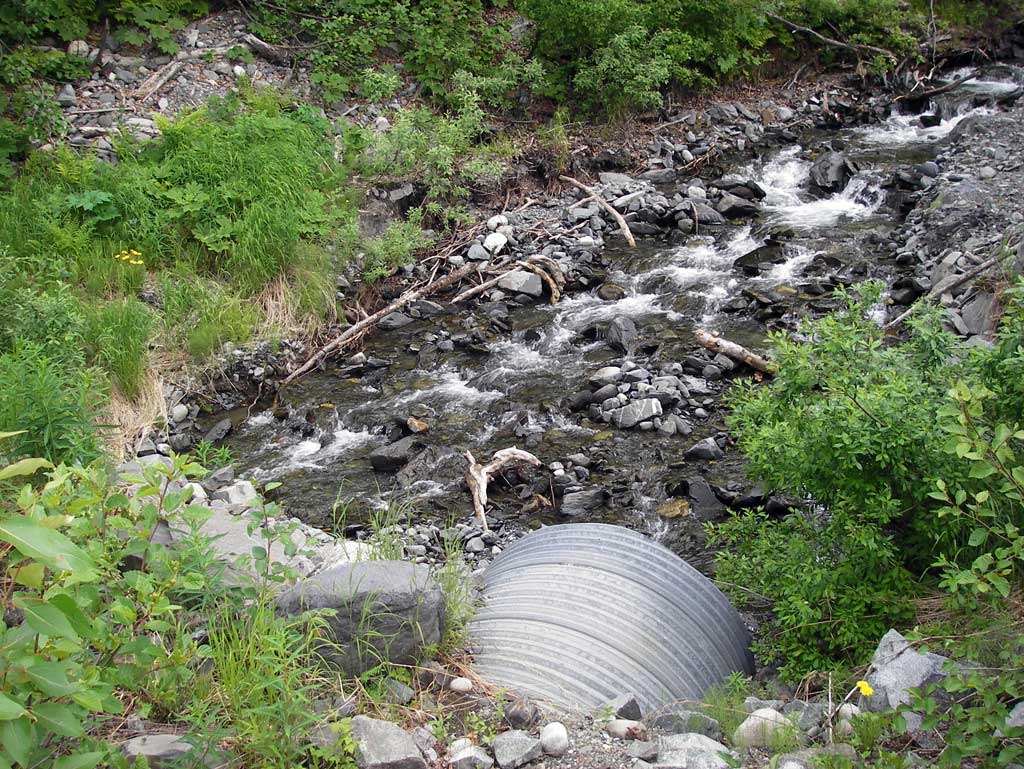

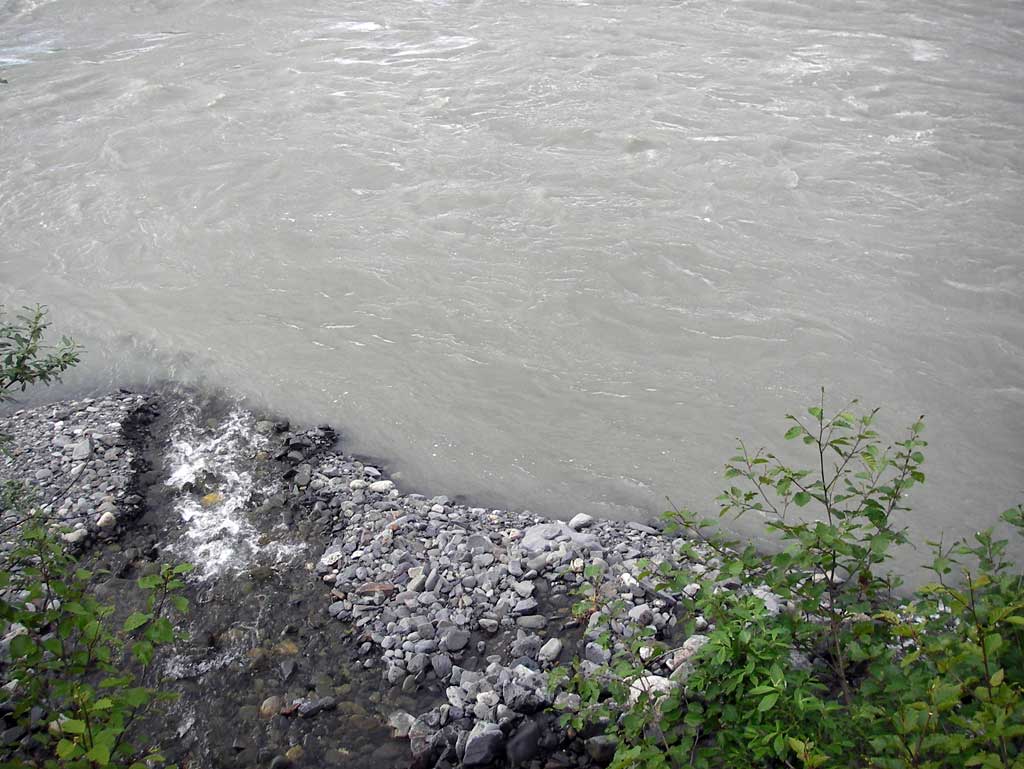

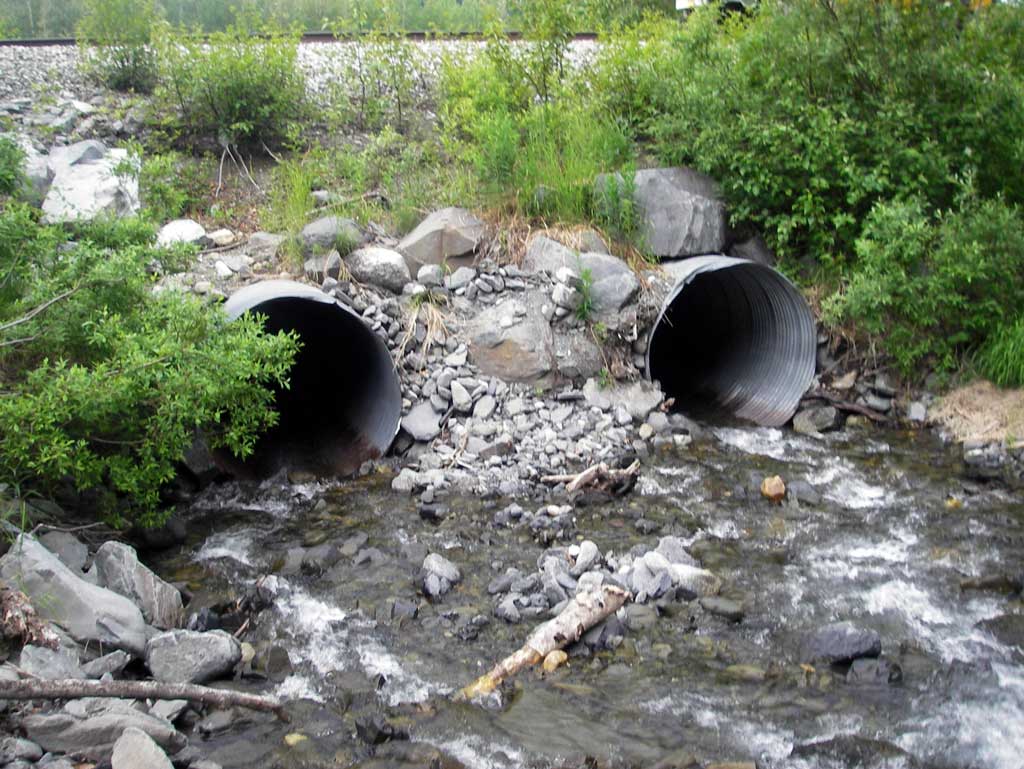

Comments: two 6' circular CMP pipes with outfall heights greater than 4' to the Susitna River. Upst habitat is a very steep gradient boulder substrate channel. Upstream is a very steep gradient high flow channel down the mountain with large cobble and boulders.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 70.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):5.0 5.0
Height(ft):5.0 5.0
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.5
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?:

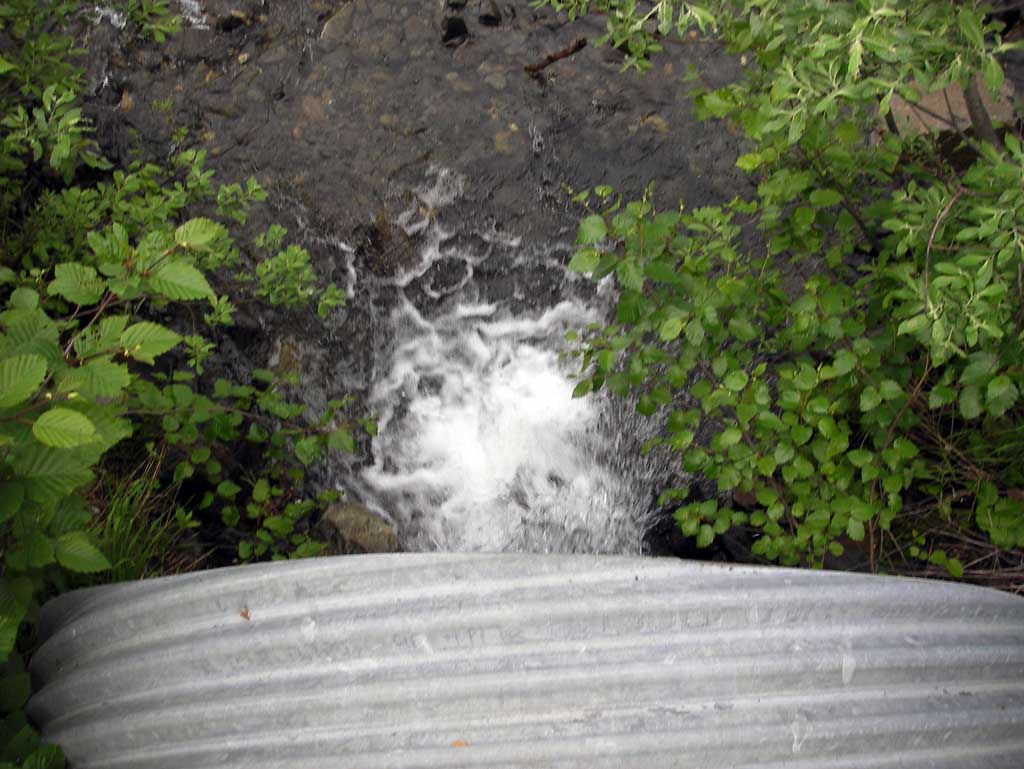

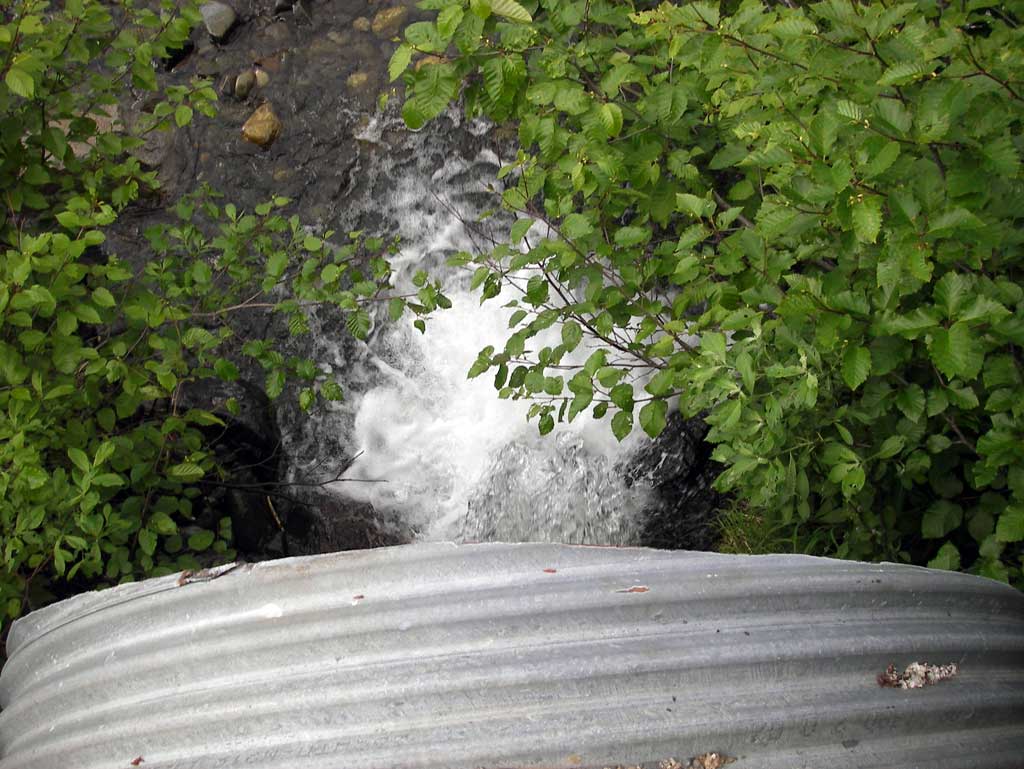

Outfall Height: 4.0
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: All dimensions were visually estimated not measured.
  Culvert Observations:
  1. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:BoulderBoulder
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
