Fish Passage Site 20502115

Coordinates (dec. deg.): 62.72756°, -149.74500°
Legal Description: S031N003W36
Region: South Central
Road Name: Alaska Railroad

Datum: NAD83
Quad Name / ITM: Talkeetna Mts C-6
AWC Stream #:
Stream Name:

Elevation:

Site Comments: TMP 260.7

Survey Date: Jun 17, 2011

Survey MSB11-PSARR23

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

Comments: Channel was dry and outlet had an outfall height greater than 6'.

Culvert Measurements

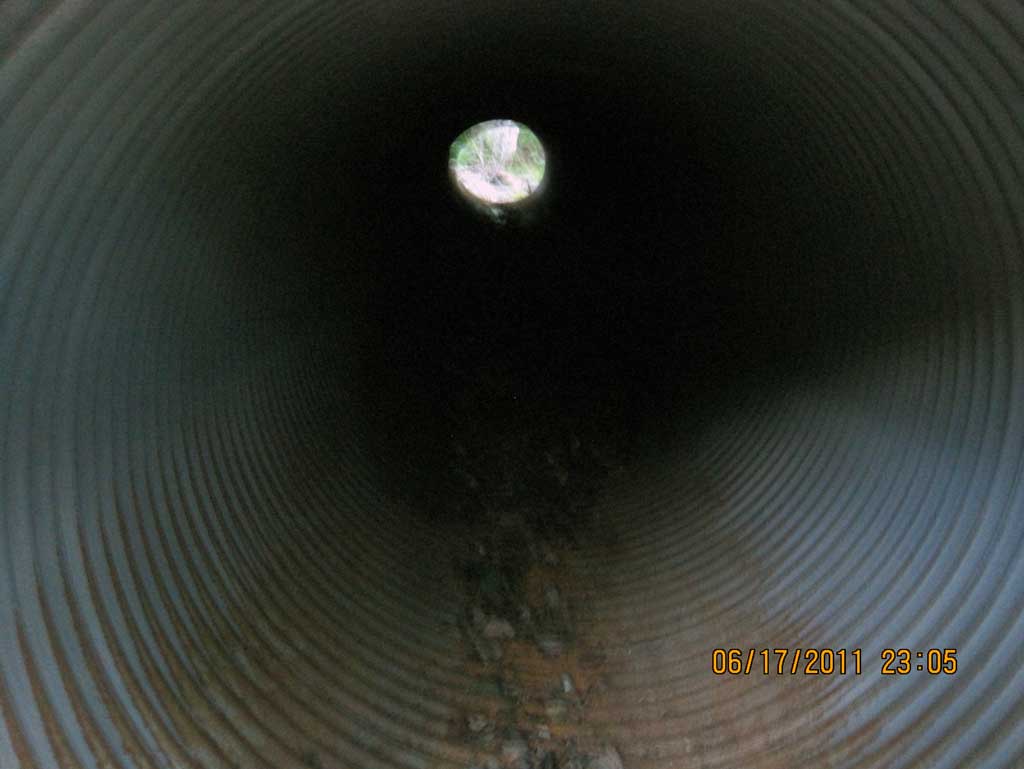

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 50.0

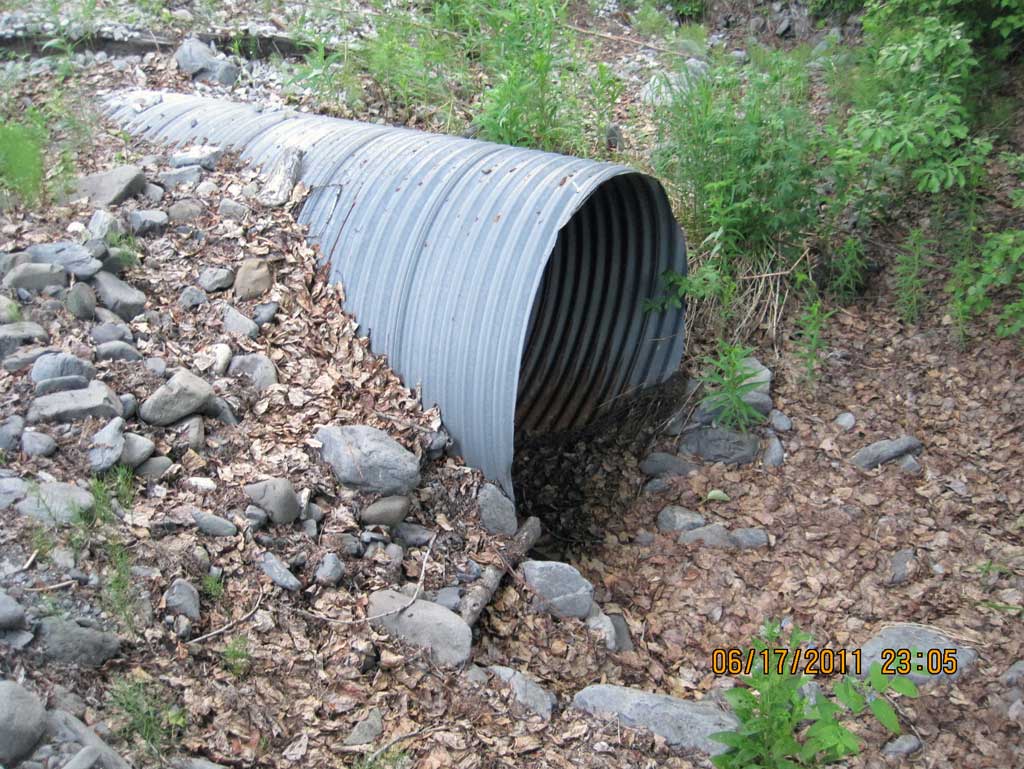

Inlet Type: Projecting

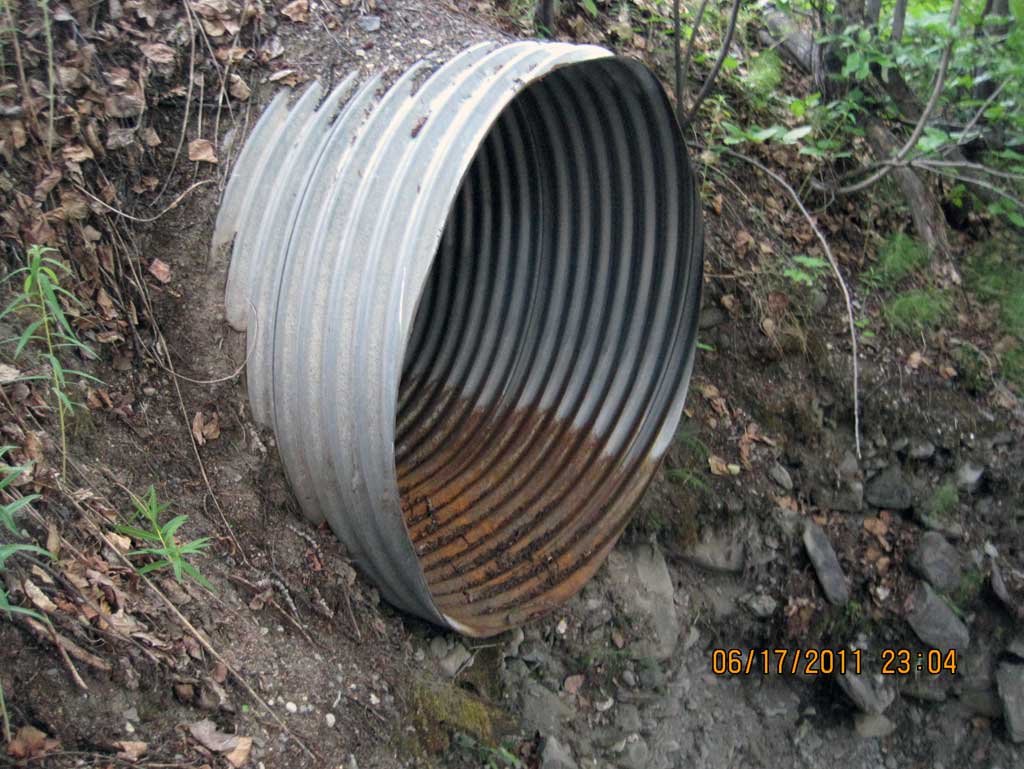

Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):4.0 4.0
Height(ft):4.0 4.0
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.0
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

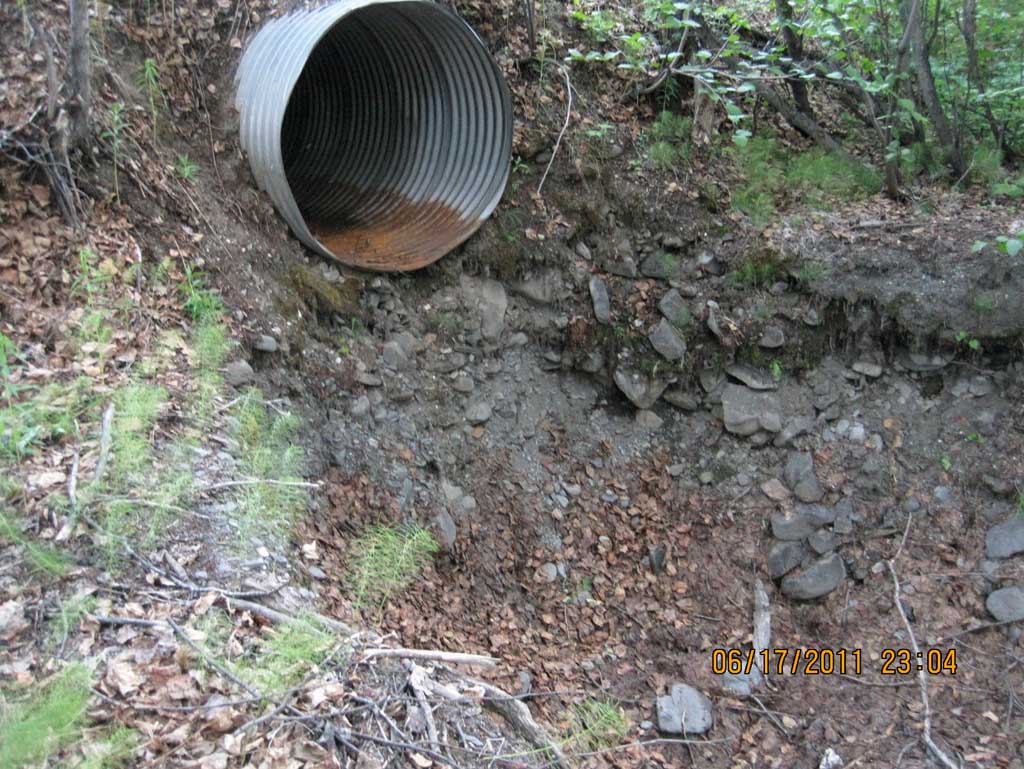

Outfall Height: 6.0
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: All dimensions were visually estimated not measured.
  Culvert Observations:
  1. Outfall height red

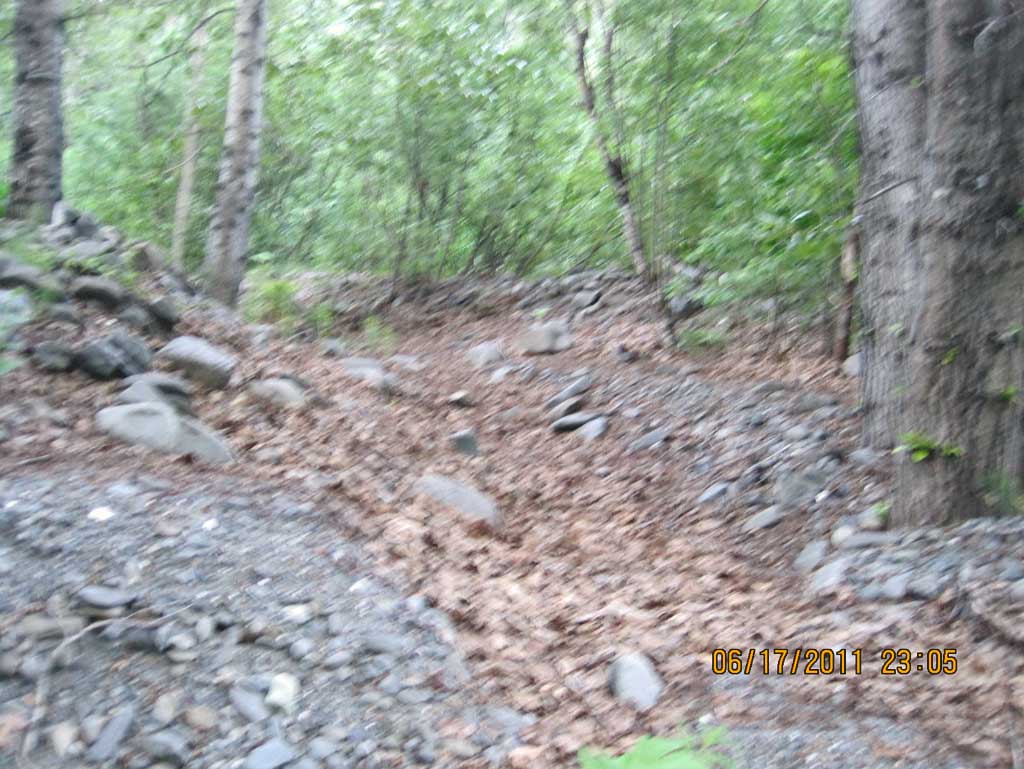

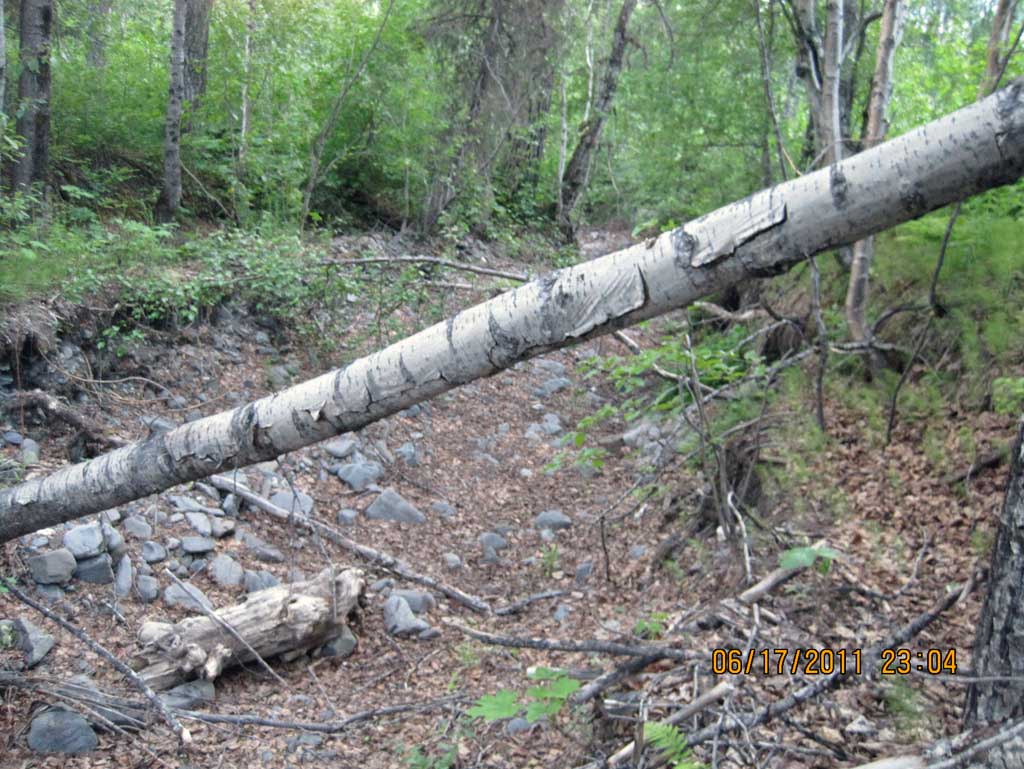

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:GravelGravel
Stream Slope(deg.):
Stream Flow Stage:Dry

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
