Fish Passage Site 20502107

Coordinates (dec. deg.): 62.78555°, -149.68410°
Legal Description: S031N002W08
Region: South Central
Road Name: Alaska Railroad

Datum: NAD83
Quad Name / ITM: Talkeetna Mts D-6
AWC Stream #:
Stream Name:

Elevation:

Site Comments: RR at MP 265.48

Survey Date: Jun 17, 2011

Survey MSB11-PSARR18

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

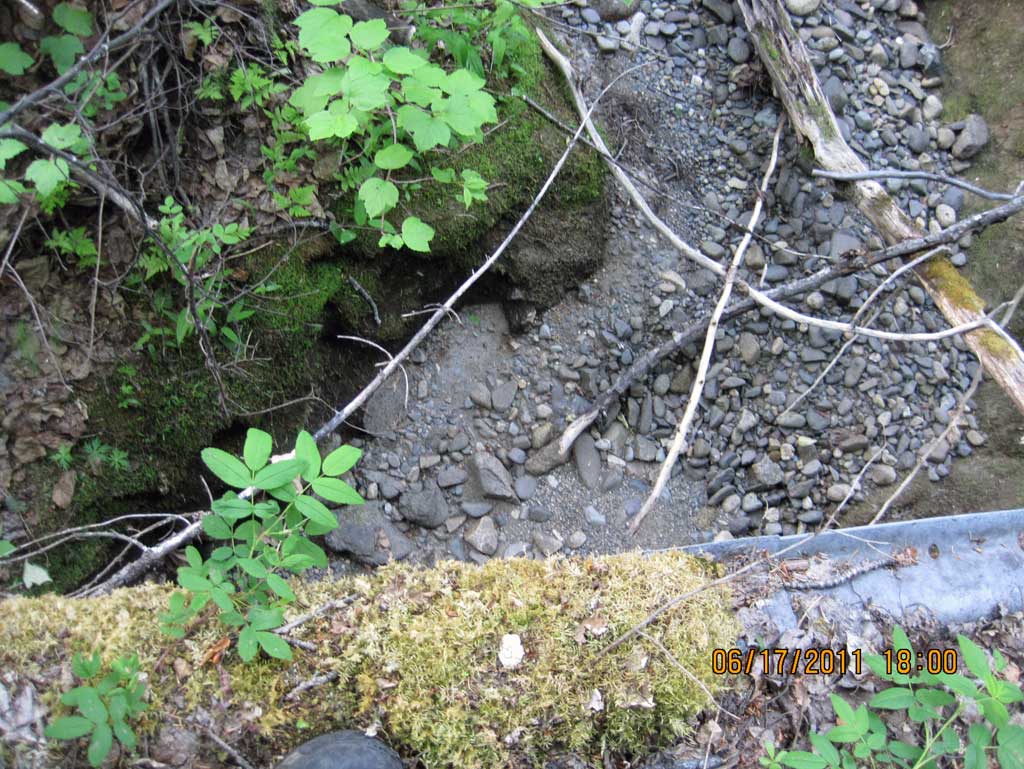

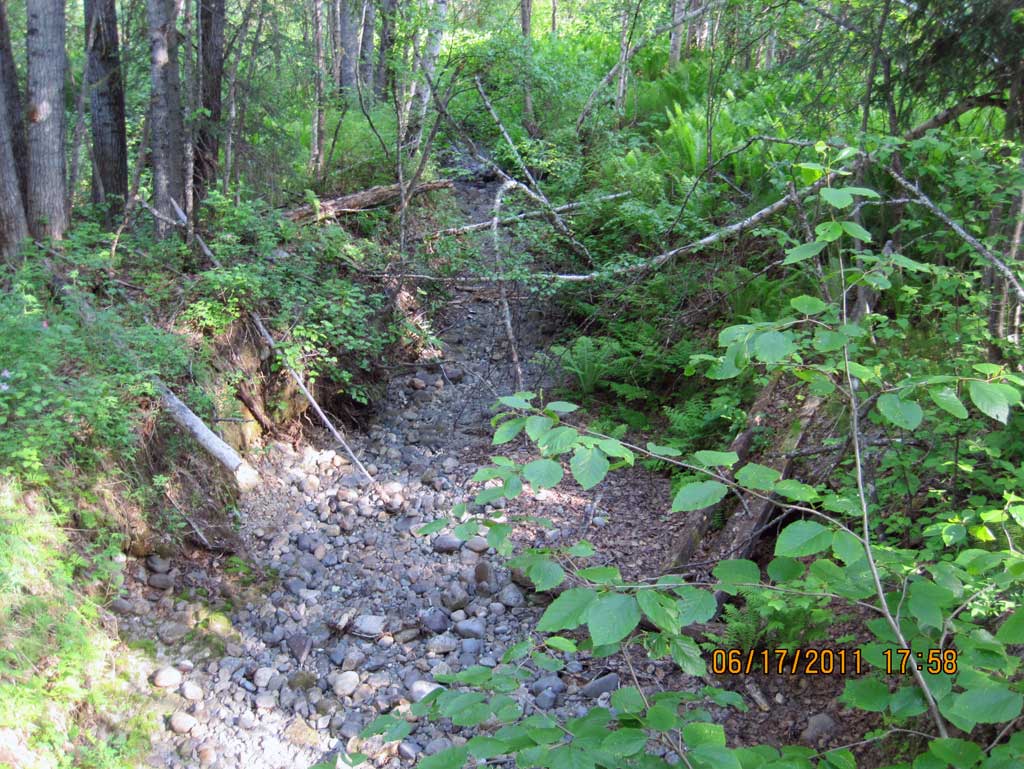

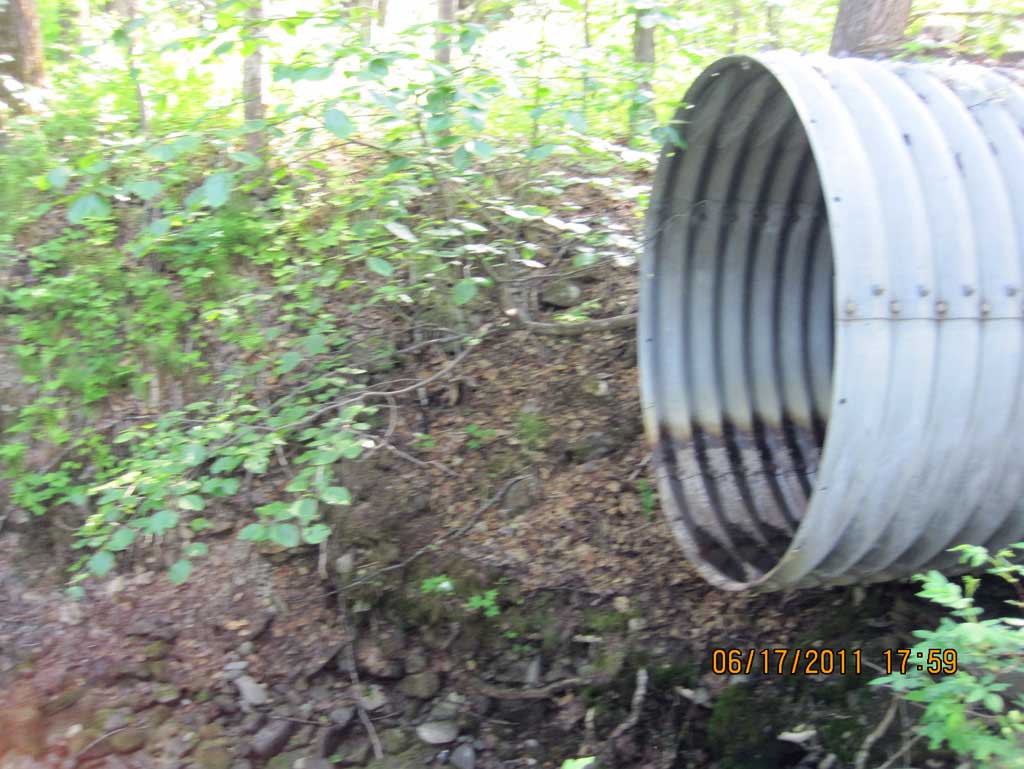

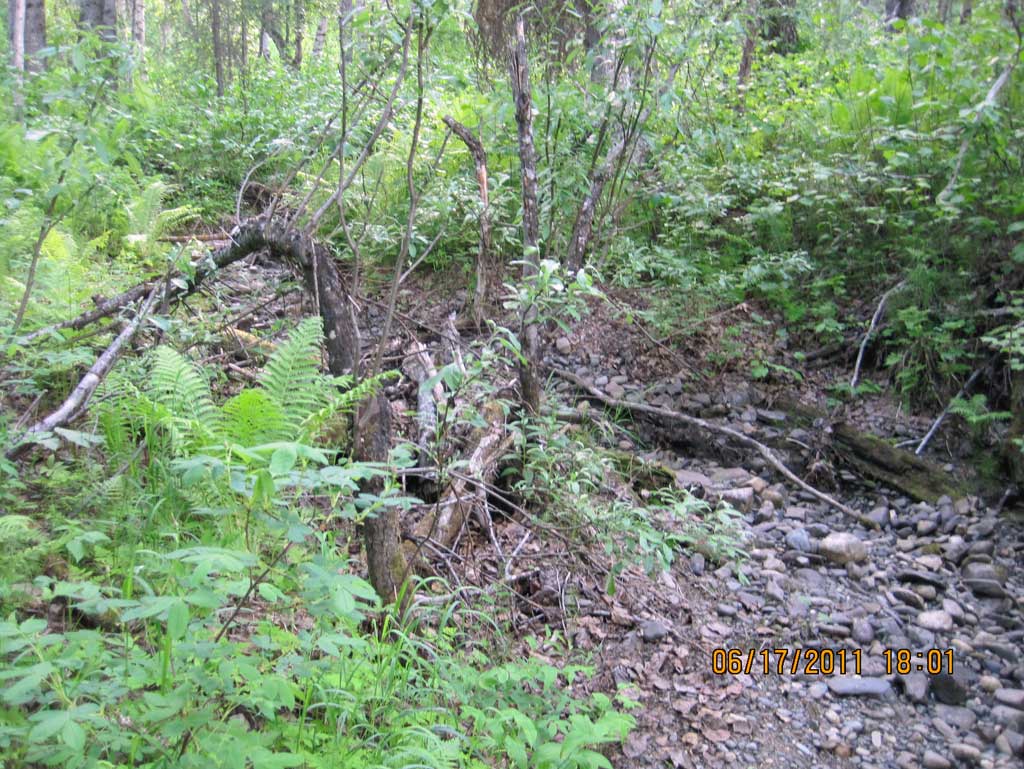

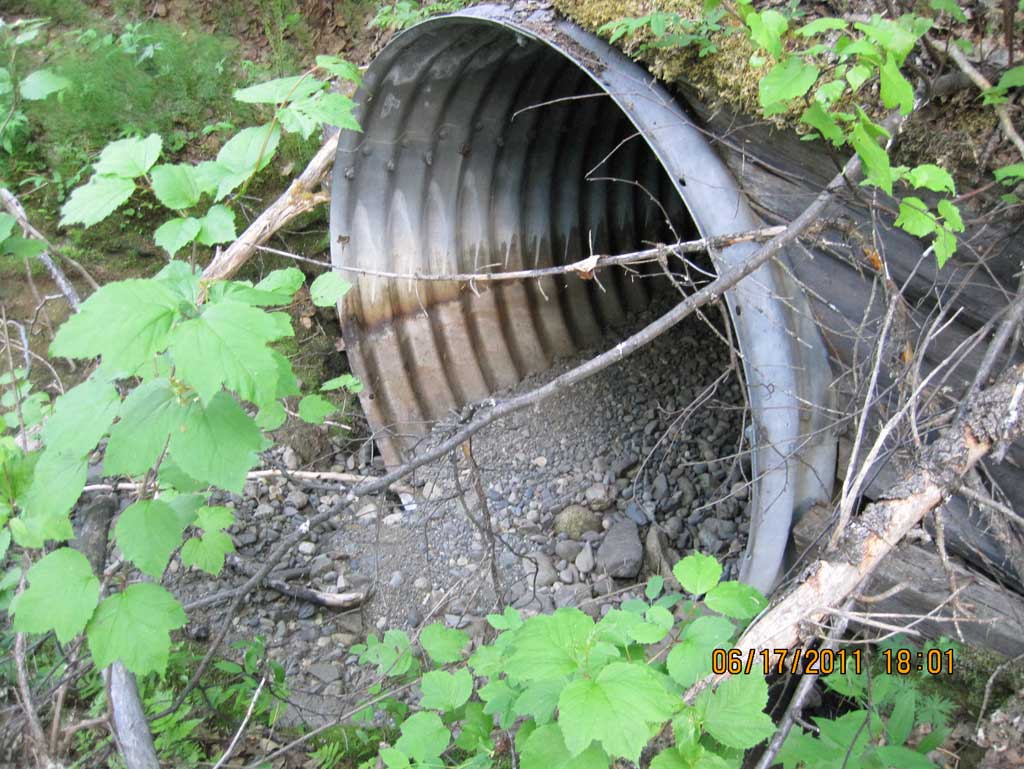

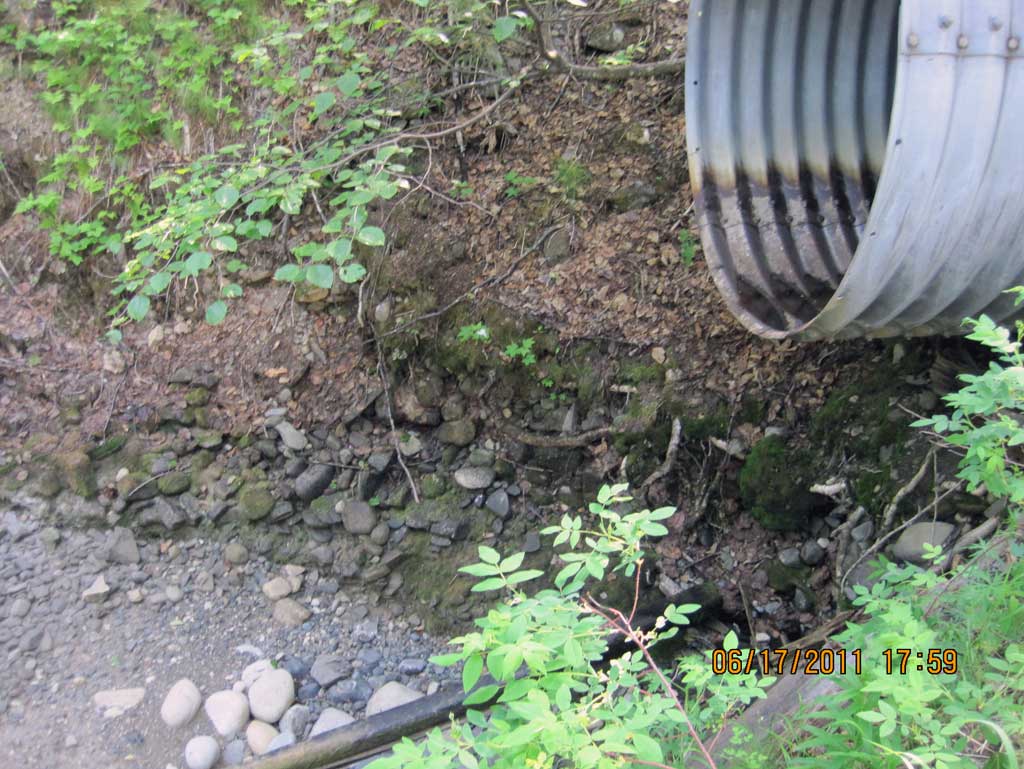

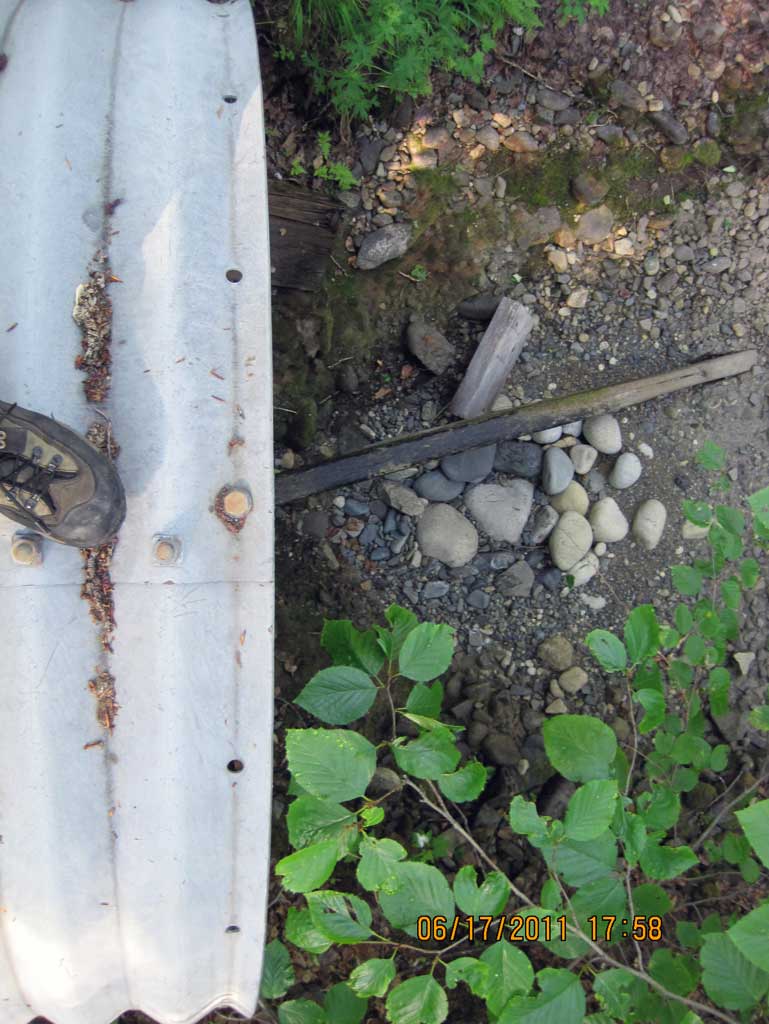

Comments: creek channel was dry and consisted of a cobble substrate channel. The culvert is a 6' circular CSP with an outfall height over the dry channel of greater than 8".

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 50.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: Gravel
Outlet Substrate: None
InletOutlet
Width(ft):6.0 6.0
Height(ft):6.0 6.0
Apron Length(ft):0.0 0.0
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):0.5 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Dry. All dimensions were visually estimated not measured.
  Culvert Observations:
  1. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Dry

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
