Fish Passage Site 20502101

Coordinates (dec. deg.): 62.94857°, -149.65826°
Legal Description: S033N002W16
Region: South Central
Road Name: Alaska Railroad

Datum: NAD83
Quad Name / ITM: Talkeetna Mts D-6
AWC Stream #:
Stream Name: Chulitna River Tributary

Elevation:

Site Comments: TMP279.3

Survey Date: Jun 14, 2011

Survey MSB11-PSARR04

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Red

Tidal:
Backwatered:

Step Pools:
Construction Year:


Site Observations:

  1. Woody Debris
  2. Inlet perch
  3. Outfall height red
  4. Beaver Activity

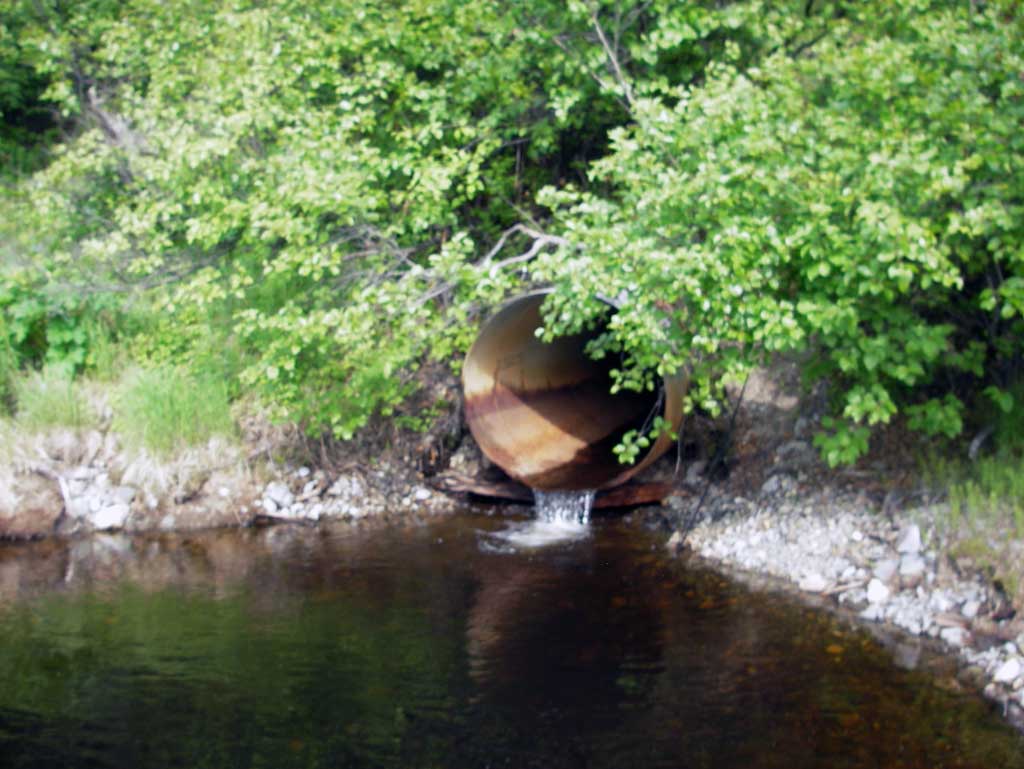

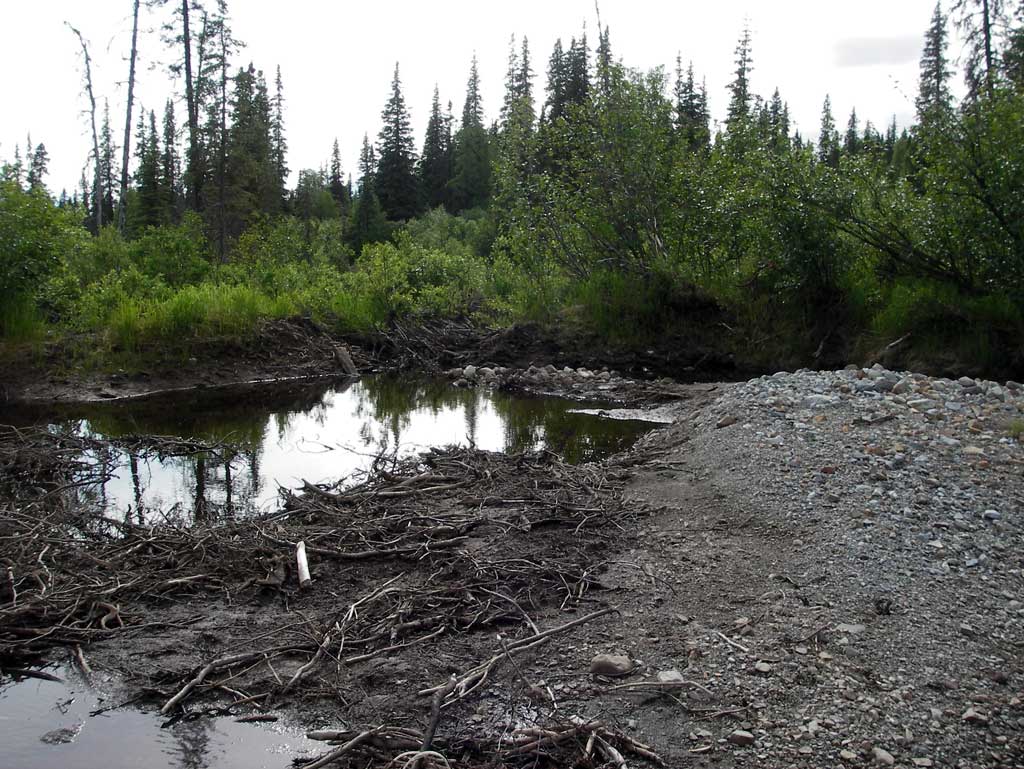

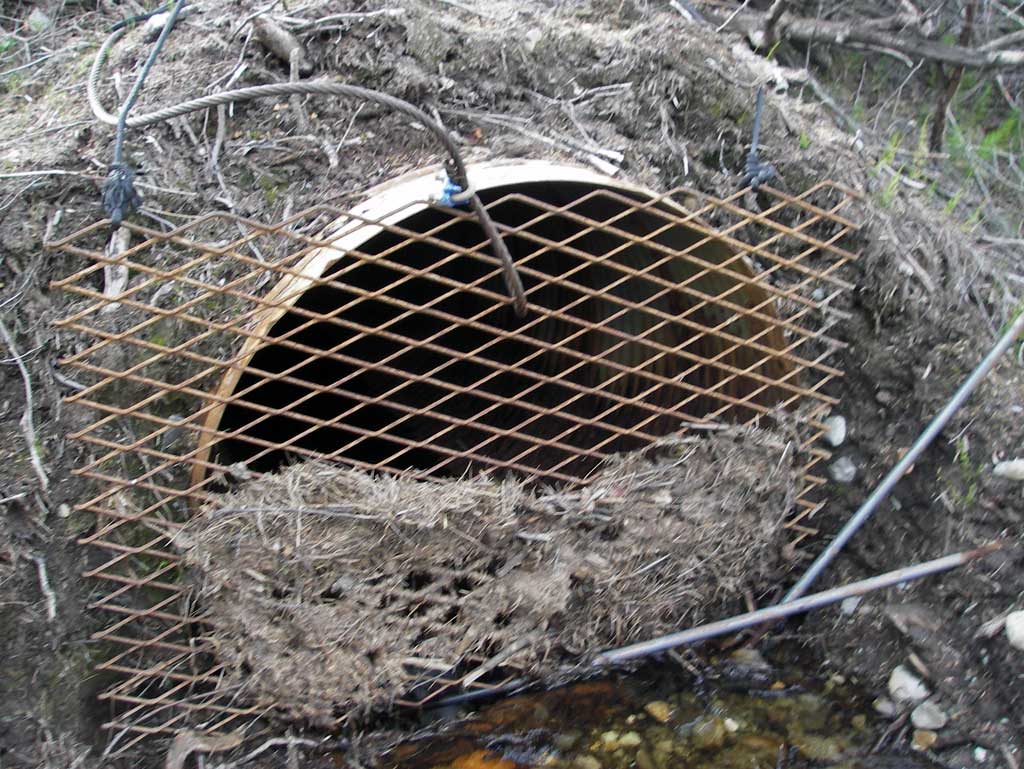

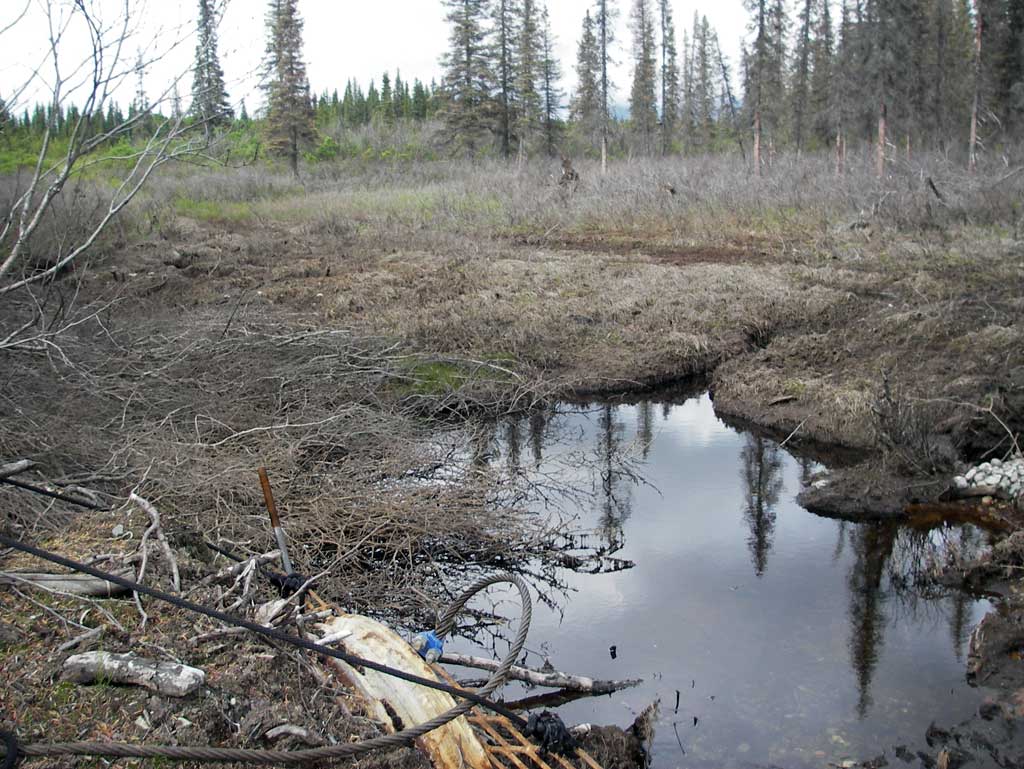

Comments: The culvert has an inlet grate which contained a large amount of debris making an inlet hydraulic jump of about 1'. Upst about 20' was a woody debris dam across the channel. The outlet has a small outfall height of about 4".

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 100.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):5.0 5.0
Height(ft):5.0 5.0
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.5
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?: No
Outfall Height: 0.8
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Pipe dimensions were estimated, not measured. Outfall was measured.
  Culvert Observations:
  1. Woody Debris
  2. Inlet perch
  3. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
