Fish Passage Site 20502078

Coordinates (dec. deg.): 62.87123°, -149.59831°
Legal Description: S032N002W11
Region: South Central
Road Name: Alaska Railroad

Datum: NAD83
Quad Name / ITM: Talkeetna Mts D-6
AWC Stream #: 247-41-10200-2551-3015
Stream Name: Salmon Creek

Elevation:

Site Comments: TMP 272.7

Survey Date: Jun 15, 2011

Survey MSB11-PSARR14

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

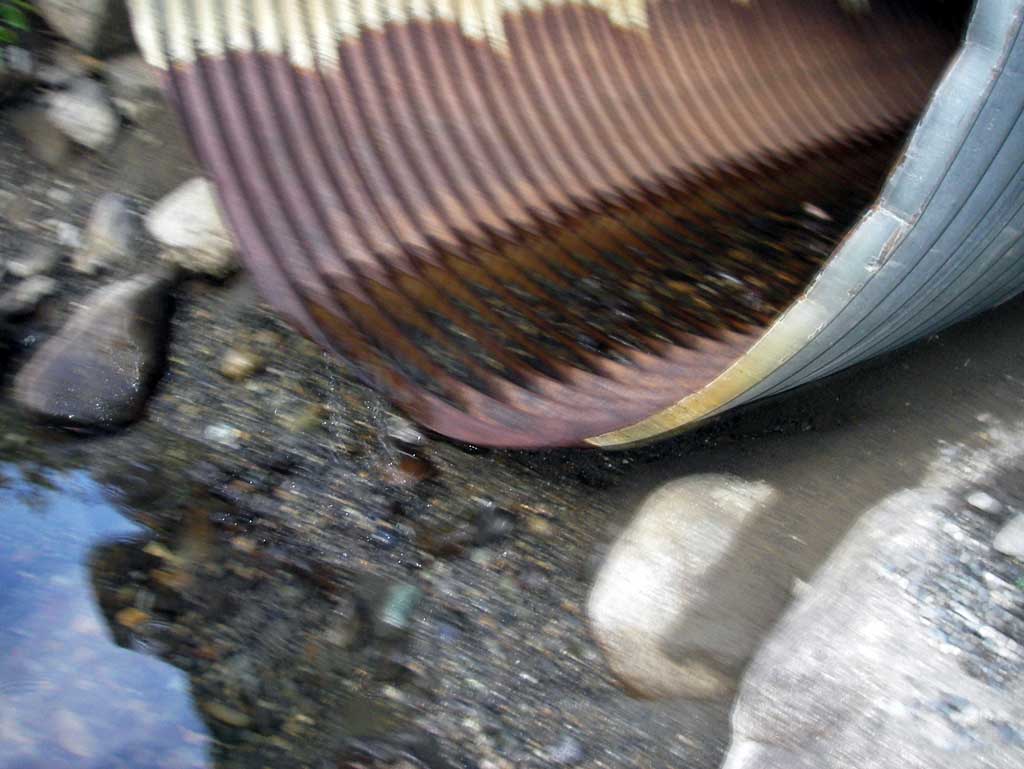

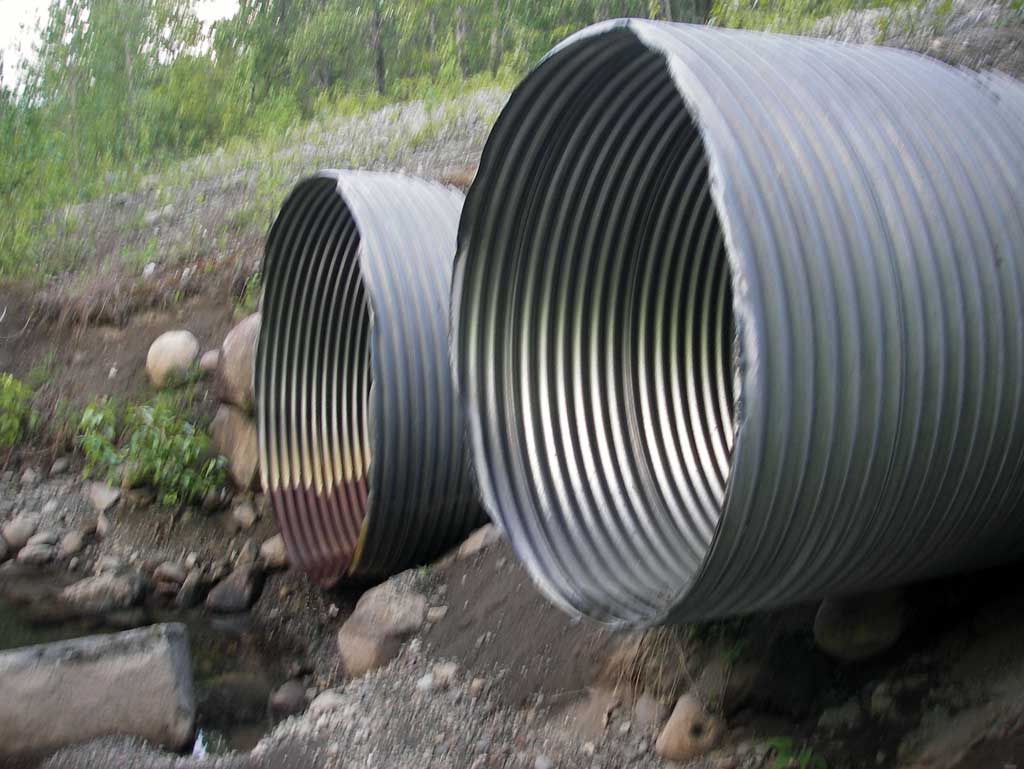

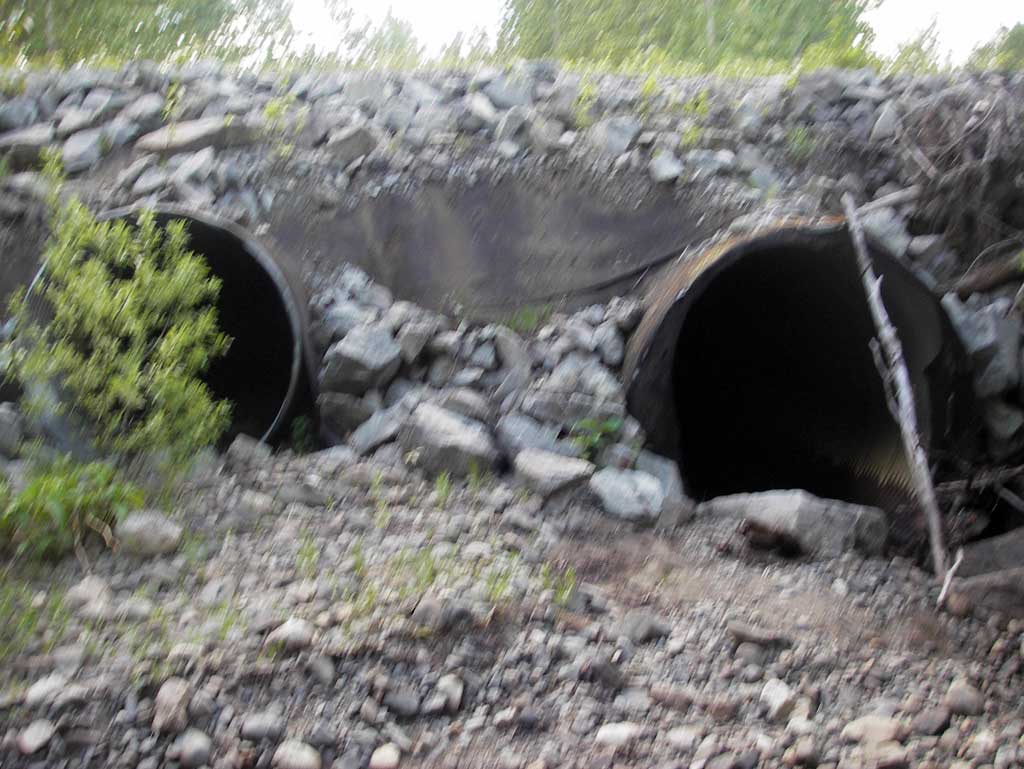

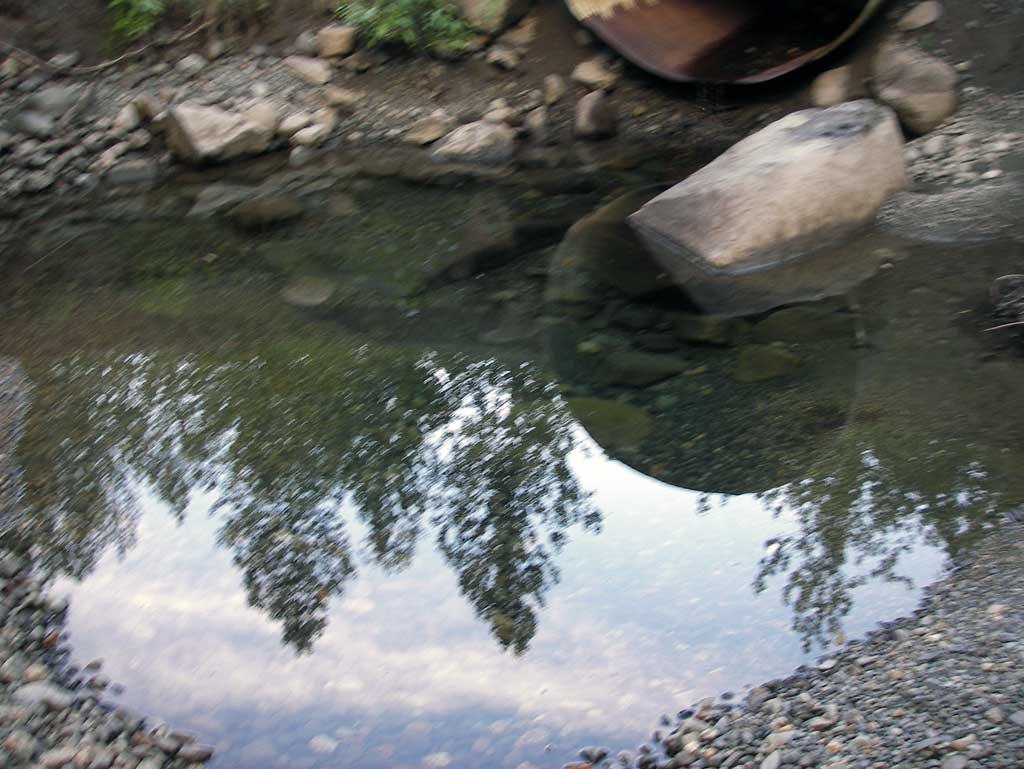

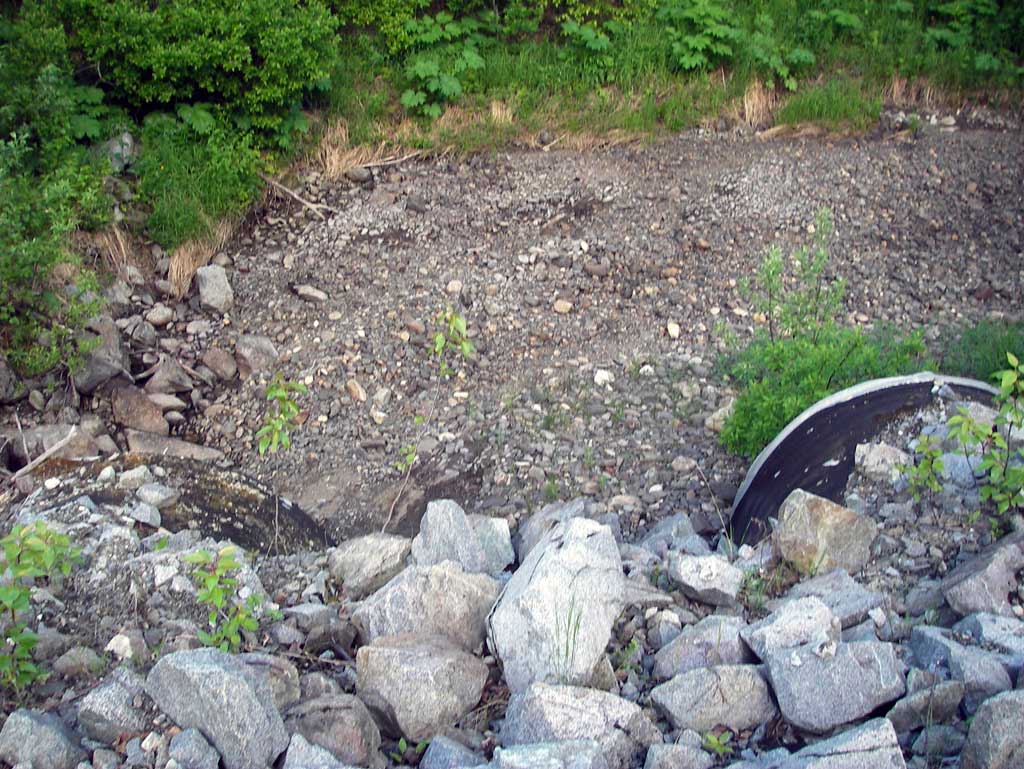

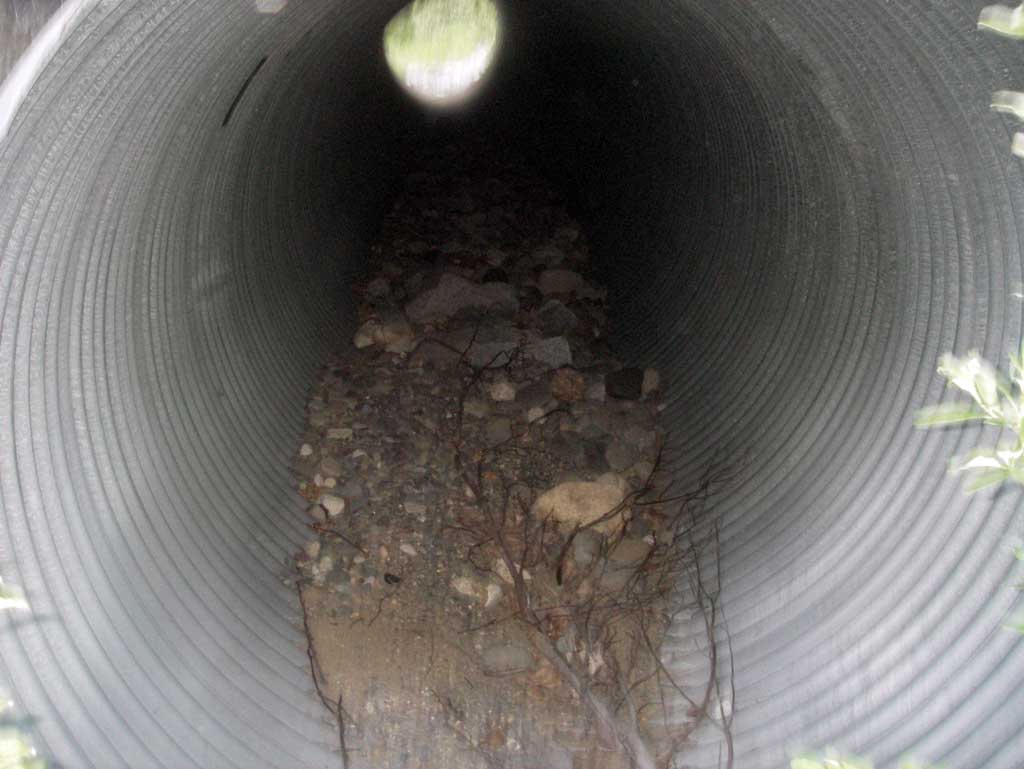

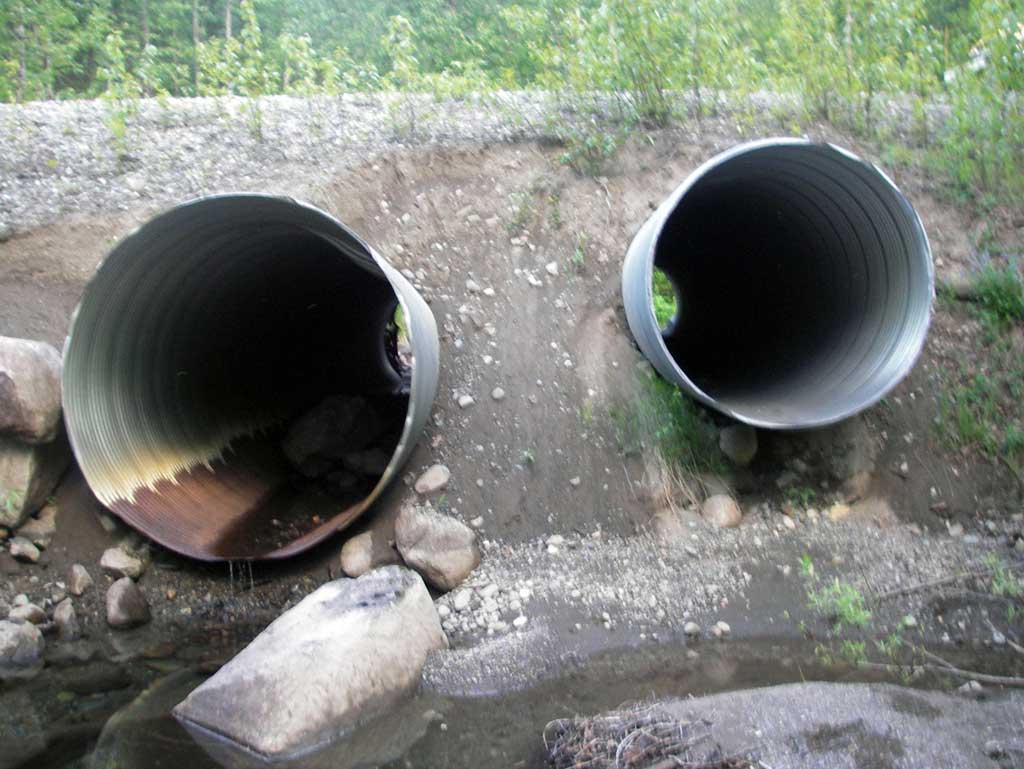

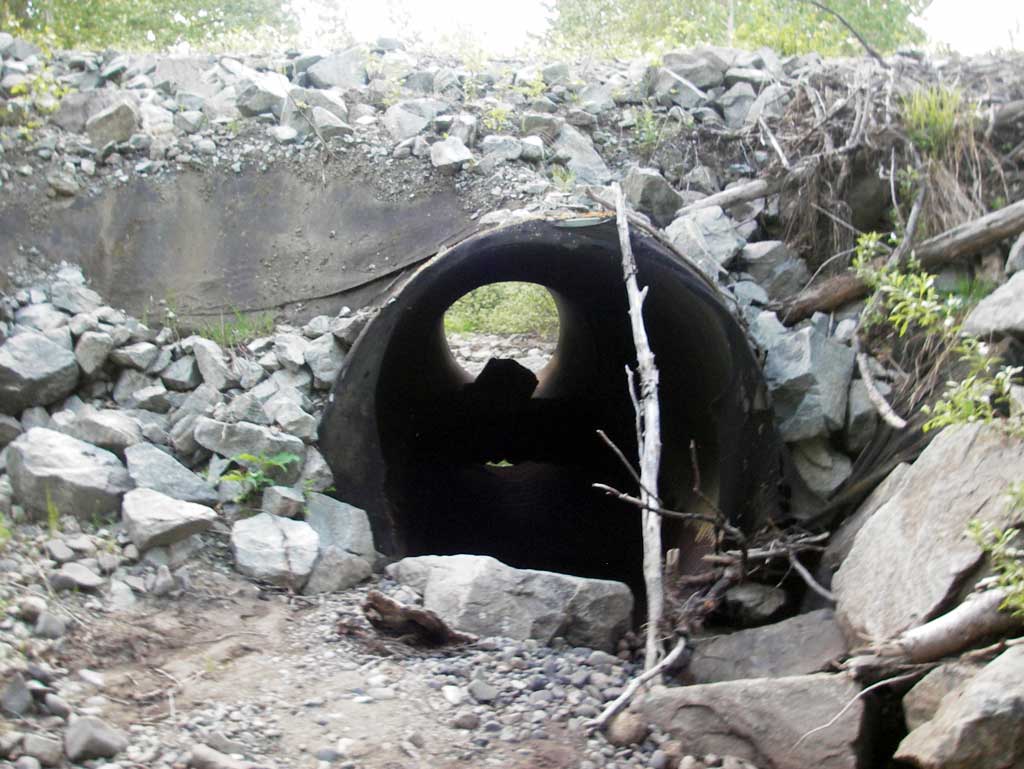

Comments: Channel was dry and the primary culvert in the channel had an outlet height above a cascade pool of 1'. No upst flow and pipe did contain some cobble sedimentation in middle of pipe. An overflow pipe was also located about 3' above the main pipe.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):5.0 5.0
Height(ft):5.0 5.0
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.0
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 1.0
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

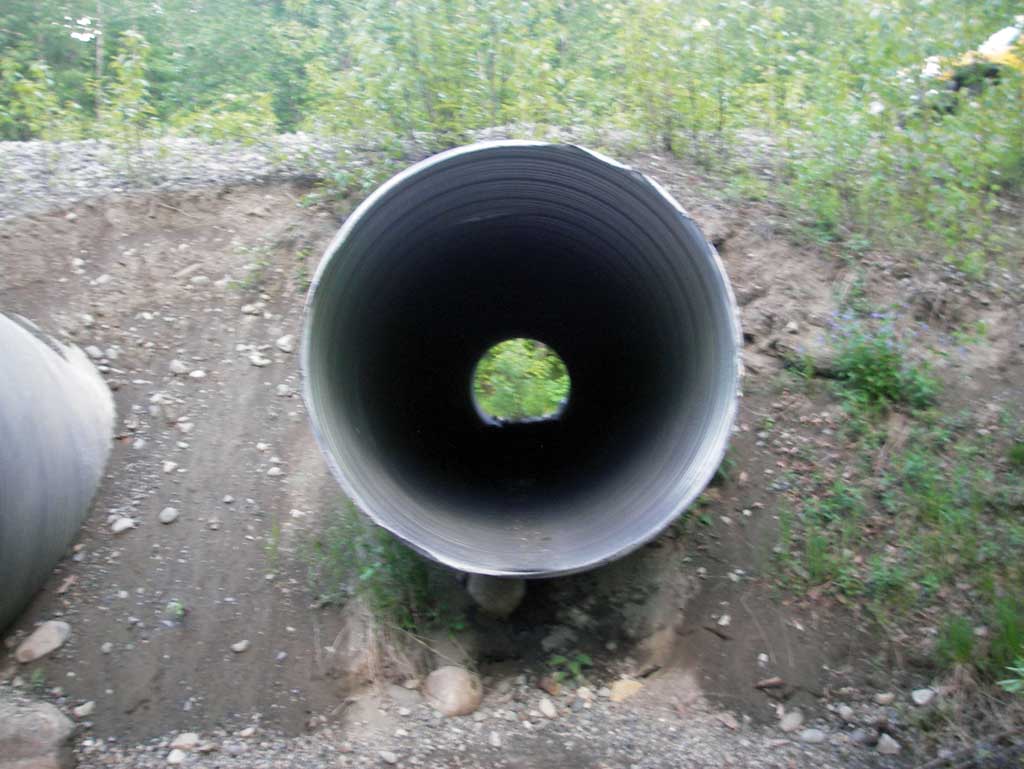

Comments: Dry culvert with outfall height. All dimensions were visually estimated not measured.
  Culvert Observations:
  1. Outfall height red
ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):5.0 5.0
Height(ft):5.0 5.0
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.02
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 1.0
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

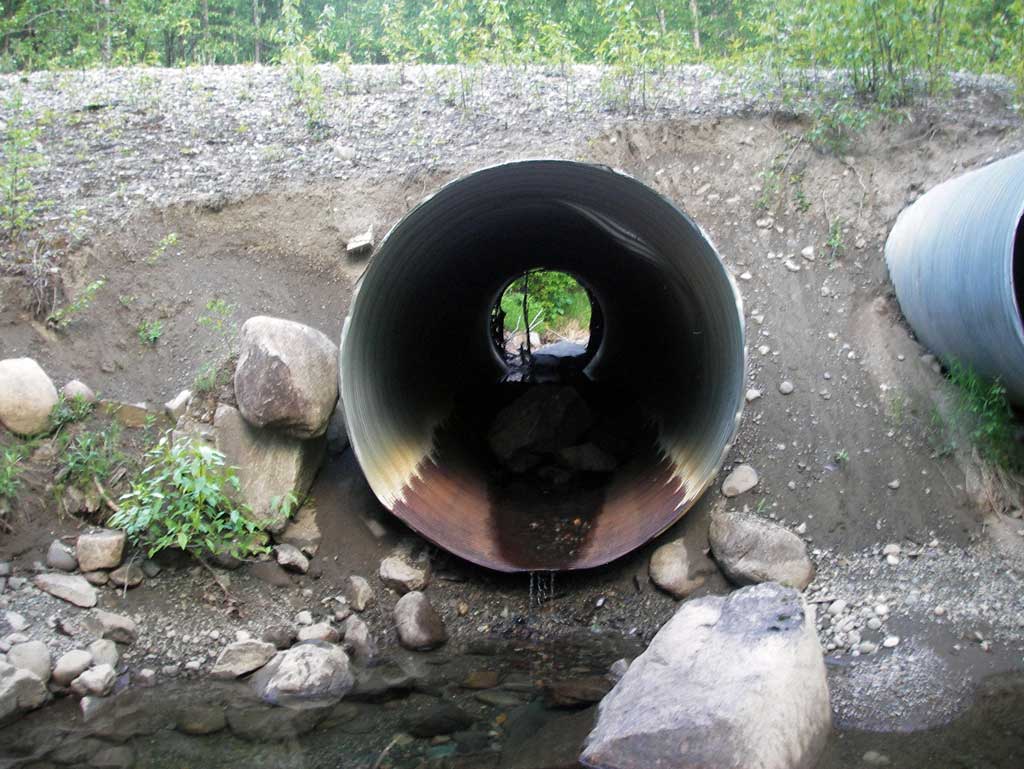

Comments: Culvert with very minimal flow and outfall height of 1'.
  Culvert Observations:
  1. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:GravelGravel
Stream Slope(deg.):

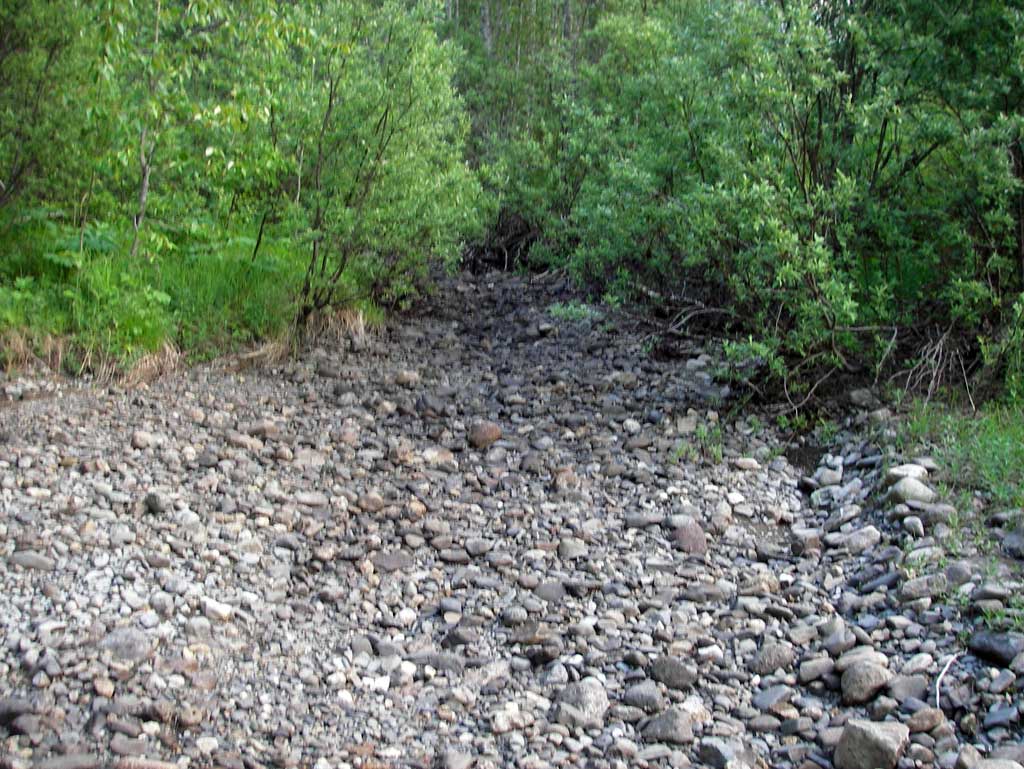

Stream Flow Stage:Dry, Defined Channel

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
