Fish Passage Site 20502058

Coordinates (dec. deg.): 63.20198°, -147.27859°
Legal Description: F020S002E12
Region: South Central
Road Name: Valdez Mining District Road

Datum: NAD83
Quad Name / ITM: Healy A-1
AWC Stream #:
Stream Name: Gregg Creek tributary

Elevation:

Site Comments: Old mine road off the Denali Highway

Survey Date: Jul 06, 2011

Survey MSB11-PSVMD04

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Structural Problem
  3. Culvert sagging in middle
  4. Mechanical damage or joints parting

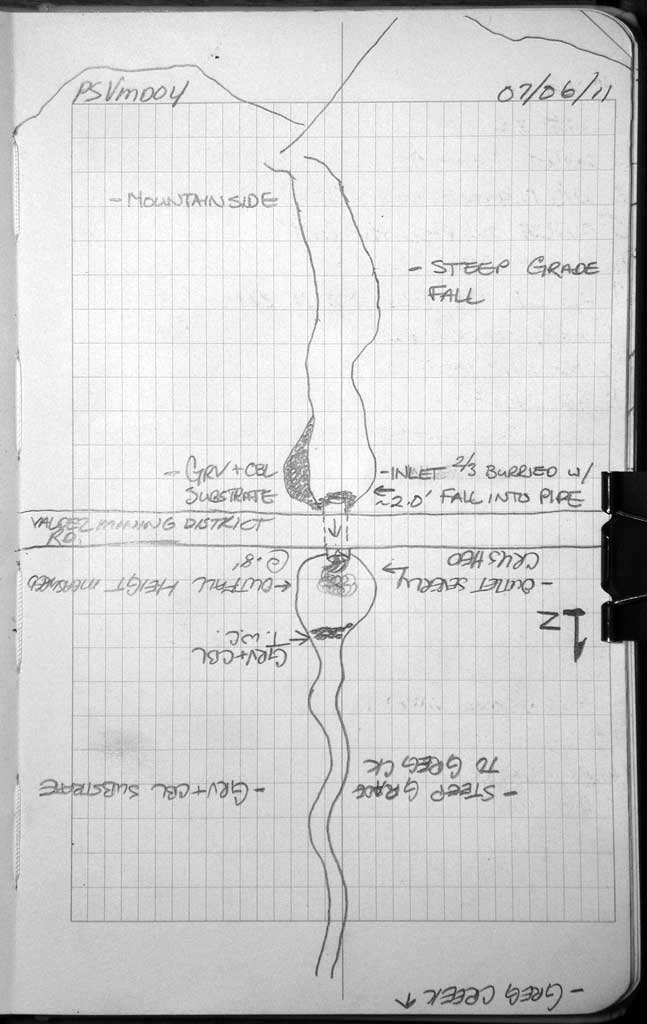

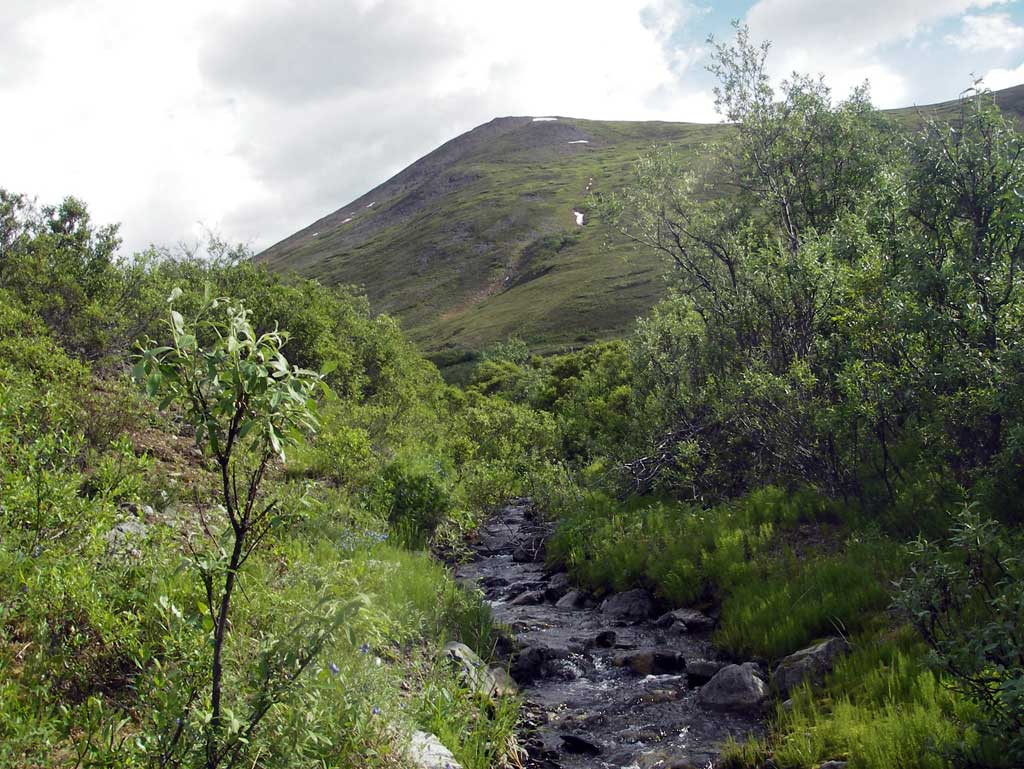

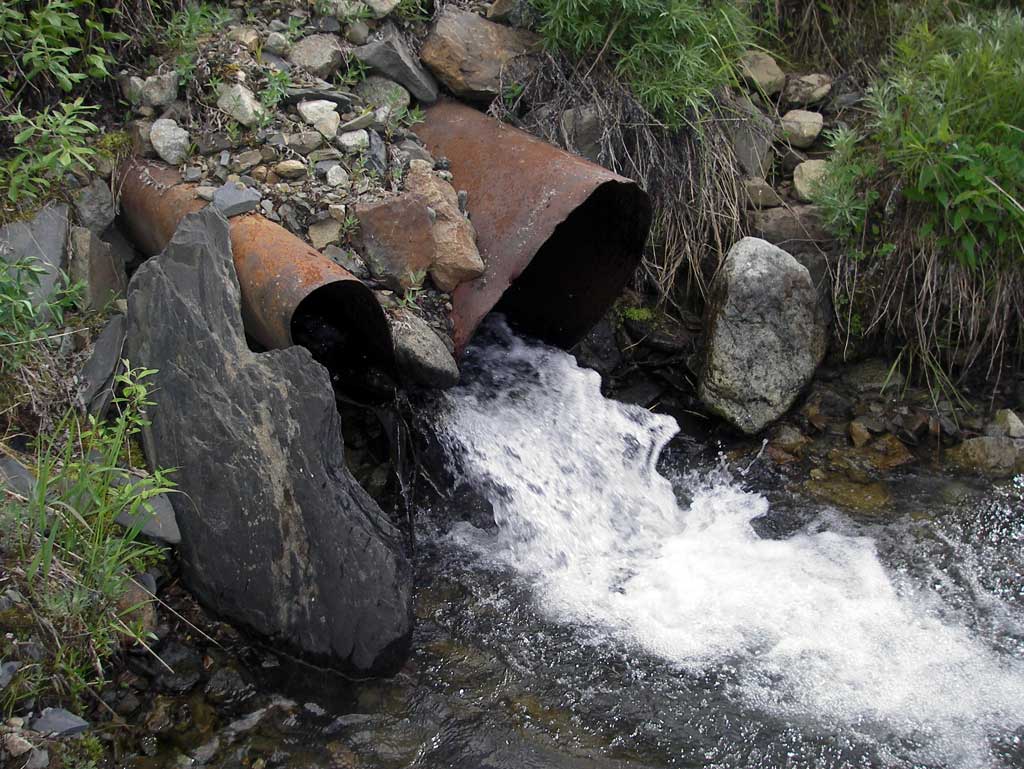

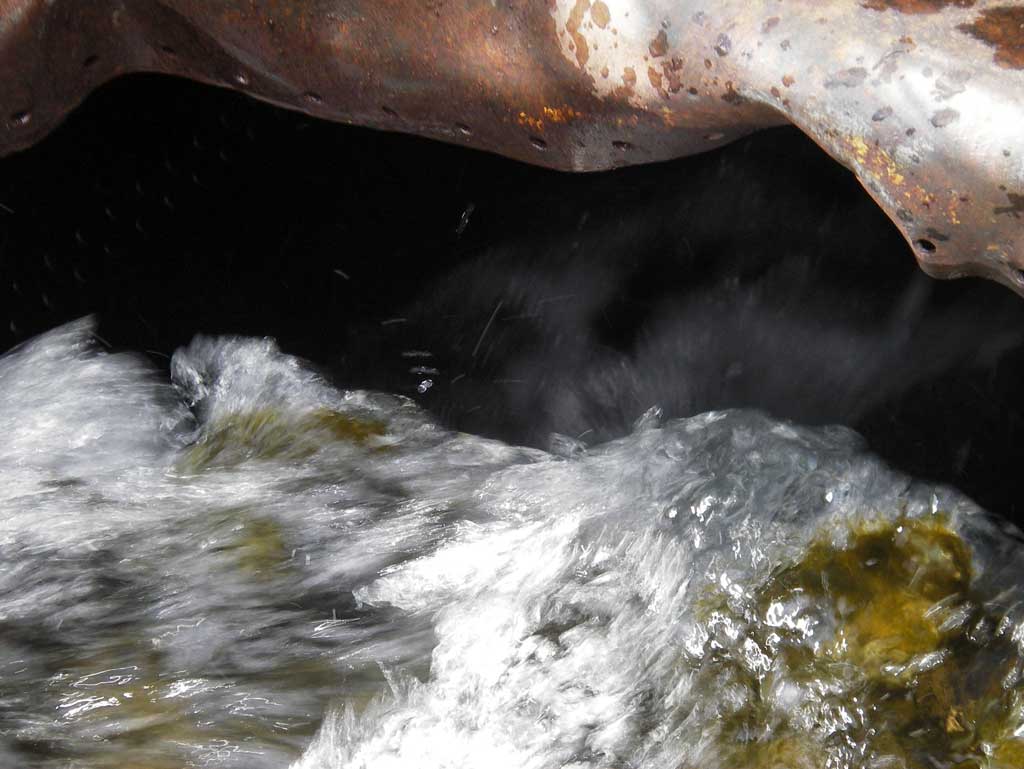

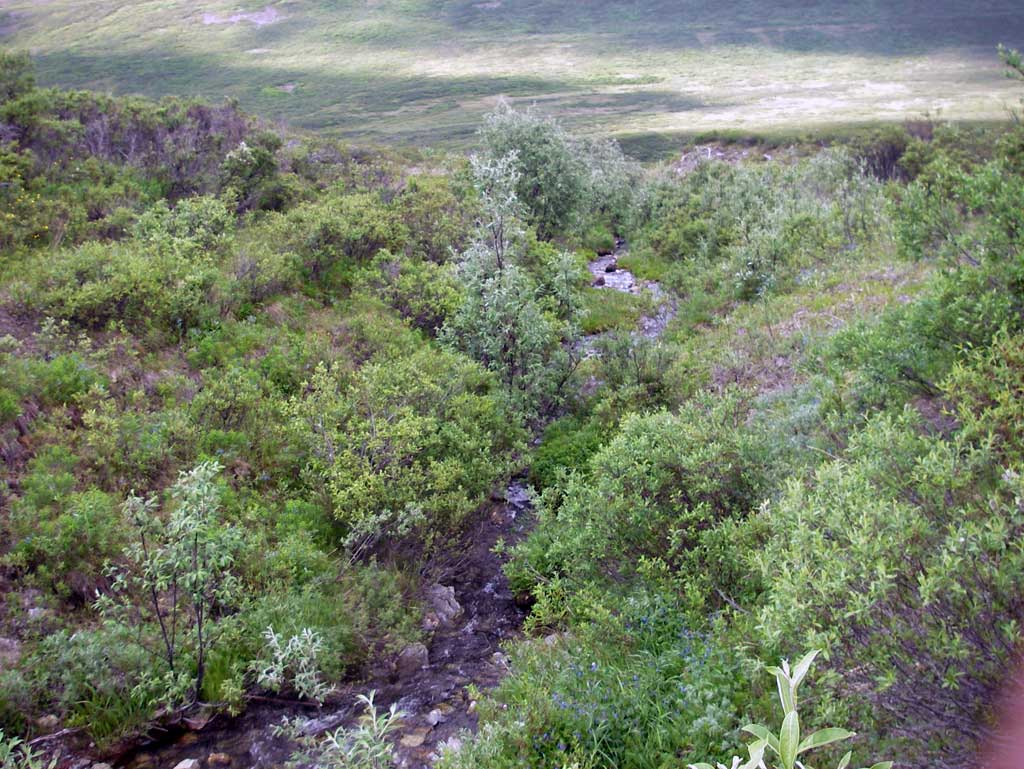

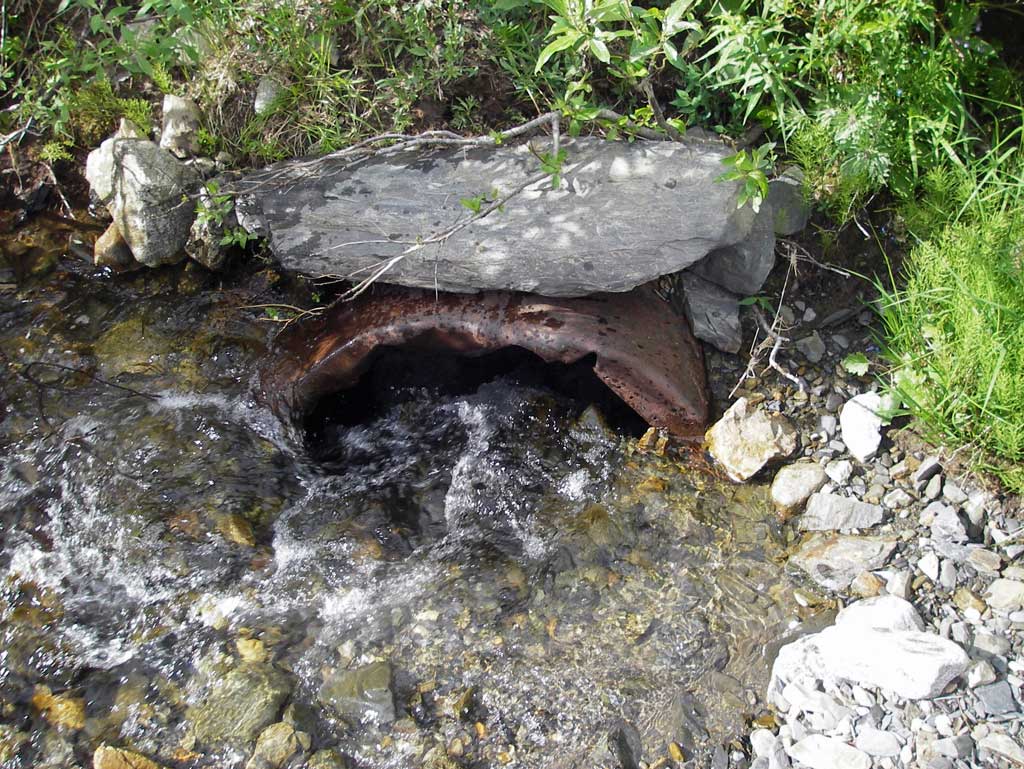

Comments: Culvert is on a small tributary draining an upland area of mountain hillside. Inlet is greater than 75% plugged with rocks creating a hydraulic jump in pipe near inlet of about 2'. Culvert sags in middle and inlet and outlet both partially crushed.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Non-corrugated metal) Fish Passage Rating: Red

Length(ft): 40.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 1
Approach Angle: 9.0
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.25 3.25
Height(ft):1.1 0.3
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.2
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.8

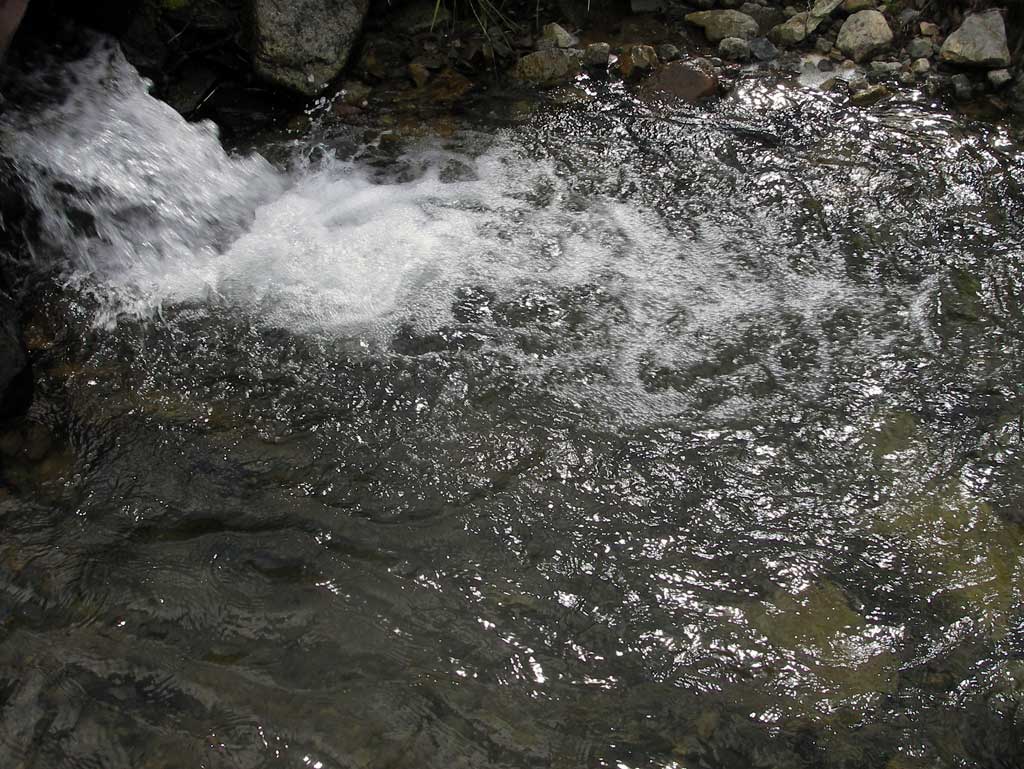

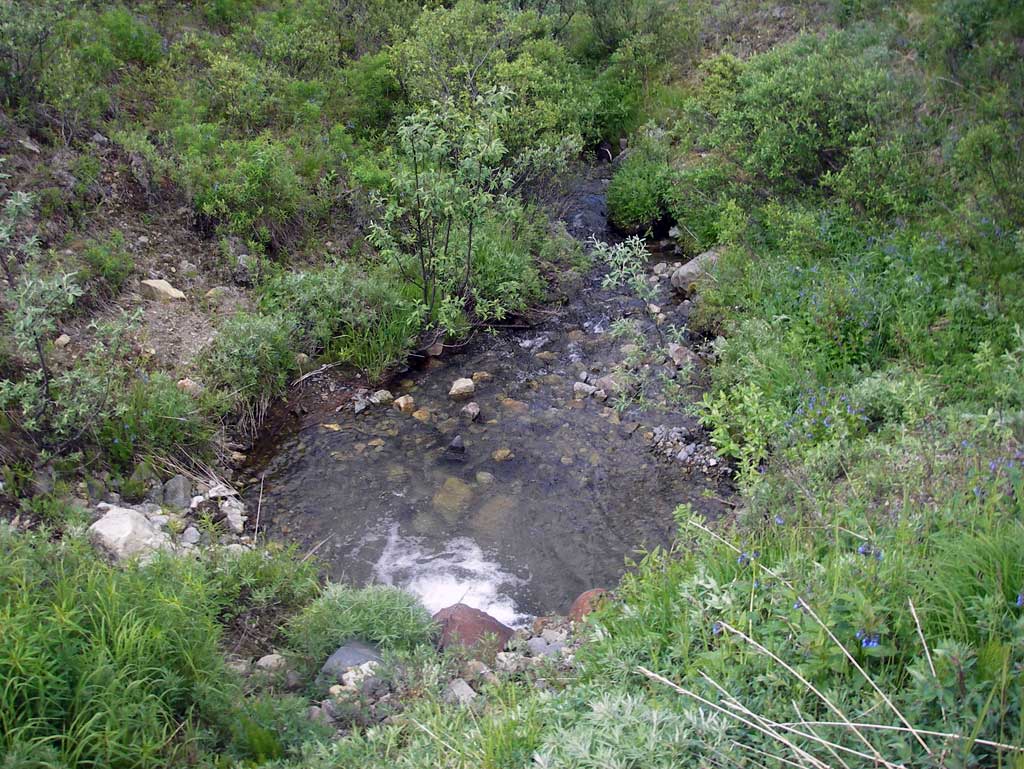

Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.5
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red
  2. Structural Problem
  3. Culvert sagging in middle
  4. Mechanical damage or joints parting

Stream Measurements

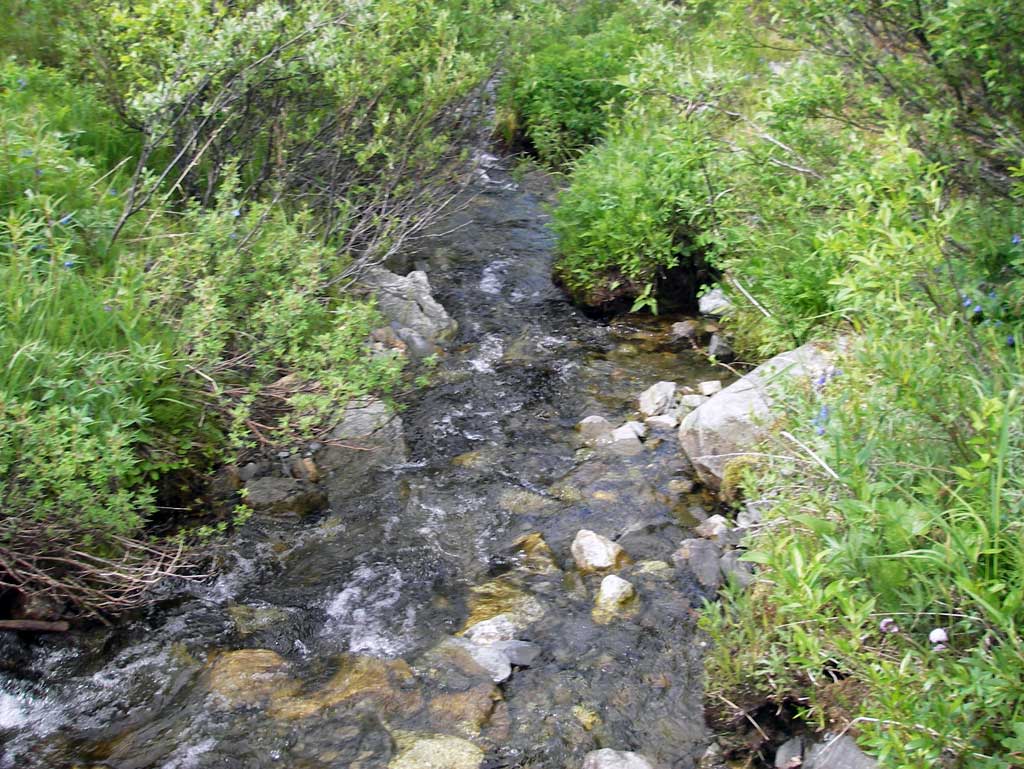

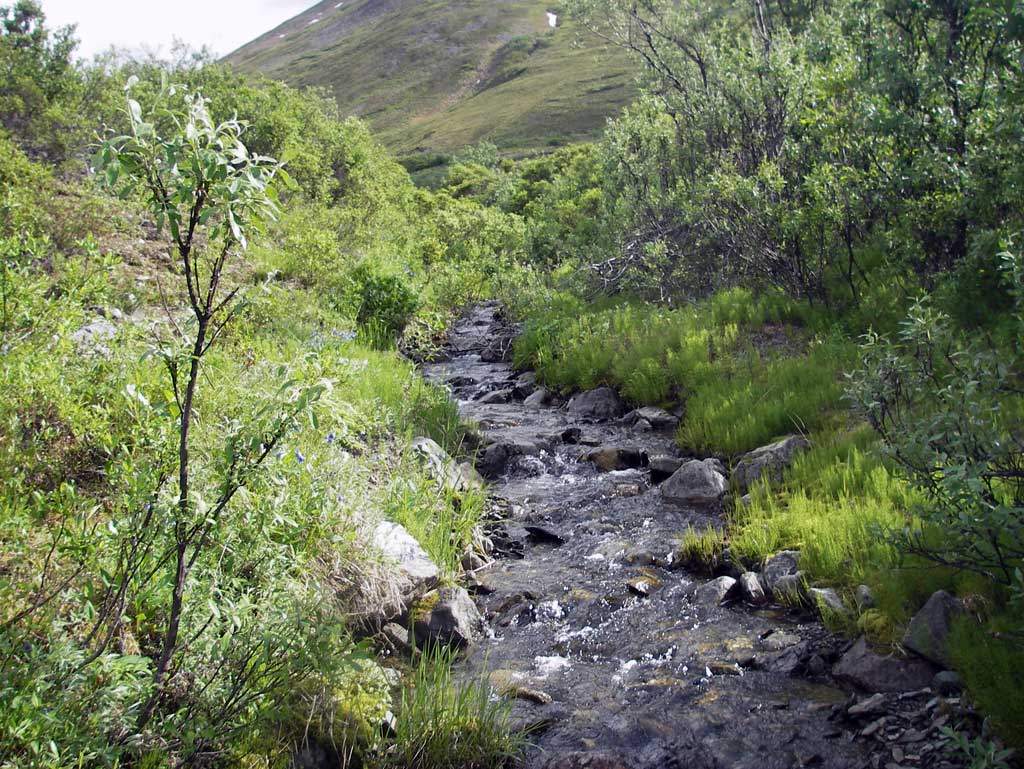

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:GravelBoulder
Stream Slope(deg.):
Stream Flow Stage:Low

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
