Fish Passage Site 20501508

Coordinates (dec. deg.): 62.35531°, -150.66957°
Legal Description: S026N008W12
Region: South Central
Road Name: Petersville Road

Datum: WGS84
Quad Name / ITM: Talkeetna B-2
AWC Stream #:
Stream Name: Twentymile Creek tributary

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-1508

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

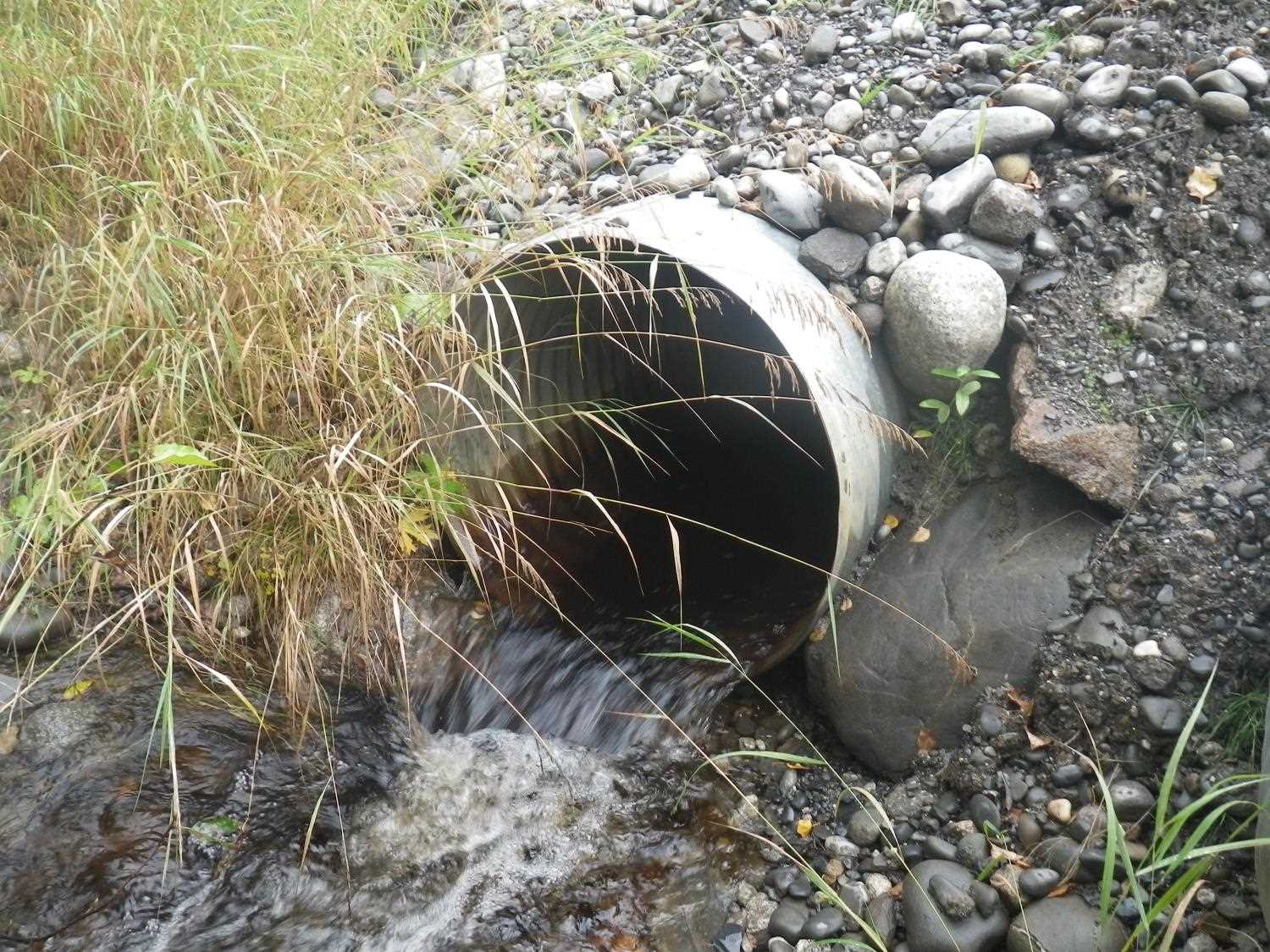

  2. Inlet perch

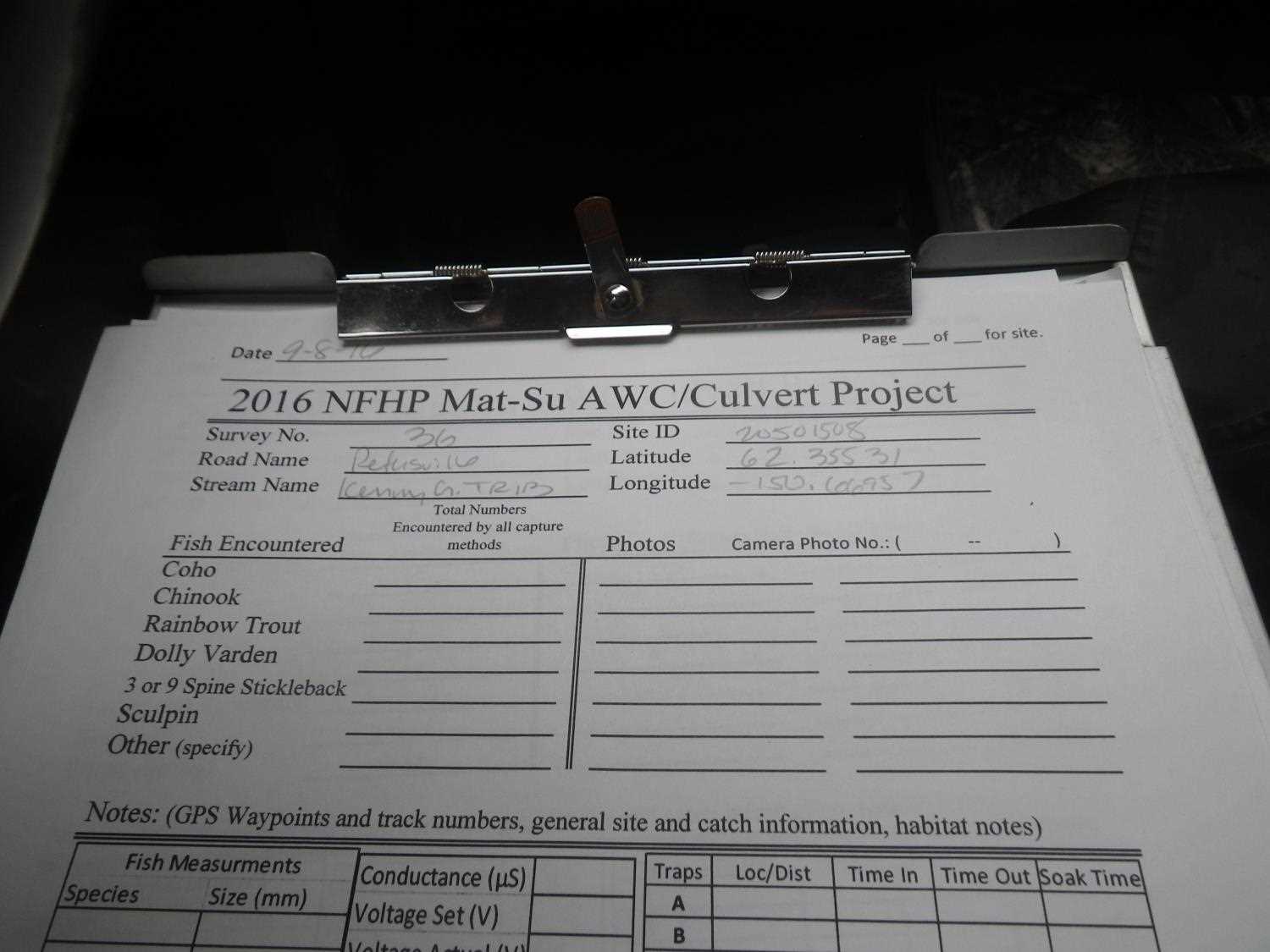

Comments: Site visit 9/8/16 as part of the Sampling Unmapped Streams in the MSB project. Upon inspection it was determined that this site had been replaced since the 2009 assessment. Site visit photos added here. Fish information in AFFI. Site has been marked for full reassessment. Culvert has red outfall and looks to have a very steep gradient. Culvert rated Red.

Culvert Measurements

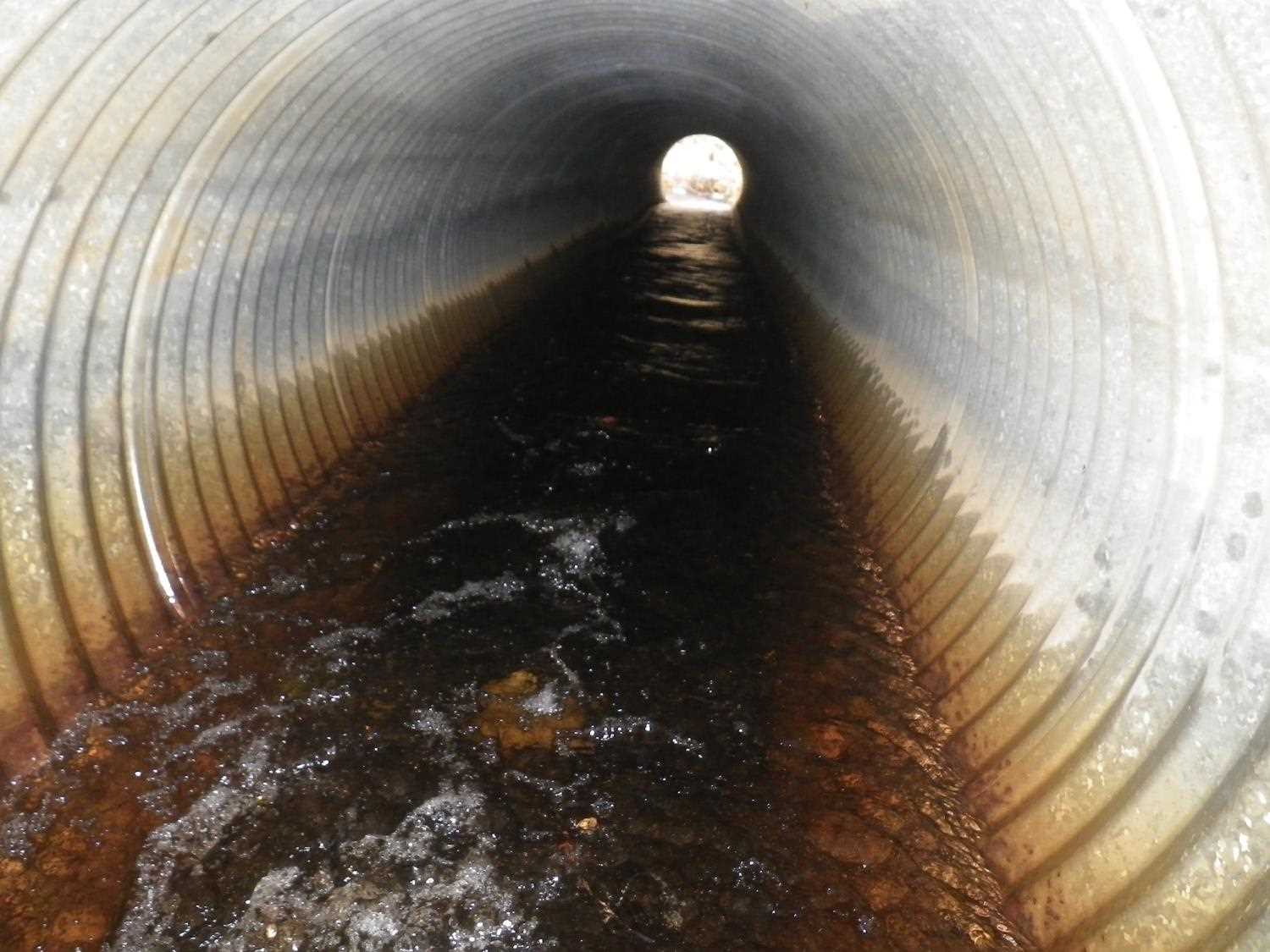

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

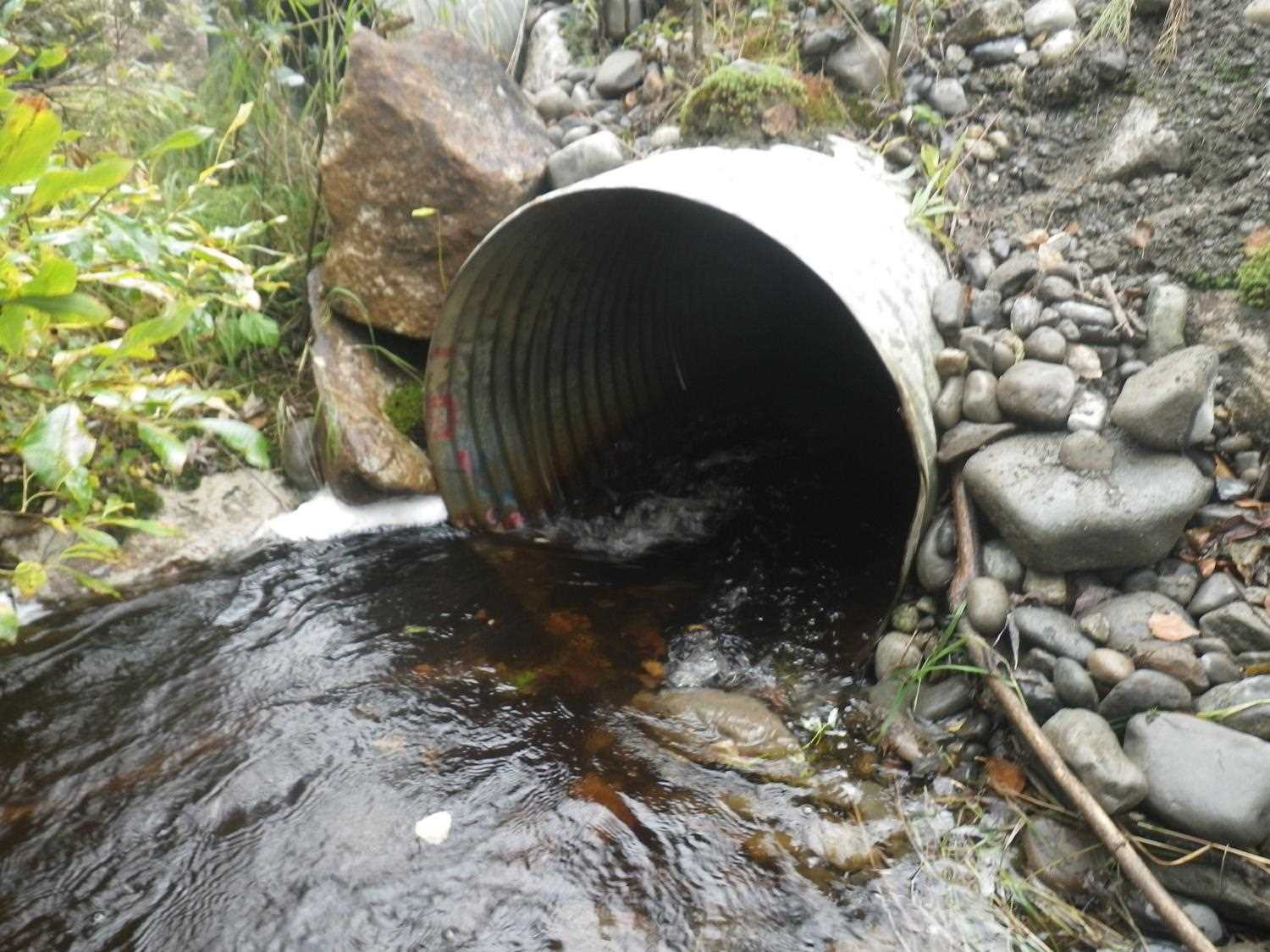

Comments: Outfall greater than 4 inches. Culvert also looks to have a steep gradient.
  Culvert Observations:
  1. Outfall height red
  2. Inlet perch

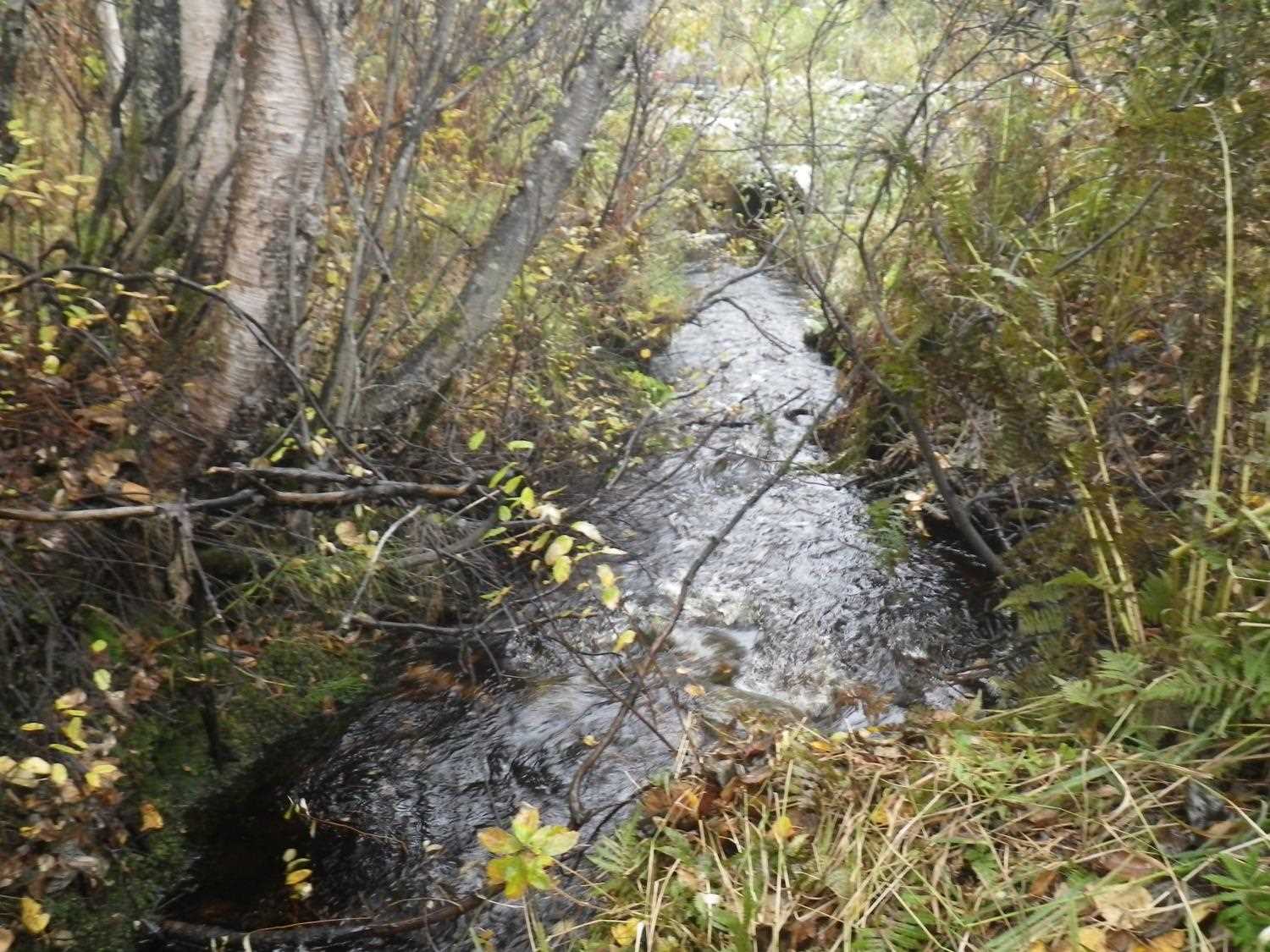

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
