Fish Passage Site 20501504

Coordinates (dec. deg.): 62.38992°, 150.72342°
Legal Description: S027N008W34
Region: South Central

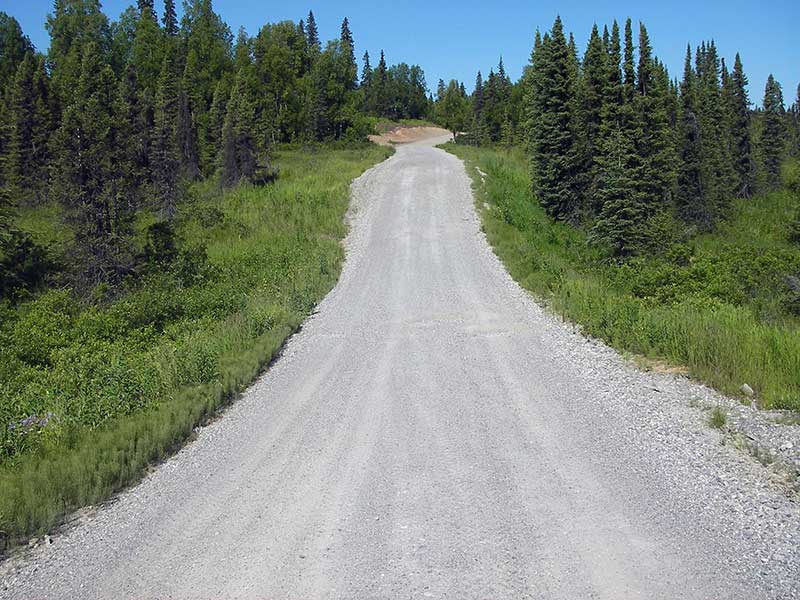

Road Name: Petersville Road

Datum: WGS84
Quad Name / ITM: Talkeetna B-2
AWC Stream #:
Stream Name: Peters Creek tributary

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey PRK09-PVR27

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Heidi Zimmer, Ben Histand

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Site Observations:

  1. Culvert gradient red
  2. Outfall height red
  3. Culvert is poorly aligned

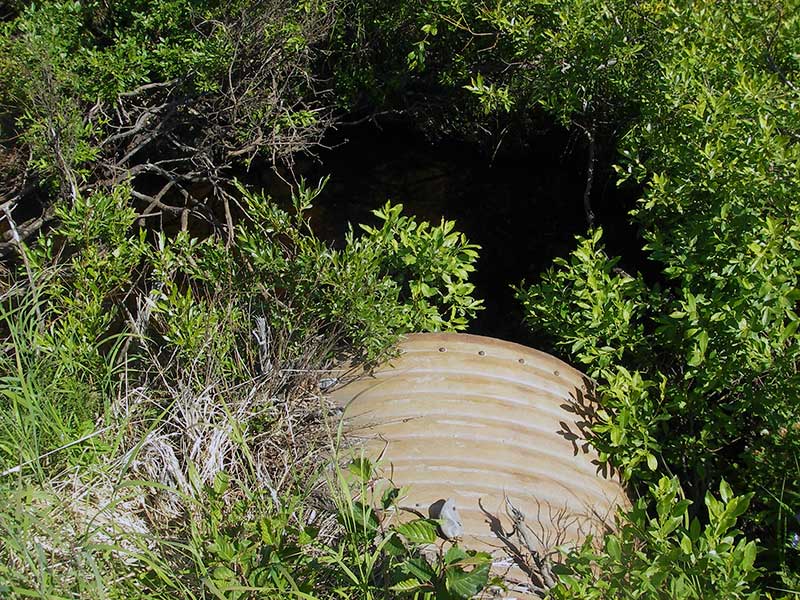

  4. Shallow fill; inadequate roadfill volume above culvert

Comments: None

Culvert Measurements

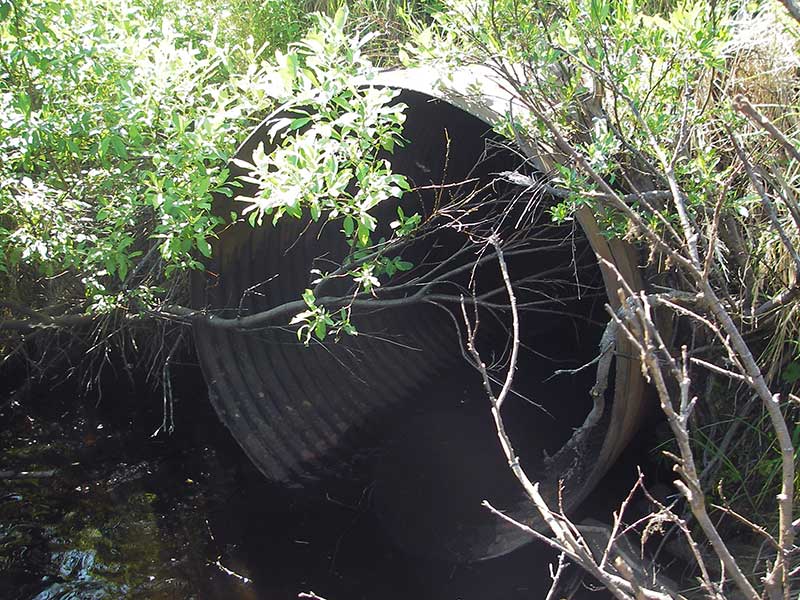

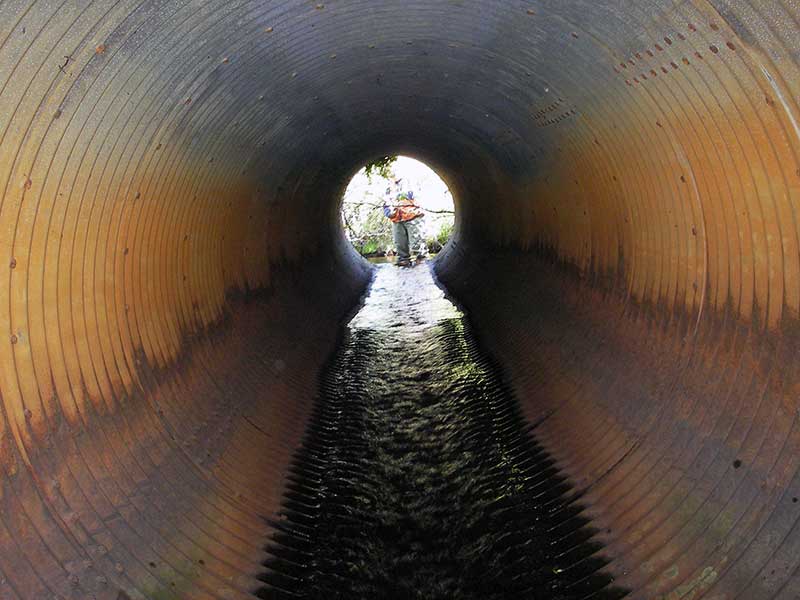

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 32.8
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle: 62.0
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):4.0 4.0
Height(ft):4.0 4.0
Apron Length(ft):
Water Depth(ft): 0.18
Rustline Height(ft):2.2
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.4
Outfall Type: Free Fall In To Pool
Constriction Ratio: 1.33
Culvert Gradient: 2.59%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red
  2. Outfall height red
  3. Culvert is poorly aligned
  4. Shallow fill; inadequate roadfill volume above culvert

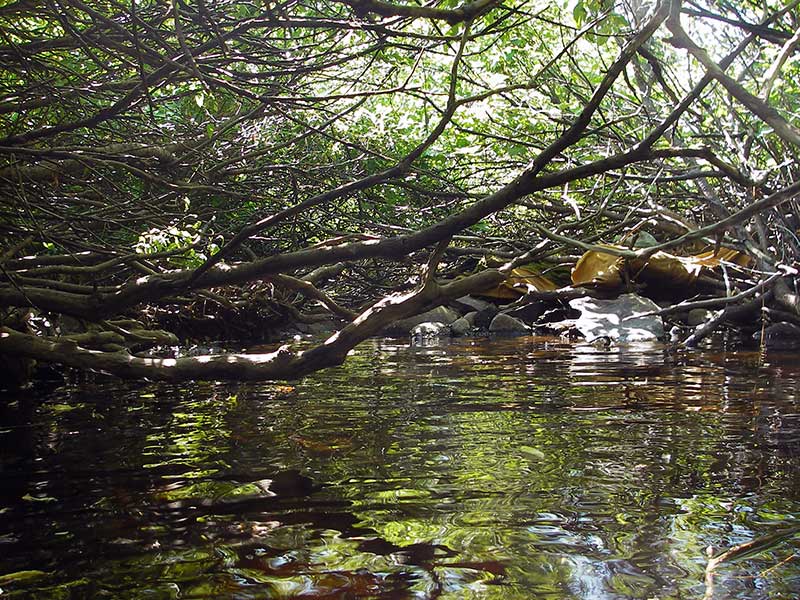

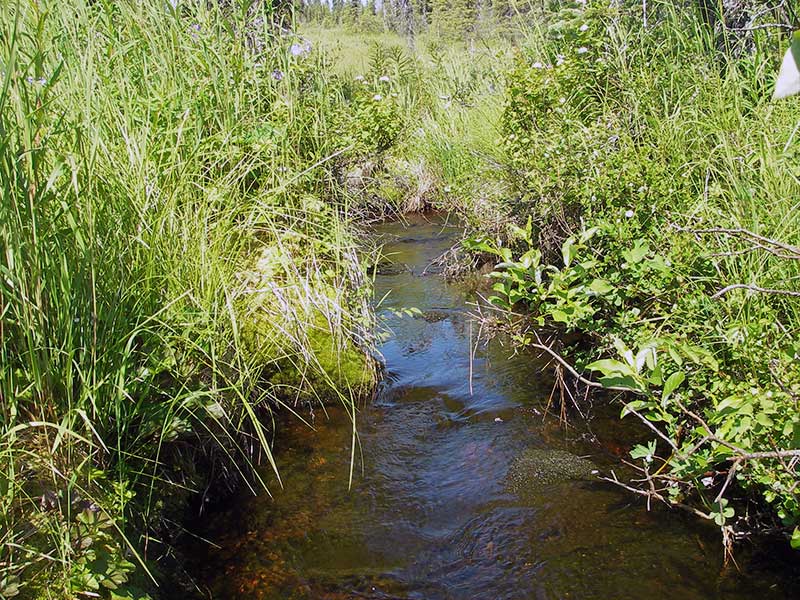

Stream Measurements

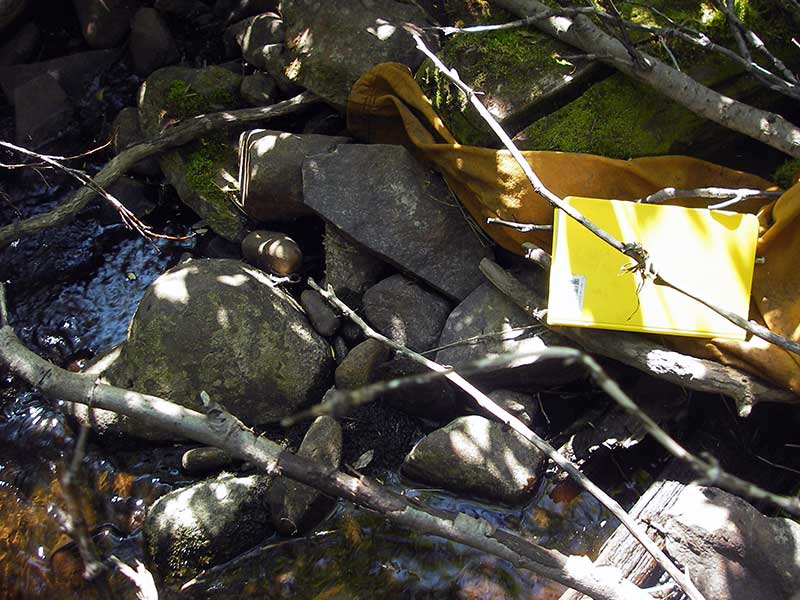

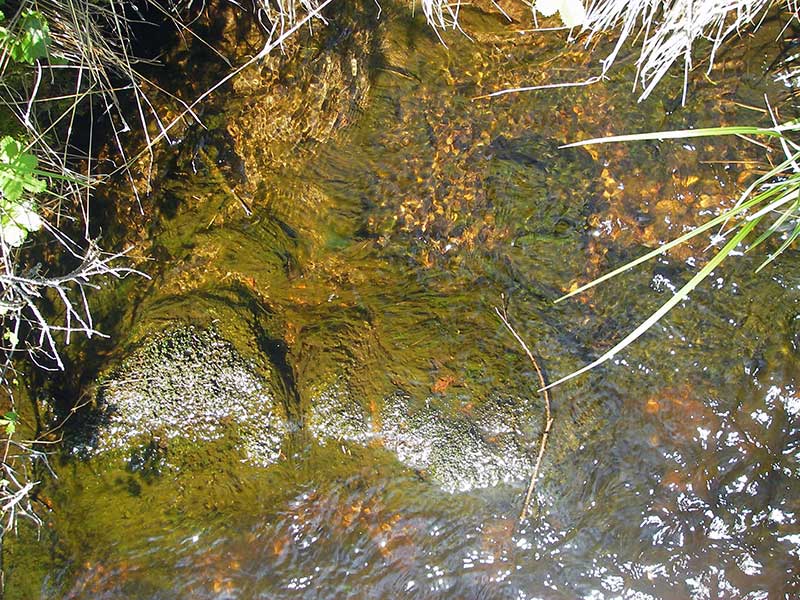

Stream SubstratesUpstreamDownstream
Dominant:CobbleSand
Subdominant:SandGravel
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 50.0 2.50
Upstream ordinary high water 105.0 3.00
Upstream ordinary high water 155.0 3.50

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Outlet Pool Water Elev 1 94.90
U/S Headwater (u/s is pool) 1 96.24
D/S Grade Ctrl (Thalweg) 1 0.00 31.0 93.92
D/S Water Surface Elev (WS @ GP) 1 0.00 31.0 94.14
D/S Tailcrest or 1st Thalweg 1 16.00 15.0 94.76
D/S Water Surface Elev (WS @ TWC) 1 16.00 15.0 94.90
D/S Thalweg (pool bottom) 1 26.00 5.0 93.47
D/S Thalweg (stream bed @ end of pipe) 1 31.00 0.0 94.42
Outlet Invert 1 31.00 0.0 95.12
Road Elev 1 47.00 102.02
Inlet Culvert Invert 1 63.00 0.0 95.97

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
