Fish Passage Site 20501430

Coordinates (dec. deg.): 61.58418°, -149.74304°
Legal Description: S017N003W12
Region: South Central

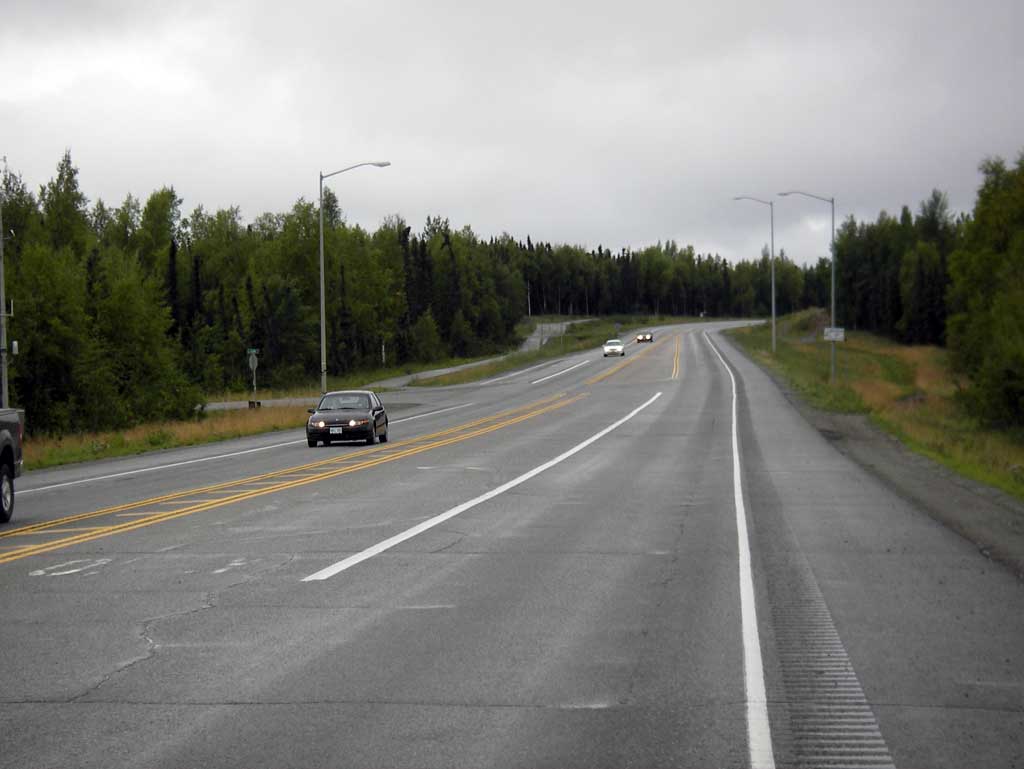

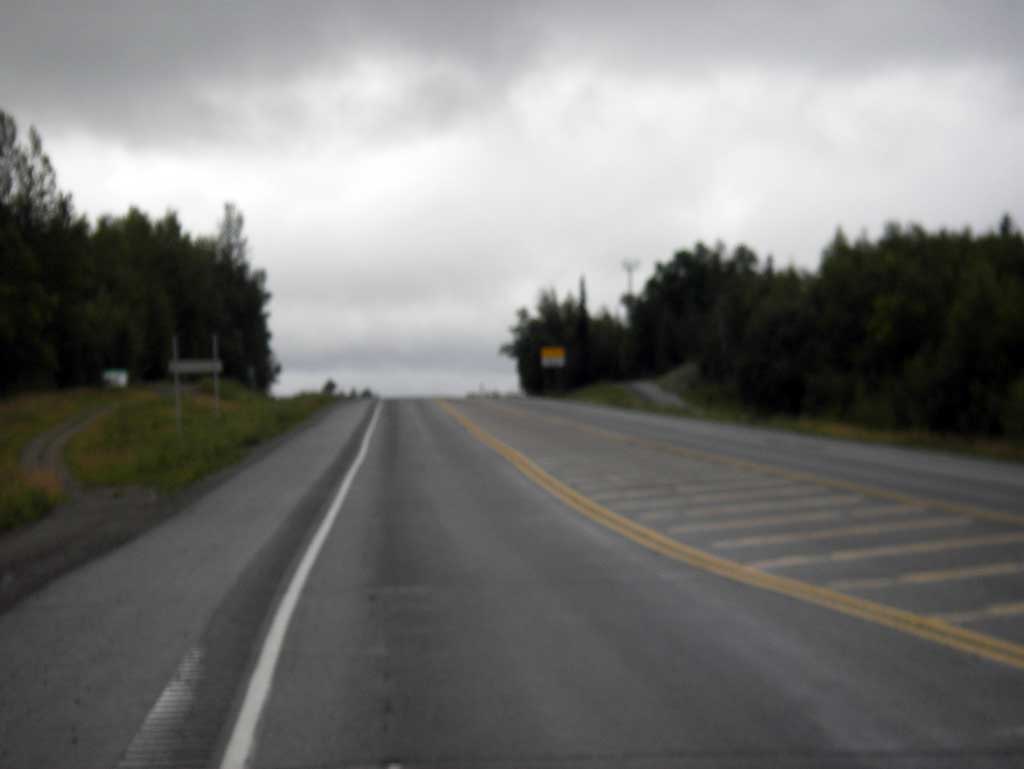

Road Name: PARKS HIGHWAY

Datum: NAD83
Quad Name / ITM: Anchorage C-8
AWC Stream #: 247-50-10330-2050-3025
Stream Name: Meadow Creek tributary

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB11-PRK09

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Site Observations:

  1. None of this type

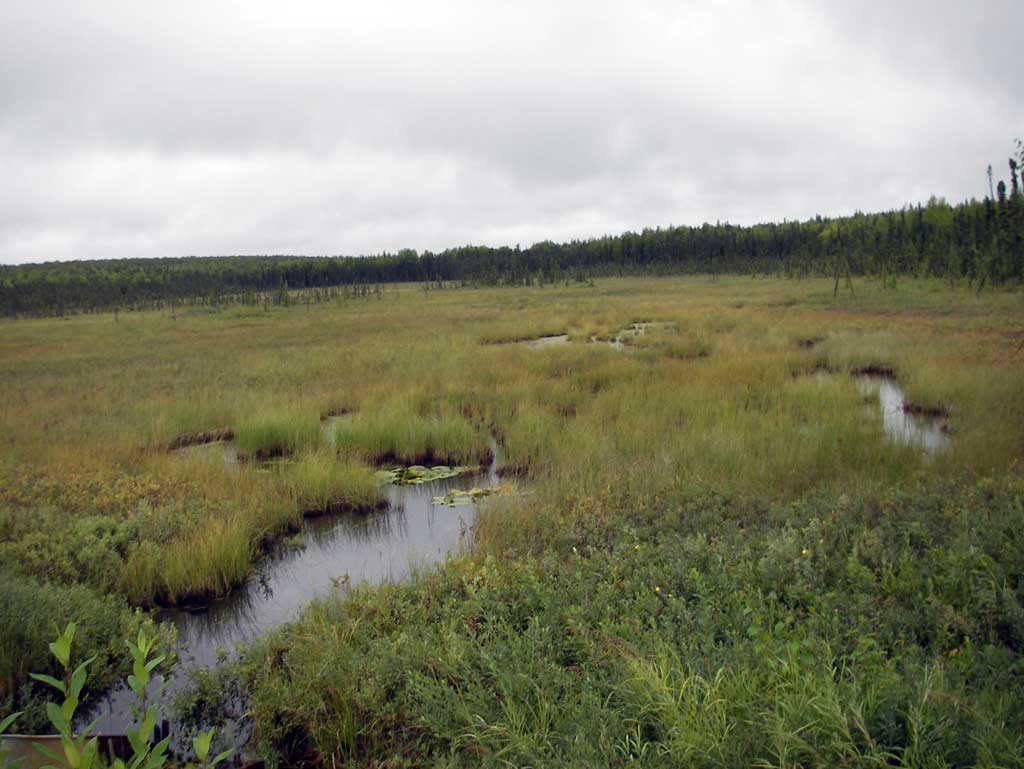

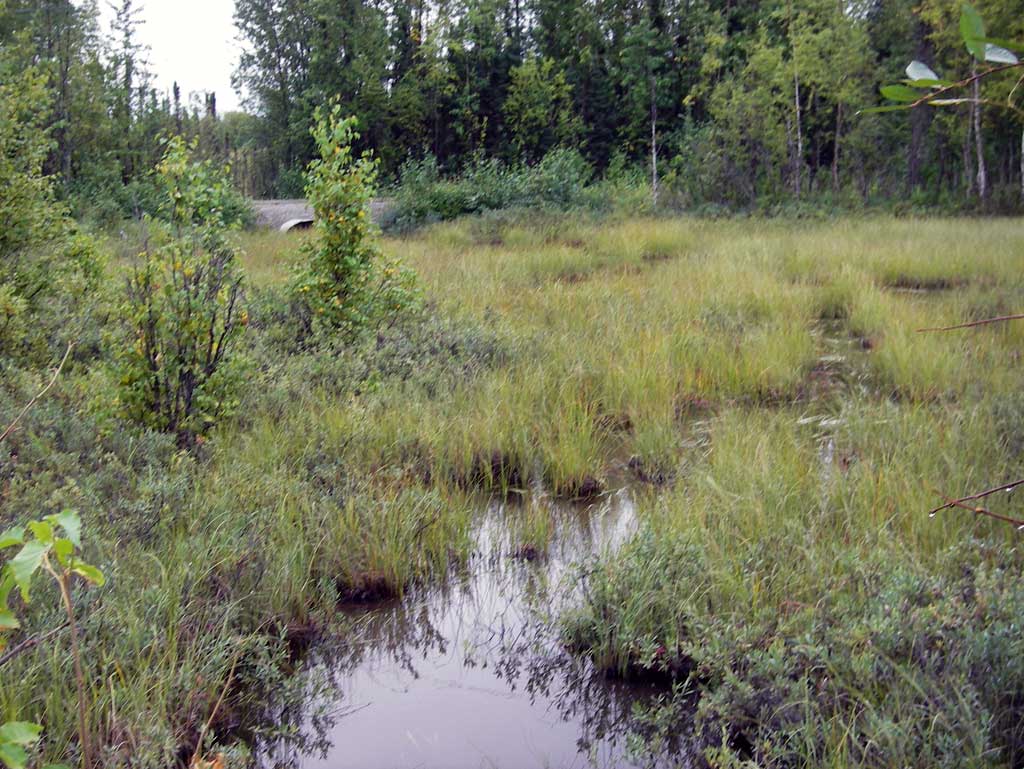

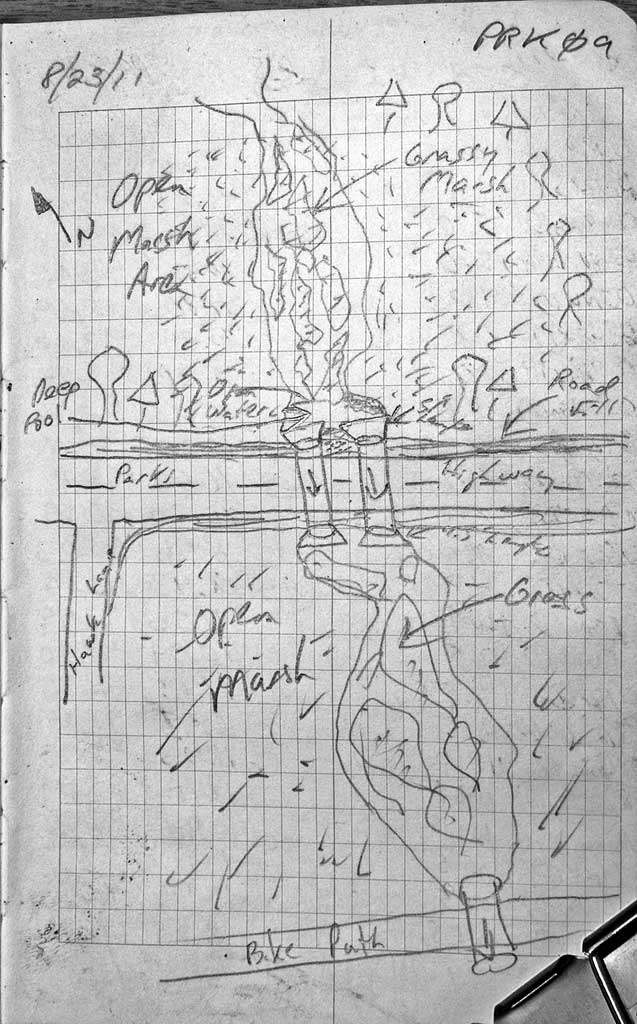

Comments: Marshland upst and dwst so no stream widths or gradients collected. Water surfaces throughout the pipes had very minimal change and was still so site was labeled backwatered. Culverts connect two flat slough flows within a marsh area.

Culvert Measurements

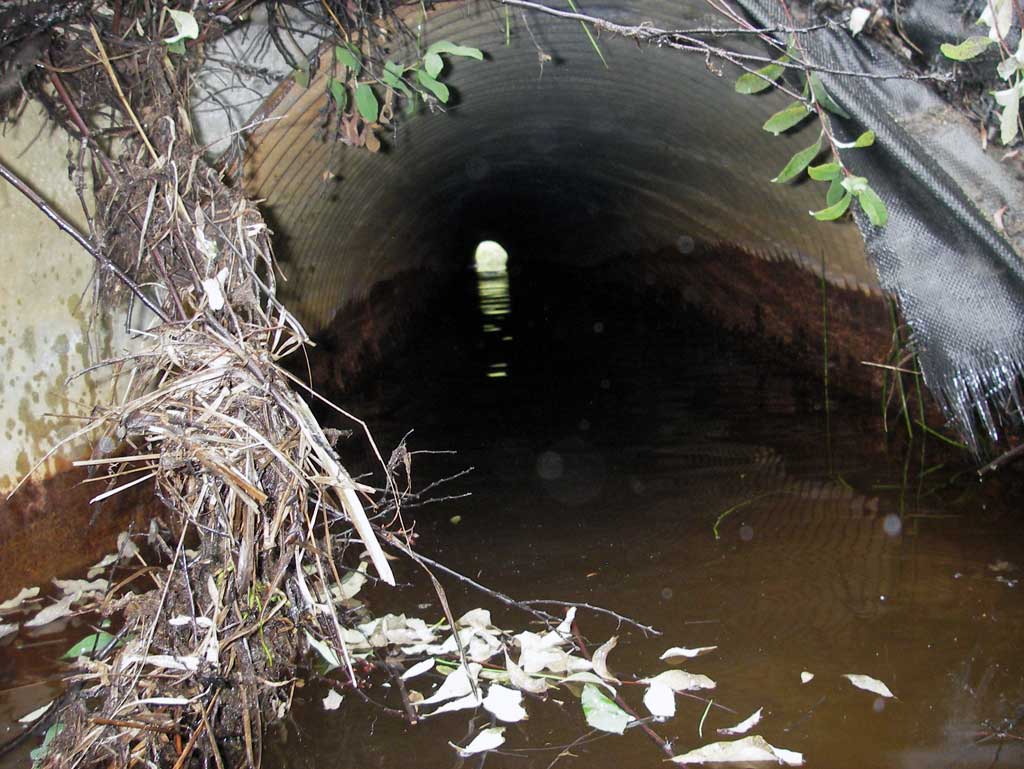

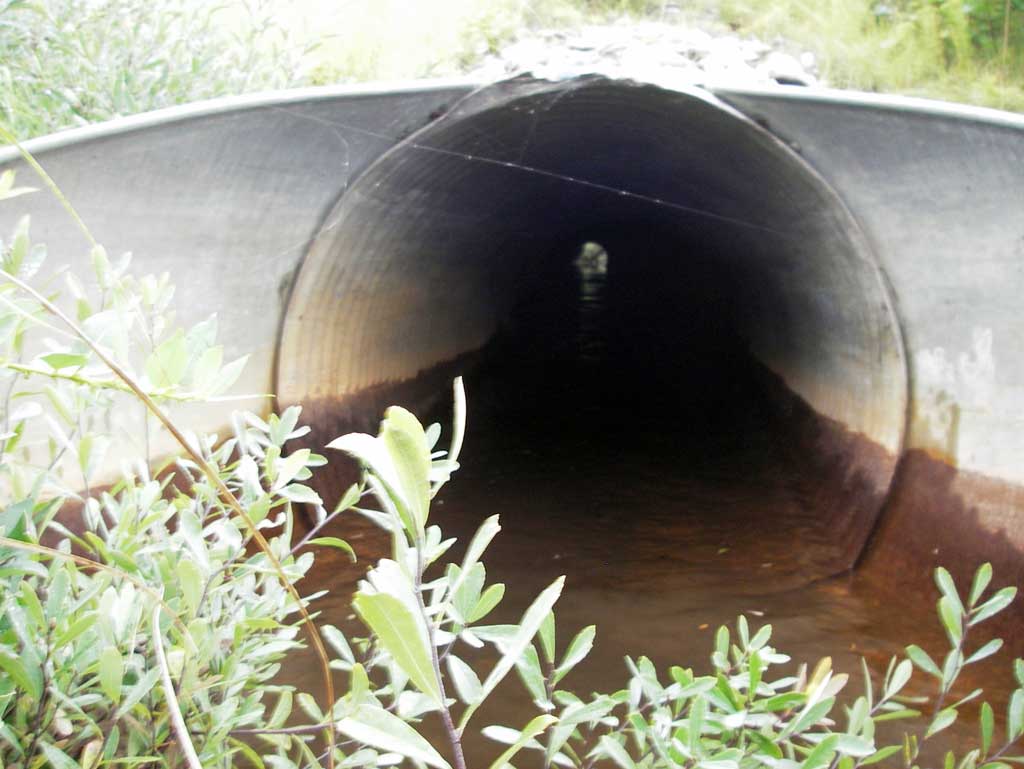

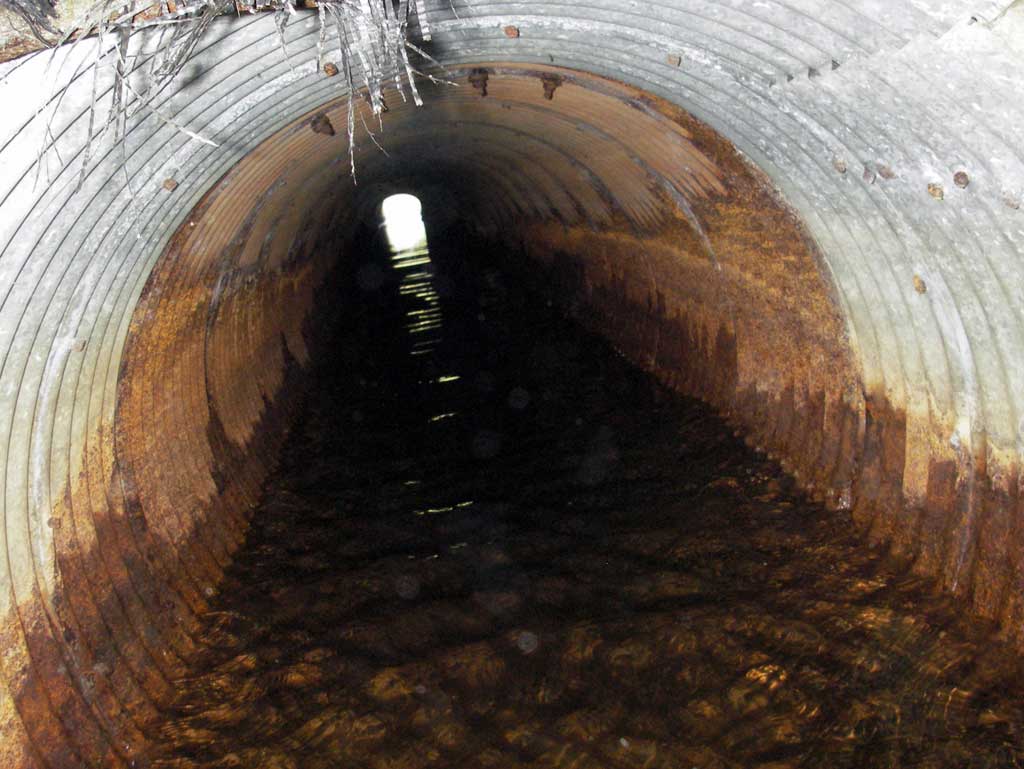

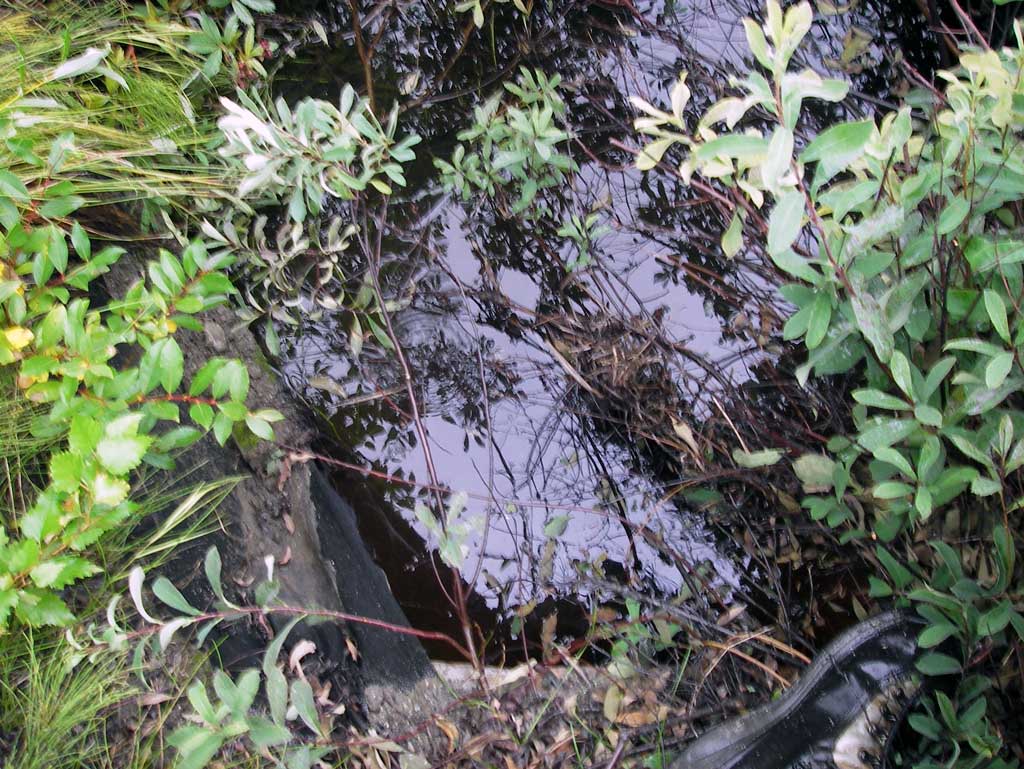

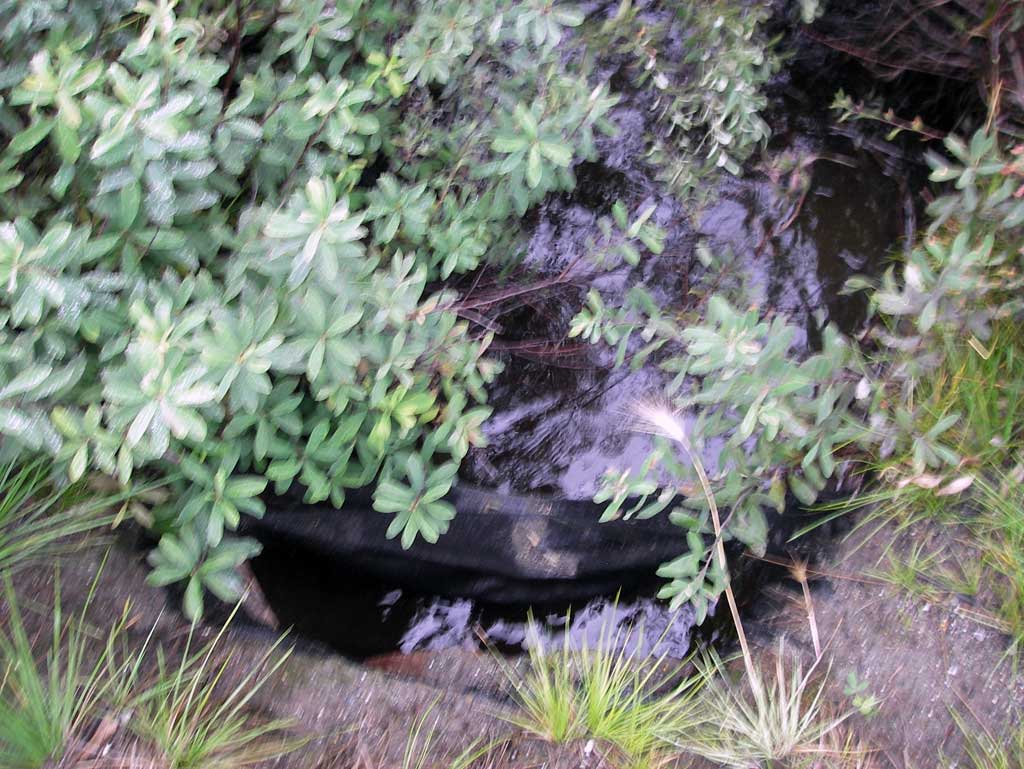

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 101.5

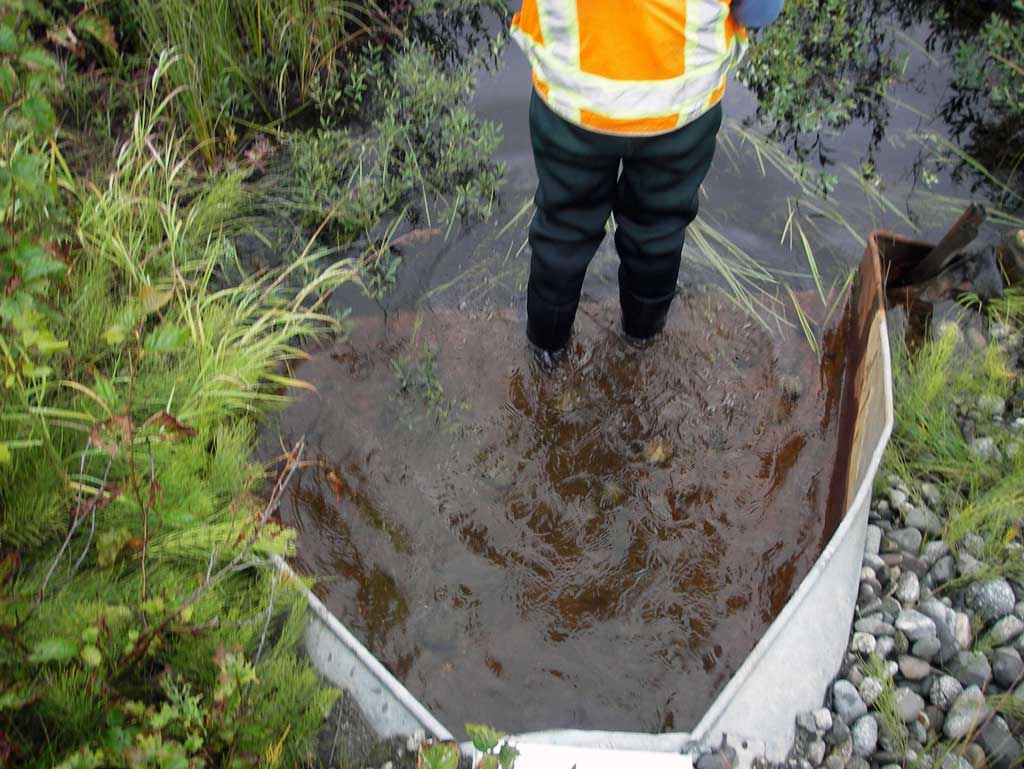

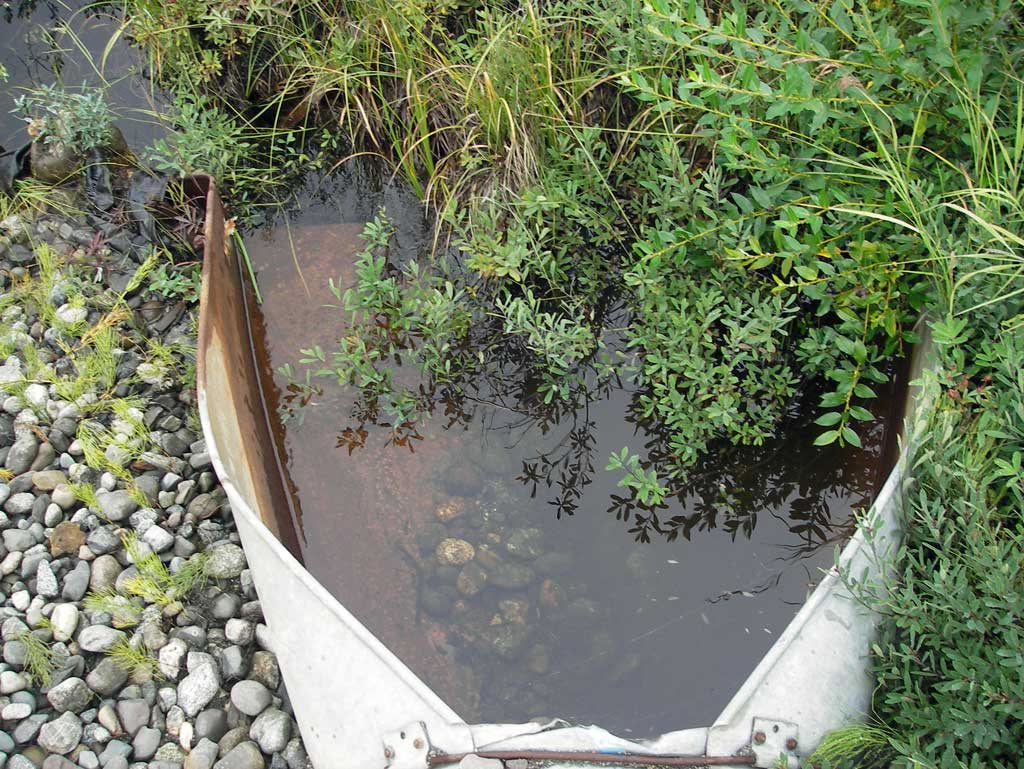

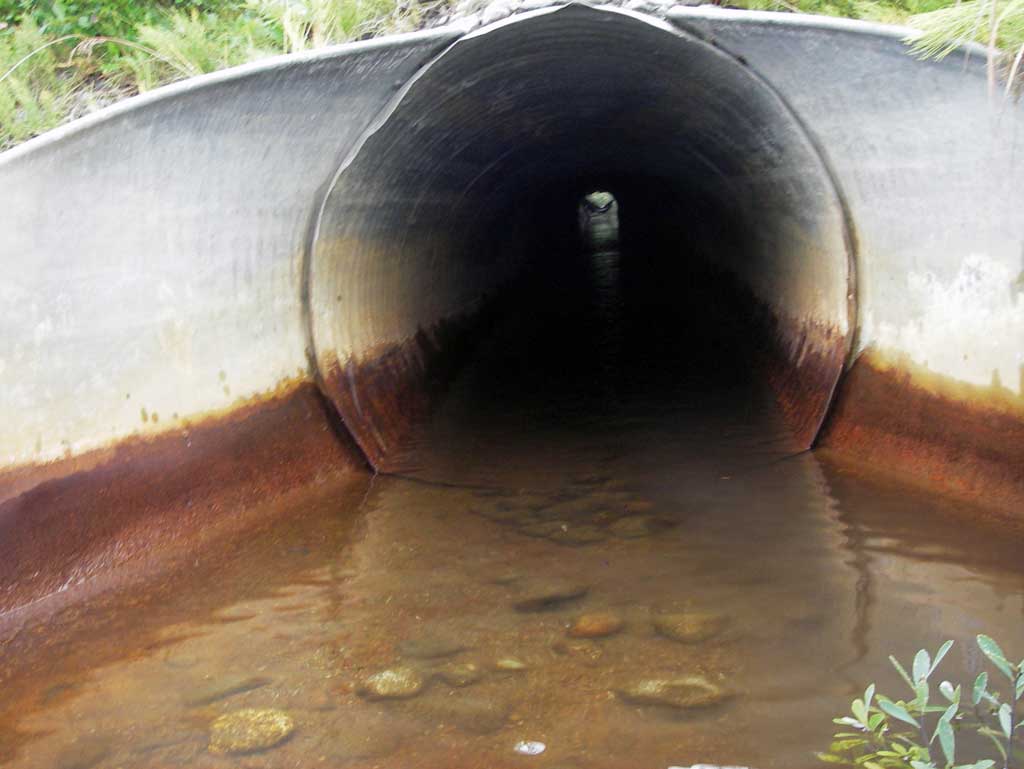

Inlet Type: Flared Inlet
Outlet Type: Flared Inlet
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 3
Approach Angle: 6.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: Silt/Clay
InletOutlet
Width(ft):3.0 3.0
Height(ft):3.0 2.8
Apron Length(ft):5.0 4.5
Water Depth(ft): 0.99
Rustline Height(ft):2.0
Substrate Depth(ft):0.0 0.2
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 0.60%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. None of this type
ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 94.5
Inlet Type: Flared Inlet
Outlet Type: Flared Inlet
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 3
Approach Angle: 6.0
Sedimentation At Inlet: Yes
Inlet Substrate: Gravel
Outlet Substrate: Silt/Clay
InletOutlet
Width(ft):3.0 3.0
Height(ft):3.0 2.9
Apron Length(ft):5.0 4.5
Water Depth(ft): 0.89
Rustline Height(ft):2.0
Substrate Depth(ft):0.0 0.0
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 0.54%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg (Dwst profile point) 0.00 92.45
D/S Water Surface Elev (Dwst profile point water surface) 0.00 93.68
D/S Water Surface Elev (End of outlet apron water surface on pipe 1) 1 5.00 93.68
D/S Water Surface Elev (End of apron water surface on pipe 2) 2 5.00 93.69
Misc. (Outlet end of apron invert on pipe 1) 1 5.00 92.83
Misc. (Outlet end of apron invert on pipe 2) 2 5.00 92.86
Outlet Invert (Outlet invert on pipe of pipe 1) 1 10.00 92.69
Outlet Invert (Outlet invert on pipe of pipe 2) 2 10.00 92.80
D/S Water Surface Elev (Outlet water surface elevation of pipe 2) 2 10.00 93.69
D/S Water Surface Elev (Outlet water surface elevation of pipe 1) 1 10.00 93.68
Top of Pipe Outlet (Outlet TOP of pipe 1) 1 10.00 95.48
Outlet Culvert Top (Outlet pipe 2) 2 10.00 95.73
Top of Pipe Inlet (Inlet pipe1) 1 10.00 96.06
Outlet Road Edge (Edge of Road) 10.00 100.00
Inlet Culvert Top (Inlet TOP of pipe 2) 2 104.50 96.24
U/S Water Surface Elev (Inlet water surface of pipe 2) 2 104.50 93.74
Inlet Culvert Invert (Inlet invert on pipe of pipe 2) 2 104.50 93.16
Misc. (End of inlet apron invert of pipe 2) 2 109.50 93.39
U/S Water Surface Elev (End of inlet apron water surface of pipe 2) 2 109.50 93.74
U/S Water Surface Elev (Inlet water surface of pipe 1) 1 111.50 93.70
Inlet Culvert Invert (Inlet invert on pipe of pipe 1) 1 111.50 92.99
Misc. (End of inlet apron invert of pipe 1) 1 116.50 93.36
U/S Water Surface Elev (End of apron inlet water surface of pipe 1) 1 116.50 93.74
U/S Thalweg (Tailcrest) (Upst shallow pool near culvert inlet) 117.00 92.76

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
