Fish Passage Site 20501421

Coordinates (dec. deg.): 62.06127°, -150.06006°
Legal Description: S023N004W29
Region: South Central
Road Name: PARKS Highway

Datum: NAD83
Quad Name / ITM: Talkeetna A-1
AWC Stream #: 247-41-10200-2230
Stream Name: Goose Creek

Elevation:

Site Comments: SUSITNA RIVER WATERSHED

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB11-PRK02

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Constriction ratio red

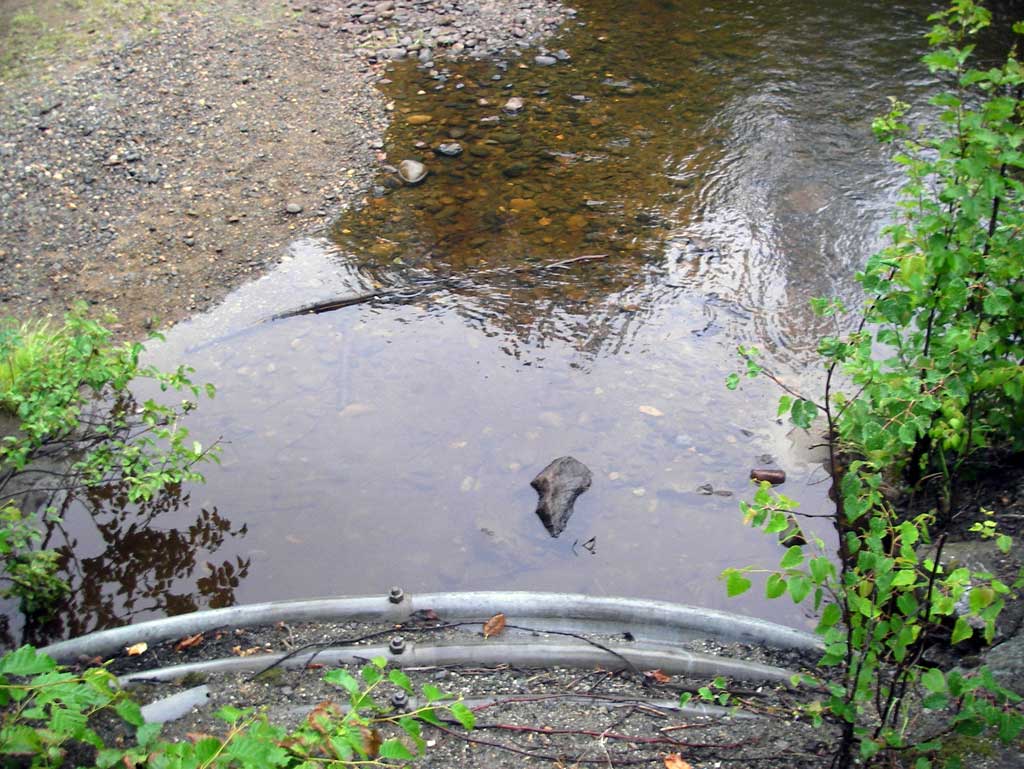

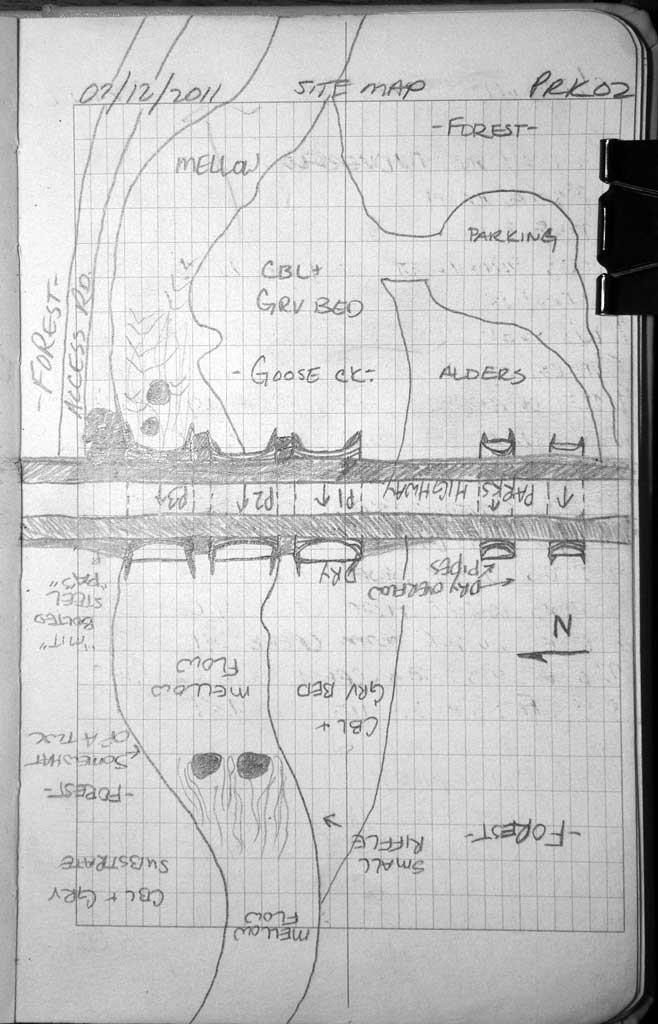

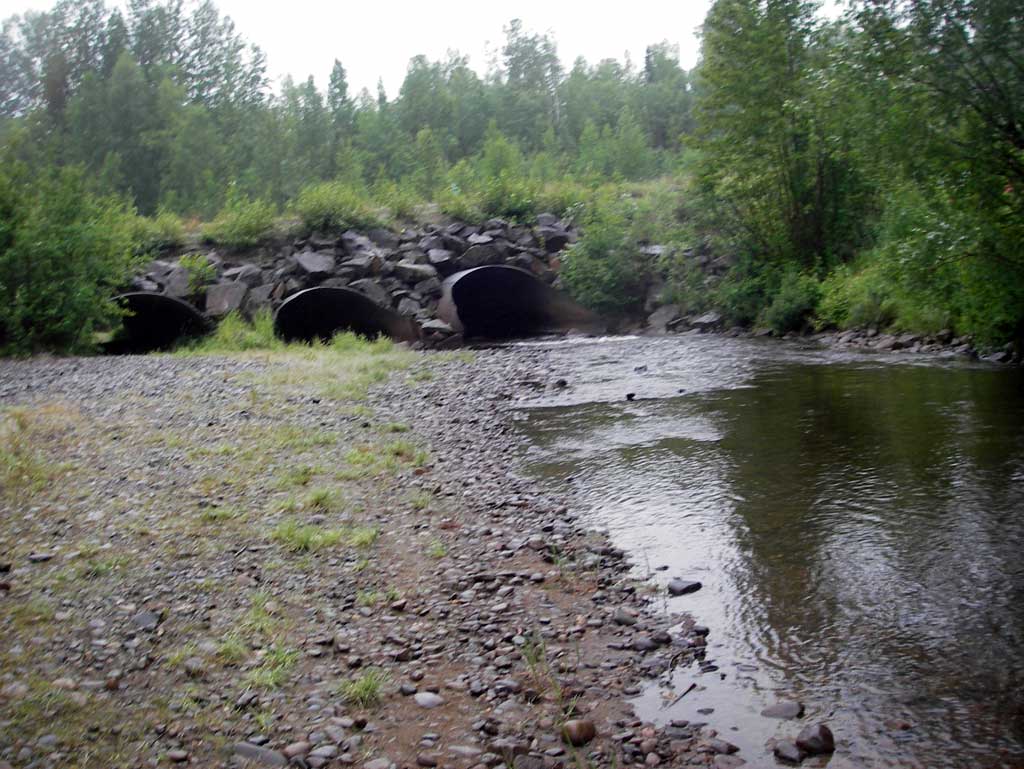

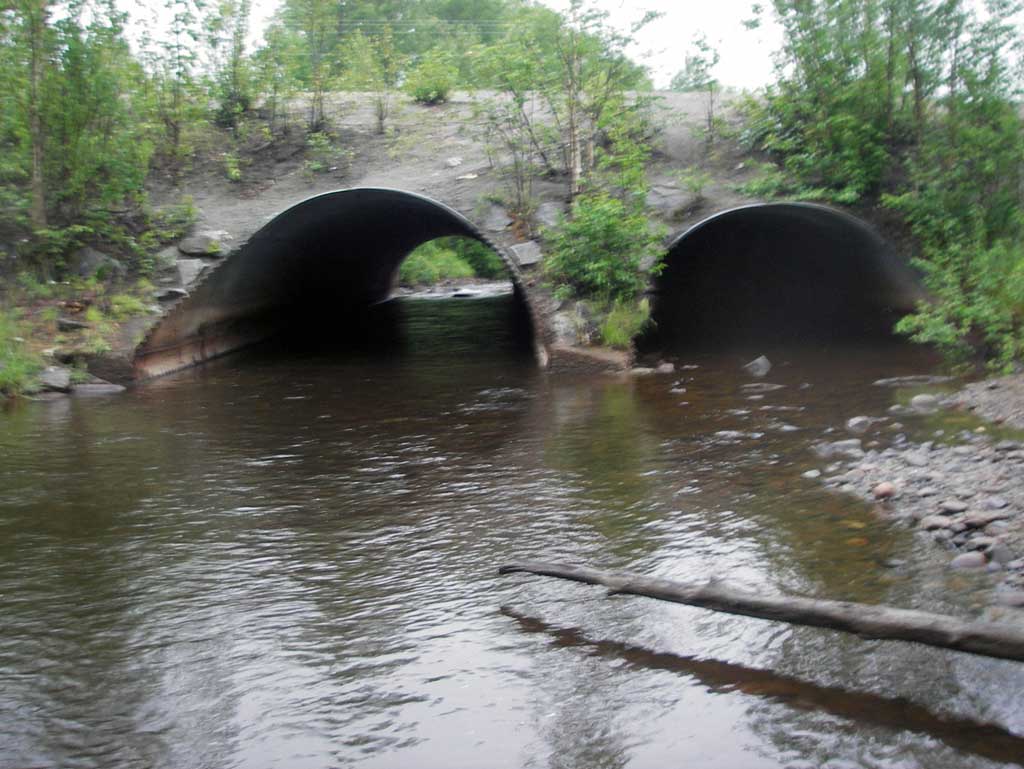

Comments: Three pipe arches with pipes 2 and 3 in the stream channel. Pipe 1 is located outside of the channel and dry with several feet of gravel and cobble embeddness. Two additional smaller pipes were located to the far left upstream side as your looking downstream well outside of the ordinary high water mark.

Culvert Measurements

ID: 1 Structure Type: Pipe-arch (Structural steel plate) Fish Passage Rating: Green

Length(ft): 115.92
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 3
Approach Angle: 25.0
Sedimentation At Inlet: Yes
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):15.0 15.0
Height(ft):6.55 6.65
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.0
Rustline Height(ft):1.5
Substrate Depth(ft):2.5 2.5
Backwatered?: No
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 2.5
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.0
Culvert Gradient: 0.38%
Max Slope:
Max Slope Length:

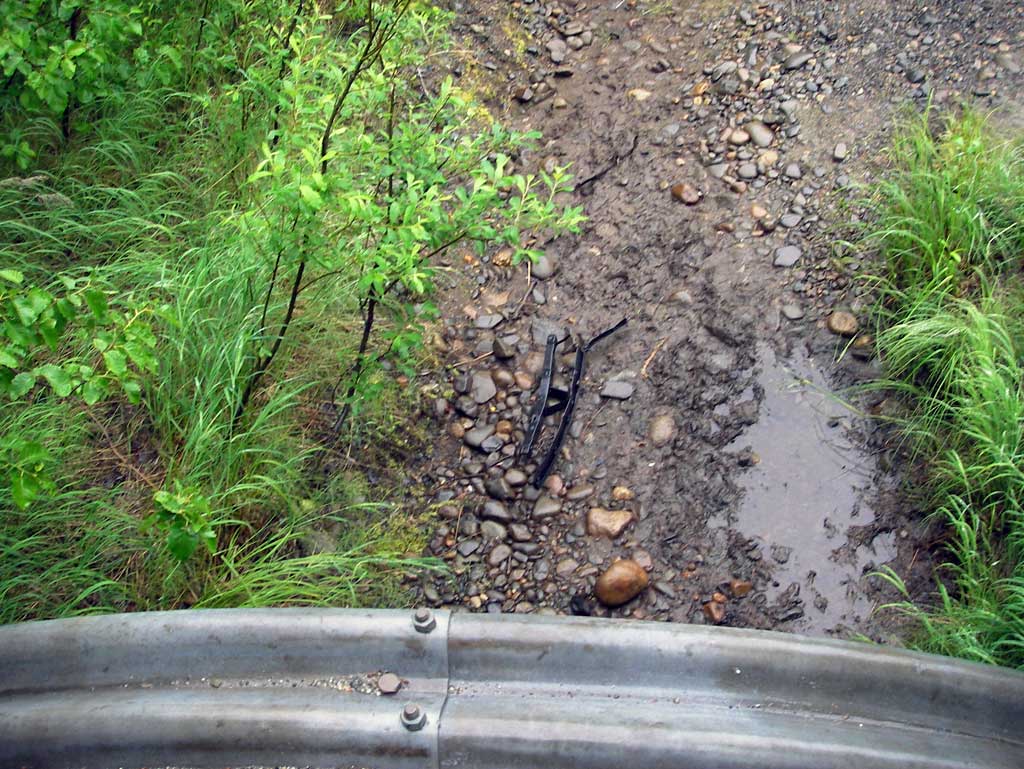

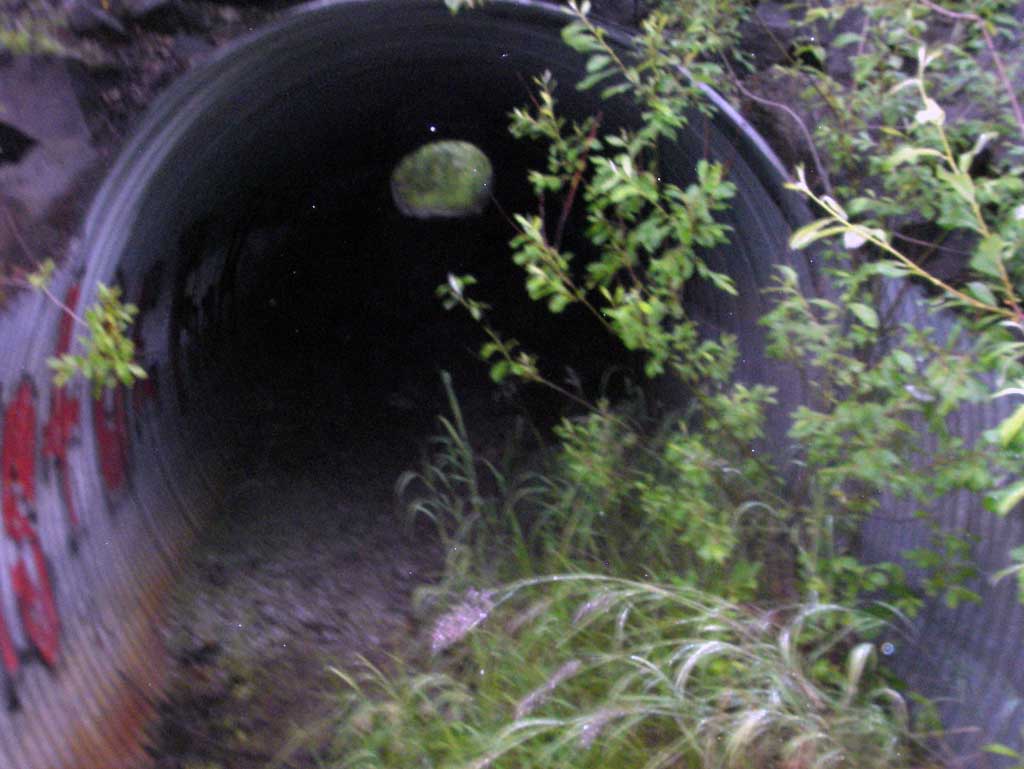

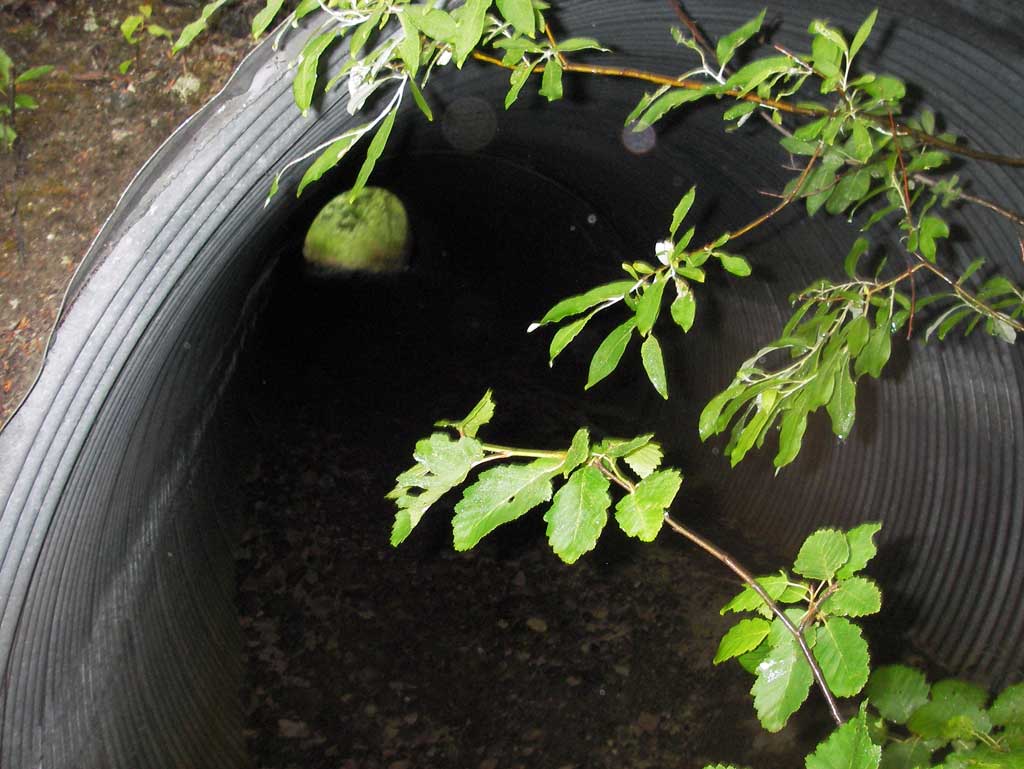

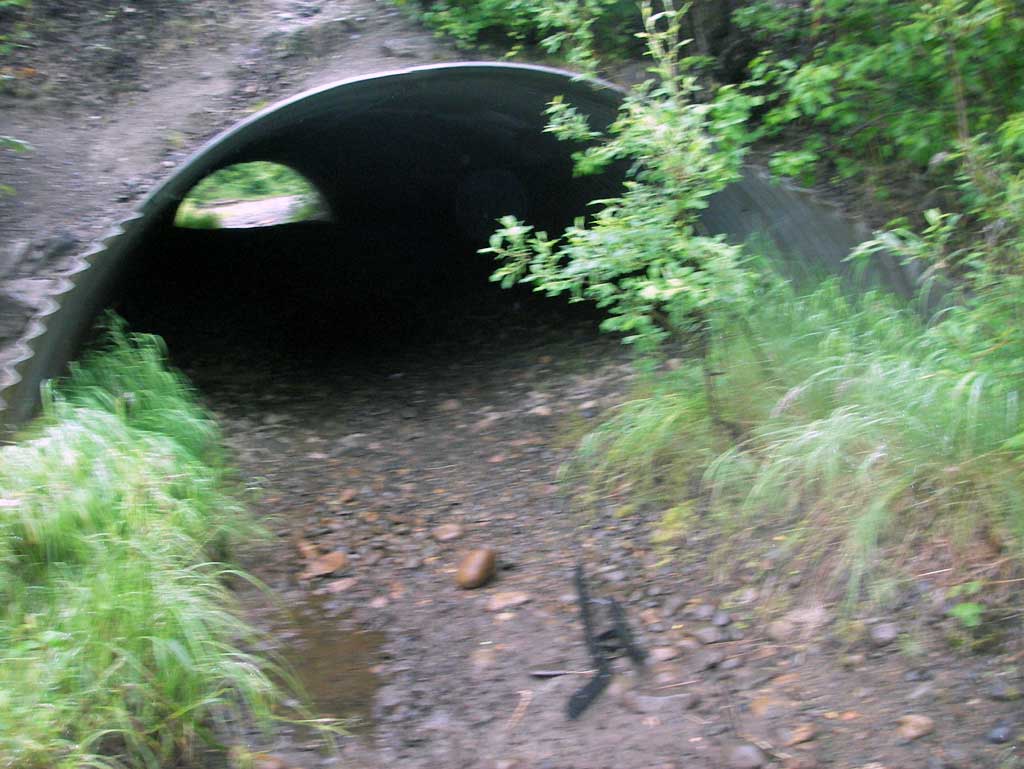

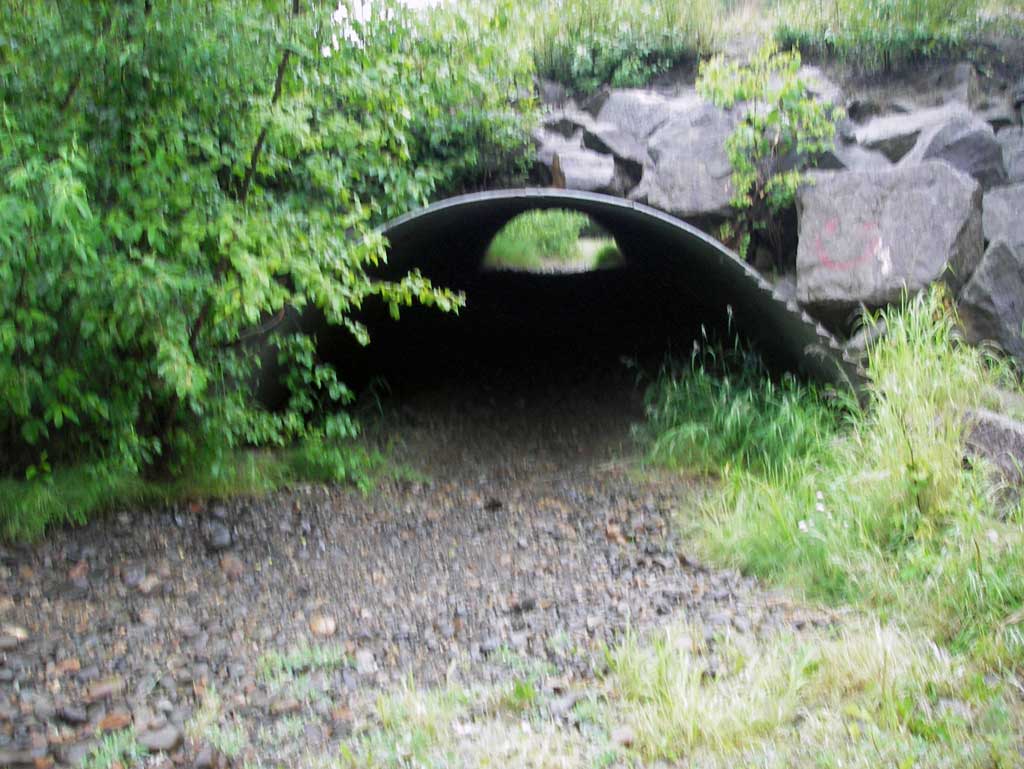

Comments: Pipe located on far left upstream side on a gravel bar outside of the stream channel and was dry with a thick substrate layer. All three pipes are located in a slight bend of creek and Pipe 1 is on the point bar side beginning to get buried.
  Culvert Observations:
  1. Constriction ratio red

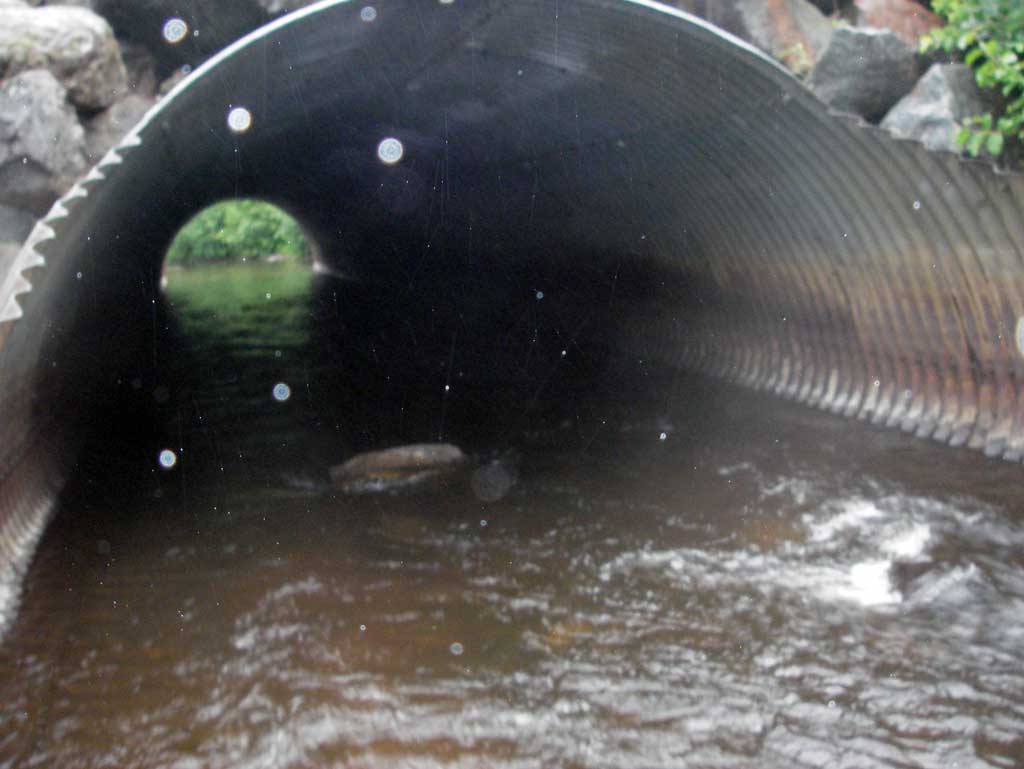

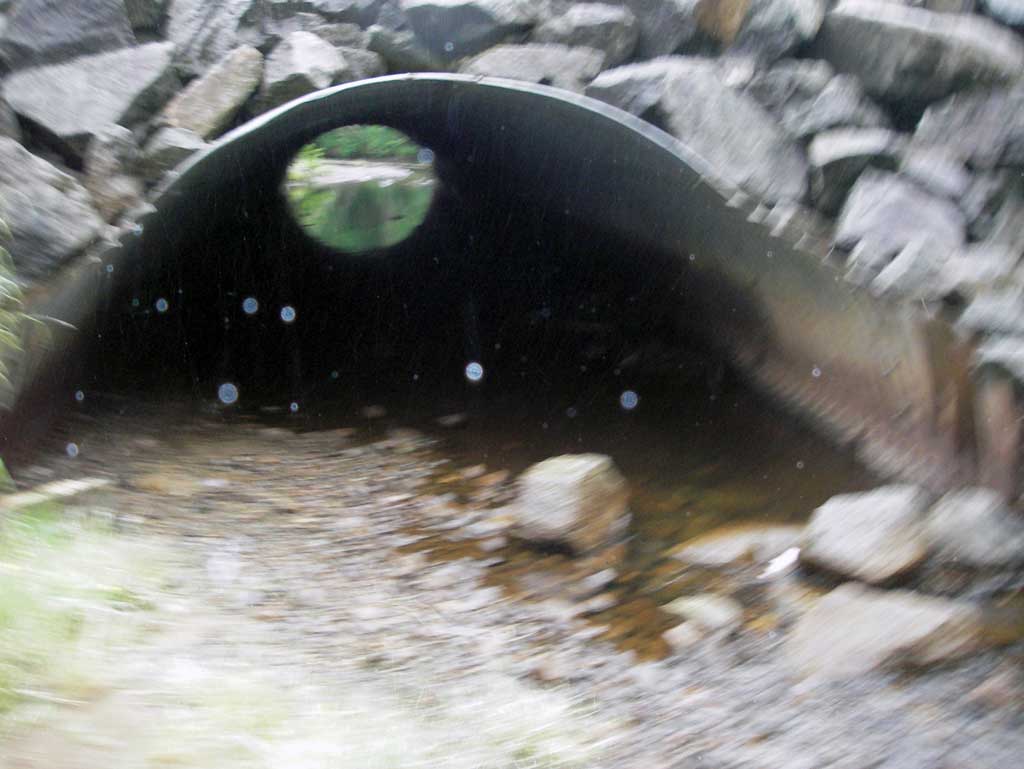

ID: 2 Structure Type: Pipe-arch (Structural steel plate) Fish Passage Rating: Green

Length(ft): 115.92
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 3
Approach Angle: 25.0
Sedimentation At Inlet: Yes
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):15.2 15.1
Height(ft):6.9 6.9
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.64
Rustline Height(ft):3.5
Substrate Depth(ft):1.0 1.0
Backwatered?: No
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 1.5
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.0
Culvert Gradient: 0.43%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Constriction ratio red

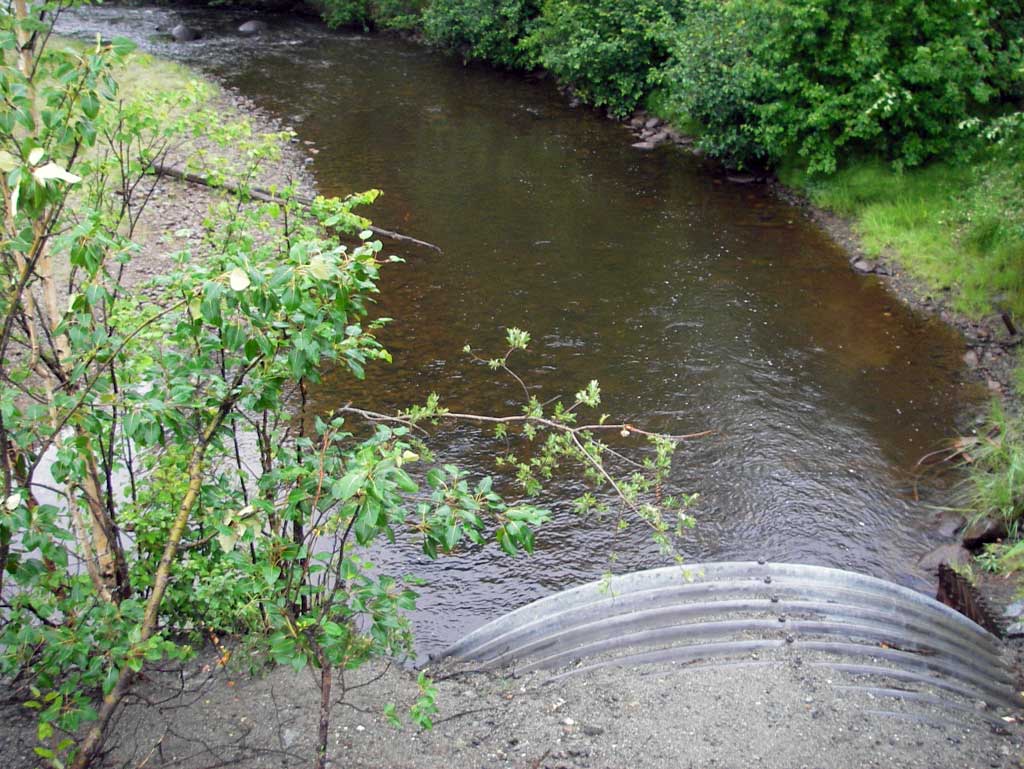

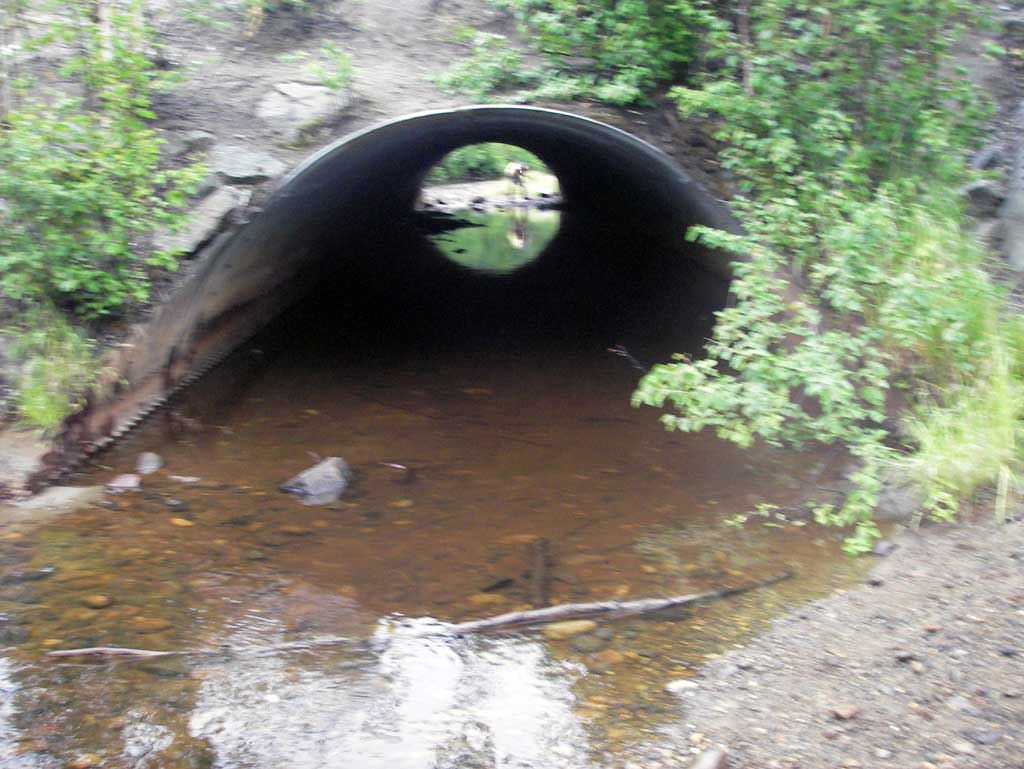

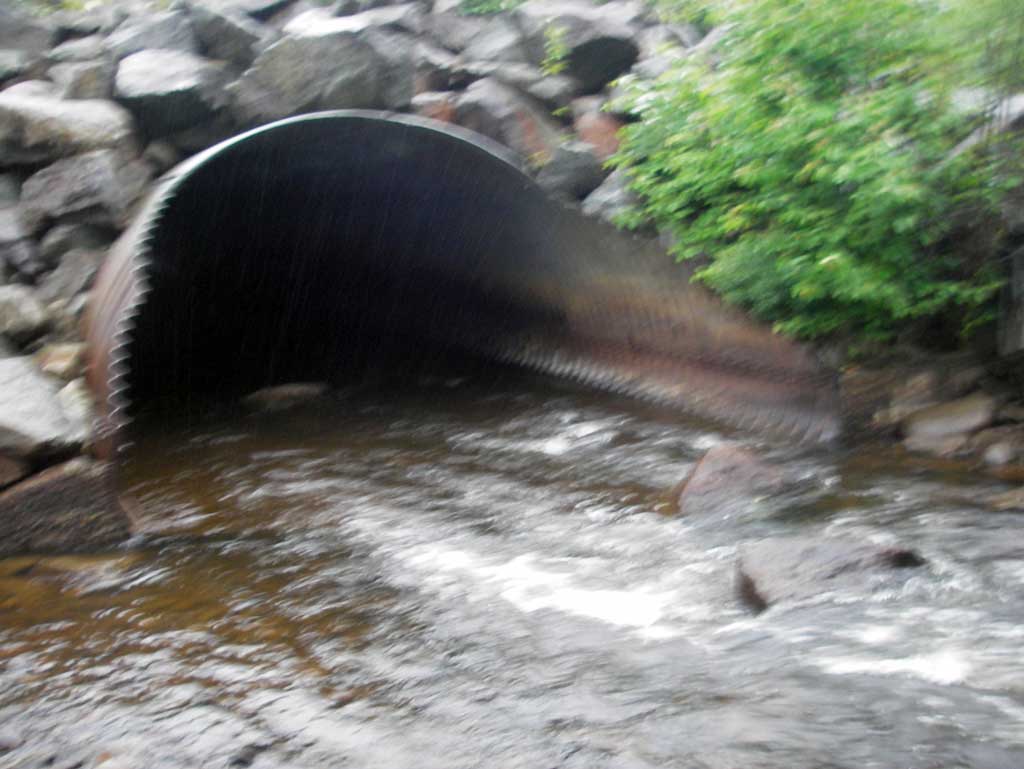

ID: 3 Structure Type: Pipe-arch (Structural steel plate) Fish Passage Rating: Green

Length(ft): 115.92
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 3
Approach Angle: 25.0
Sedimentation At Inlet: No
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):15.0 15.1
Height(ft):8.3 8.0
Apron Length(ft):0.0 0.0
Water Depth(ft): 1.53
Rustline Height(ft):4.0
Substrate Depth(ft):0.5 0.5
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.0
Culvert Gradient: 0.30%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Constriction ratio red

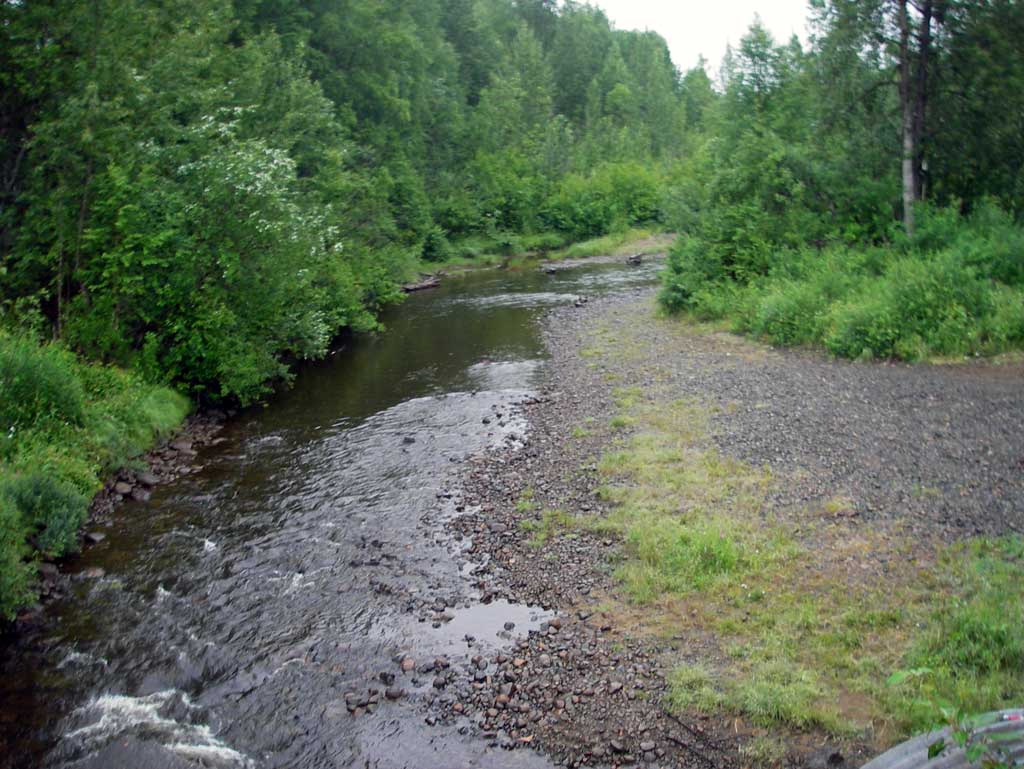

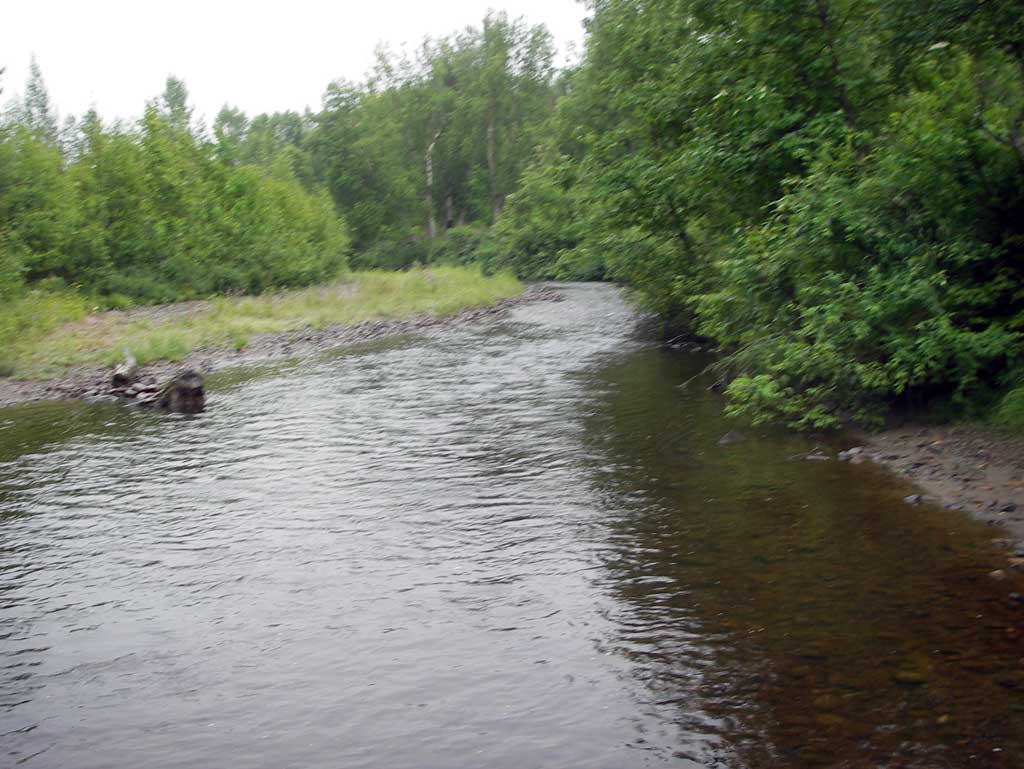

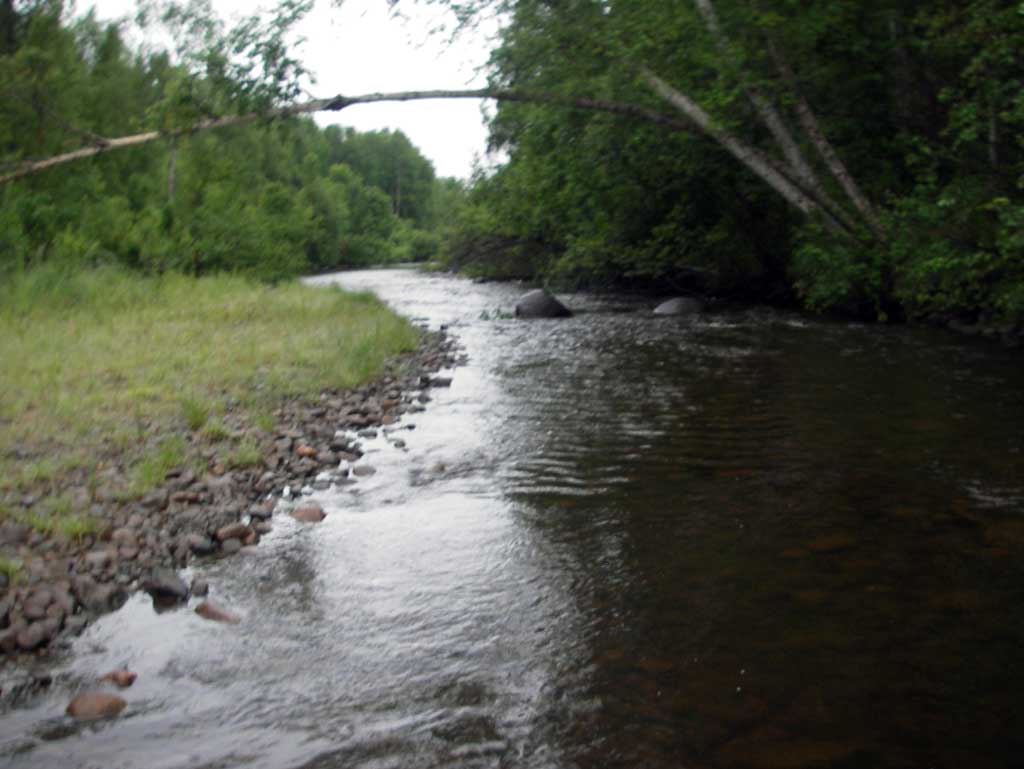

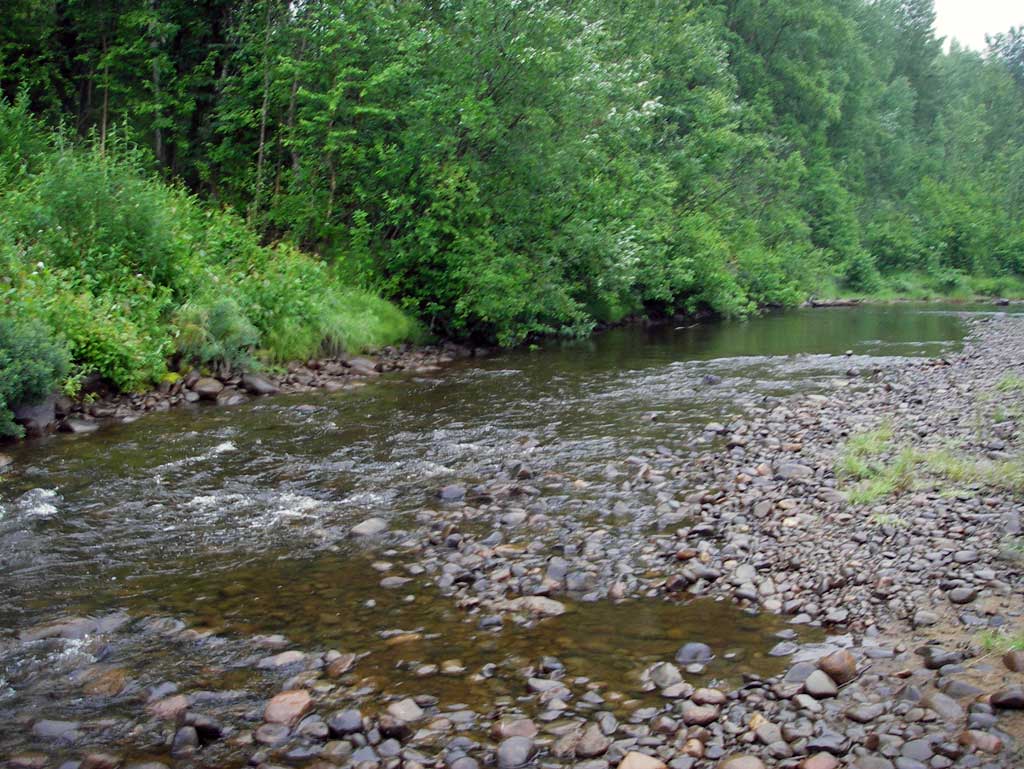

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:GravelBoulder
Stream Slope(deg.):0.66
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water 124.0 29.00
Downstream ordinary high water 164.0 30.50
Downstream ordinary high water 248.0 51.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg (Profile point at bottom of riffle) 0.00 84.49
D/S Water Surface Elev 0.00 85.94
D/S Water Surface Elev 112.00 86.46
D/S Thalweg (Profile point) 112.00 85.80
D/S Water Surface Elev 240.00 87.53
D/S Grade Ctrl (Thalweg) (Top of riffle) 240.00 86.42
Outlet Pool Water Elev (Water surface at outlet pool) 295.00 87.68
Max Pool Depth (Outlet pool elevation) 295.00 85.77
Outlet Invert 2 330.00 87.02
Outlet Invert (Dry. All pipes on substrate) 1 330.00 87.84
D/S Water Surface Elev (Water surface at Pipe 2 outlet invert) 2 330.00 87.66
D/S Water Surface Elev (Water surface at pipe 3 outlet invert) 3 330.00 87.66
Outlet Invert 3 330.00 86.13
Outlet Culvert Top 2 330.00 94.20
Outlet Culvert Top 1 330.00 95.12
Outlet Culvert Top 3 330.00 95.25
Road Elev 388.00 103.70
Inlet Culvert Top 1 445.92 95.57
Inlet Culvert Top 3 445.92 95.60
Inlet Culvert Top 2 445.92 94.71
Inlet Culvert Invert (Dry) 1 445.92 88.85
U/S Water Surface Elev (Water surface at pipe 2 inlet invert) 2 445.92 87.70
U/S Water Surface Elev (Water surface at pipe 3 inlet invert) 3 445.92 87.82
Inlet Culvert Invert 2 445.92 87.13
Inlet Culvert Invert 3 445.92 86.06
U/S Grade Ctrl (Thalweg) (Top of riffle) 515.92 87.51
U/S Water Surface Elev 515.92 88.79

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 1.83
Comments: No fish caught although juveniles were seen in Pipe 2.

Fish Observations

No fish observations occurred during this survey.
