Fish Passage Site 20501244

Coordinates (dec. deg.): 61.76426°, -149.58820°
Legal Description: S019N002W02
Region: South Central
Road Name: Willow Fishhook Road

Datum: WGS84
Quad Name / ITM: Anchorage D-7
AWC Stream #:
Stream Name: Willow Creek tributary

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-1244

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

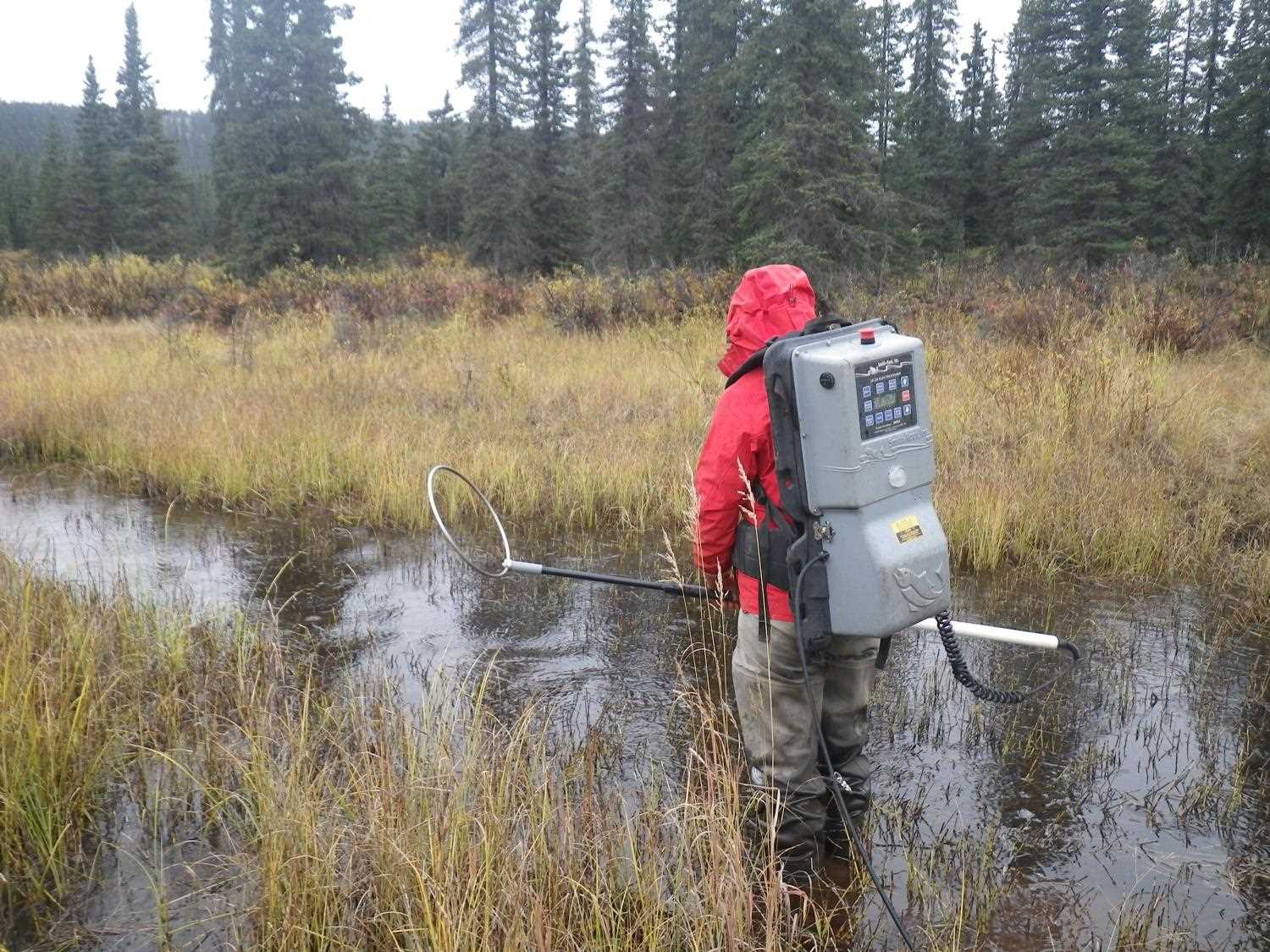

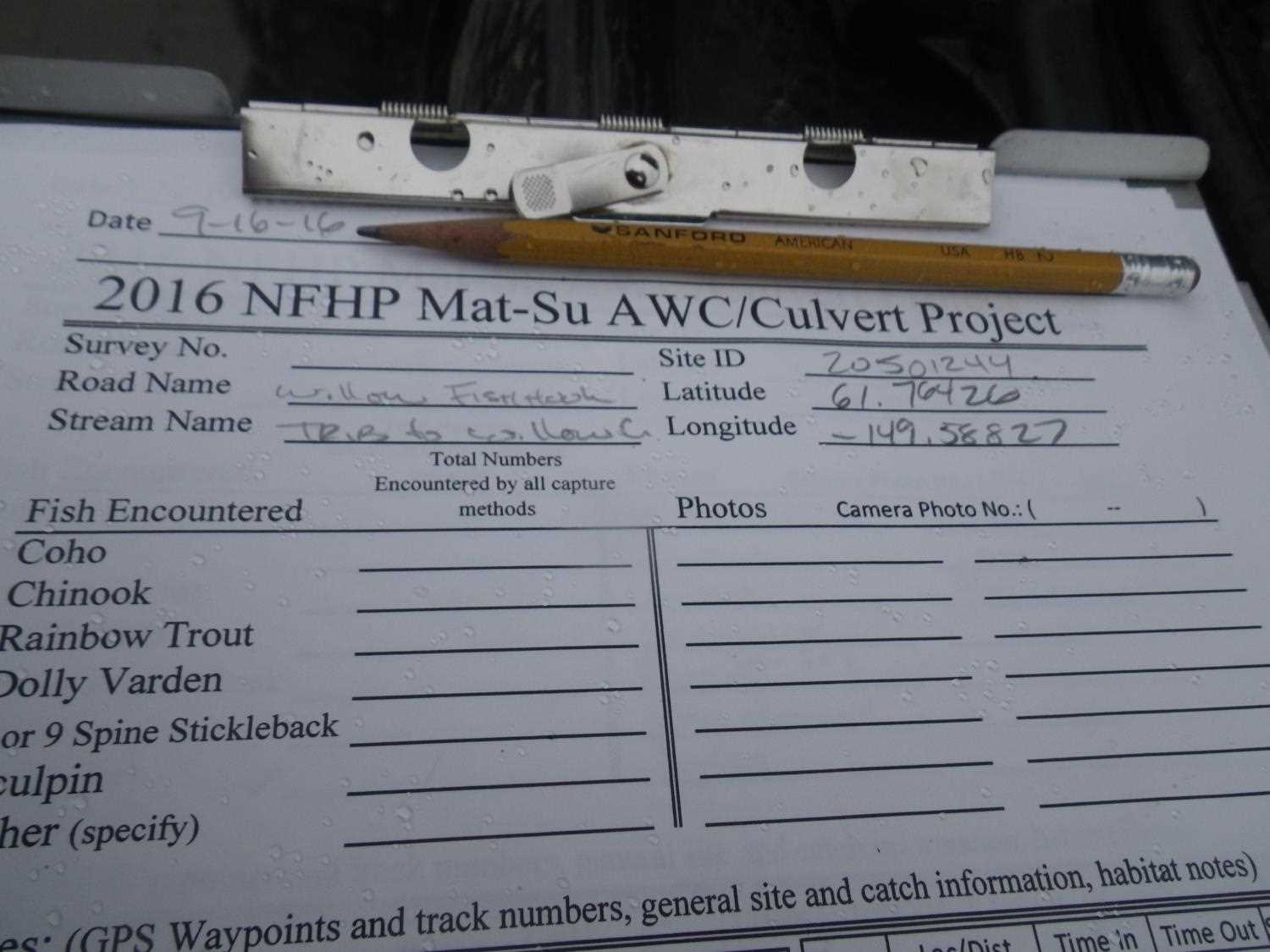

Comments: Site visit on 9/16/16 in conjunction with the Sampling Unmapped Streams in the MSB. Photos are attched here, sampling data on AFFI site. This site was found to have been replaced after the 2009 assessment. Culvert still perched and RED.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft):

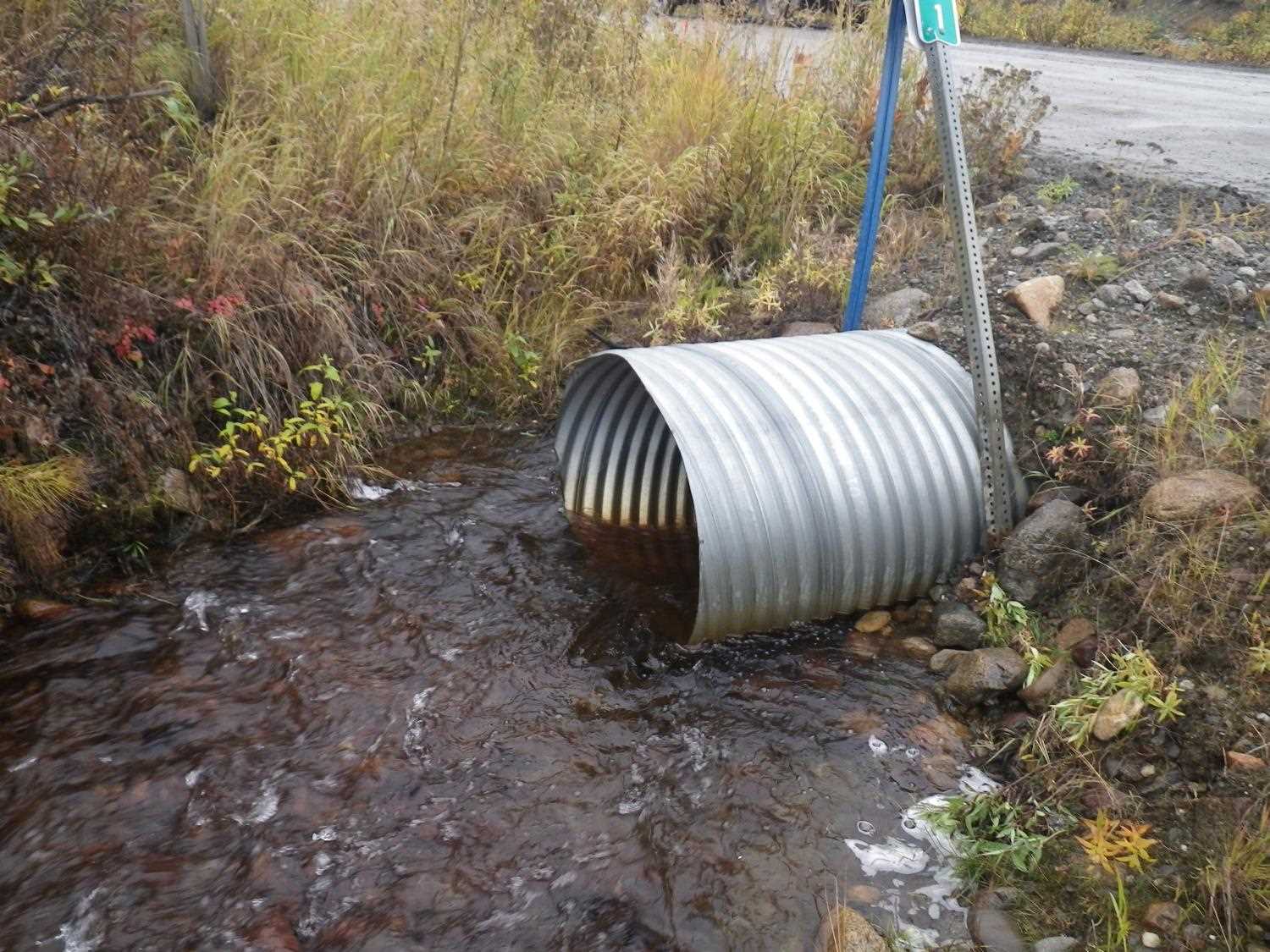

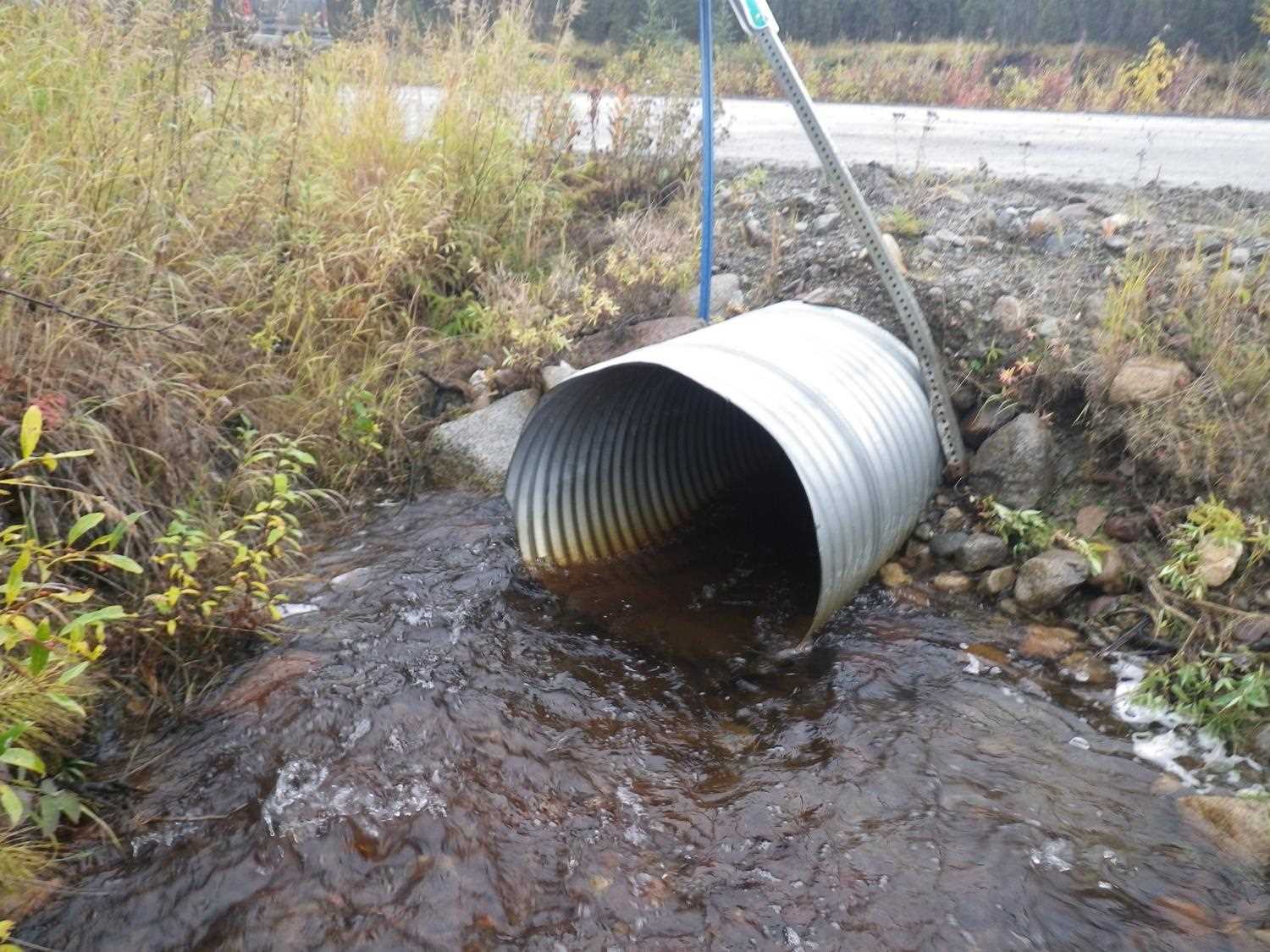

Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 4
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height:

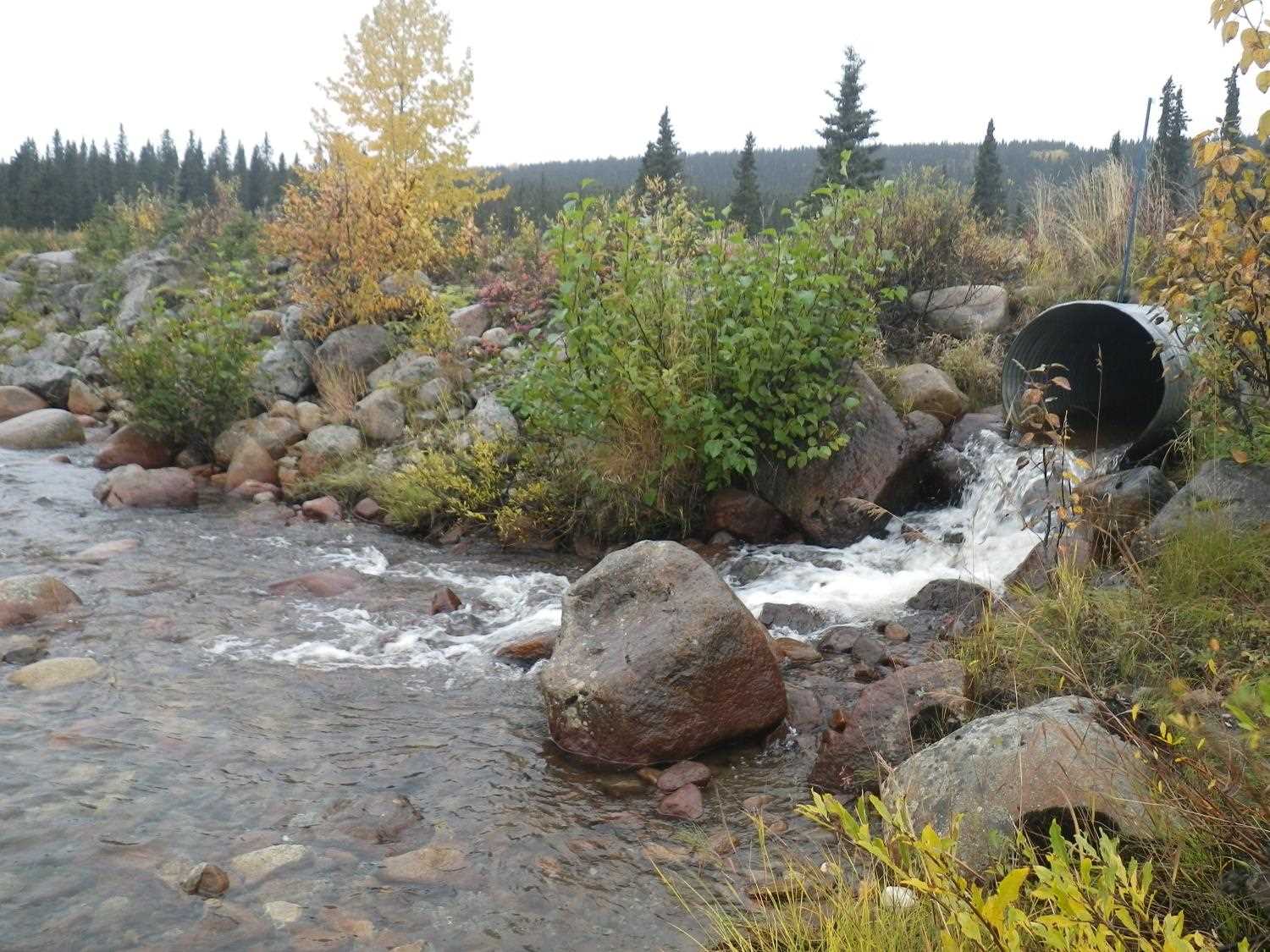

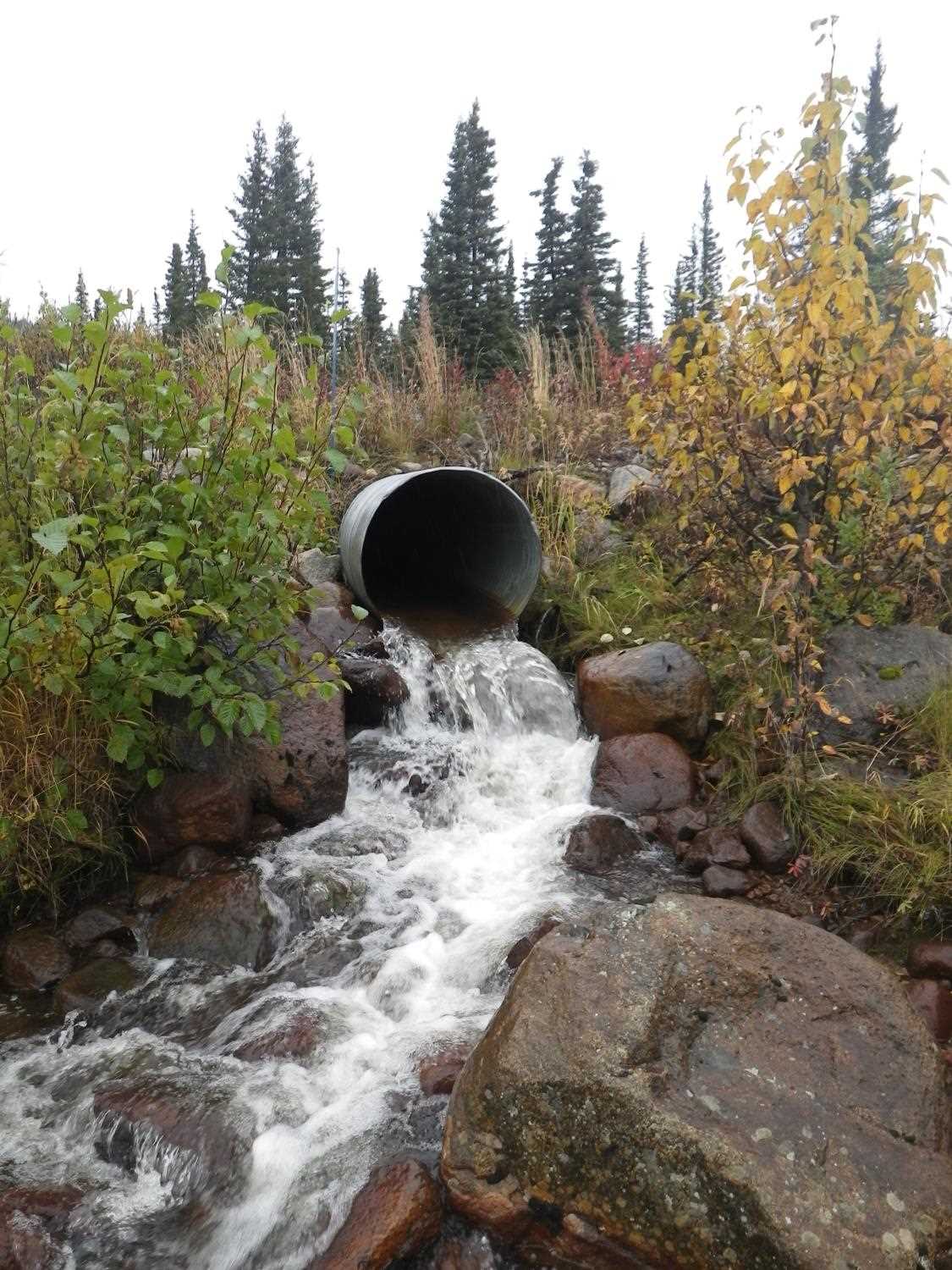

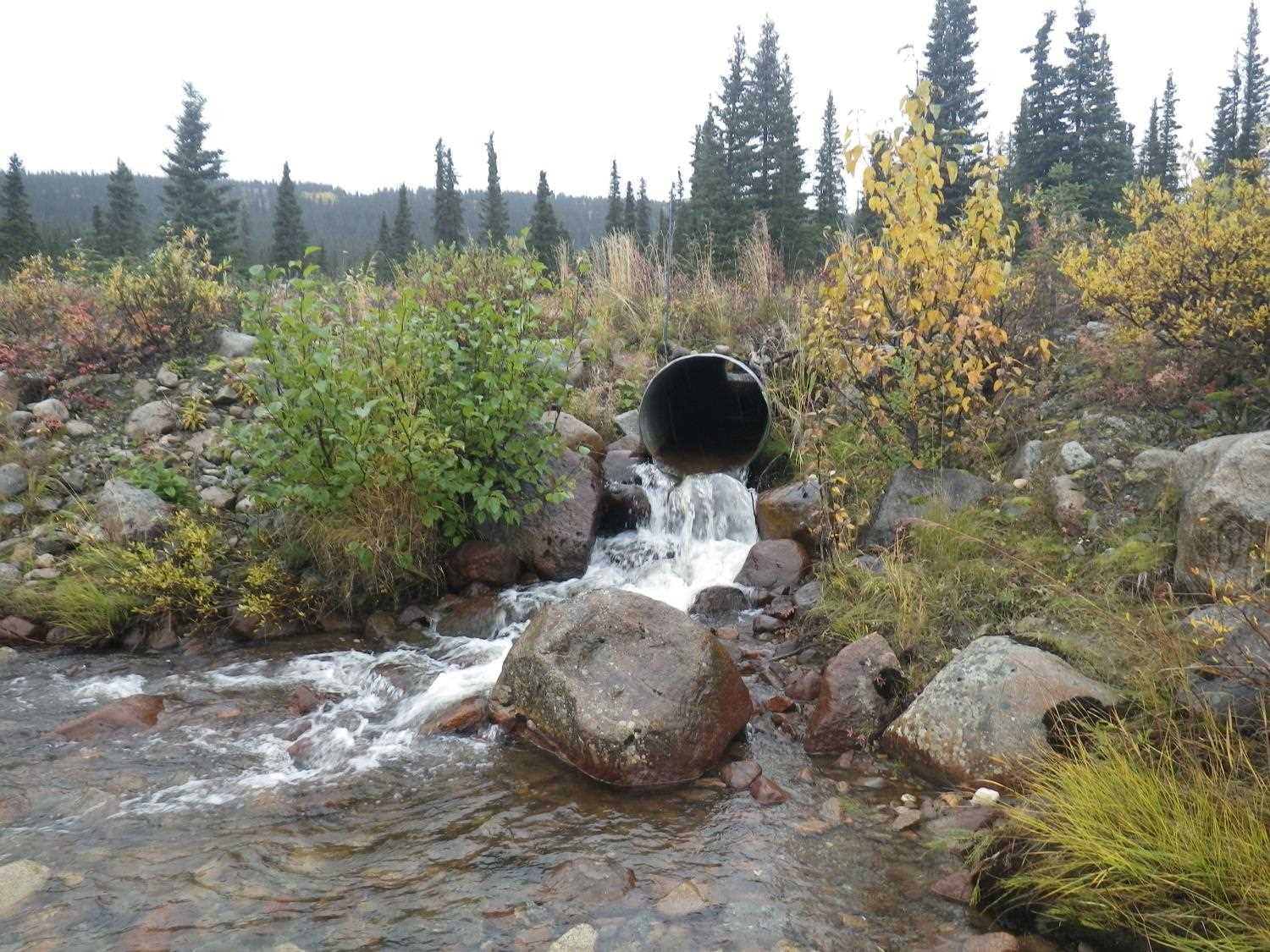

Outfall Type: Cascade Over Rip-Rap
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Outfall greater than 4 inches.
  Culvert Observations:
  1. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
