Fish Passage Site 20501240

Coordinates (dec. deg.): 61.76908°, -149.71284°
Legal Description: S019N002W06
Region: South Central
Road Name: Willow Fishhook Road

Datum: WGS84
Quad Name / ITM: Anchorage D-8
AWC Stream #:
Stream Name: Willow Creek tributary


Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-1240

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:

Site Observations:

  1. Outfall height gray

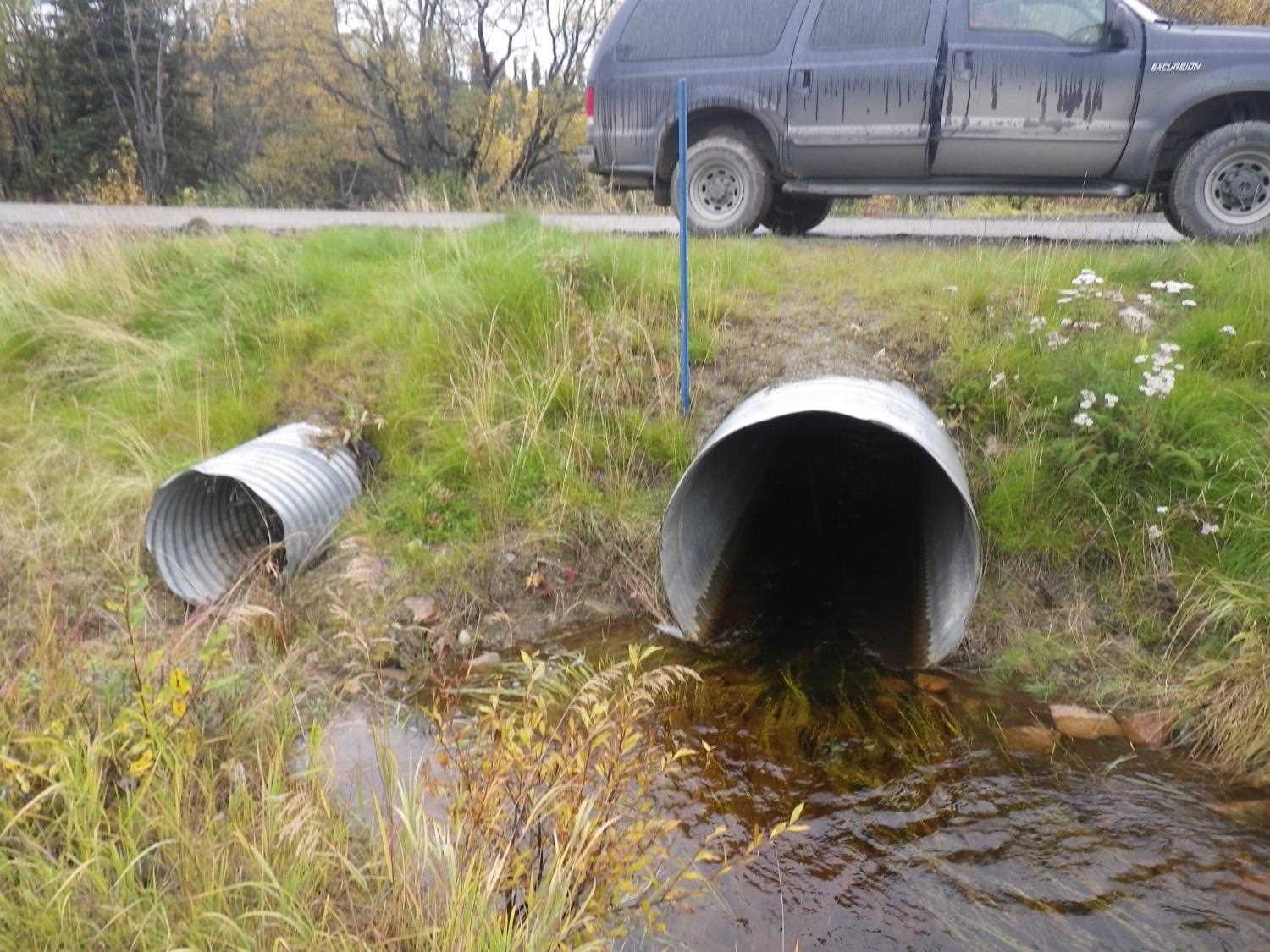

Comments: Site visit on 9/16/16 in conjunction with Sampling Unmapped Streams in the MSB project. Upon inspection it was noticed that the culvert for this site had been replaced after the 2009 assessment. Culvert has a small outfall and might have a Red gradient. Site rated Gray for outfall and has been marked for full reassessment.

Culvert Measurements

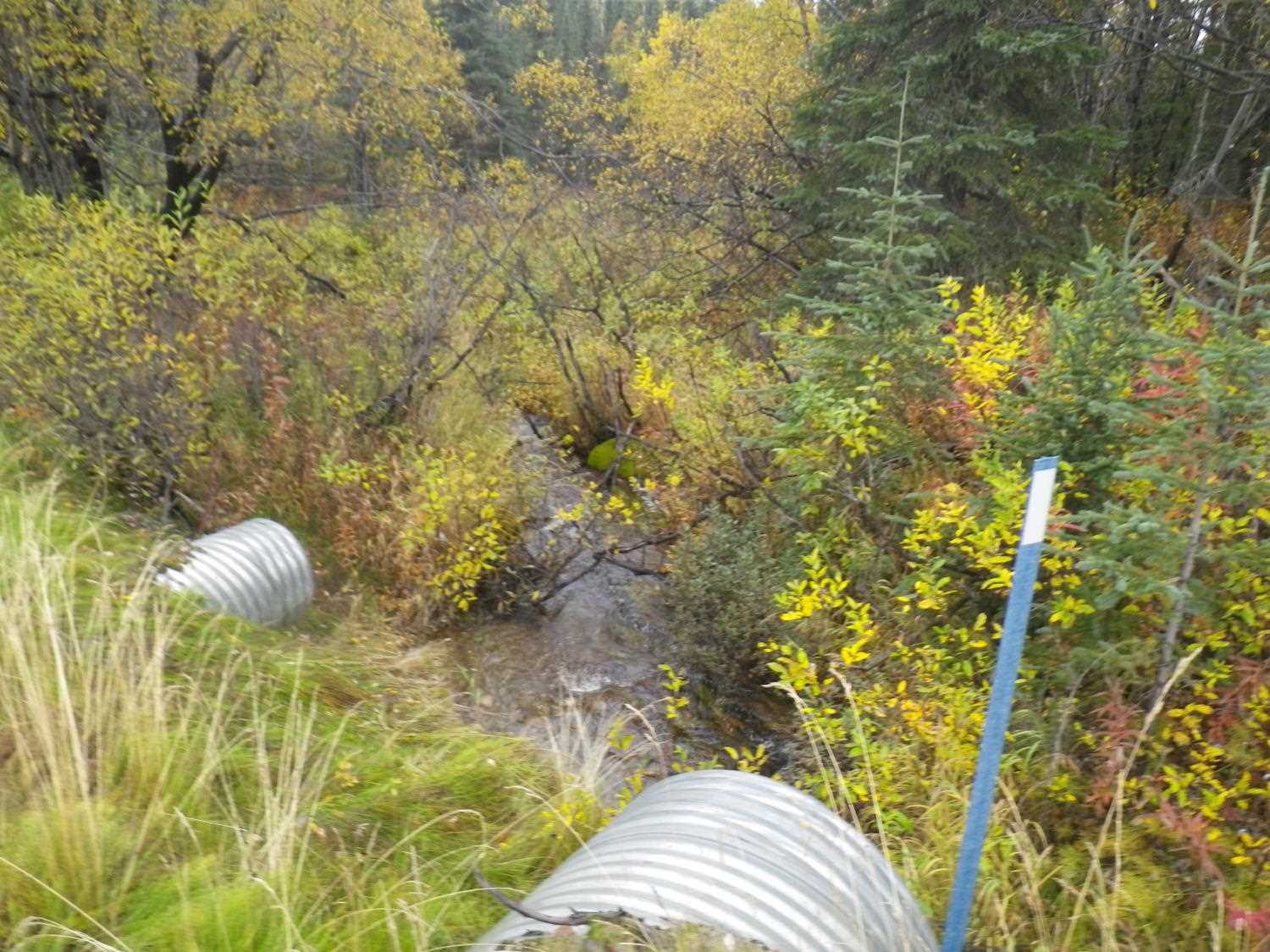

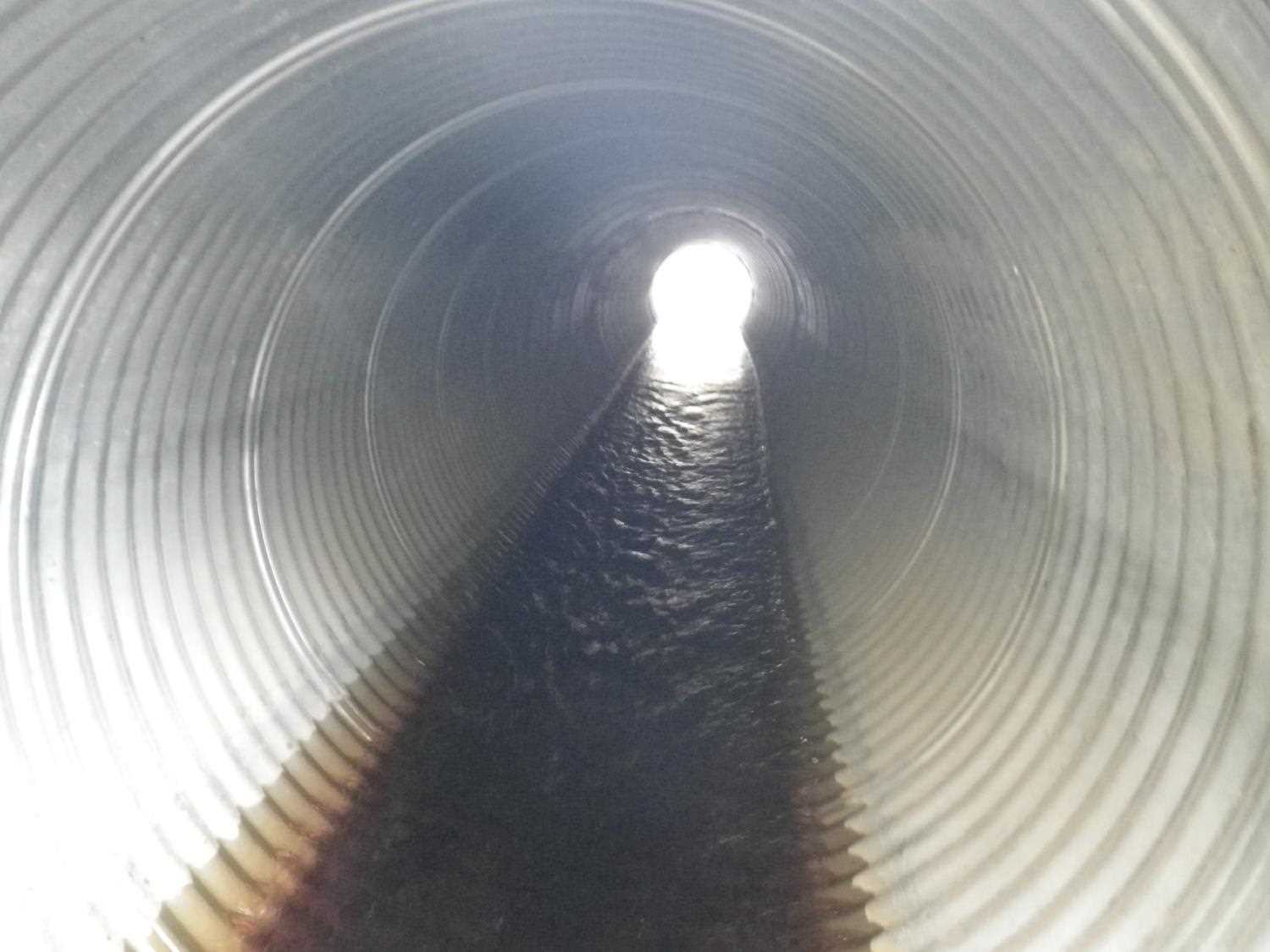

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

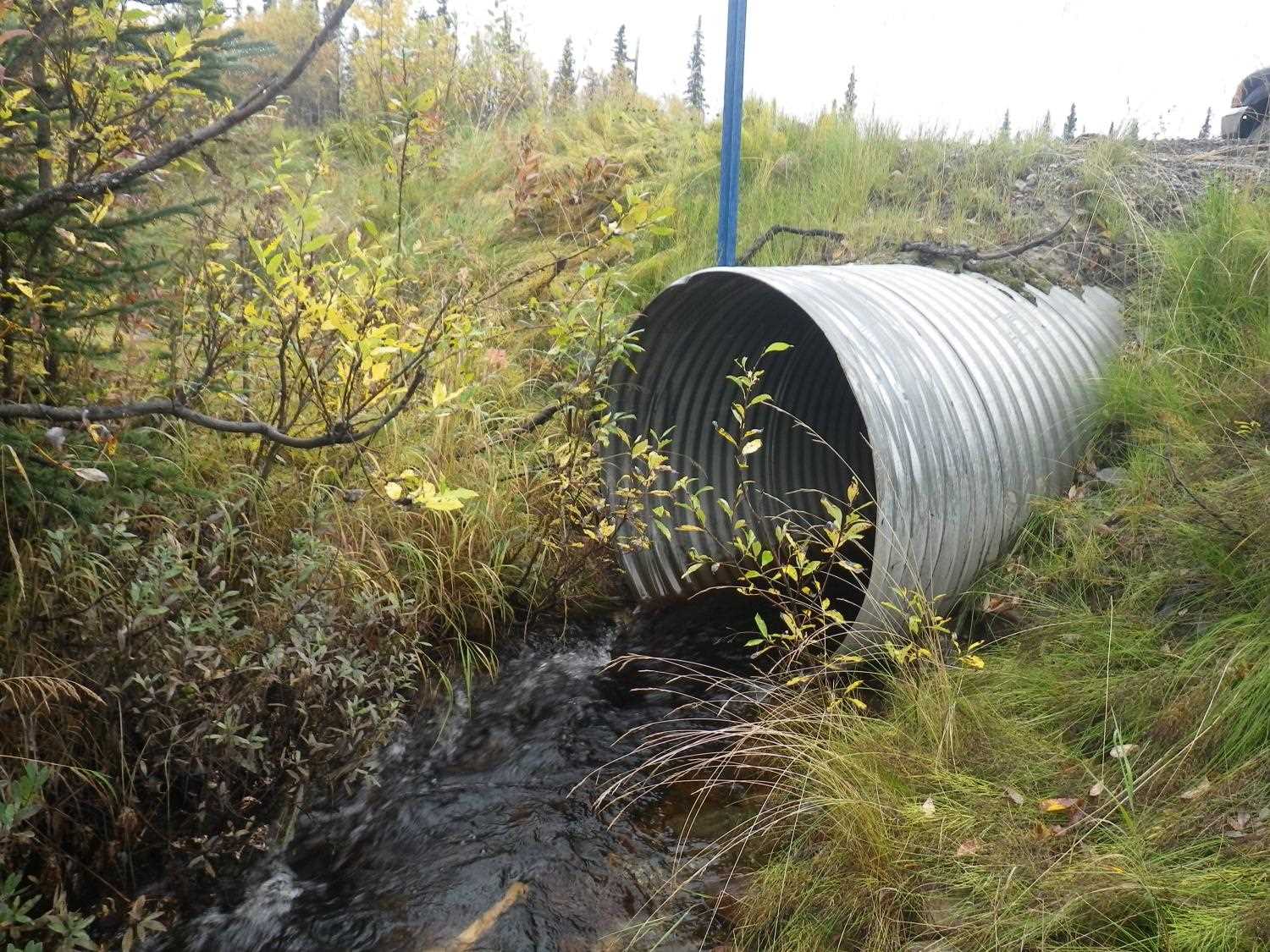

Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Baffles Present:
Outfall Height:

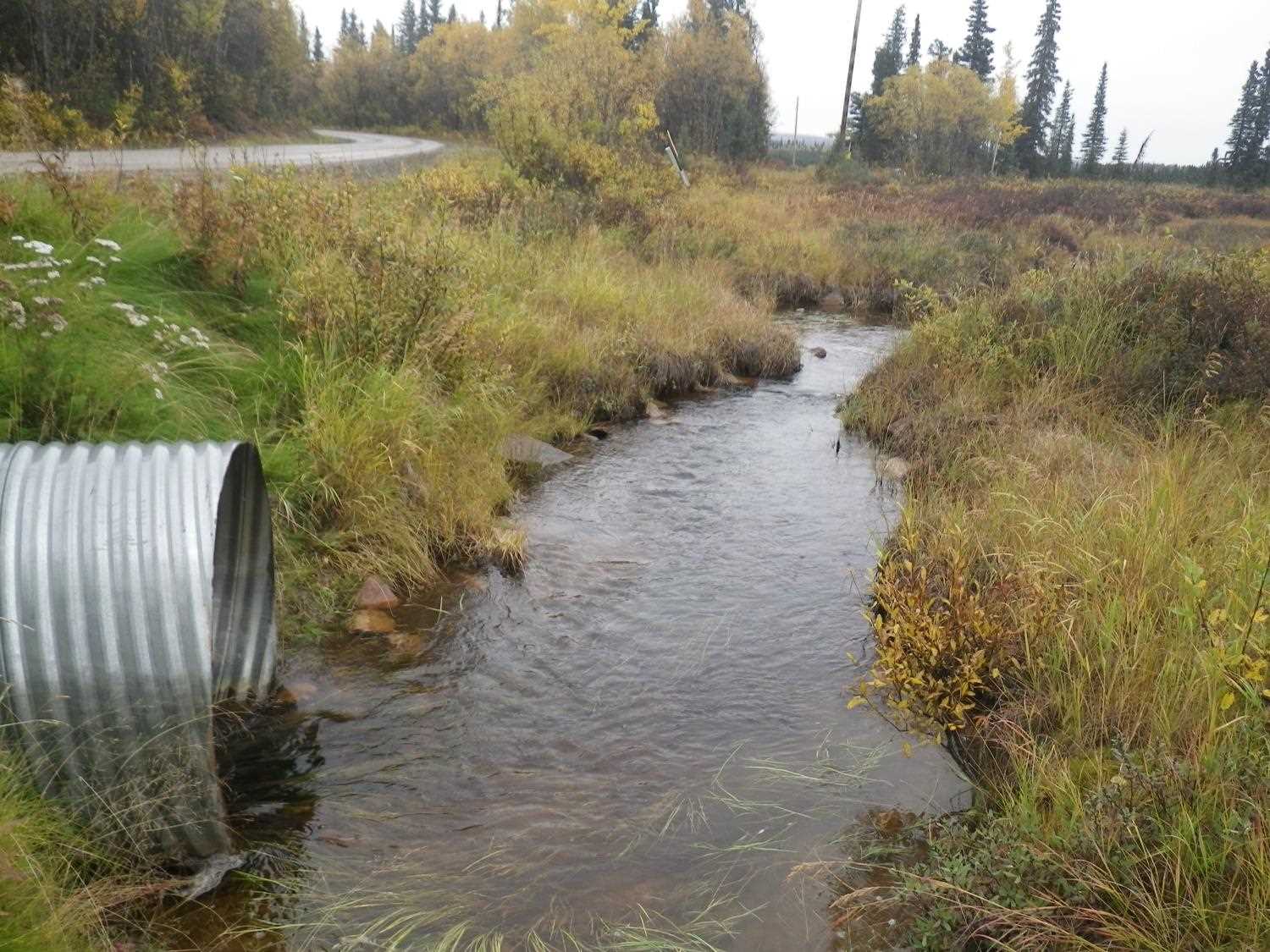

Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

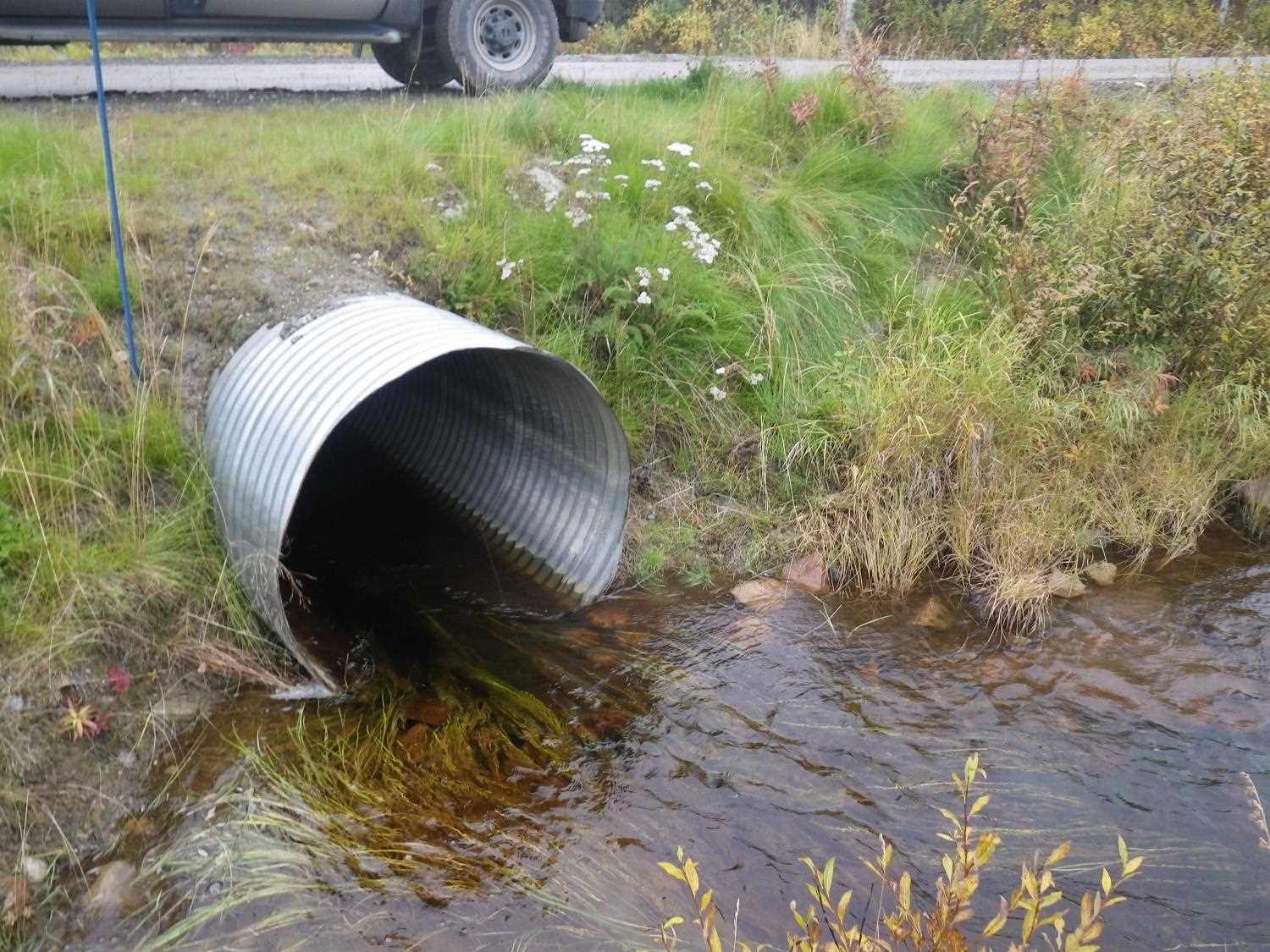

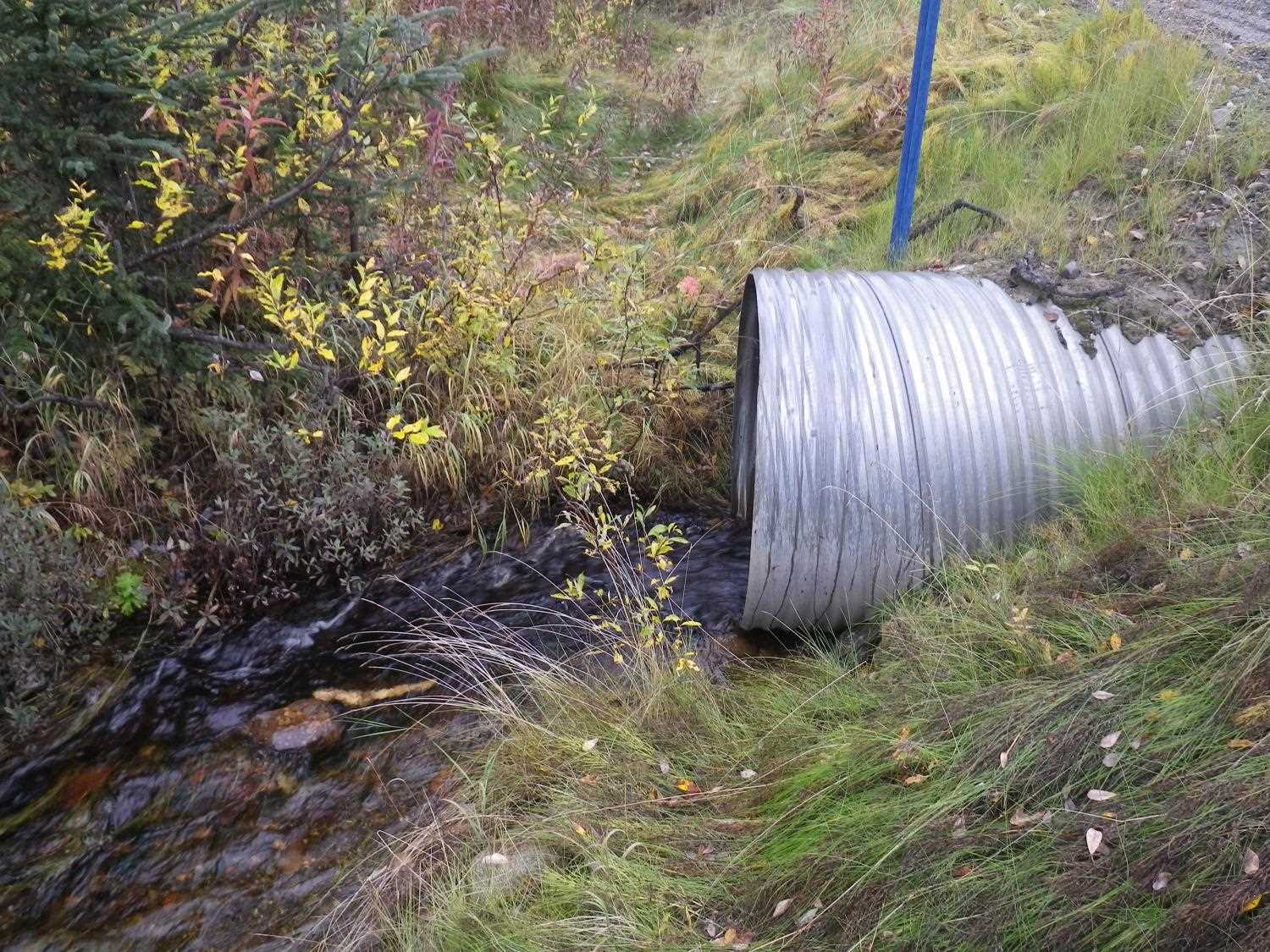

Comments: Culvert outfall appears to be under 4 inches. May have Red gradient and still be constricted.

  Culvert Observations:
  1. Outfall height gray

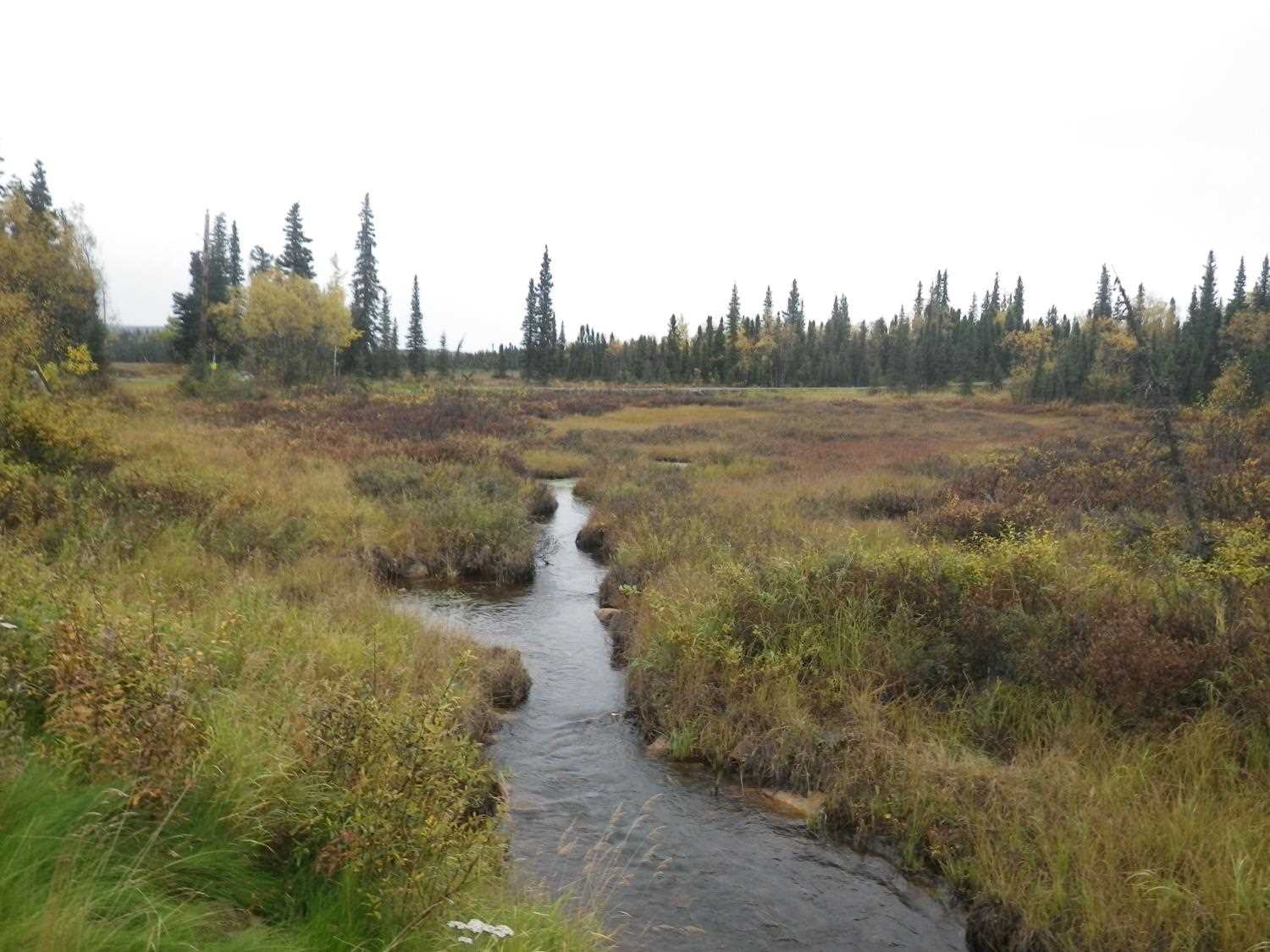

Stream Measurements

Stream SubstratesUpstreamDownstream
Stream Slope(deg.):
Stream Flow Stage:High

No stream width data available.


No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
