Fish Passage Site 20501189

Coordinates (dec. deg.): 61.69695°, -149.99681°
Legal Description: S019N004W33
Region: South Central

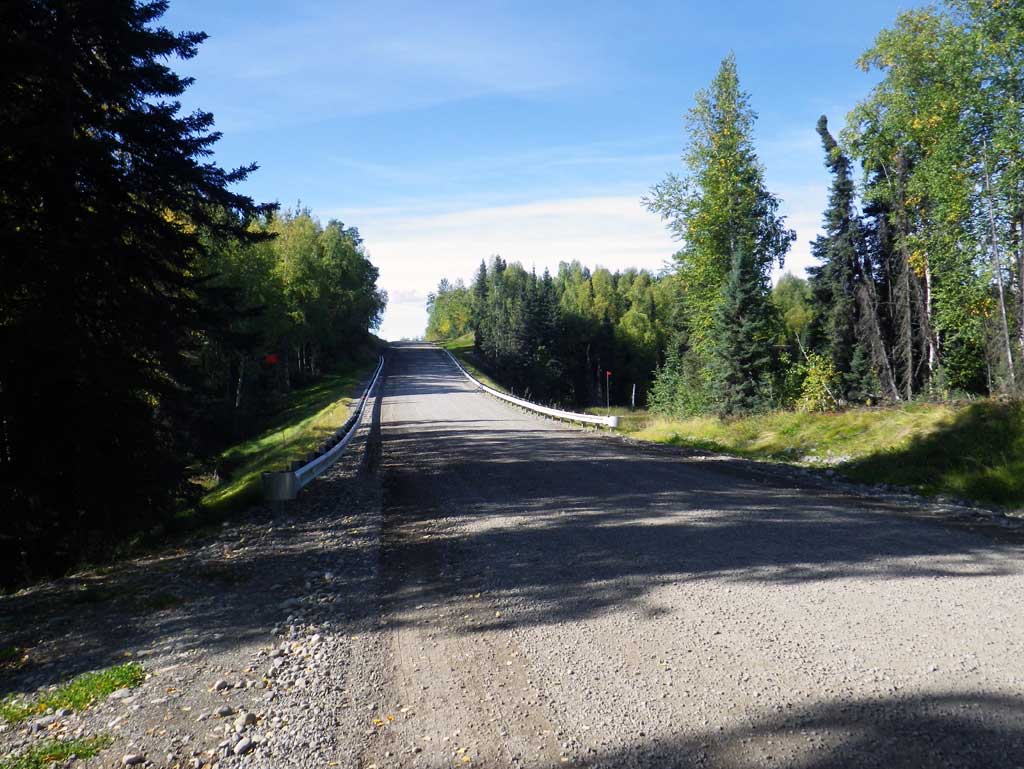

Road Name: Kime Lane

Datum: WGS84
Quad Name / ITM: Anchorage C-8
AWC Stream #: 247-41-10100-2231-3070
Stream Name: Outlet of Kime Pond

Elevation:

Site Comments: Nancy Lake and unnamed pond

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB11-NKL01

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: Abraham Gioffre, Jim Latham

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools: Yes
Construction Year: 2008


Site Observations:

  1. Culvert gradient red
  2. Woody Debris
  3. Beaver Activity

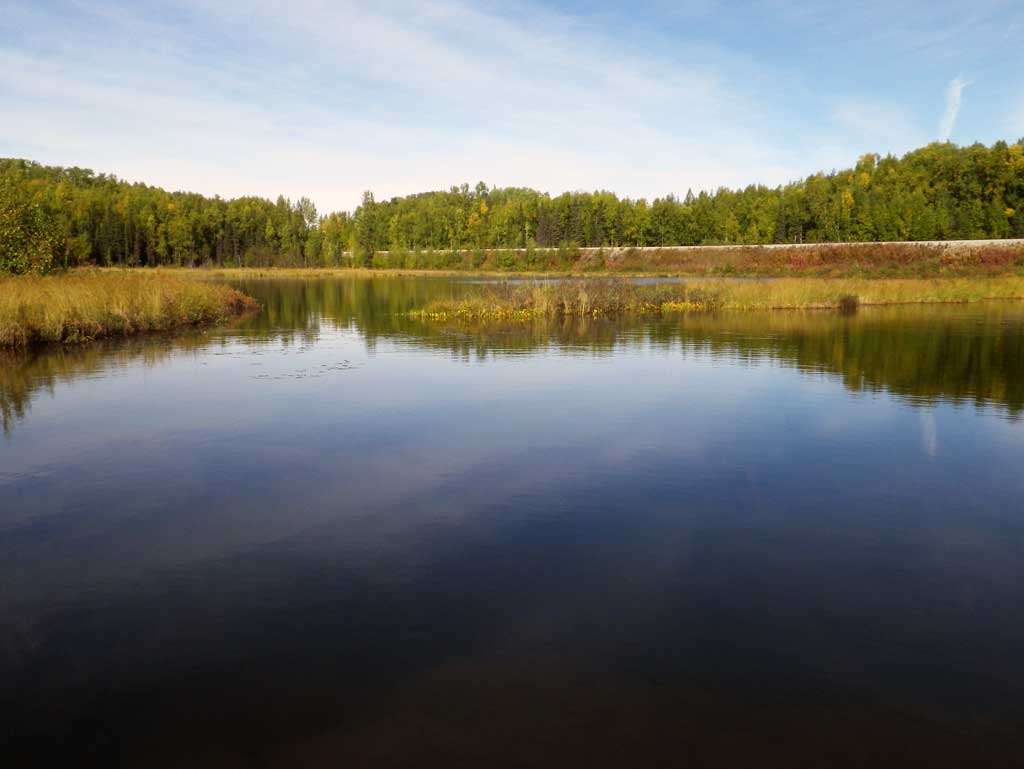

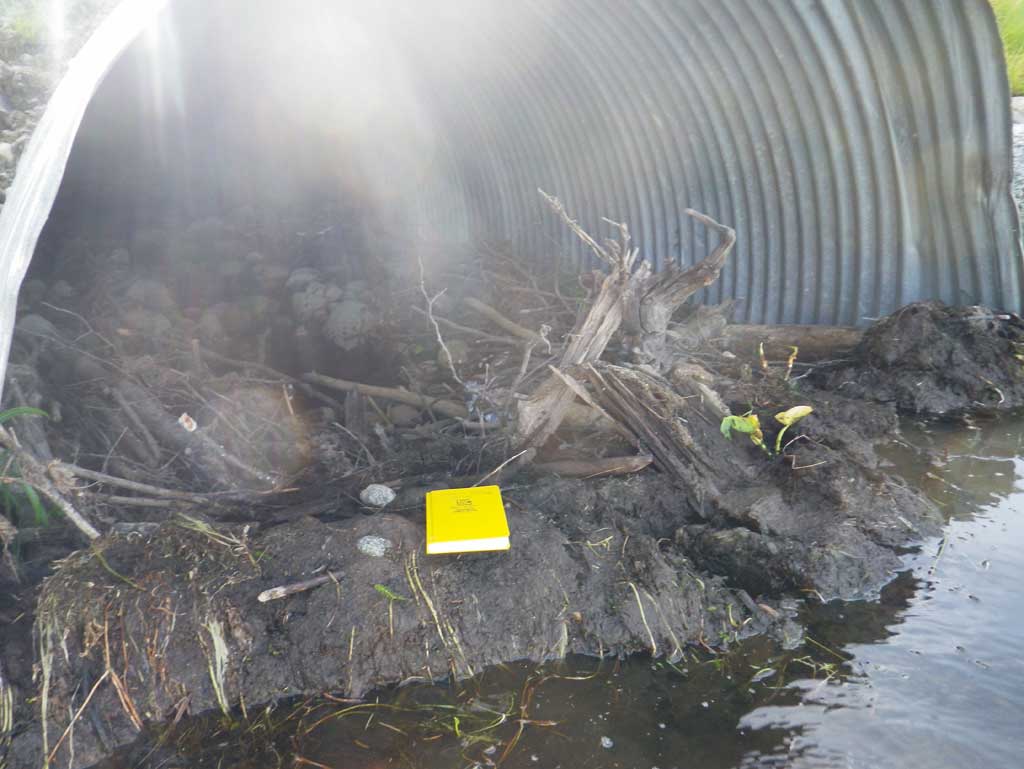

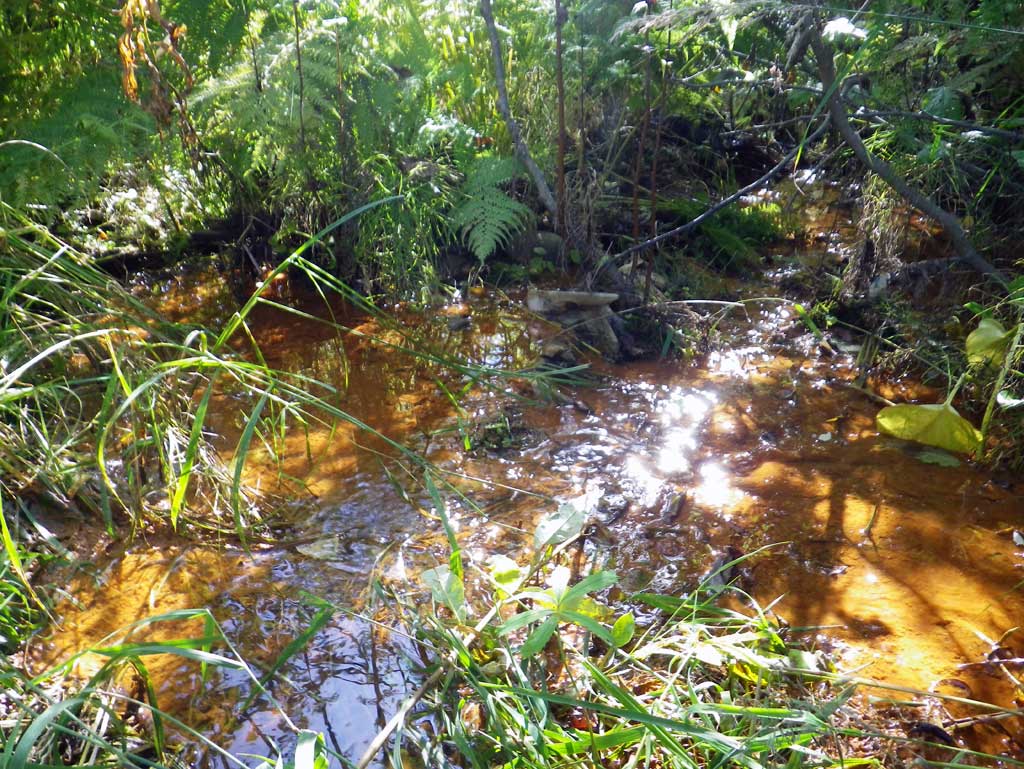

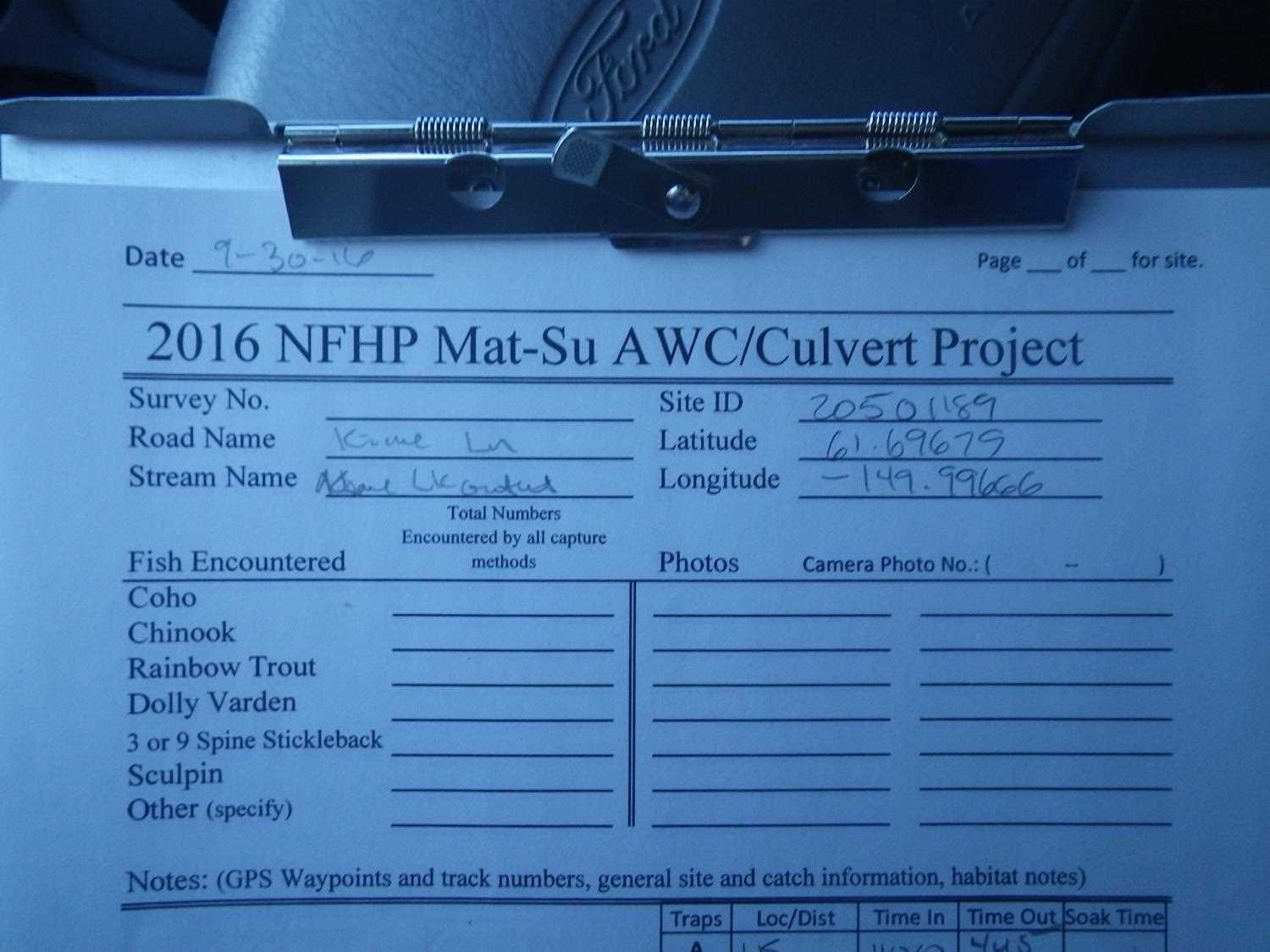

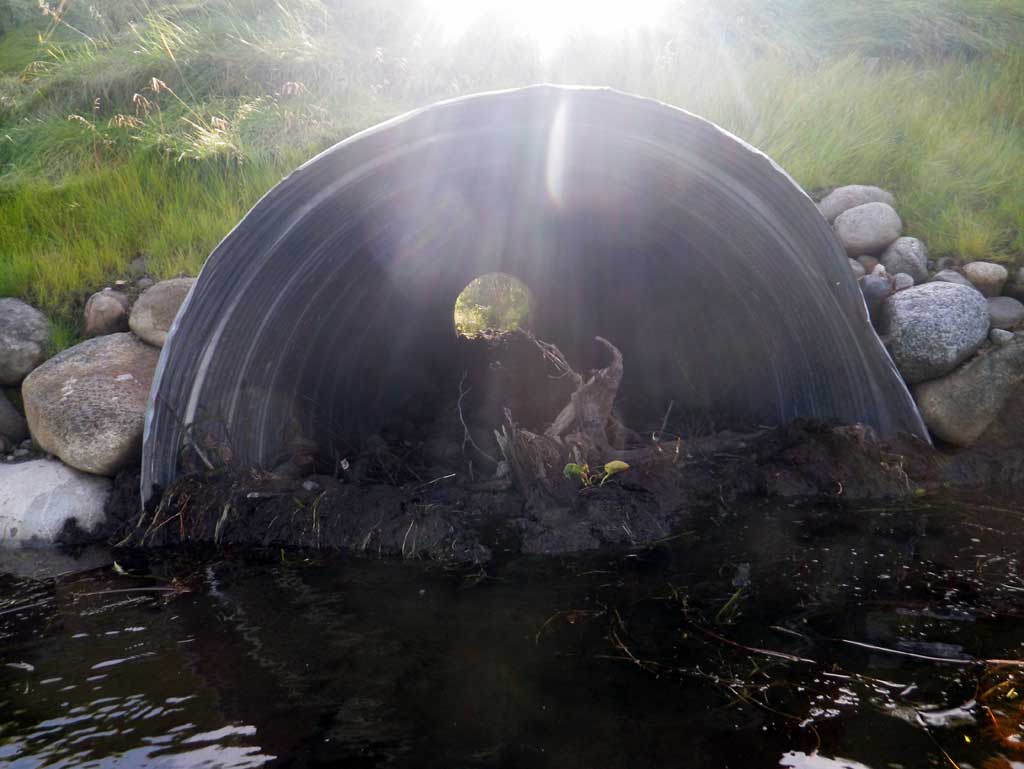

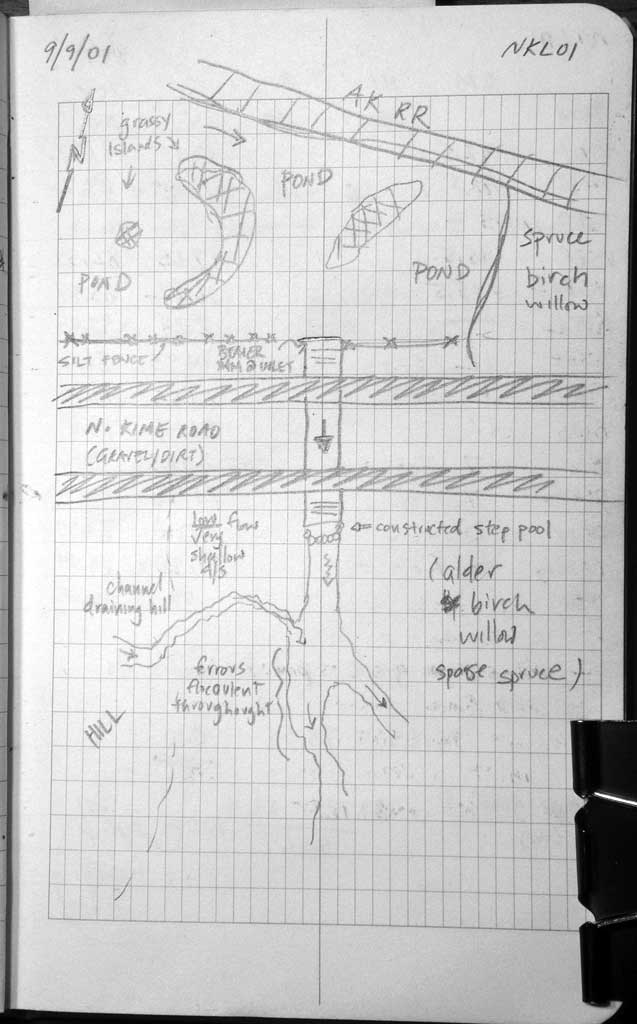

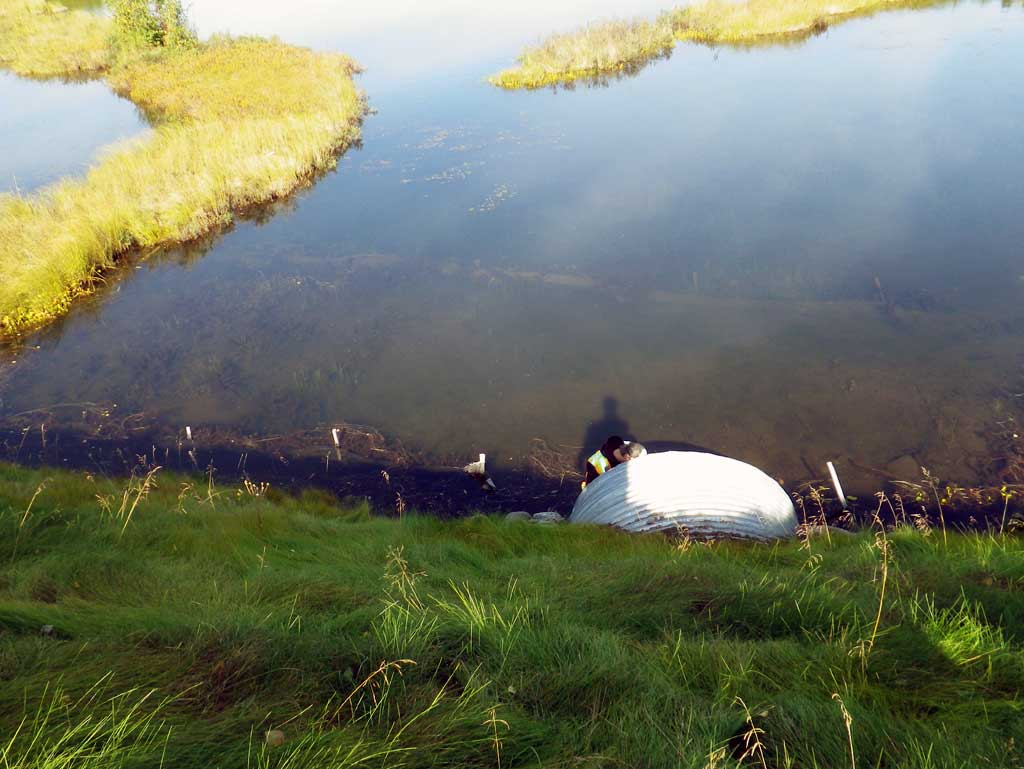

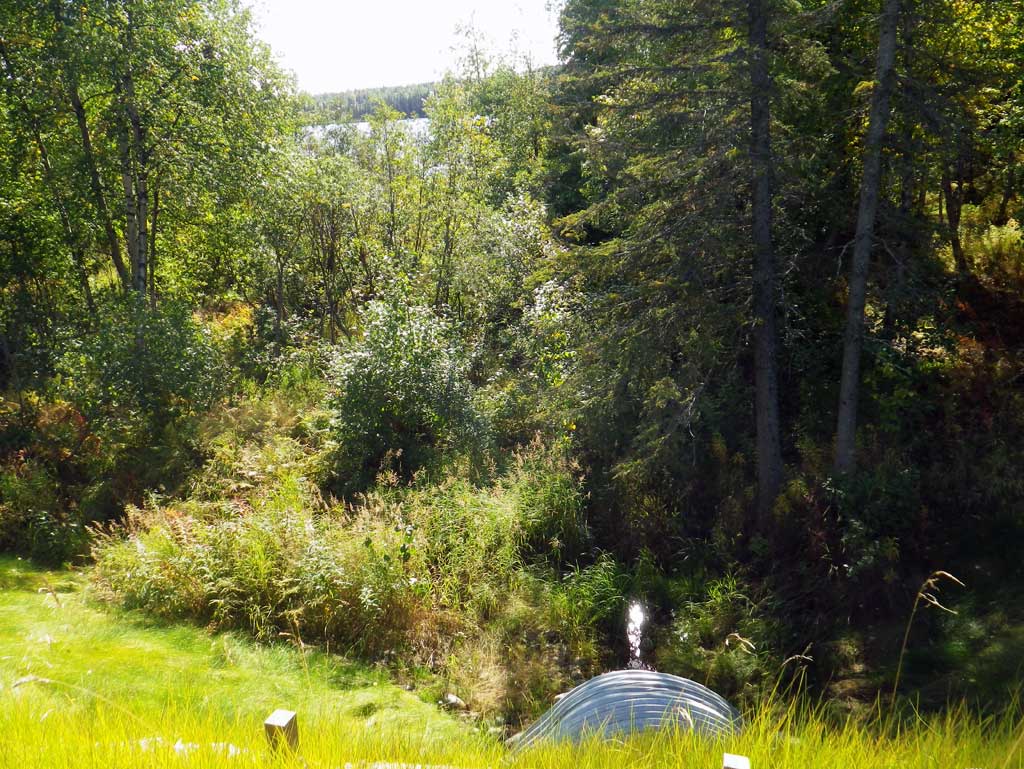

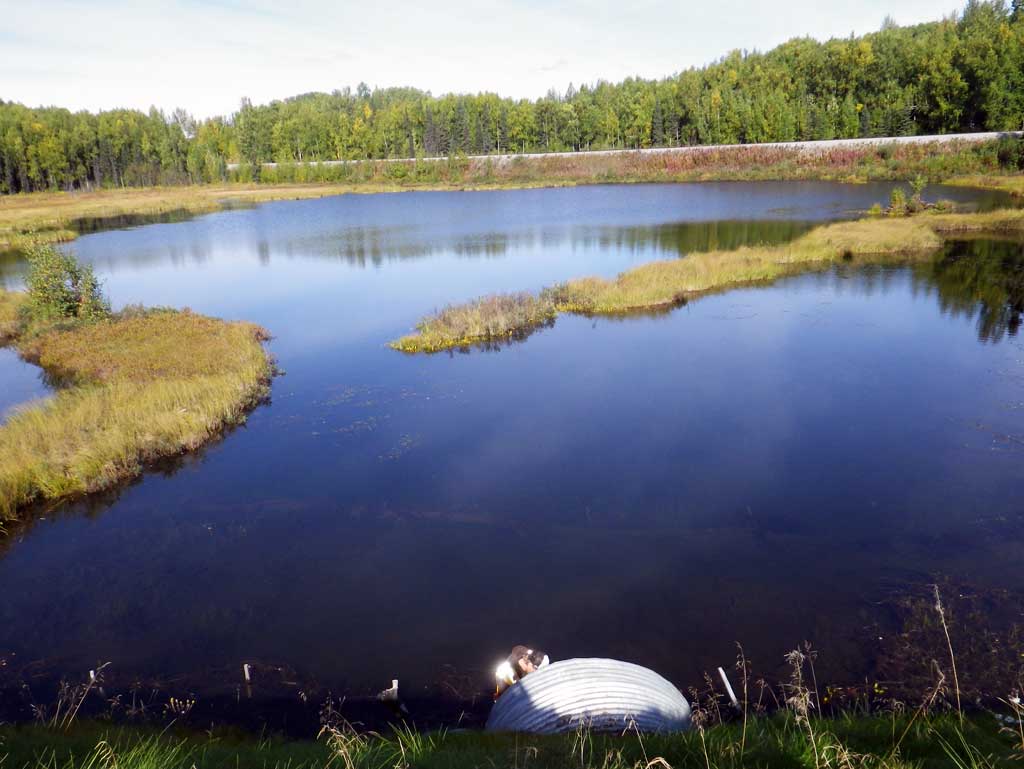

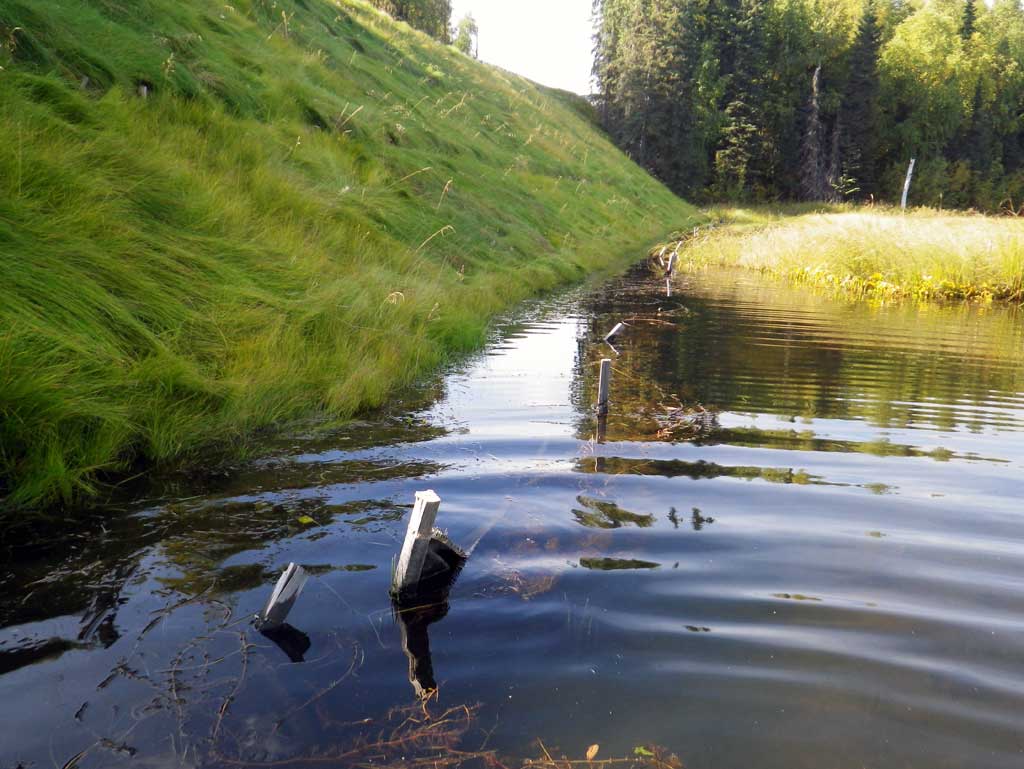

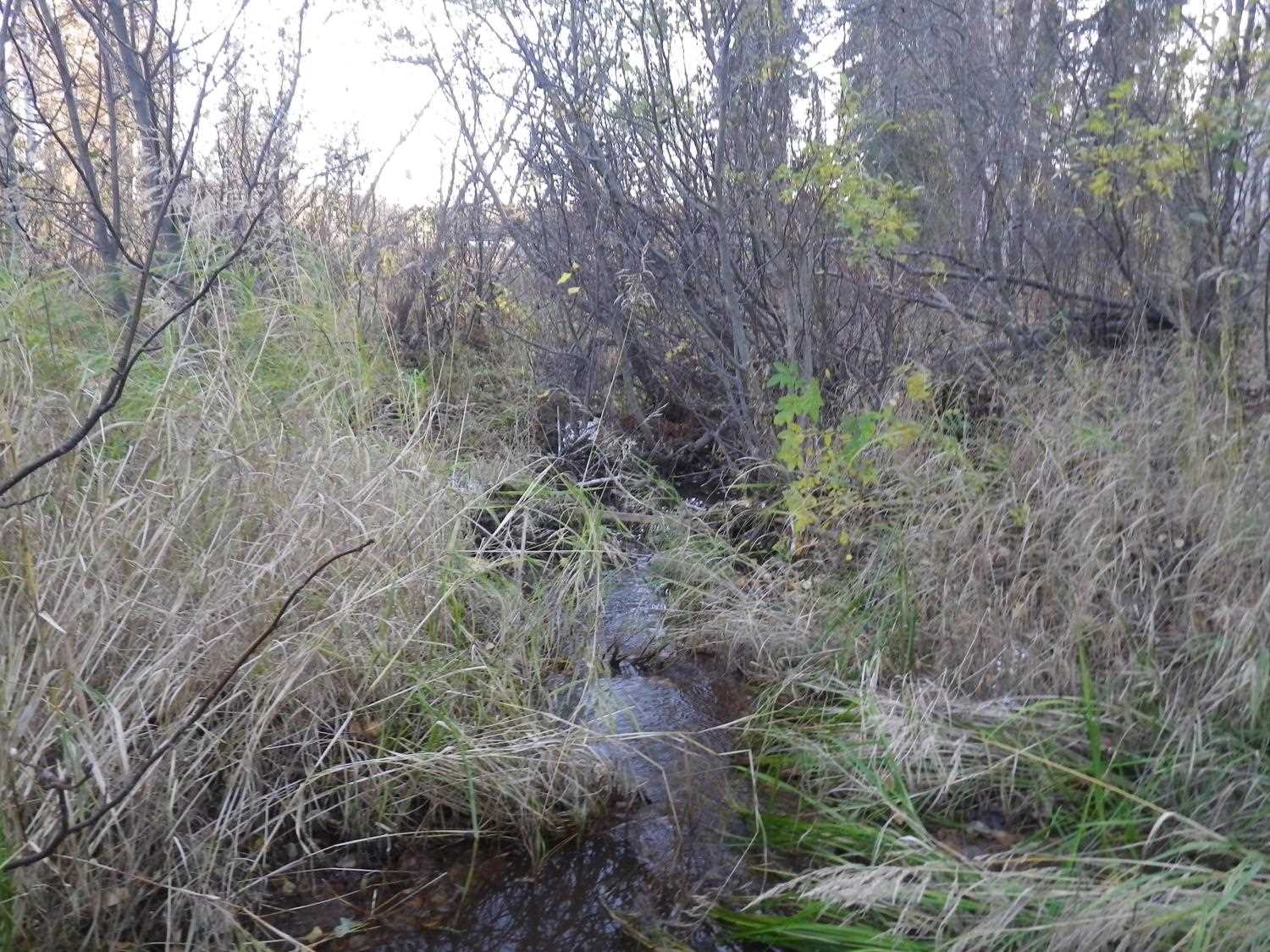

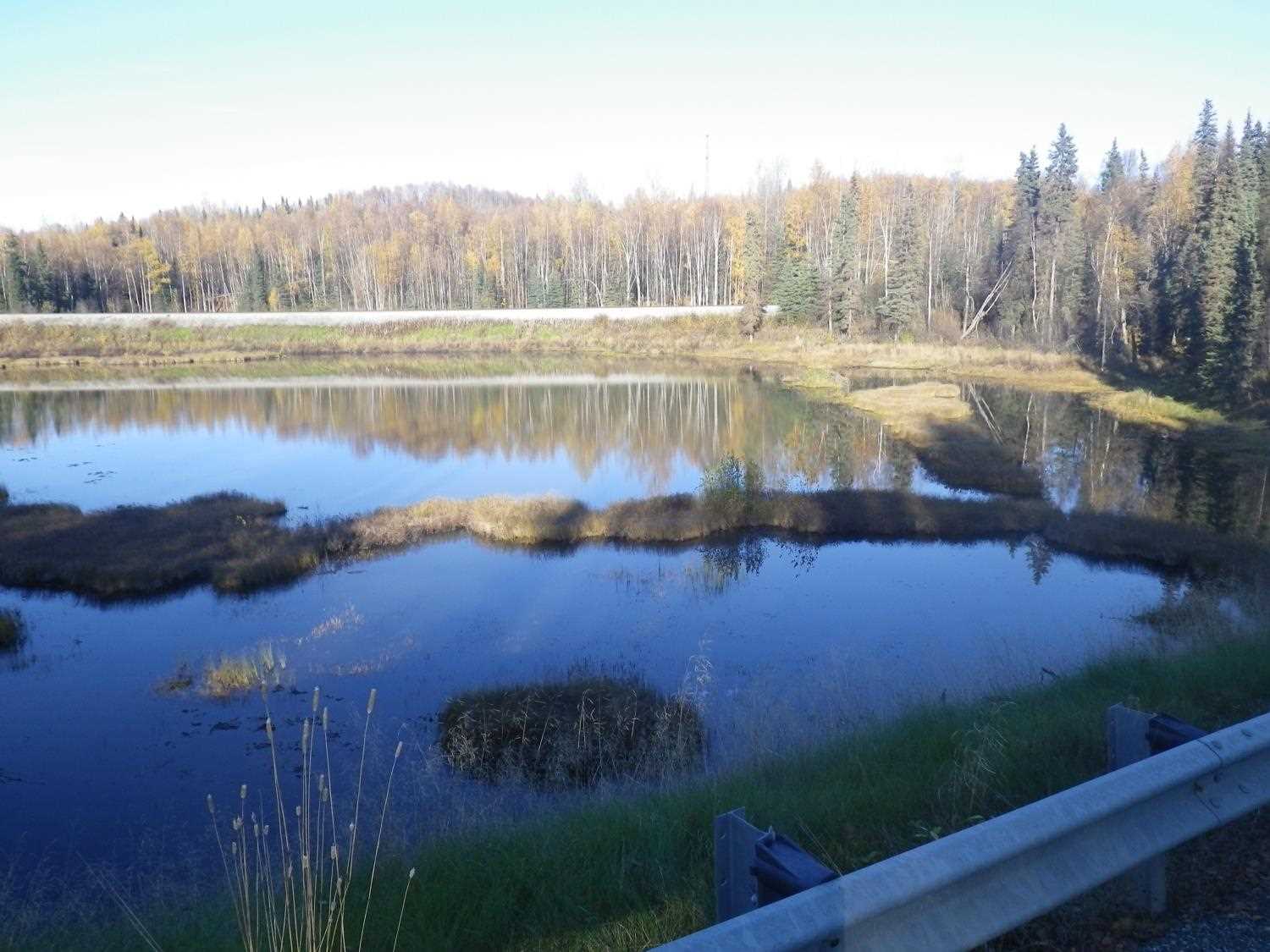

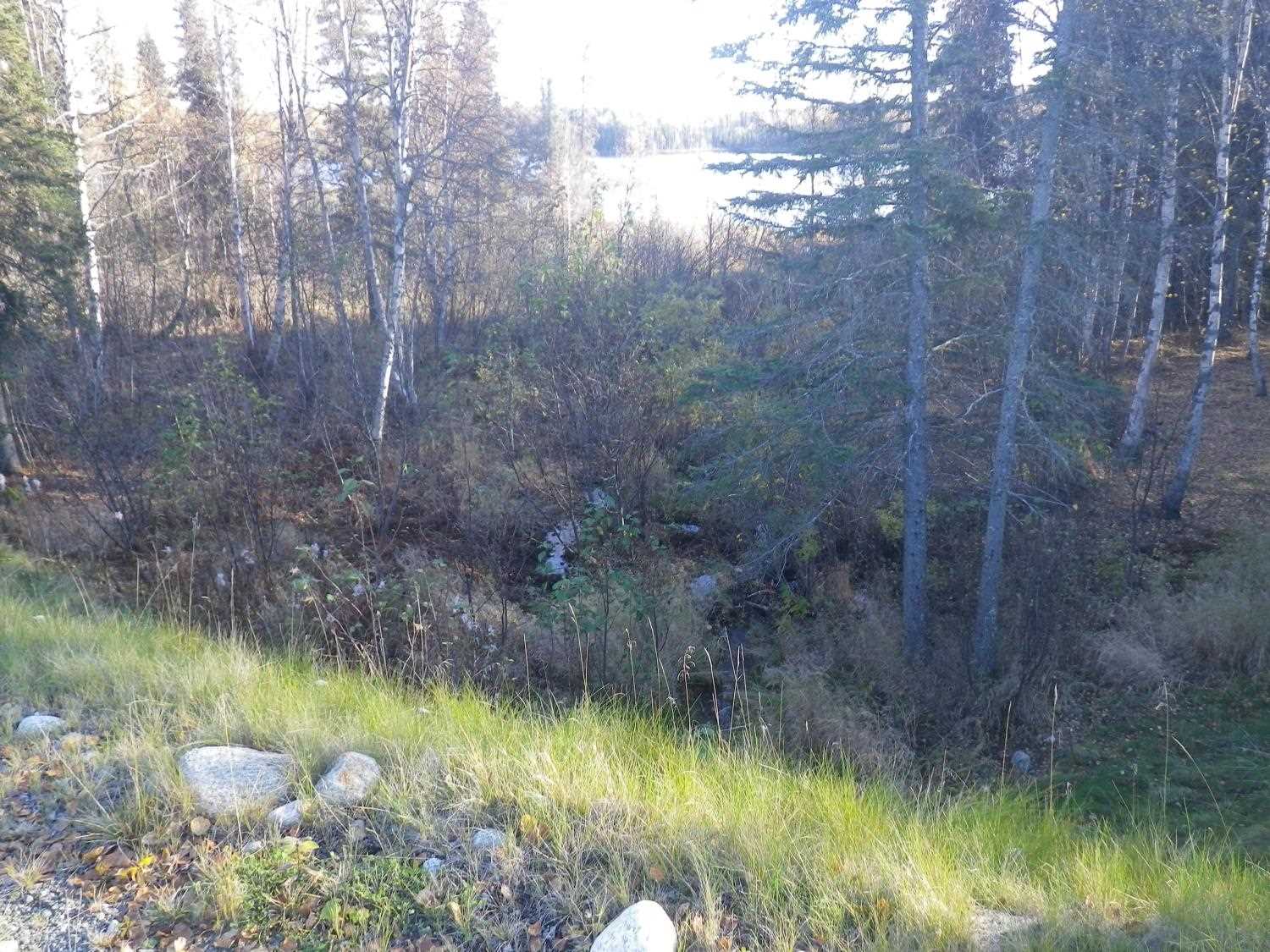

Comments: Culvert connects a marsh land to a lake. The inlet is clogged with a beaver dam which is blocking nearly all water flow. The substrate/beaver dam at the inlet is too deep to measure. The dwst area is a very shallow ferrous flocculent muck substrate in a marsh area. No stream widths or measurements taken. **Updated site photos collected from 9/30/16 site visit from Sampling Unmapped Streams in the MSB project. Fish sampling information entered into AFFI *** Beaver dam has been removed since 2011 visit. Lots of coho and ninespine sticklebacks upstream.

Culvert Measurements

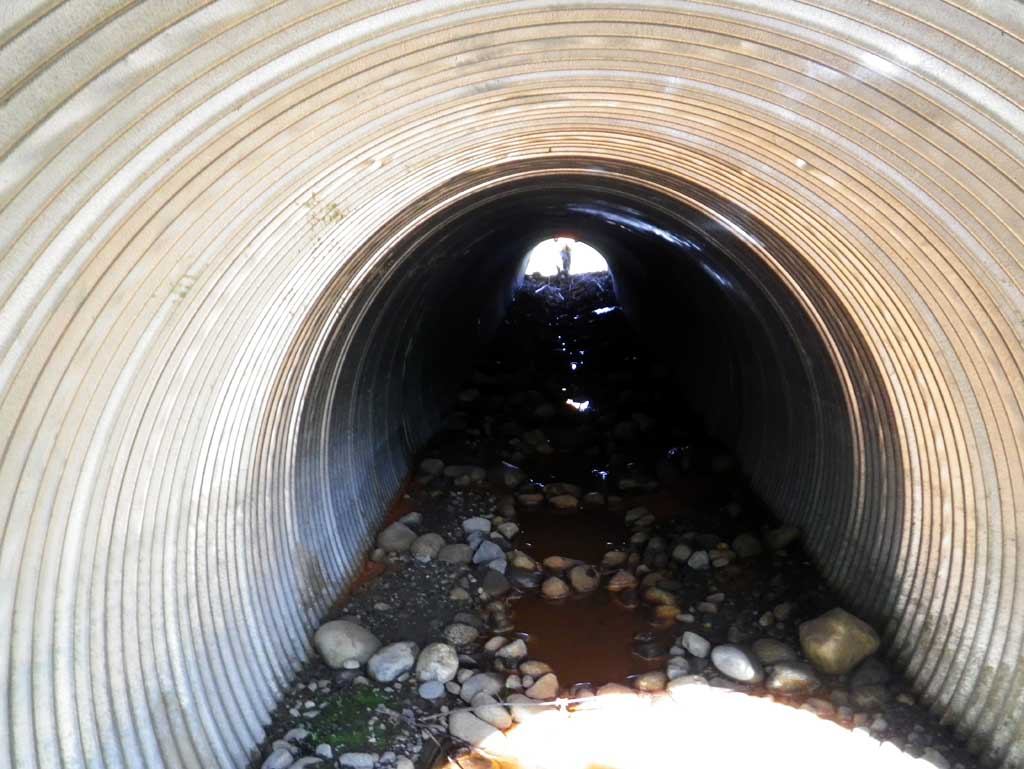

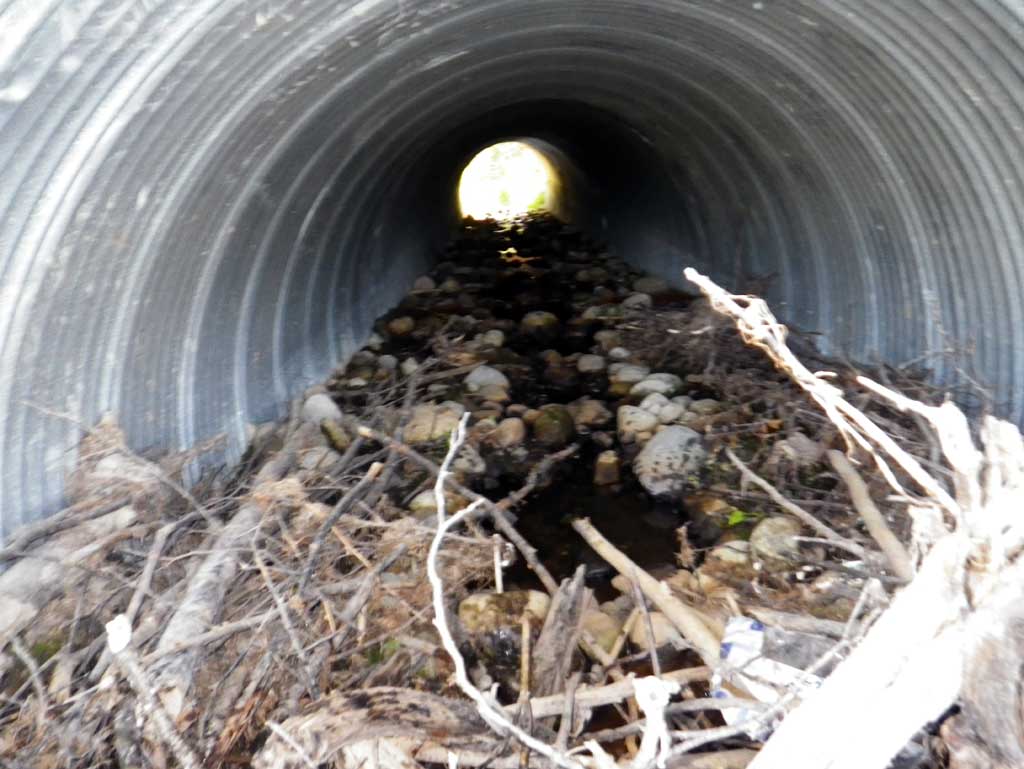

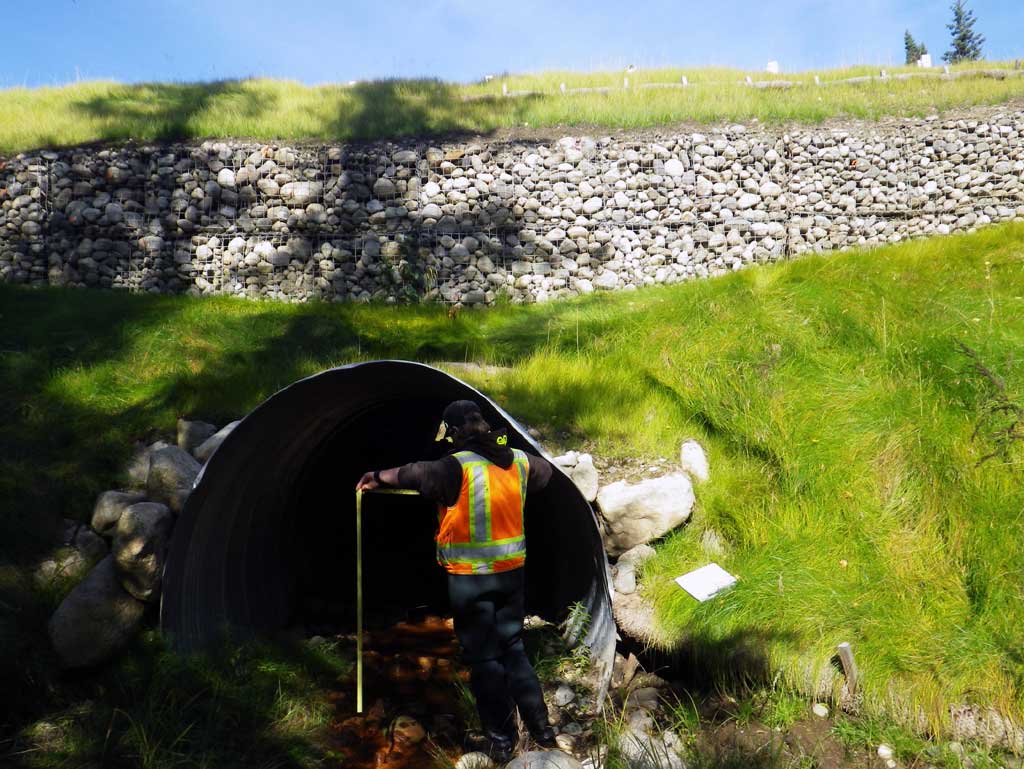

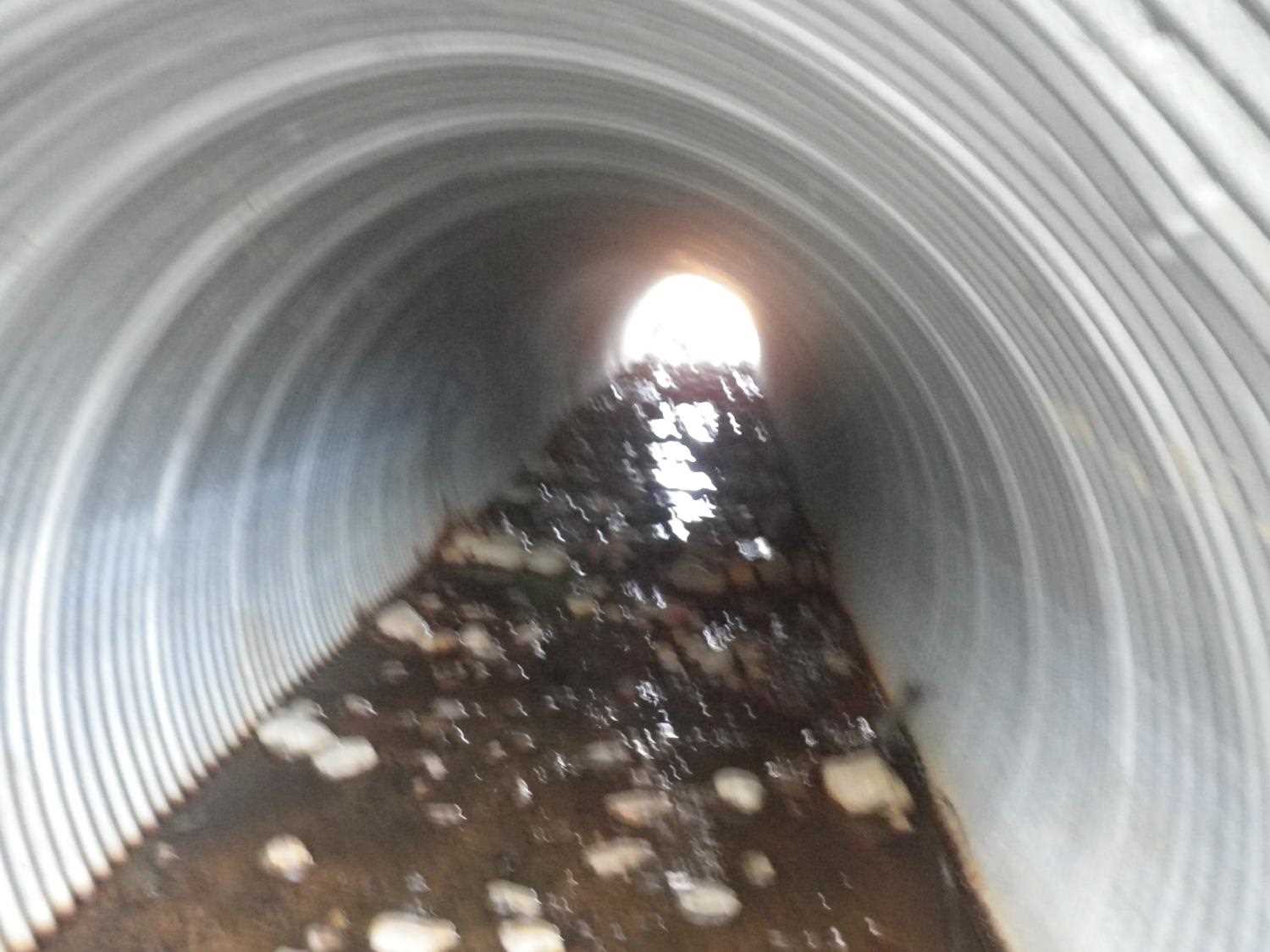

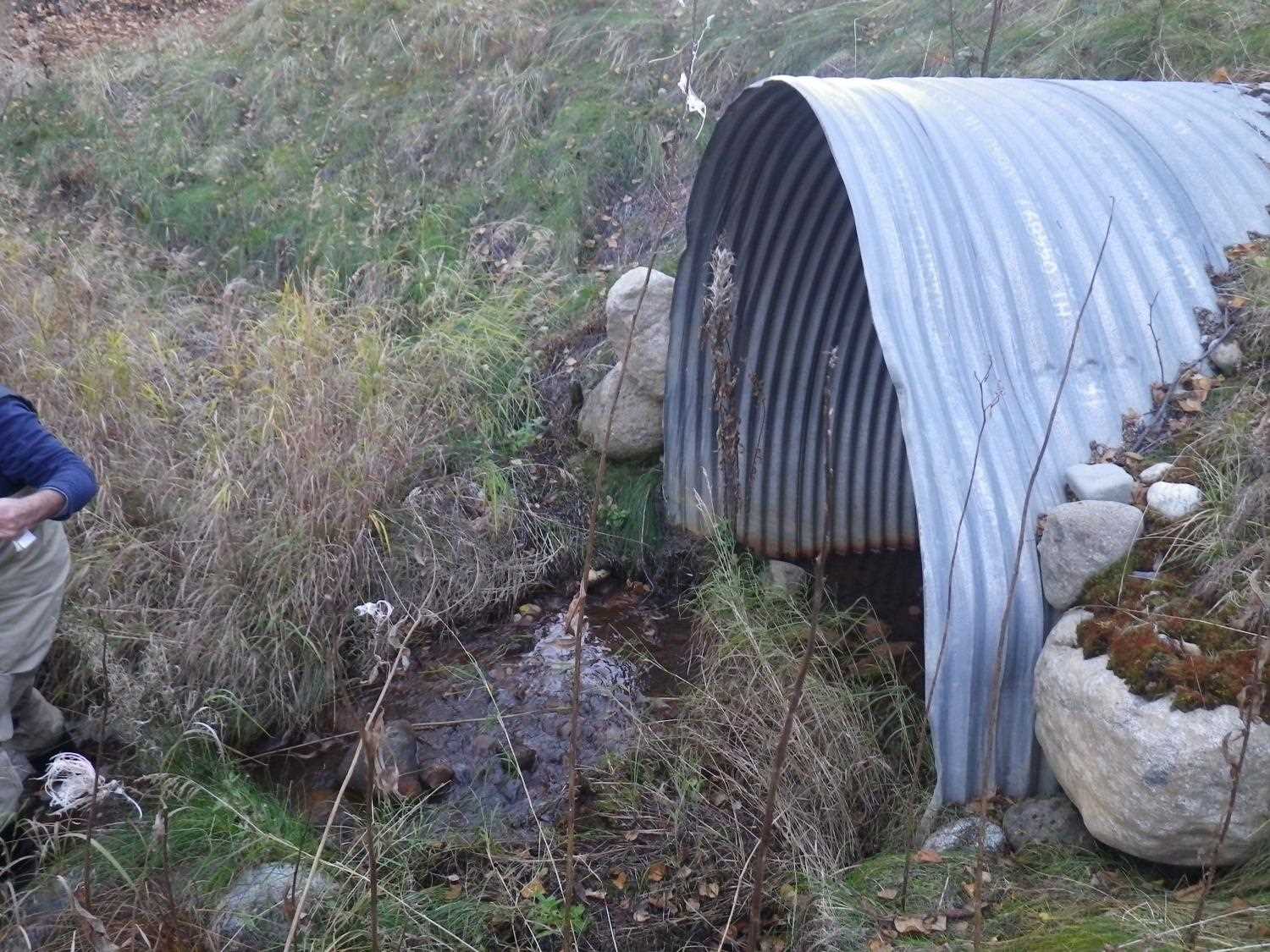

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 80.5
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: Organic
Outlet Substrate: Cobble
InletOutlet
Width(ft):7.4 7.6
Height(ft):3.65 6.6
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.1
Rustline Height(ft):0.0
Substrate Depth(ft):4.0 1.0
Backwatered?: No
Baffles Present: No
Embedded?: Maybe
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 3.20%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red
  2. Woody Debris
  3. Beaver Activity

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClayOrganic
Subdominant:OrganicSilt/Clay
Stream Slope(deg.):
Stream Flow Stage:Low

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg (profile pt) 0.00 77.99
D/S Water Surface Elev 0.00 78.14
D/S Tailcrest or 1st Thalweg (tailwater control) 7.00 78.56
D/S Water Surface Elev 7.00 78.63
D/S Water Surface Elev (outlet water surface) 12.00 78.64
Outlet Invert (invert on substrate) 12.00 78.54
Outlet Culvert Top 12.00 85.16
Road Elev 52.00 97.85
Inlet Culvert Invert (invert substrate on beaver dam) 92.50 84.20
Inlet Culvert Top 92.50 87.72
U/S Thalweg (profile pt) 95.50 82.54
U/S Water Surface Elev 95.50 83.87

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
