Fish Passage Site 20501036

Coordinates (dec. deg.): 61.69342°, -149.26294°
Legal Description: S019N001E34
Region: South Central
Road Name: Edgerton Parks Road

Datum: NAD83
Quad Name / ITM: Anchorage C-7
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

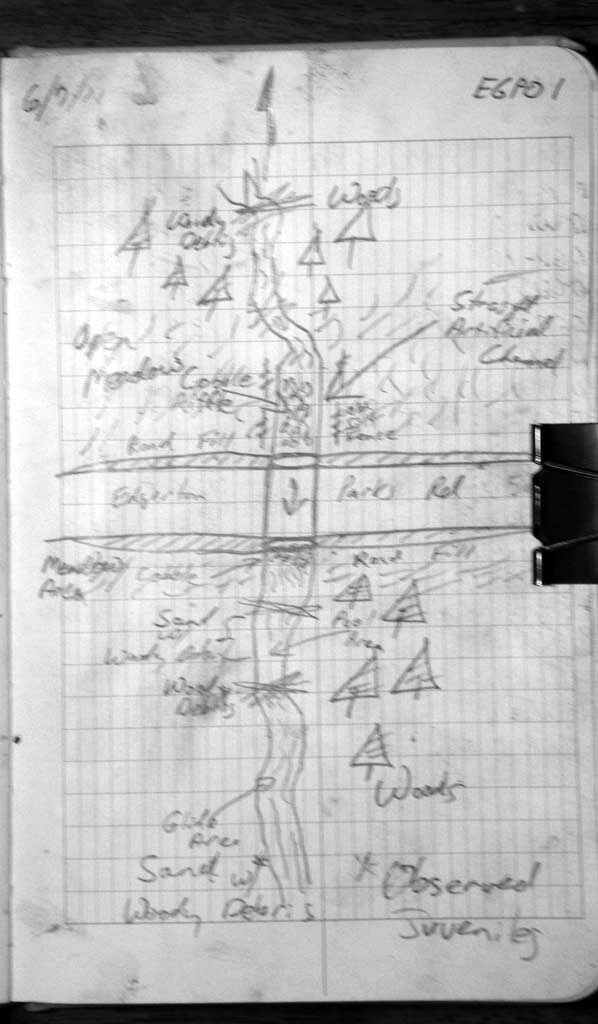

Survey MSB11-EGP01

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools: Yes
Construction Year: 2010


Site Observations:

  1. Culvert gradient gray

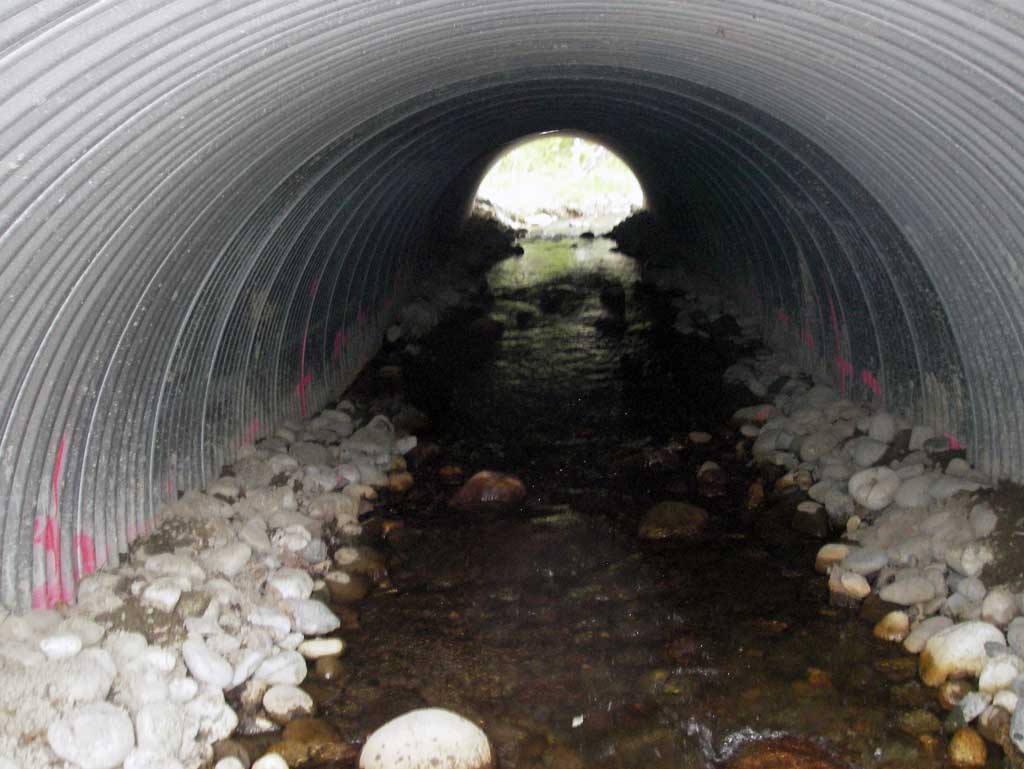

Comments: Post-replacement survey. Culvert is shiny and new, was recently replaced. Culvert appears embedded. Drove a stake 2.5 feet but did not hit bottom. Used top of pipe for pipe gradient due to being embedded. Water surface gradient through pipe 2.77%,

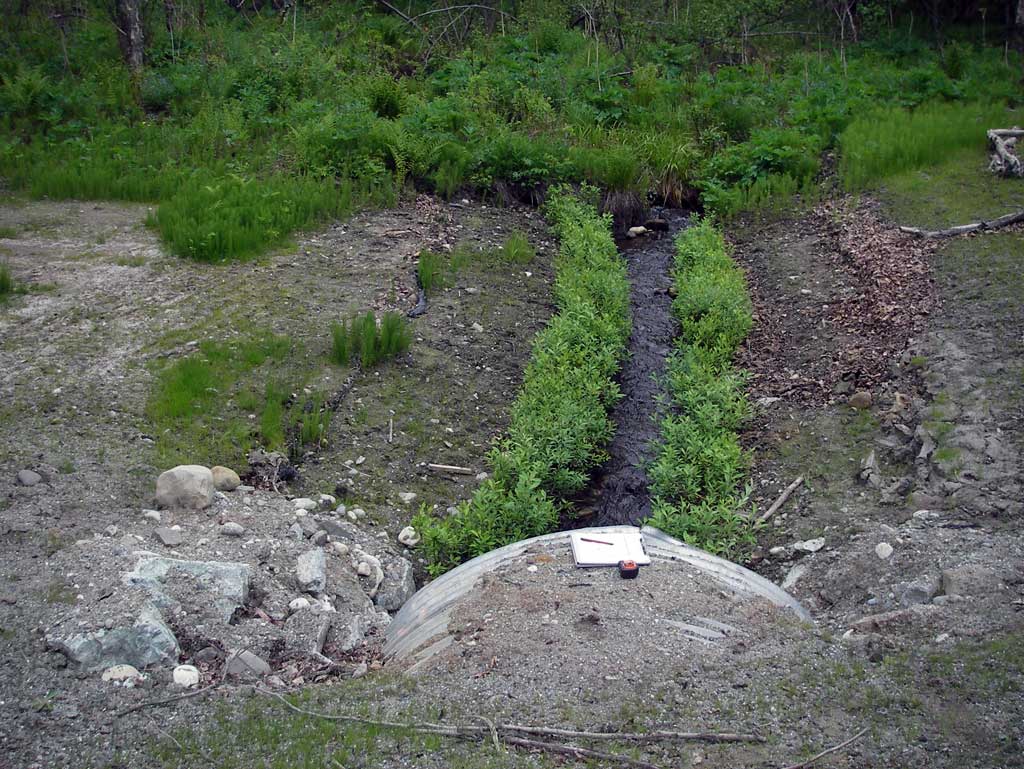

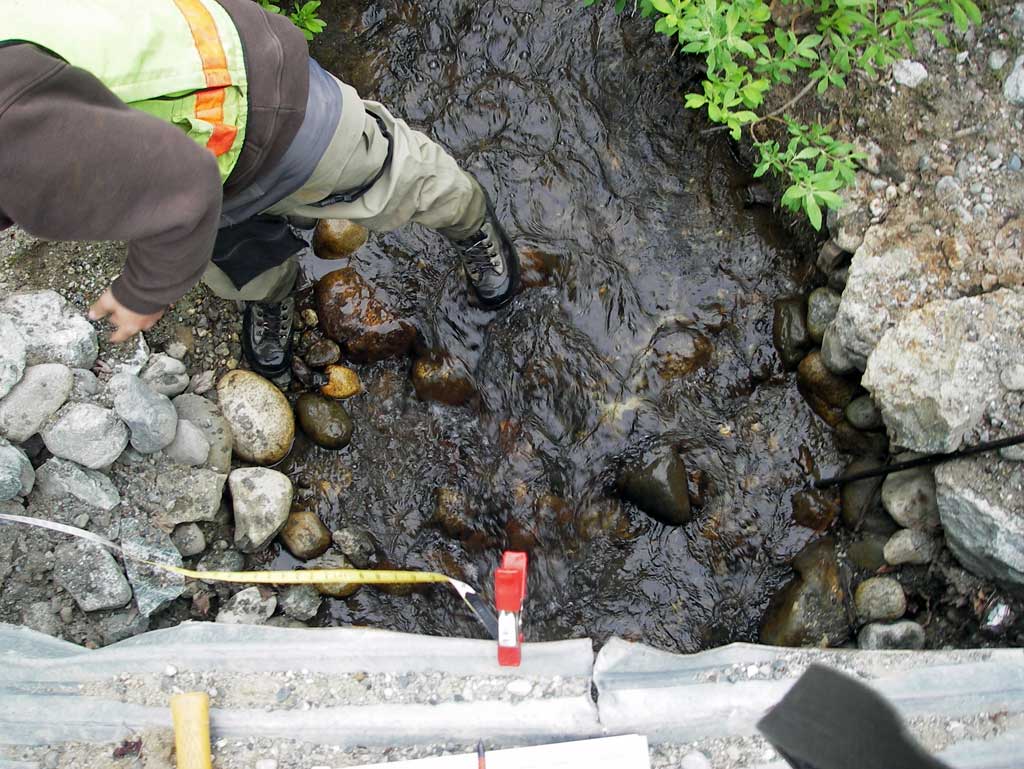

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 58.3
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 5
Approach Angle: 0.0
Sedimentation At Inlet: No
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):7.7 8.6
Height(ft):5.75 4.93
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.32
Rustline Height(ft):0.0
Substrate Depth(ft):2.5 2.5
Backwatered?: No
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 2.5
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.45
Culvert Gradient: 2.86%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient gray

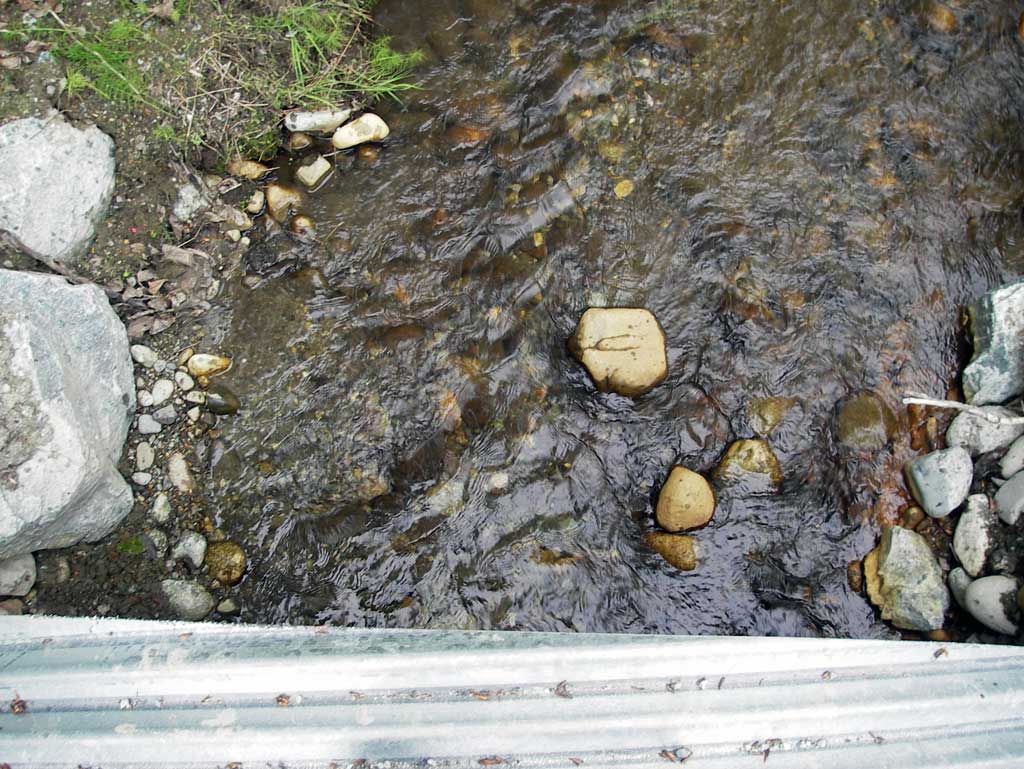

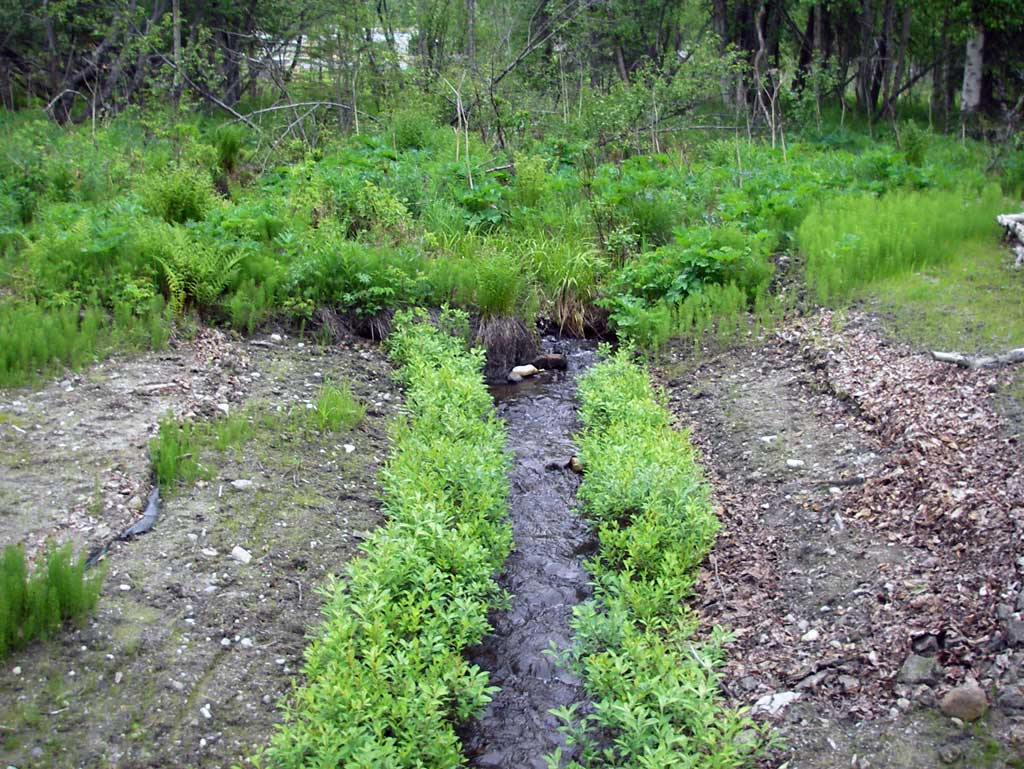

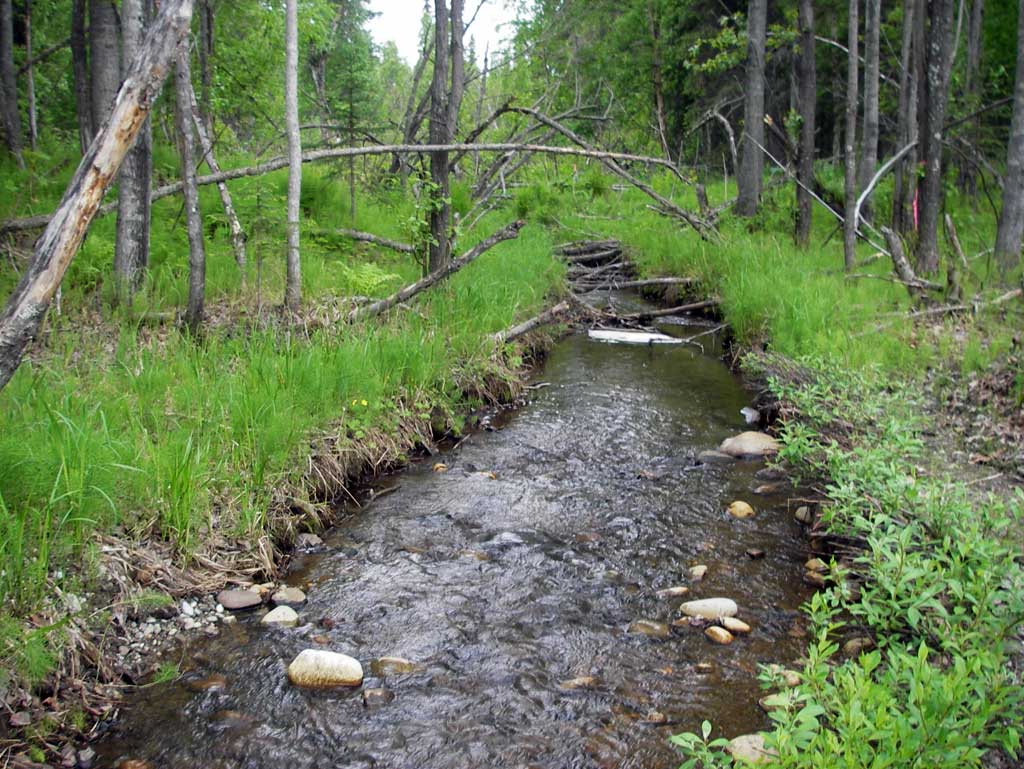

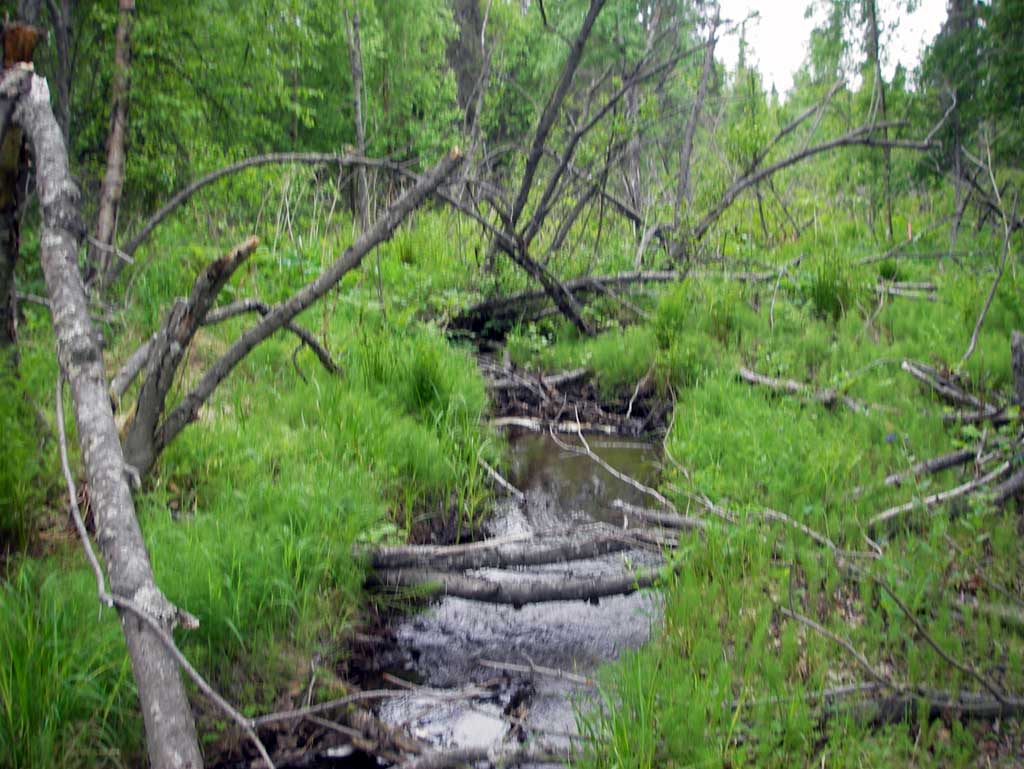

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:SandSand
Subdominant:OrganicOrganic
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 29.0 5.10
Upstream ordinary high water 62.0 5.20
Upstream ordinary high water 90.0 5.60

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Grade Ctrl (Thalweg) 0.00 91.46
D/S Water Surface Elev (Used for stream gradient) 0.00 92.19
D/S Grade Ctrl (Thalweg) (Top of debris riffle) 10.00 92.07
D/S Water Surface Elev 10.00 92.64
D/S Water Surface Elev 33.00 92.87
D/S Grade Ctrl (Thalweg) (Top of debris riffle) 33.00 92.62
D/S Grade Ctrl (Thalweg) 78.00 92.95
D/S Water Surface Elev (Used for stream gradient) 78.00 93.23
Outlet Invert 90.00 93.30
D/S Water Surface Elev (Water surface at outlet) 90.00 93.62
Outlet Culvert Top 90.00 98.33
Road Elev 119.00 103.17
Inlet Culvert Top 148.30 100.00
Inlet Culvert Invert 148.30 94.94
U/S Water Surface Elev (Water surface at inlet) 148.30 95.24
U/S Grade Ctrl (Thalweg) (Top of debris riffle) 184.30 96.42
U/S Water Surface Elev 184.30 96.78

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
