Fish Passage Site 20403919

Coordinates (dec. deg.): 61.15724°, -149.85663°
Legal Description: S012N003W05
Region: South Central
Road Name: Driveway

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-60-10340-2018-3005
Stream Name: North Fork Little Campbell Creek

Elevation:

Site Comments: Driveway to AK Natural Stone Craft off of Homer Drive, connects with corner of Driftwood St and E70th Ave.

Survey Date: Jul 19, 2018

Survey UPDATE-DFT01

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Green

Tidal:
Backwatered:

Step Pools:
Construction Year:


Comments: Culvert replaced under FHP 16-II-0007 as part of the 2016/2017 Seward Highway Upgrade. Upstream site 20400095 under the Seward Highway was also replaced.

Culvert Measurements

ID: 1 Structure Type: Box culvert (Corrugated steel) Fish Passage Rating: Green

Length(ft):
Inlet Type: Headwall
Outlet Type: Headwall
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?: Yes
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

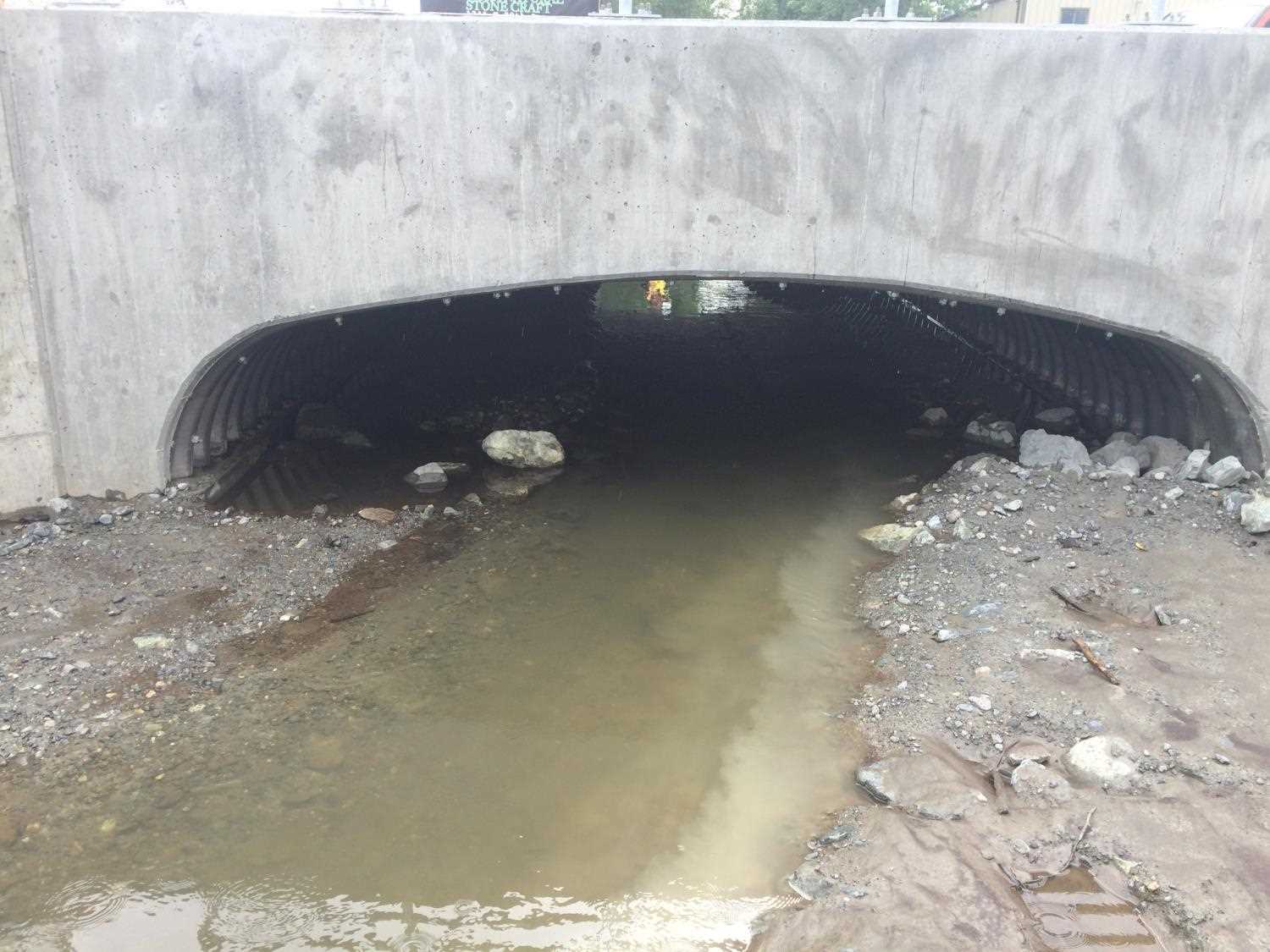

Comments: Culvert measurements taken from site plans and have not been field verified. Plans show culvert has a closed concrete bottom and is topped with a structural steel plate arch. Culvert width 15 ft. Culvert height 4 ft to top of substrate, substate depth 2 ft. Culvert length 51 ft.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
