Fish Passage Site 20403697

Coordinates (dec. deg.): 61.27330°, -149.36400°
Legal Description: S014N001W25
Region: South Central
Road Name: Eagle River Road

Datum: NAD83
Quad Name / ITM: Anchorage B-7
AWC Stream #:
Stream Name: Clear Creek

Elevation:

Site Comments: None

Survey Date: Aug 30, 2017

Survey UPDATE-ERR02

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Green

Tidal:
Backwatered: No

Step Pools:
Construction Year:


Comments: None

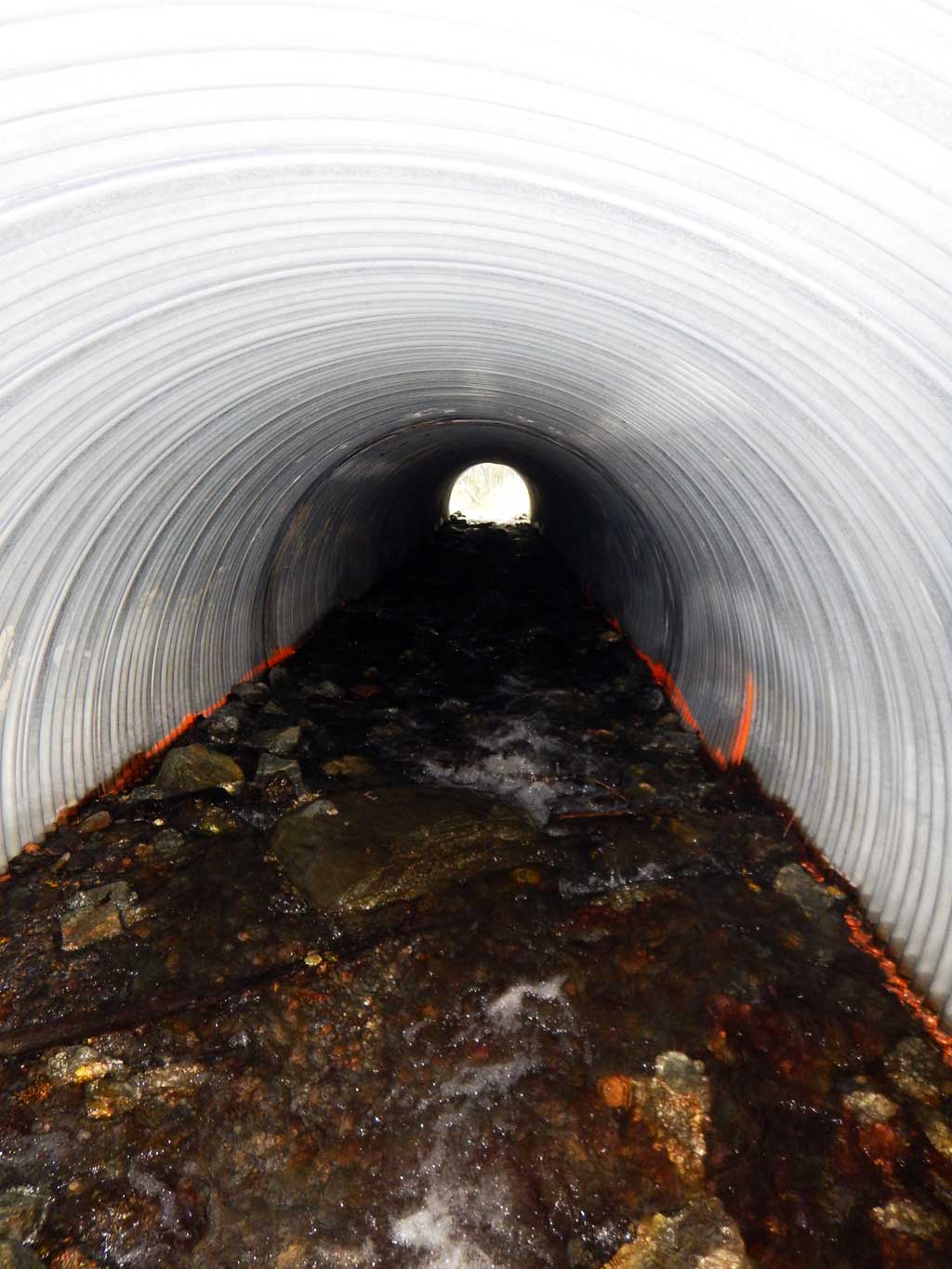

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft):

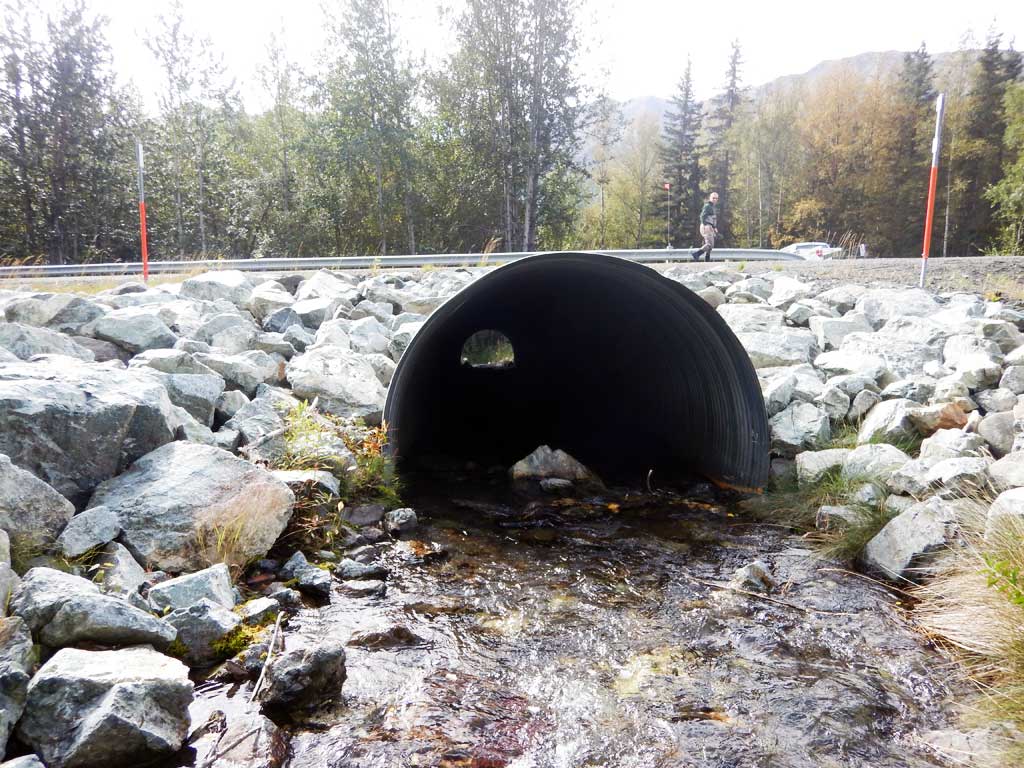

Inlet Type: Projecting

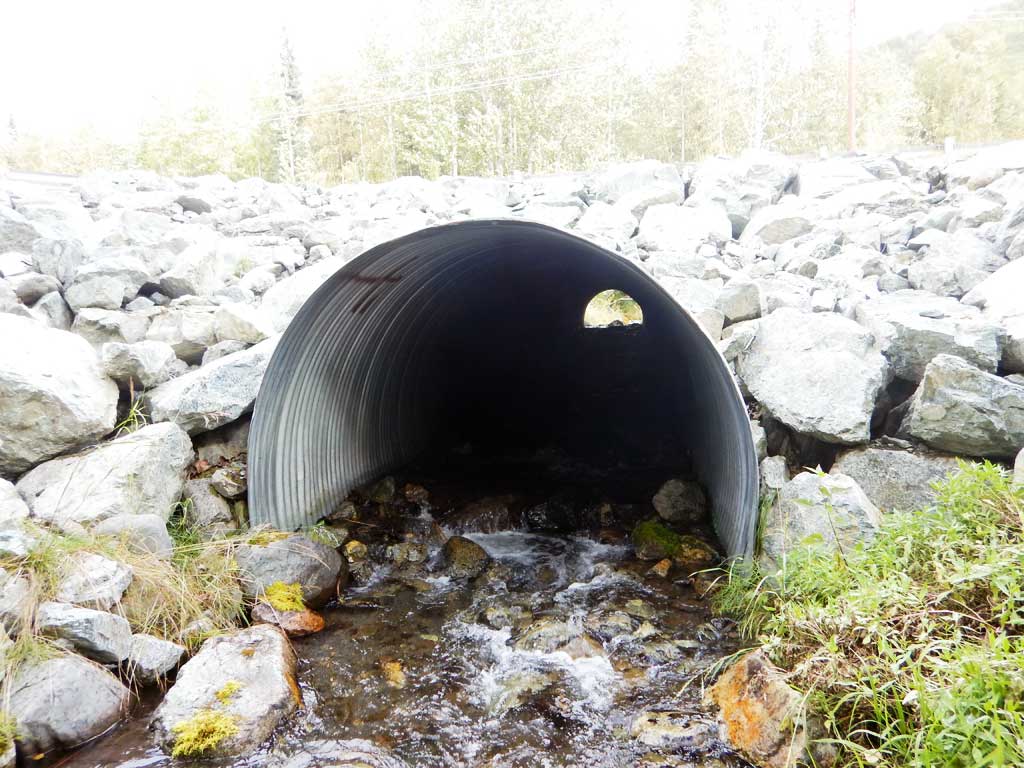

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?: Yes
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Cuvlert width estimated at 8.5 ft.

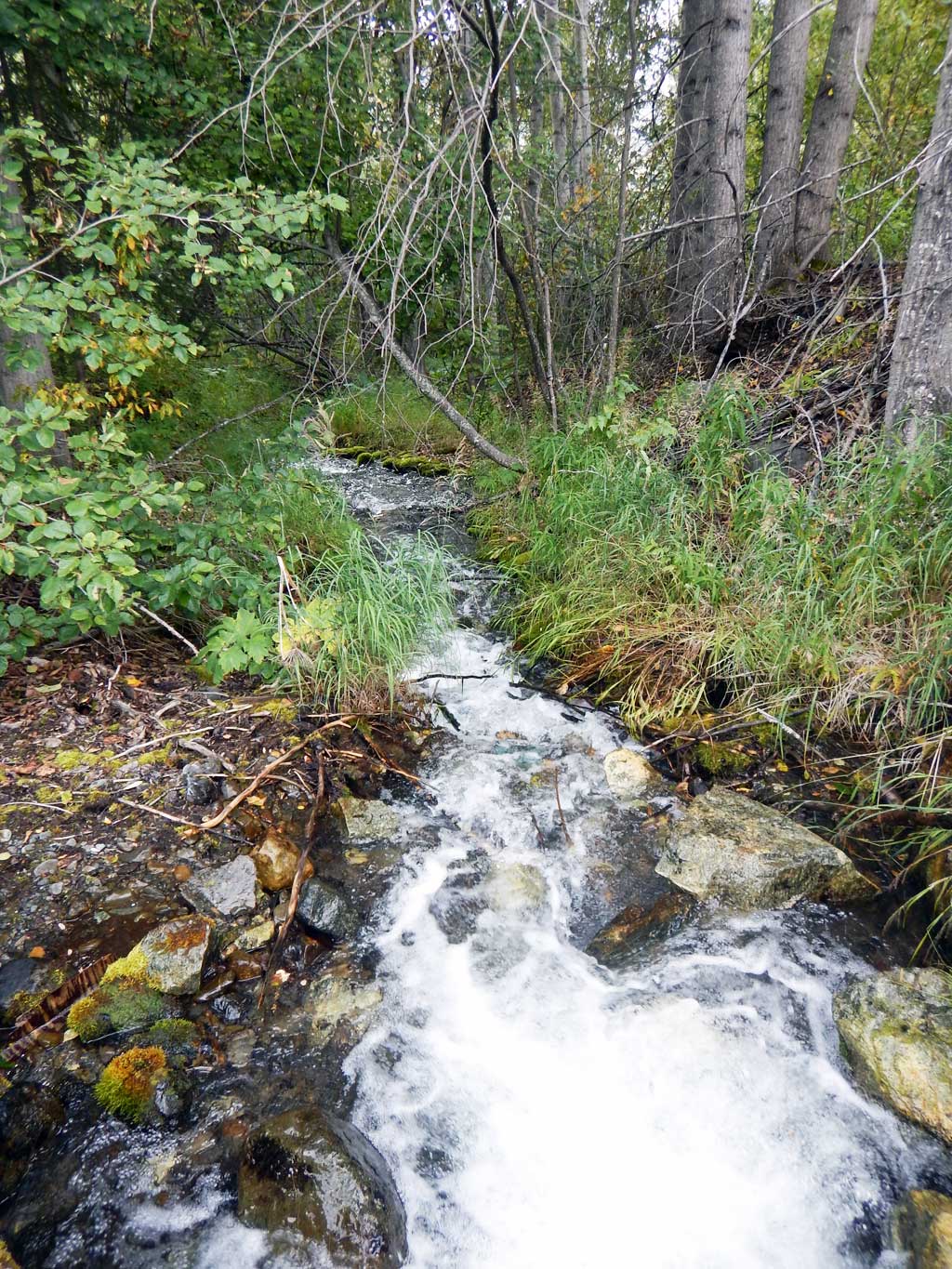

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
