Fish Passage Site 20402070

Coordinates (dec. deg.): 61.55384°, -149.24358°
Legal Description: S017N001E22
Region: South Central

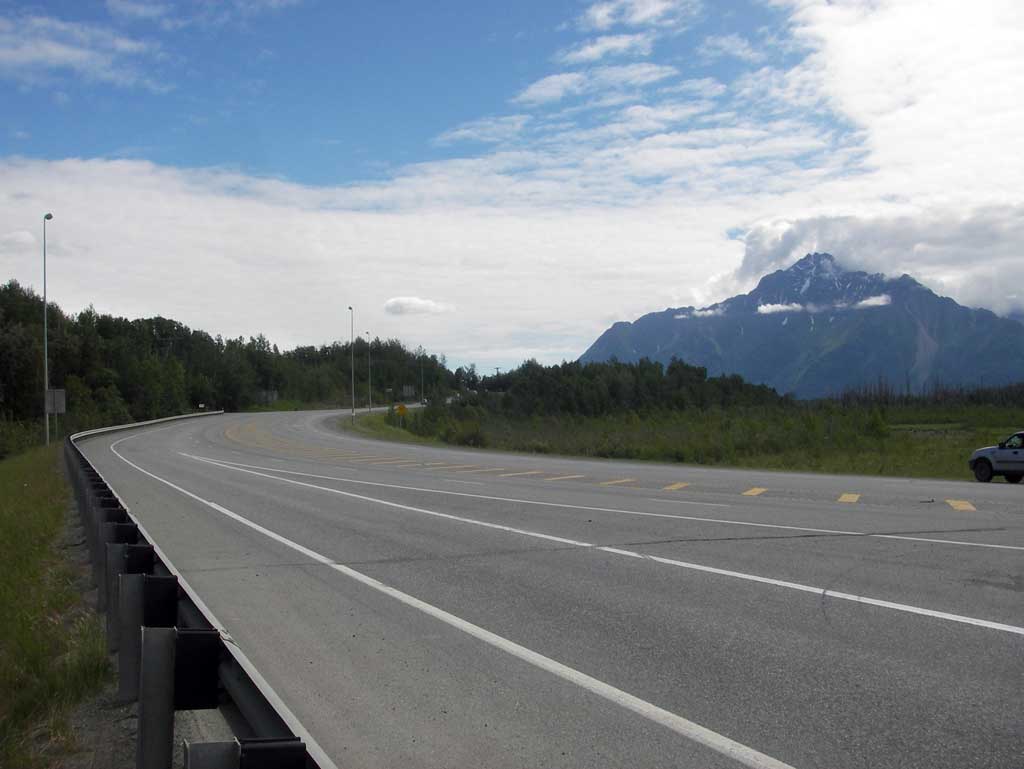

Road Name: South Glenn Highway

Datum: NAD83
Quad Name / ITM: Anchorage C-6
AWC Stream #:
Stream Name:

Elevation:

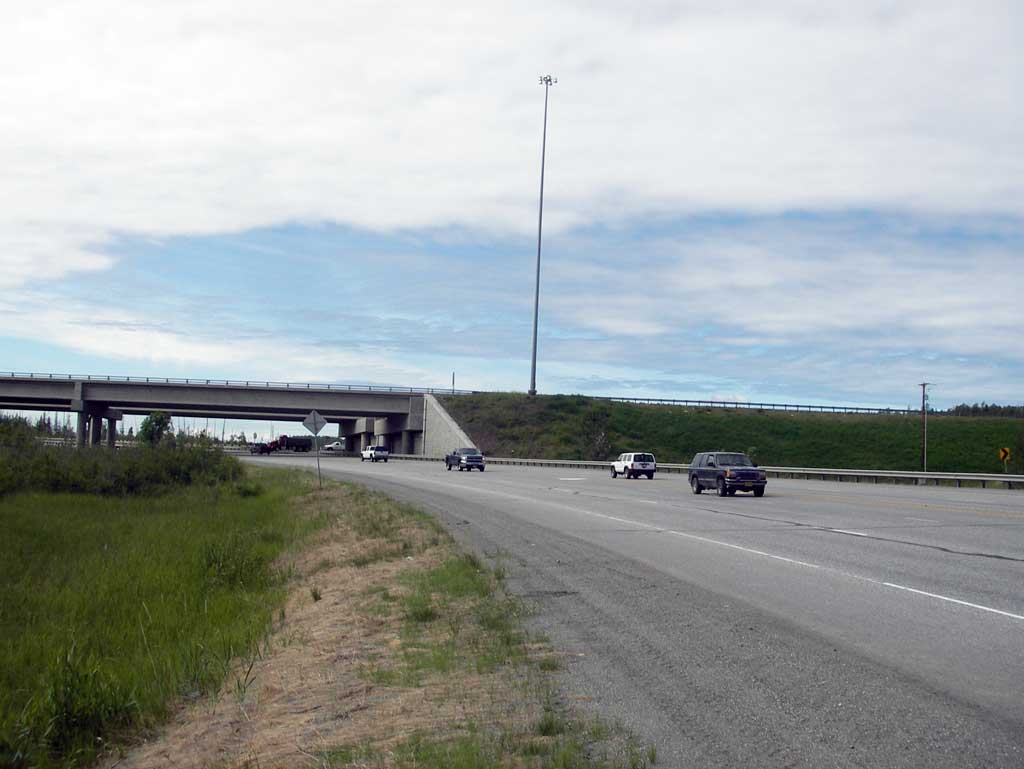

Site Comments: Culvert connecting two marsh areas on the Glenn just east of Glenn and Parks interchange.

Survey Date: Jun 29, 2011

Survey MSB11-PS1GL11

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: Maybe

Step Pools: No
Construction Year:

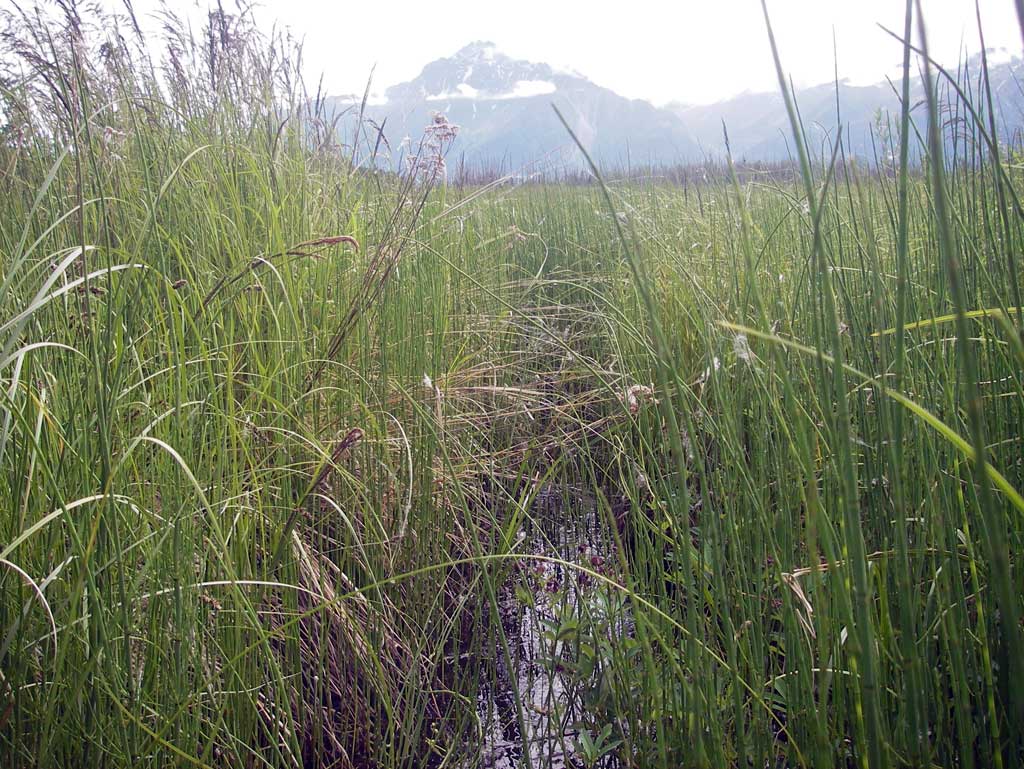

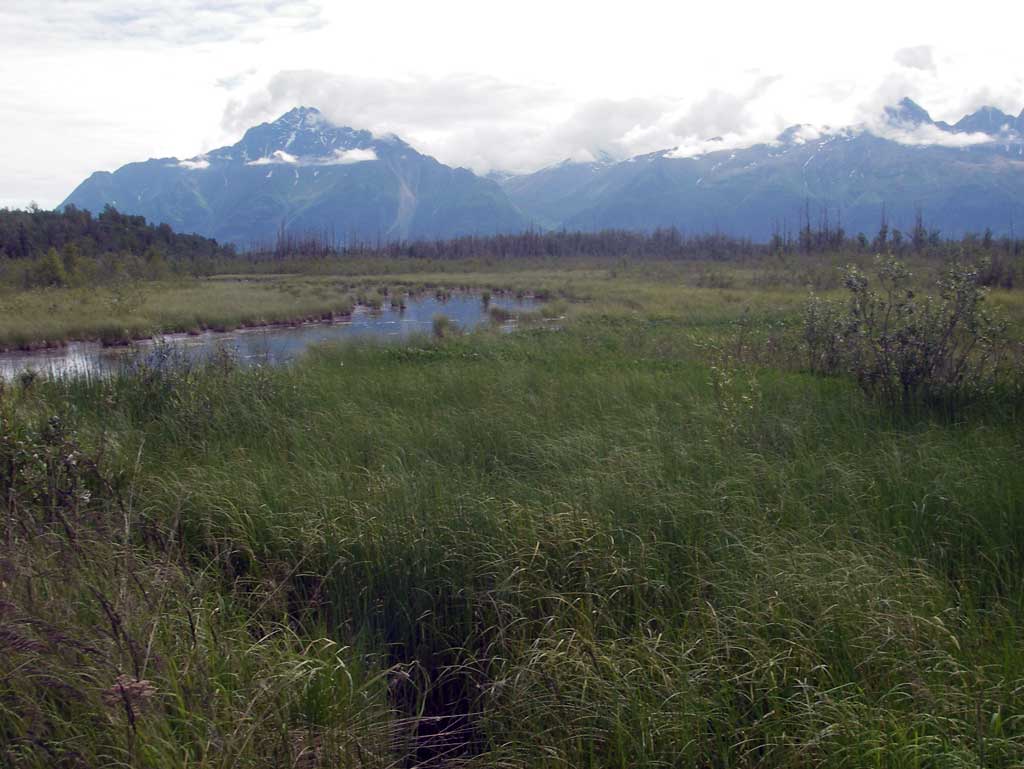

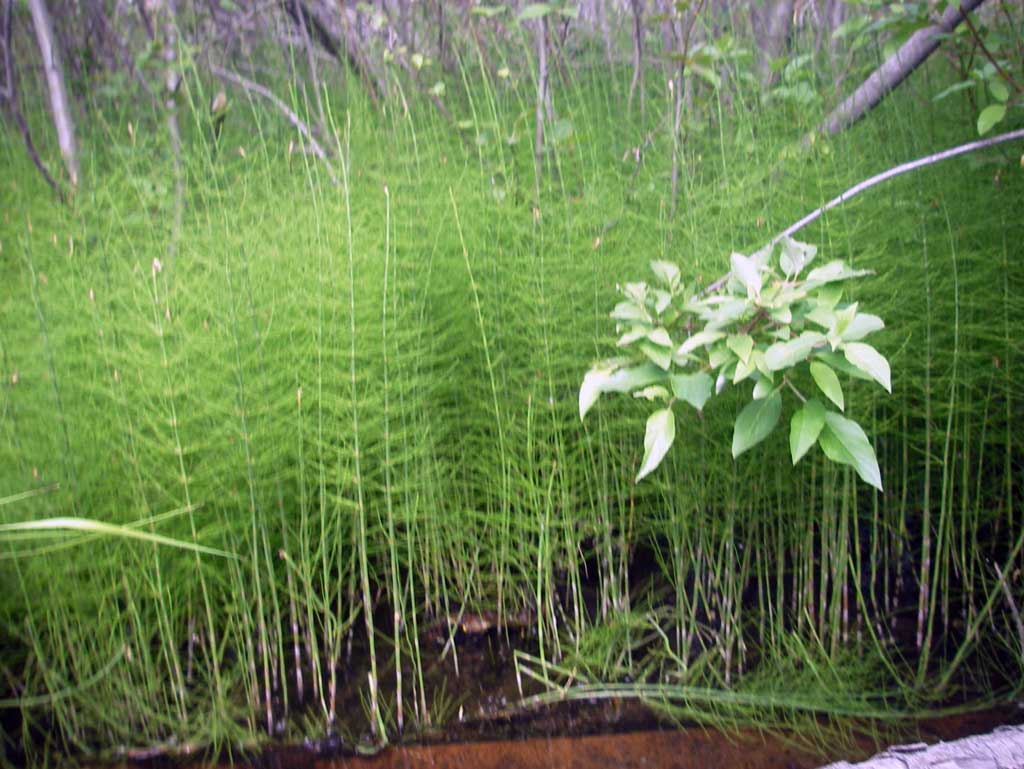

Comments: A photo site survey was done on culvert on the Glenn Highway due to fact heavy traffic. Upst and dwst is a marsh with heavy aquatic vegetation. Water appeared flat through pipe and connected two shallow marsh areas. Could possibly be backwatered. Juvenile fish were observed upst.

Culvert Measurements

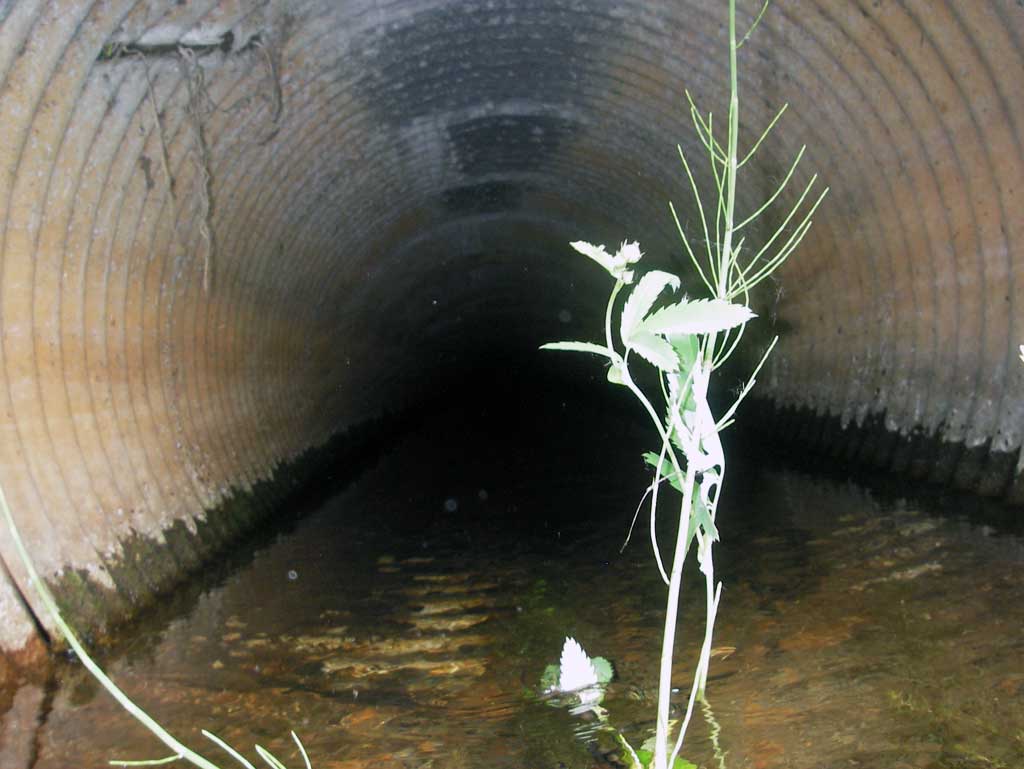

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 150.0

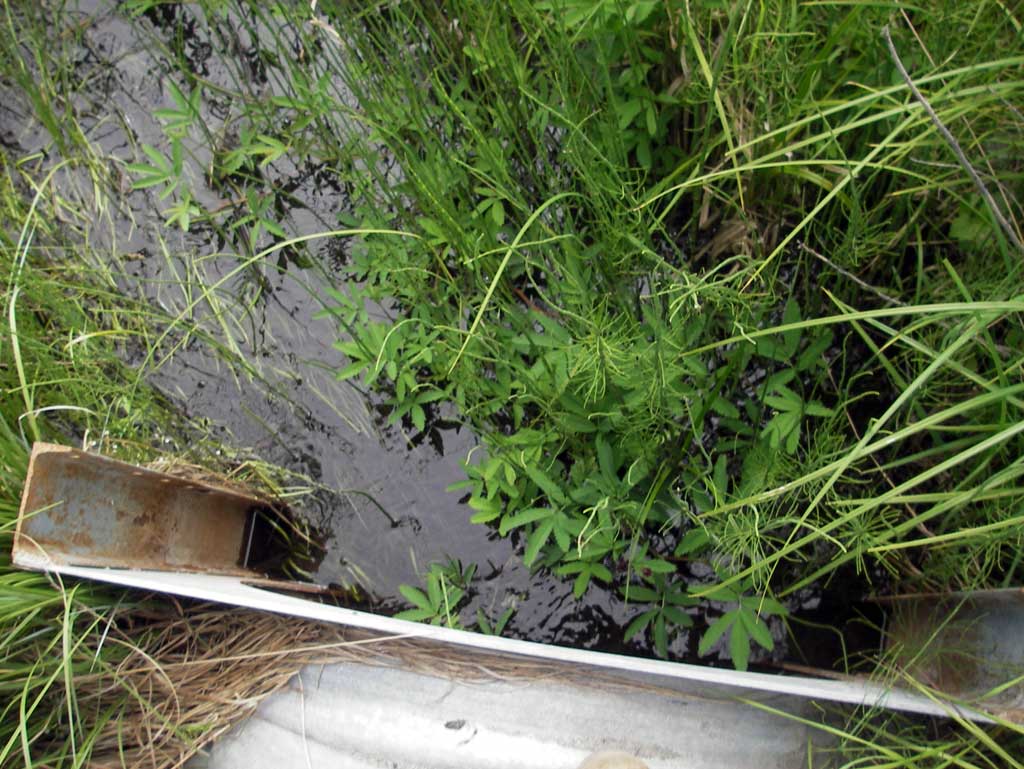

Inlet Type: Projecting

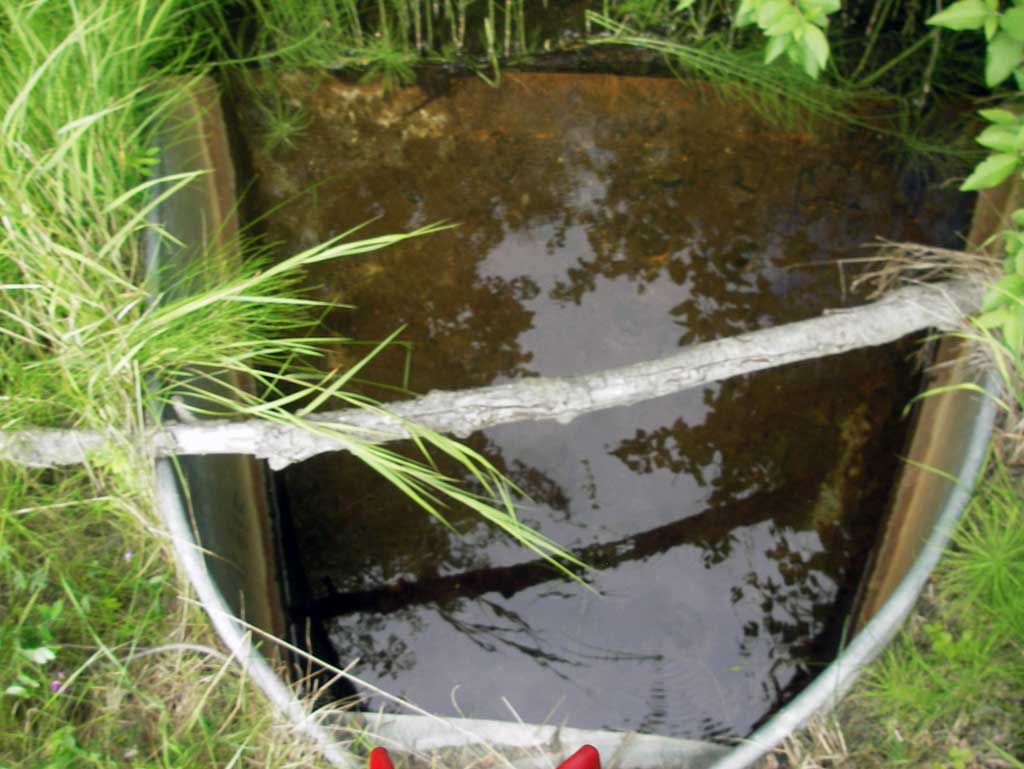

Outlet Type: Flared Inlet
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):3.0 3.0
Height(ft):3.0 3.0
Apron Length(ft):0.0 3.0
Water Depth(ft): 0.4
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: Maybe
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Low

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)
Comments: Juvenile fish observed at outlet.

Fish Observations

No fish observations occurred during this survey.
