Fish Passage Site 20401360

Coordinates (dec. deg.): 61.56627°, -149.31290°
Legal Description: S017N001E17
Region: South Central
Road Name: Alaska Railroad

Datum: NAD83
Quad Name / ITM: Anchorage C-7
AWC Stream #: 247-50-10260-2019-3038
Stream Name: Wasilla Creek tributary

Elevation:

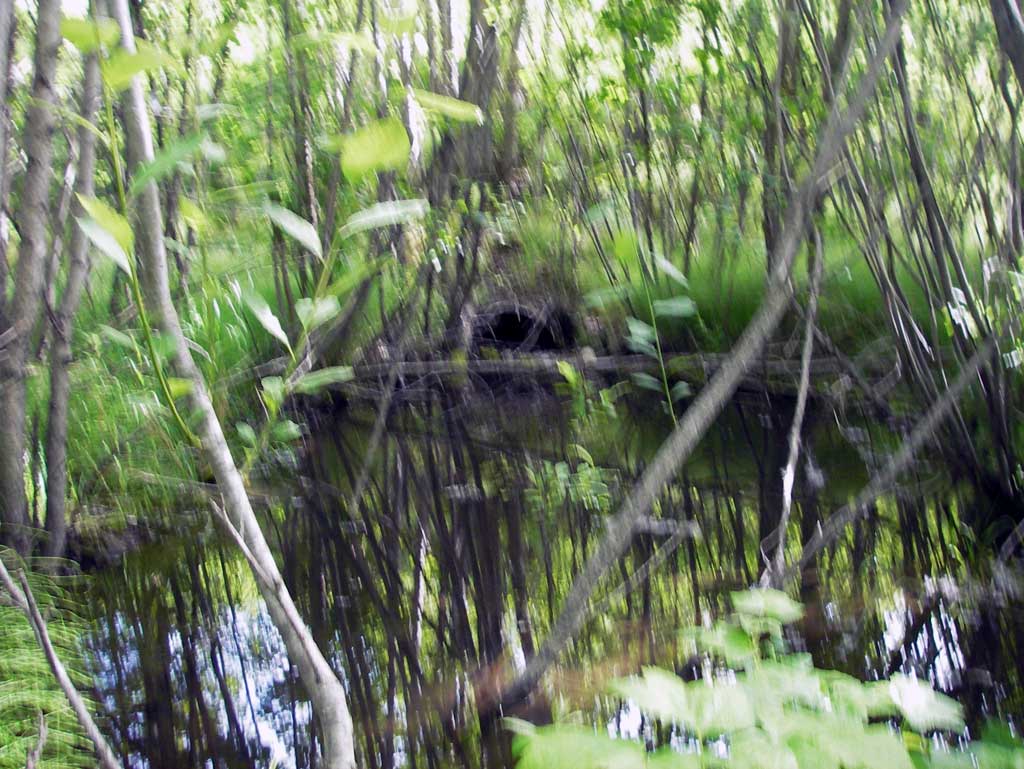

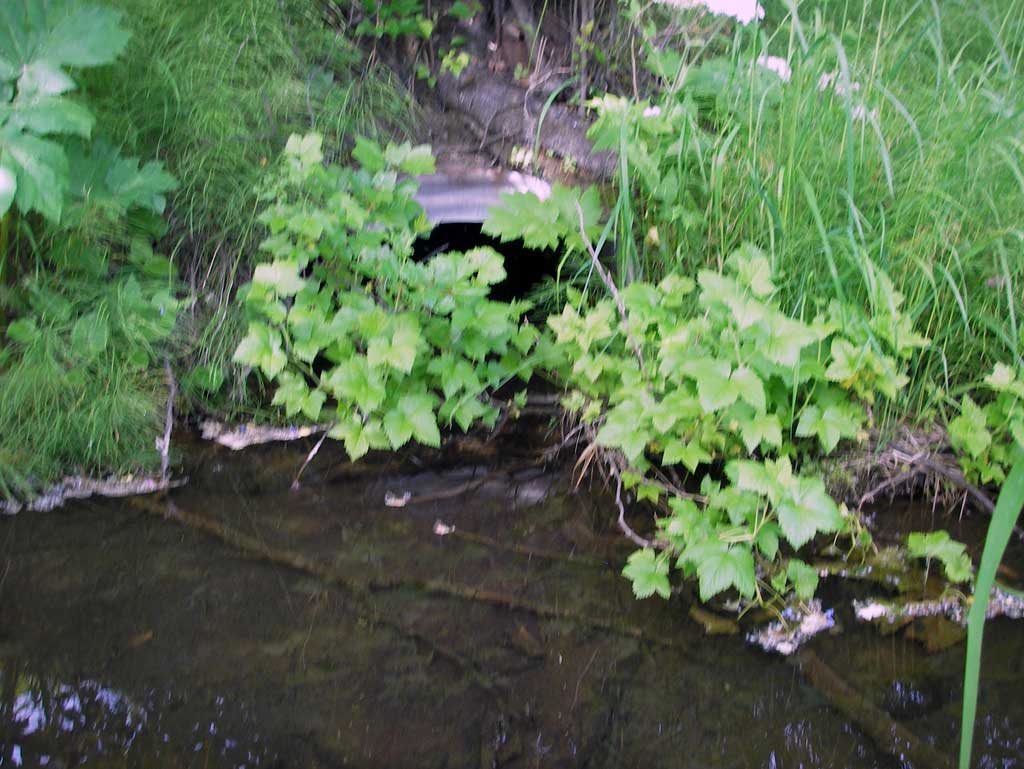

Site Comments: Culvert is located on Alaska RR near Fairview Loop Rd.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB11-PSFWL01

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:

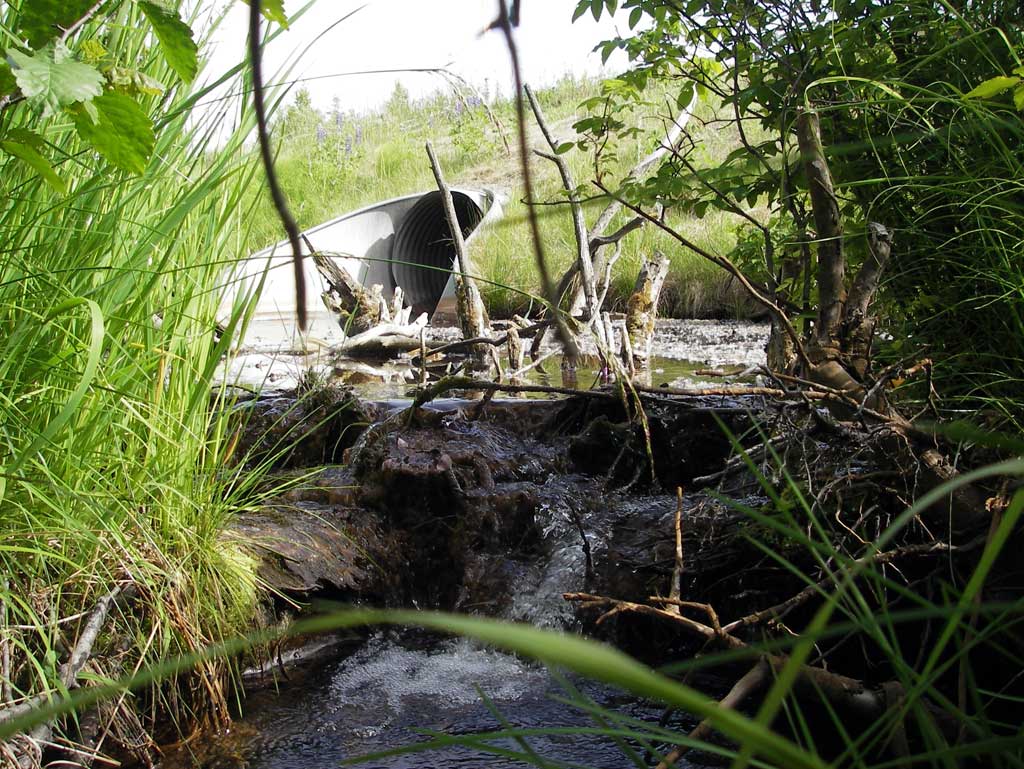

Comments: Upst of the inlet is a woody debris dam near 1'. The outlet has a grade break with a drop of about 0.5' about 20' dwst of outlet. The stream flow approximately 40' dwst of the outlet flows underground for about 5'

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft): 75.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: Organic
Outlet Substrate: Organic
InletOutlet
Width(ft):2.0 2.0
Height(ft):2.0 2.0
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.5
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:

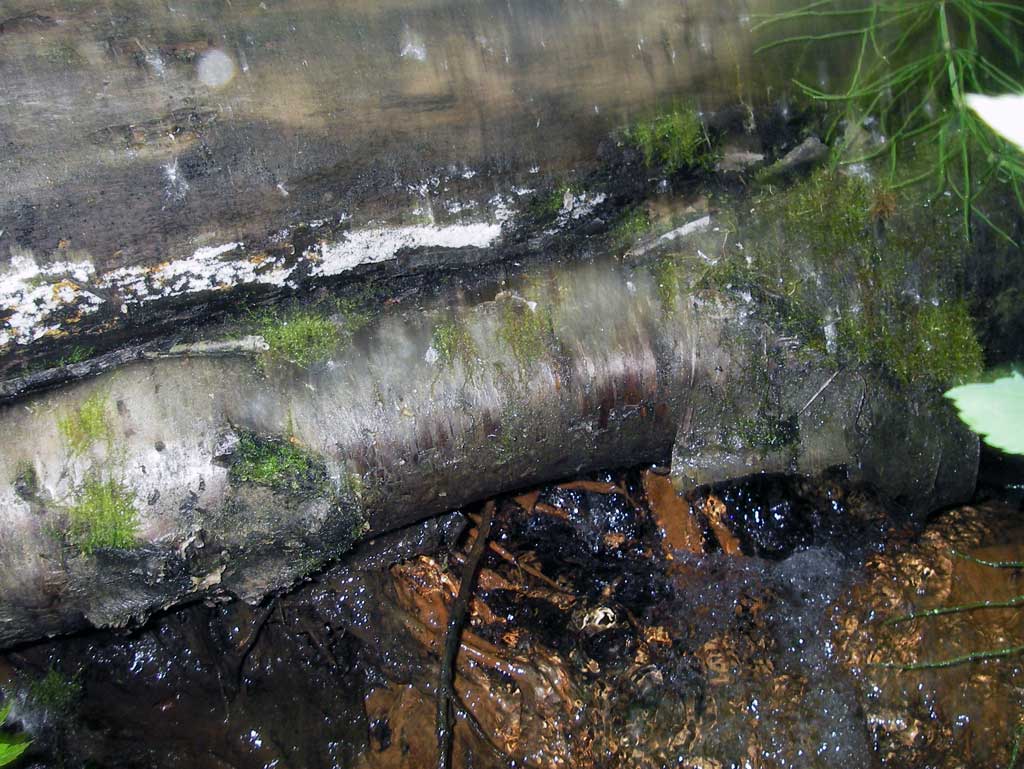

  1. Woody Debris

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Low

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
