Fish Passage Site 20401325

Coordinates (dec. deg.): 61.55226°, -149.25021°
Legal Description: S017N001E22
Region: South Central

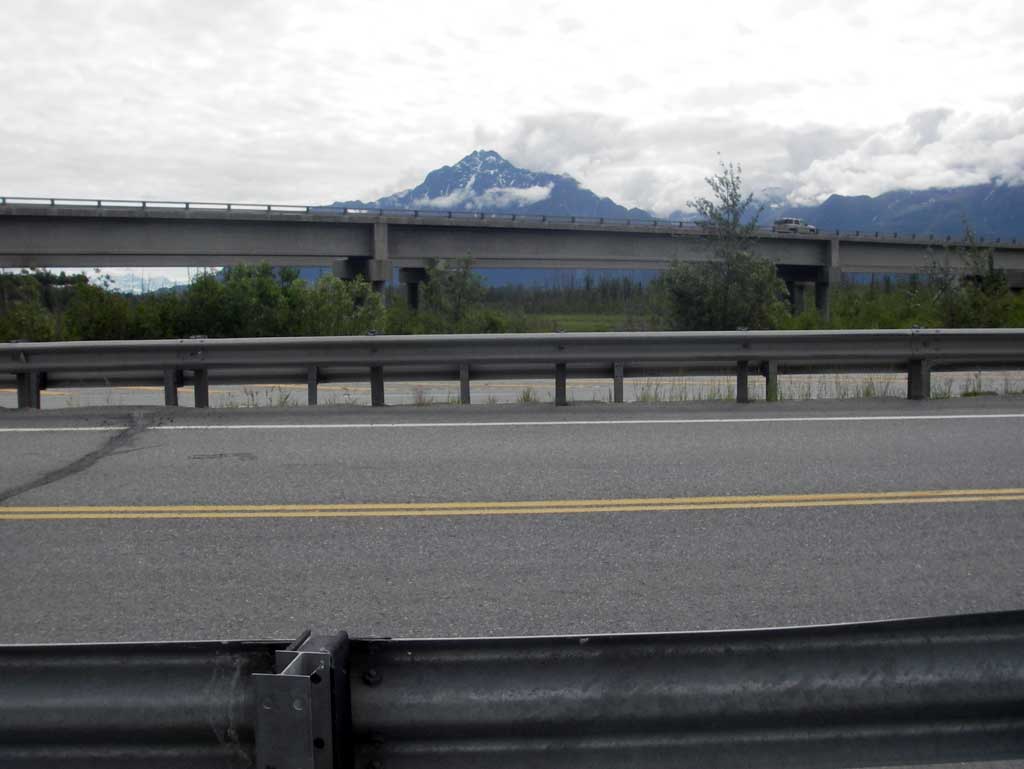

Road Name: Glenn Highway

Datum: NAD83
Quad Name / ITM: Anchorage C-6
AWC Stream #: 247-50-10260-2019-3020
Stream Name: Spring Creek

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB11-PS1RS11

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:

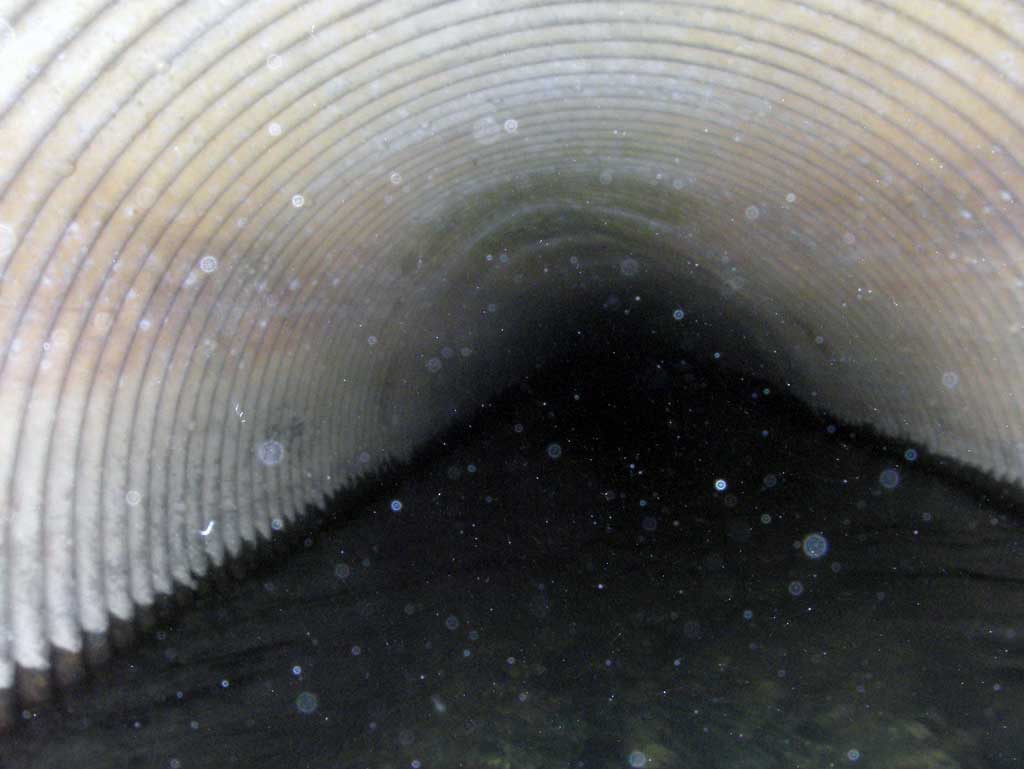

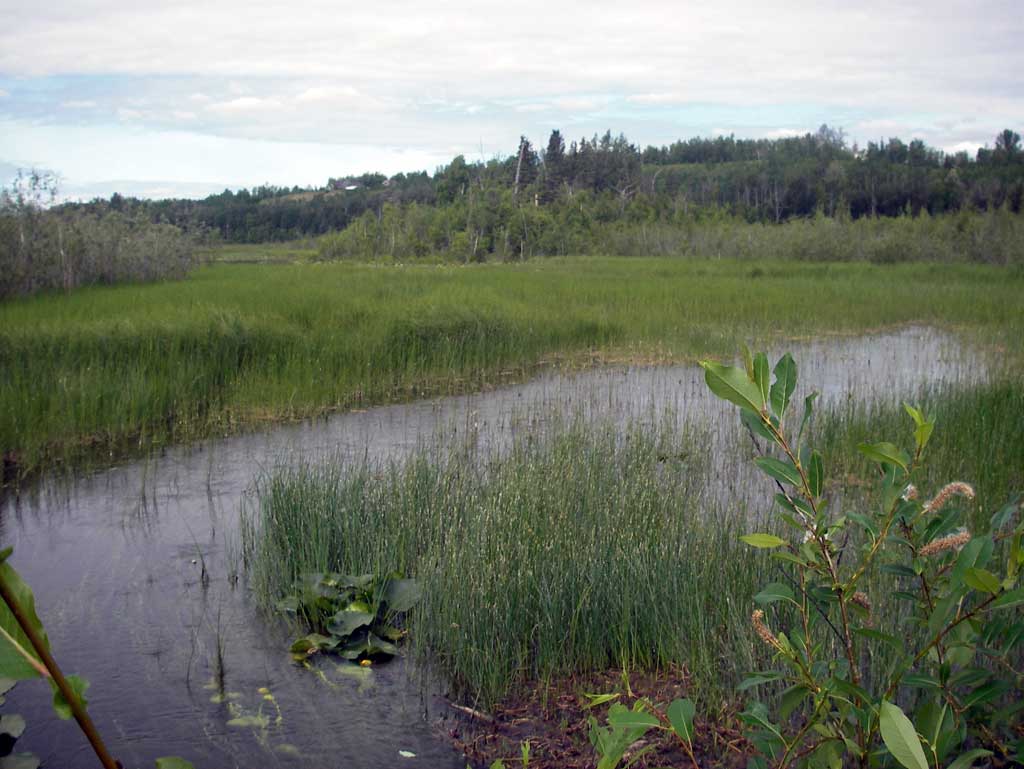

Comments: Photo survey done only as this culvert goes under the Glenn Highway near the Glenn and Parks interchange. The culvert connects two marshlands and is flat water througout the pipe with sufficient water depth for fish passage. . Juvenile fish observed at both ends of culvert.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 200.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: Gravel
Outlet Substrate: Boulder
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):0.0 0.0
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: Yes
Baffles Present: No
Embedded?: Unknown
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Length is an estimate.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:OrganicOrganic
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (B)
Comments: Juvenile fish observed upst and dwst.

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
