Fish Passage Site 20401312

Coordinates (dec. deg.): 61.53579°, -149.25305°
Legal Description: S017N001E27
Region: South Central
Road Name: Glenn Highway

Datum: NAD83
Quad Name / ITM: Anchorage C-7
AWC Stream #: 247-50-10260
Stream Name: Rabbit Slough

Elevation:

Site Comments: culvert is located on the Glenn Highway south of the Parks/Glenn interchange.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB11-PS2GL11

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:

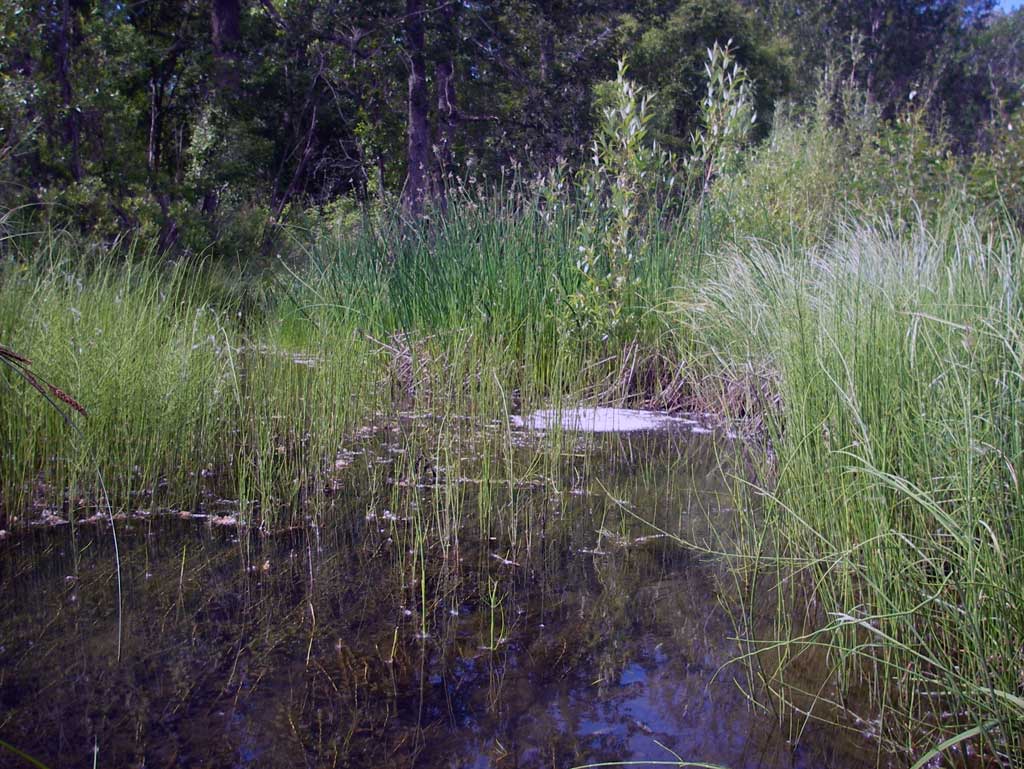

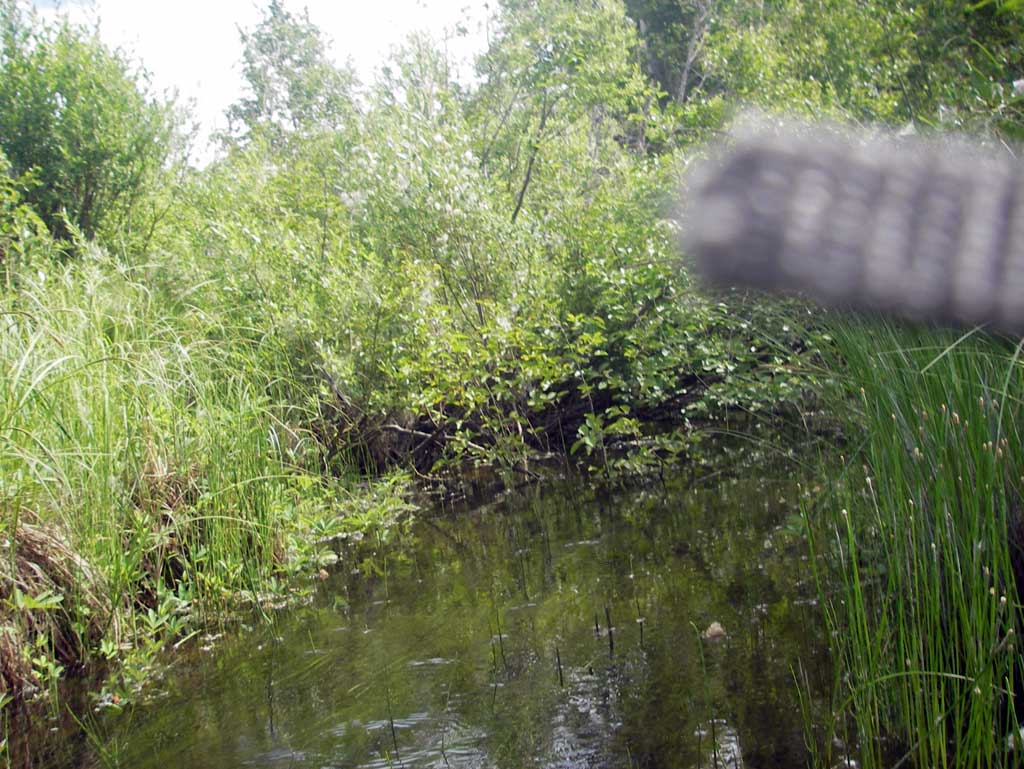

Comments: A photo site survey only as the culvert is located on the Glenn Highway south of the Parks/Glenn interchange. Culvert connects a flat slough which runs through a marsh on both ends of the pipe. At the time of the photo survey several fish traps placed by the University of Anchorage Alaska were at the outlet

Culvert Measurements

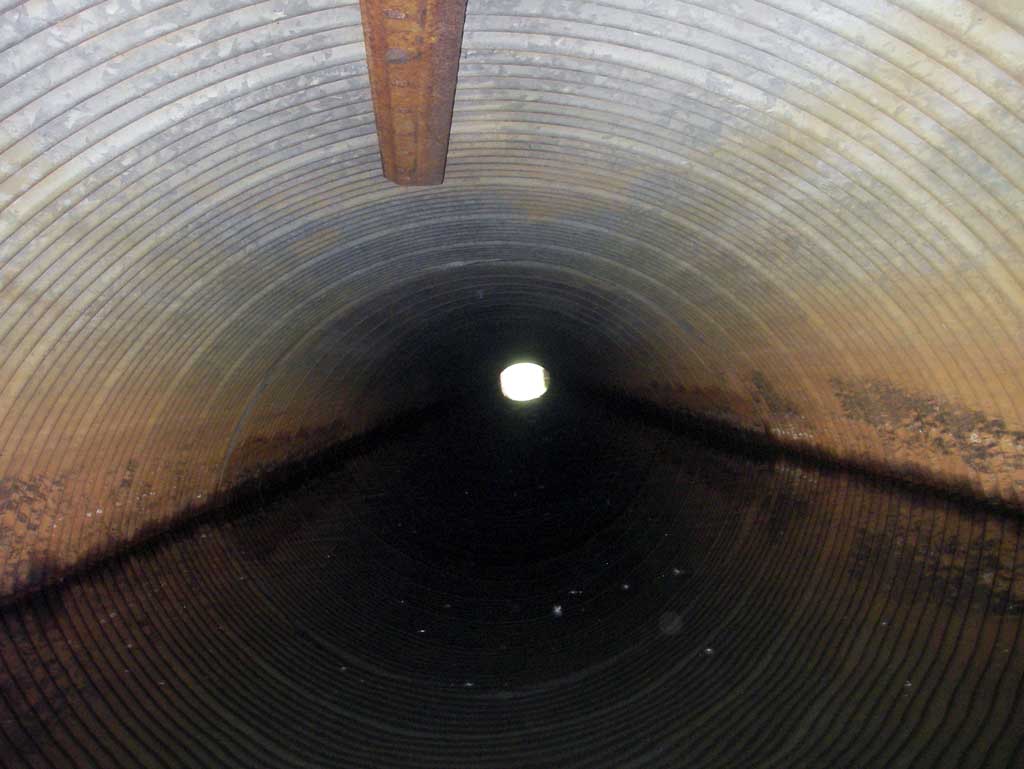

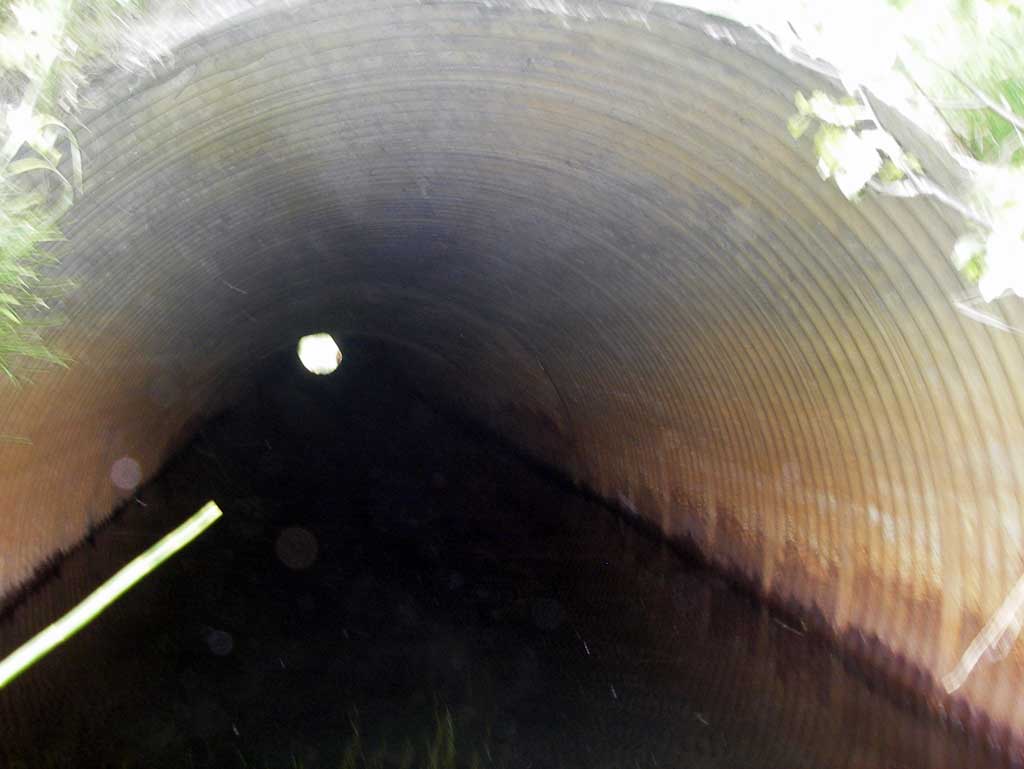

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 150.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: Organic
Outlet Substrate: Organic
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):0.0 0.0
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: Yes
Baffles Present: No
Embedded?: Unknown
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

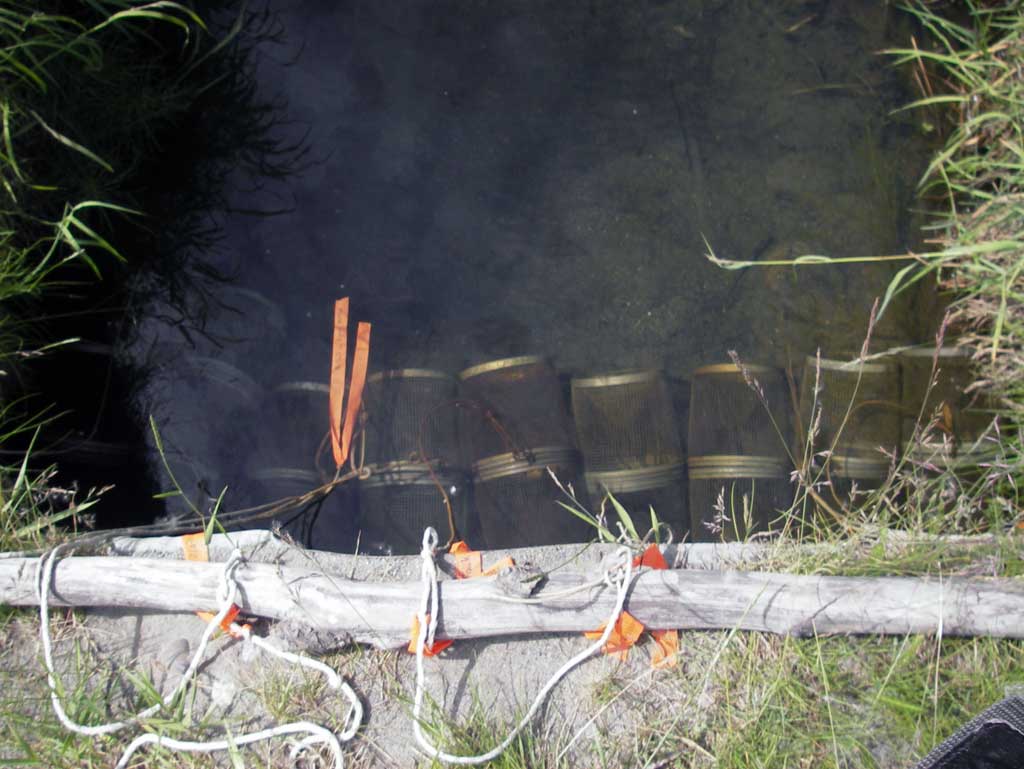

Comments: Juvenile fish observed in UAA minnow fish traps. Some fry looked like chum, primarily sticklebacks.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
