Fish Passage Site 20400600

Coordinates (dec. deg.): 61.46283°, -148.86032°
Legal Description: S016N003E23
Region: South Central

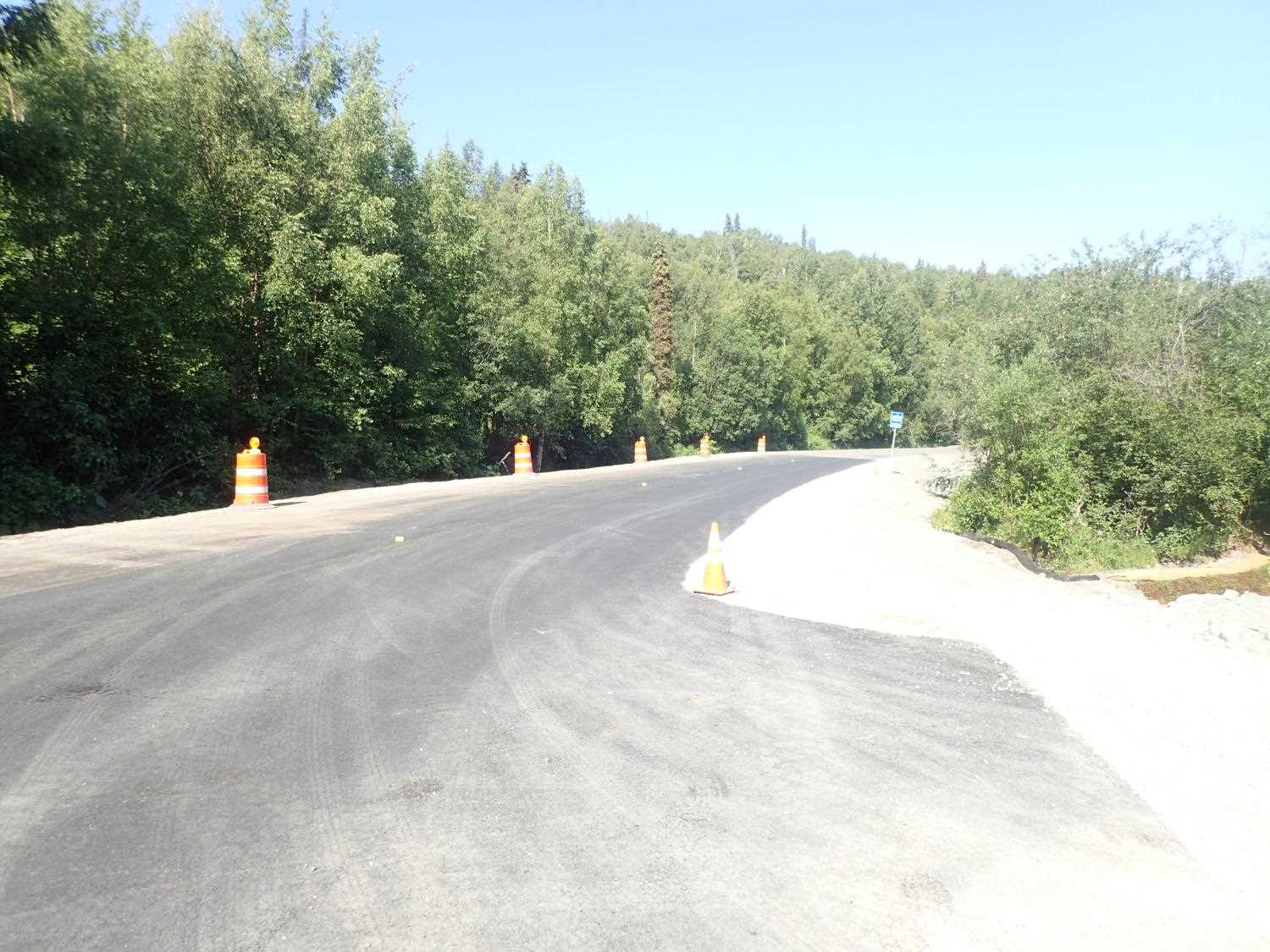

Road Name: Knik River Road

Datum: NAD83
Quad Name / ITM: Anchorage B-5
AWC Stream #: 247-50-10200-2120-3016
Stream Name: Doc's Creek

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

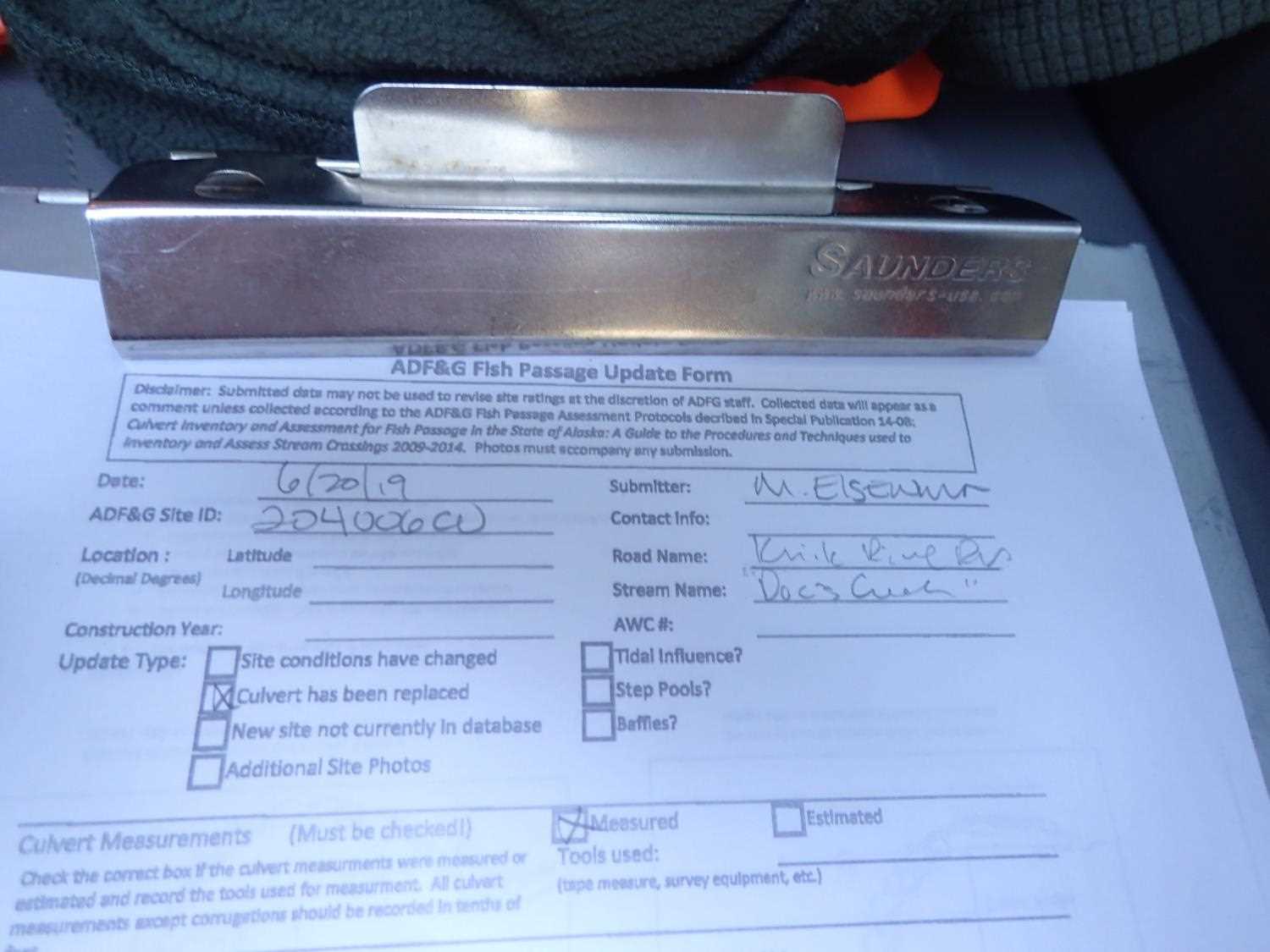

Survey UPDATE-0600

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year: 2019

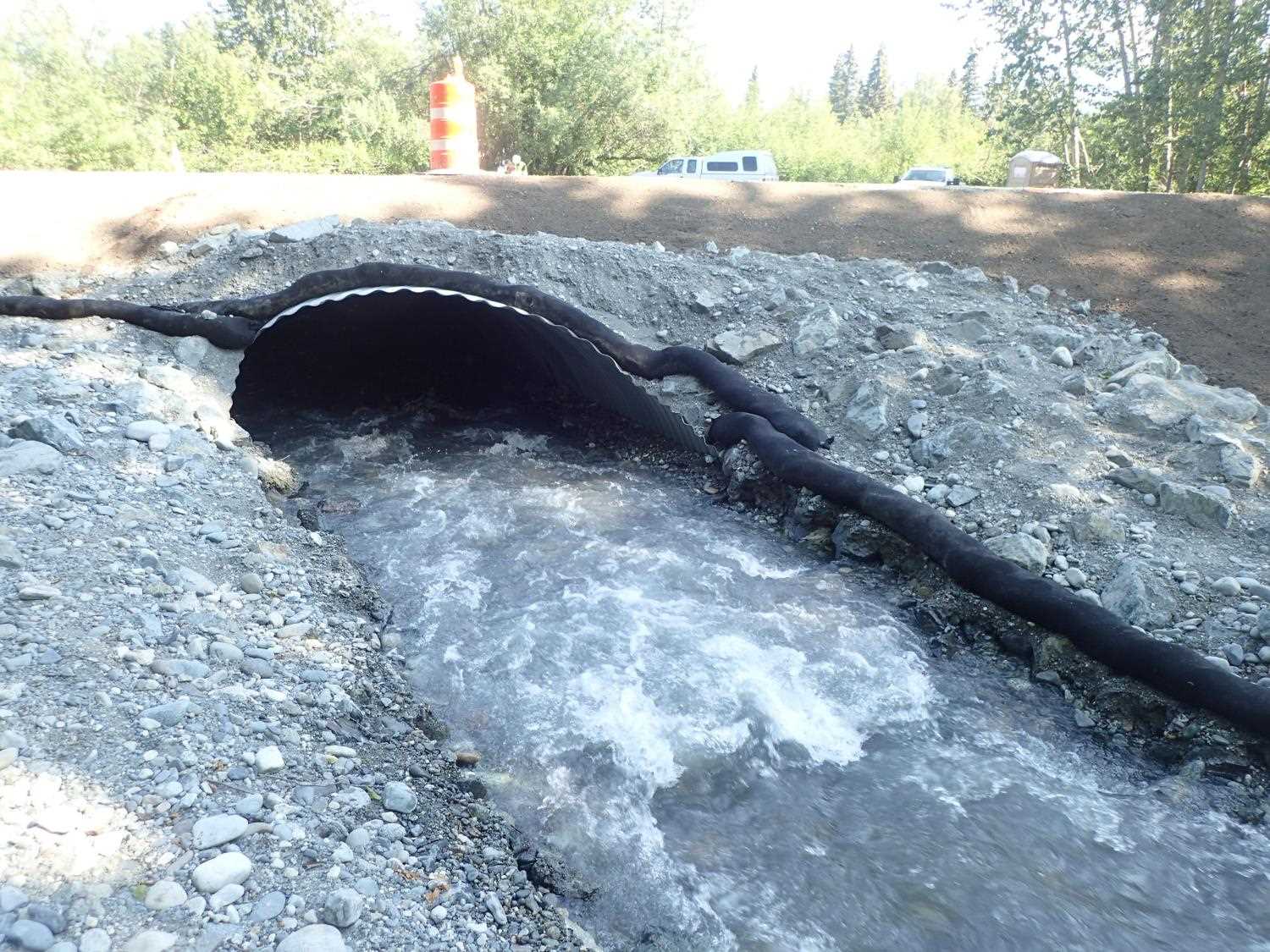

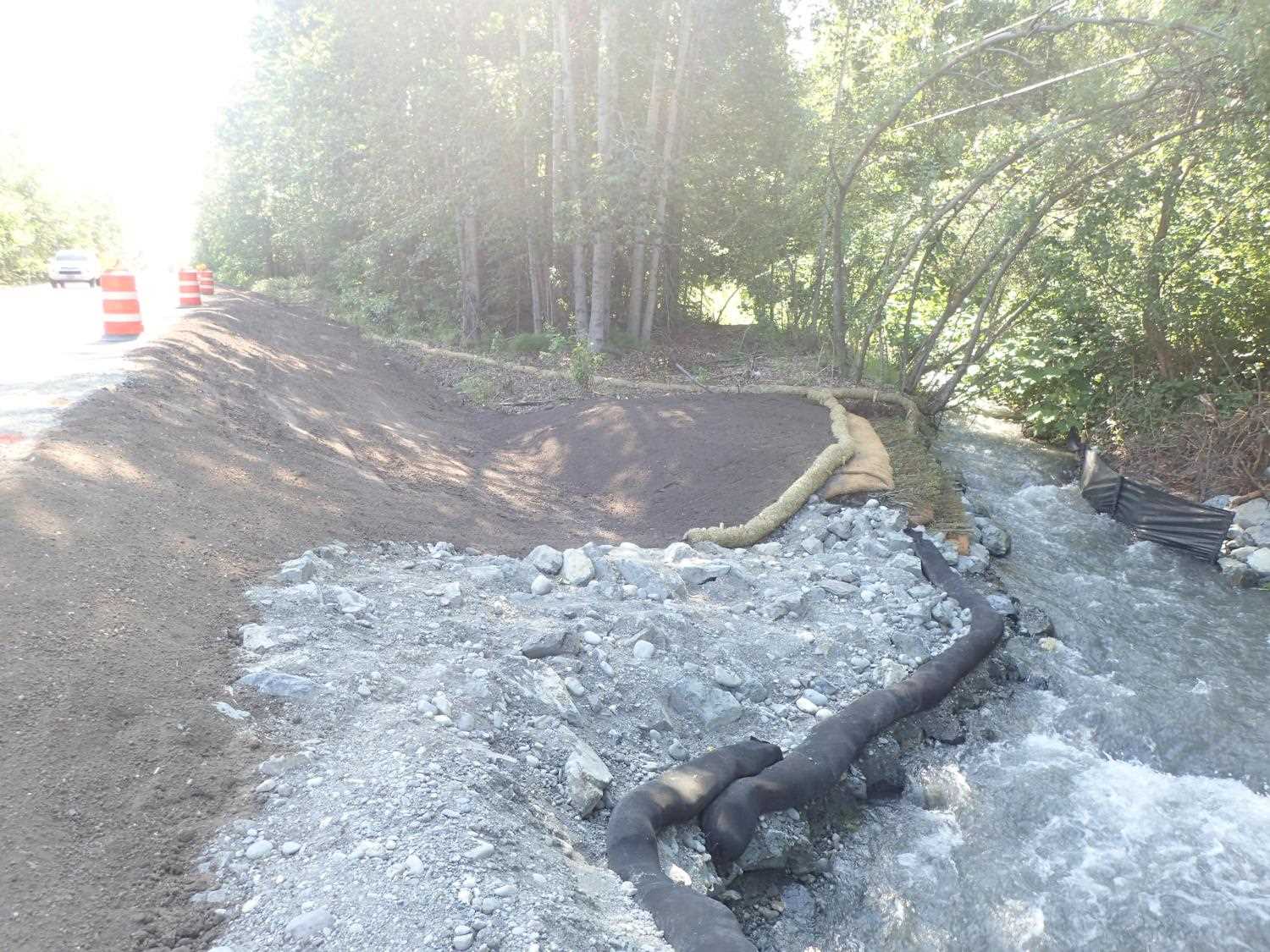

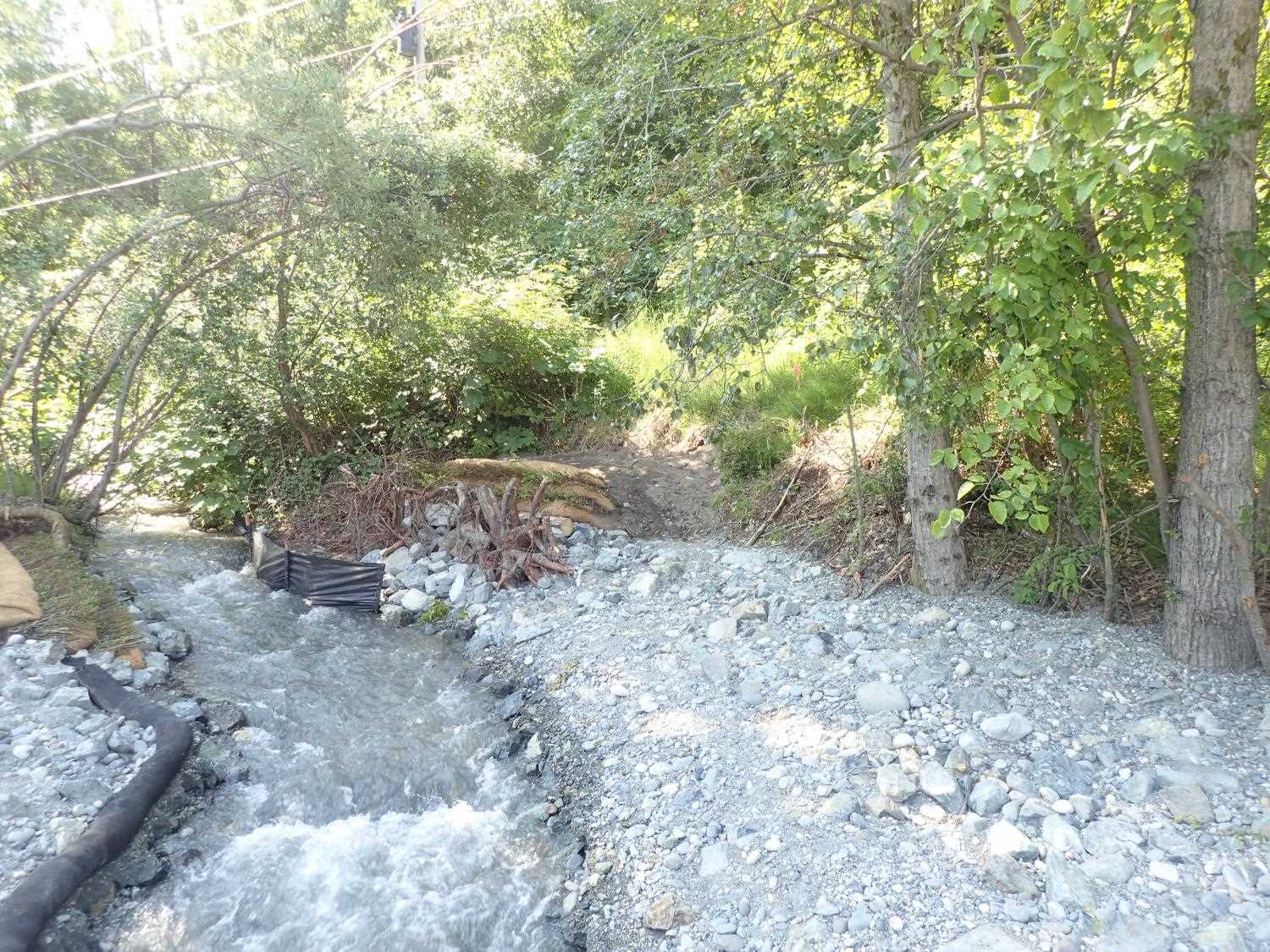

Comments: Culvert replaced.

Culvert Measurements

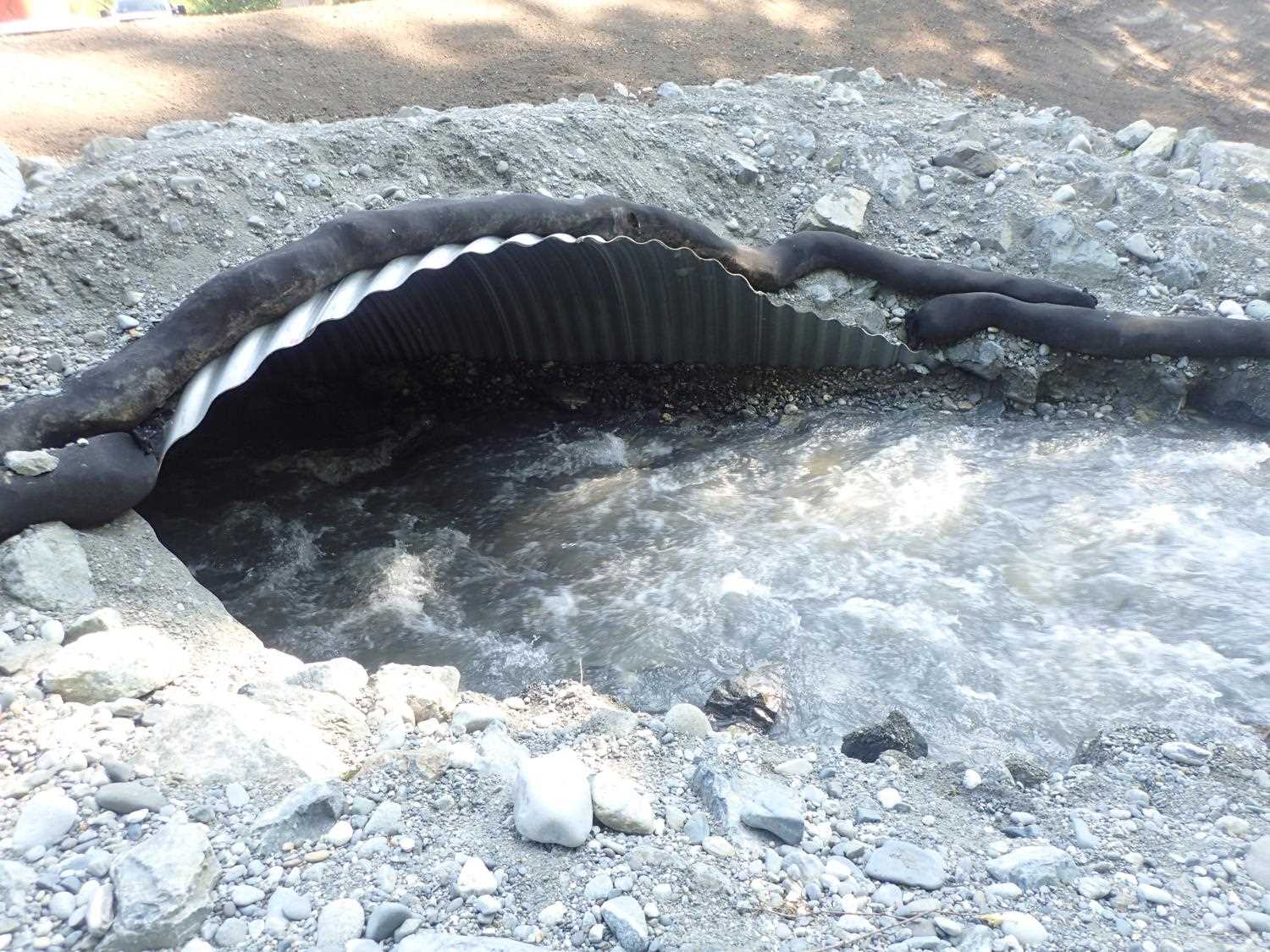

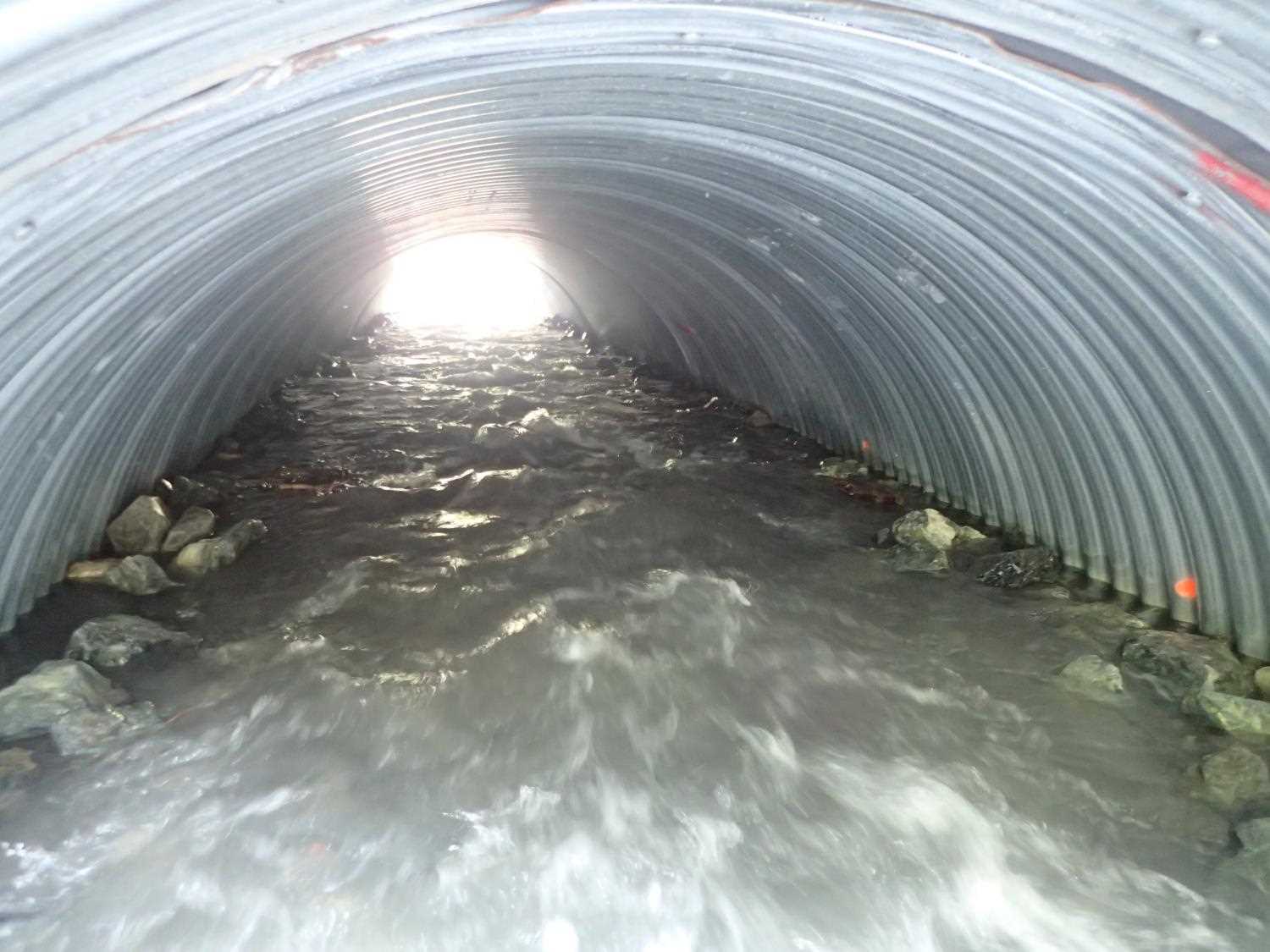

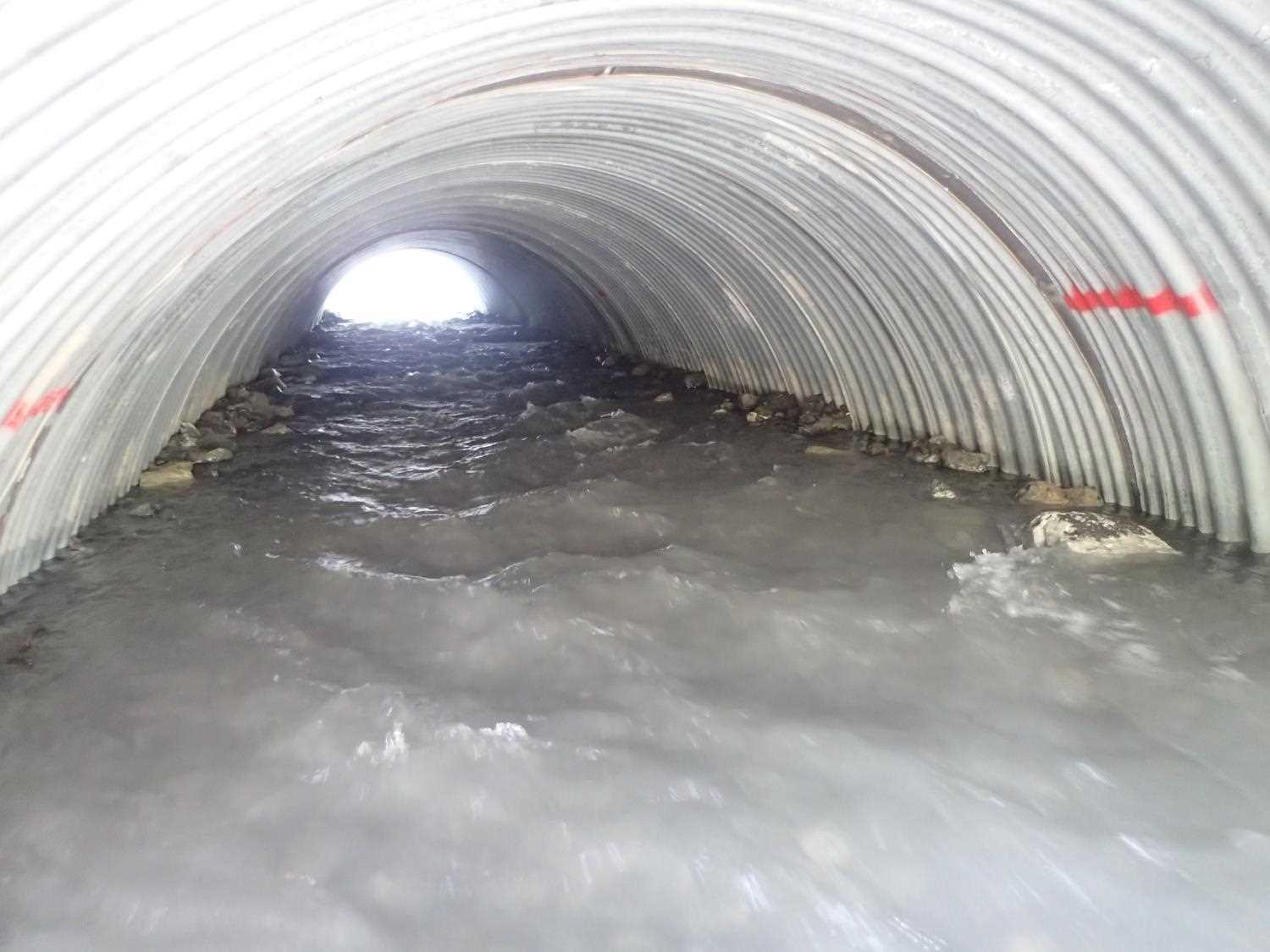

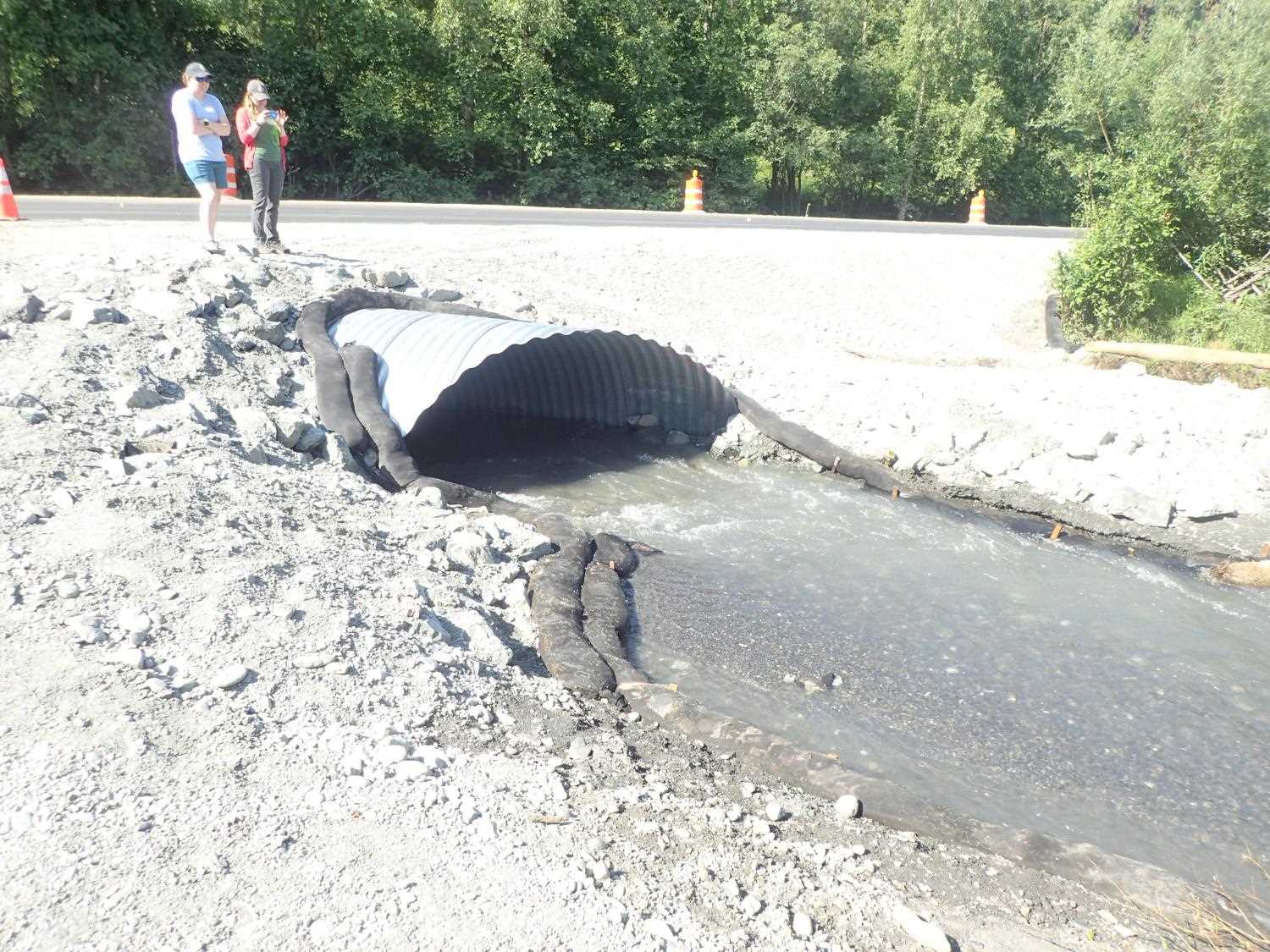

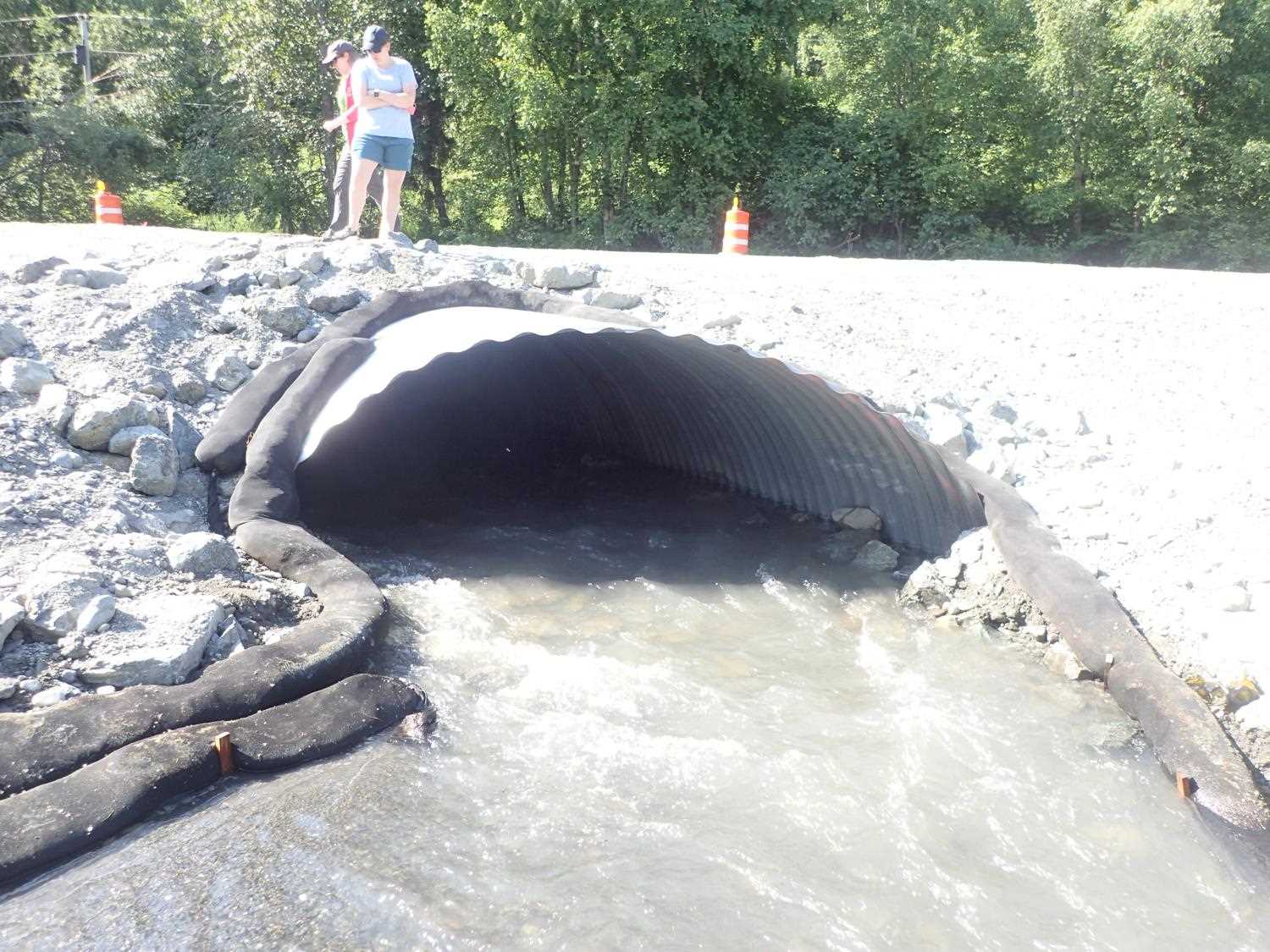

ID: 1 Structure Type: Pipe-arch (Corrugated steel) Fish Passage Rating: Black

Length(ft):
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 5.0
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: Gravel
Outlet Substrate: Gravel
InletOutlet
Width(ft):12.1 11.7
Height(ft):4.9 4.5
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present:
Embedded?: Yes
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:High

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
