Fish Passage Site 20400595

Coordinates (dec. deg.): 61.50582°, -148.96956°
Legal Description: S016N003E05
Region: South Central

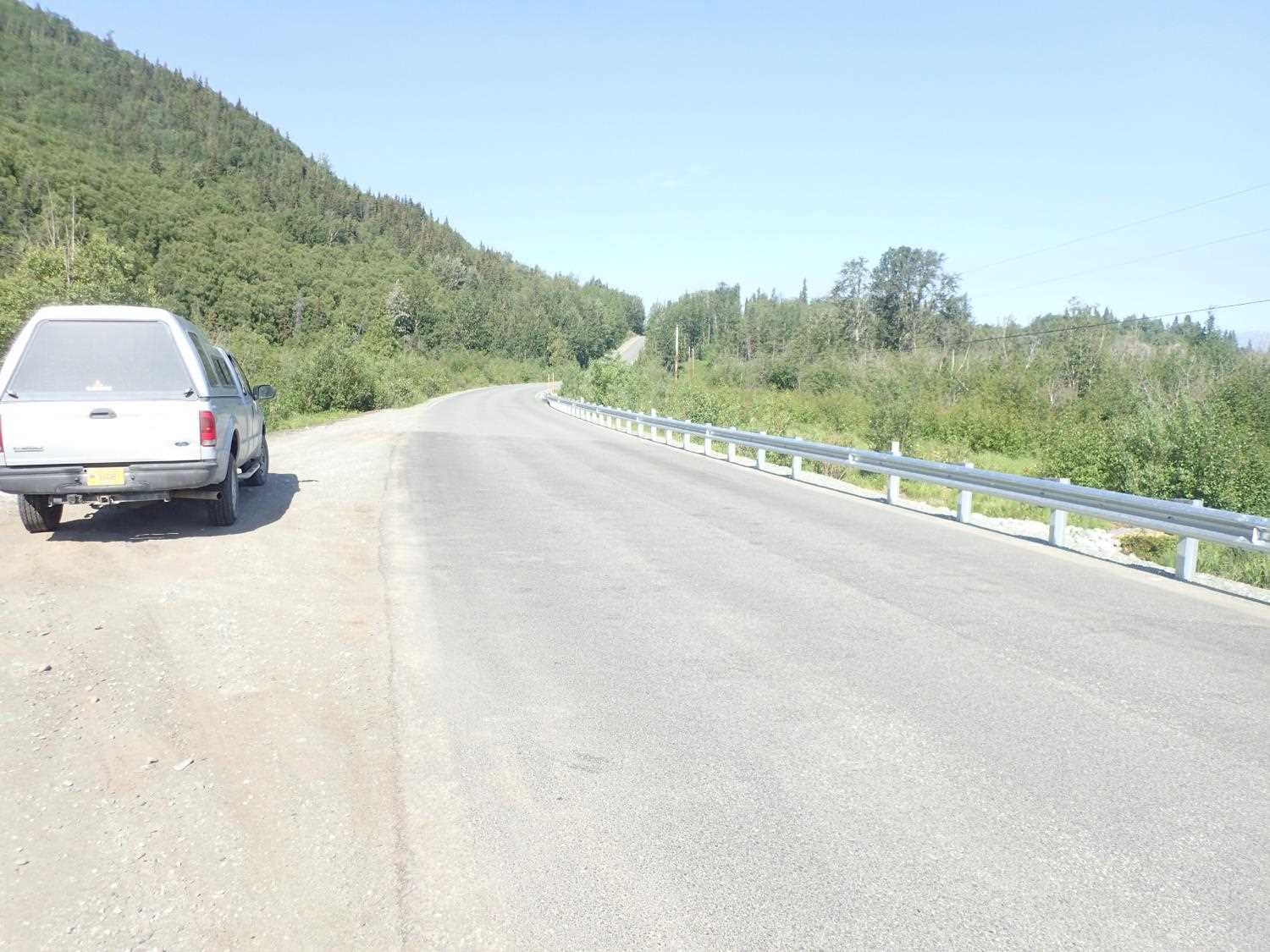

Road Name: Knik River Road

Datum: NAD83
Quad Name / ITM: Anchorage C-6
AWC Stream #: 247-50-10200-2078
Stream Name: Barbell Lake Outlet


Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

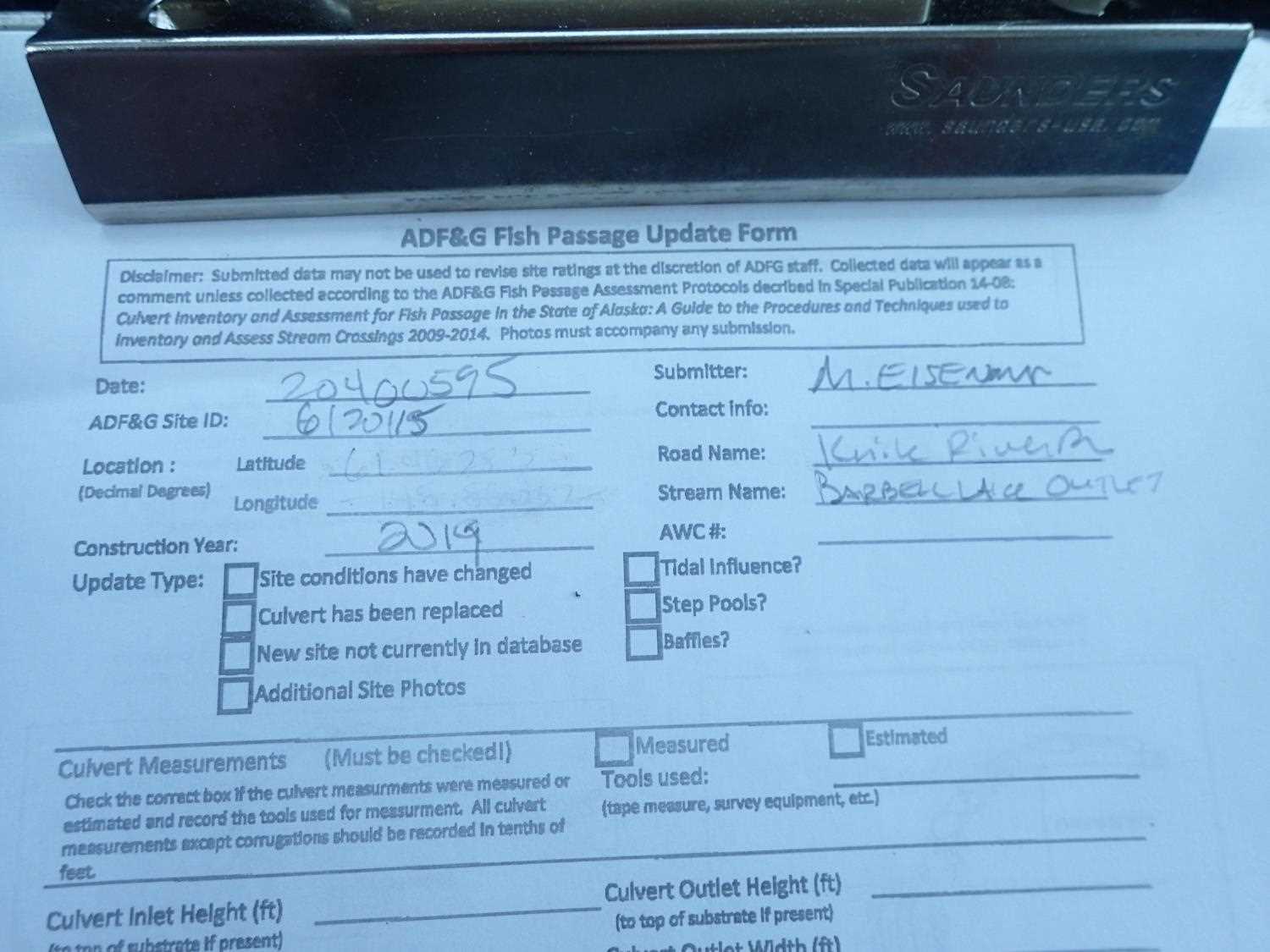

Survey UPDATE-0595

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Black


Step Pools:
Construction Year:

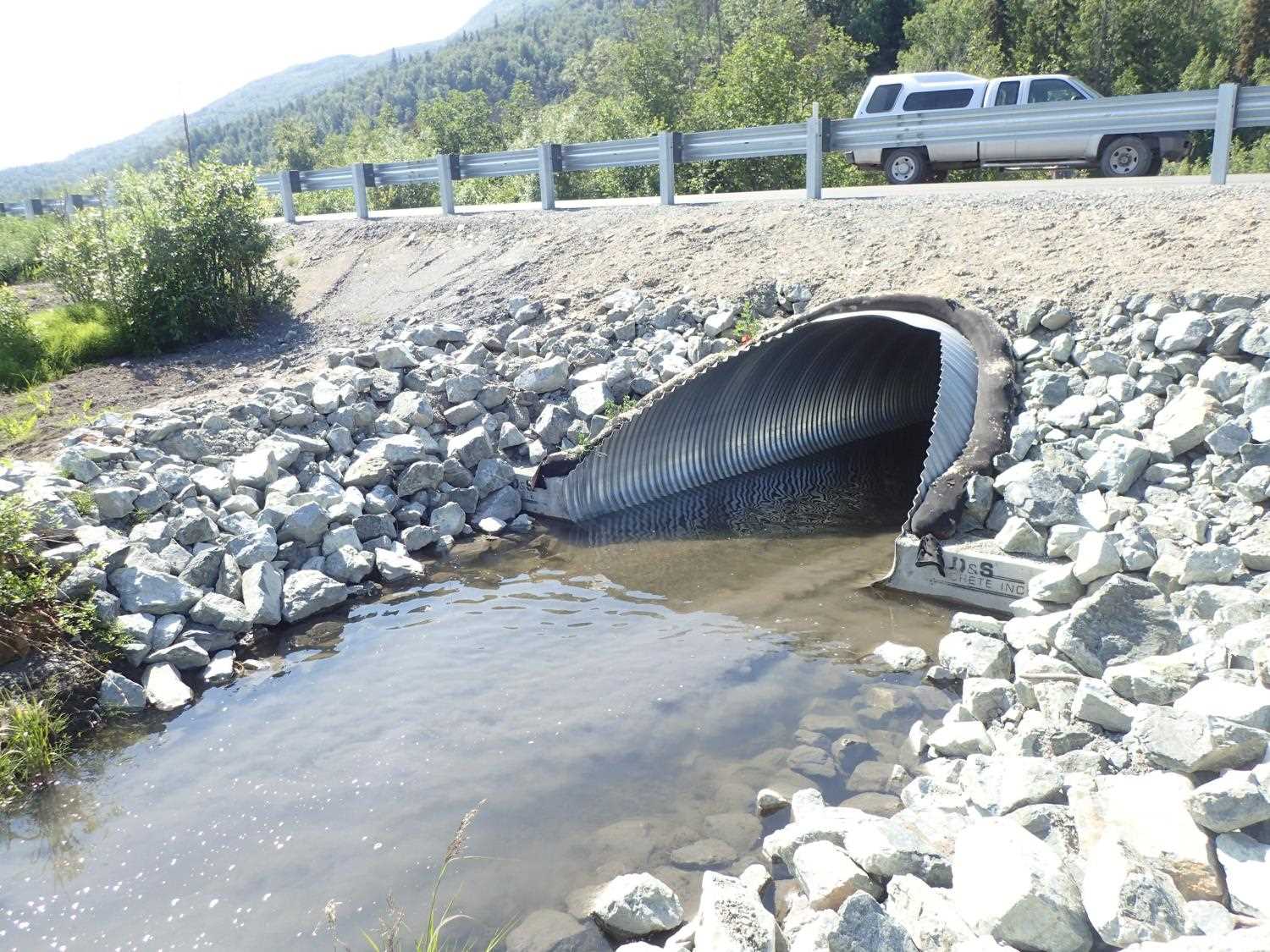

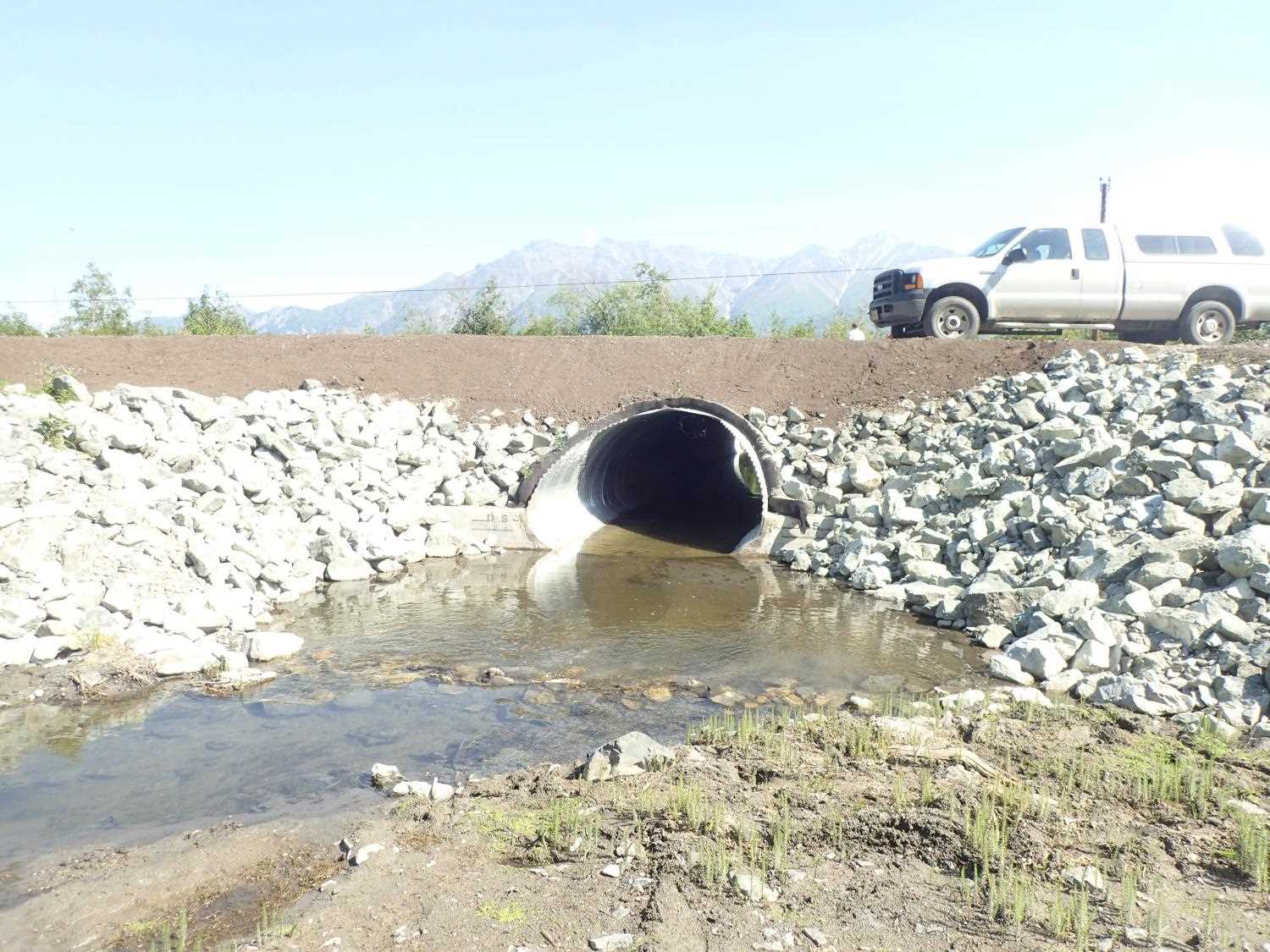

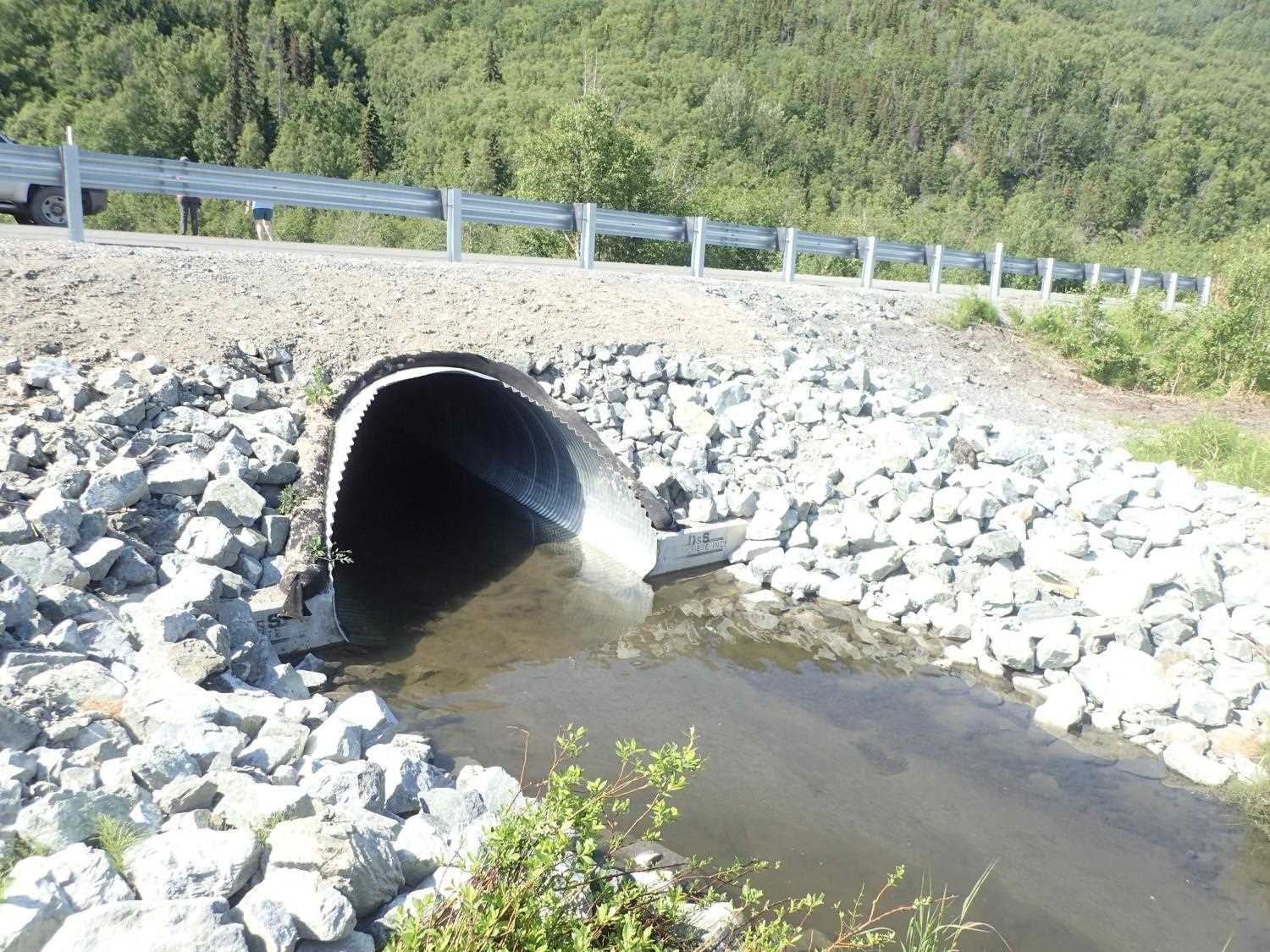

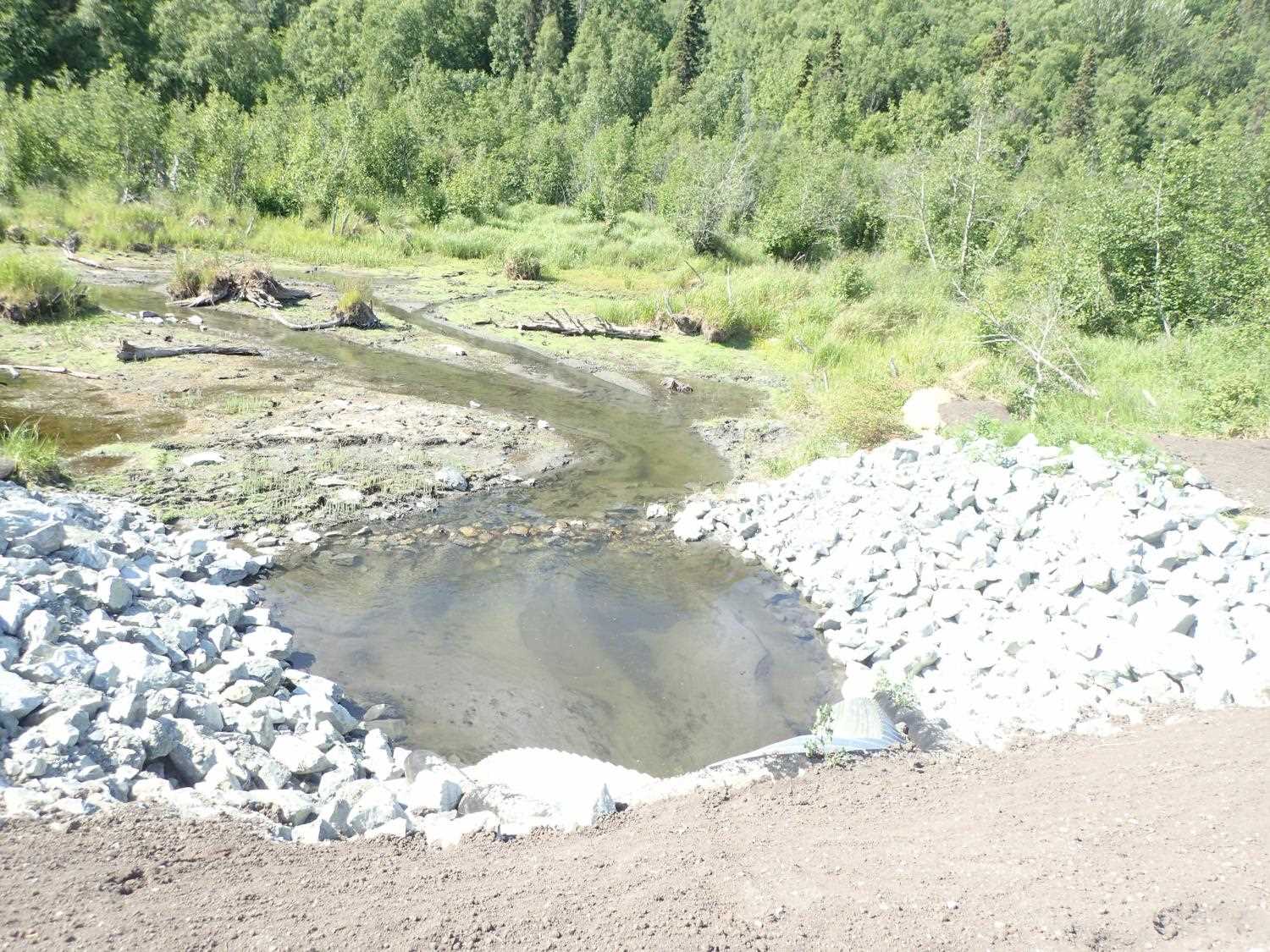

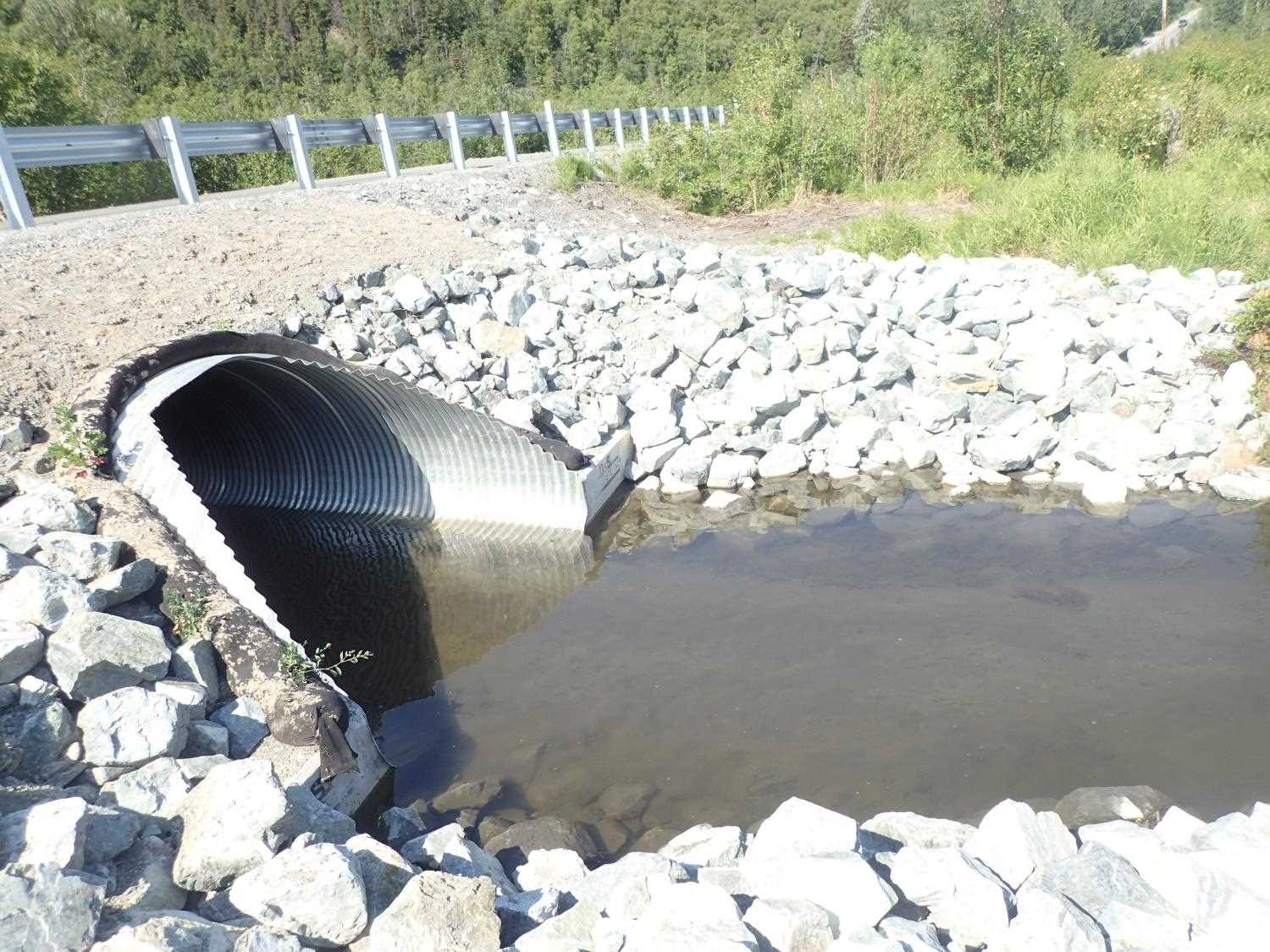

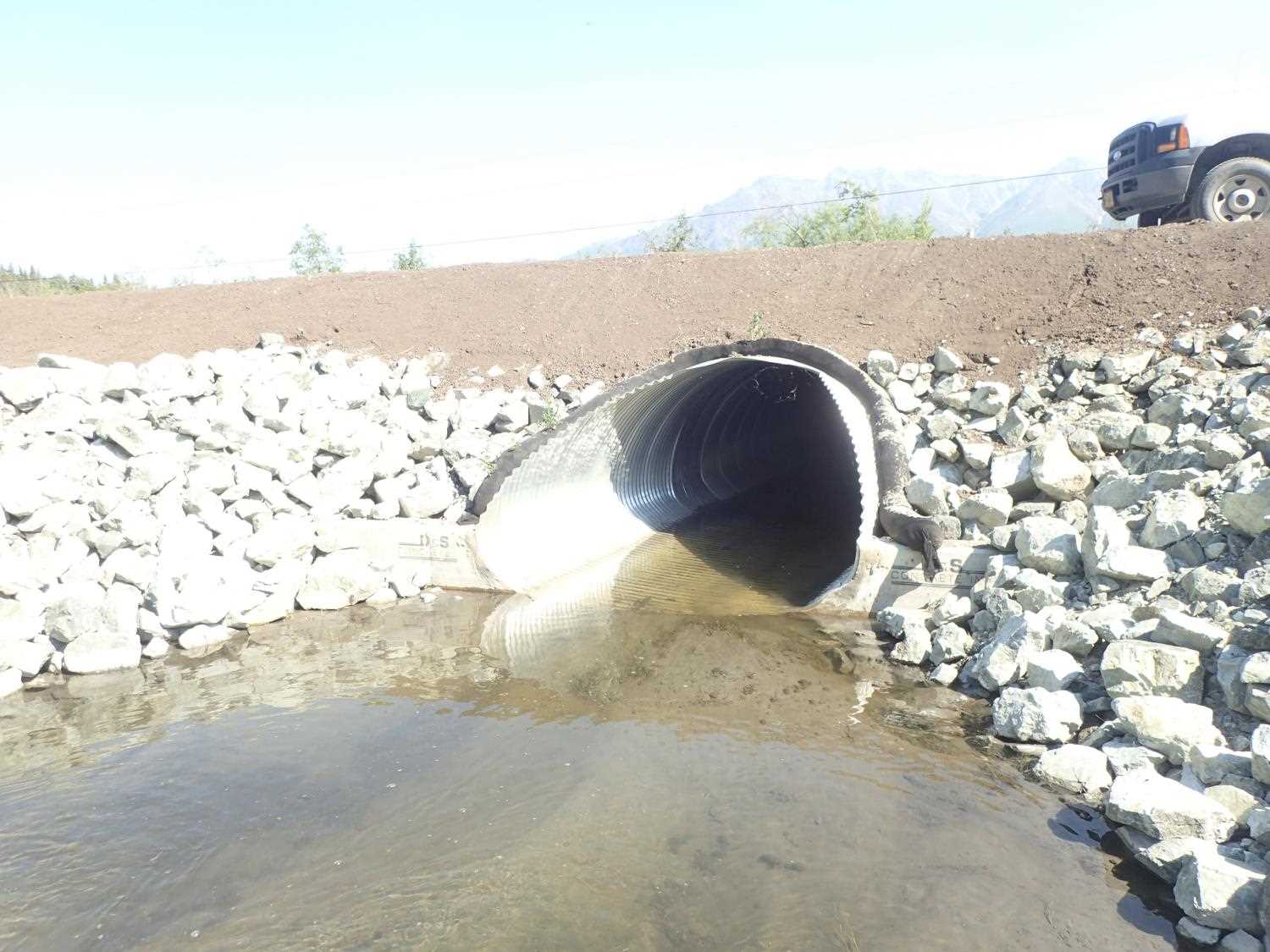

Comments: Culvert replaced. No sediment at inlet about 2 to 3 inches of silt had accumulated at outlet. Juvenile salmonids observed upstream and downstream of crossing.

Culvert Measurements

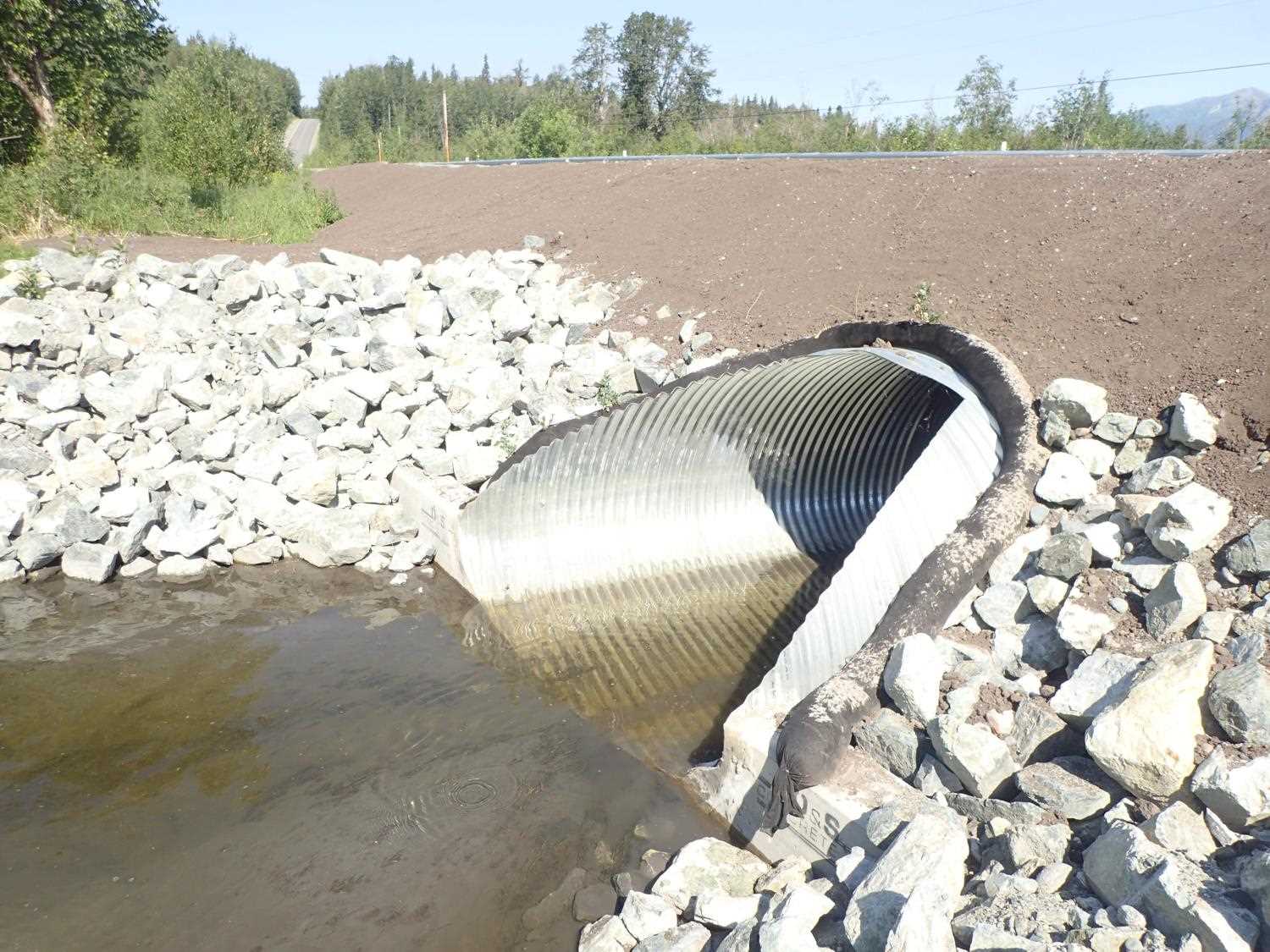

ID: 1 Structure Type: Pipe-arch (Corrugated steel) Fish Passage Rating: Black
Length(ft): 70.2
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: Silt/Clay
Width(ft):8.0 8.0
Height(ft):5.5 5.2
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft): 0.3
Baffles Present:
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

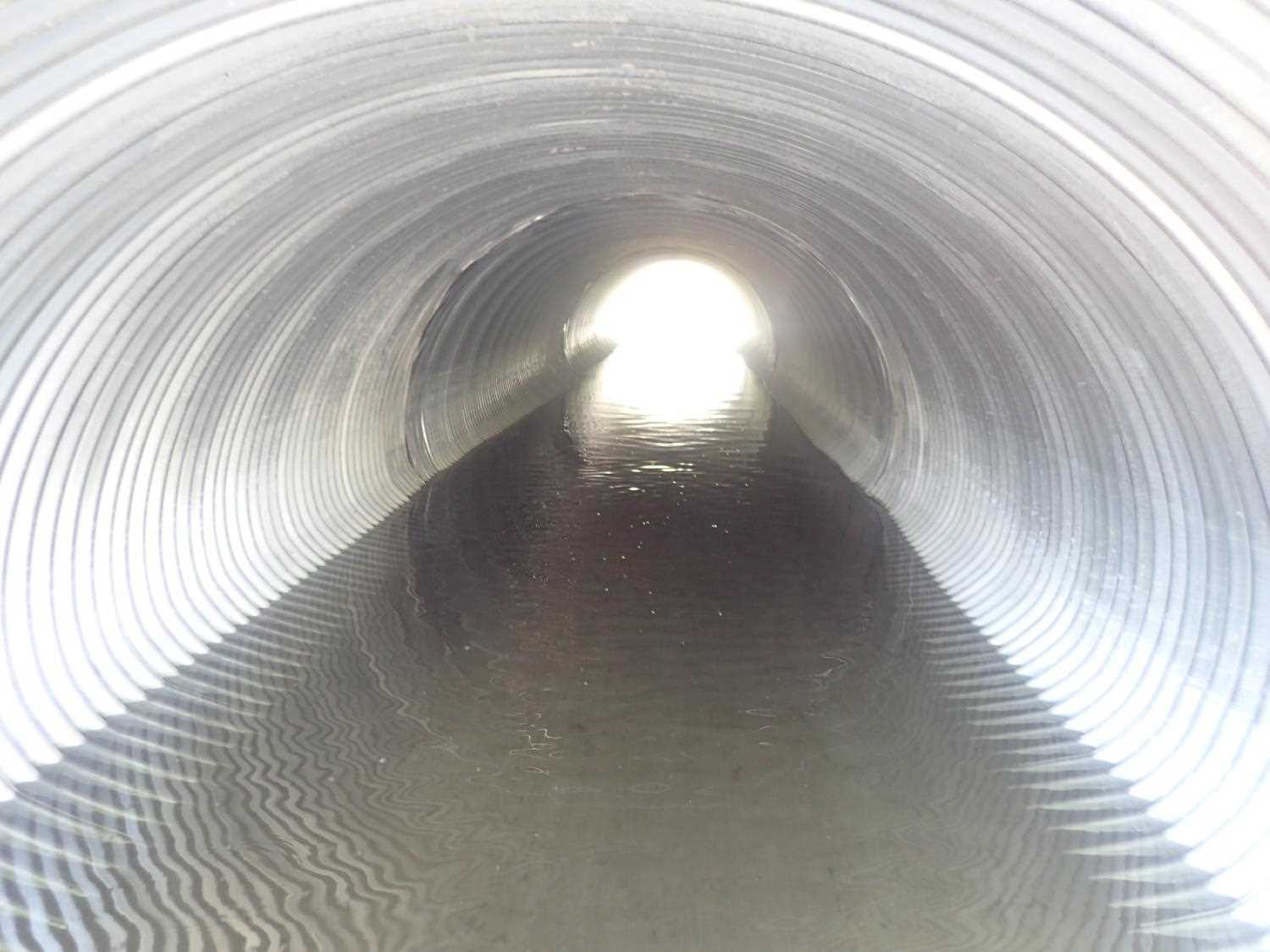

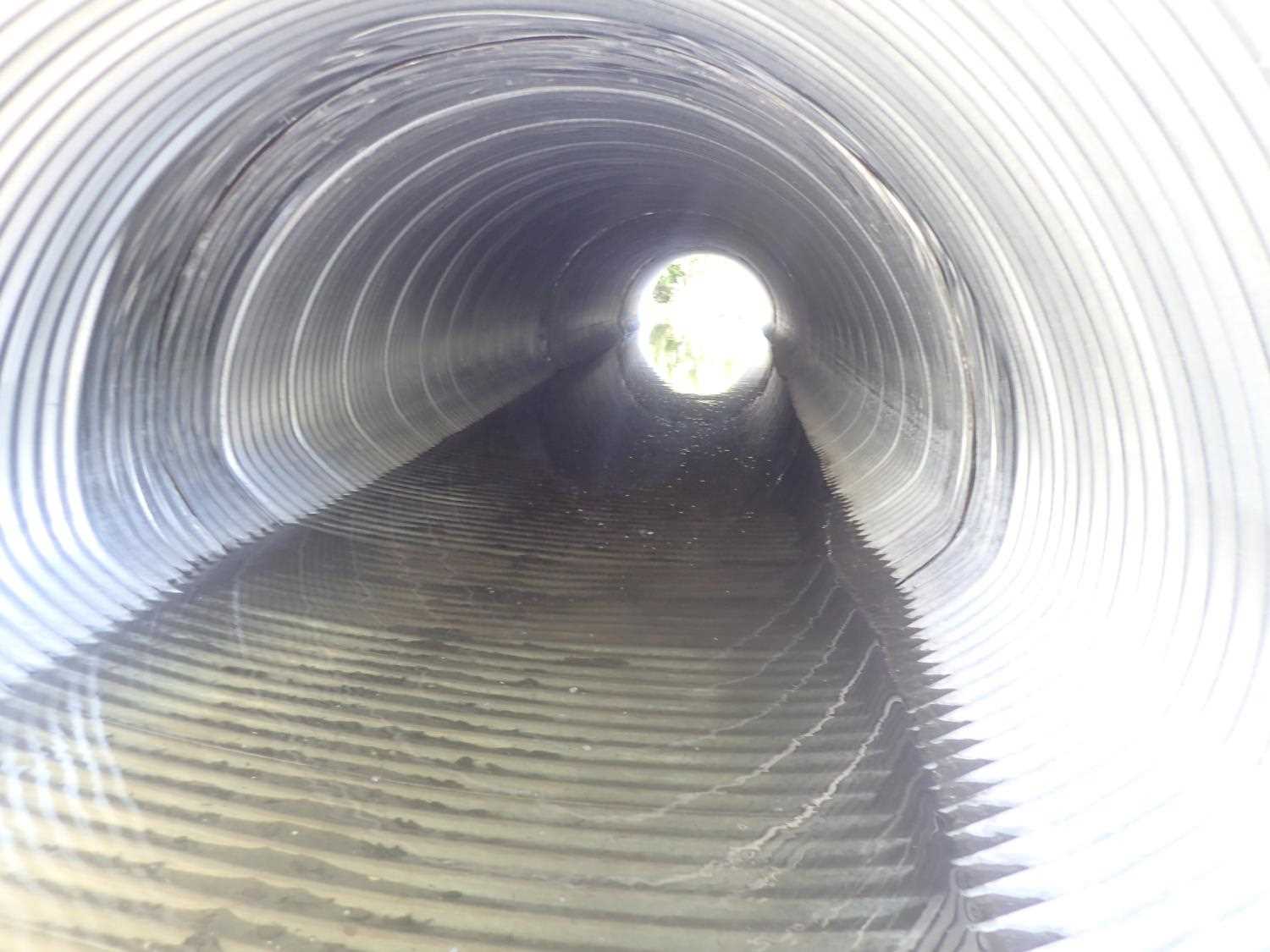

Comments: Water surface through culvert looks very flat, site may be backwatered.

Stream Measurements

Stream SubstratesUpstreamDownstream
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.


No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to
