Fish Passage Site 20400247

Coordinates (dec. deg.): 61.13762°, -149.82082°
Legal Description: S012N003W09
Region: South Central

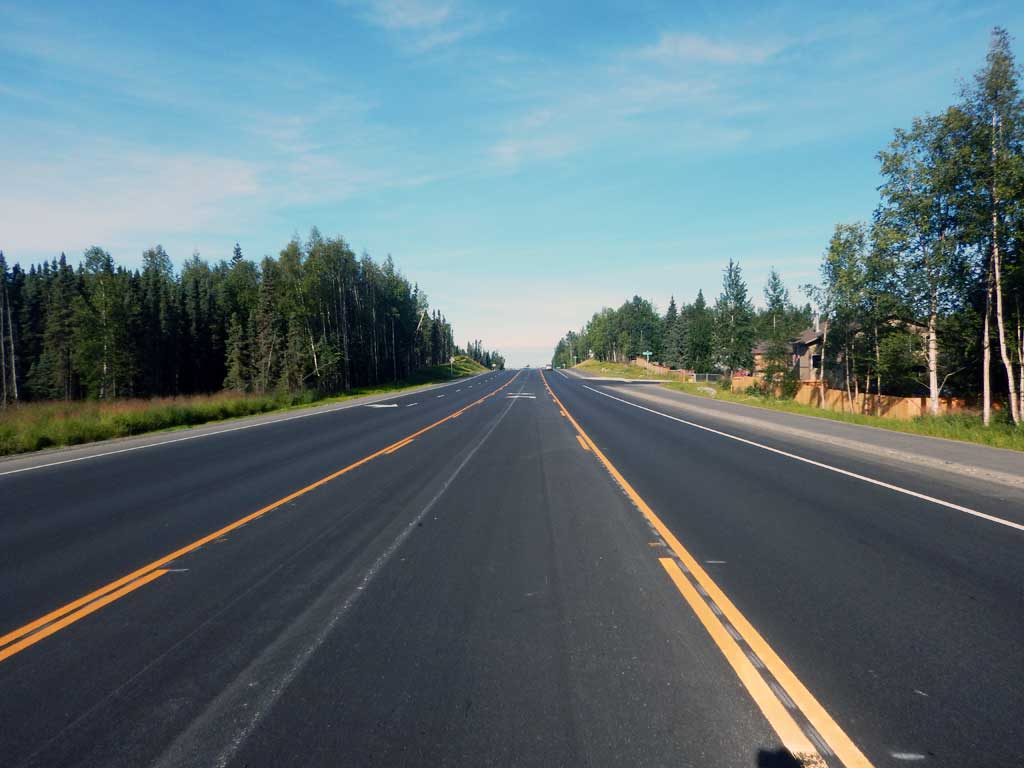

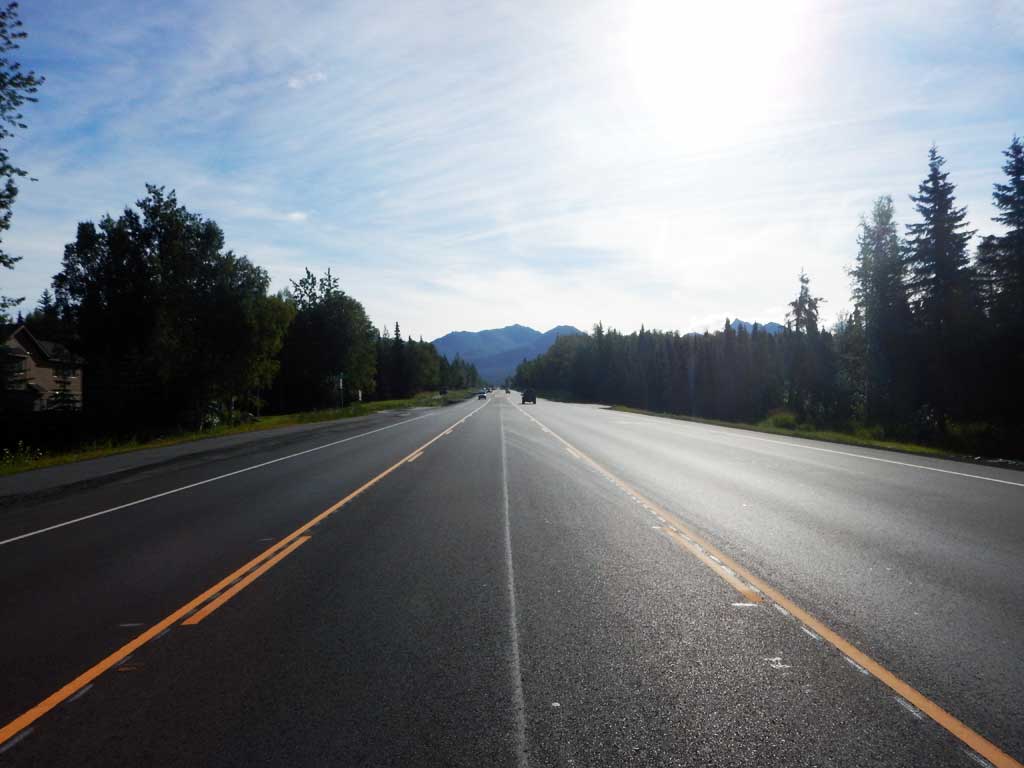

Road Name: Abbott Road

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-60-10340-2018-3006
Stream Name: Little Campbell Creek South Fork

Elevation:

Site Comments: CAMBELL CREEK WATERSHED

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-0247

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Green

Tidal:
Backwatered:

Step Pools:
Construction Year: 2016


Comments: Site replaced in 2016, still needs to be reassessed.

Culvert Measurements

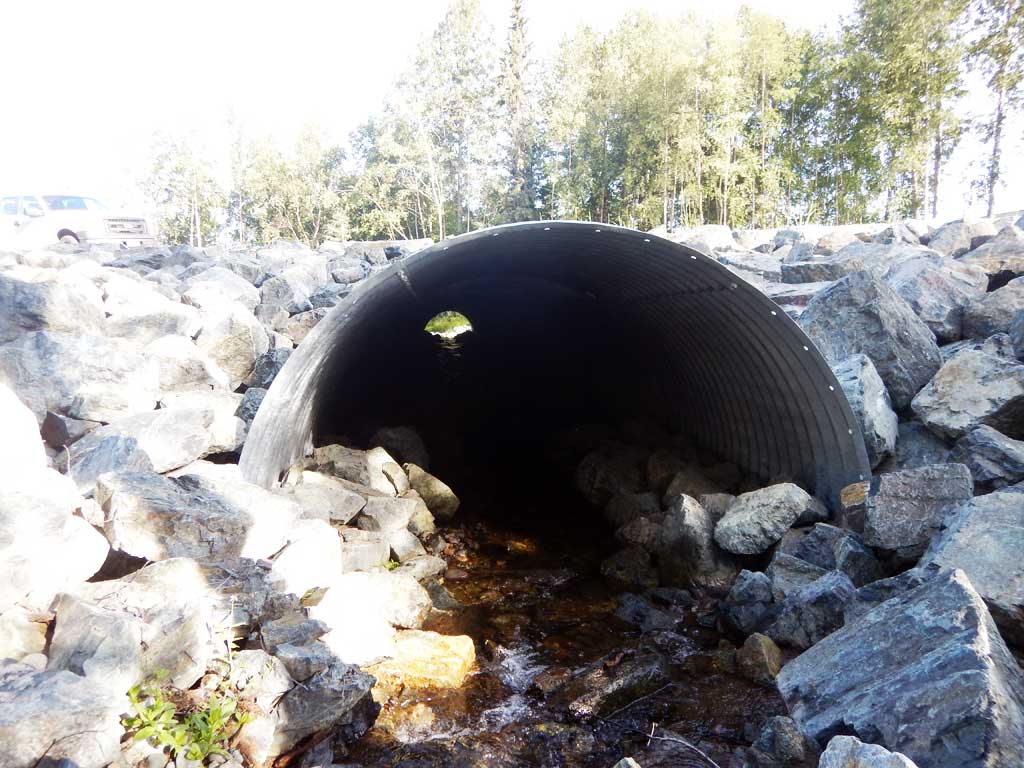

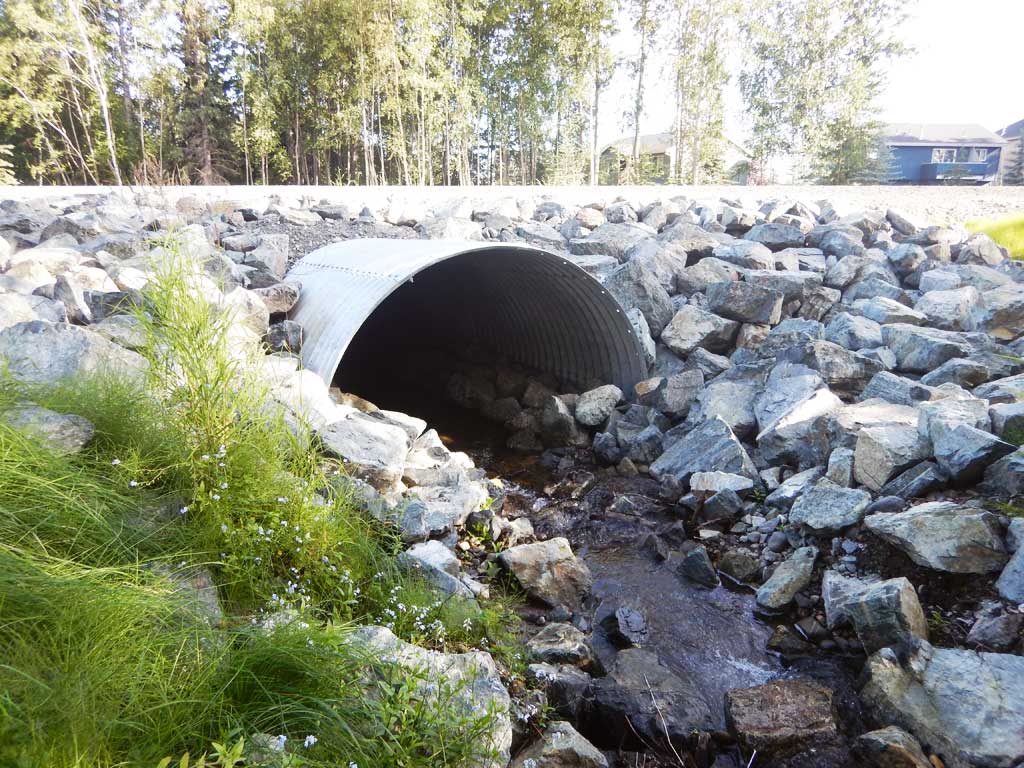

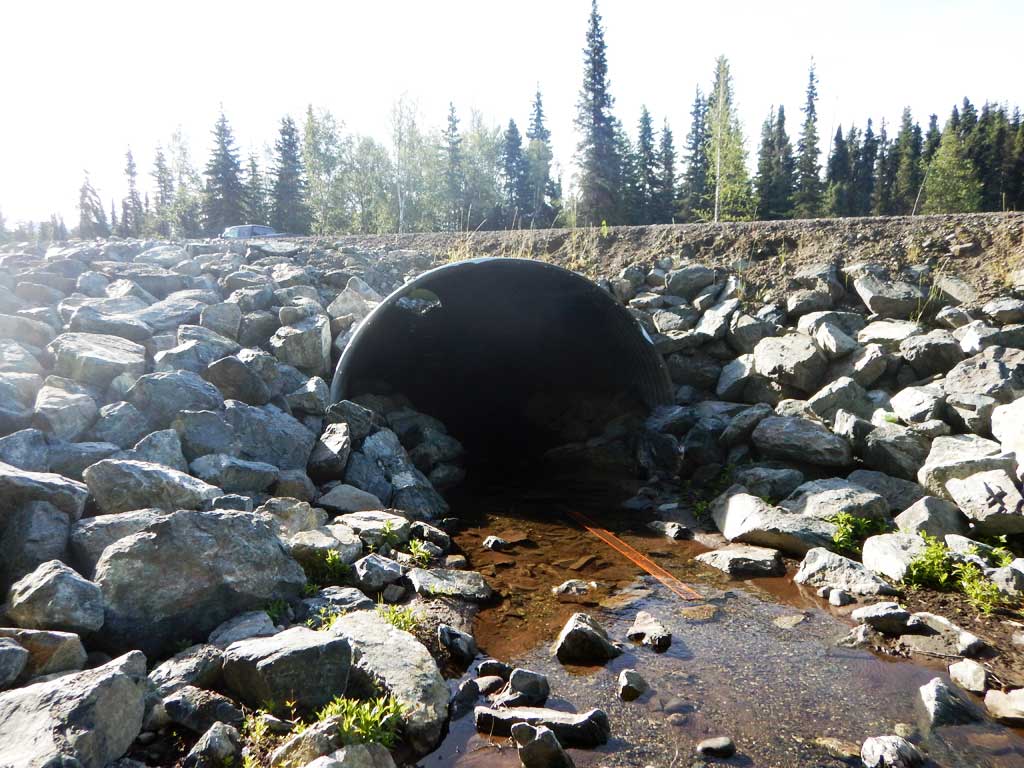

ID: 1 Structure Type: Pipe-arch (Structural steel plate) Fish Passage Rating: Green

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: All measurements taken from site plans and have not been verified. Culvert width 10.25 ft. Culvert Height 4.9 ft to top of substrate, substrate depth 1.85 ft. Culvert length 143.3. Culvert gradient 1.64%.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
