Fish Passage Improvement site 20400023

Fish Passage Site 20400023

Coordinates (dec. deg.): 61.31291°, -149.57469°
Legal Description: S014N002W11
Region: South Central
Road Name: Driveway

Datum: NAD83
Quad Name / ITM: Anchorage B-7
AWC Stream #: 247-50-10110-2053
Stream Name: Meadow Creek

Elevation:

Site Comments: Eagle River Watershed. Site is on driveway off of VFW Drive. Downstream is site 20400022 at Hidden Haven Drive.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-VFW01

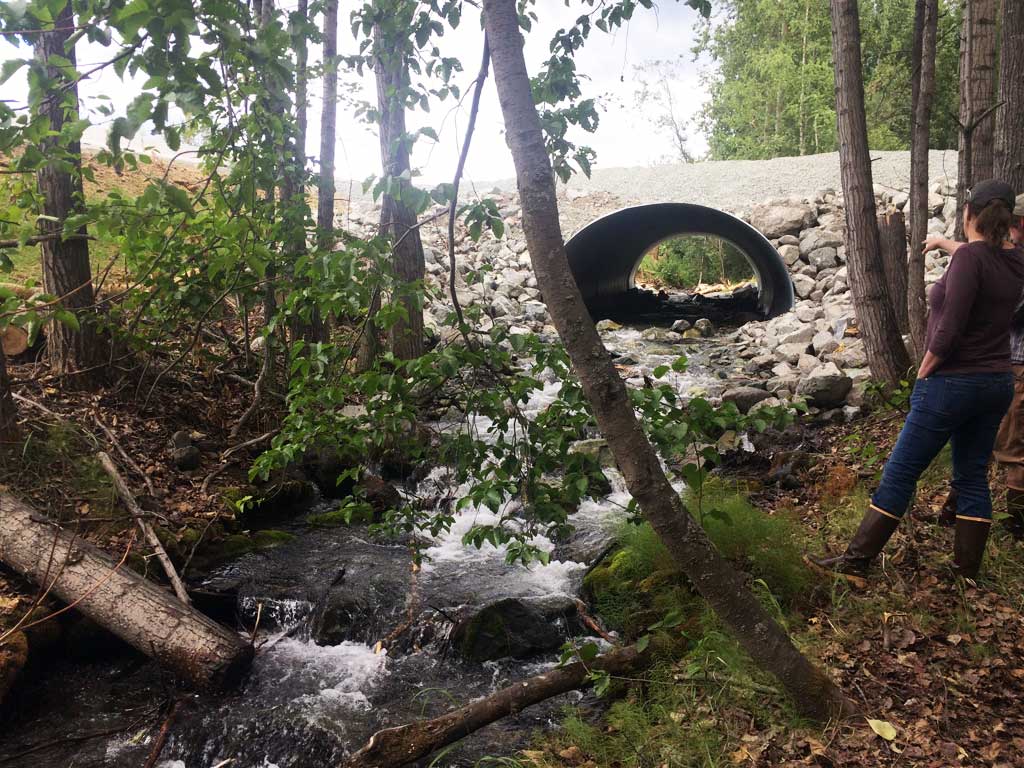

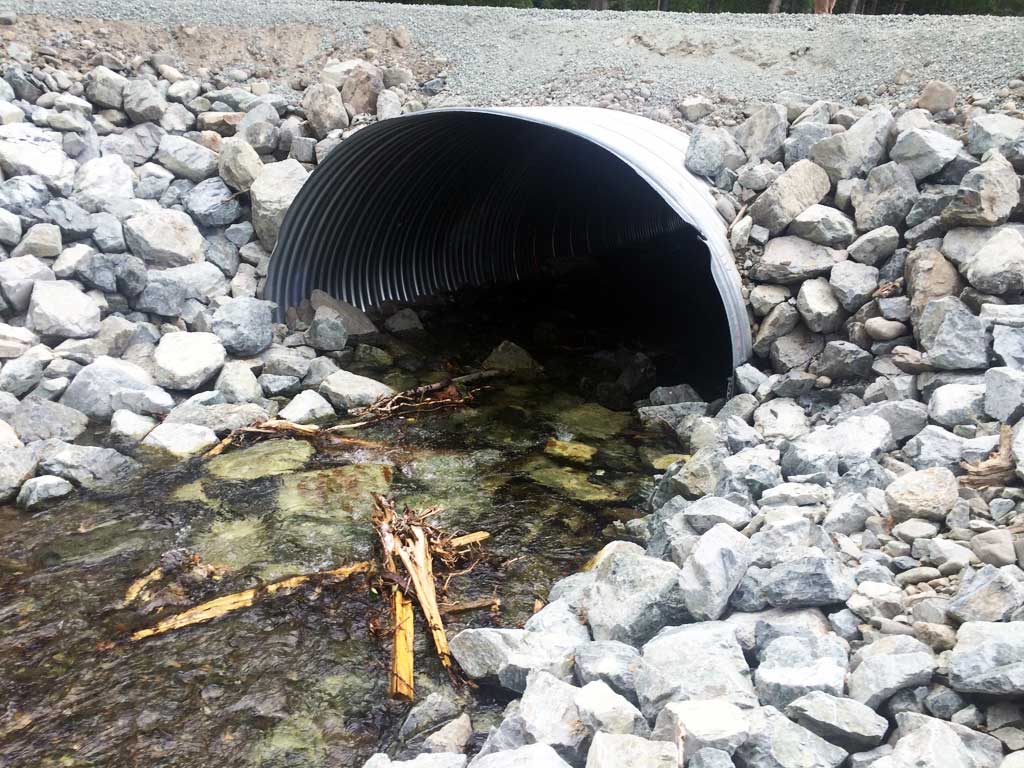

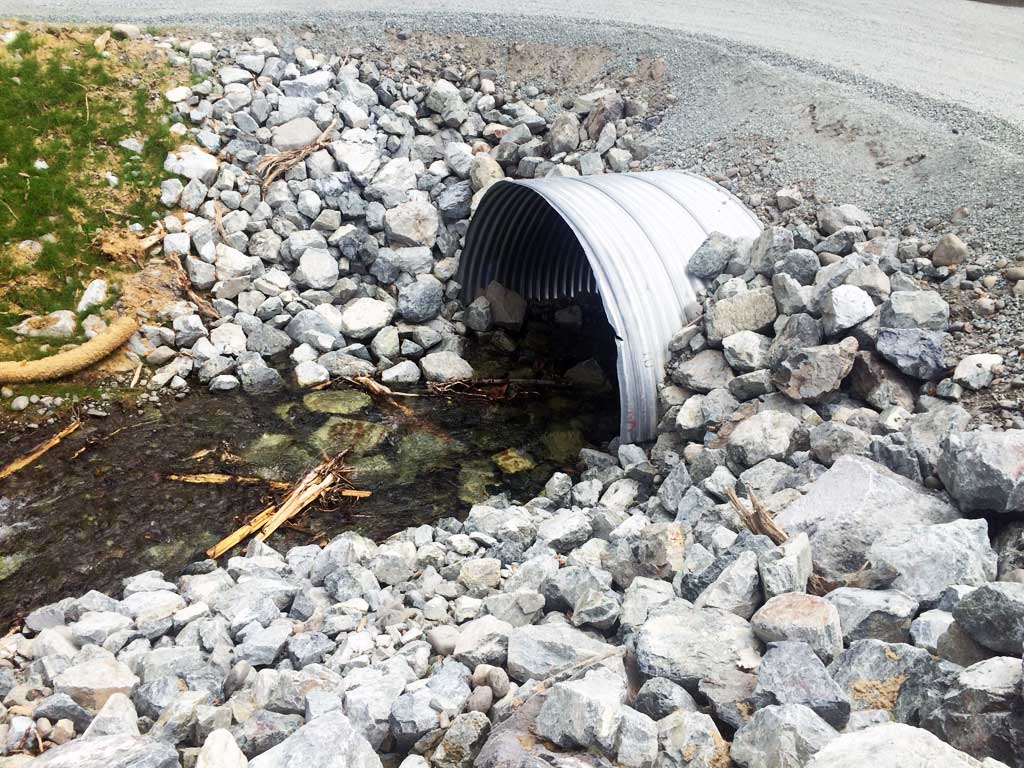

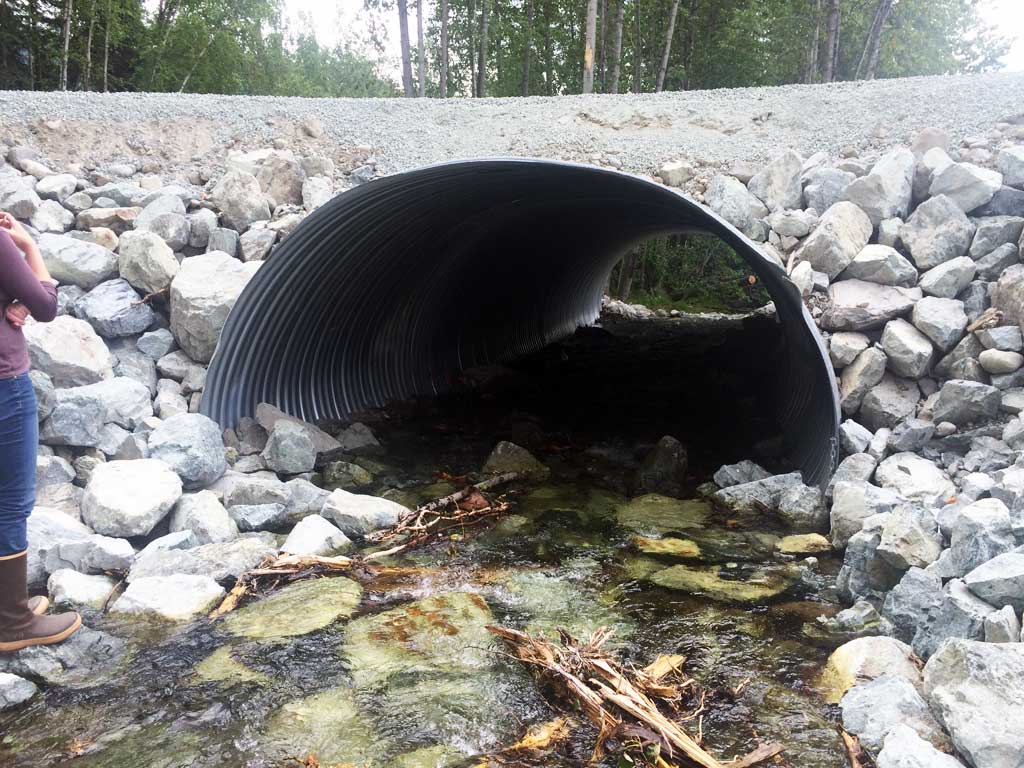

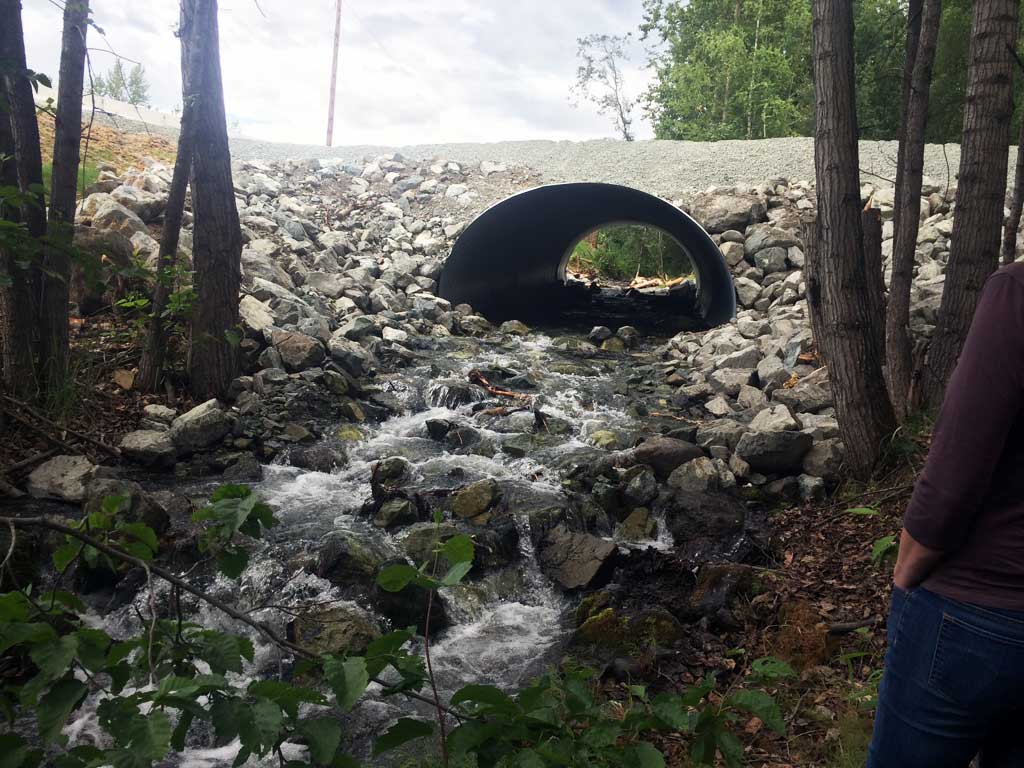

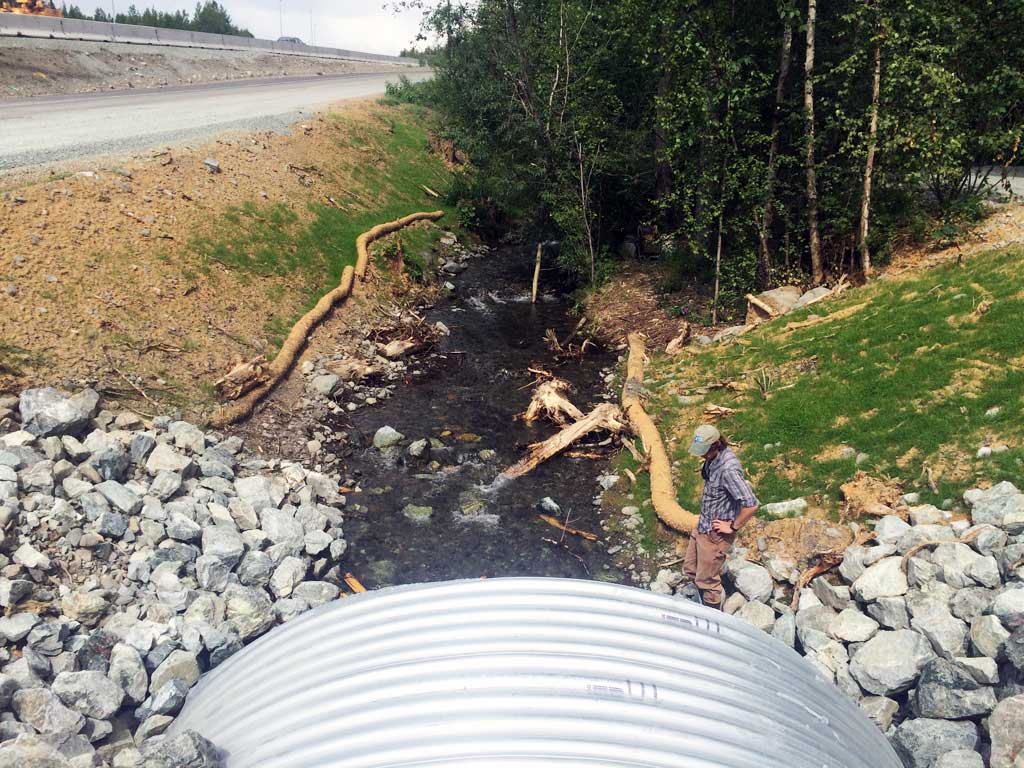

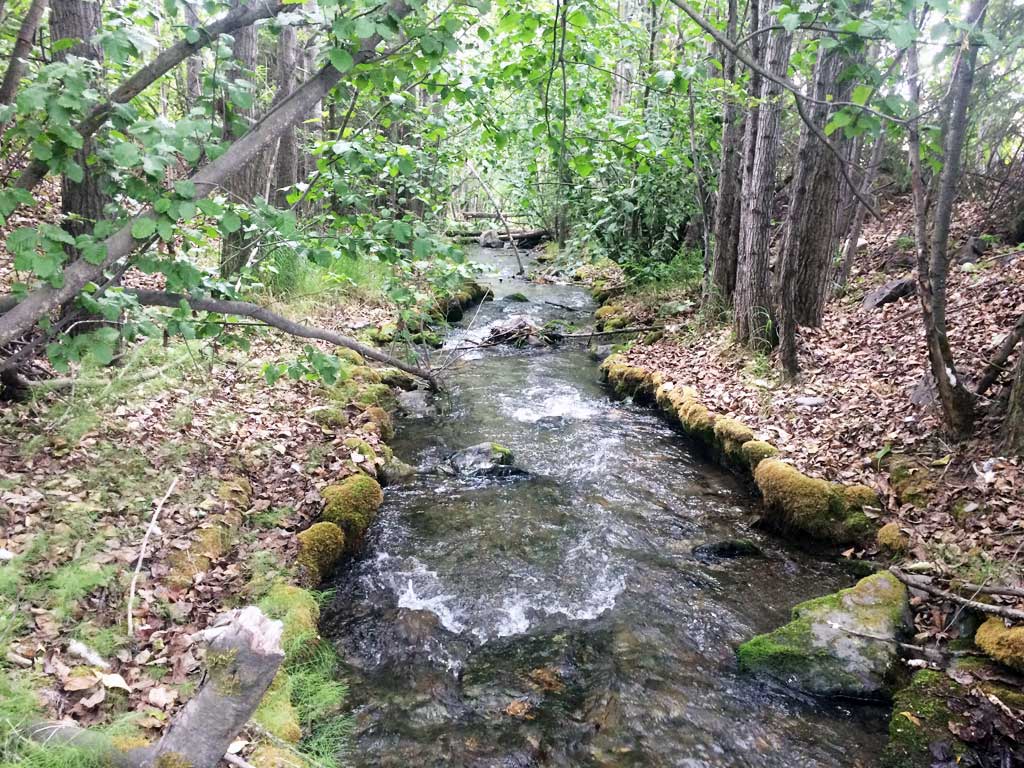

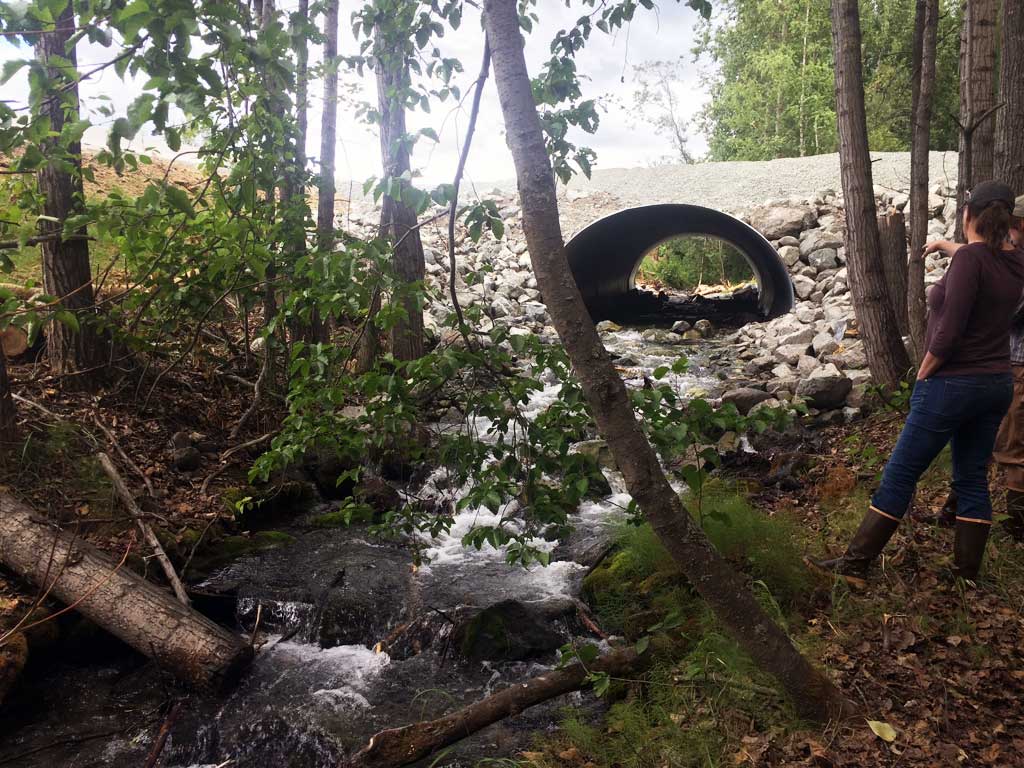

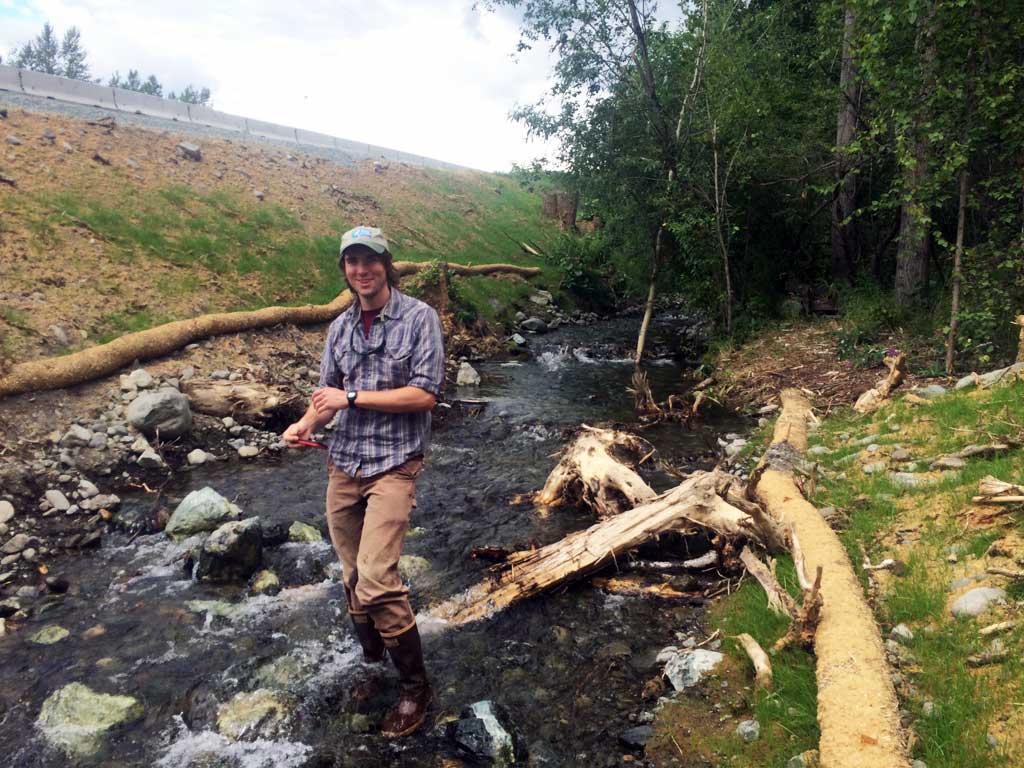

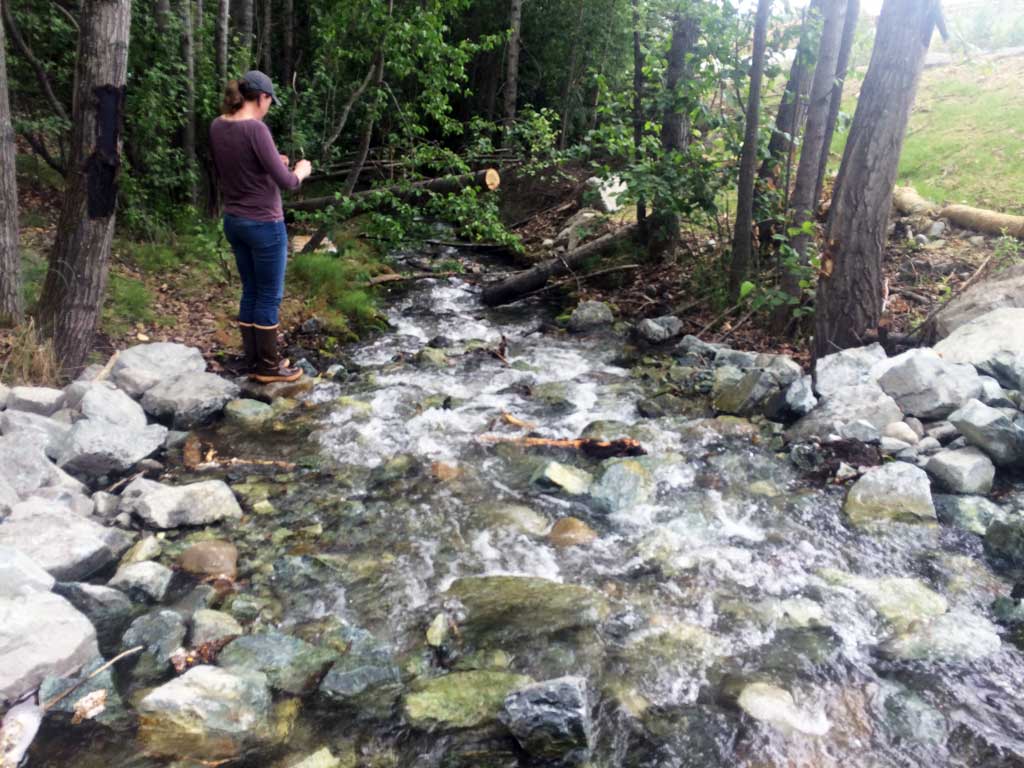

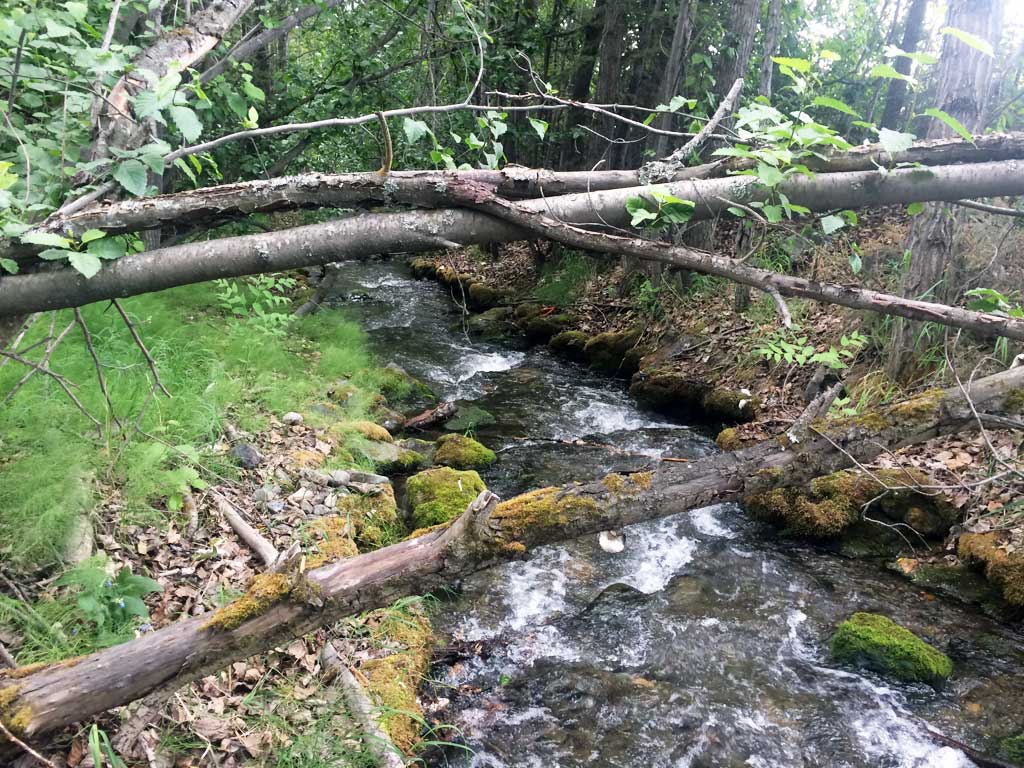

site photos

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman, Gillian O'Doherty

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year: 2015

Comments: Site was visited on 6/30/15. Culvert replaced as mitigation for the new Eagle River bridge. Culvert was replace in spring of 2015. All measurements taken from site plans and have not been verified. New survey needed for site.

Culvert Measurements

ID: 1

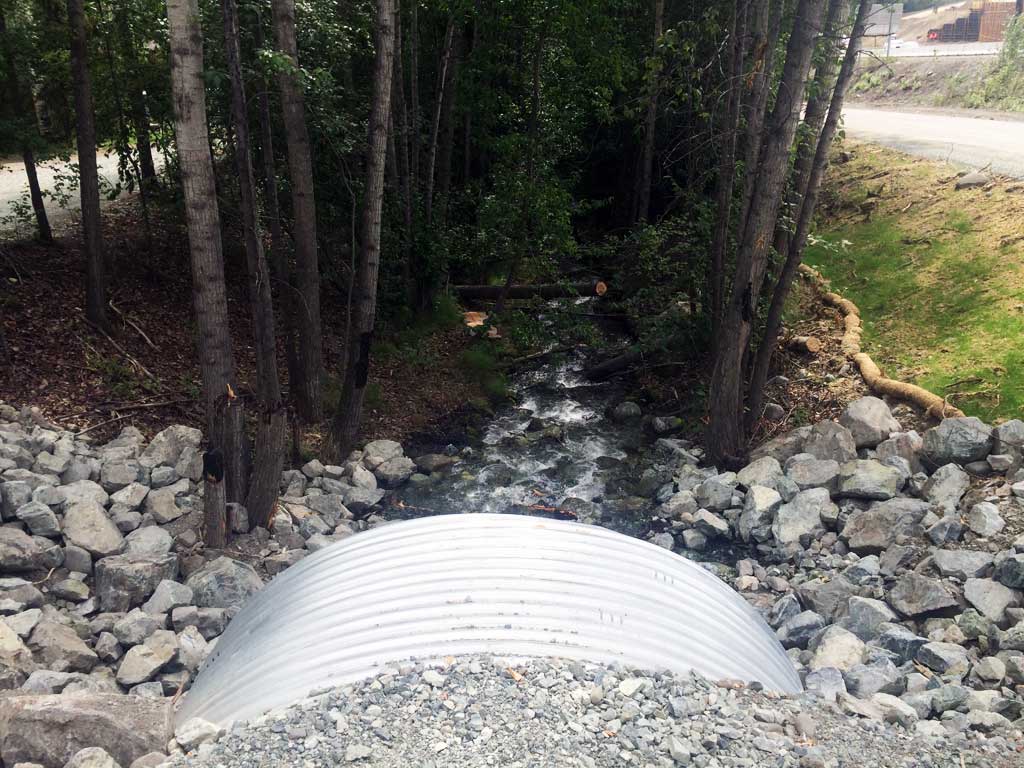

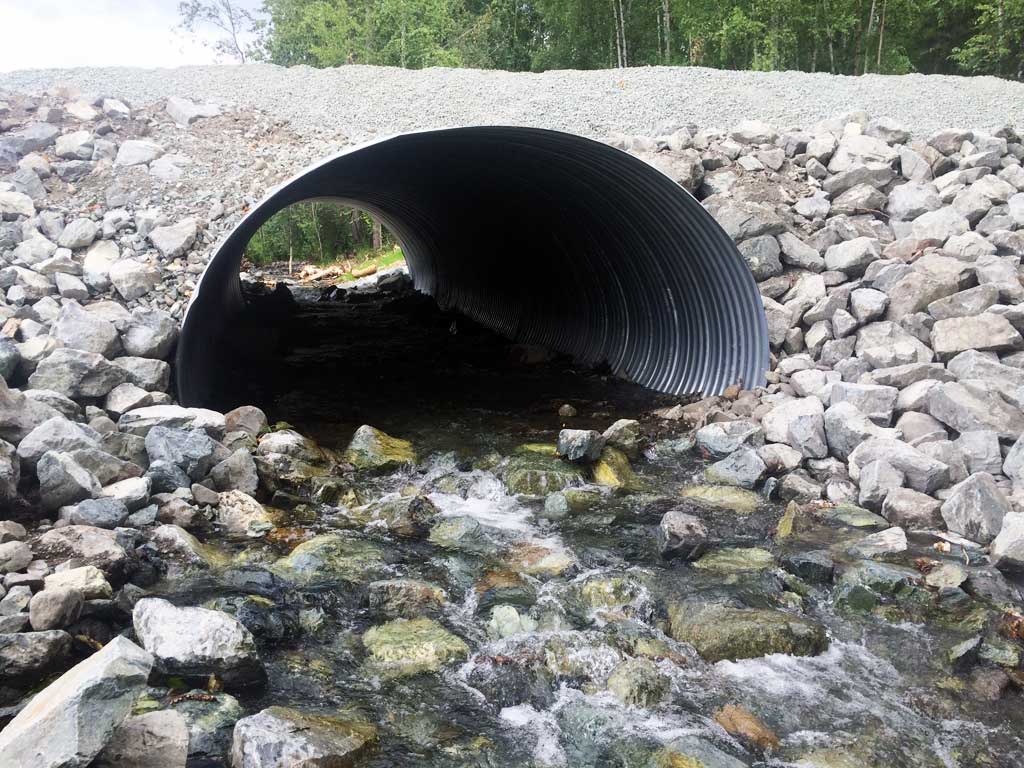

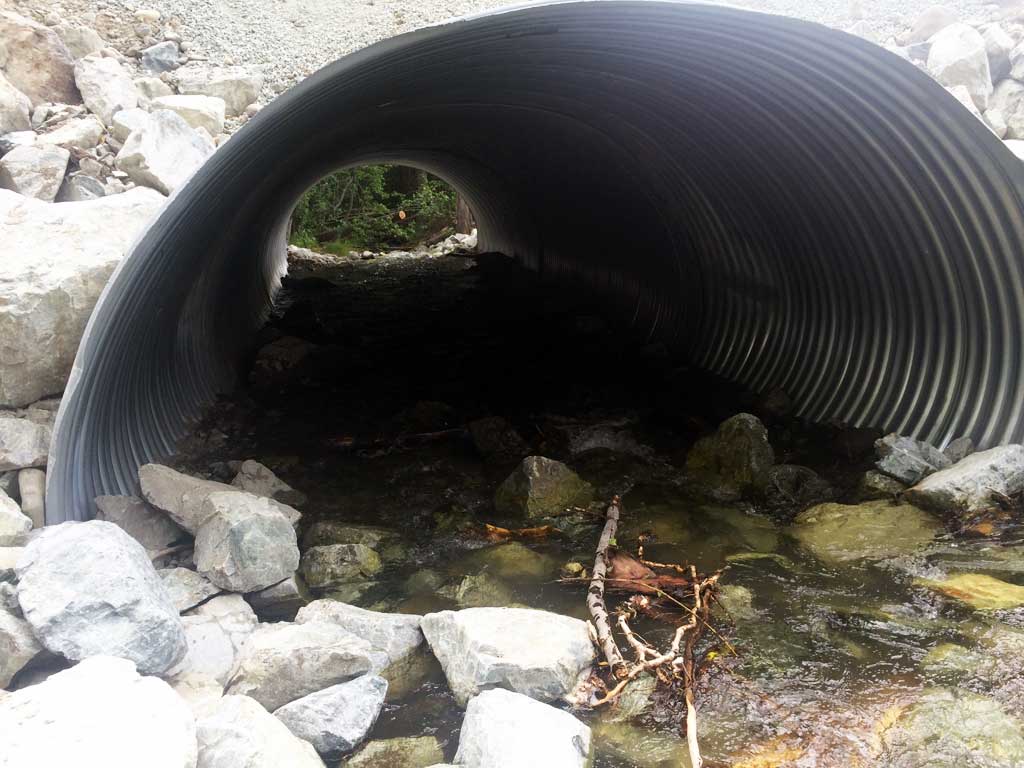

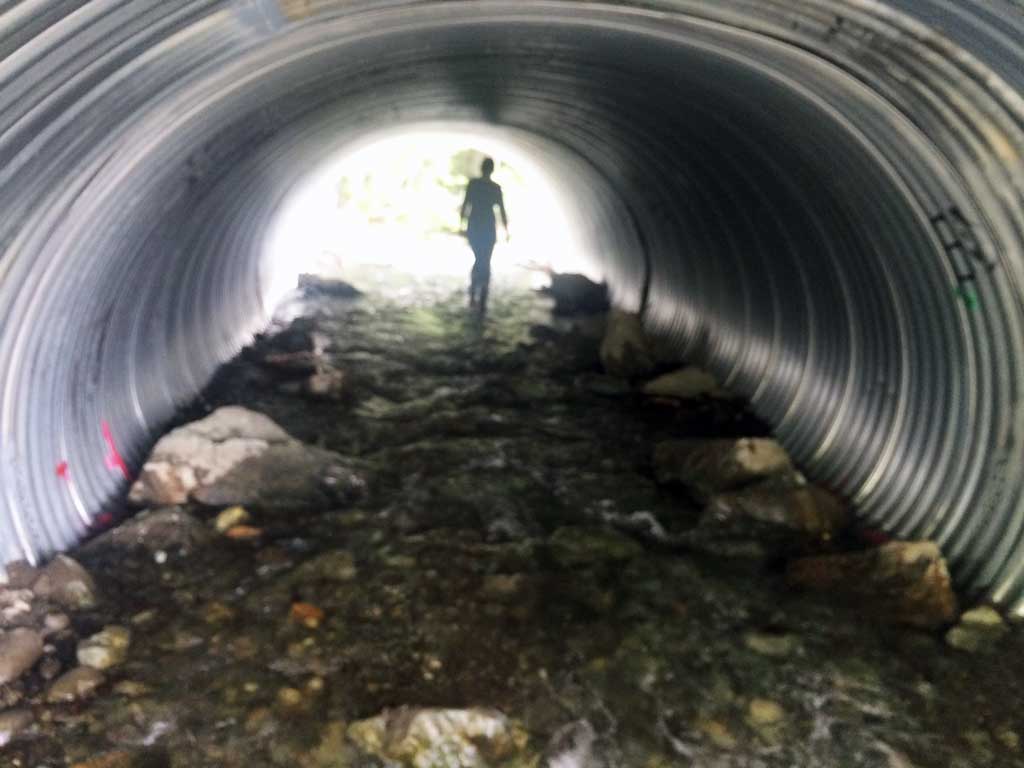

Structure Type: Pipe-arch (Corrugated steel)

Fish Passage Rating: Black

Length(ft):

Inlet Type: Projecting

Outlet Type: Projecting

Corrugation Depth(in.):

Corrugation Width(in.):

Condition Rating(1-5): 5

Approach Angle: 0.0

Sedimentation At Inlet:

Inlet Substrate:

Outlet Substrate:

	Inlet	Outlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):

Backwatered?:

Baffles Present:

Embedded?:

Outfall Height: 0.0

Outfall Type: At Stream Grade

Constriction Ratio:

Culvert Gradient:

Max Slope:

Max Slope Length:

Comments: All measurements taken from site plans and have not been verified with a new survey. Culvert width 13.66 ft. Culvert length 51.4 ft. Culvert gradient 5.7%.
