Fish Passage Site 20303927

Coordinates (dec. deg.): 60.27335°, -149.34631°
Legal Description: S002N001E07
Region: South Central
Road Name: Seward Highway

Datum: NAD83
Quad Name / ITM: Seward B-7
AWC Stream #: 244-30-10010-2250-3026
Stream Name: Unnamed

Elevation:

Site Comments: Snow River Tributary

Survey Date: Jun 11, 2019

Survey UPDATE-KEN37

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Lucas Byker

Overall Fish Passage Rating: Black

Tidal: No
Backwatered:

Step Pools: No
Construction Year:


Comments: Site submitted by HB Lucas Byker, ADF&G. Low flow at inlet only a couple inches deep, stream channel dissipates into wetland upstream.

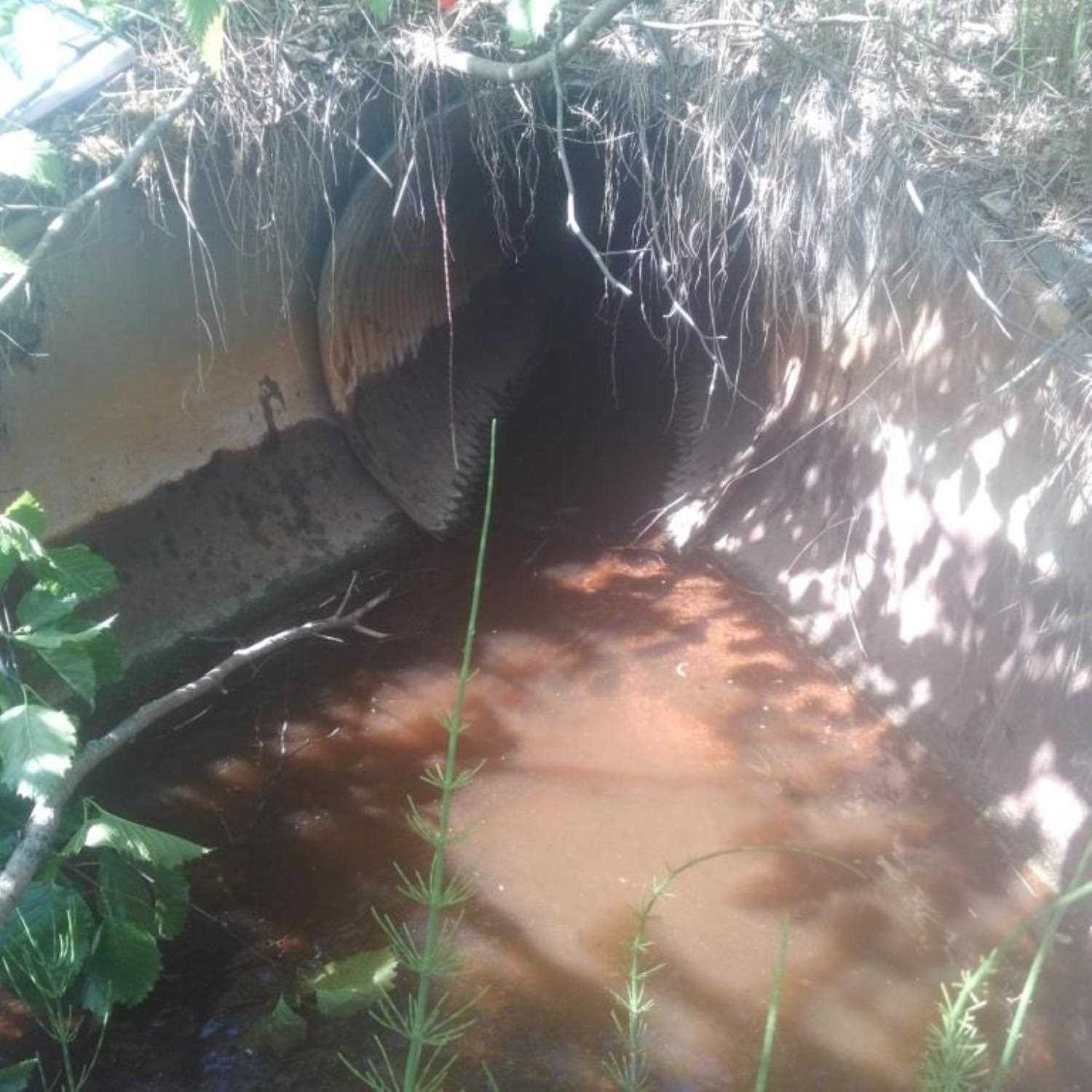

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):
Inlet Type: Flared Inlet
Outlet Type: Flared Inlet
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.0 3.0
Height(ft):3.0 3.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert measurments measured with tape measure.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 0.6666667

Gear Type: Minnow Trap (B) Trap Duration(h): 0.6666667

Fish Observations

Species: threespine stickleback Life History: Unknown
Total Fish Observed: 2 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (1)  Upstream Minnow Trap (1)

Species: juvenile coho salmon Life History: Anadromous
Total Fish Observed: 8 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (8)

Species: juvenile Chinook salmon Life History: Anadromous
Total Fish Observed: 2 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (2)

Species: juvenile/adult Dolly Varden Life History: Unknown
Total Fish Observed: 4 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (4)

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
