Fish Passage Site 20303923

Coordinates (dec. deg.): 60.51058°, -149.46278°
Legal Description: S005N001W21
Region: South Central
Road Name: Seward Highway

Datum: NAD83
Quad Name / ITM: Seward C-7
AWC Stream #:
Stream Name: Unnamed


Site Comments: Tributary to Moose Creek

Survey Date: Jun 04, 2019


Project Supervisor: Gillian O'Doherty, ADFG
Observers: Lucas Byker

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:

Site Observations:

  1. Outfall height red

Comments: Site information submitted by Lucas Byker, ADF&G, HB.

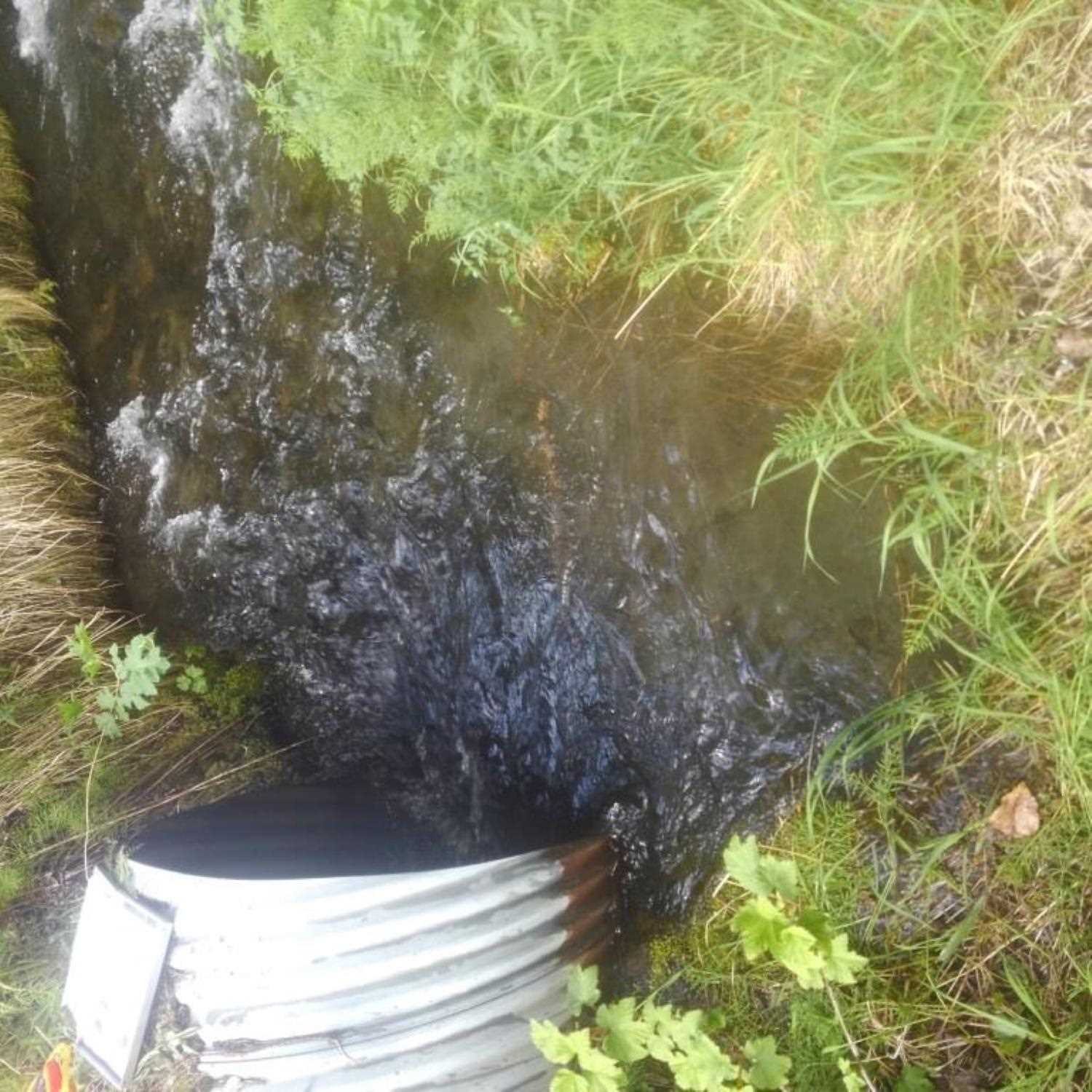

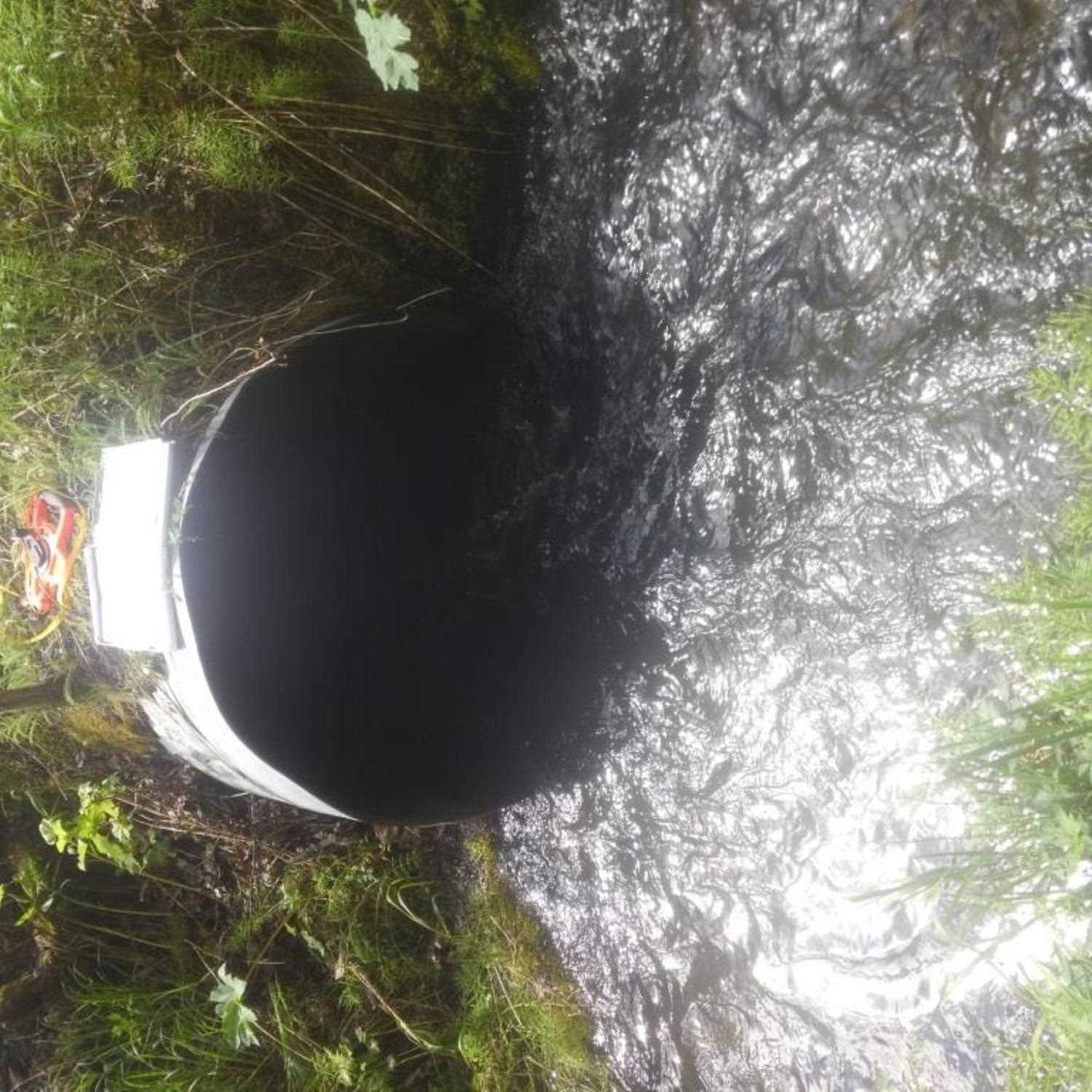

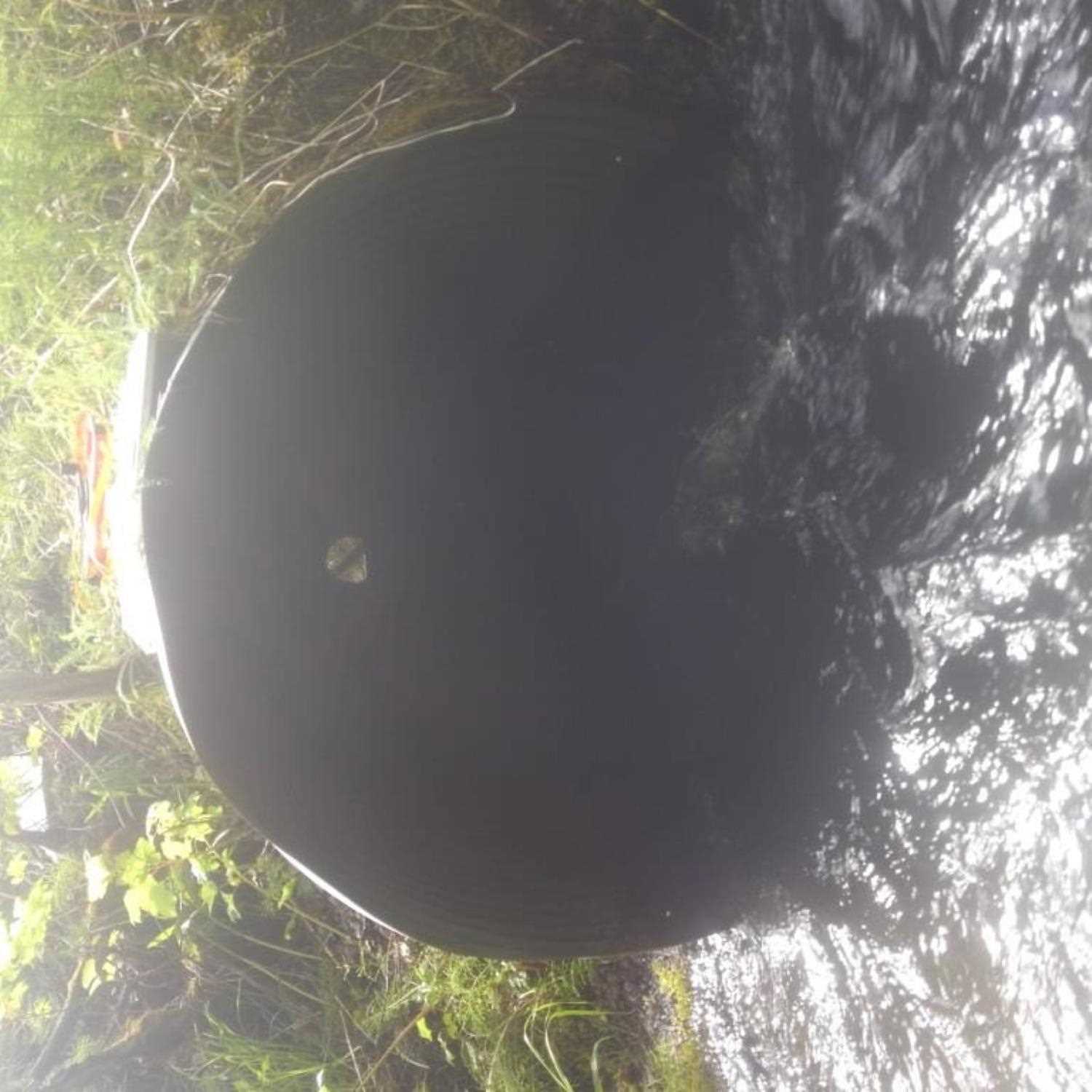

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
Width(ft):4.0 4.0
Height(ft):4.0 4.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present:

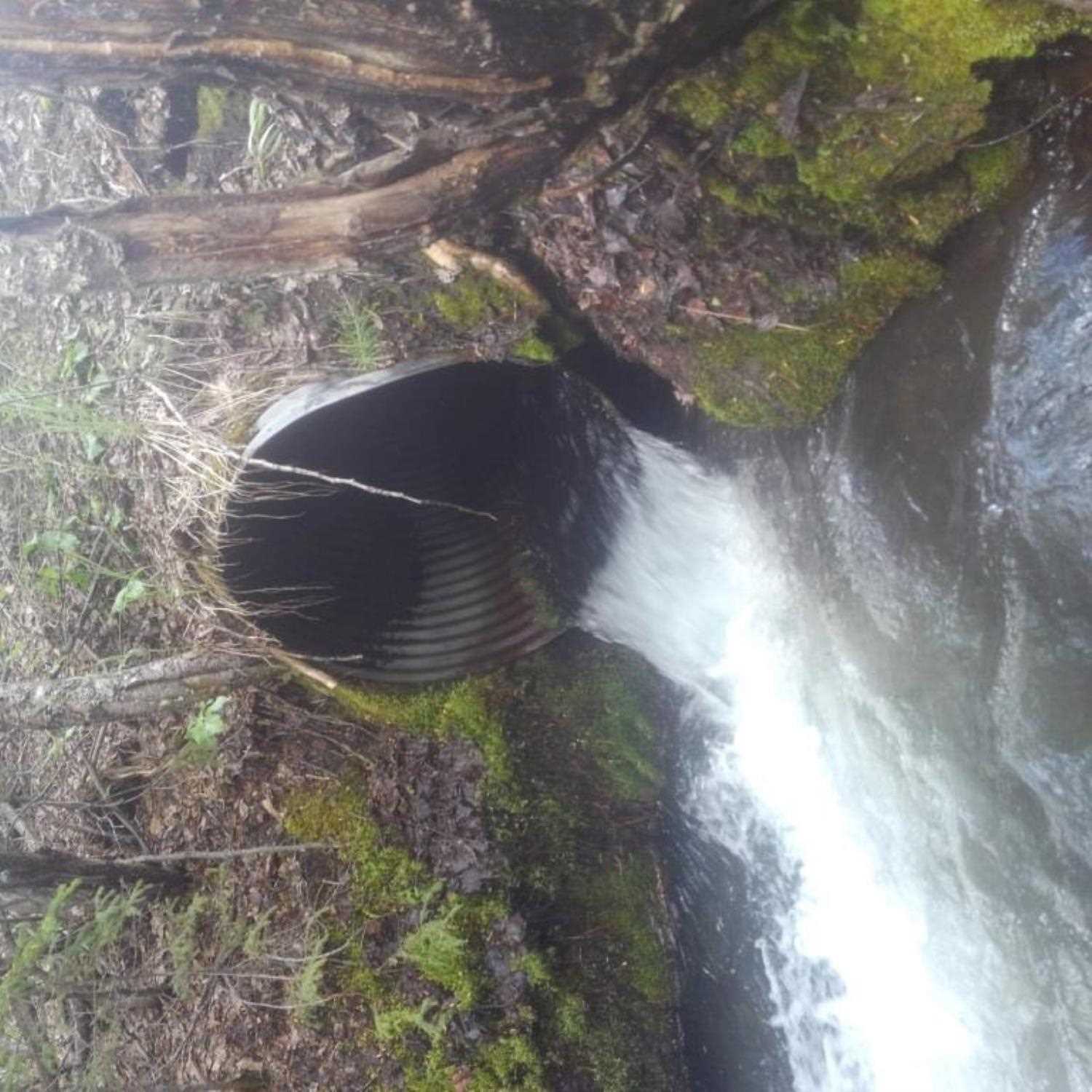

Outfall Height: 0.7
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

Comments: Culvert dimensions and outfall height was measured with tape measure.

  Culvert Observations:
  1. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.


No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 1.5833334
Gear Type: Minnow Trap (B) Trap Duration(h): 1.5833334

Fish Observations

Species: Dolly Varden Life History: Unknown
Total Fish Observed: 1 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (1)
